Description

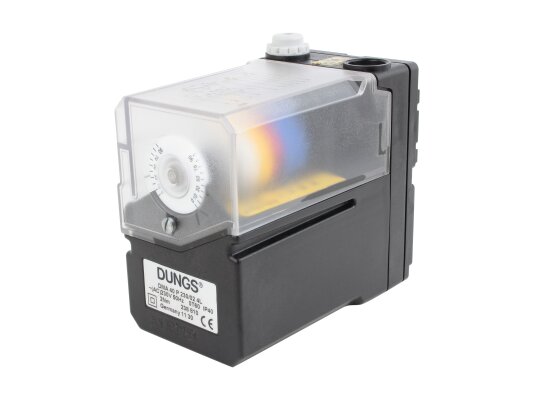

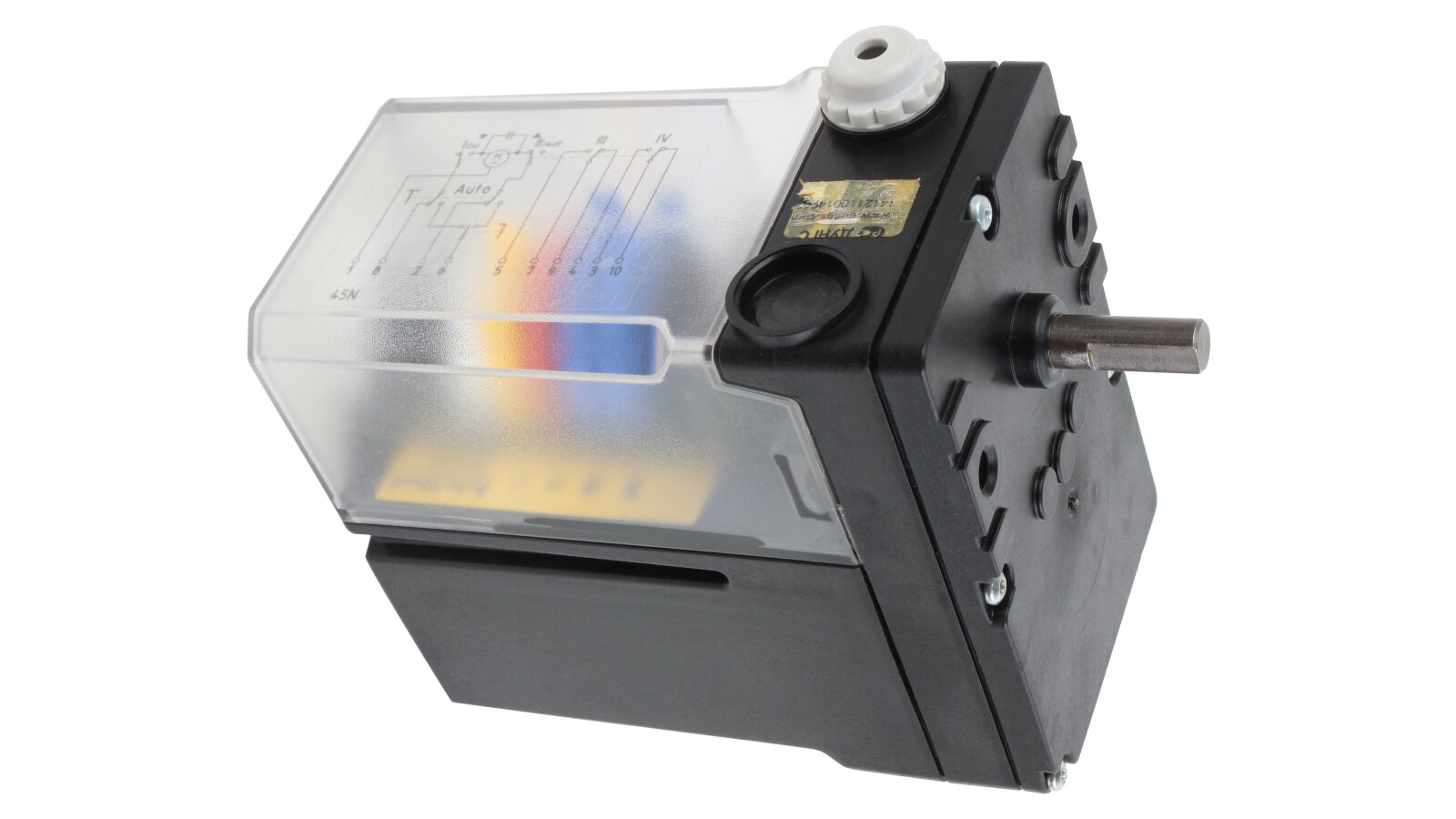

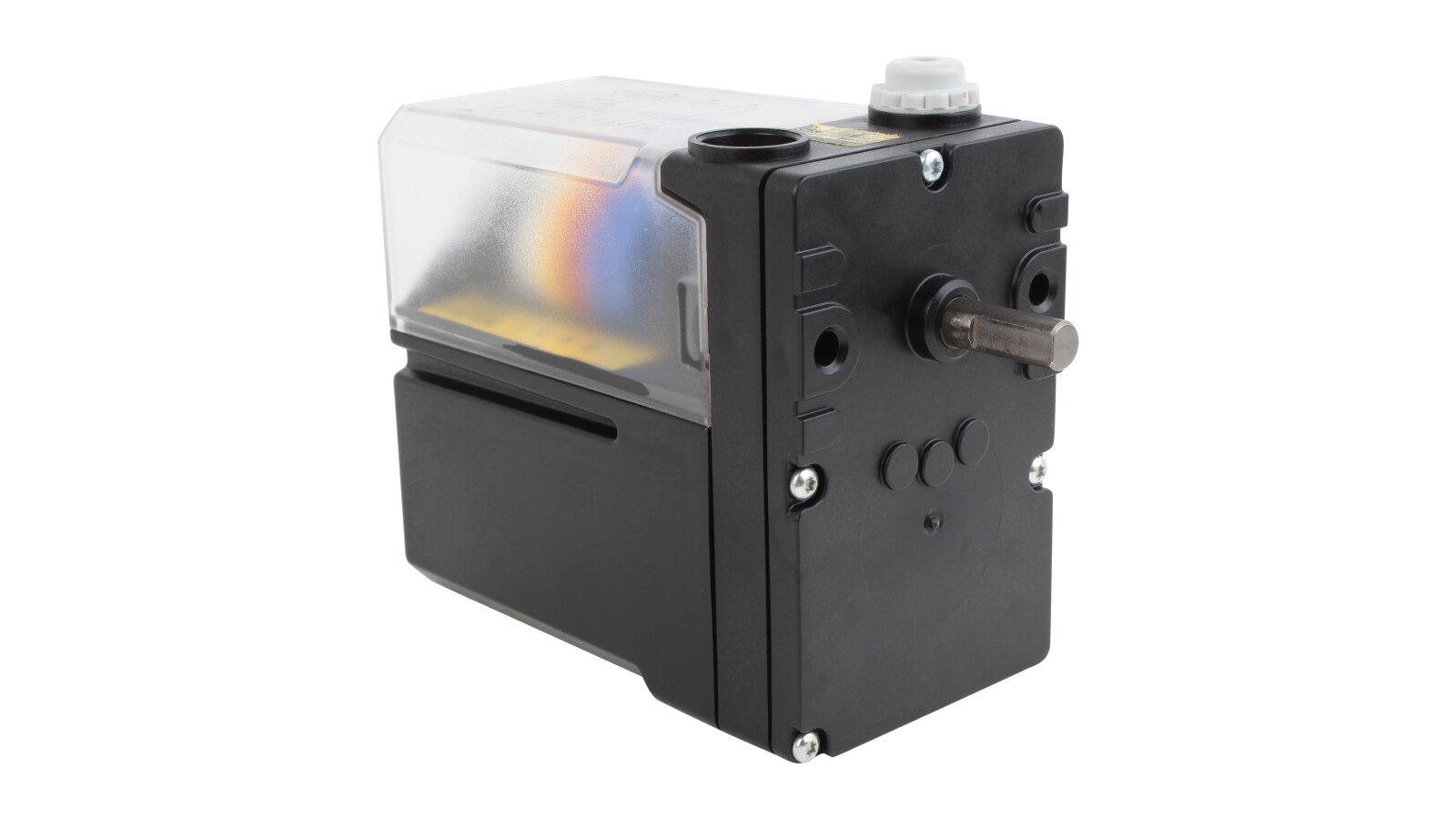

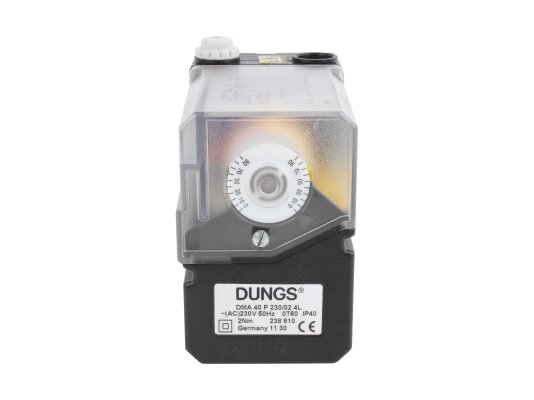

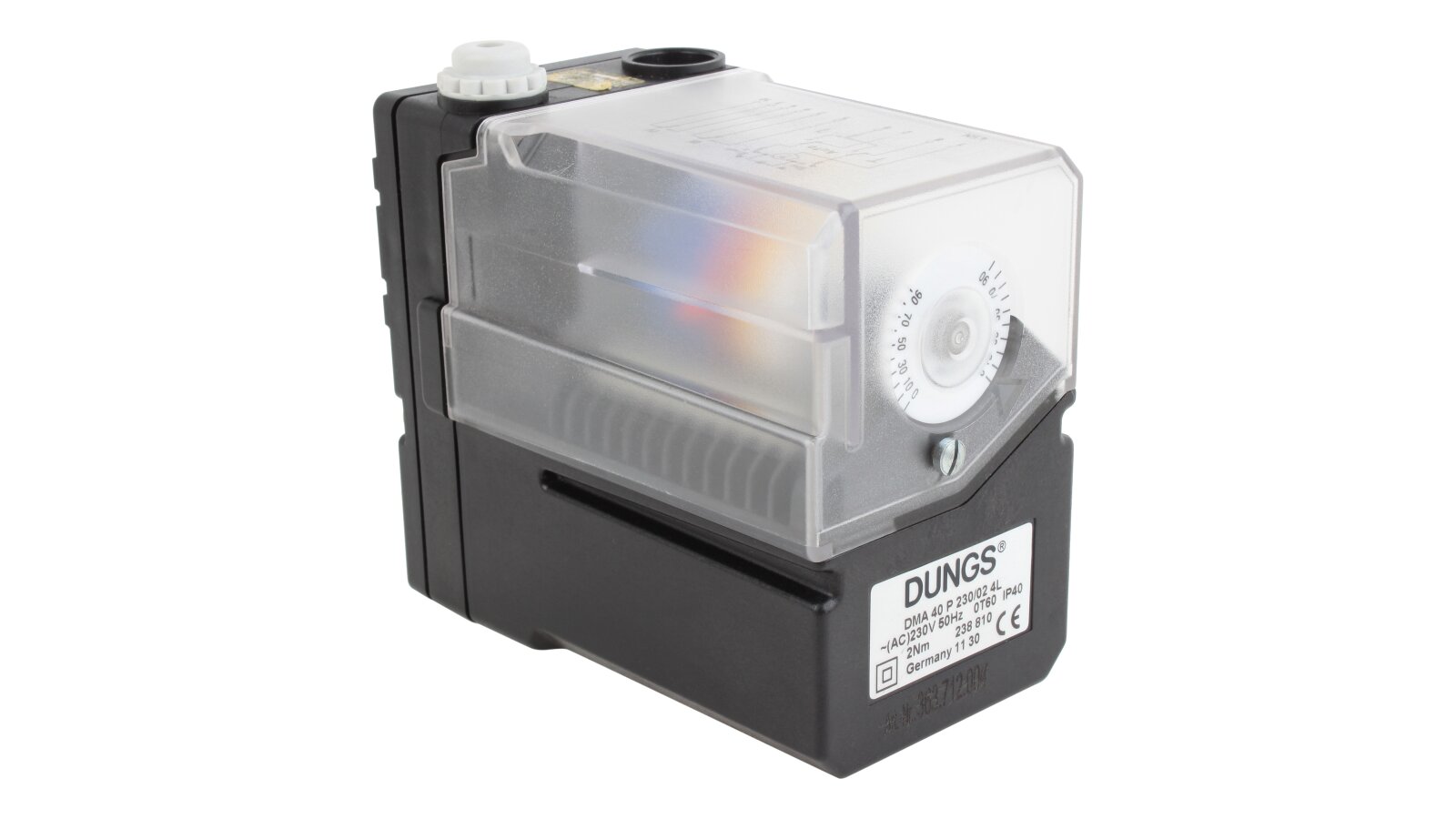

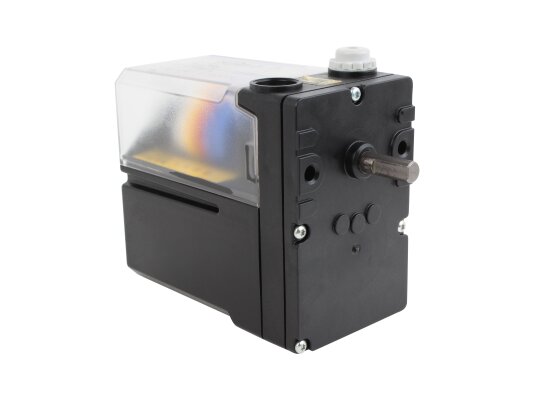

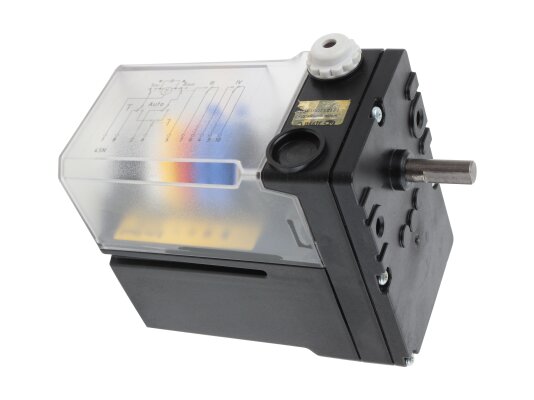

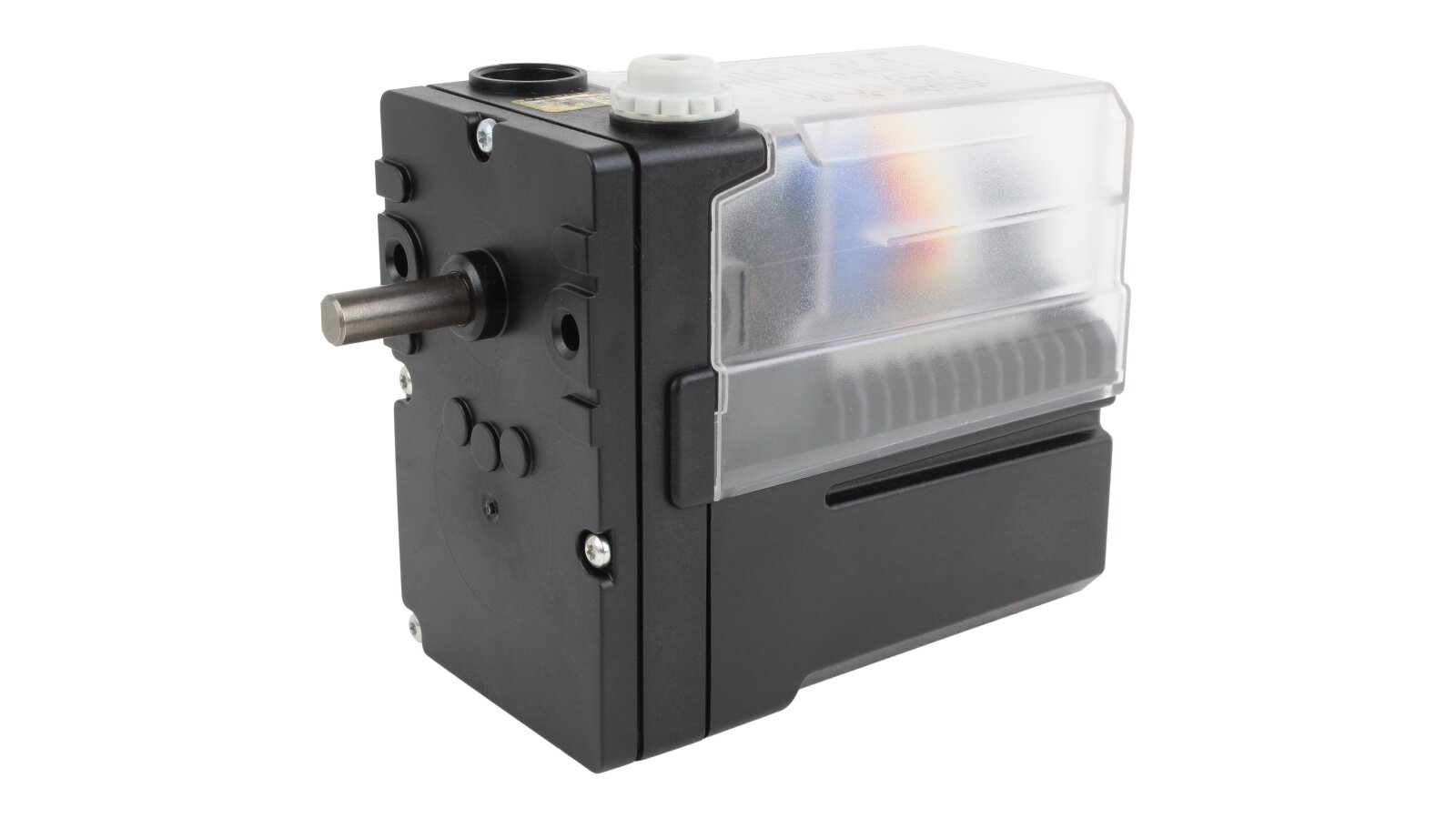

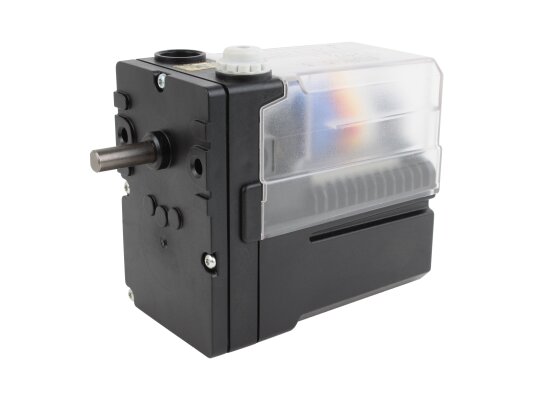

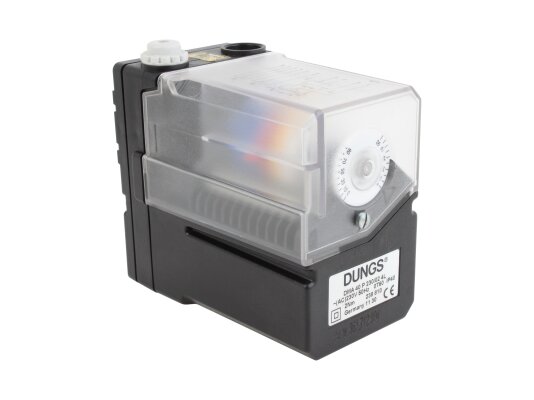

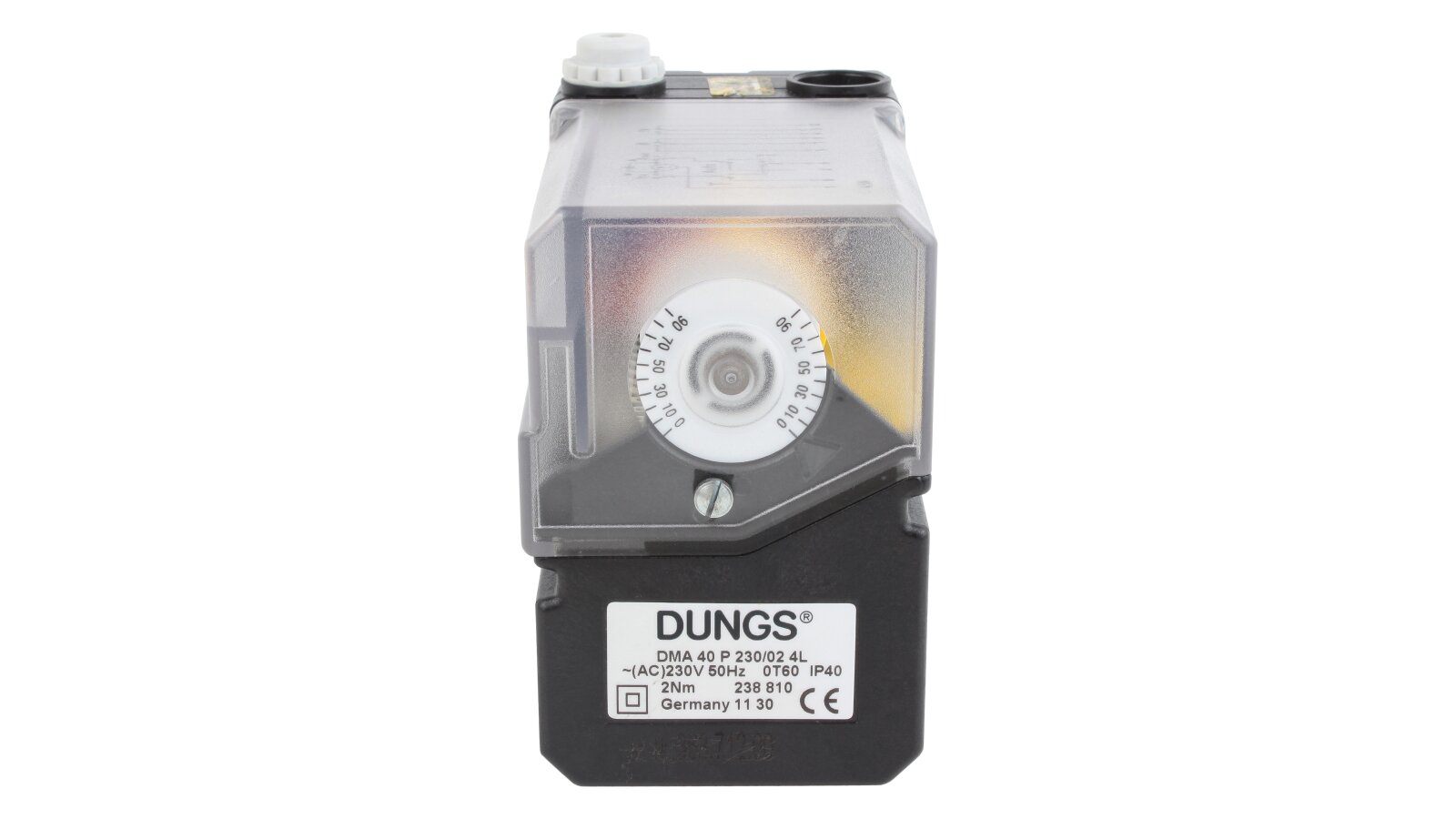

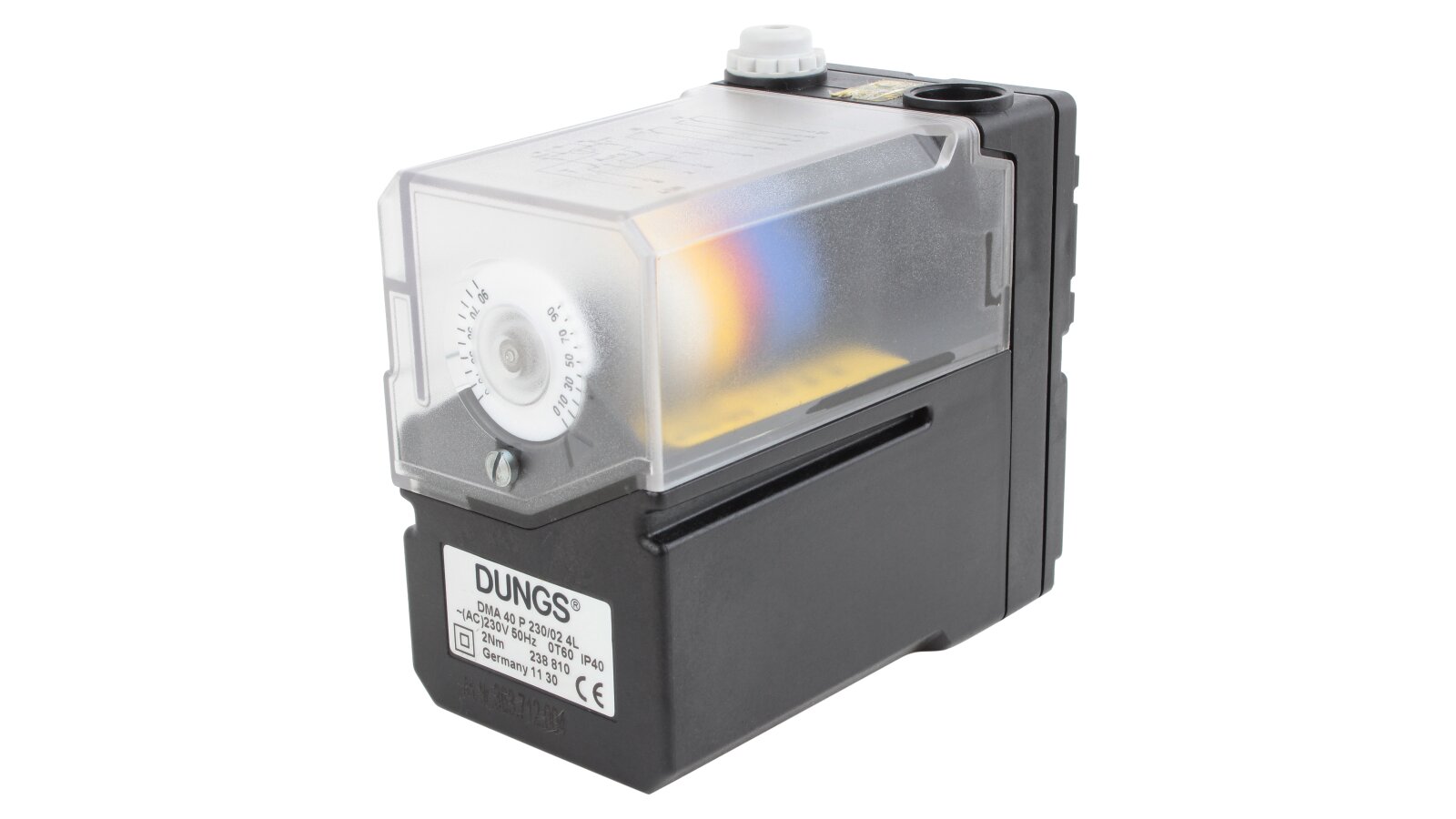

The Dungs DMA 40 P 230/02 4 L servo drive is designed to control the position of the damper during the regulation of the fuel-air ratio when creating a combustion mixture. It is used for Dungs DMK dampers. Provides positioning accuracy, stable switching and low power consumption. Can be retrofitted with a potentiometer for controlling and indicating the damper angle.
Key features
Power supply: 230 V, 50 Hz.
Opening time at 90º: 40 sec.
Power consumption: maximum 3 VA.
Electrical component protection: IP 40.
Functional temperature: 0…+60 °C.
Design and features
equipped with 4 cams for manual adjustment of the rotation angle;
complies with the European electrical protection standard IP 40;
can be retrofitted with an electronic device for position control and indication;
has an analog output of the control signal;
operates from a 220-volt electric motor with left-hand shaft rotation;
has manual or automatic control;
guarantees the accuracy of the damper opening angle from 0 to 90 °;
can be fixed in any position;
has low energy consumption;
is not subject to maintenance during operation due to the use of permanent lubrication;
has a mechanical position indicator in the design, visible from the outside;
is used to control the supply of gas or air to the burners.
More complete data on the model is reflected in the Dungs documentation. Before buying a Dungs DMA 40 P 230/02 4 L servo drive, part number: 238810, it is advisable to compare the parameters with the specification of the burner device. For detailed characteristics, contact an ANKAS specialist.
