Description

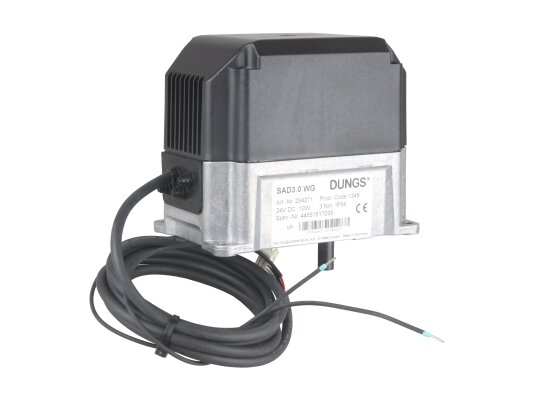

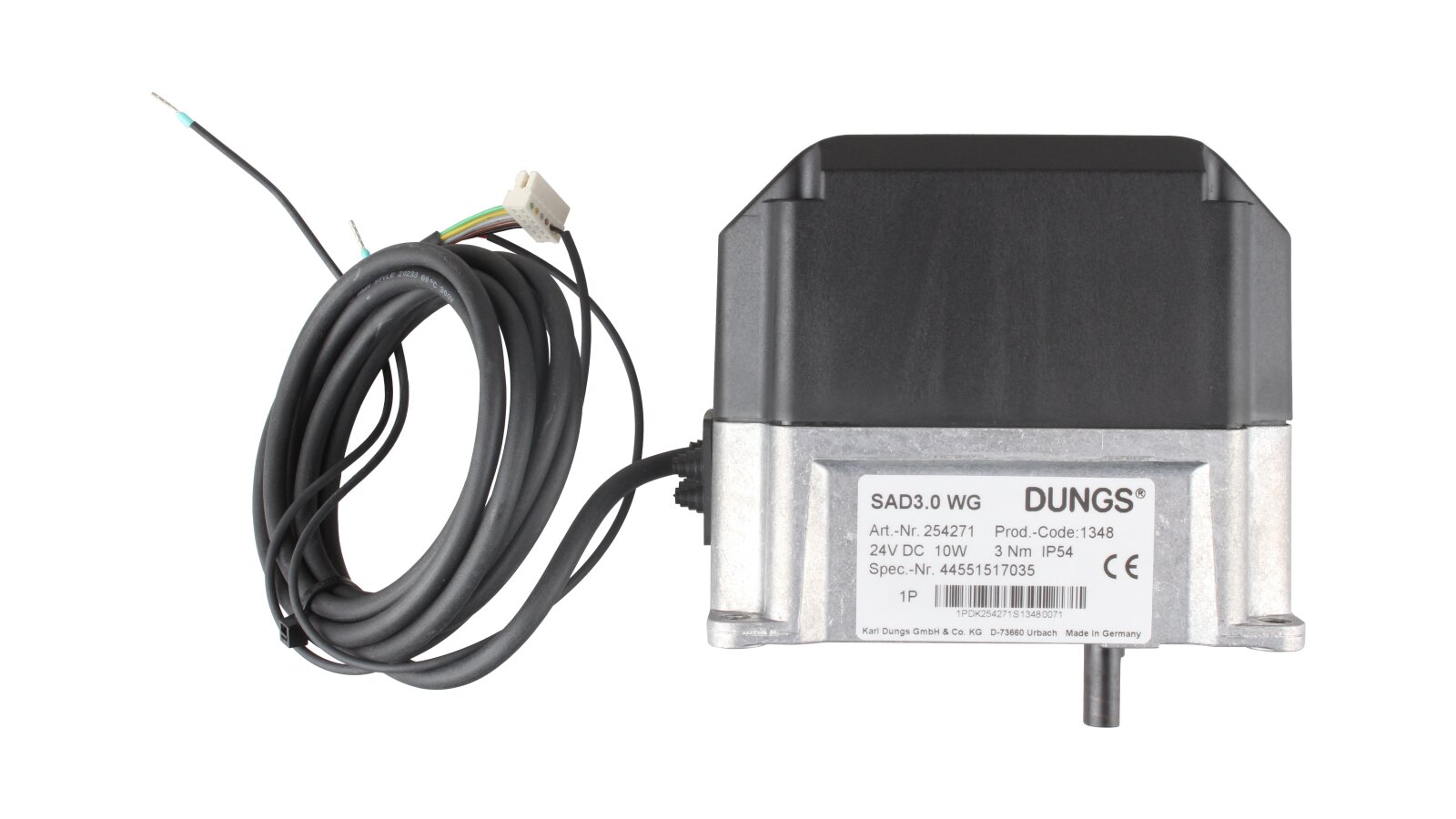

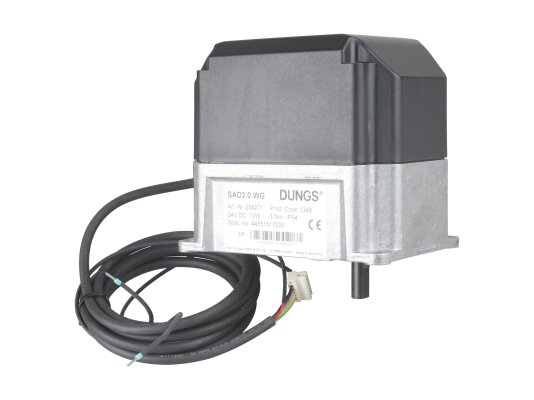

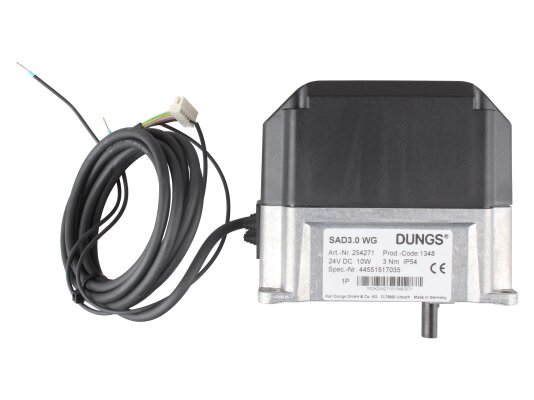

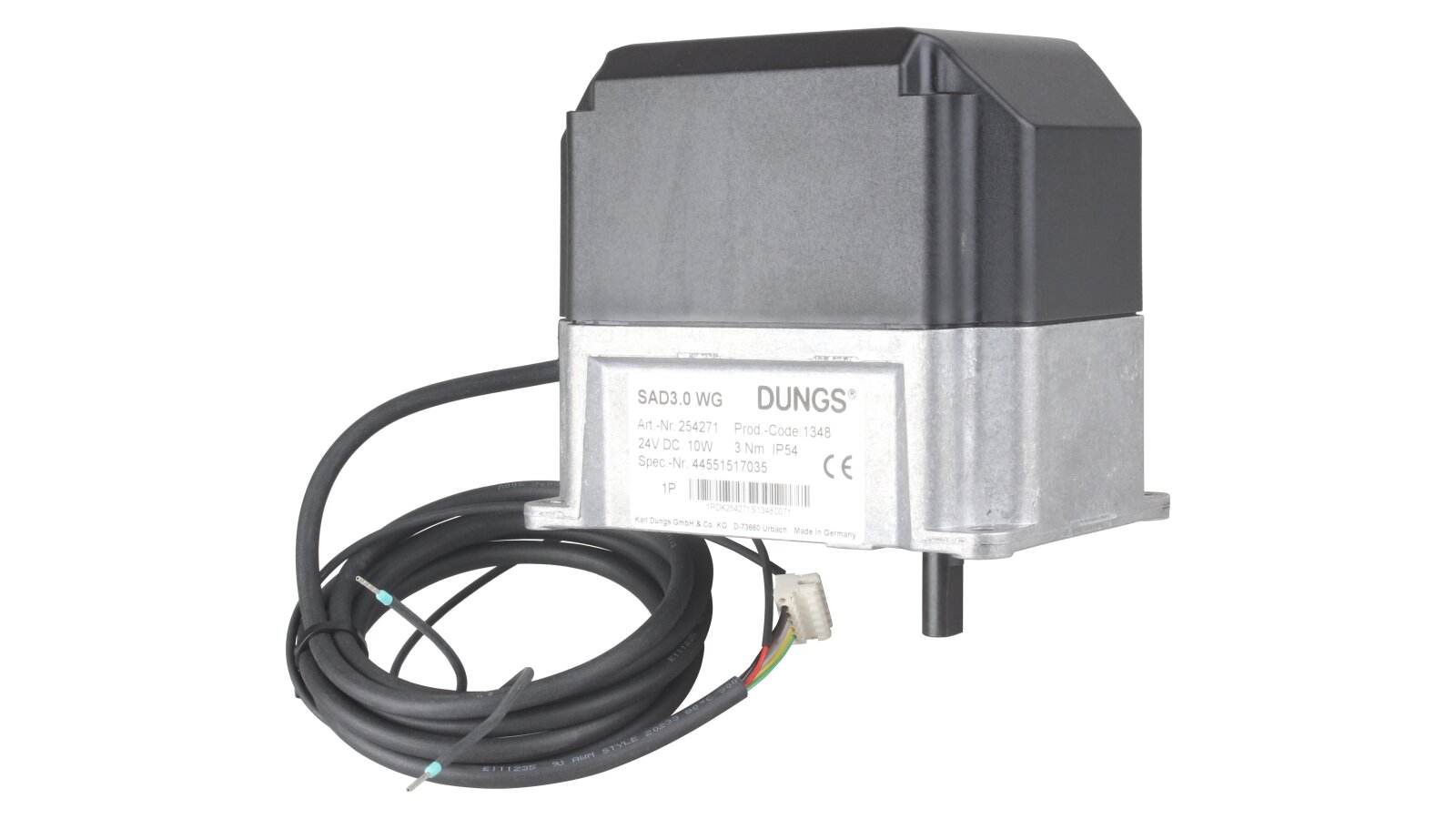

The Dungs SAD 3.0 WG servo drive is part of the safety system and automatic fuel supply to the burner. It is responsible for regulating the position of the air damper when preparing the fuel mixture for combustion, providing a sufficient amount of oxygen for efficient combustion of the fuel. It contributes to an increase in the efficiency of the heating system. The model is designed for Baltur burners.
Key parameters
Connection to power source: 24V DC.
Opening time at an angle of 90º: programmable.
Power consumption: 10 W.
Torque 3 Nm.
Protection class: IP 54.
Design and features
has a programmable damper rotation time;

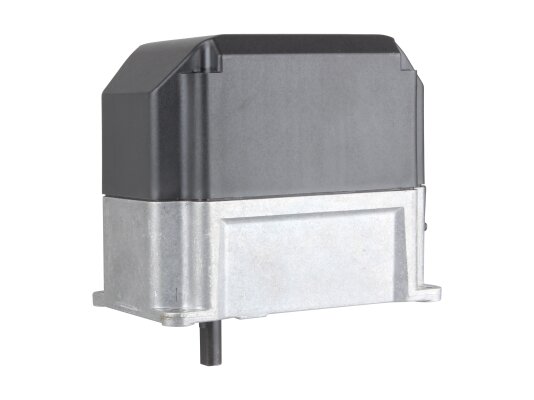

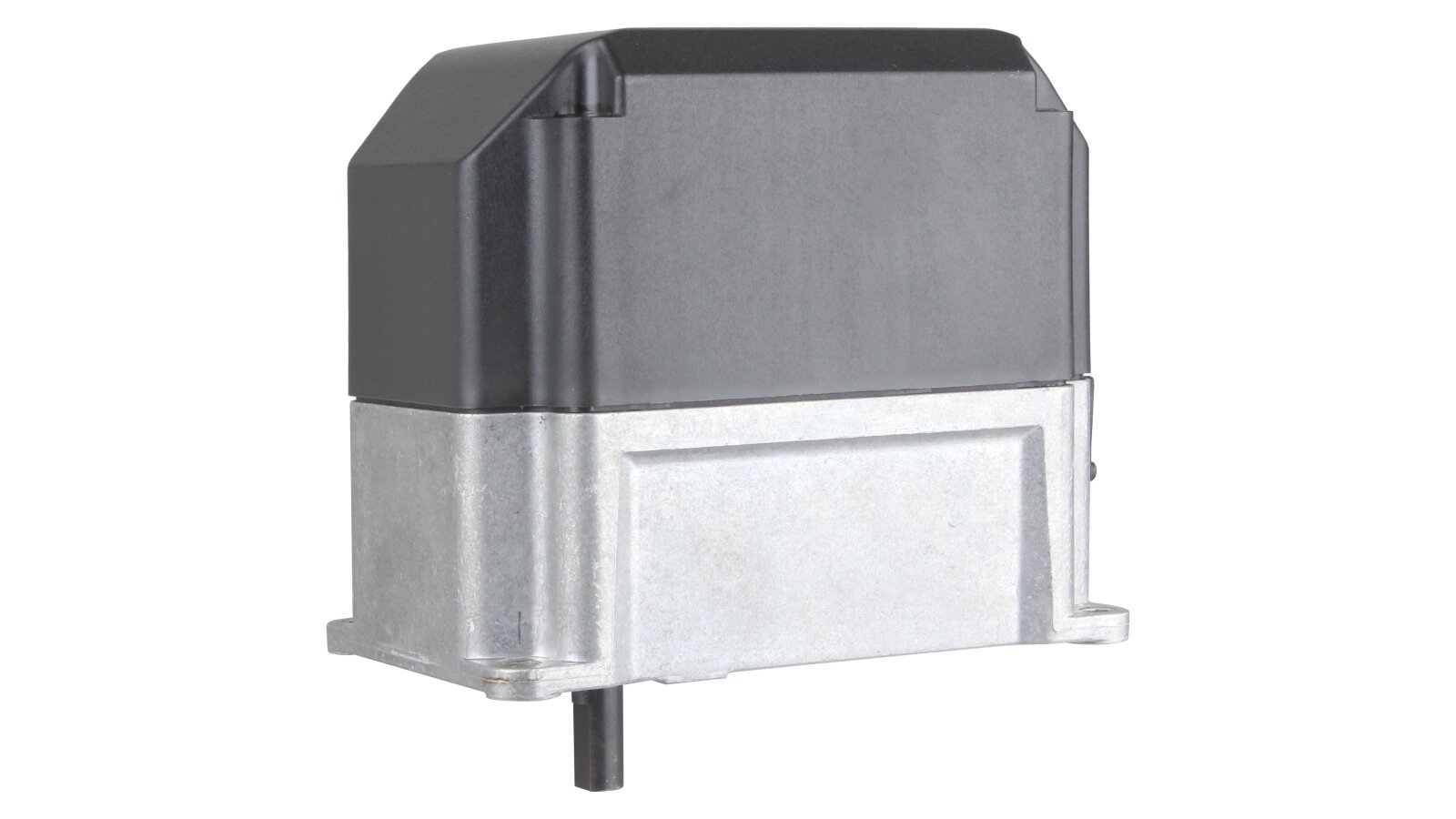

equipped with a reinforced impermeable casing with a cast aluminum base and impact-resistant plastic casing;
manufactured according to the IP 54 protection standard, which prevents dust and water particles from penetrating into the structure;
operates from a low-voltage electric motor;
ensures high switching accuracy;
consumes a small amount of electricity;
installed on Baltur burners;
supplied complete with a 2-meter power supply cable.
The servo drive is certified, has the necessary approvals and permits for operation as part of equipment consuming explosive types of fuel.
To buy the Dungs SAD 3.0 WG servo drive at a dealer price, place an online order in the ANKAS online store.
