Description

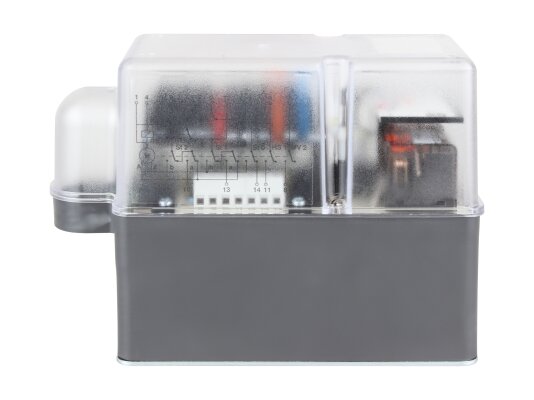

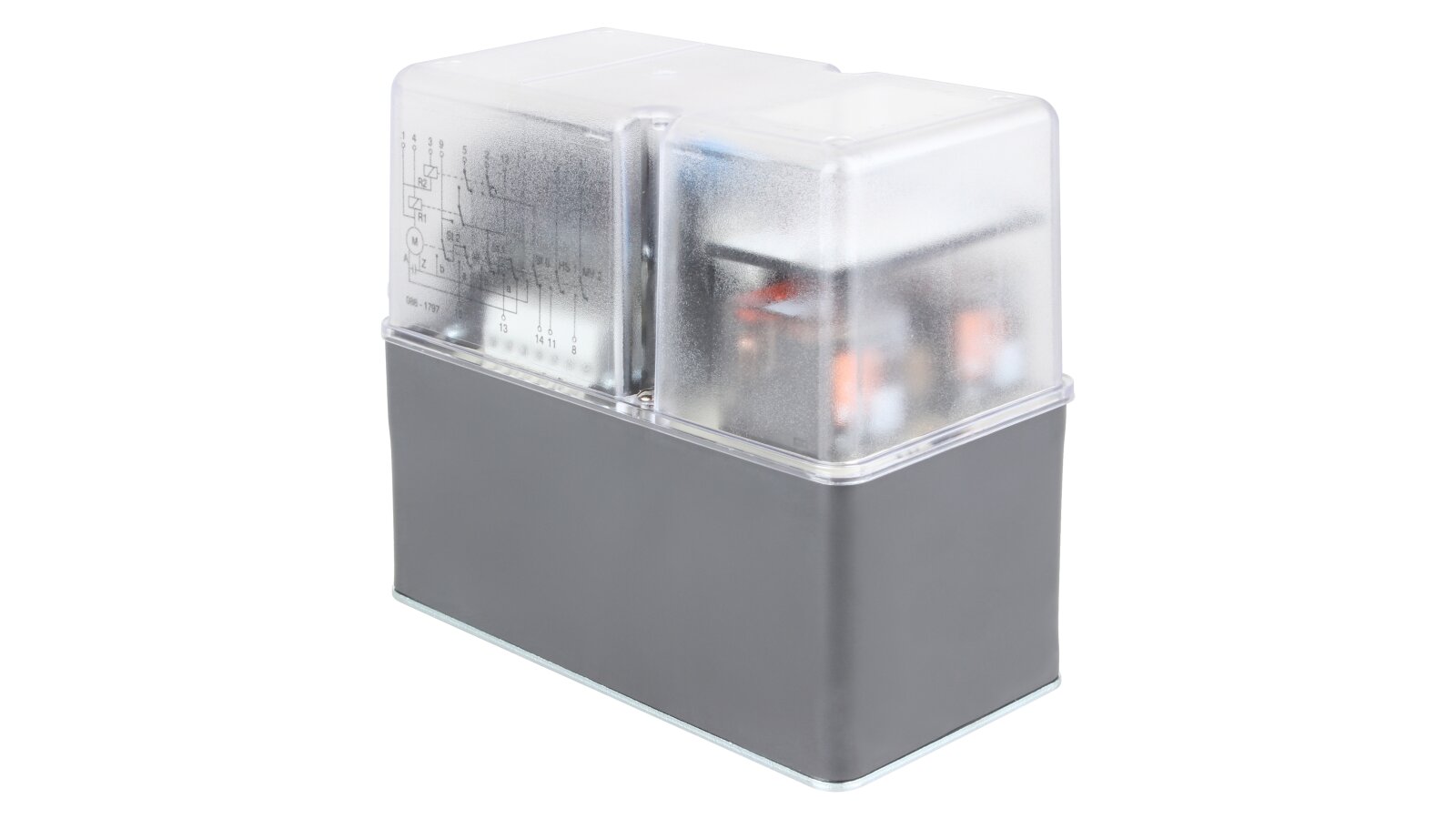

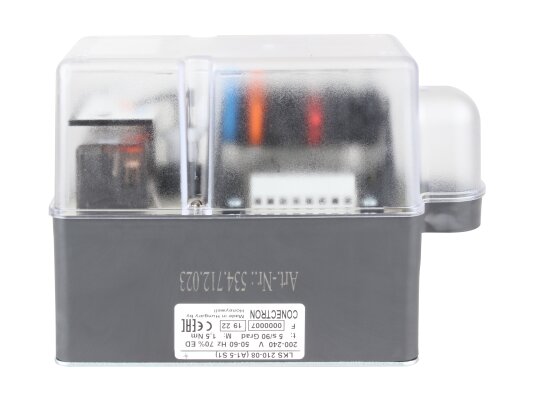

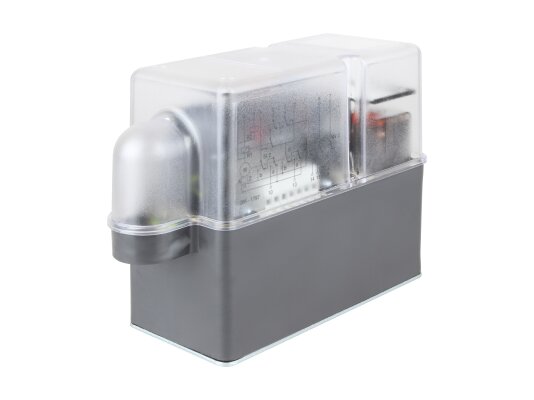

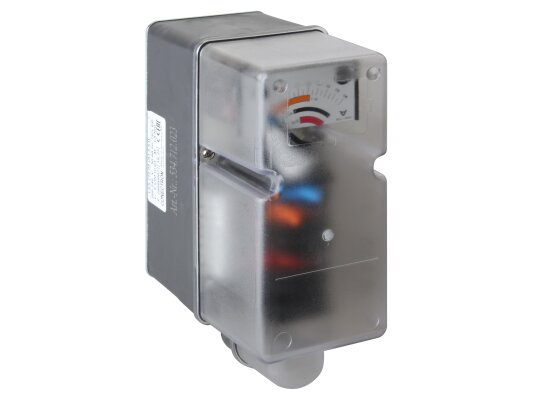

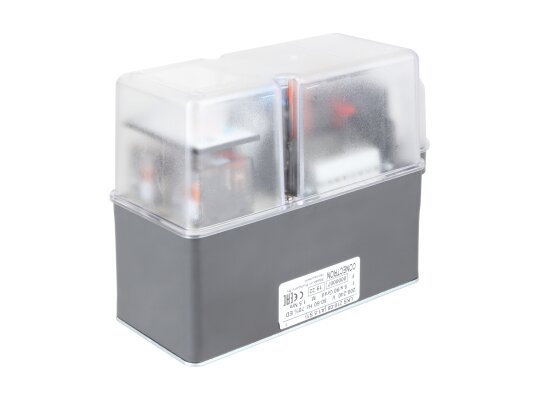

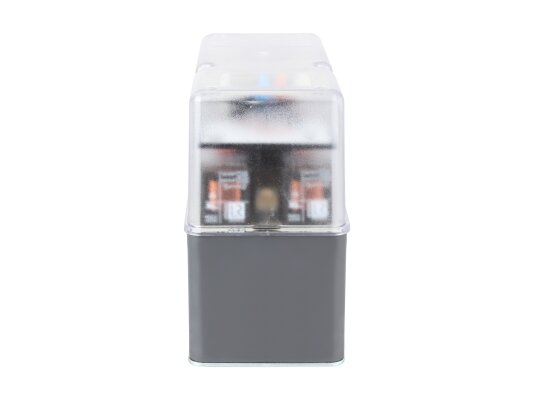

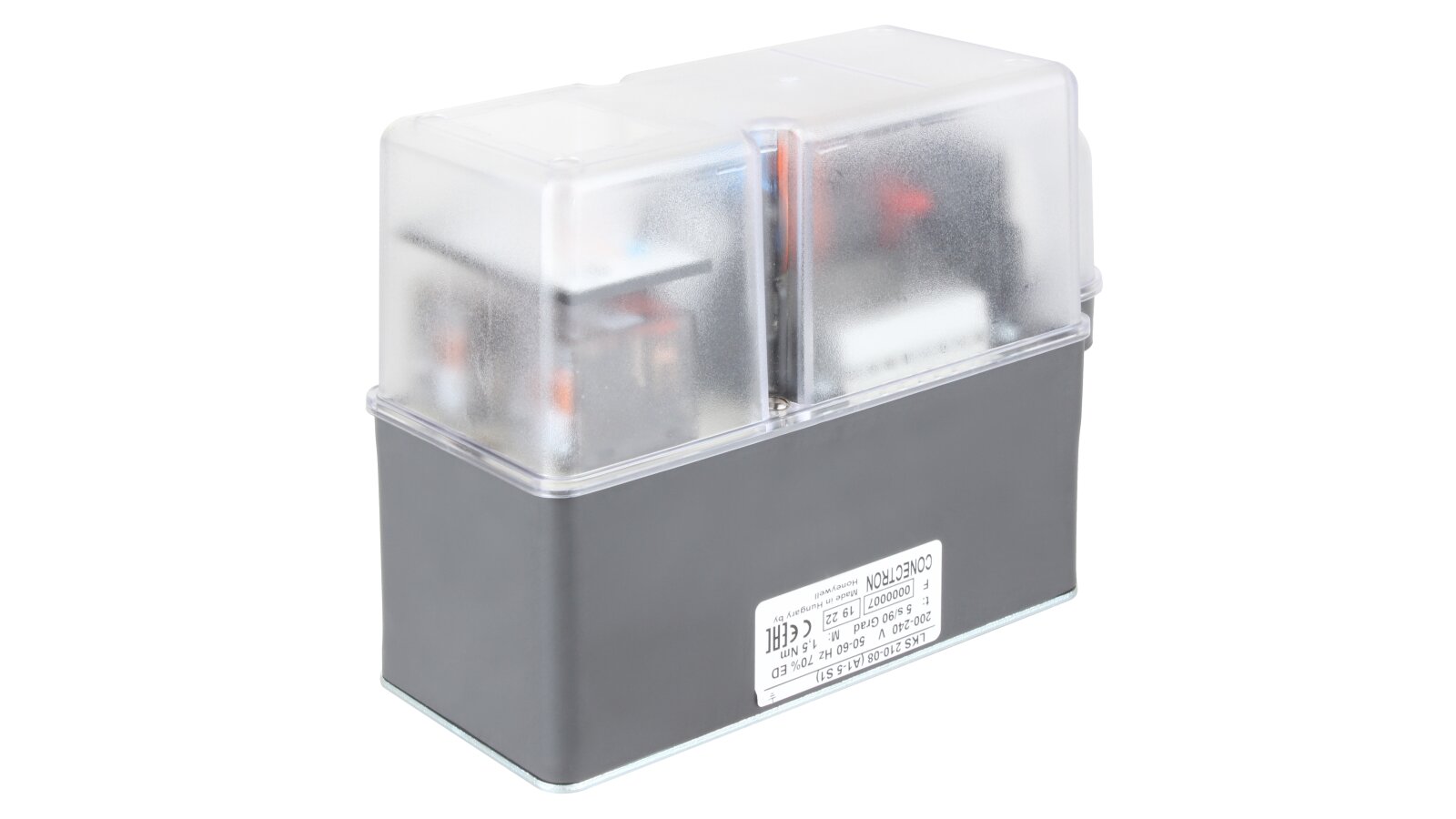

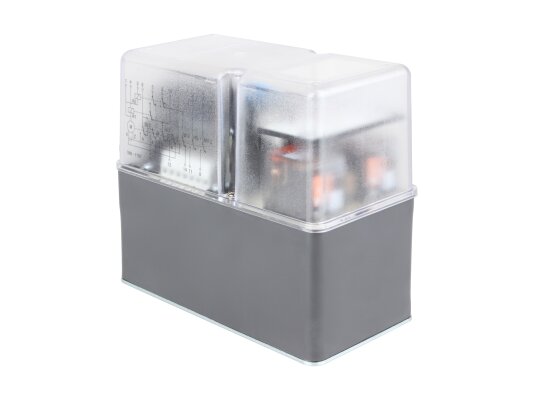

Servo drive Riello LKS 210-08 (A1-5 S1), Part Number: 3012318 is designed for use in two-stage fuel oil and gas burners with a fully closing air damper. It operates under automatic control. It ensures the damper movement taking into account the system needs and the required volume of air supply to form the optimal composition of the fuel-air mixture.
Main parameters and features:
power supply from the 200-240 V network;
opening angle adjustment range - 0 ... 90 °;
protection of electrical components from dust and splashes of class IP44;
duration of full opening (90 °) - 5 sec.;
stable speed regardless of changes in voltage or load;
precise movement in accordance with the settings;
heat-resistant, shockproof housing;
transparent plastic cover to protect the adjustment unit and ease of access;
operating temperature range: -10…+60 °C;
electrical connection via terminal blocks;
built-in position indicator;
auxiliary switches, drive rotation in both directions;
placement in the system in any position;
low maintenance requirements, permanent lubrication.
Design and setup

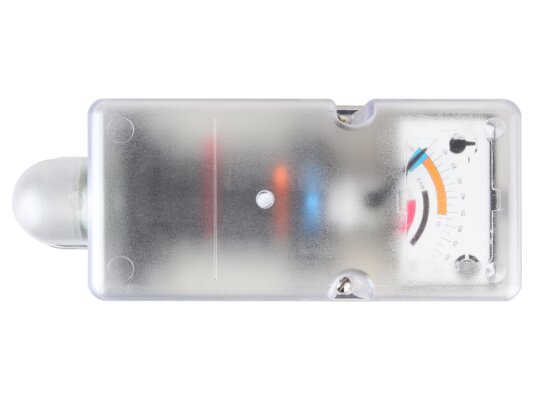

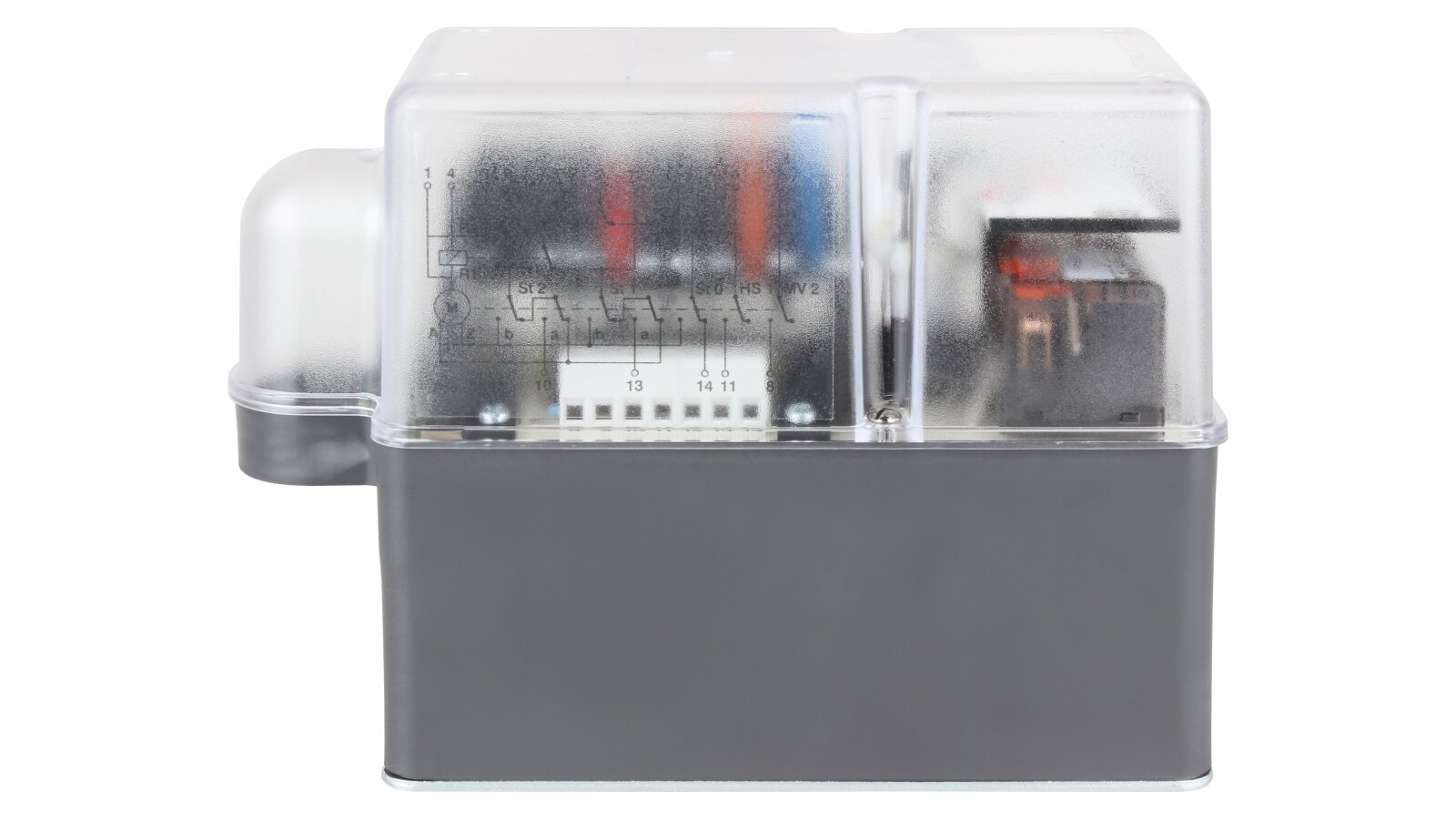

The Riello LKS servo drive is assembled in a compact housing and consists of an electric motor connected to a reduction gear. The worm self-locking gear is the last stage, providing the entire range of positions. To adjust the opening angle of the damper, levers with color coding of the performance level (closed position / low / high performance) are used. The current position of the air damper is displayed on the scale, which is located under the cover.
