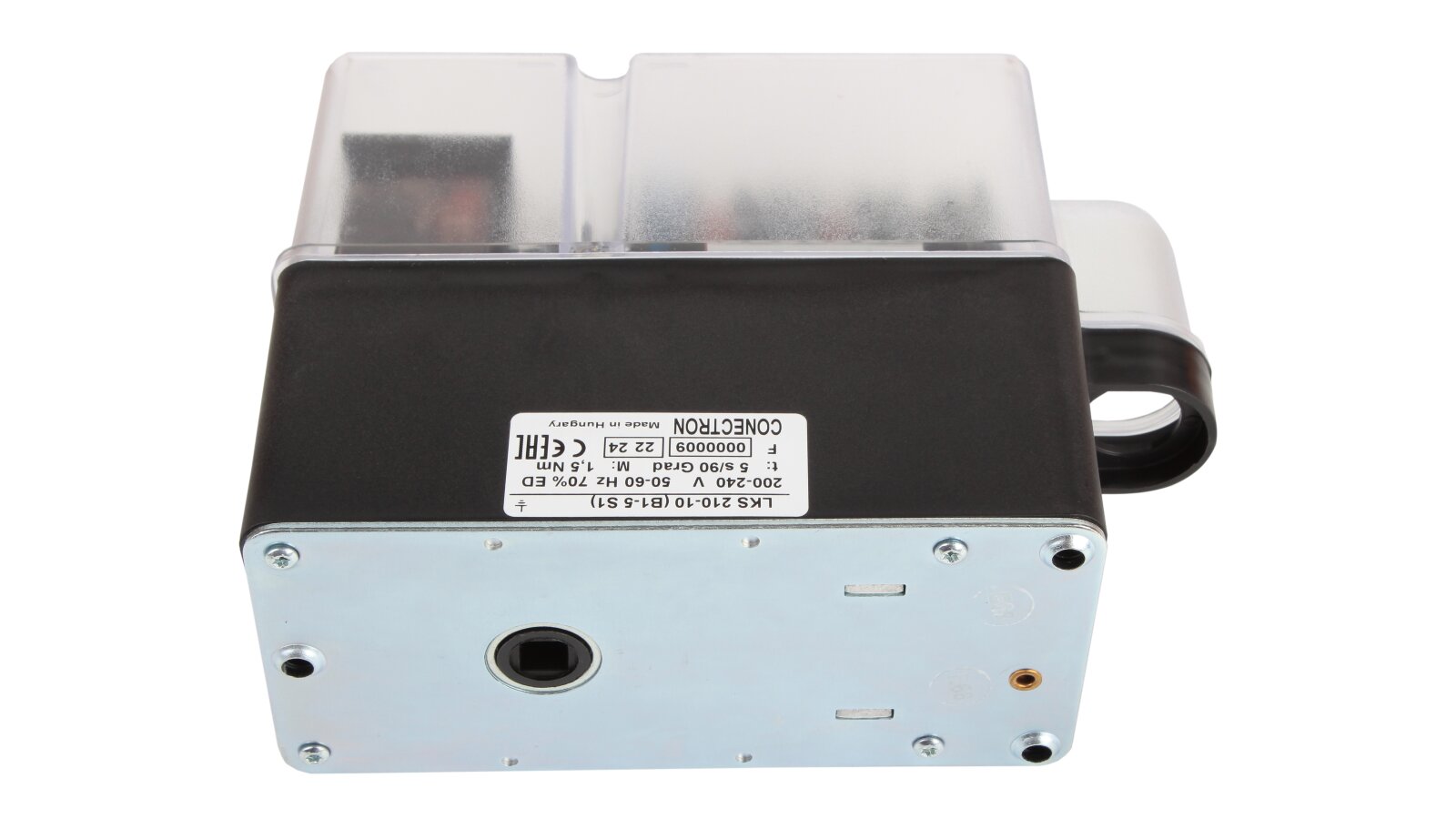

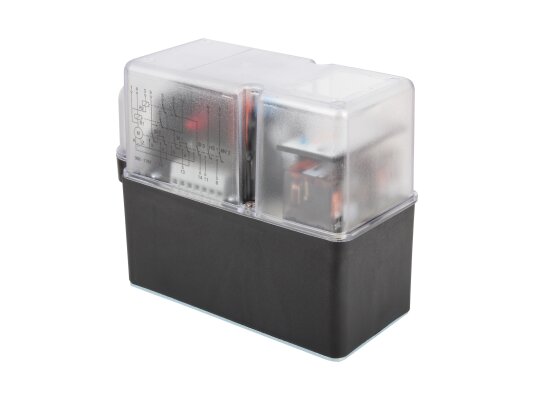

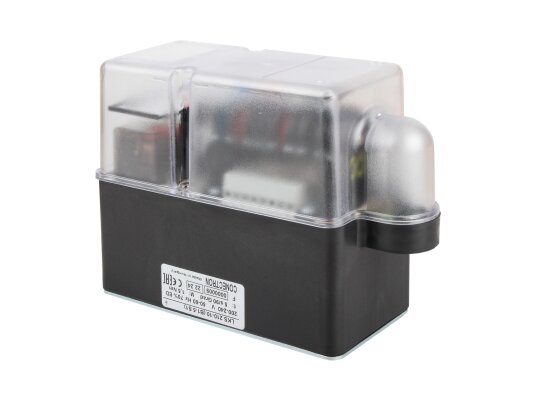

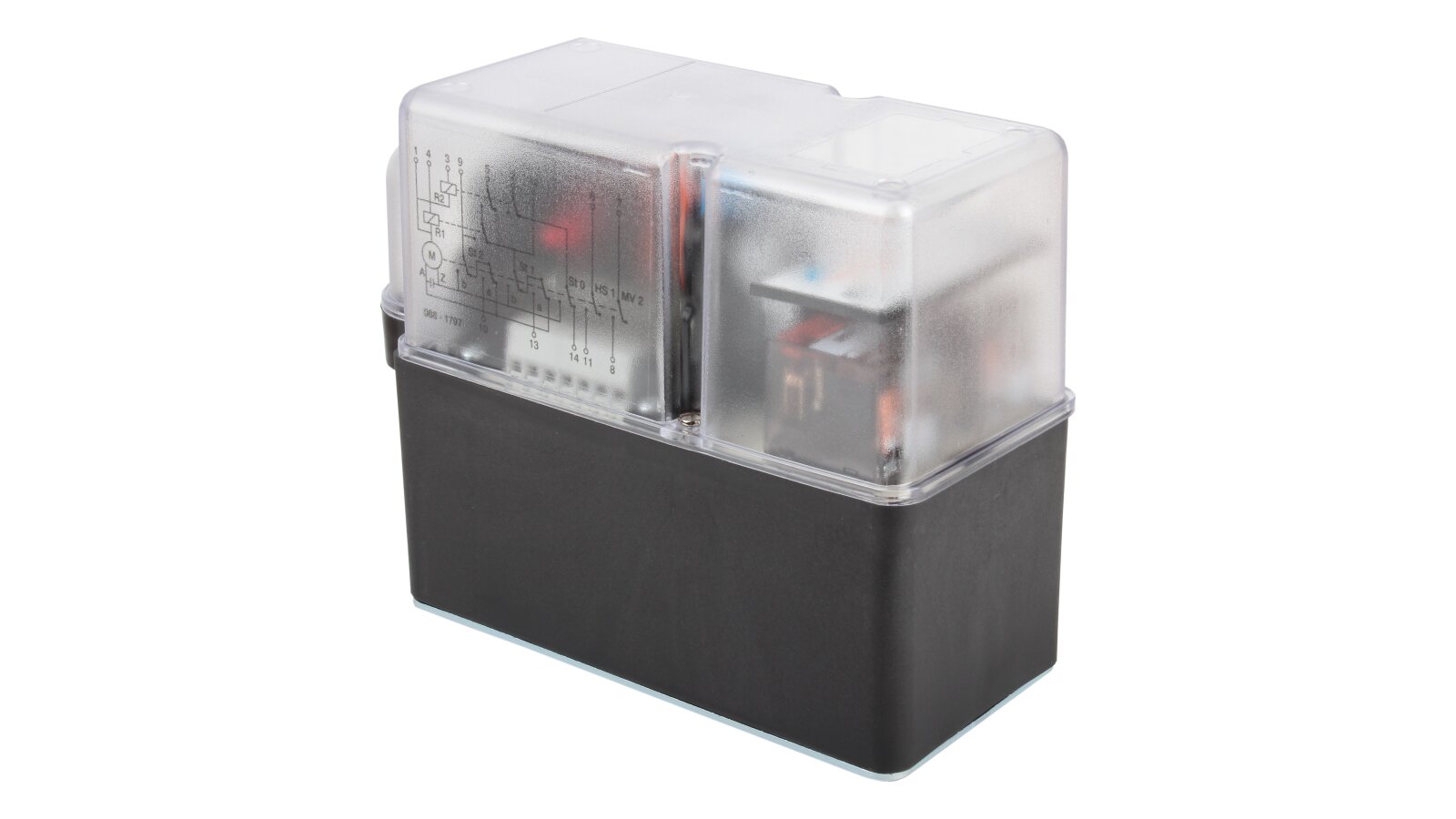

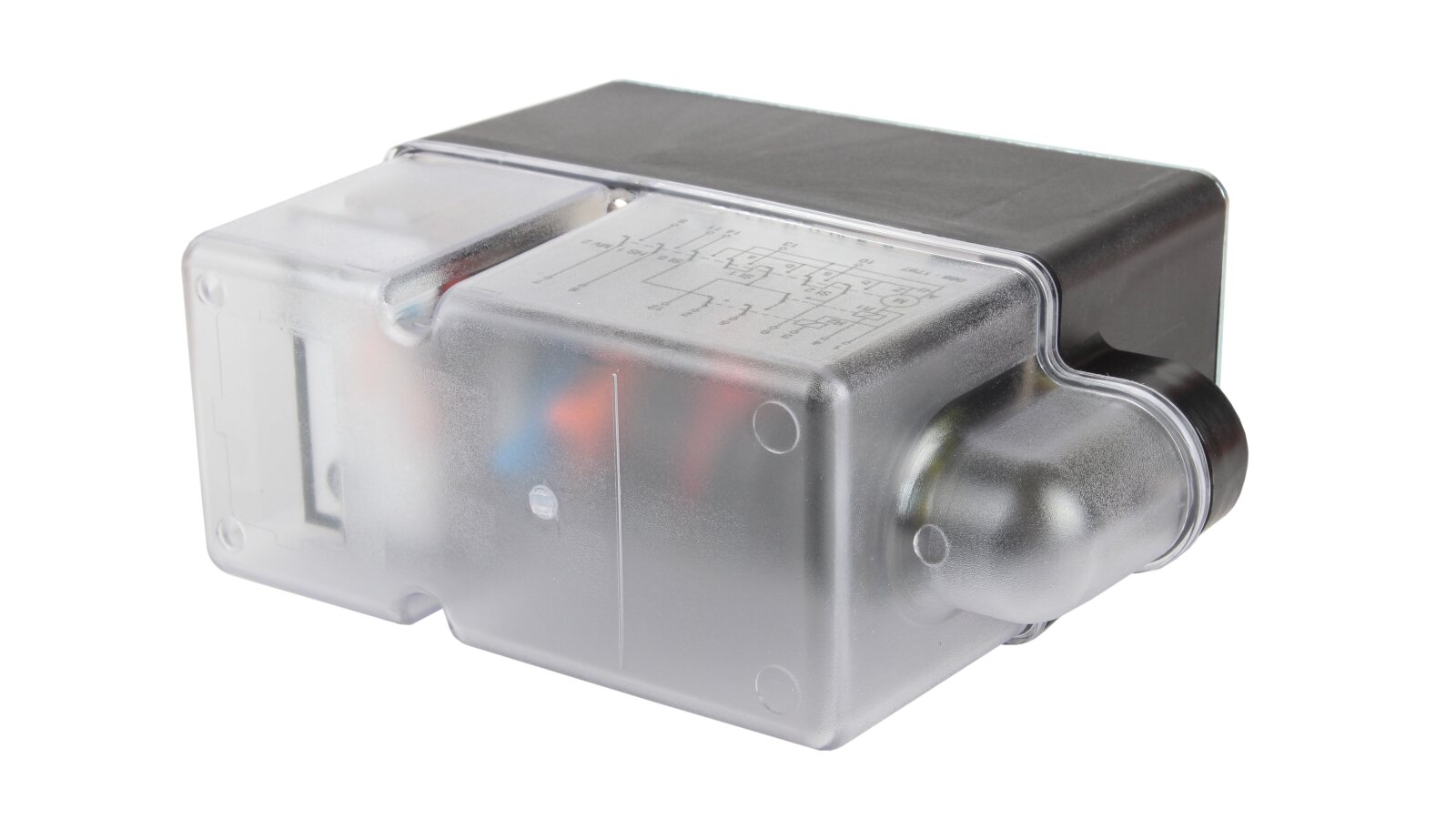

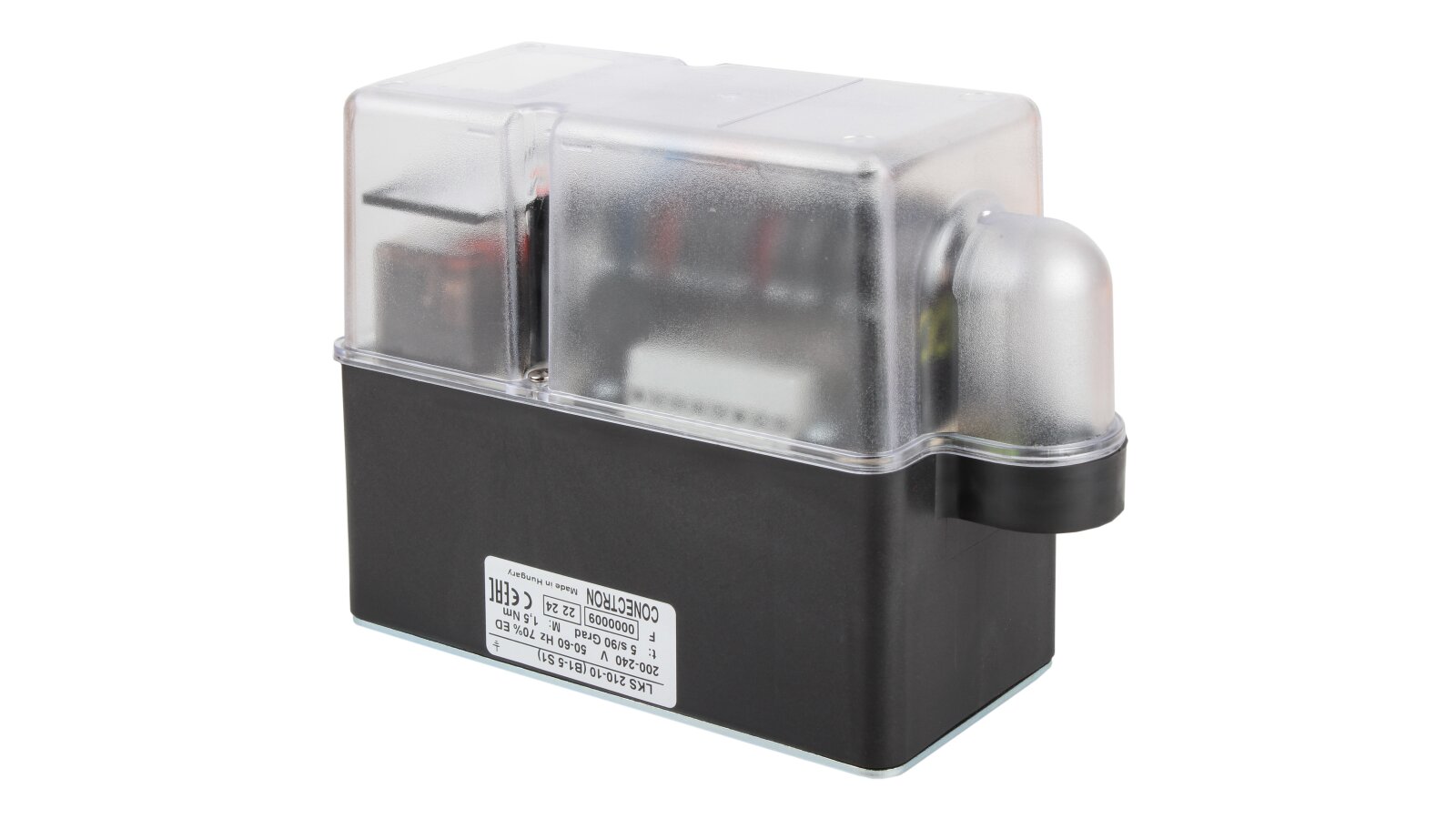

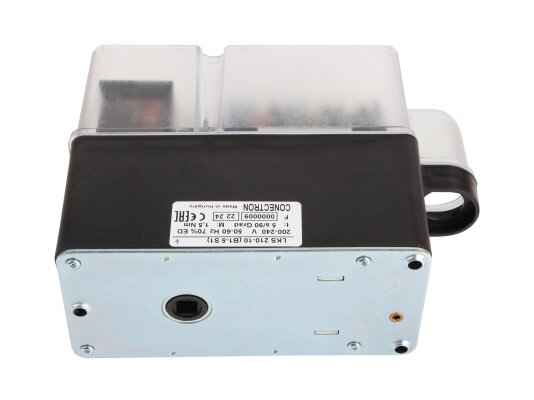

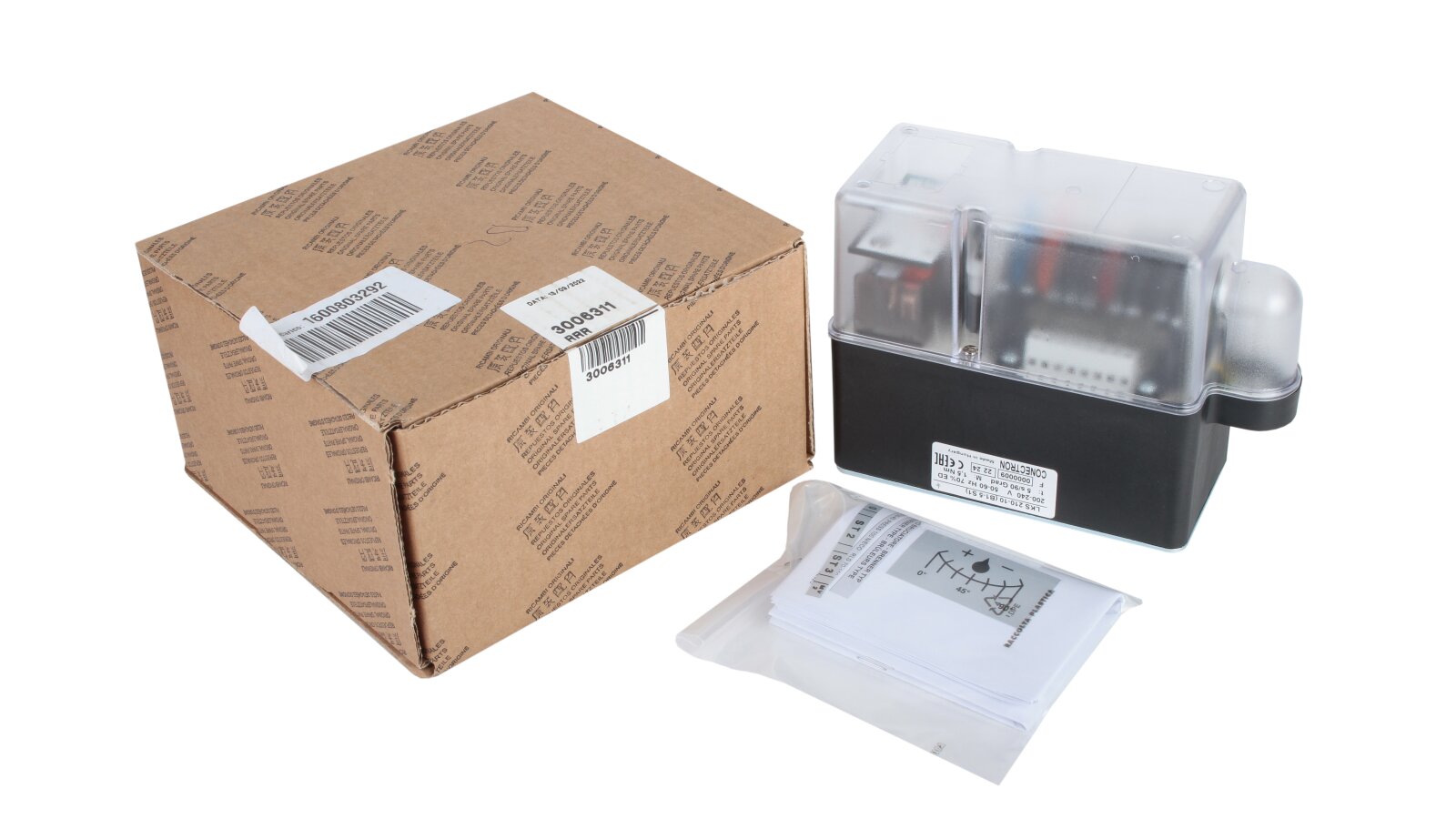

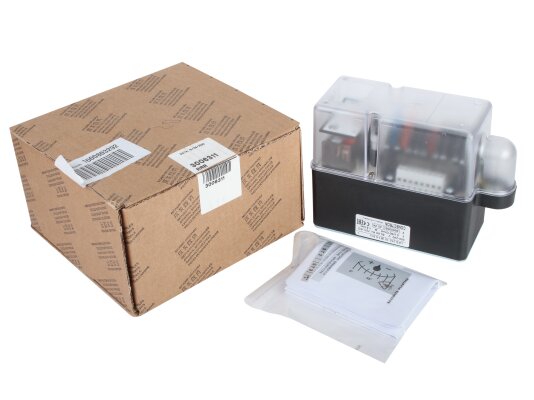

Servomotor Riello LKS 210-10 (B1-5 S1)

Servo drive Riello LKS 210-10 (B1-5 S1), Part Number: 3006311 is designed to equip automatic air supply control systems and form the optimal composition of the fuel-air mixture. It is used in two-stage burners burning fuel oil or gas. Suitable for burners with a fully closing air damper. It is distinguished by its reliable design, movement accuracy, and undemanding maintenance.

Main parameters and features:

• power supply from the 200-240 V network;

• duration of full opening (90 °) - 5 sec.;

• stable movement speed regardless of changes in voltage or load;

• opening angle adjustment range - 0 ... 90 °;

• protection of electrical components from dust and splashes class IP44;

• precise movement in accordance with the specified parameters;

• heat-resistant, shockproof plastic housing;

• transparent plastic cover to protect the adjustment unit and to facilitate access;

• operating temperature range: -10…+60 °C;

• electrical connection via terminal connections;

• built-in position indicator;

• auxiliary switches, drive rotation in both directions;

• installation in the system in any position;

• maintenance-free operating mechanism.

Configuration

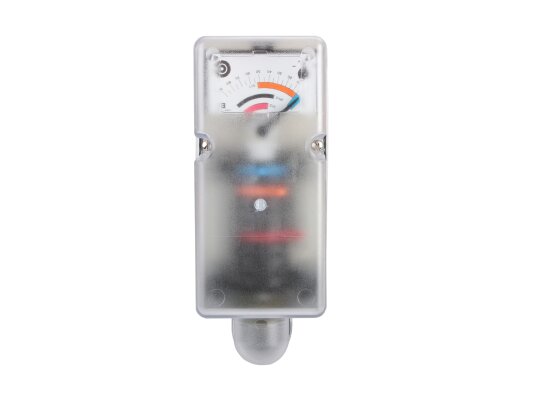

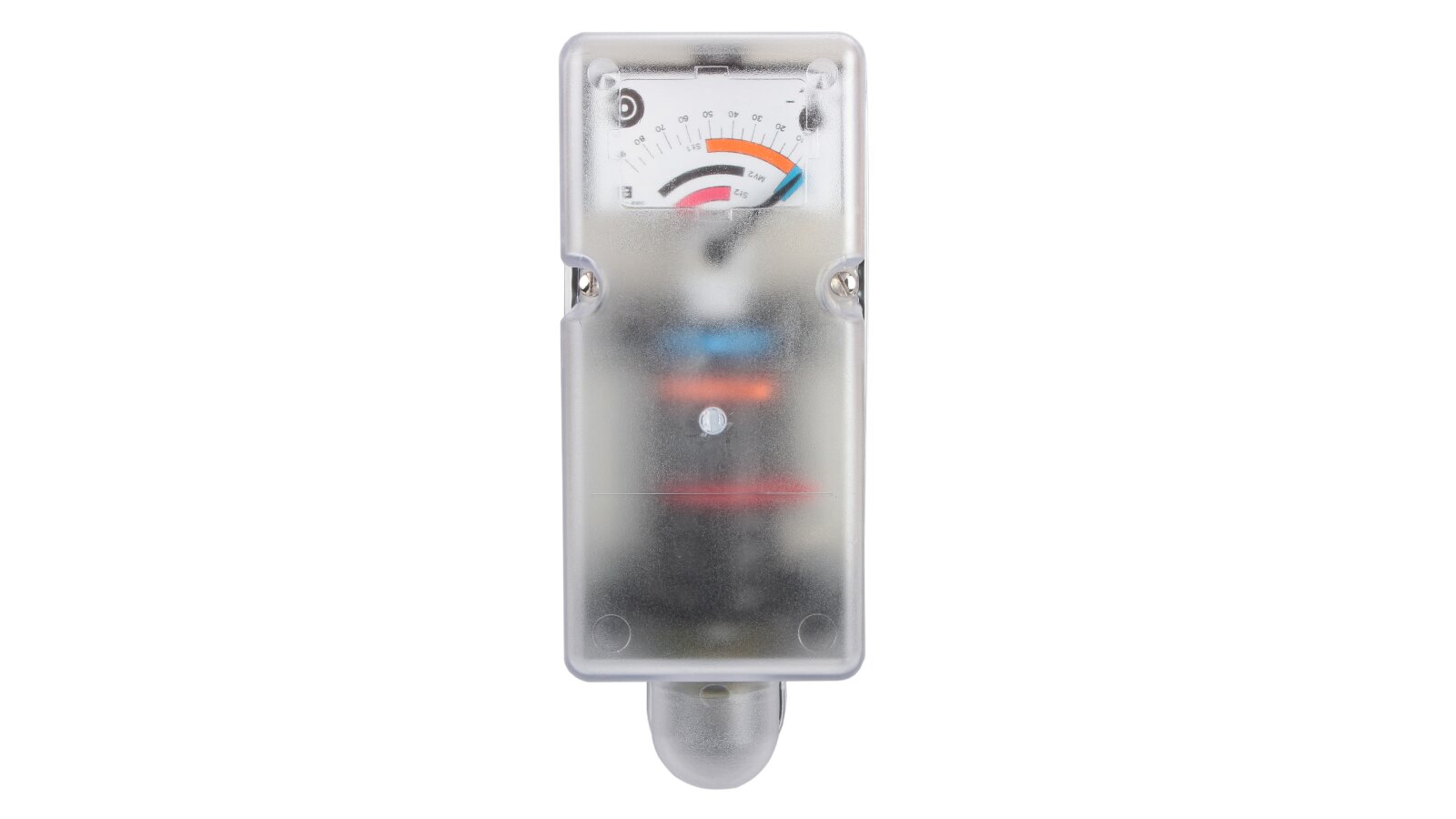

The Riello LKS servo drive is assembled in a small housing. It consists of a synchronous electric motor connected to a reduction gear. The worm self-locking gear is the last stage, providing the entire range of damper positions. To adjust the position, levers with color coding of the performance level (closed position / low / high performance) are used. The current position of the air damper is indicated on the scale located under the cover of the device.

Advantages:

• precise parameter adjustment;

• quick opening by 90 °;

• stable operation regardless of voltage / load changes;

• durable heat-resistant housing;

• color coding of levers for easy adjustment;

• transparent cover for viewing and access to the working unit;

• current position indication;

• treatment of the working unit with permanent lubrication.

You can buy a servo drive for Riello LKS 210 air dampers and other spare parts for completing industrial burners from us.
