Description

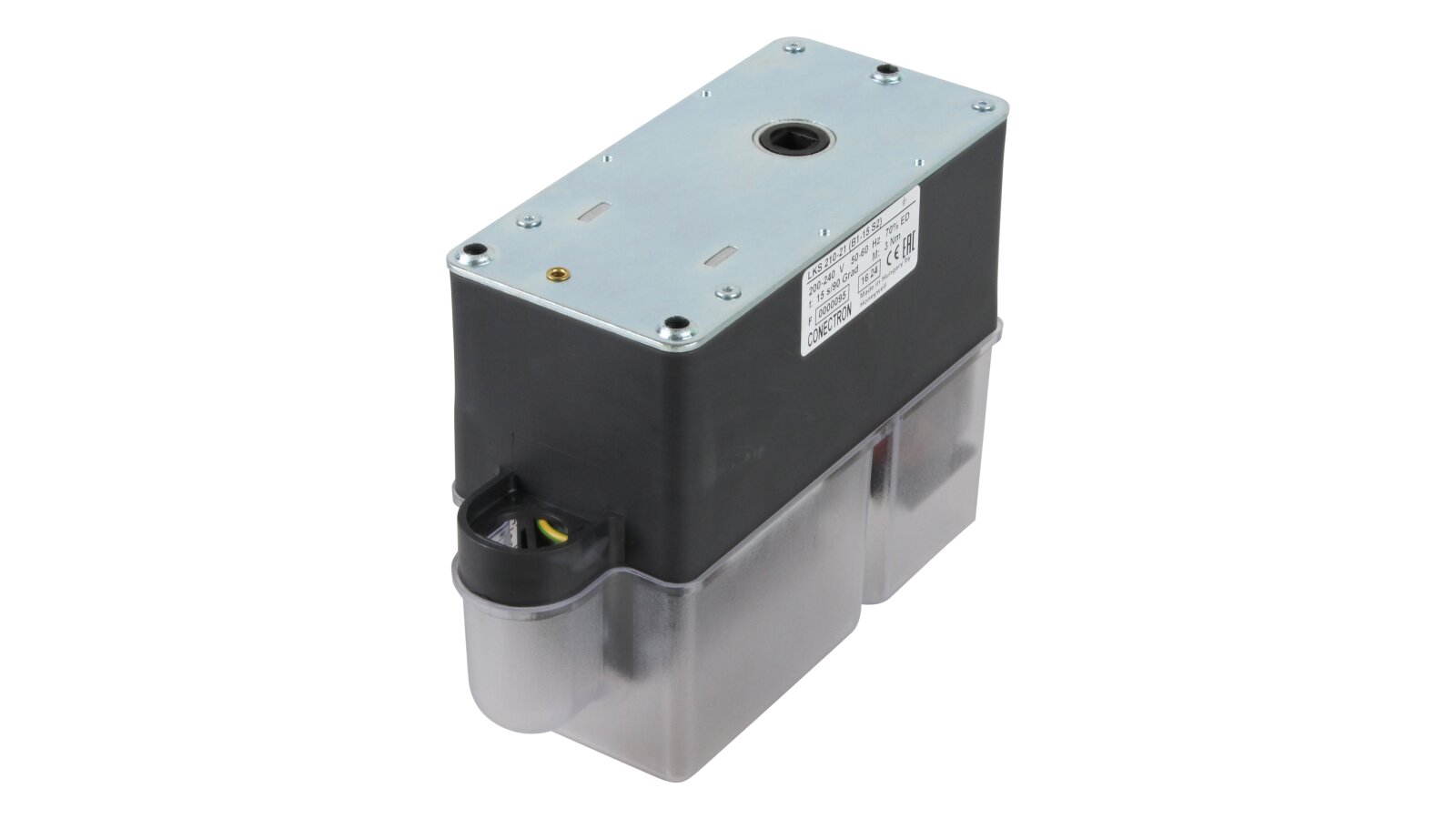

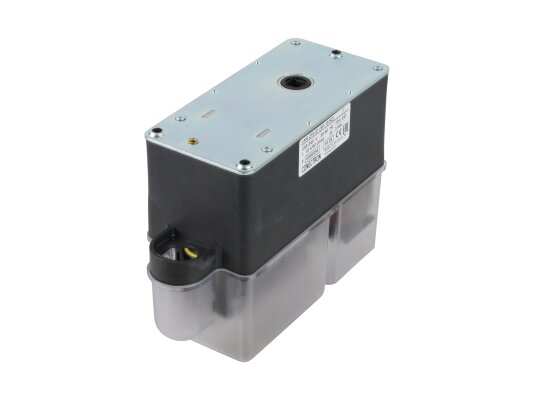

Servo drive Riello LKS 210-21 (B1-15 S2), art: 3012010 is used in industrial gas or fuel oil burners with two-stage power regulation. It is responsible for moving the air damper to supply the optimal volume of air for combustion. The drive is controlled by the furnace machine. It is characterized by high reliability, precise positioning, ease of setting operating parameters, and undemanding maintenance.
Main parameters and features:
Operating voltage 200-240 V;
Duration of full opening (90 °) - 15 sec.;
Stable operation regardless of changes in voltage or load;
Operating opening range - 0 ... 90 °;
Protection of electrical components from dust and splashes class IP44;
Built-in position indicator;
Precise opening of the damper in accordance with the settings;
Operation under the control of the burner automation;
heat-resistant, shock-resistant housing;
transparent plastic cover to protect the adjustment unit and for easy access;
operating temperature range: -10…+60 °C;
electrical connection via terminal connections;
additional switches, drive rotation in both directions;
installation in the system in any orientation;
use of permanent grease.
Configuration

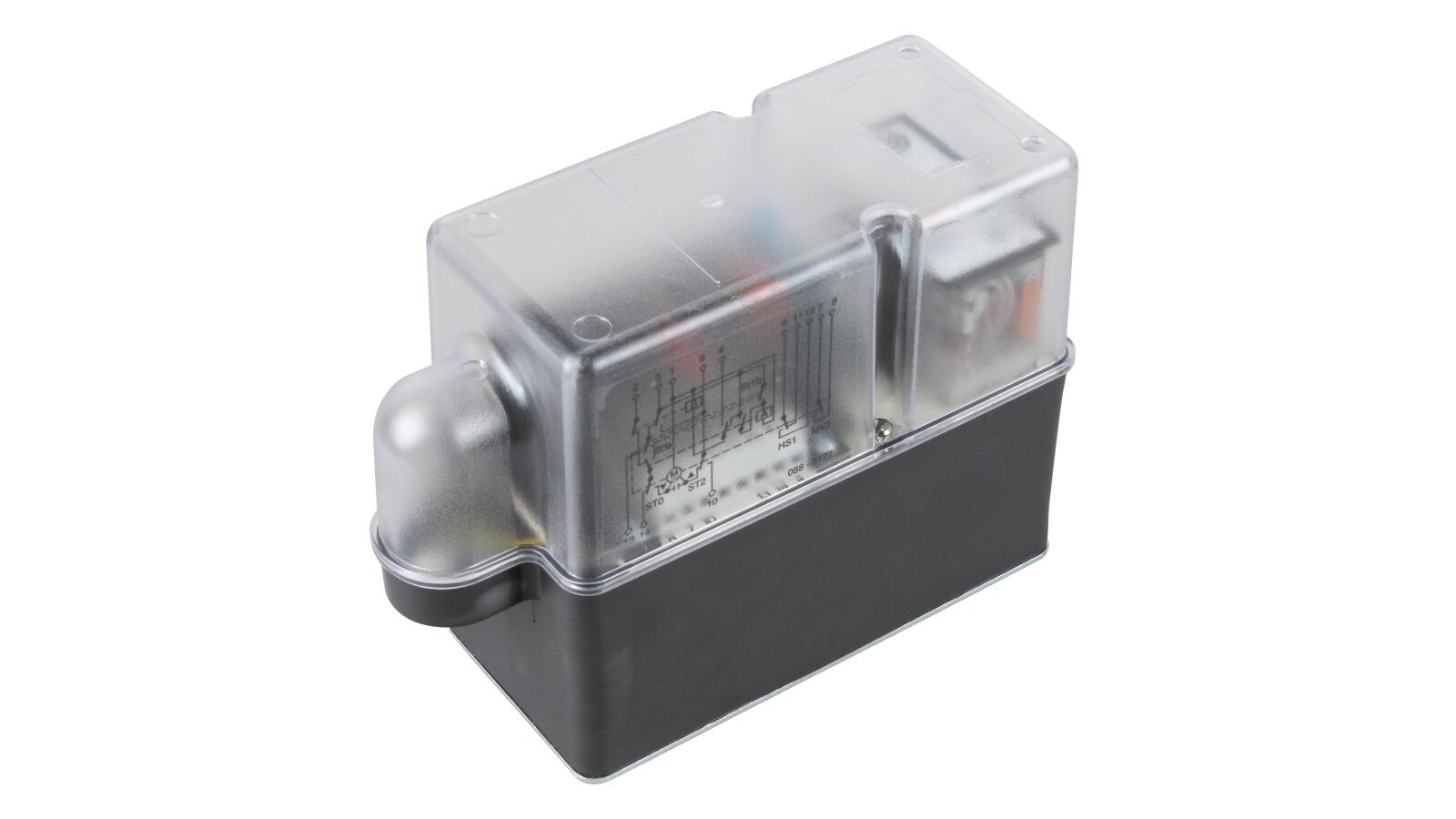

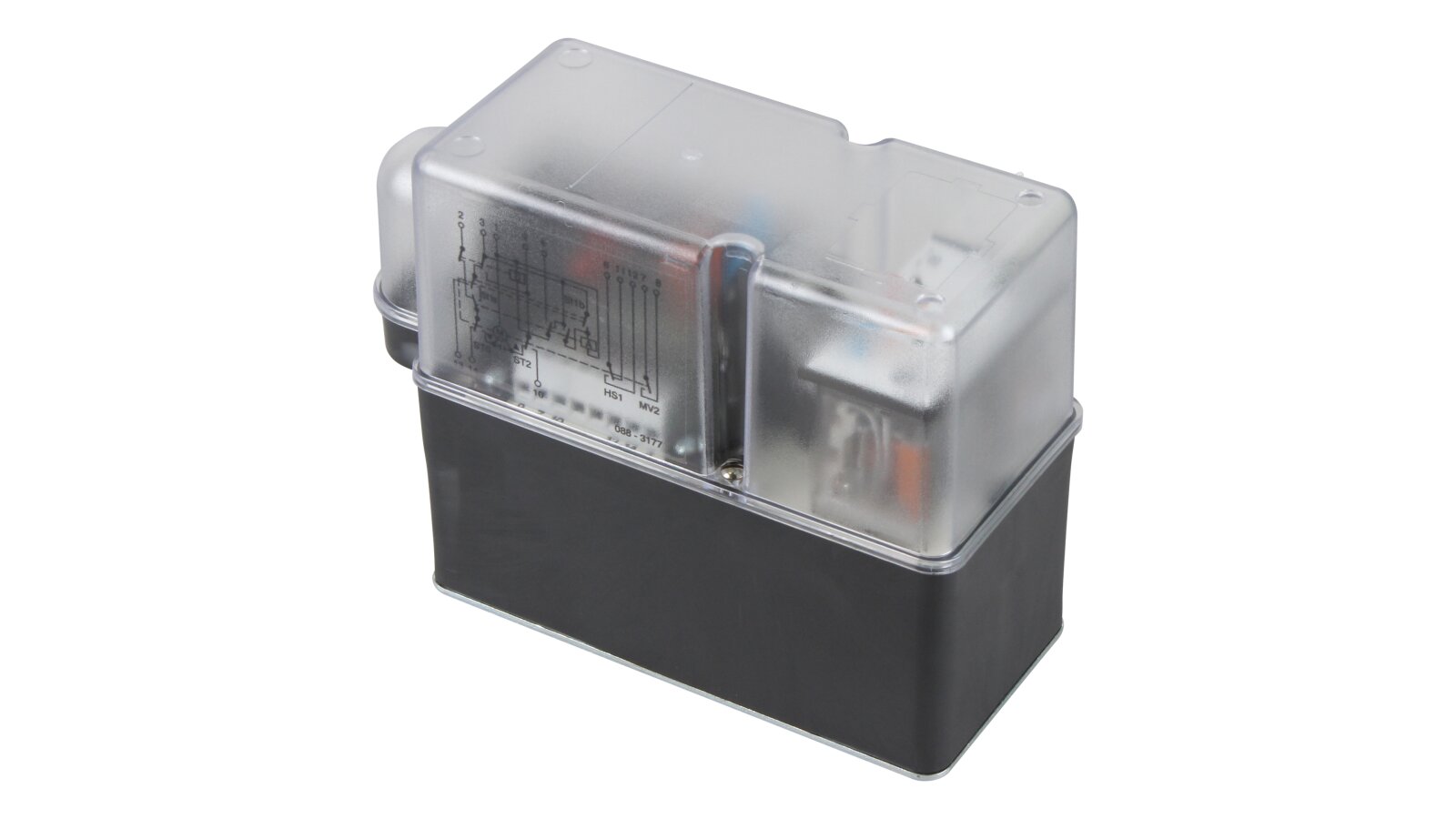

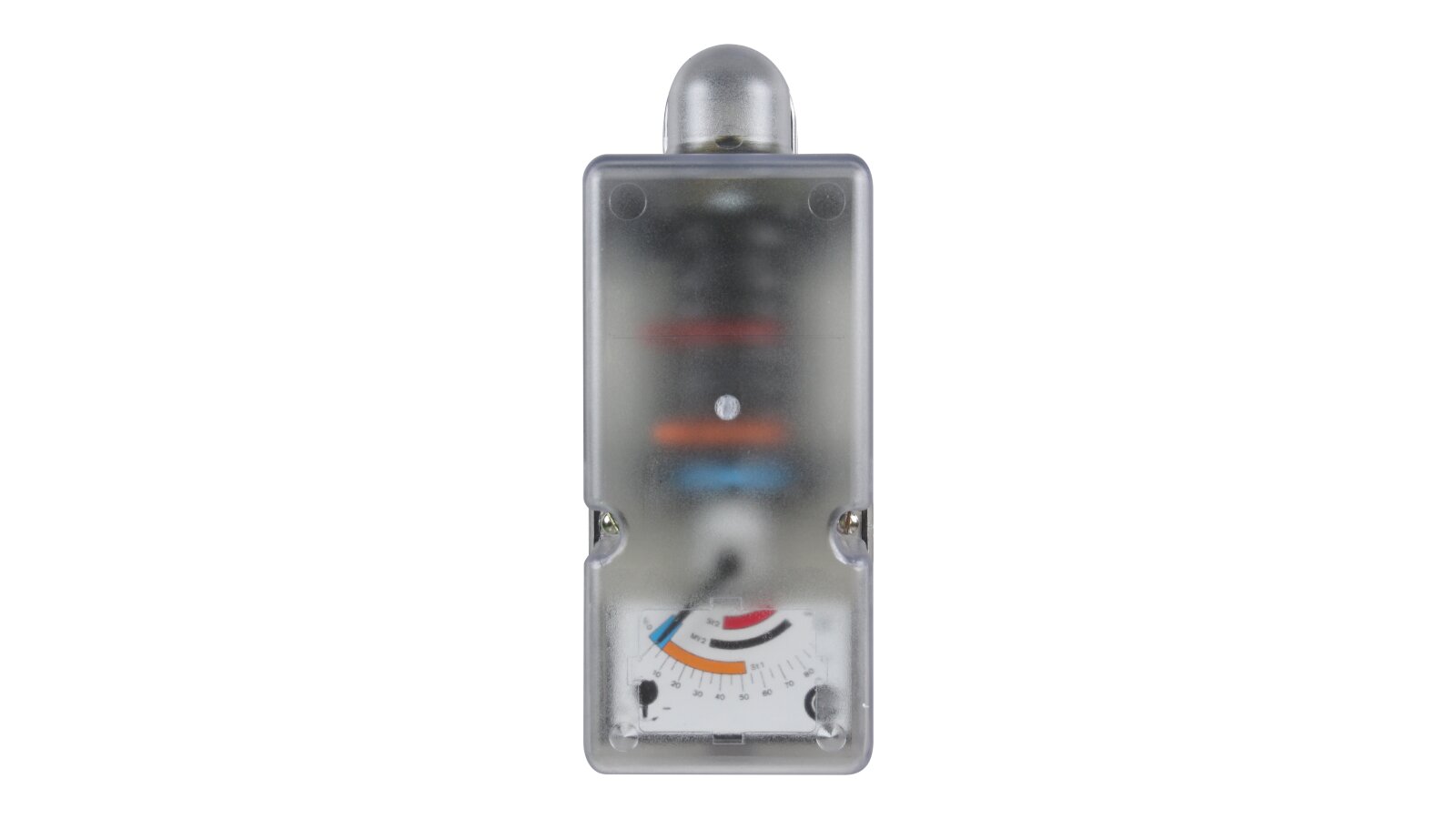

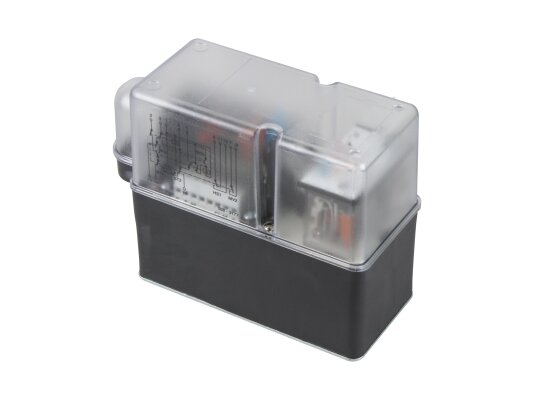

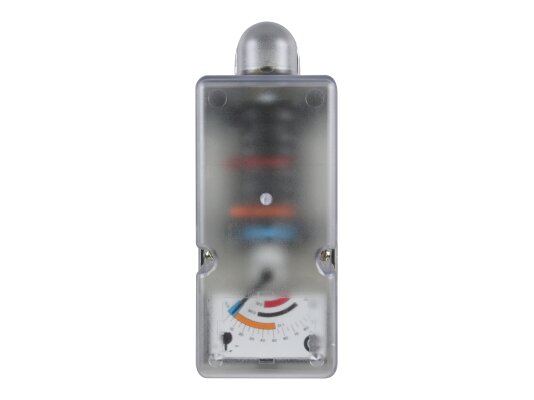

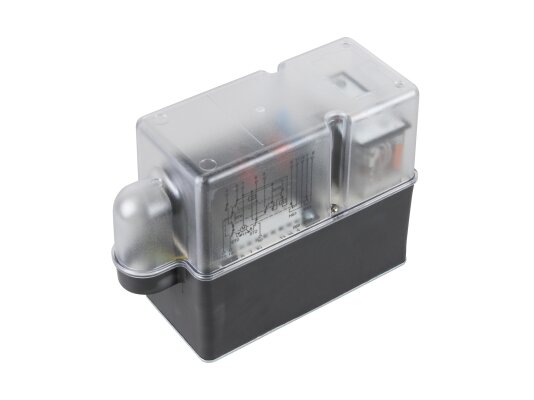

The Riello LKS air damper actuator is equipped with a plastic housing that houses a synchronous motor connected to a reduction gear. The worm self-locking gear is the last stage, providing a full range of air damper positions. Levers with color coding of performance (closed position/low/high performance) are provided for setting the parameters. The current position of the air damper is displayed on the scale located under the device cover.
Advantages:
stable operation, precise movement;
reliable, heat-resistant housing;
position indication;
color-coded levers for easy adjustment;
transparent cover for viewing and access to the working unit;
maintenance-free working mechanism.
You can buy Riello LKS 210 servo drive and other spare parts for industrial gas/oil burners from us.
