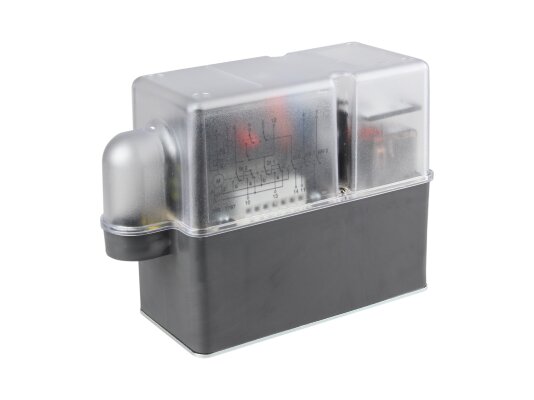

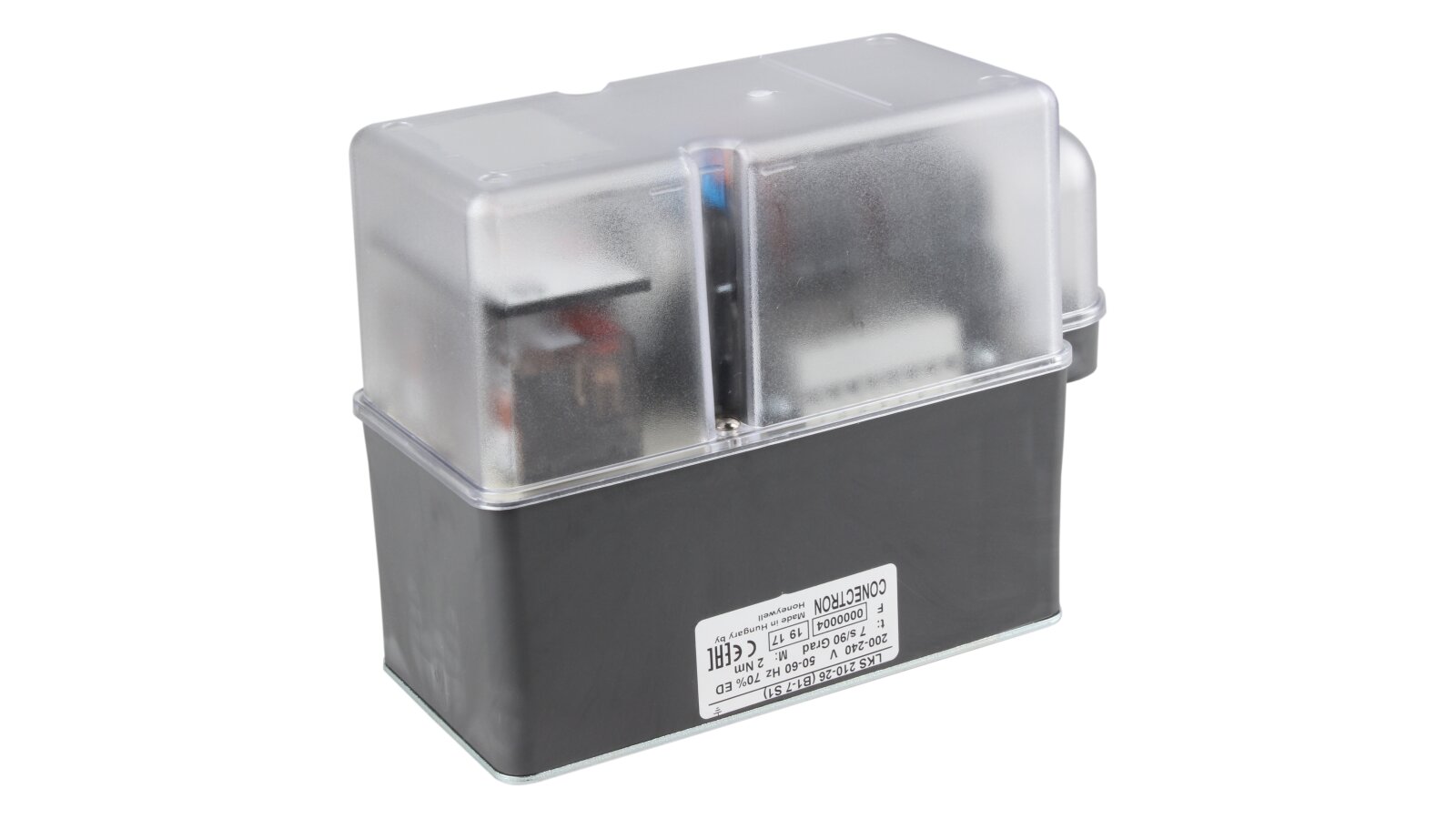

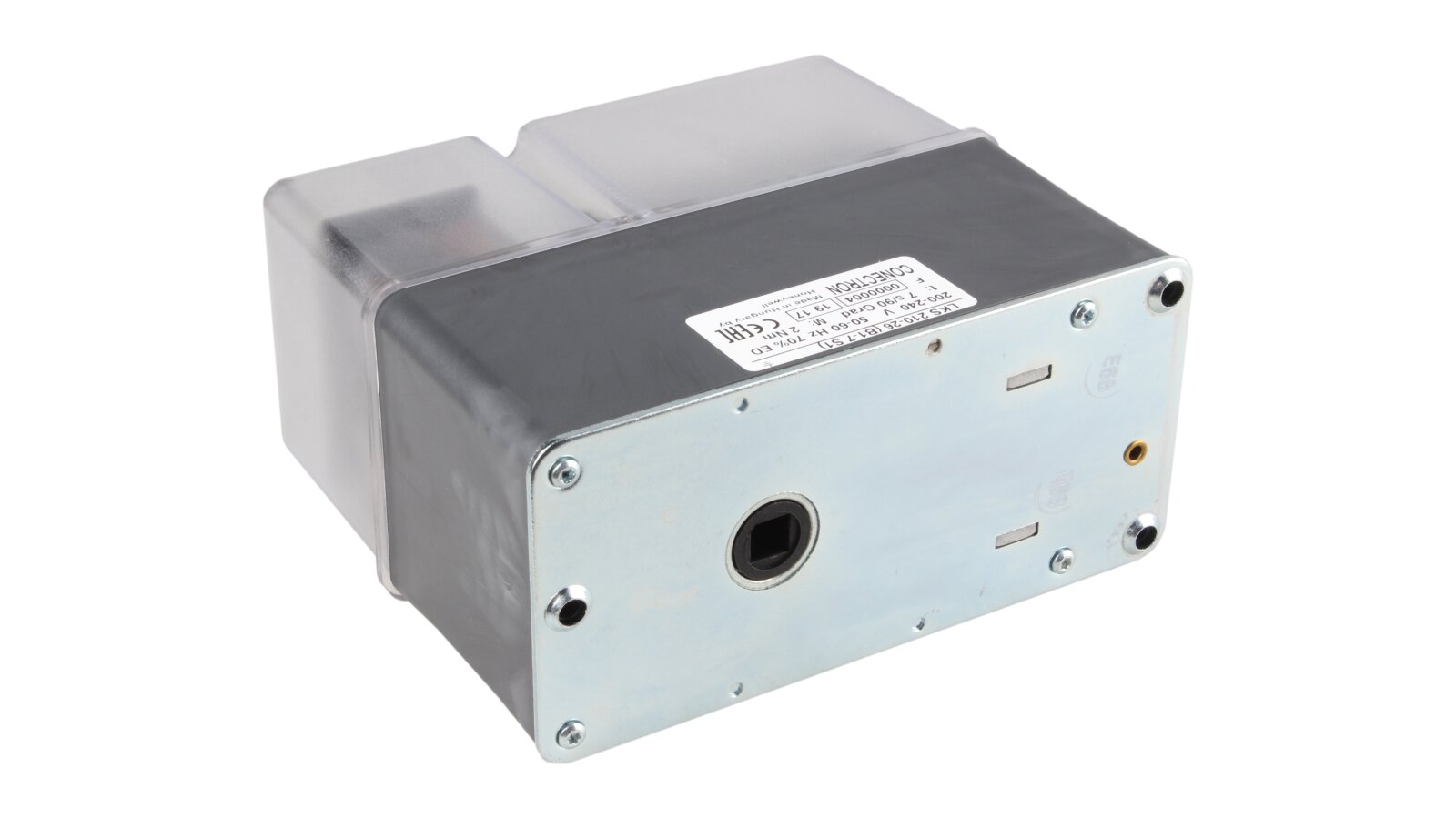

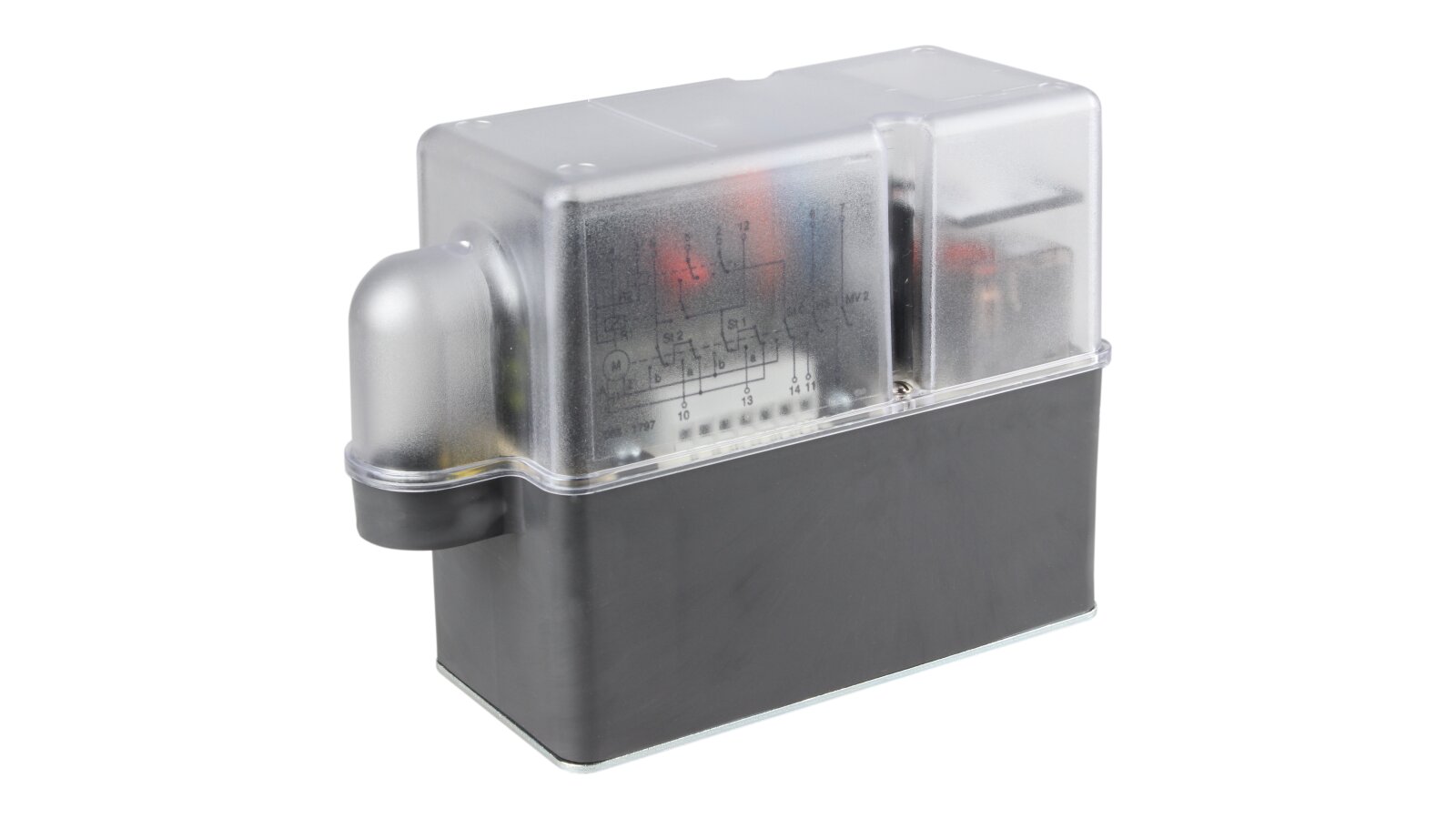

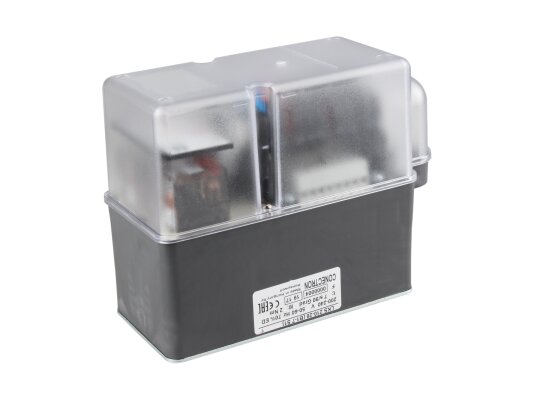

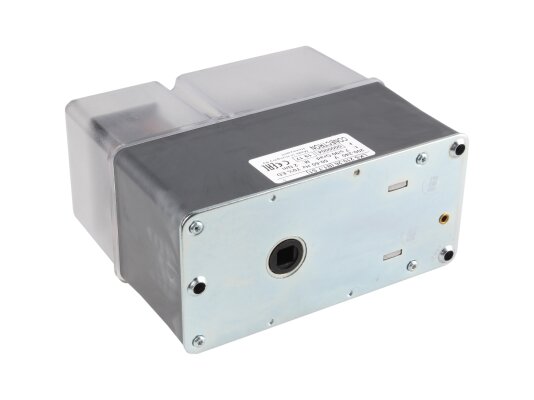

Servomotor Riello LKS 210-26 (B1-7 S1)

Servo drive Riello LKS 210-26 (B1-7 S1), art: 3013395 is used to drive the air damper when controlling the supply of air for combustion. Moves the damper to the required angle in accordance with the commands of the automation unit. Adapted for equipping two-stage fuel oil and gas burners Riello. Characterized by precise movement, reliable performance, ease of parameter adjustment, undemanding maintenance.

Parameters and features:

• supply voltage 200-240 V;

• available positioning angle - 0 ... 90 °;

• duration of full opening (at 90 °) - 7 sec.;

• stable operation regardless of voltage or load fluctuations;

• dust and moisture protection of the housing class IP44;

• precise movement of the damper in accordance with the specified parameters;

• monitoring the position of the damper thanks to the built-in indicator;

• operation under the control of the burner's automatic furnace;

• a reliable plastic housing resistant to temperature and mechanical impact;

• a transparent plastic cover with easy access to the adjustment unit;

• permissible ambient temperatures: -10…+60 °C;

• connection via terminal connections;

• auxiliary switches;

• rotation of the drive in both directions;

• installation in any position;

• permanent lubrication that does not require replacement.

Configuration

The Riello LKS air damper actuator is equipped with a synchronous motor connected to a reduction gear. The worm gear with locking is the last stage, providing a full range of air damper positions. The adjustment unit is located under the transparent cover. To change the operating parameters, levers with color-coded performance (closed position/low/high performance) are provided. The current position of the air damper is displayed on the scale.

Advantages:

• precise and reliable damper control;

• stable operation;

• engine protection from impacts and thermal effects;

• built-in position indication;

• color coding of levers for easy adjustment;

• transparent cover for viewing and quick access to the working unit;

• working mechanism lubricated for the entire service life.

You can buy Riello LKS 210 servo drive and other necessary spare parts for industrial gas and fuel oil burners from us. For additional information, please contact our consultants.
