Description

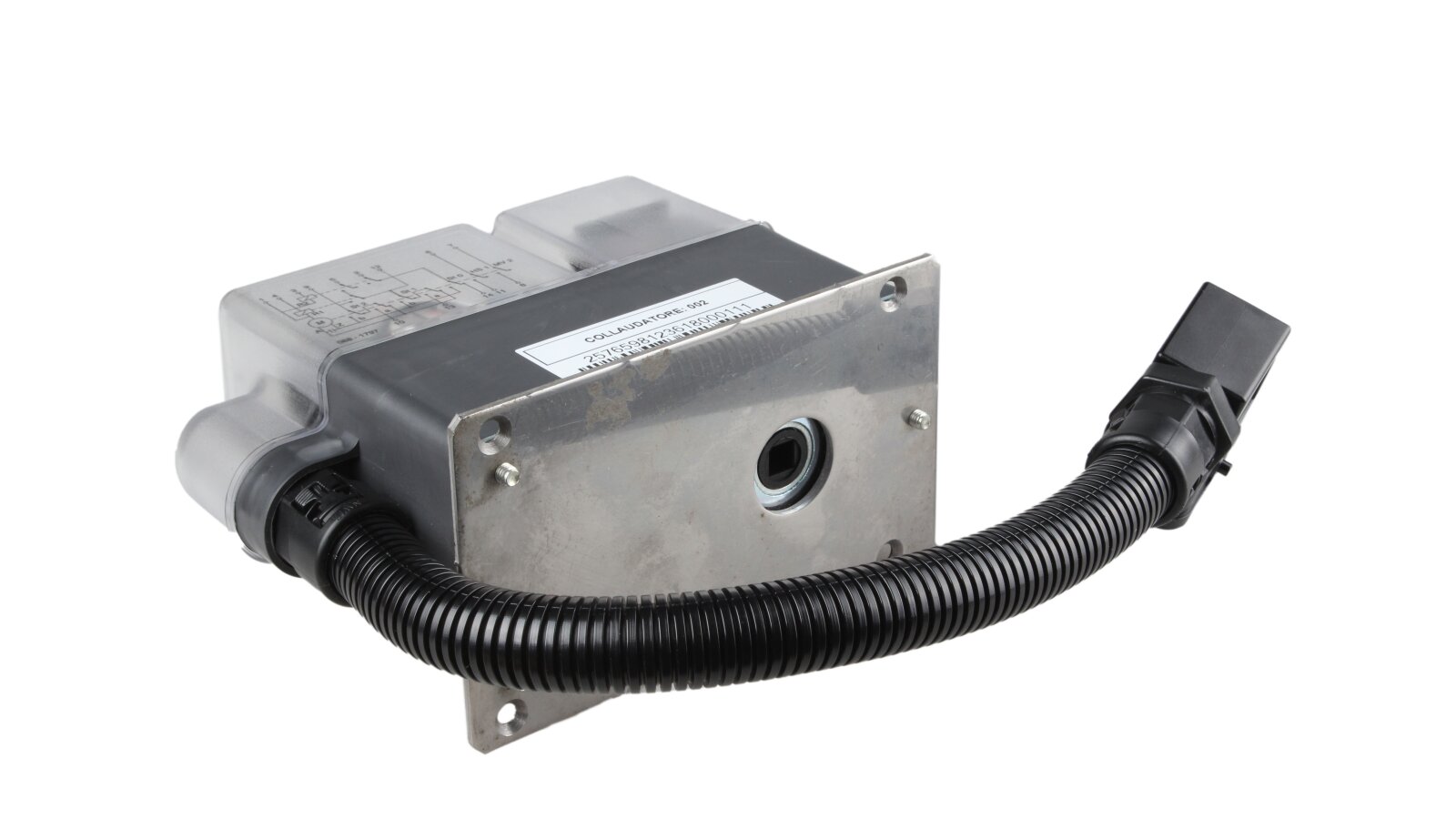

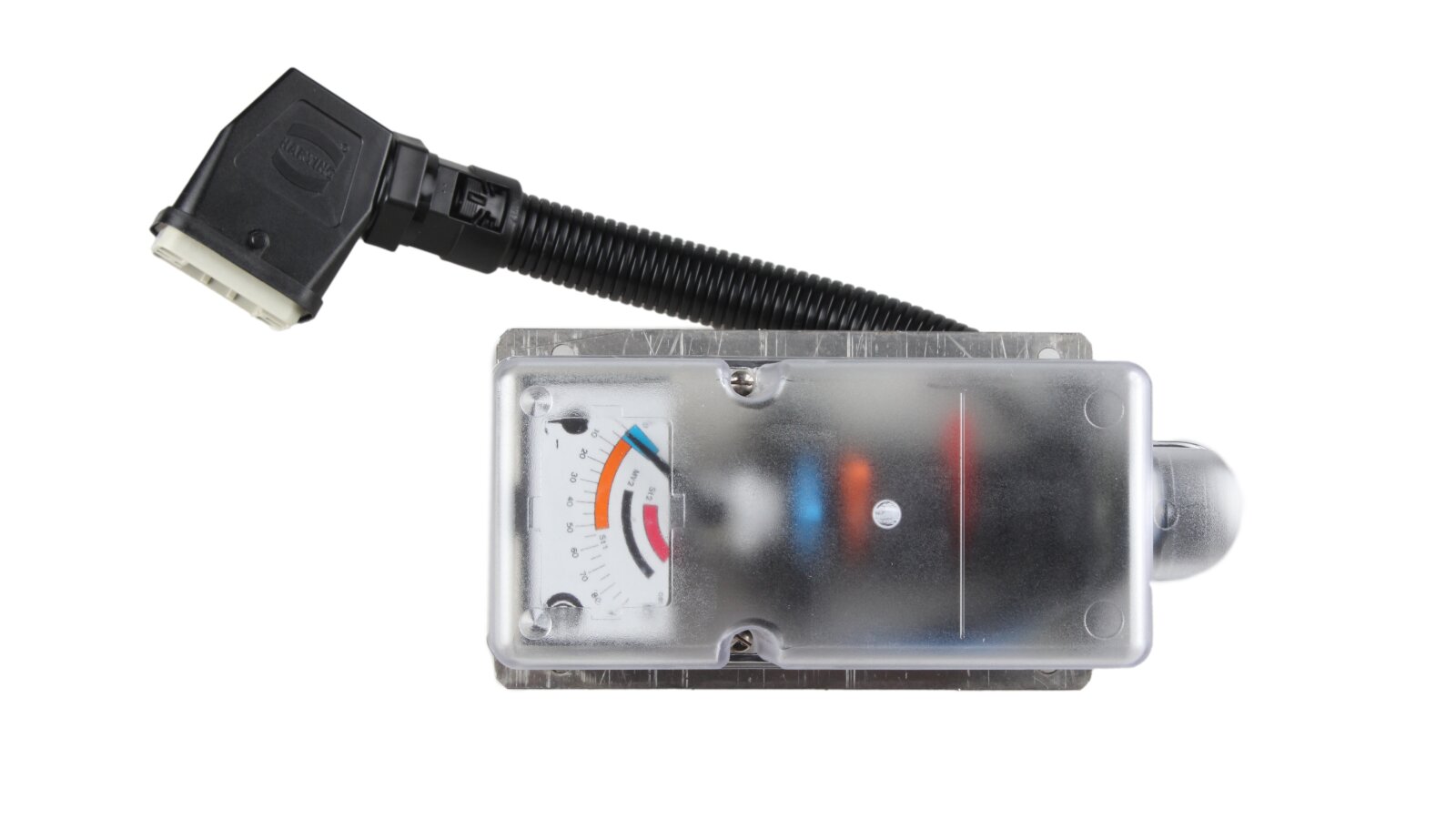

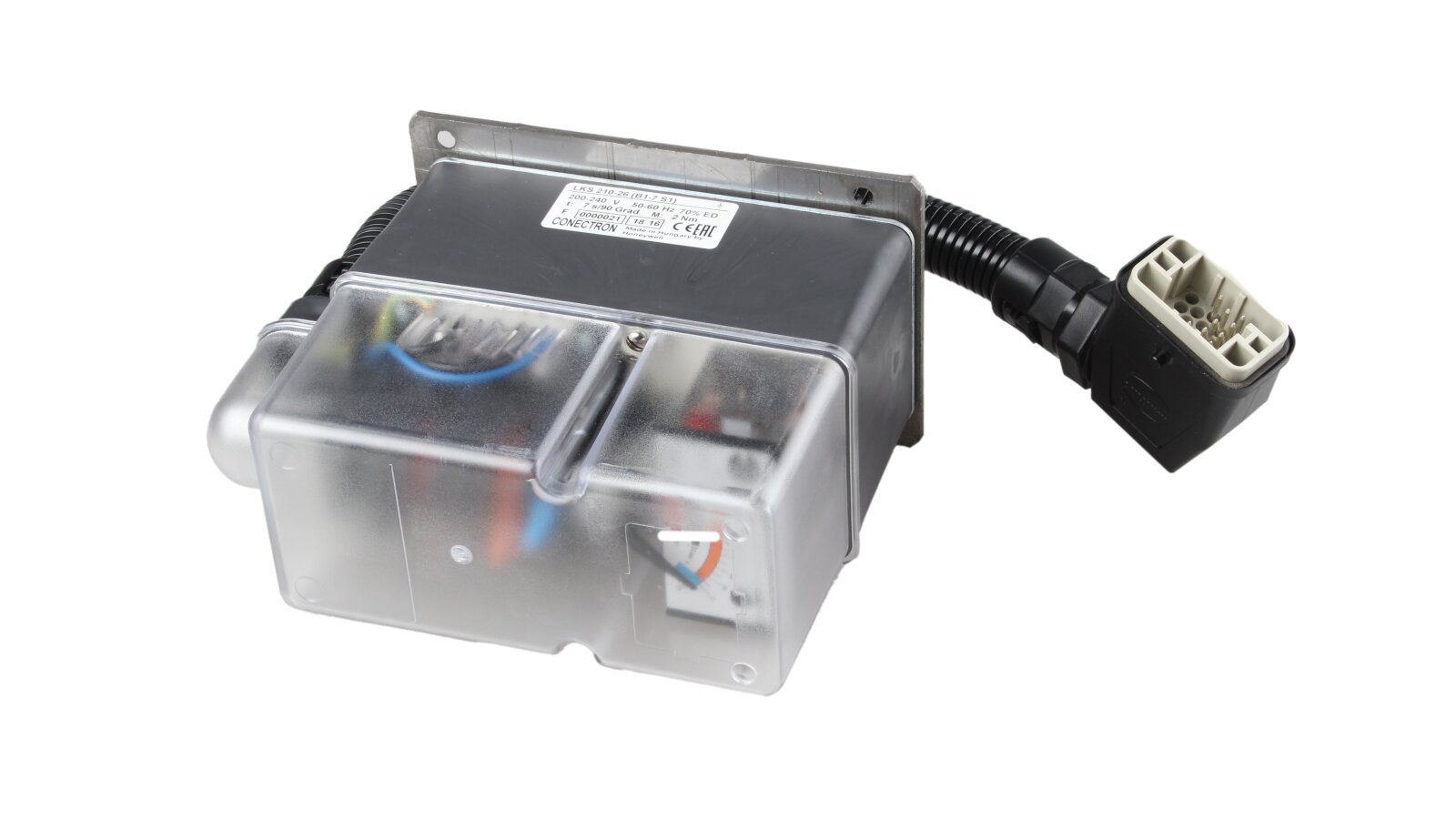

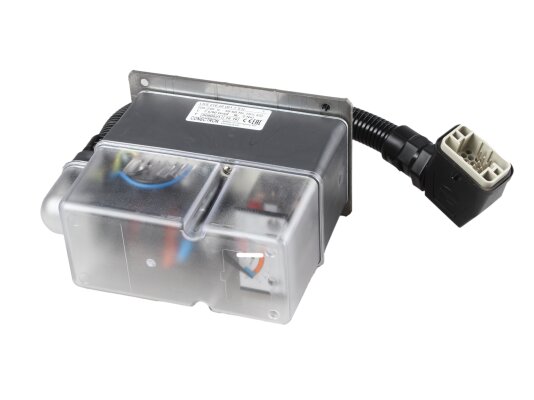

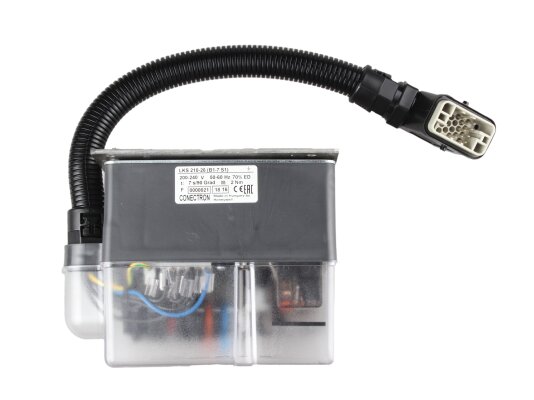

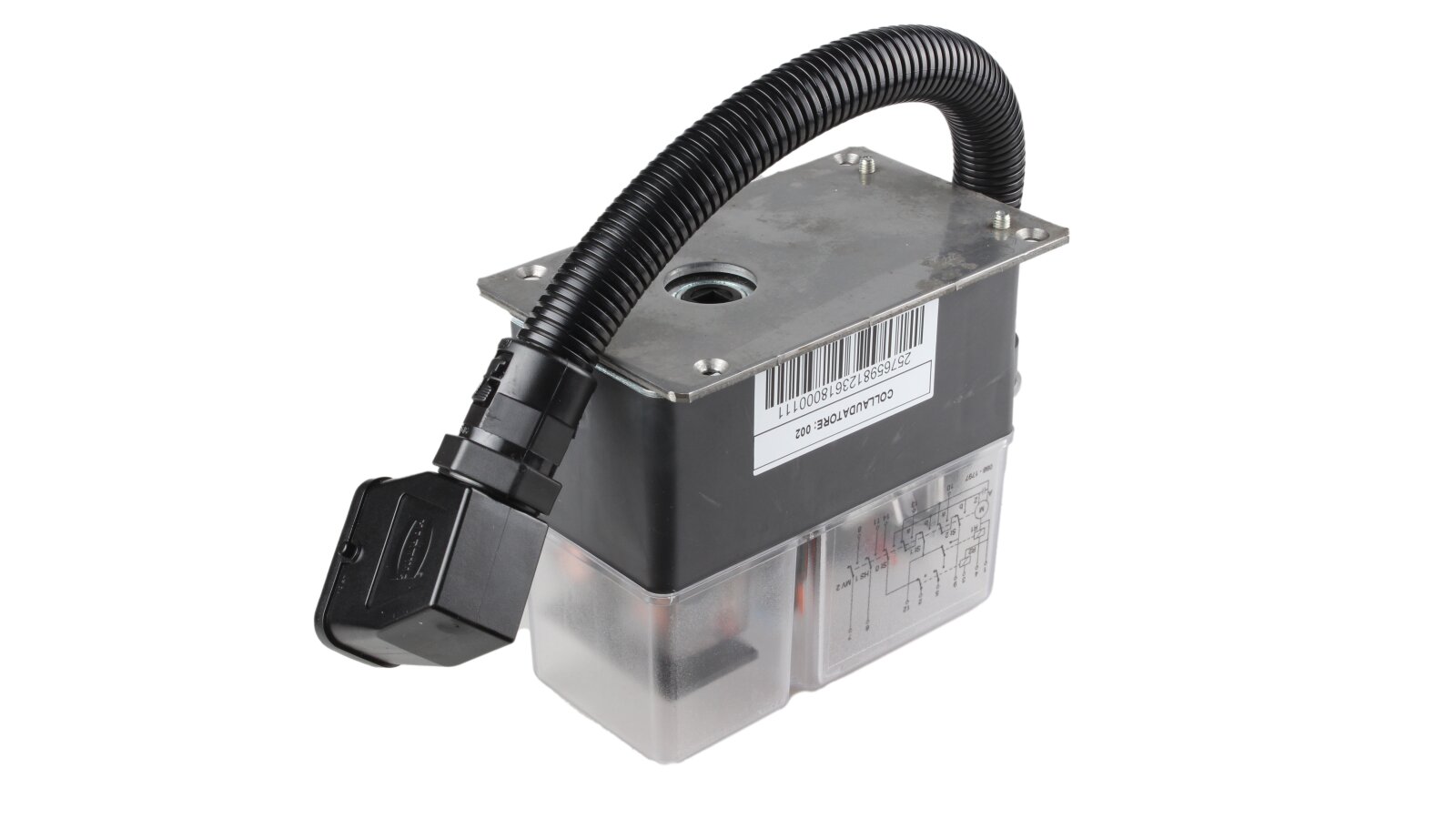

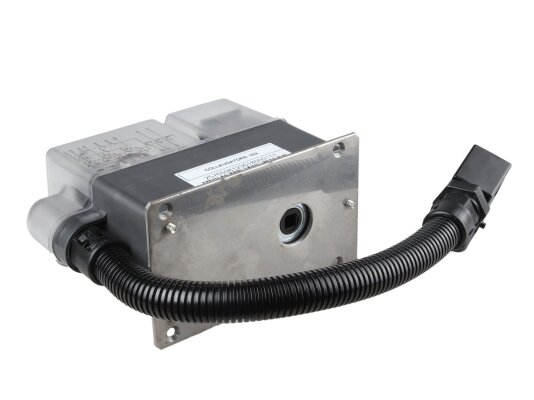

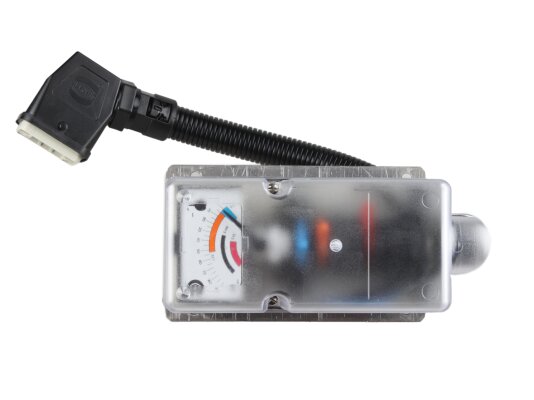

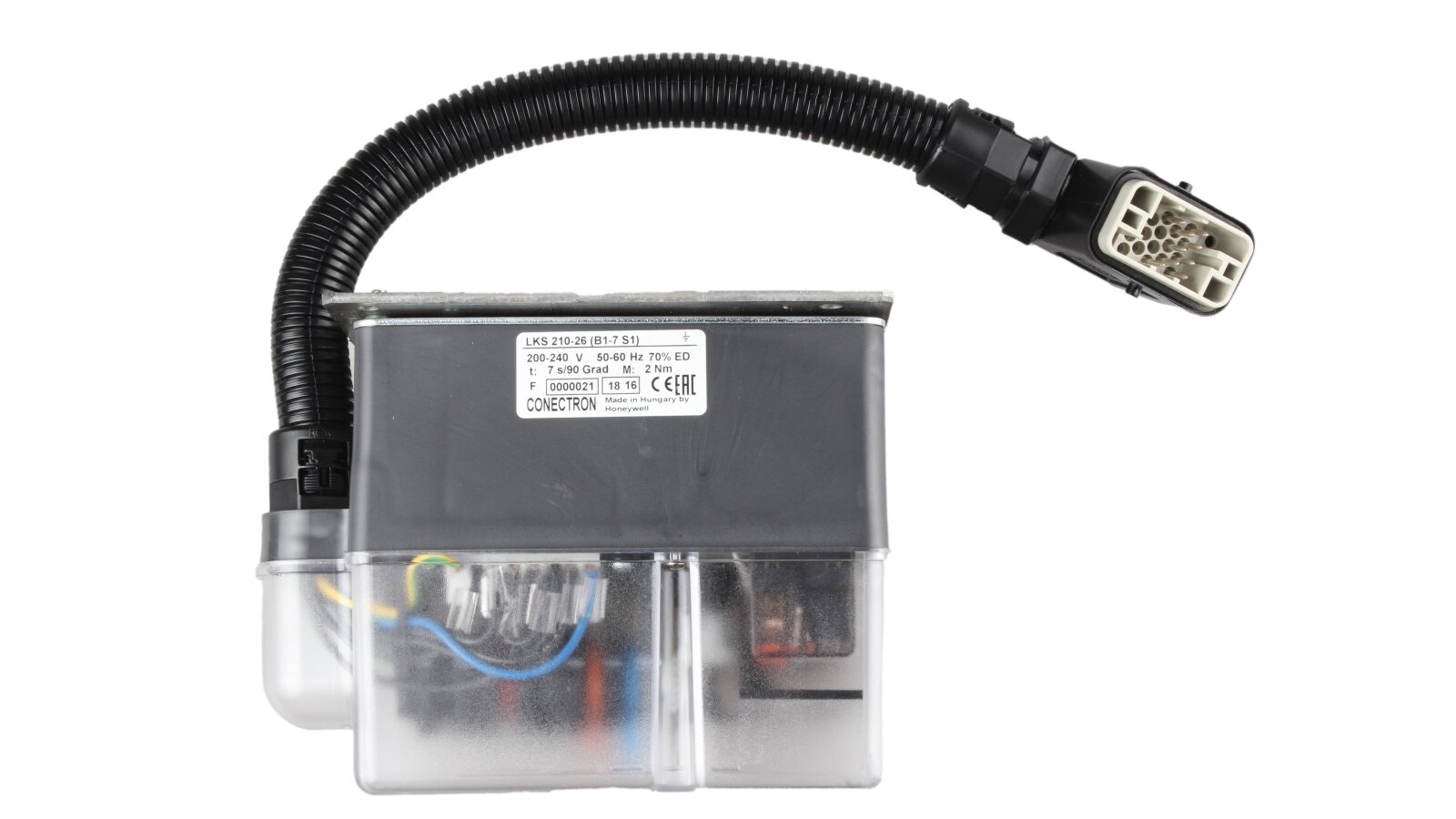

Servo drive Honeywell LKS 210-26 (B1-7 S1) RL, Part Number: 3013505 is used to control the air flow, optimize the composition of the fuel-air mixture for its complete combustion and maximum heat transfer. It is built into two-stage gas, liquid fuel and combined burners.
Features and operating parameters:
Supply voltage - 230 V;
for air flow control;
manual adjustment of limit and auxiliary switches;
time for full opening/closing - 7 sec;
self-locking function of the worm gear.
Design and adjustment
The servo drive consists of a synchronous motor connected to a gearbox, the last stage of which is a worm gear. The gear mechanism is treated with permanent lubrication, does not require maintenance. The drive is assembled in a plastic impact-resistant case that protects the working unit from mechanical impacts, dust and moisture (class IP 44). The air damper opening angle is adjustable from 0-90º using color-coded lever cams.
The Honeywell LKS servo drive is mounted in Riello burners.
