Description

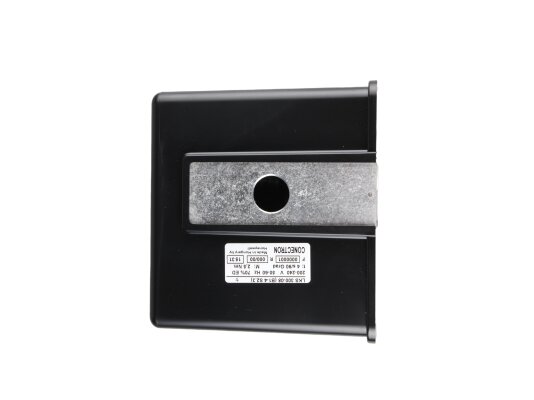

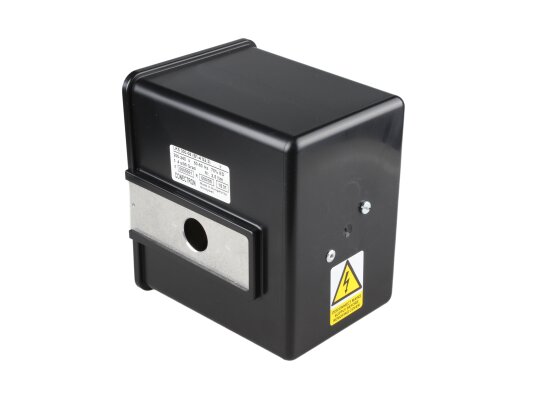

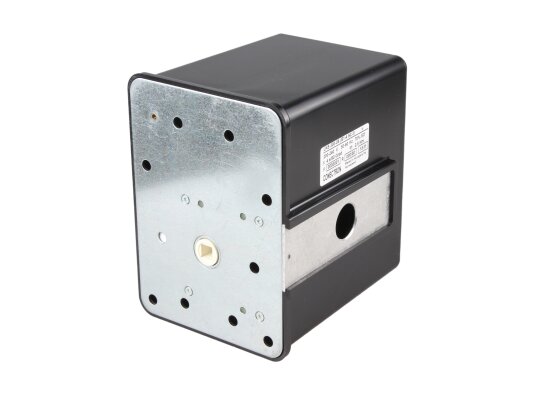

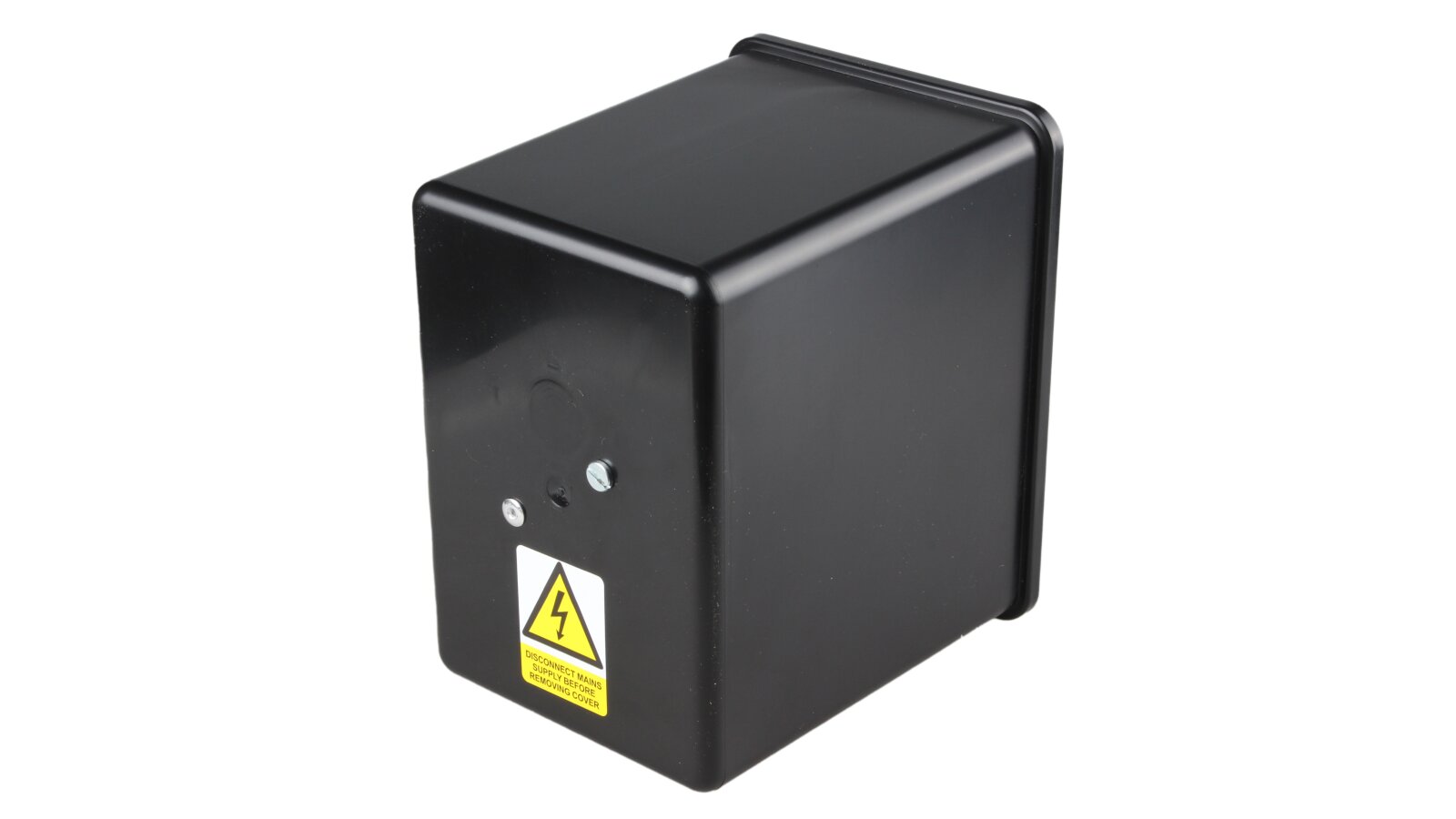

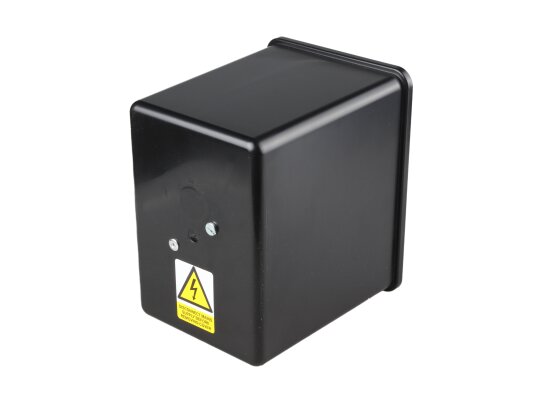

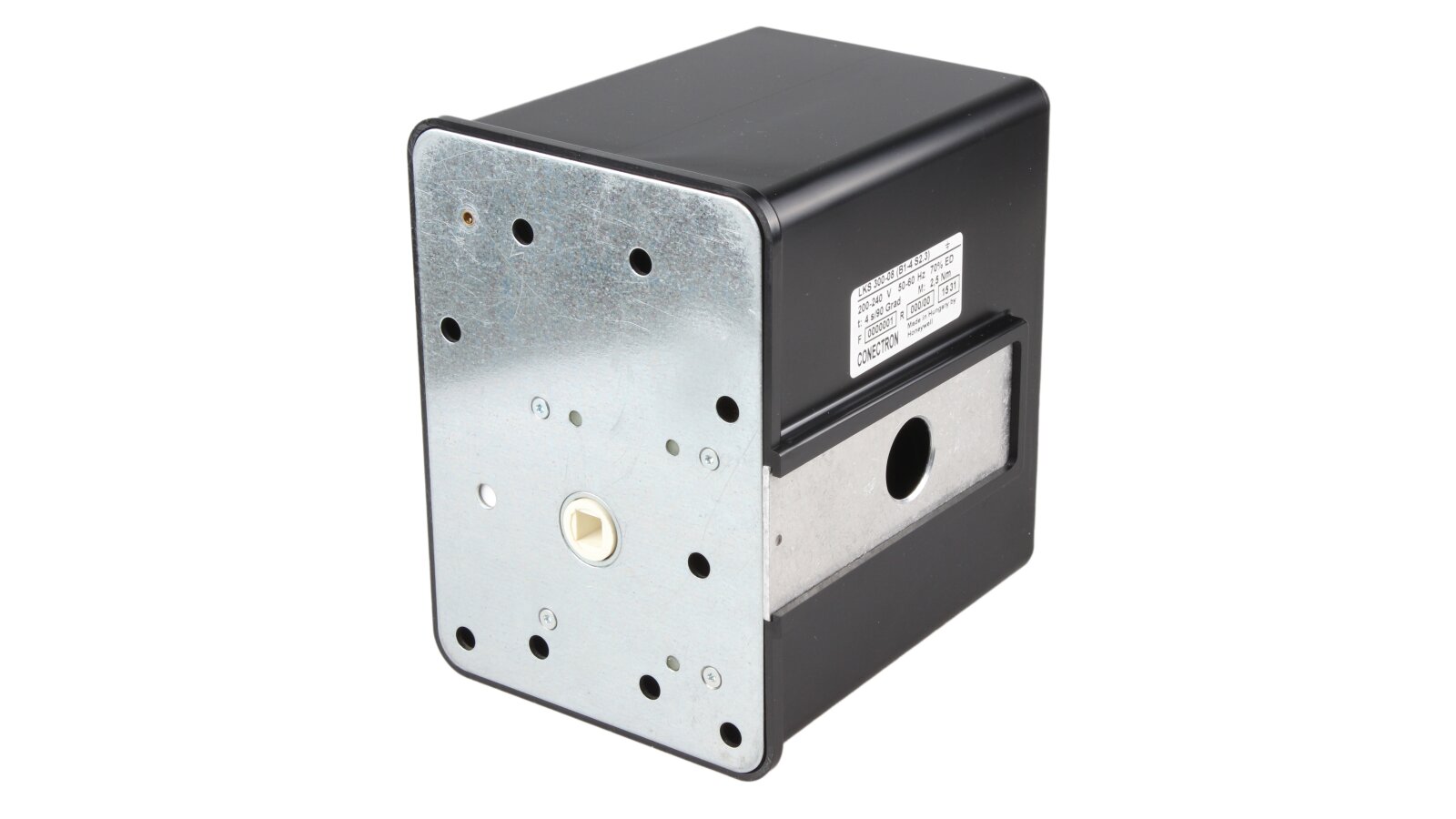

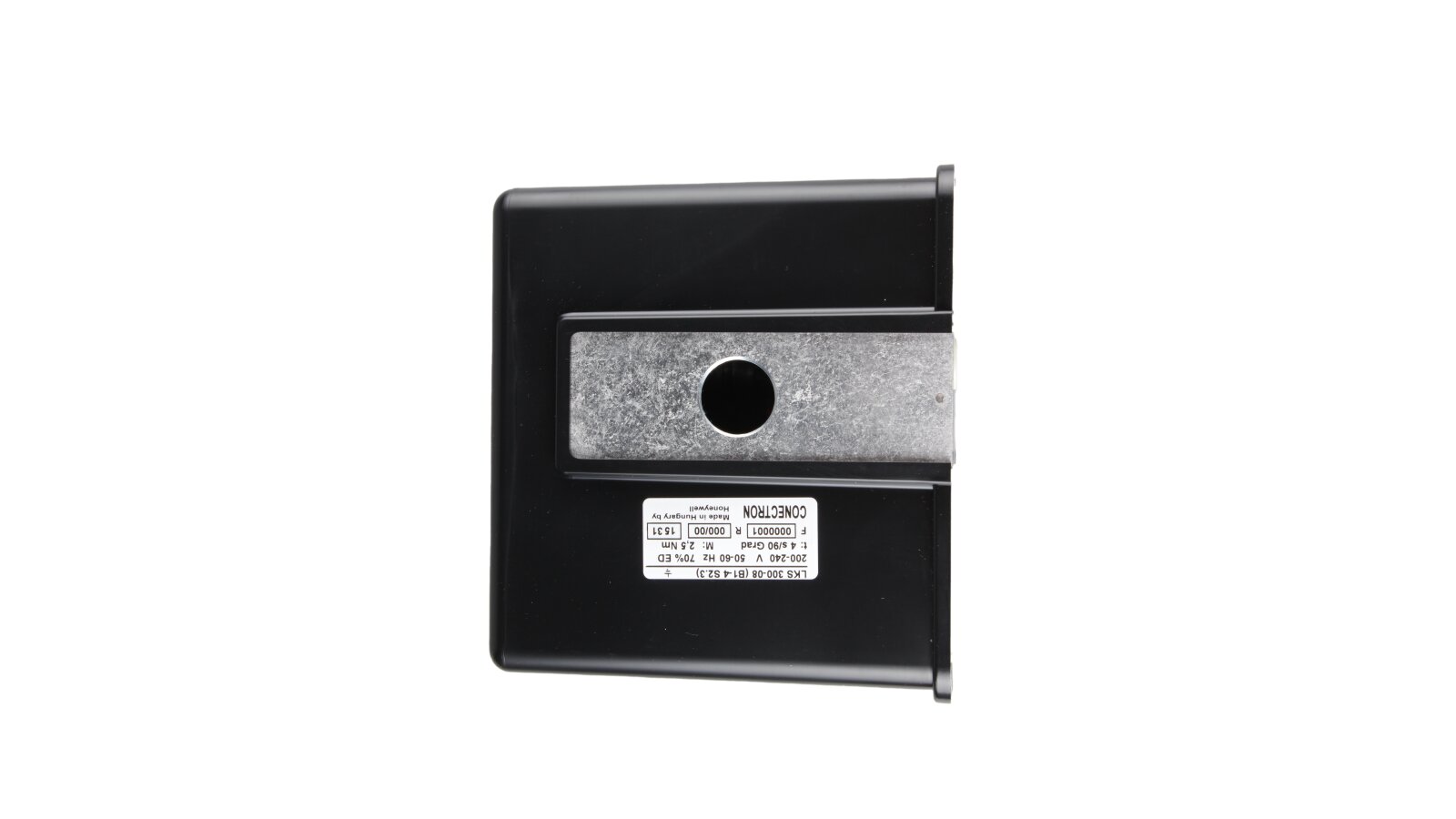

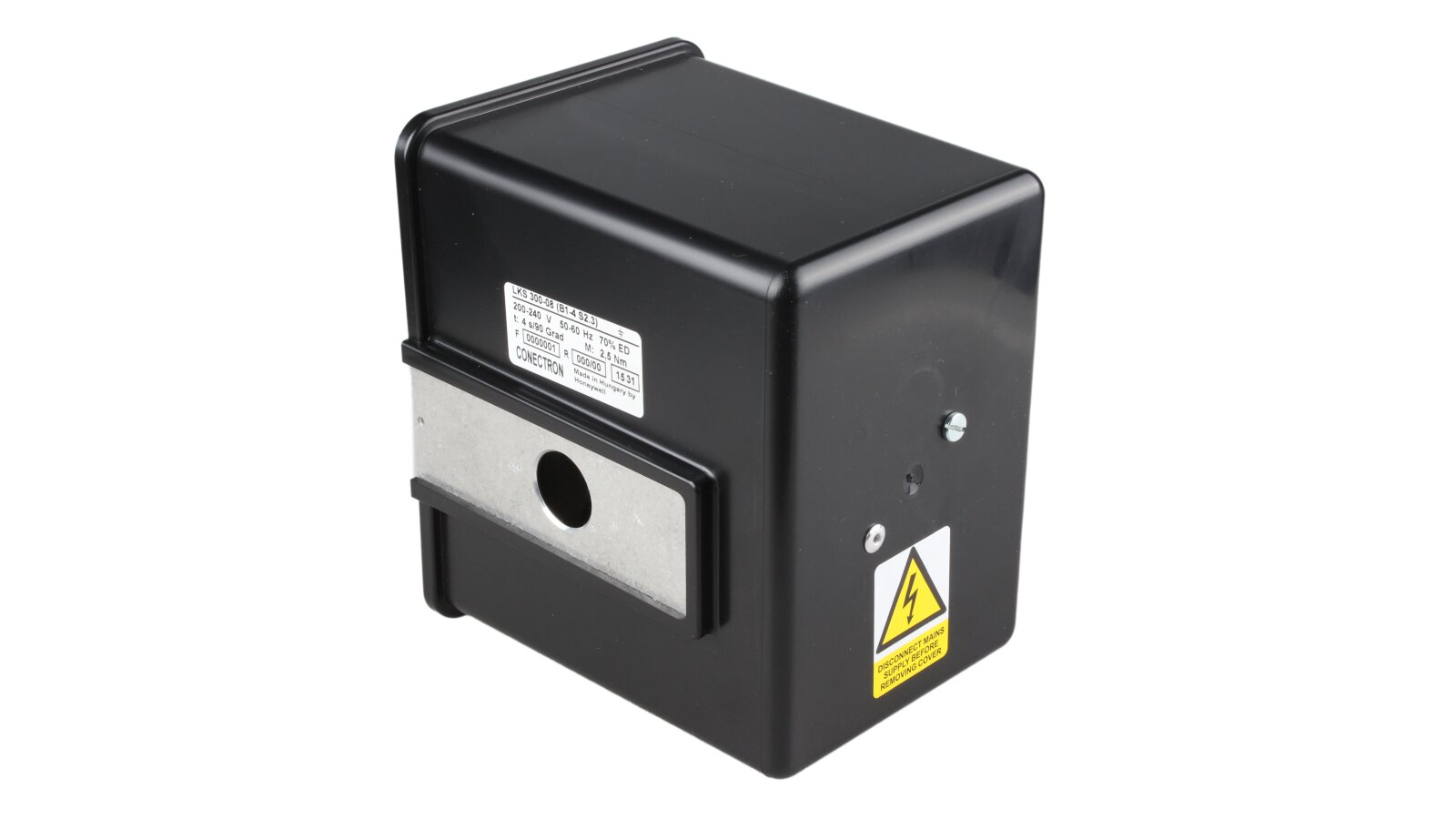

Servo drive Riello LKS 300-08 (B1-4 S2.3), Part Number: 3003233 changes the position of the air damper taking into account the commands of the furnace machine. It is intended for use in fuel oil and gas burners with a fully closing damper. The high-reliability design is designed for heavy industrial loads.
Parameters and features:
supply voltage 220 V;
available range of movement - 0 ... 90 °;
for multi-stage and modulating burners;
duration of full opening (to 90 °) - 4 sec.;
stable operation regardless of voltage or load fluctuations;
increased level of dust and moisture protection, class IP54;
precise movement of the damper in accordance with the specified parameters;
built-in position indicator;
reliable metal case, polymer casing;
permissible ambient temperatures: 0…+60 °C;
limit and auxiliary switches;
installation in any orientation;
working mechanism treatment with permanent lubrication.
Configuration
The servo drive for air dampers is equipped with a high-strength aluminum housing. The design is specially adapted for heavy loads. The synchronous motor drives the drive and cam shaft using a detachable gearbox. The cam shaft controls the limit and additional switches. The parameters are set within the available range using a cam disk.
Advantages:
short opening/closing cycle;
precise damper movement;
motor protection from impacts and thermal effects;
integrated position indication;
high-strength metal housing;
IP54 dust and moisture protection of electrical components;
working unit lubricated for life.
You can buy Riello LKS 300 servo drive and other components for industrial gas and fuel oil burners from us. You can clarify the characteristics and features of the equipment from our consultants.
