Description

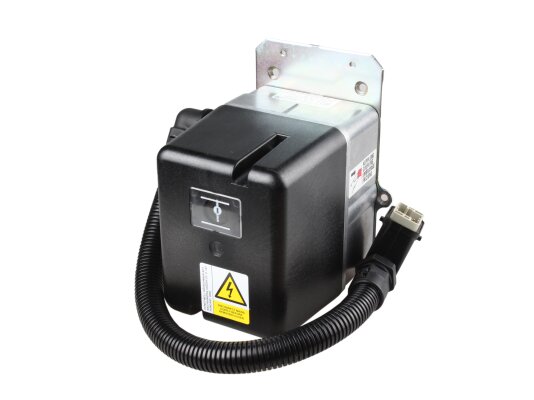

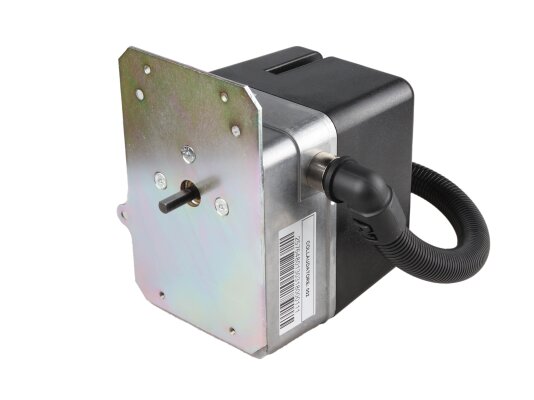

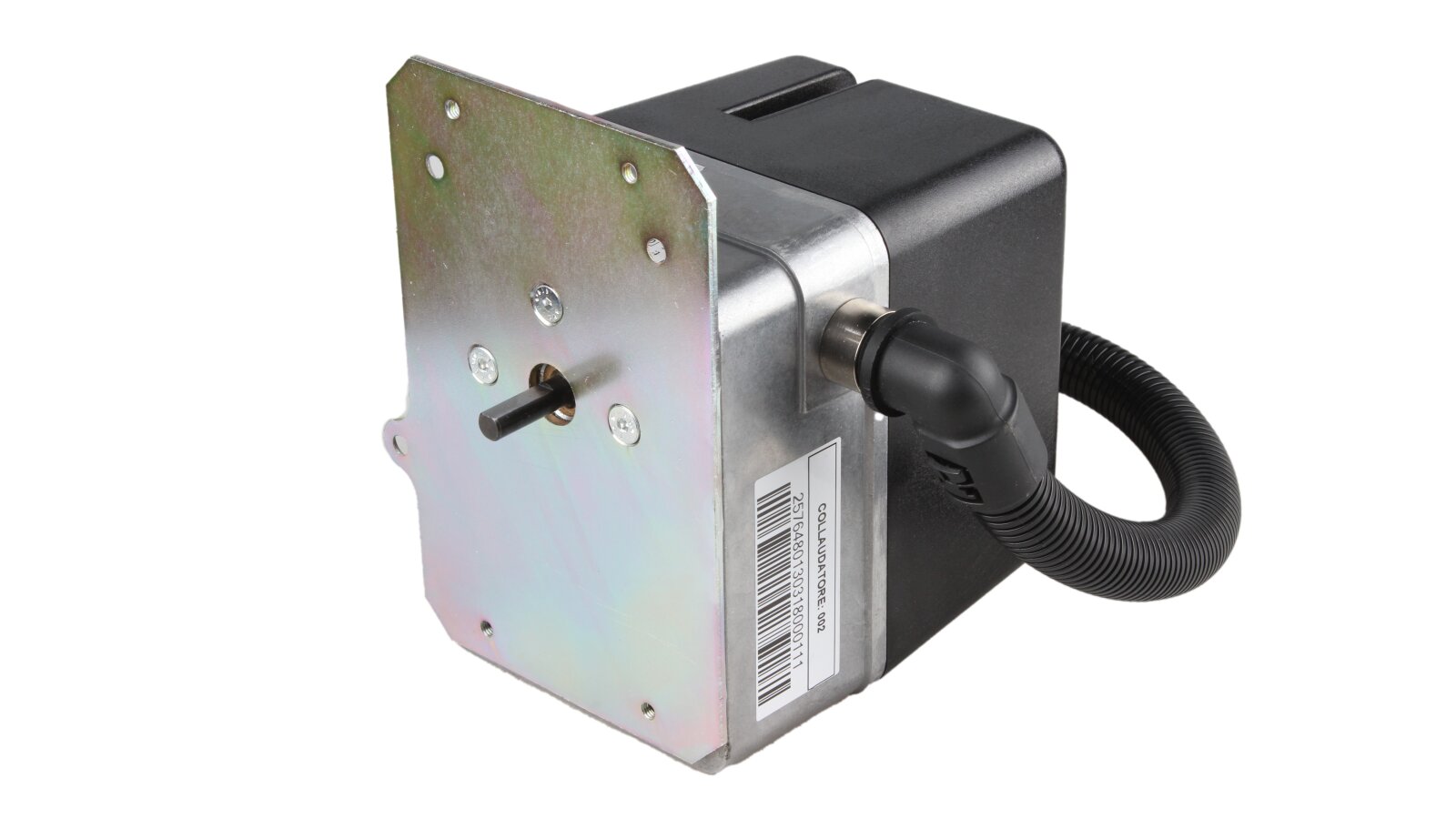

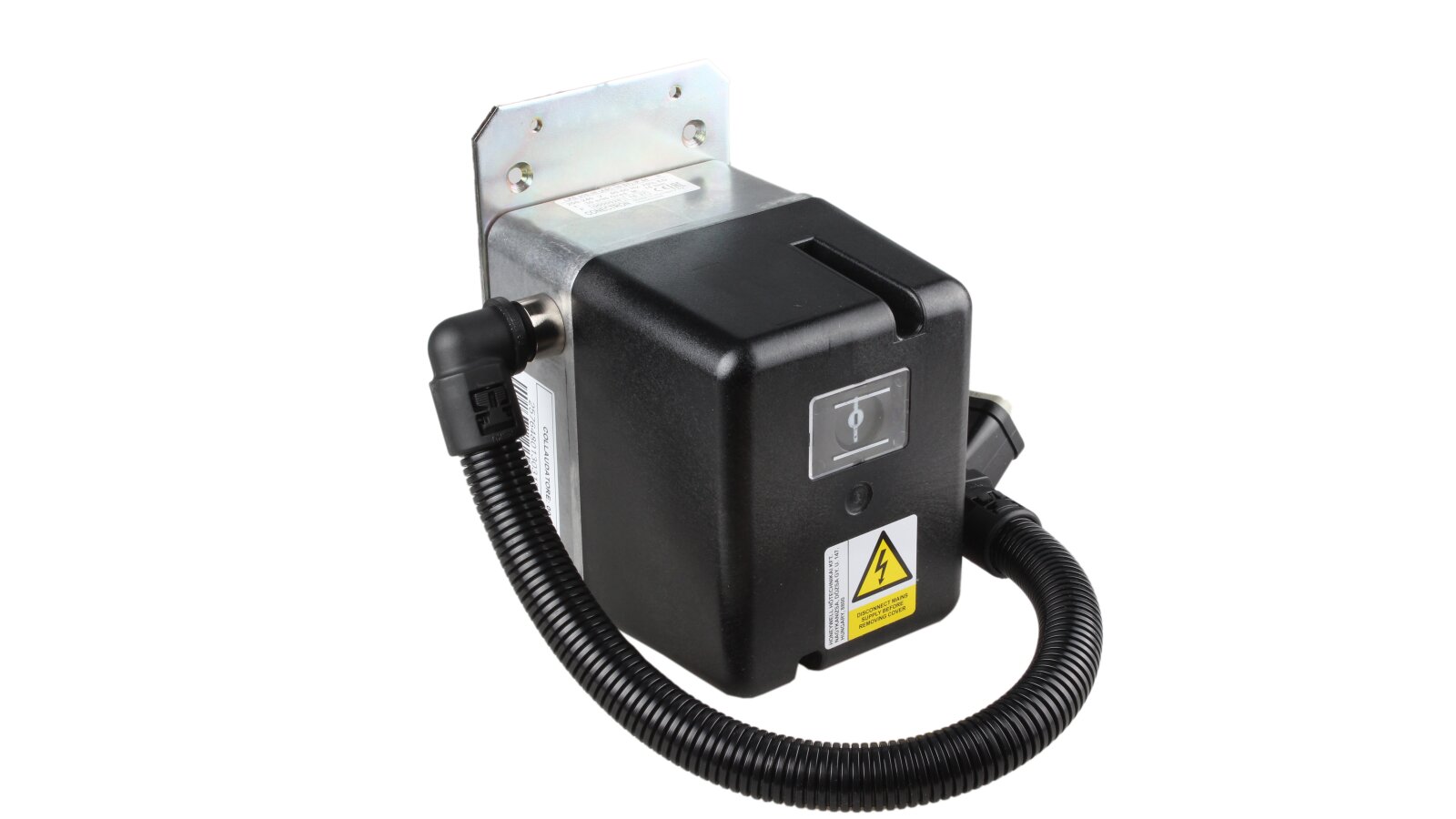

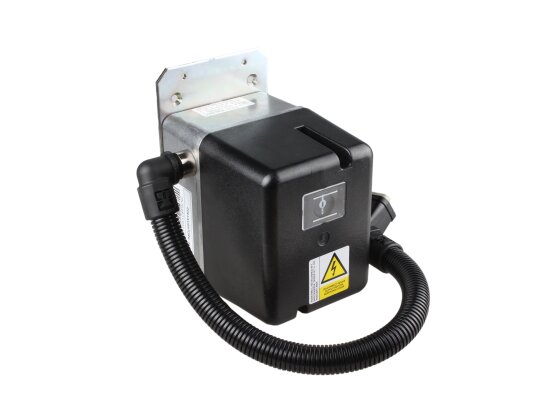

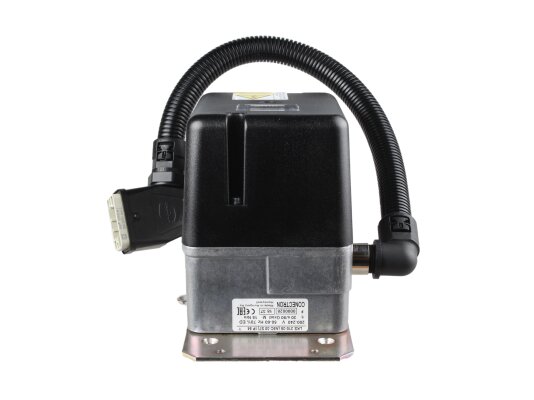

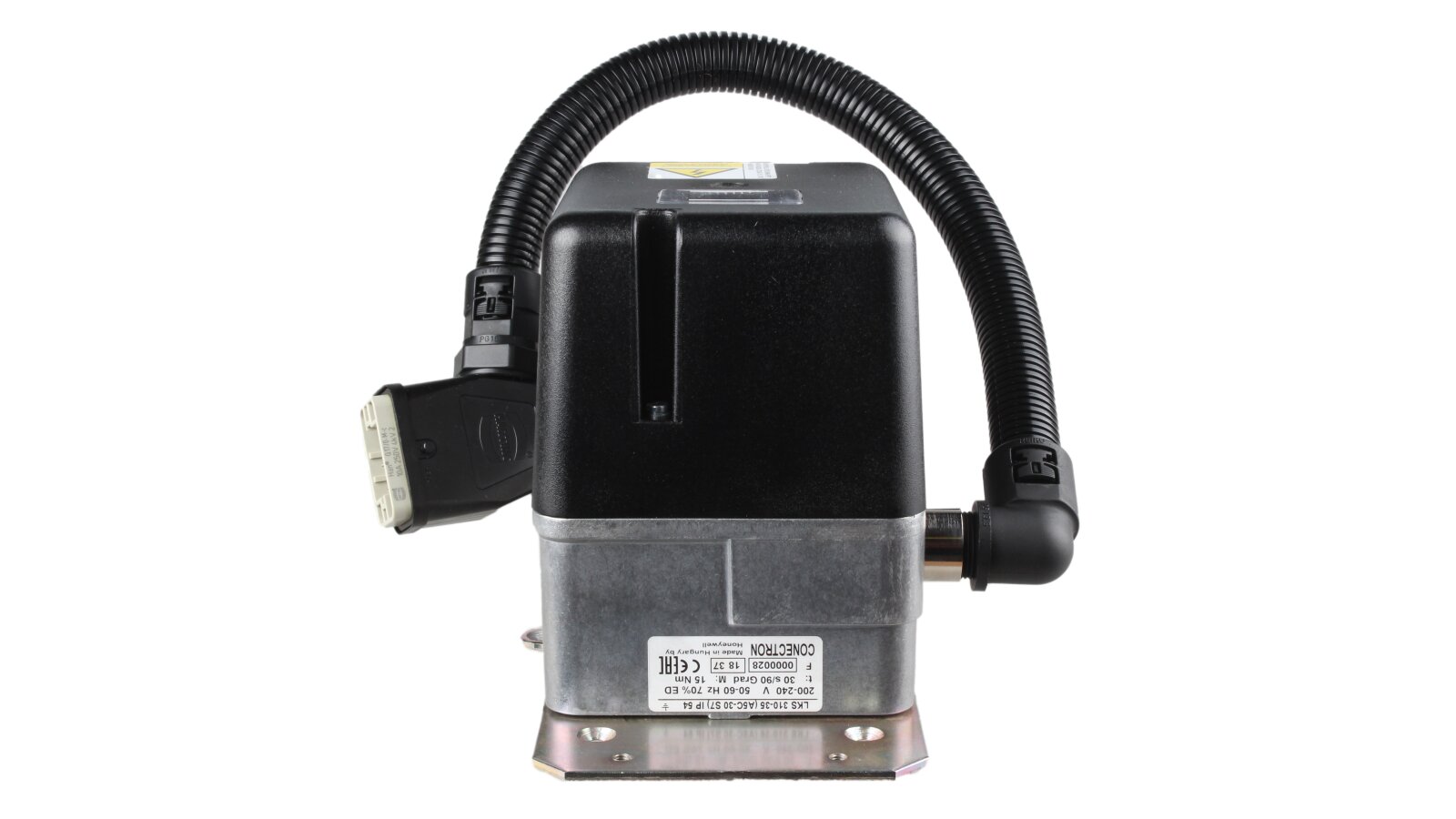

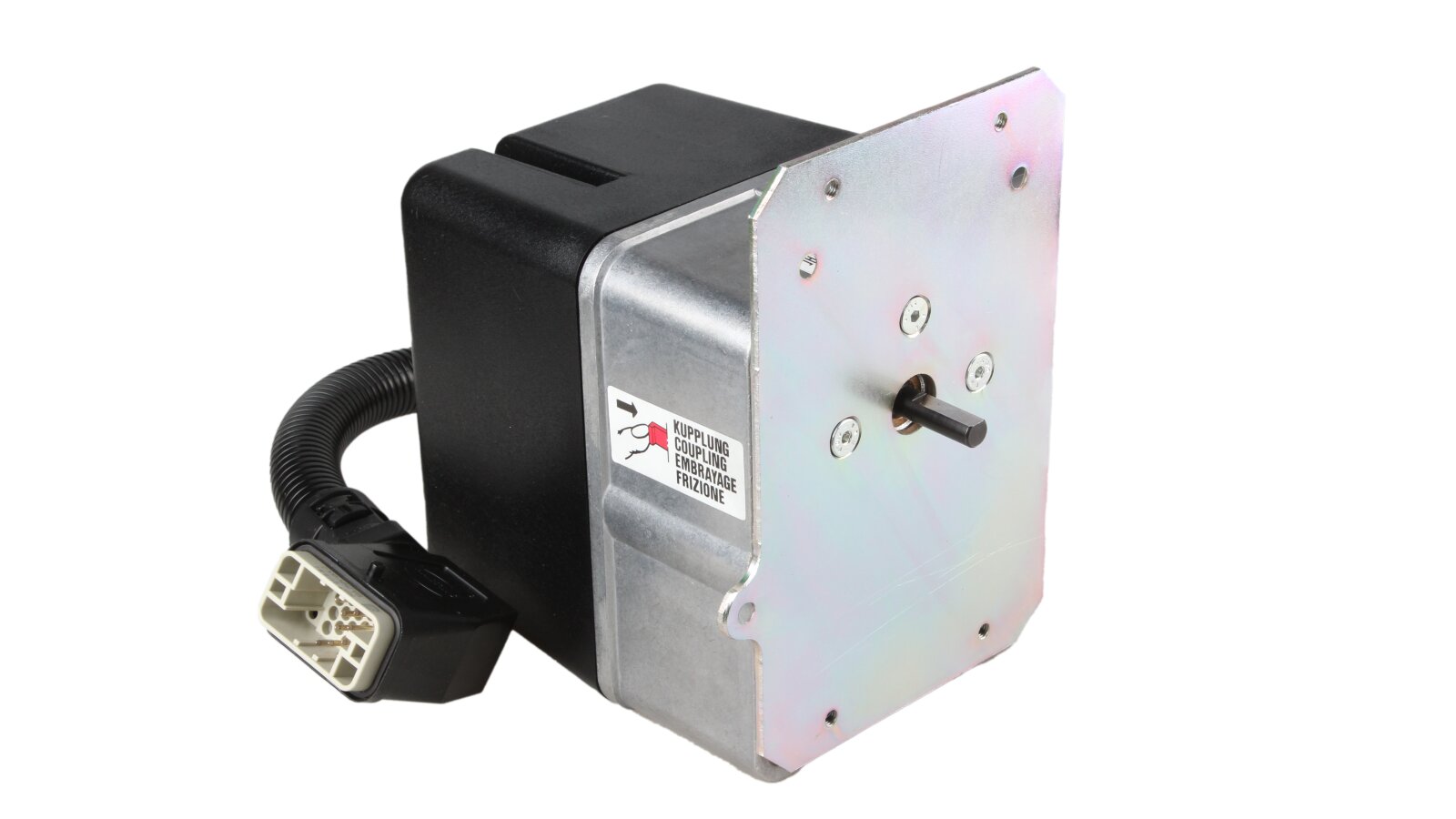

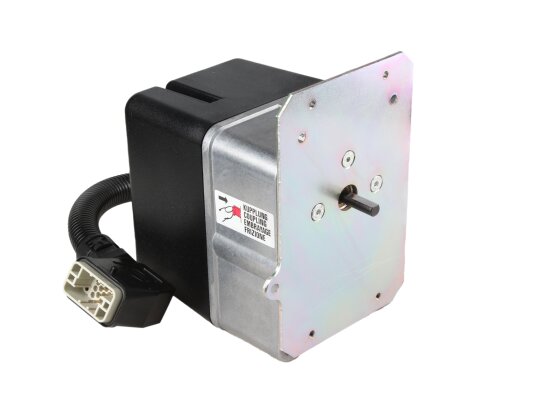

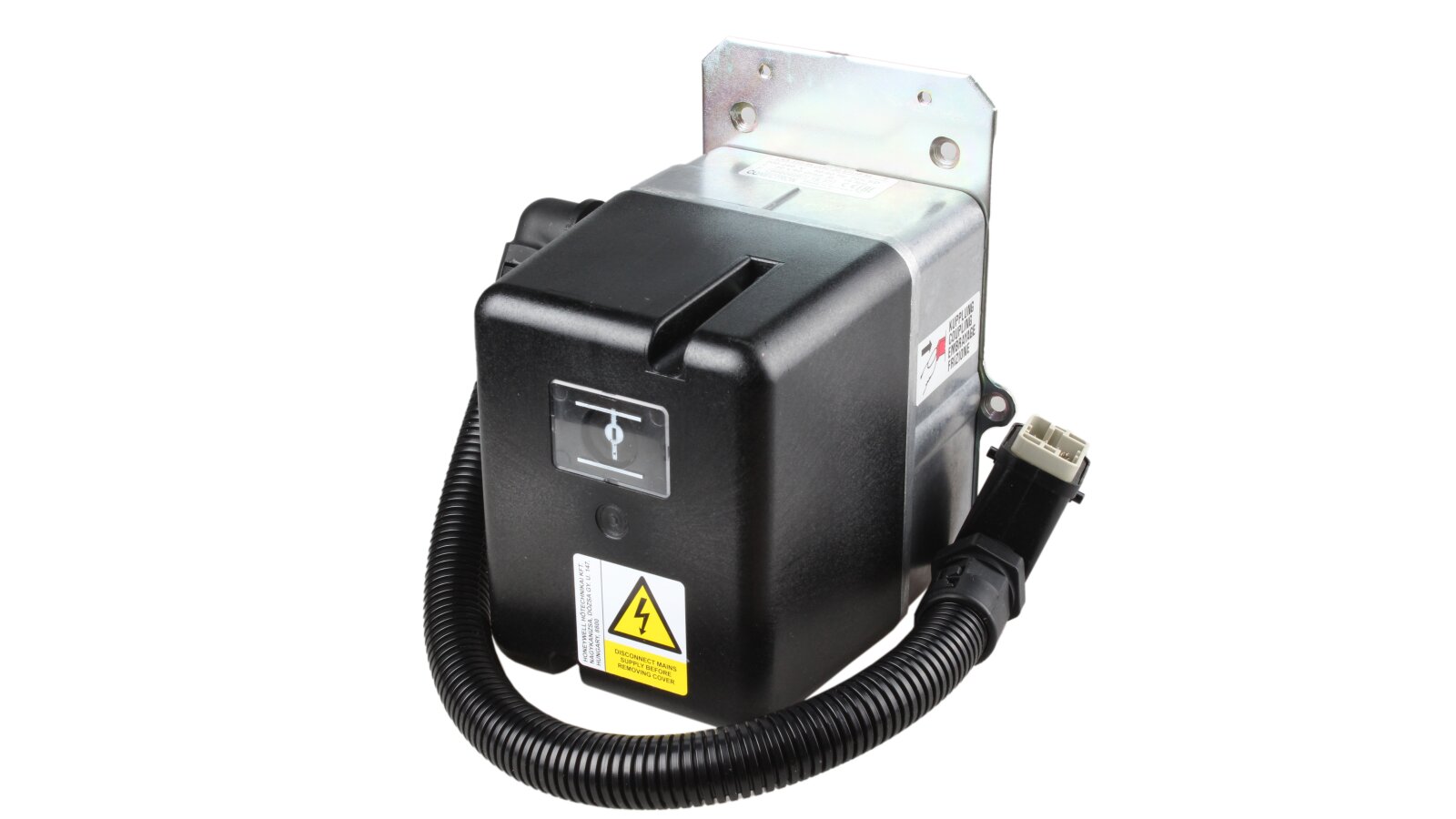

Servo drive Honeywell LKS 310-35 (A5C-30 S7) RL, art: 3013306 is used to move air dampers with high force or for industrial use. It is installed in multi-stage or modulating liquid fuel and gas burners.
Features and operating parameters:
Supply voltage: 200-240 V;
for air flow control;
manual adjustment of limit and auxiliary switches;
full opening/closing time – 30 sec;
position indication;
for heavy-duty use;
installation using M5 fasteners.
Design and adjustment
The servo drive consists of a synchronous motor connected to a gearbox. The gear mechanism is treated with permanent lubrication and does not require maintenance. The drive is assembled in a shockproof, heat-resistant aluminum case, protecting the working unit from mechanical impacts, dust and moisture (class IP 54). The drive shaft is made of corrosion-resistant steel. Quick-release terminals are provided to simplify the electrical connection. The opening angle of the air damper is adjusted in the range of 0-90º using cams.
