Description

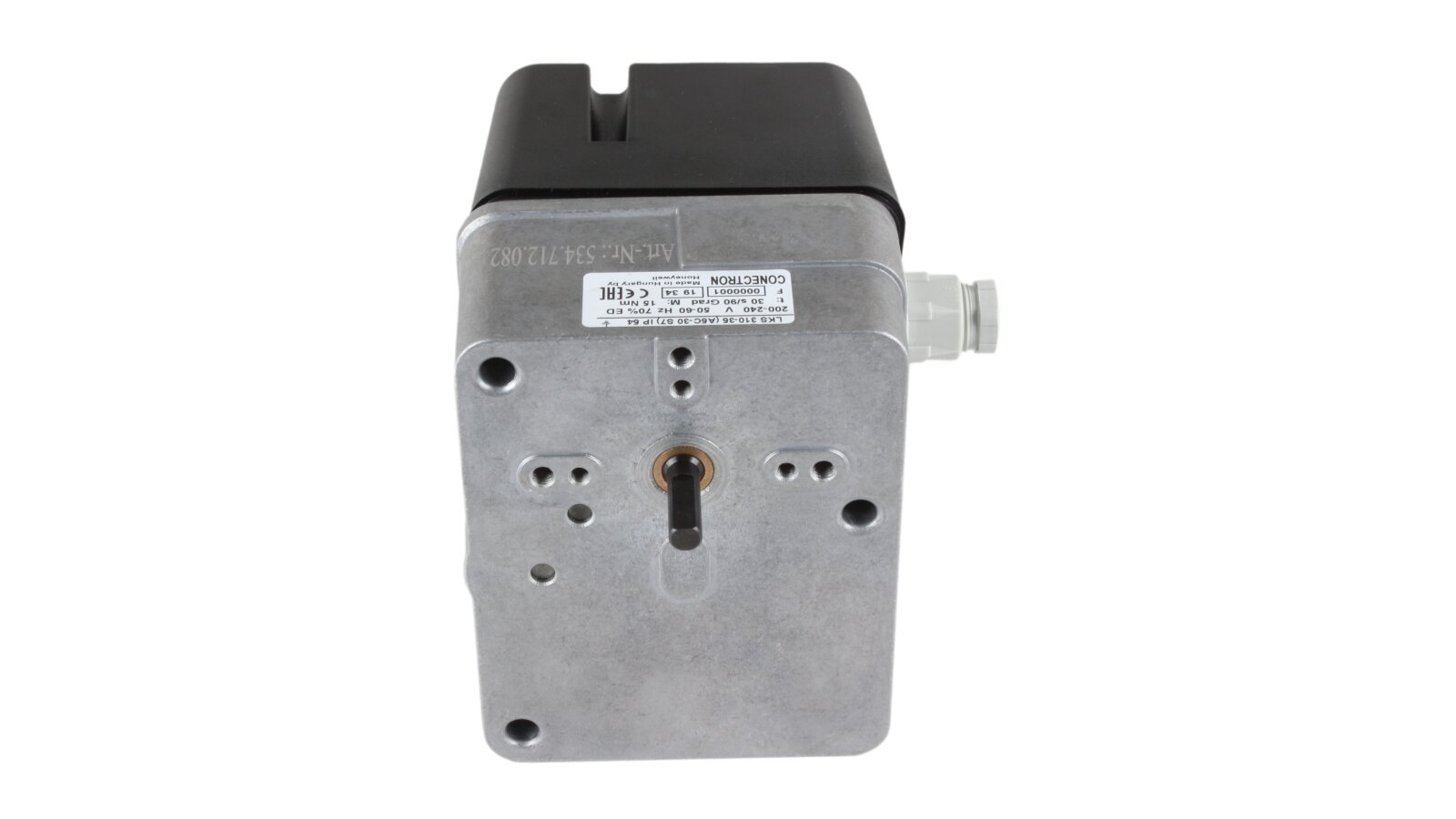

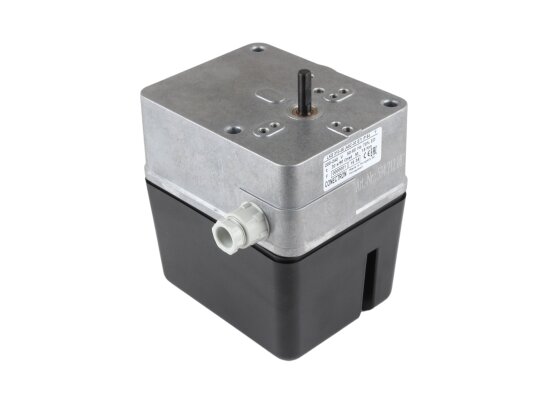

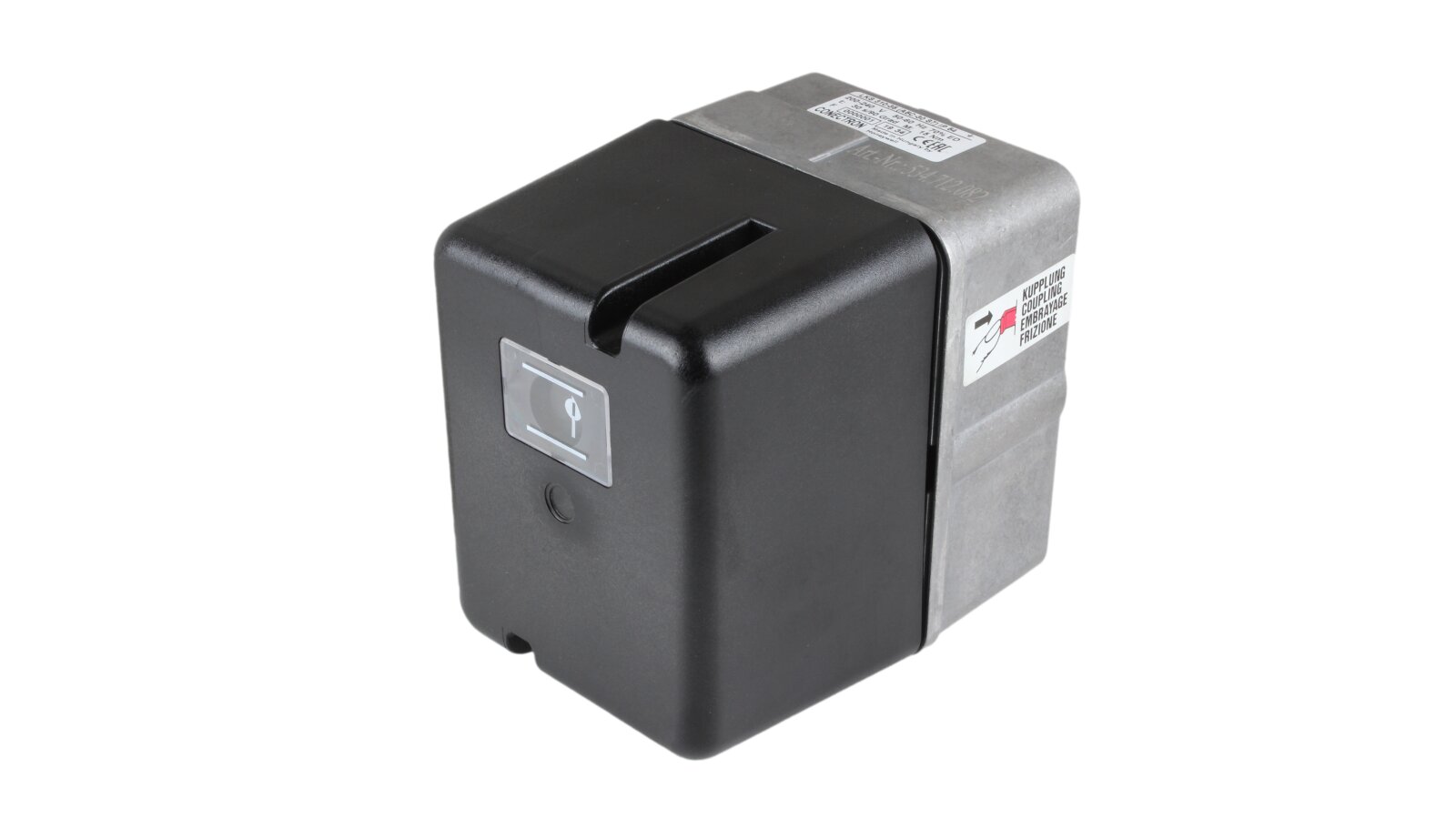

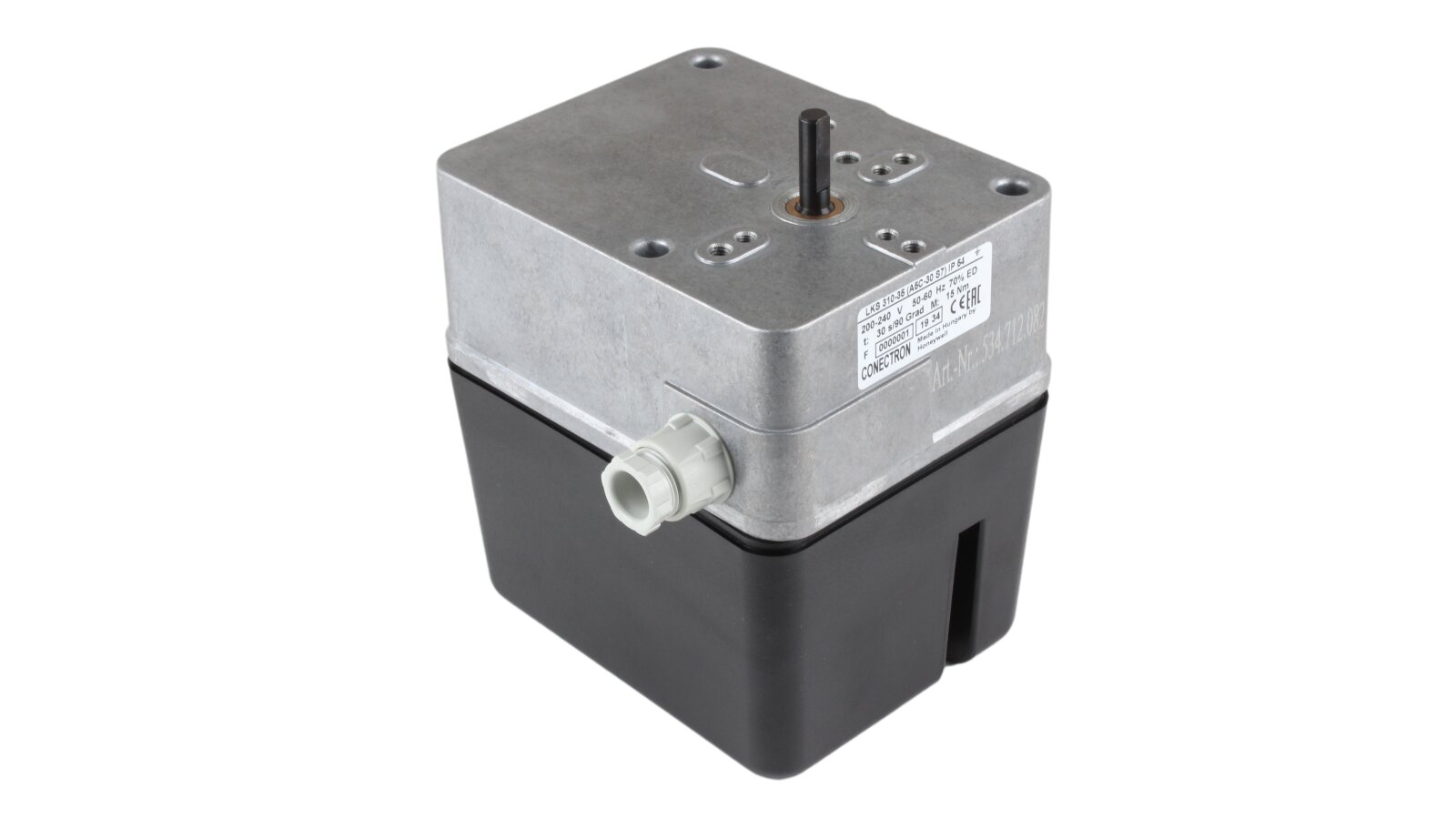

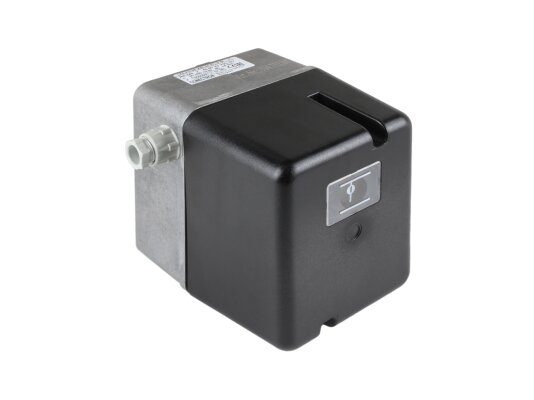

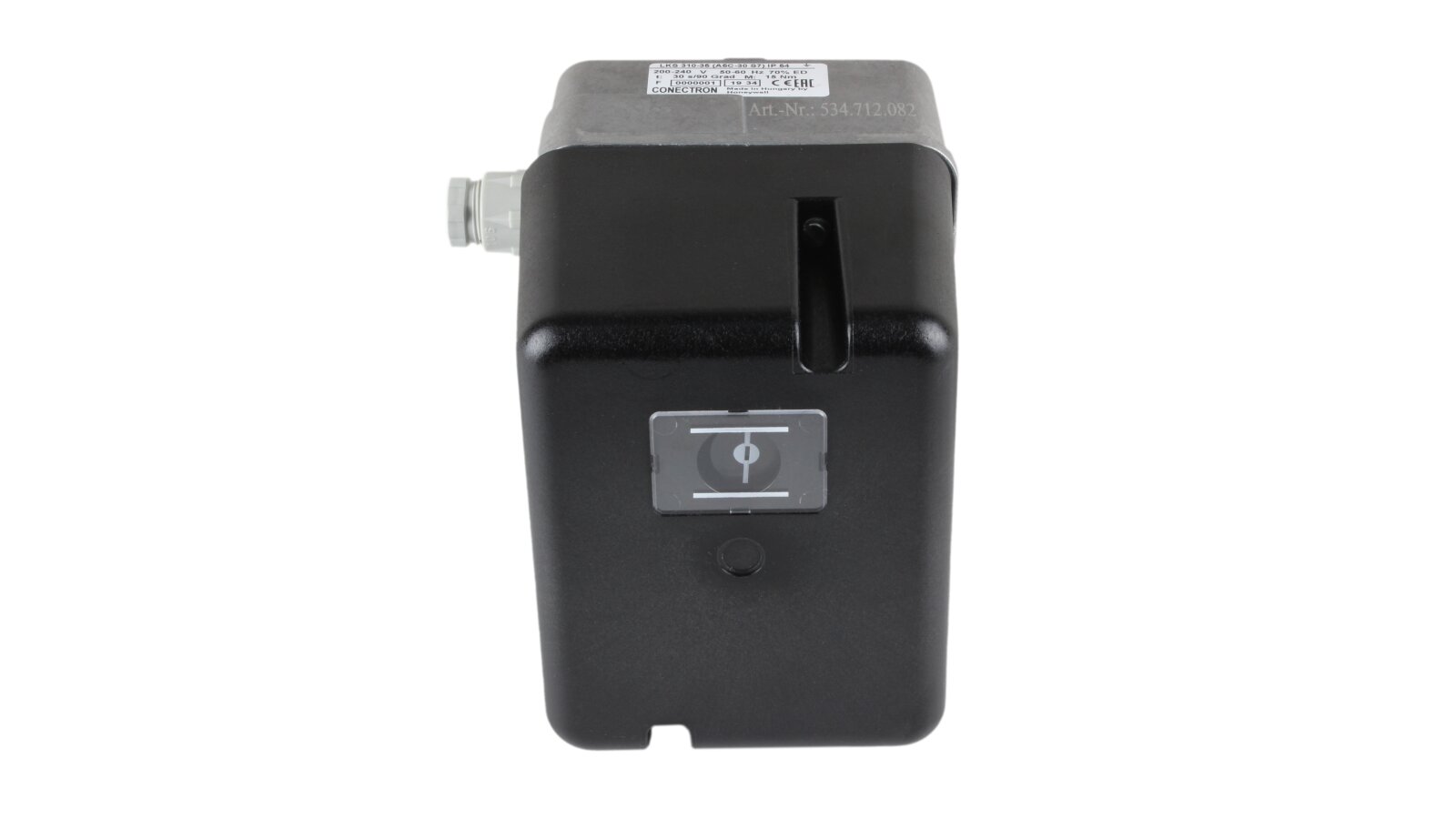

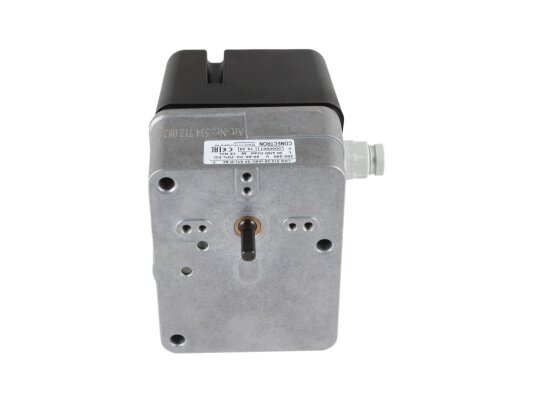

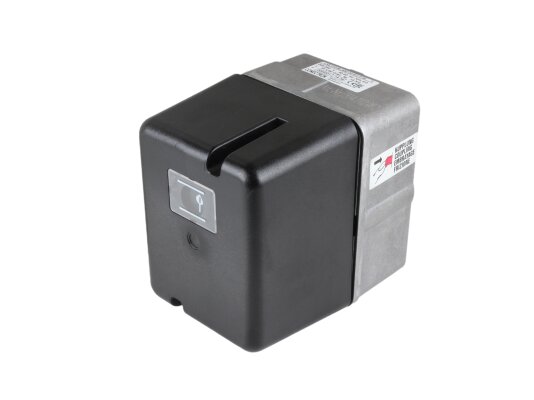

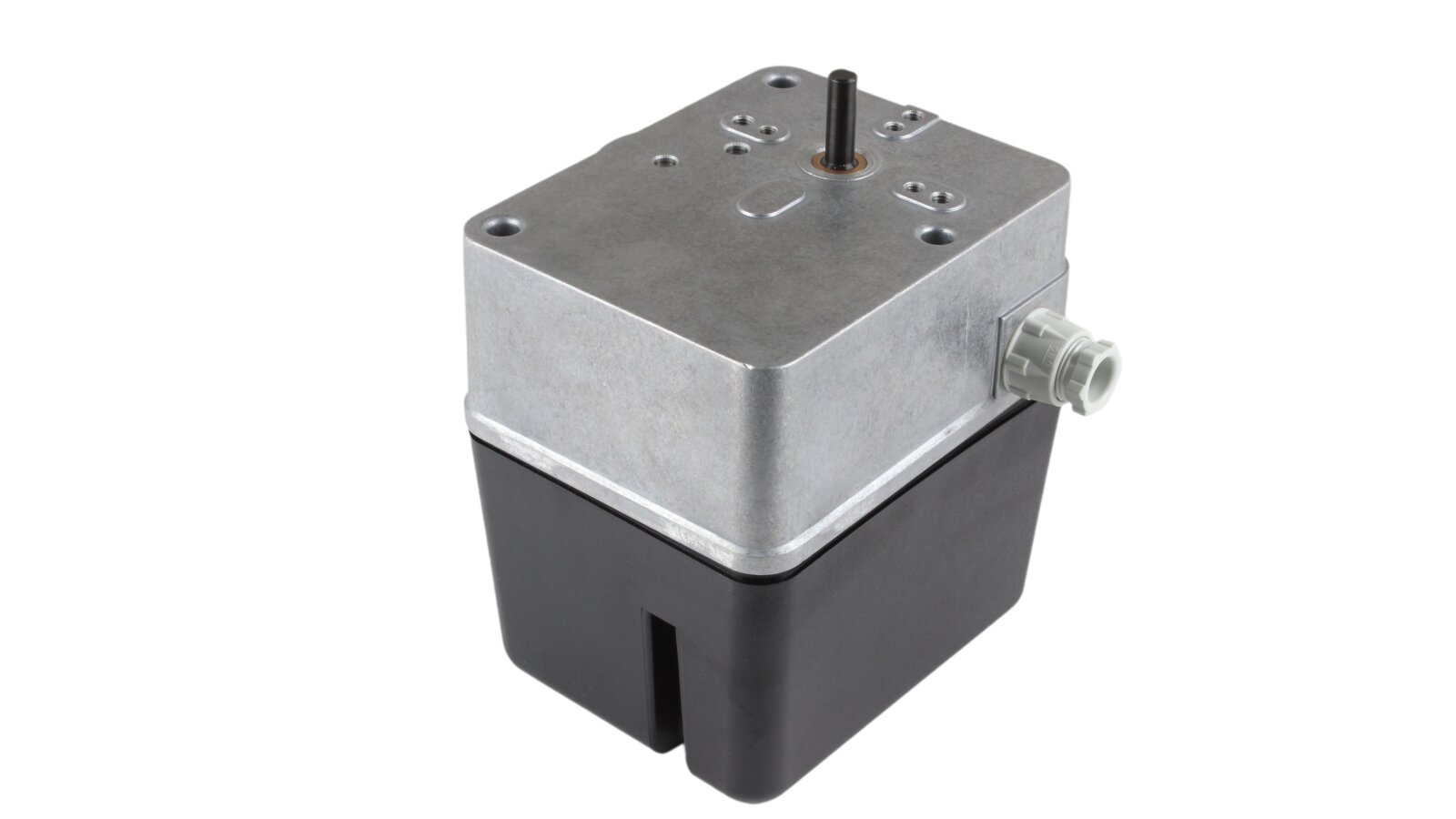

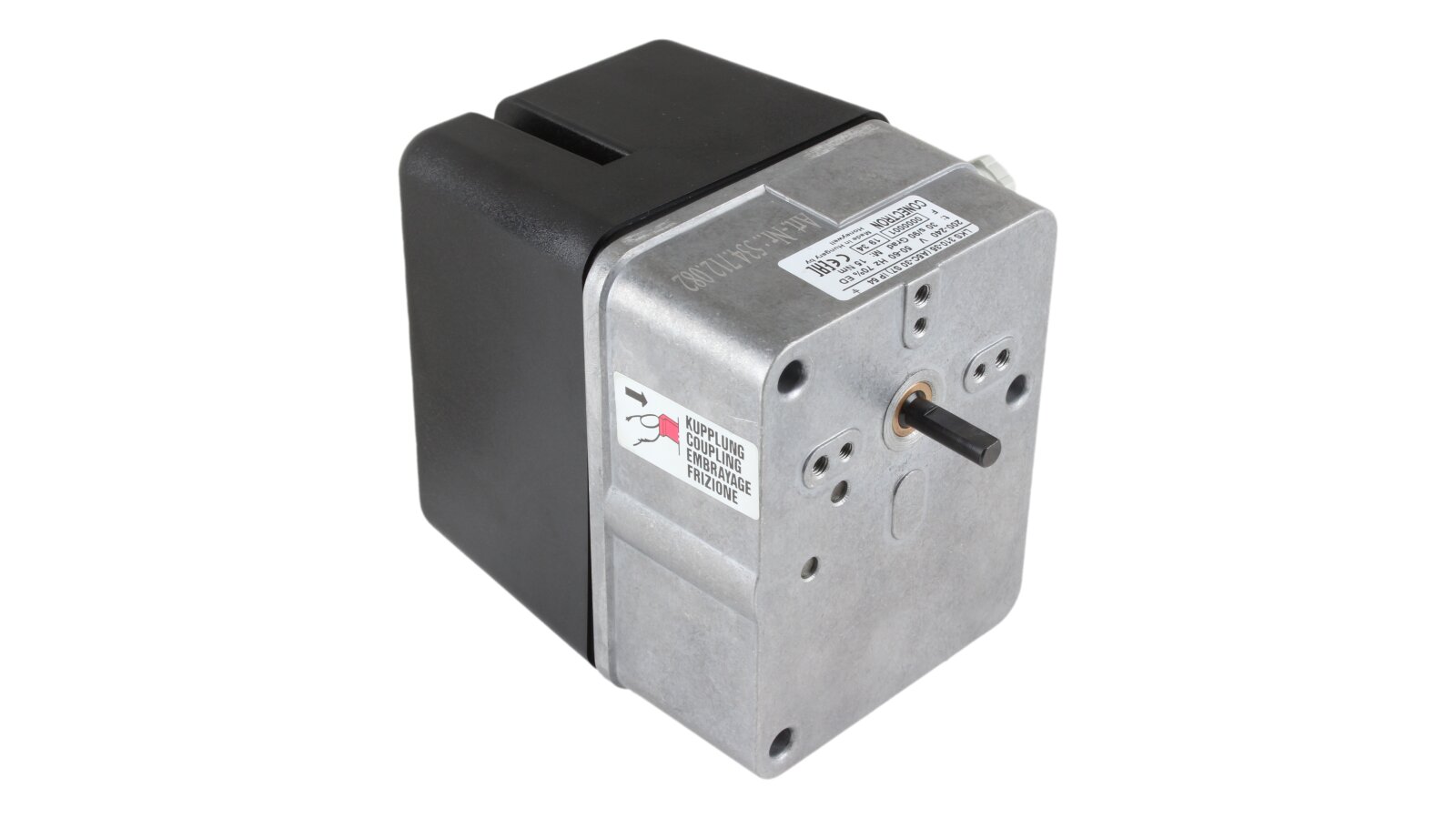

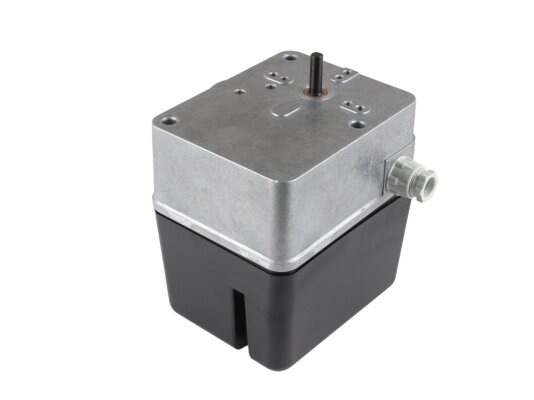

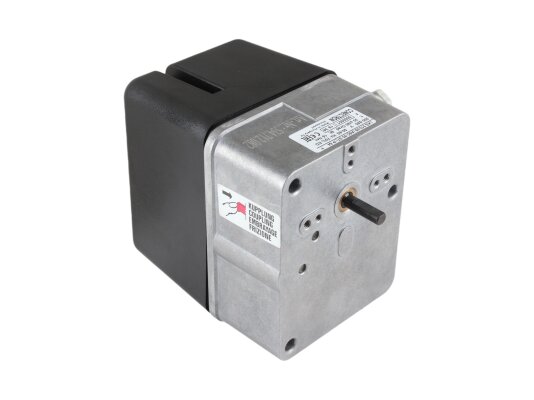

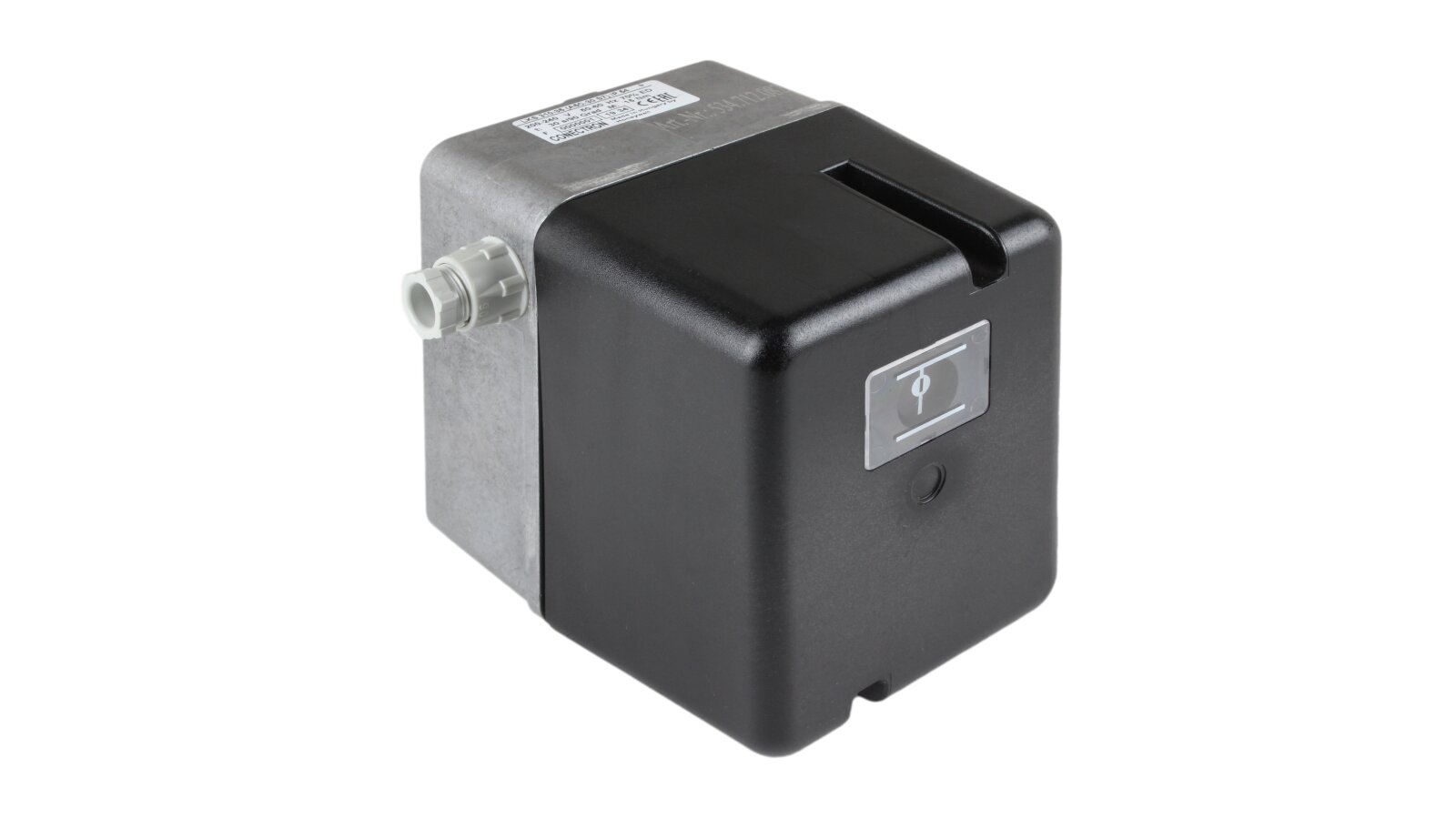

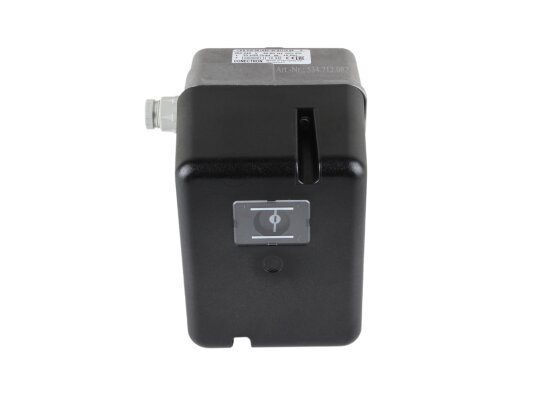

Servo drive Riello LKS 310-35 (A5C-30 S7), Part Number: 3013640 is used for industrial applications. Provides opening and closing of the air damper in accordance with the needs of the system. Suitable for equipping fuel oil and gas burners with a fully closing damper. The design is characterized by increased reliability, wear resistance, enhanced dust and moisture protection,
Parameters and features:
supply voltage: 220-240 V;
available travel range - 0 ... 90 °;
for multi-stage, modulating burners;
full opening time (90 °) - 30 sec.;
stable operation regardless of voltage or load fluctuations;
increased level of dust and moisture protection, class IP54;
precise movement of the damper in accordance with the settings;
position indication;
reliable metal case, heat-resistant polymer casing;
operating temperature range: 0…+60 °C;
limit and auxiliary switches;
any mounting position;
complete with a 450 mm long power cable;
working mechanism lubricated for life.
Configuration
The servo drive for air dampers is assembled in a high-strength aluminum housing. The design is designed for heavy industrial loads and intensive use. The 230 V synchronous motor drives the drive and cam shaft using a gearbox. The transmission is easily disconnected. The cam shaft controls the limit and auxiliary switches.
Advantages:
precise, stable movement of the damper;
high-strength design with an aluminum housing;
motor protection from impacts and thermal effects;
position indicator;
dust and moisture protection of electrical components class IP54;
undemanding in maintenance.
You can buy Riello LKS 310 servo drive and other spare parts for industrial gas and fuel oil burners and boilers from us. You can find out detailed information about the technical and operational characteristics of the equipment from ANKAS specialists.
