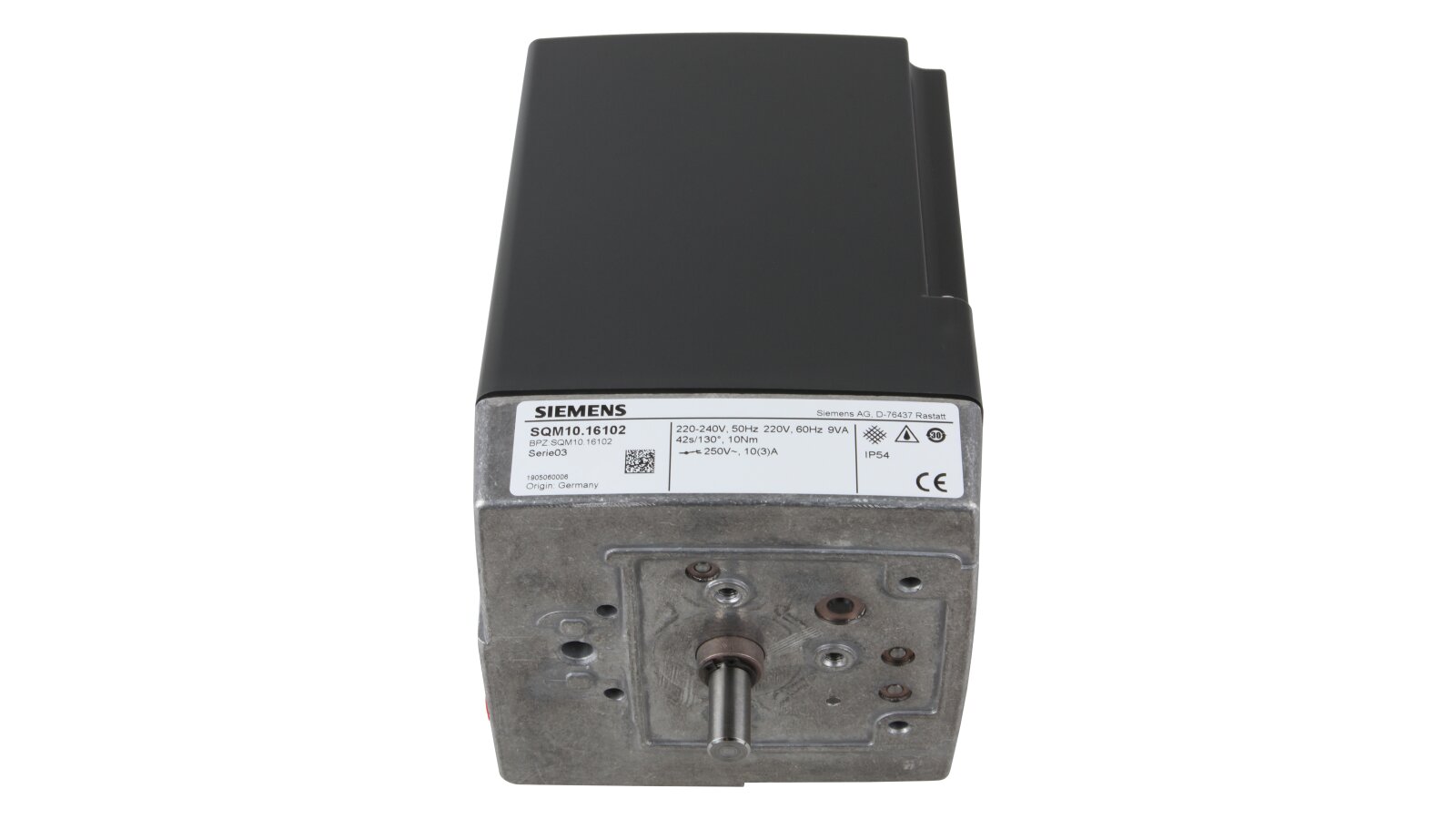

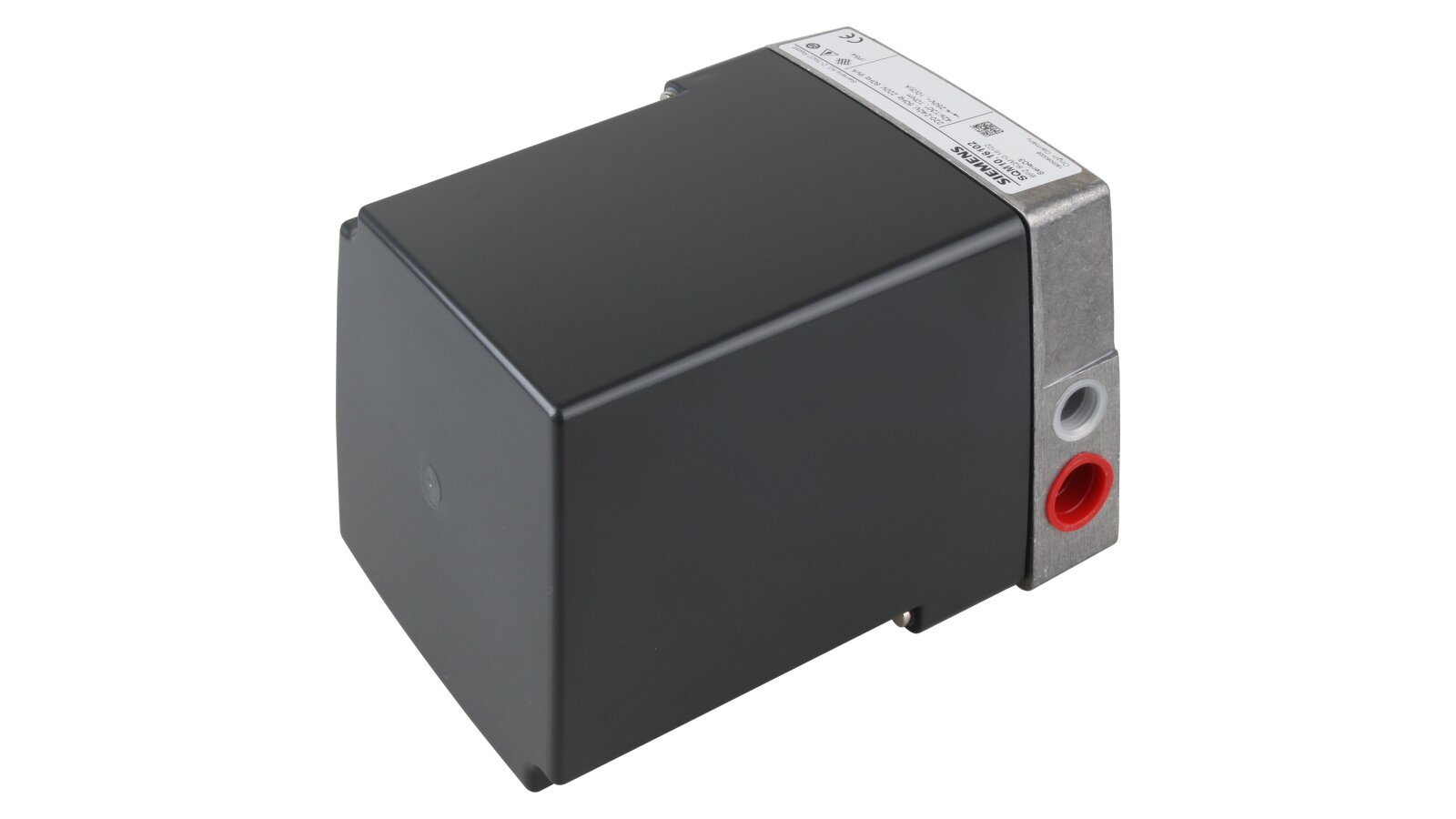

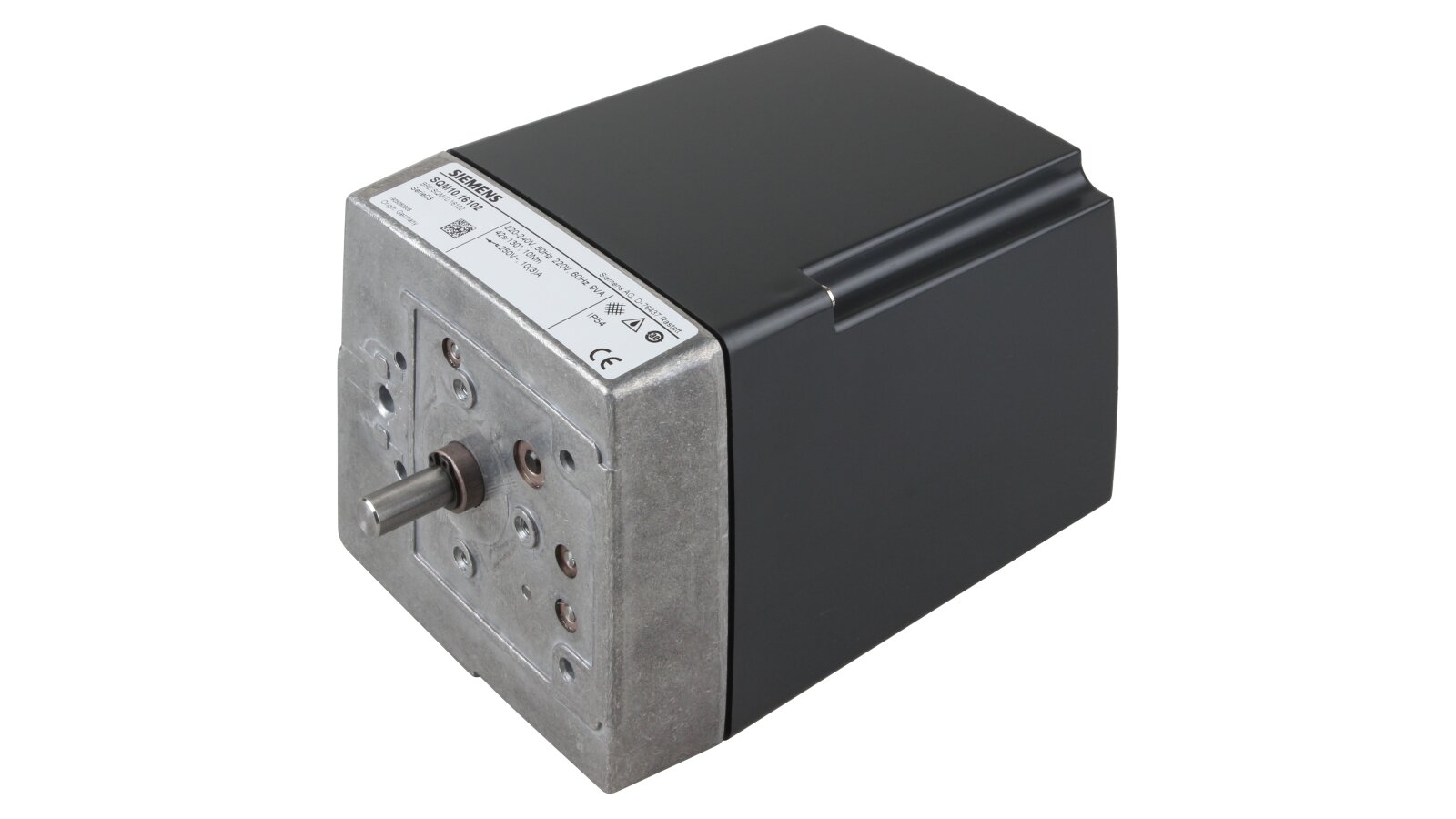

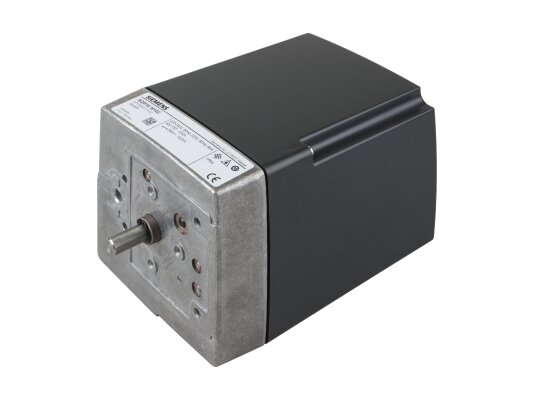

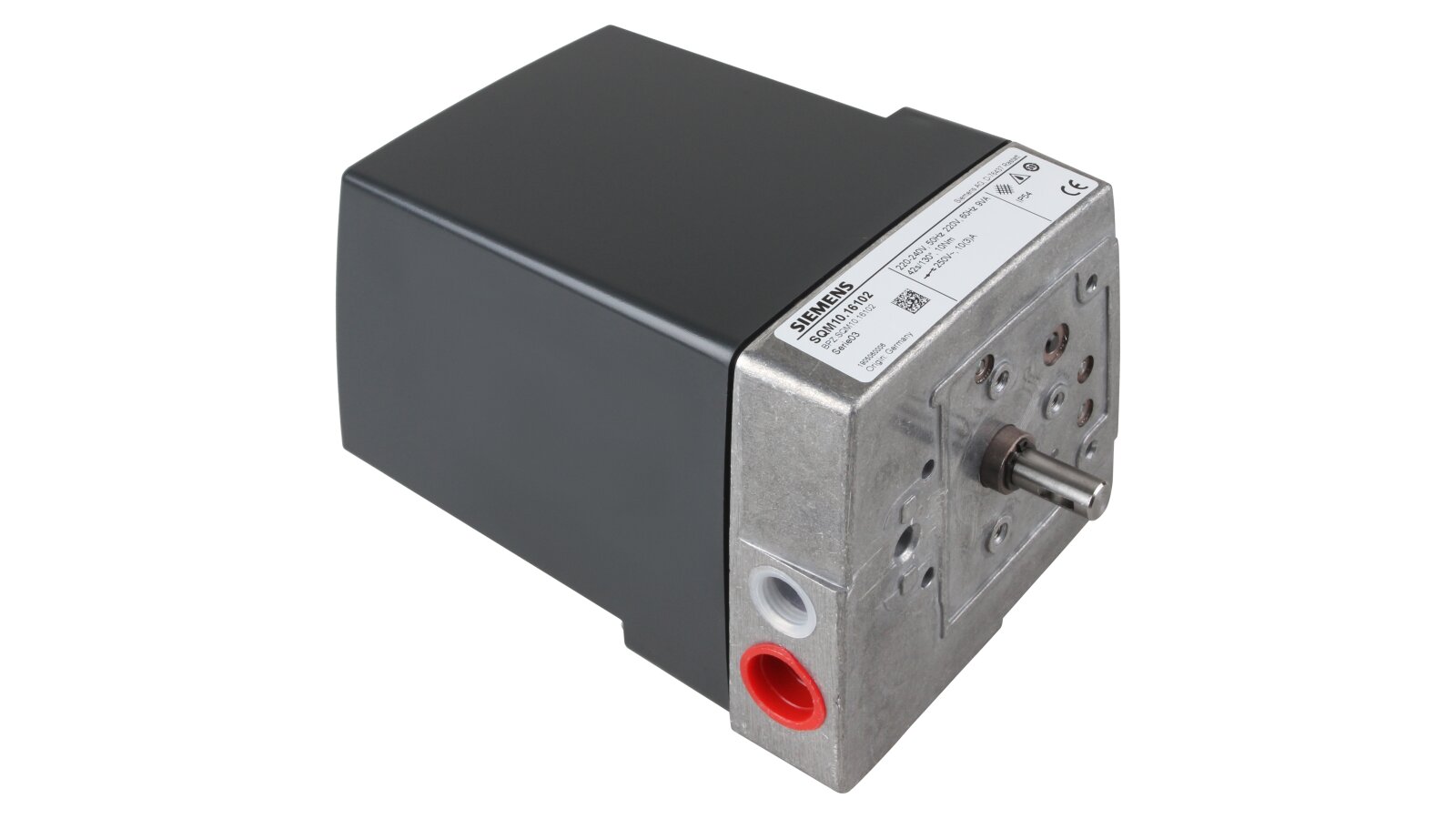

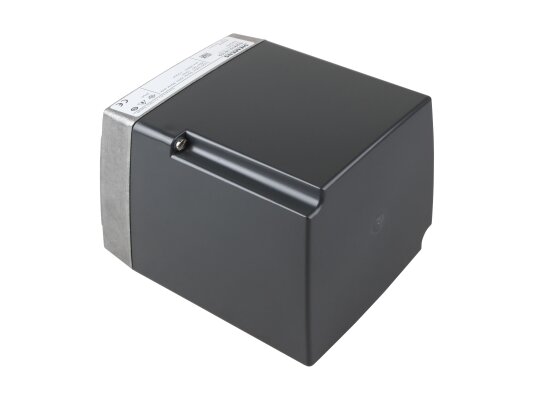

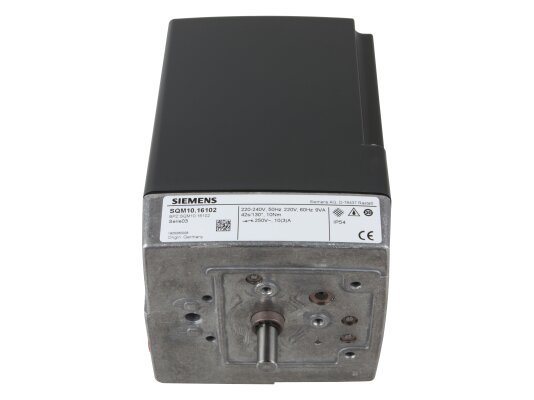

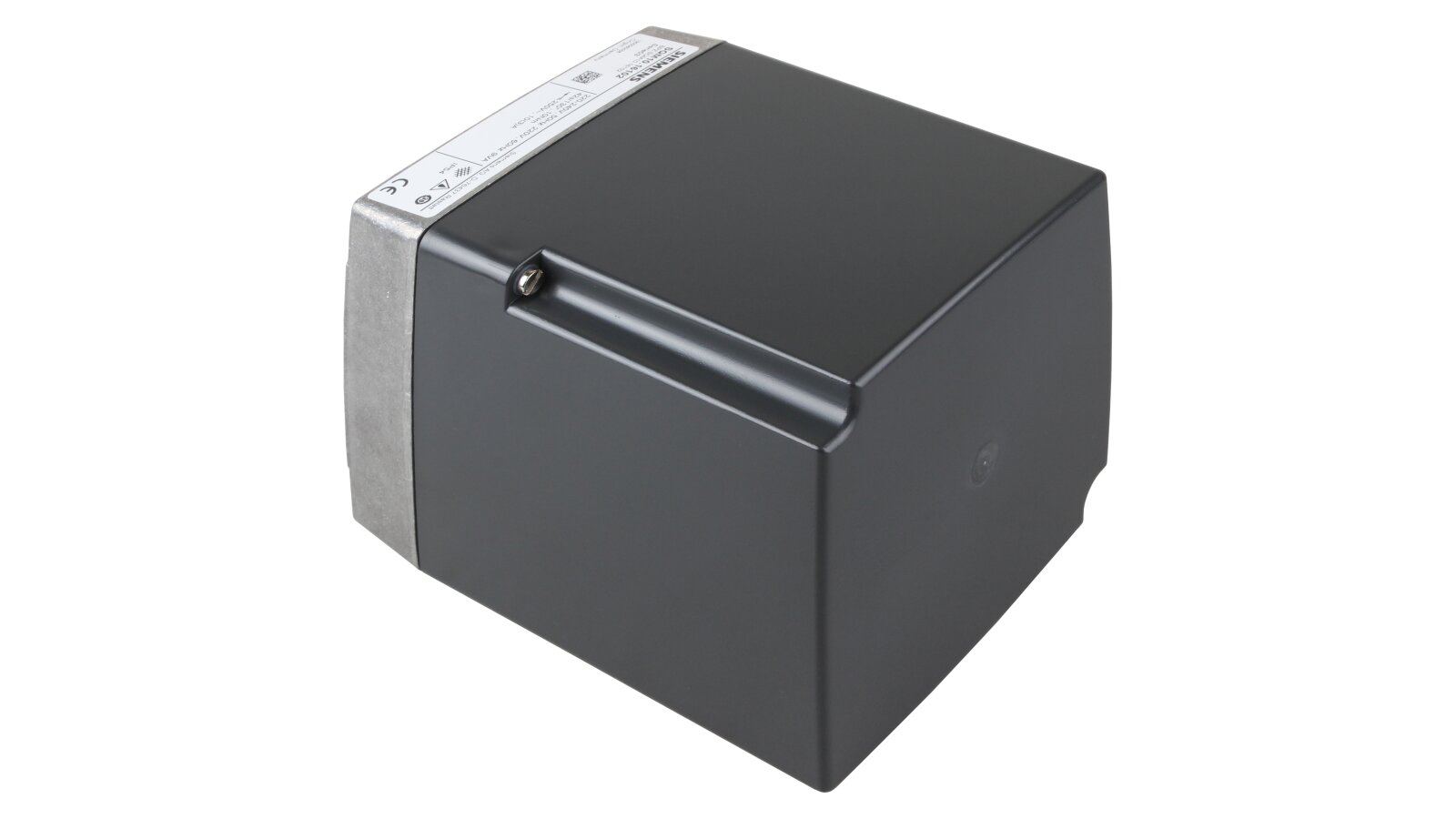

Actuator Riello SQM10.16102

Servo drive Riello SQM10.16102, Part Number: 3006092 – actuator for air dampers of industrial burners. Automatically moves the damper to the required angle during the process of regulating the volume of air supplied to combustion. The design is designed for intensive use and loads. The drive is controlled by the burner automation, which is responsible for monitoring combustion processes and regulating the ratio of the components of the fuel-air mixture, obtaining high boiler efficiency.

Parameters and features:

• operation from the mains 220-240 V, 50 Hz;

• available range of movement – ​​0...130°;

• full opening time (90°/ 130°) – 29/42 sec.;

• stable operation regardless of voltage or load fluctuations;

• dust and moisture protection level according to IP 40;

• precise movement of the damper in accordance with the settings;

• limit and additional switches;

• potentiometer mounting (optional);

• reliable metal housing, heat-resistant polymer casing;

• counter-clockwise shaft rotation;

• operating temperature range: -20…+60 °C;

• any mounting position;

• continuous lubrication that does not require renewal.

Configuration

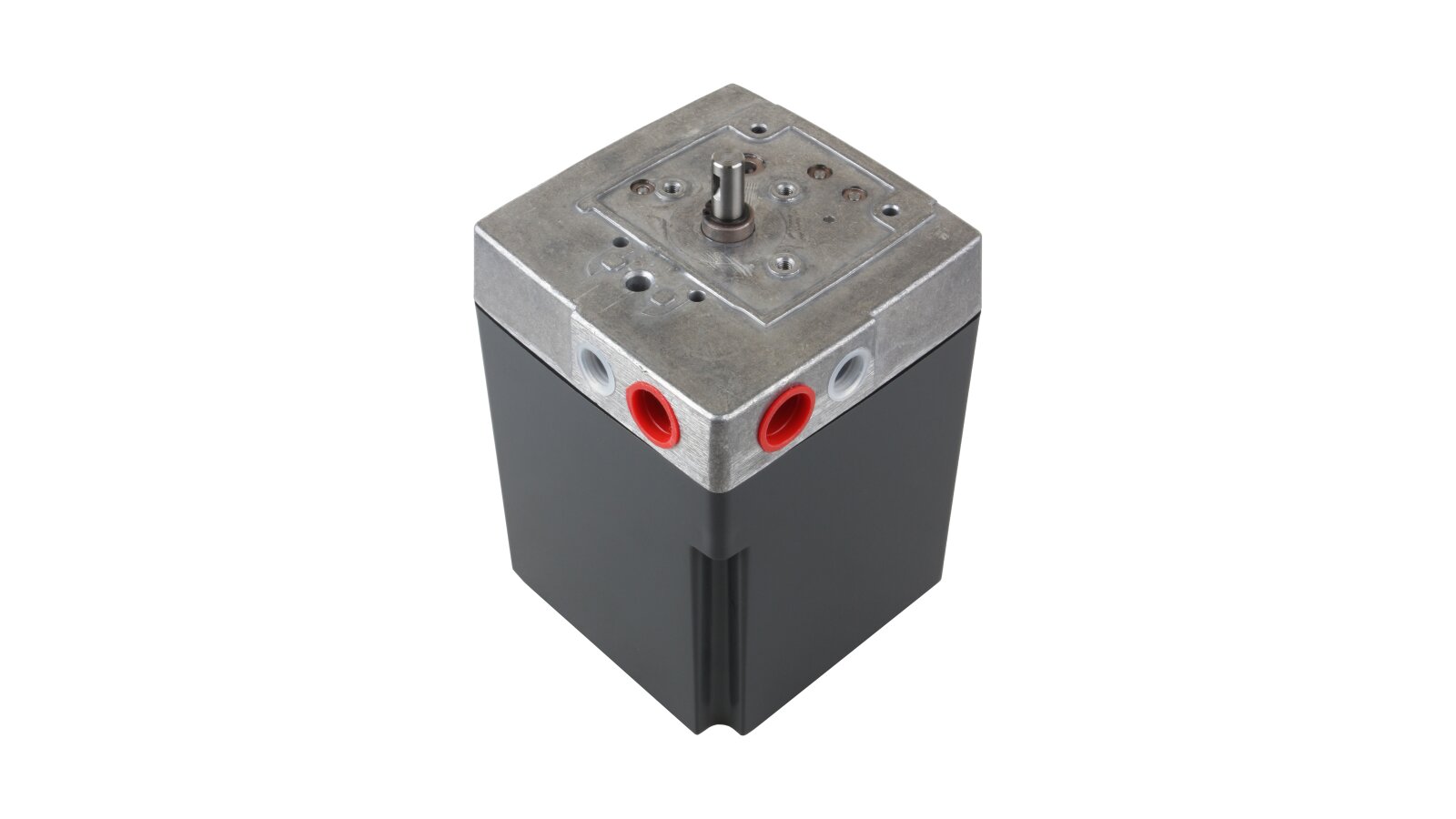

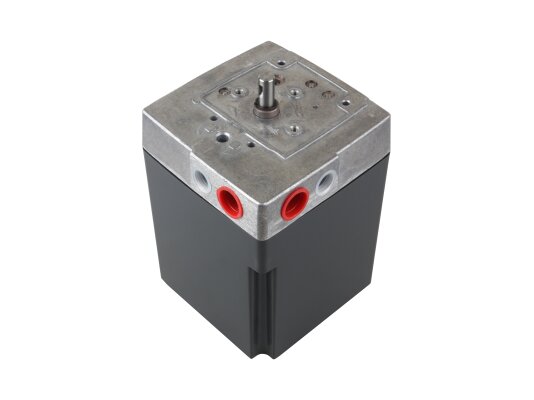

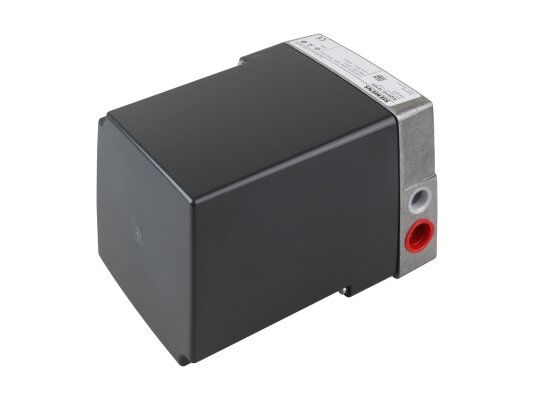

The Riello air damper actuator is assembled in a high-strength cast aluminum housing. The design is designed for industrial loads and intensive use. The damper drive is provided by a 230 V synchronous motor with an anti-lock function. The gearbox is equipped with a self-lubricating bearing (material - sintered bronze), does not require maintenance. The housing has holes for Pg11 cable entries.

Advantages:

• precise, stable damper movement;

• high-strength design with an aluminum housing;

• heat-resistant, impact-resistant plastic casing;

• low energy consumption;

• motor protection from impacts and thermal effects;

• reversible electric motor with anti-blocking;

• possibility of equipping with a potentiometer;

• low maintenance requirements.

You can buy Riello SQM10.16102 servo drive and other spare parts for industrial burners and boilers from us. You can clarify the information you are interested in about the product with ANKAS specialists.
