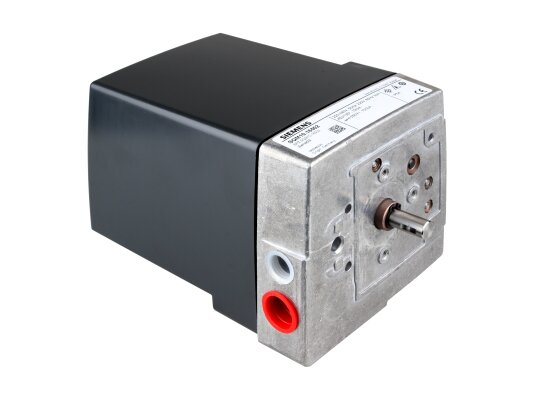

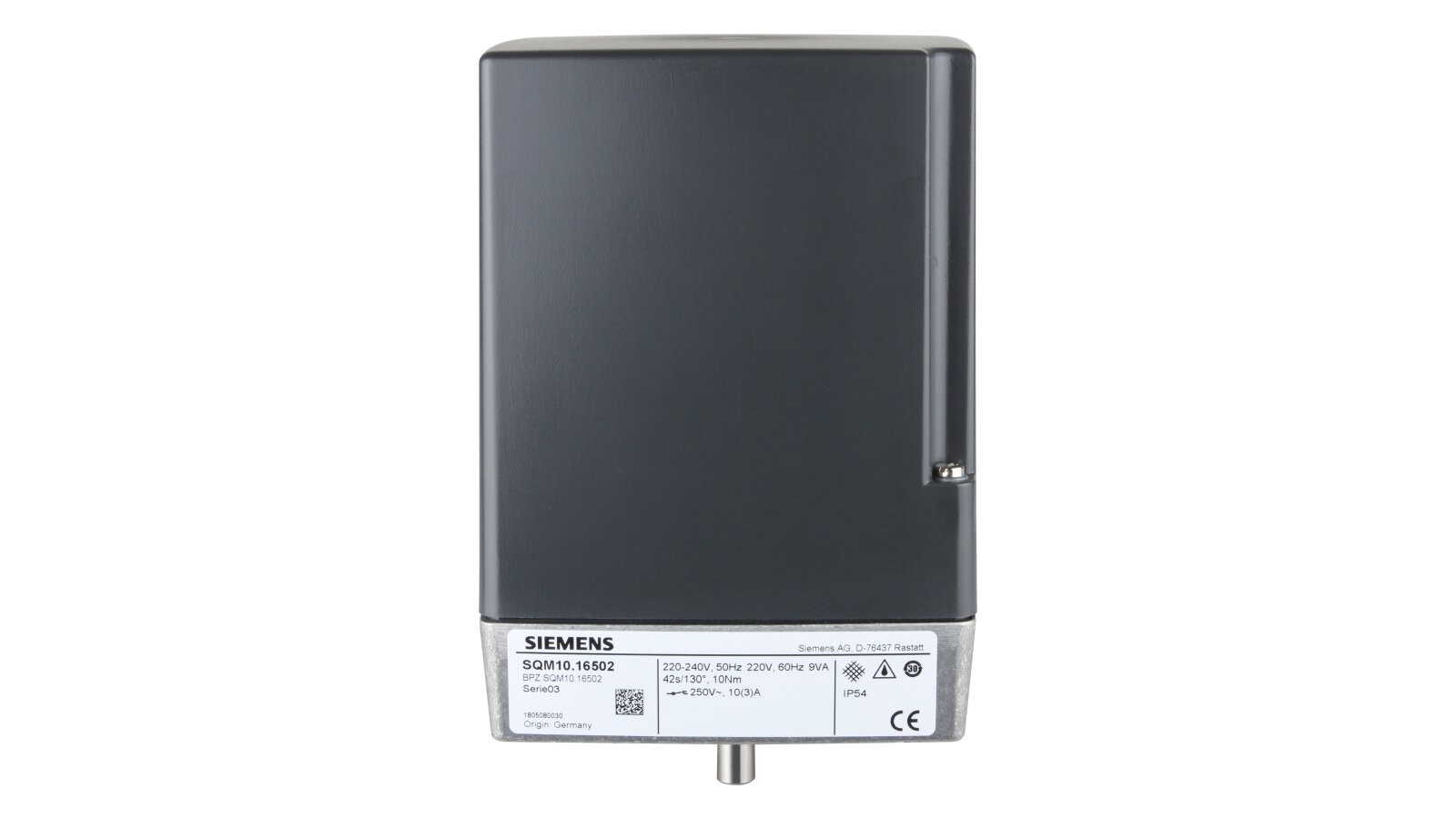

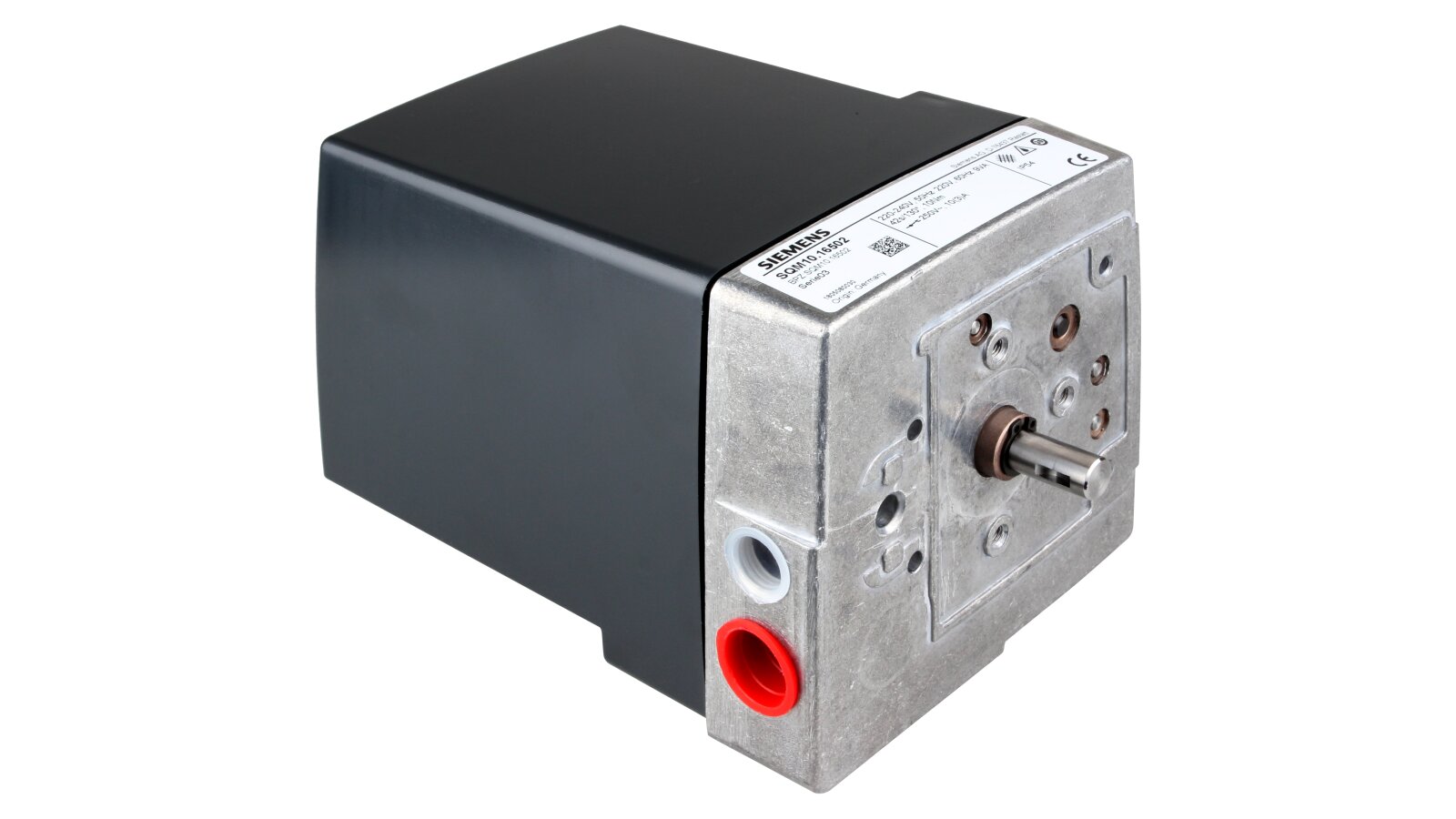

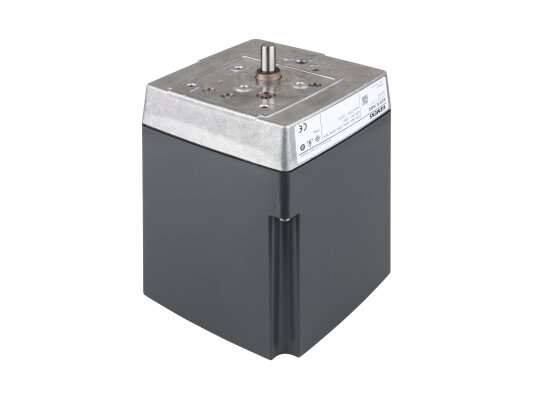

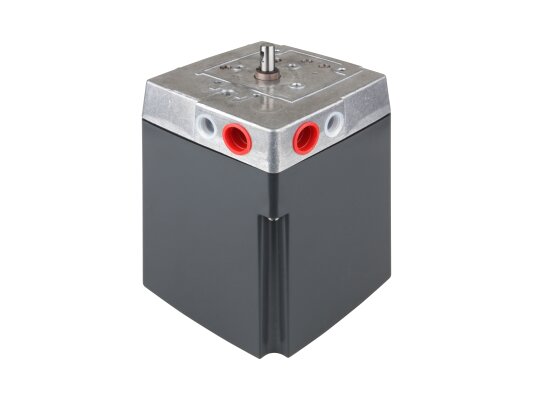

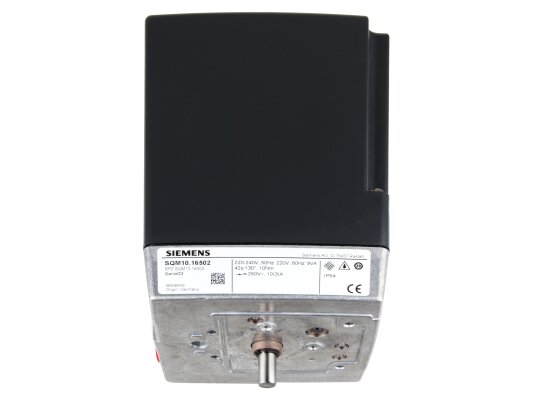

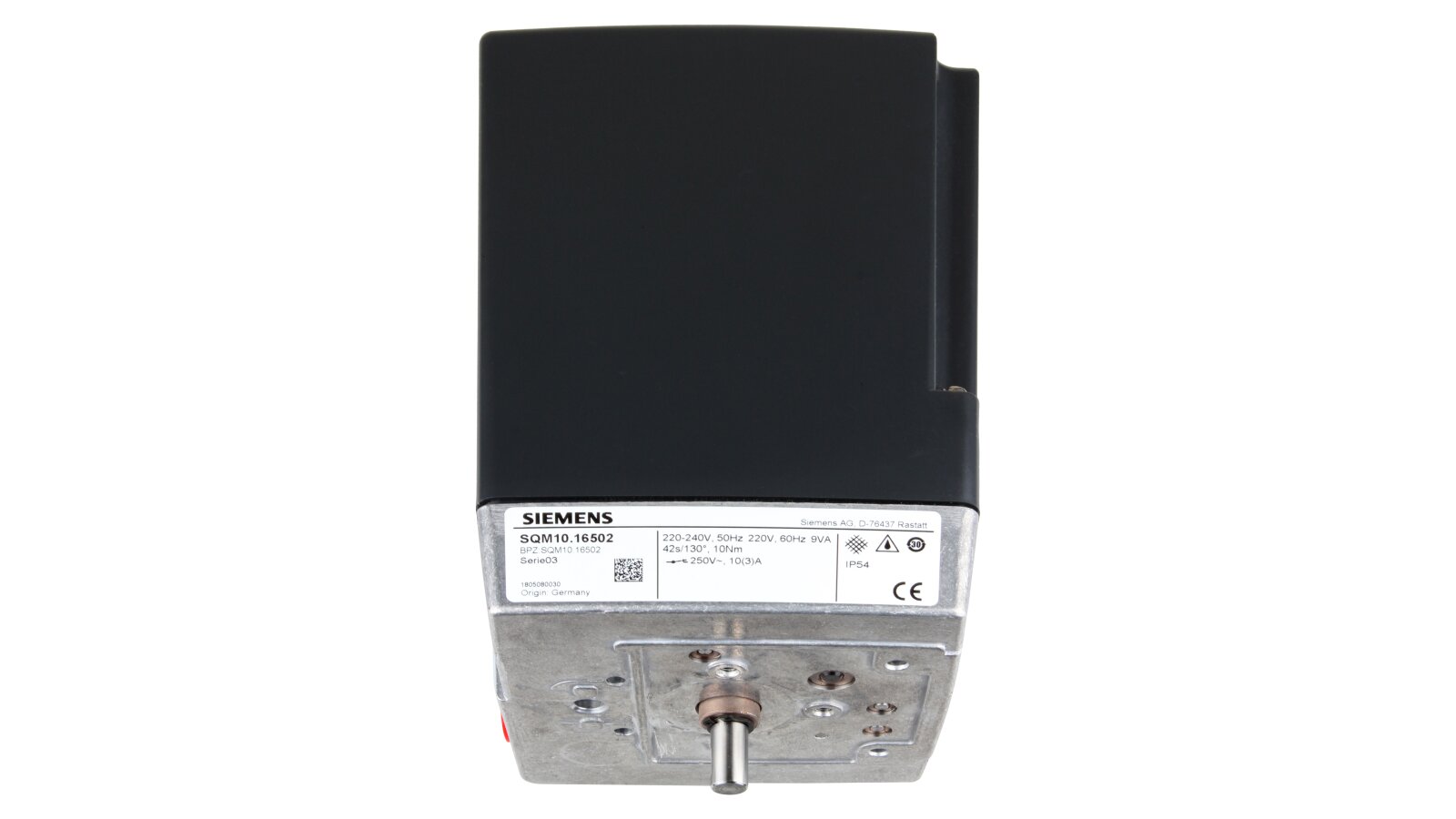

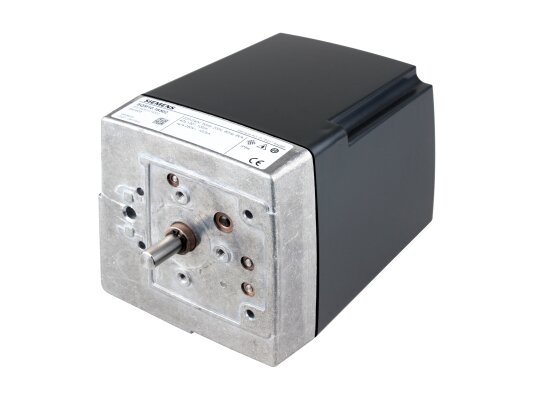

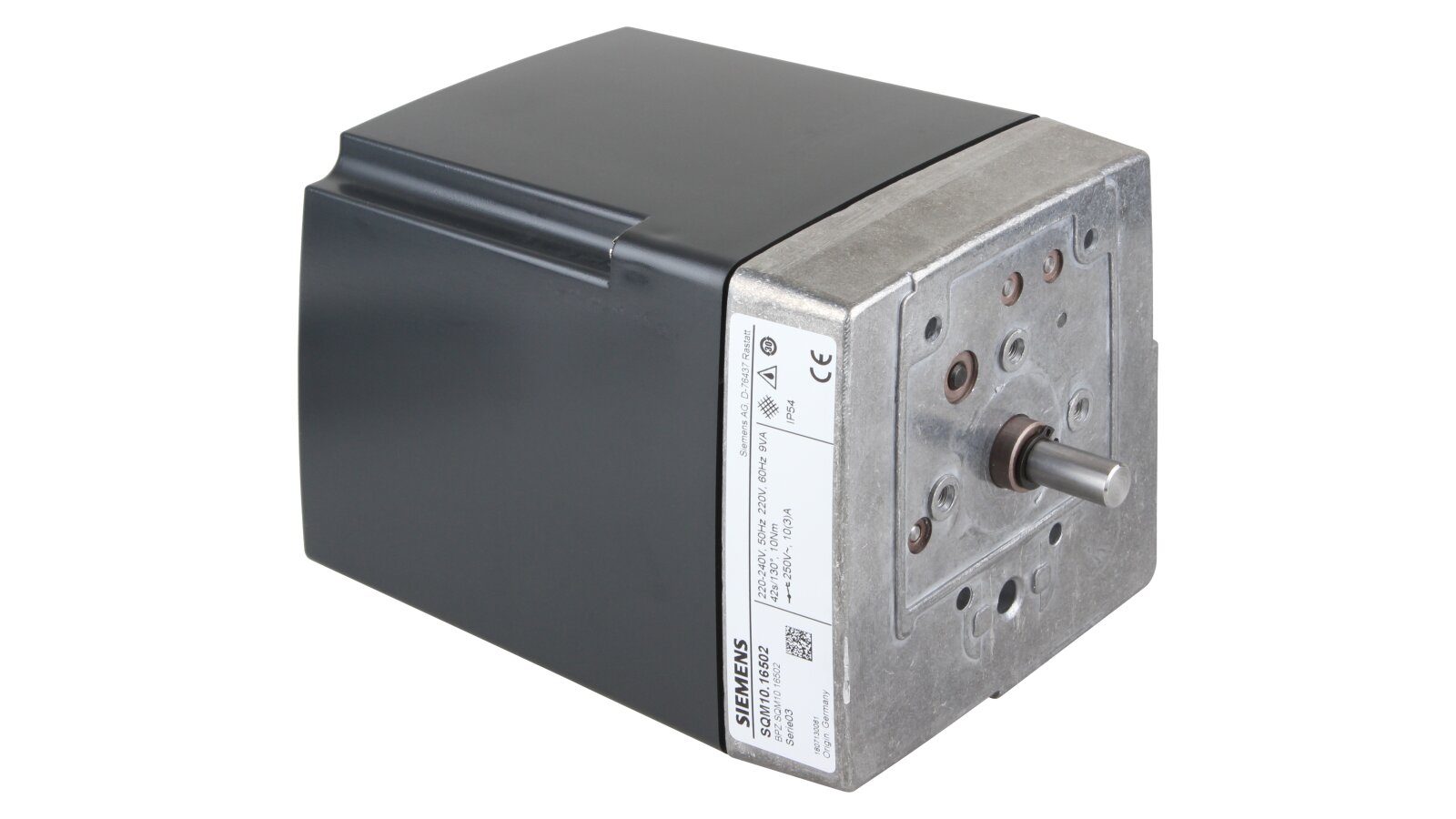

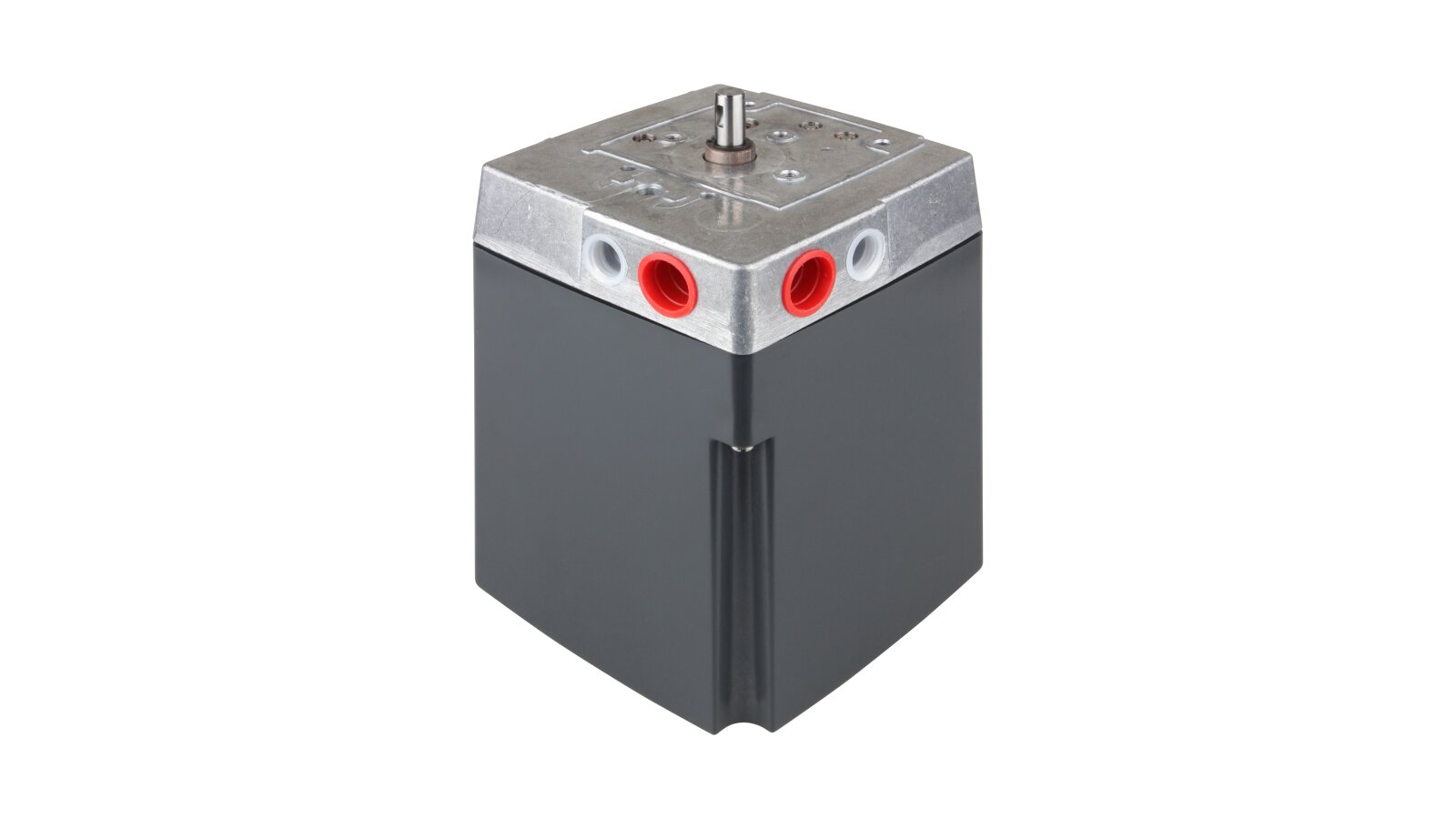

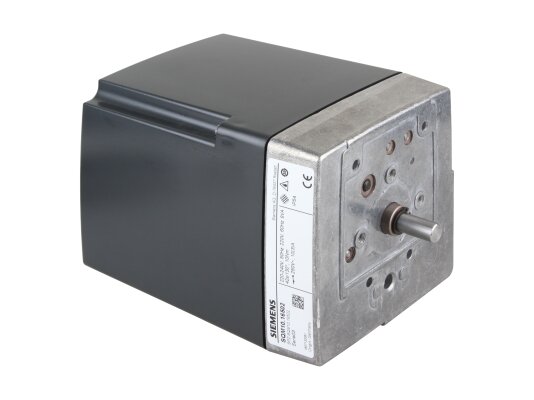

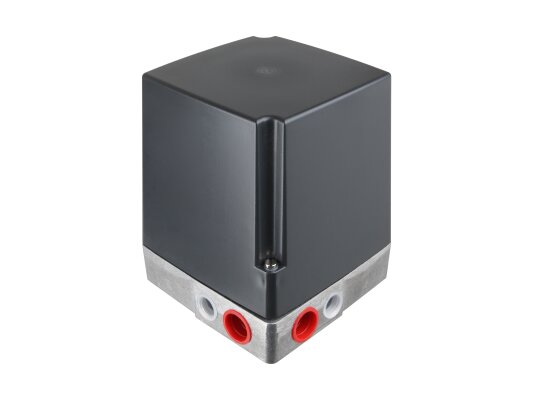

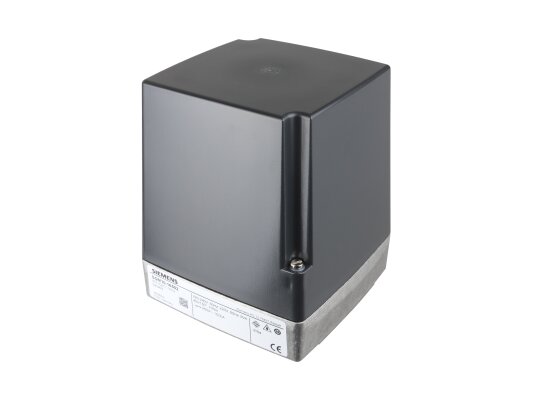

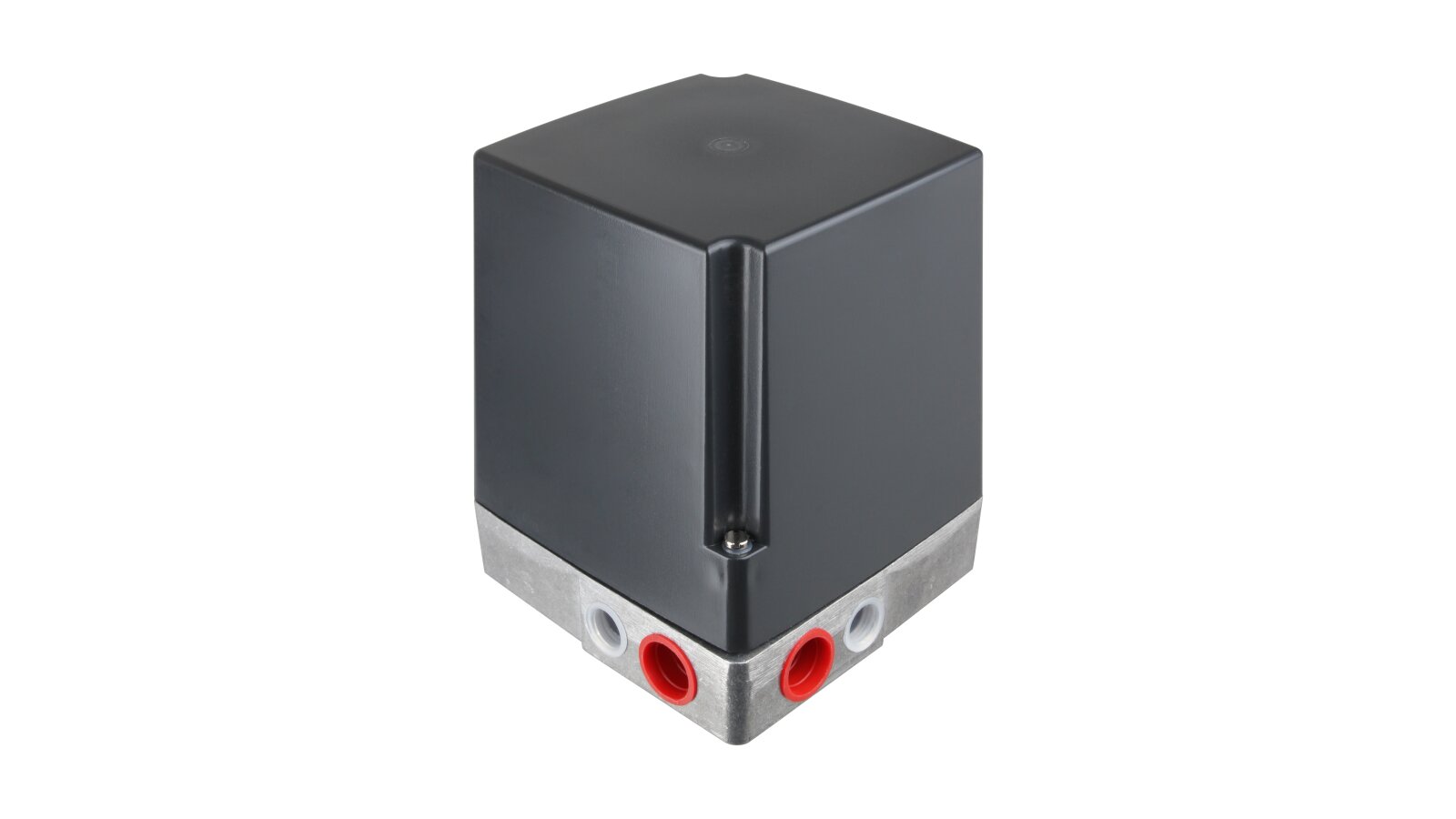

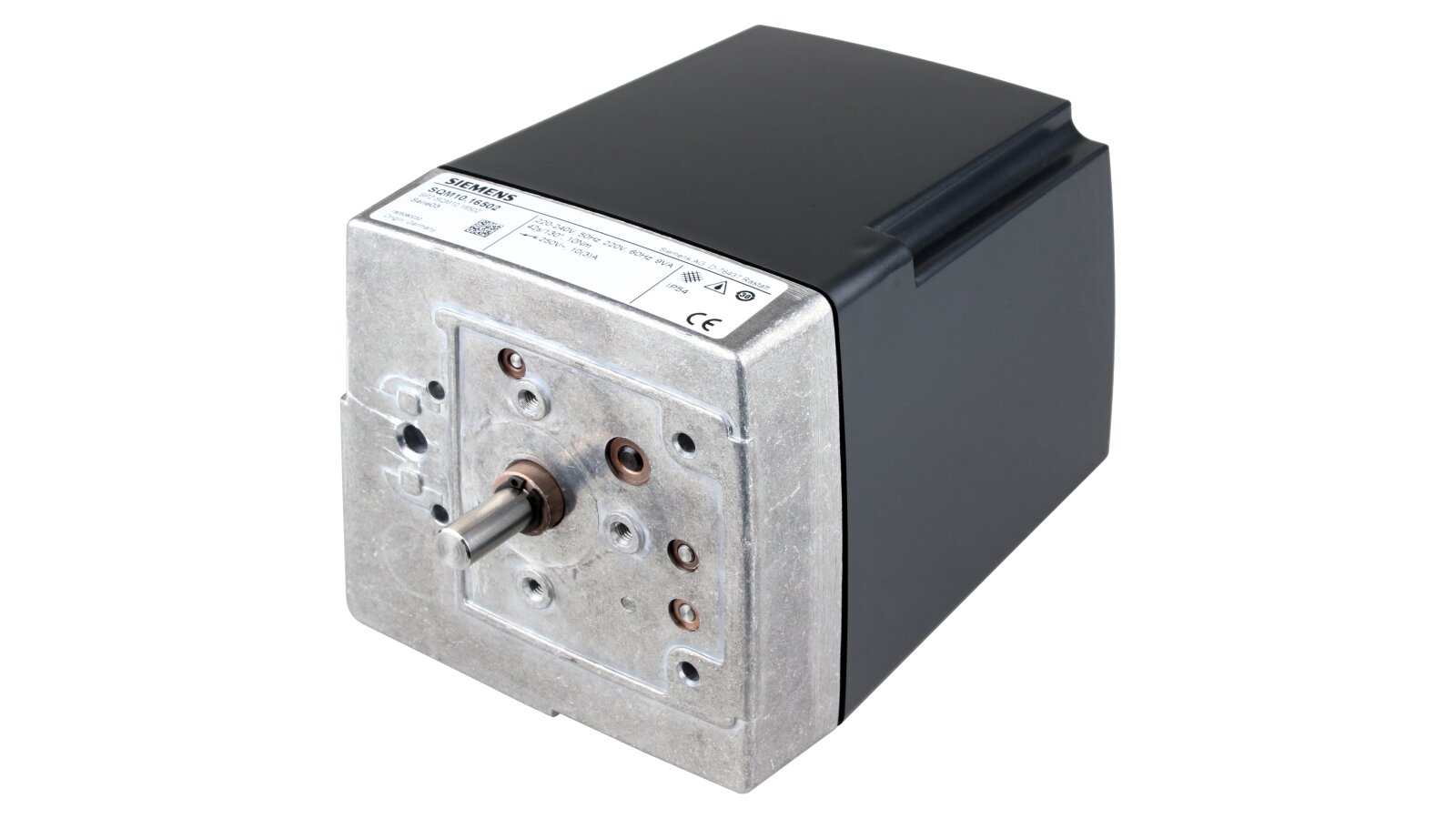

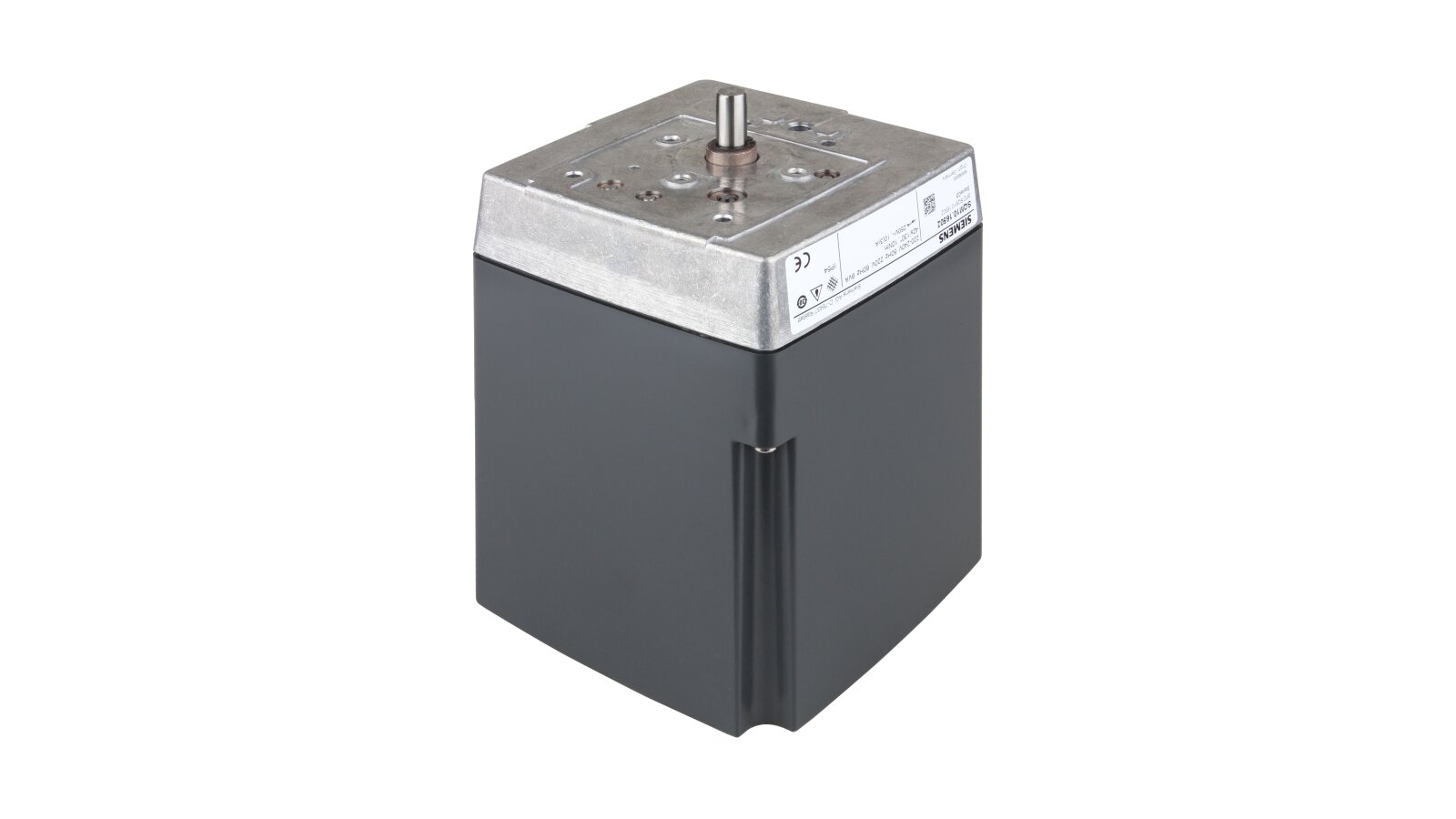

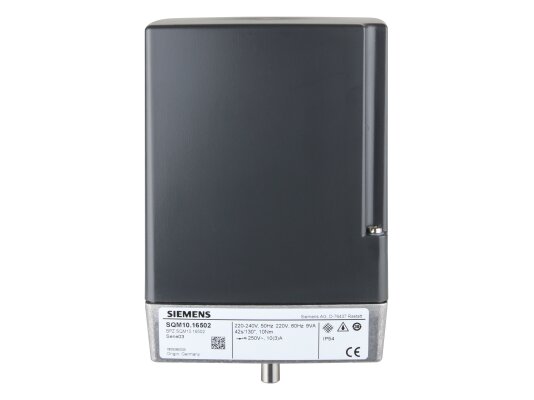

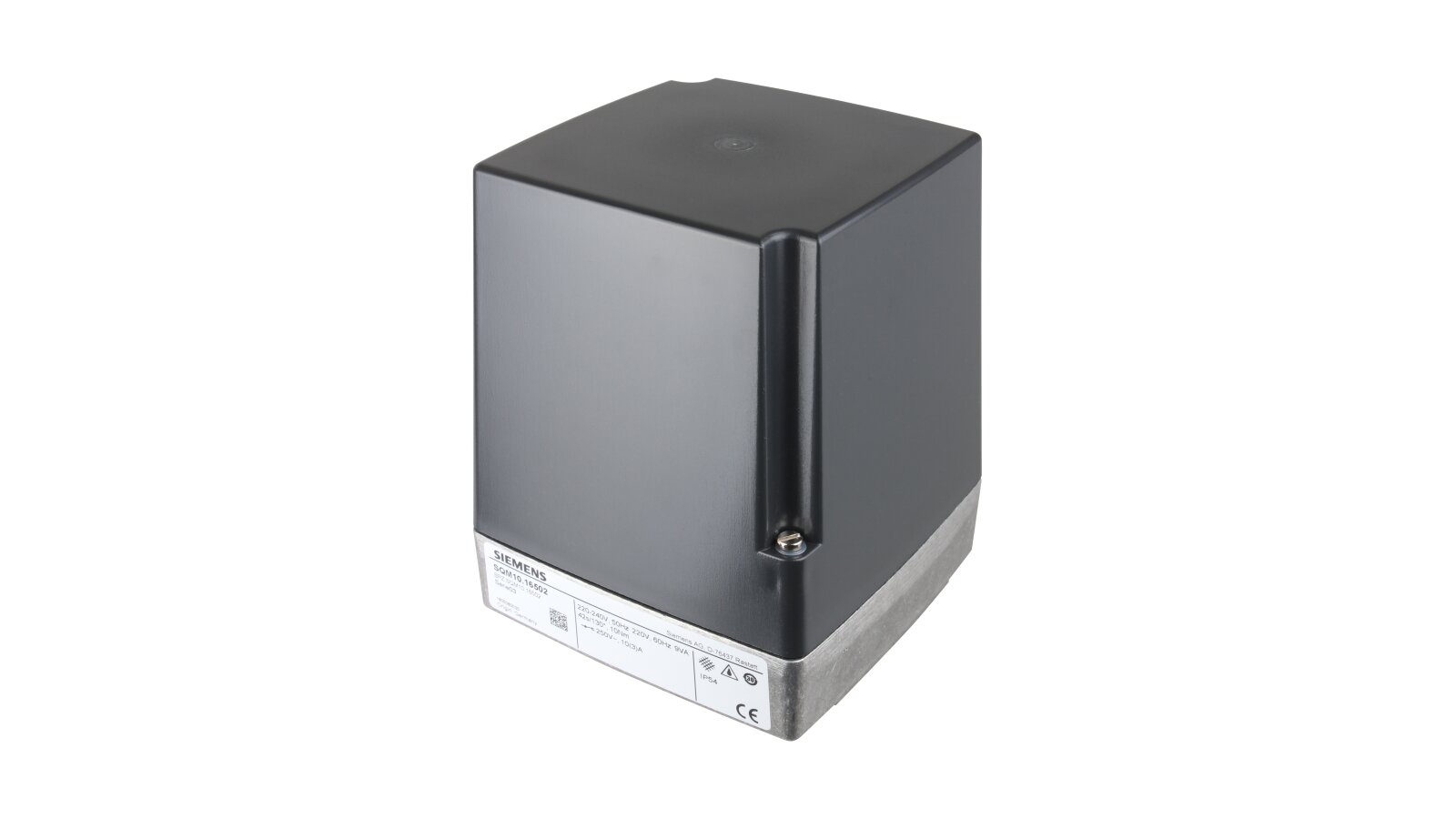

Actuator Riello SQM10.16502

Servo drive Riello SQM10.16502, Part Number: 3000871 moves the air damper in automatic air supply control systems during fuel-air mixture formation and combustion chamber purging. Designed for use in industrial gas and liquid fuel burners. Opening and closing the damper to the required angle is carried out under the control of the furnace machine.

Operating parameters and features:

• Power supply from the network 220-240 V, 50 Hz;

• Operation from a synchronous electric motor;

• Available range of opening angle - 0 ... 130 °;

• Full opening time (at 90 ° / 130 °) - 29 / 42 sec.;

• 2 limit switches limiting the stroke;

• 5 additional switches for connecting external devices;

• Stable operation regardless of voltage or load fluctuations;

• Protection of electrical components from dust / moisture according to the IP 40 standard;

• left-hand steel drive shaft;

• internal position indication;

• optional potentiometer installation;

• easy parameter adjustment, precise response;

• motor blocking protection;

• impact-resistant cast aluminum housing, heat-resistant polymer casing;

• 3-hole mounting;

• any position placement;

• self-lubricating gearbox bearing that does not require additional maintenance;

• Pg11 cable entry holes.

Operating conditions

The servo drive for air dampers is designed to operate at ambient temperatures of -20…+60 °C.

Advantages:

• wide range of opening angle;

• precise, stable movement of the air damper;

• cast aluminum housing;

• economical energy consumption;

• reversible motor with anti-blocking;

• self-lubricating bearing.

You can buy a Riello SQM10.16502 servo drive from us, ask additional questions to a consultant and get help in selecting equipment. The equipment is supplied with a factory warranty and the necessary package of technical documentation.
