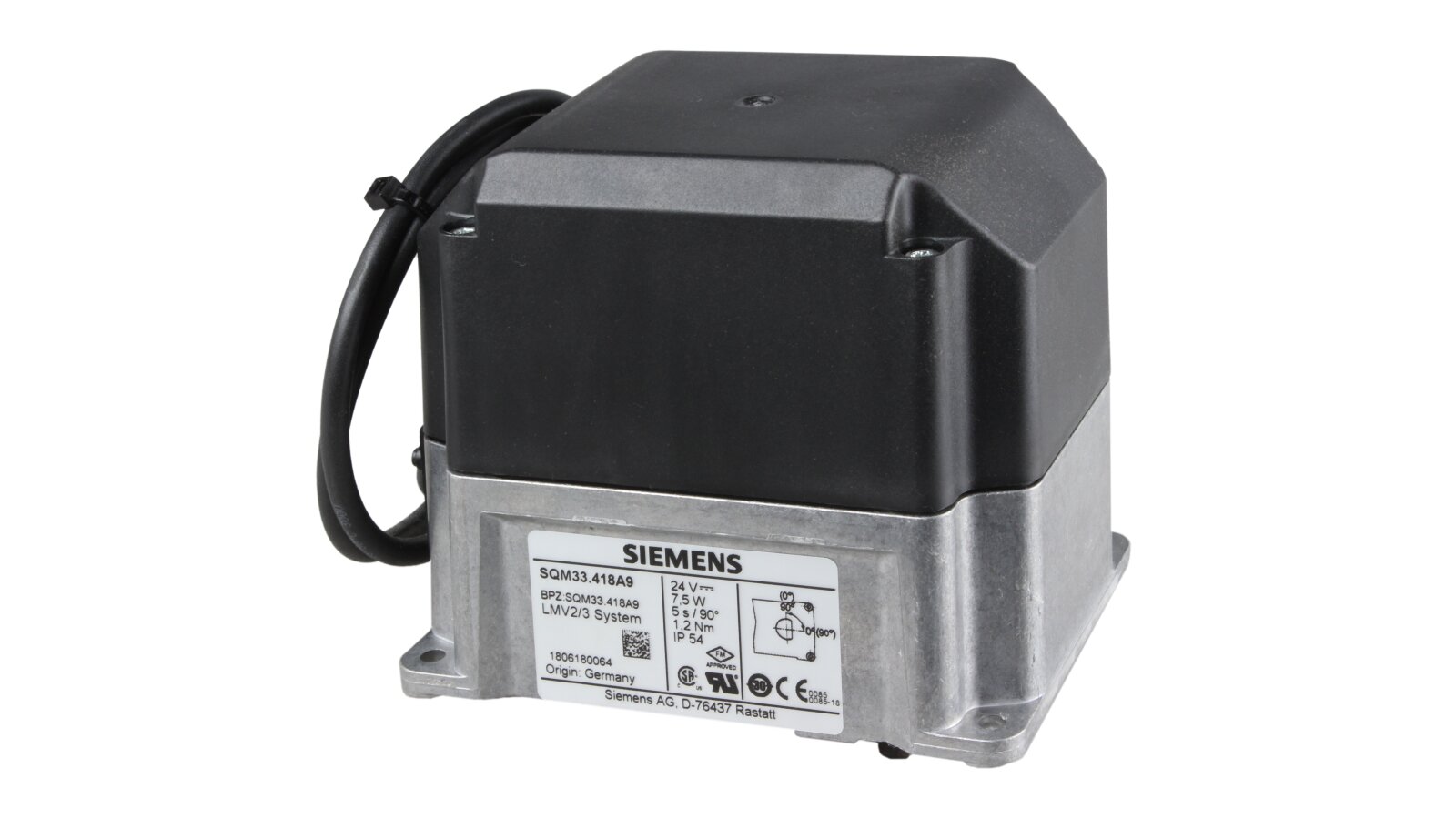

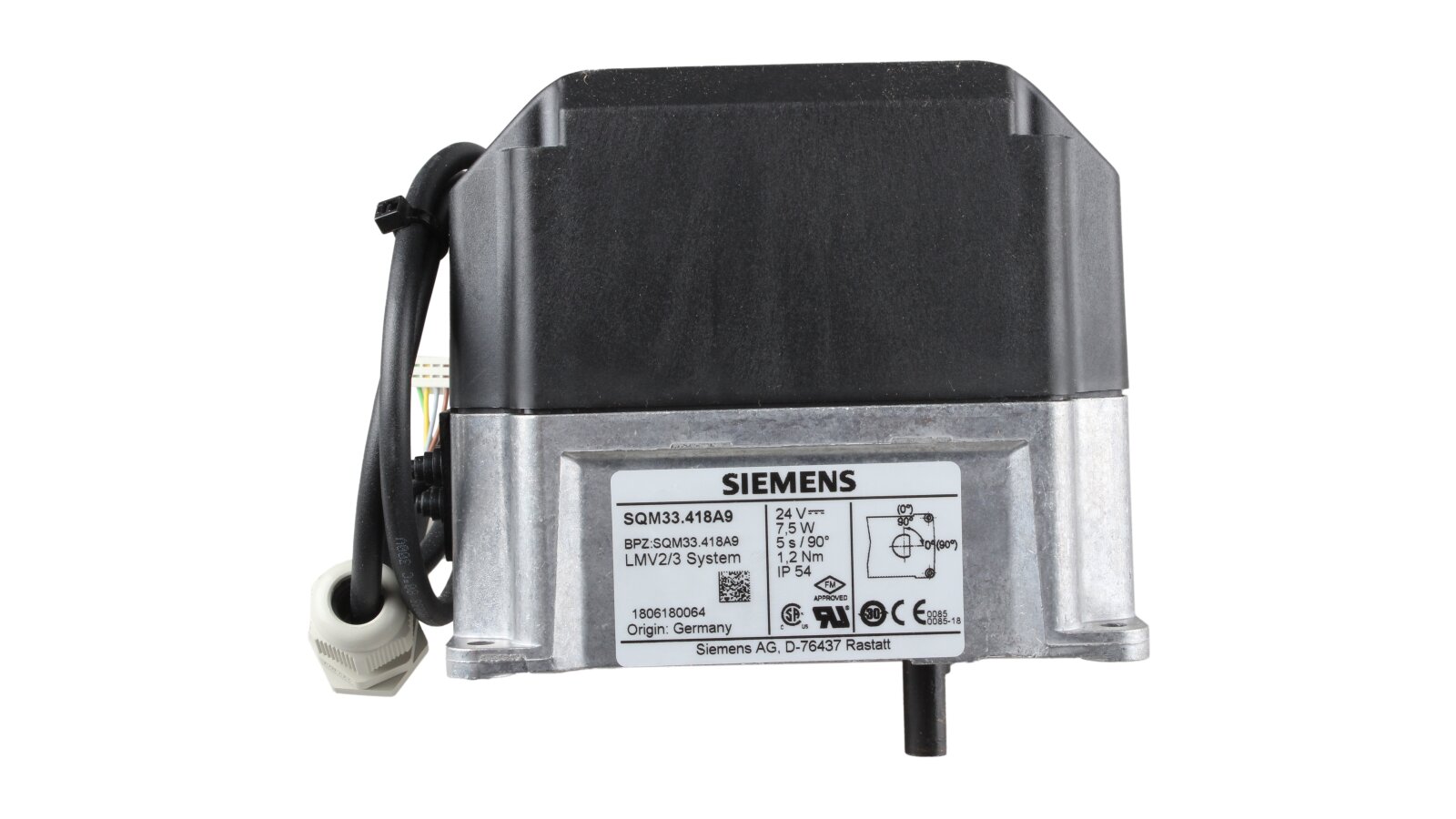

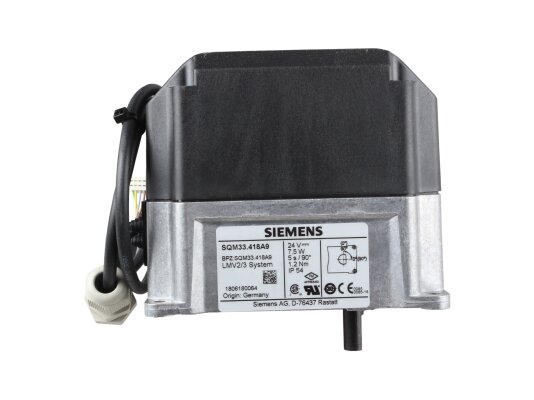

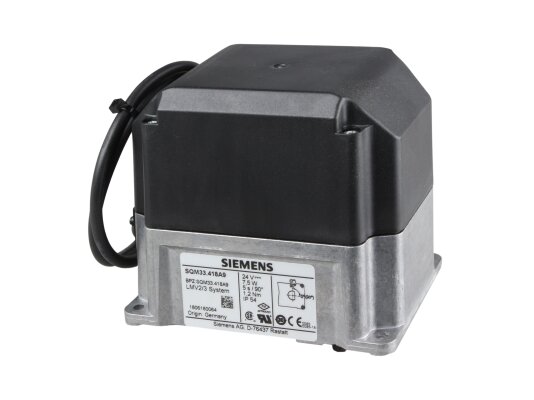

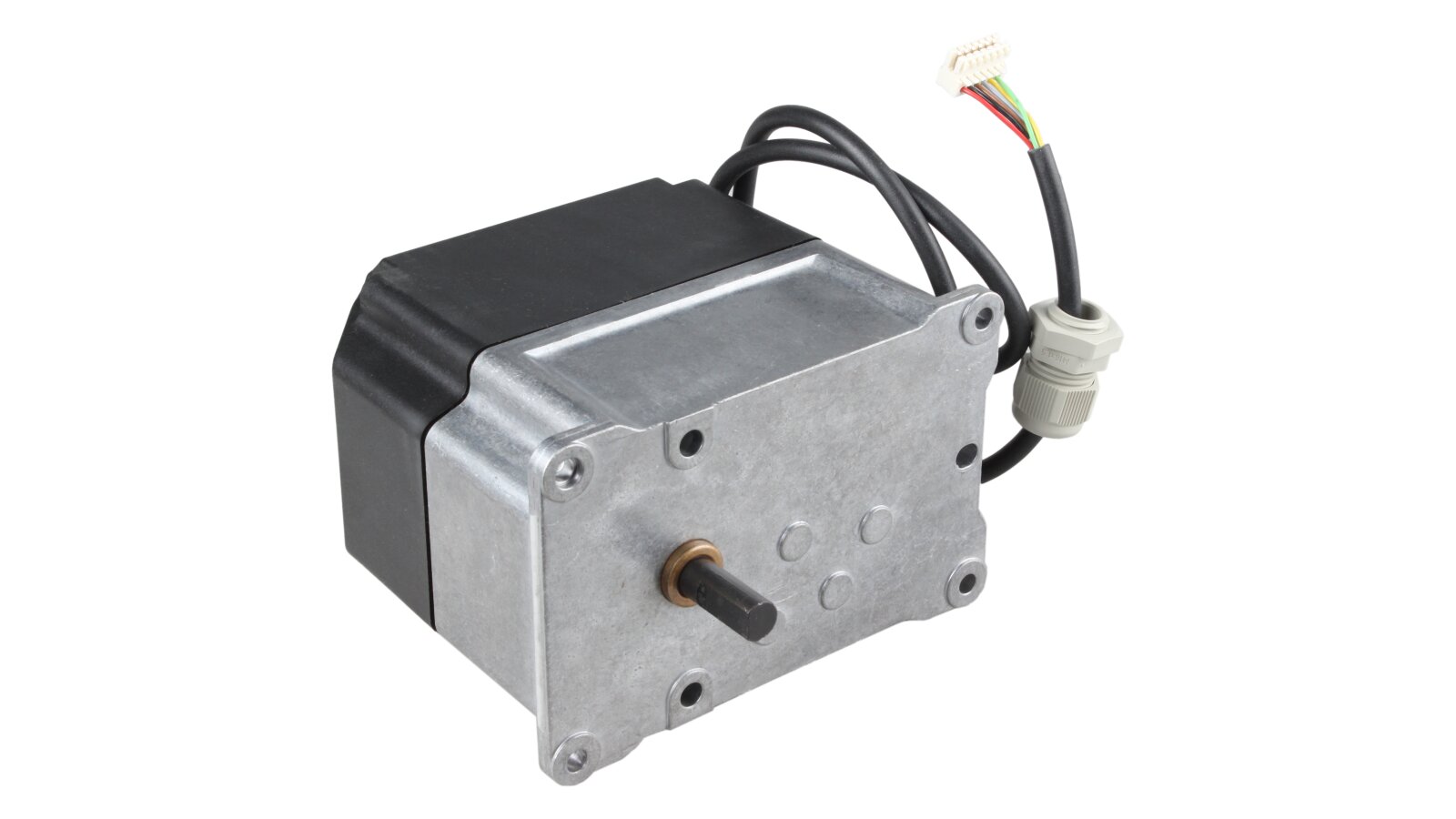

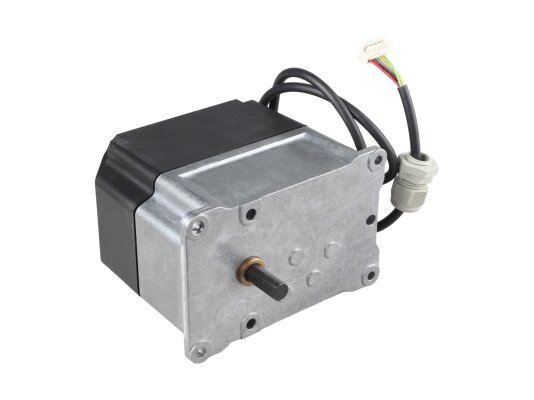

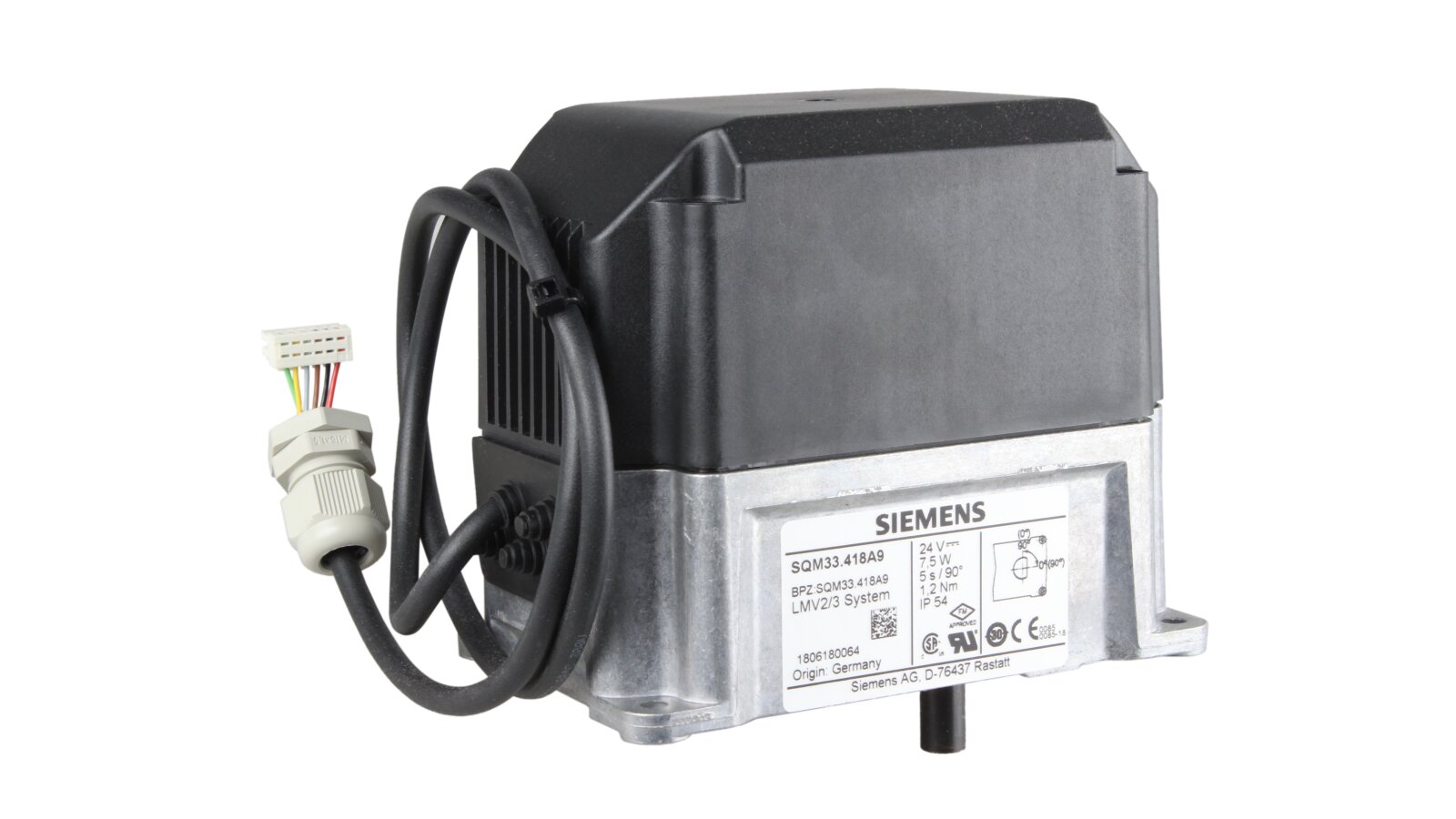

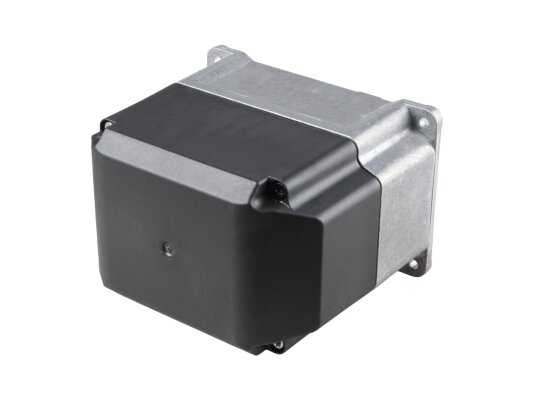

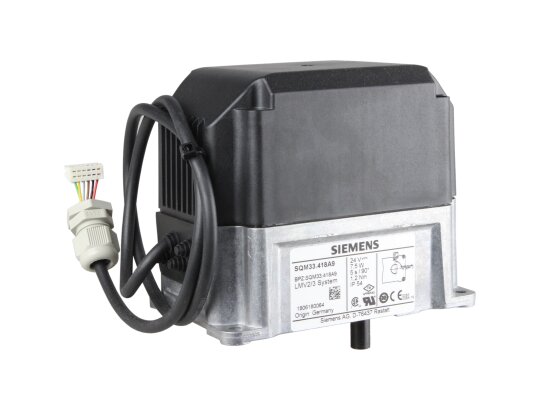

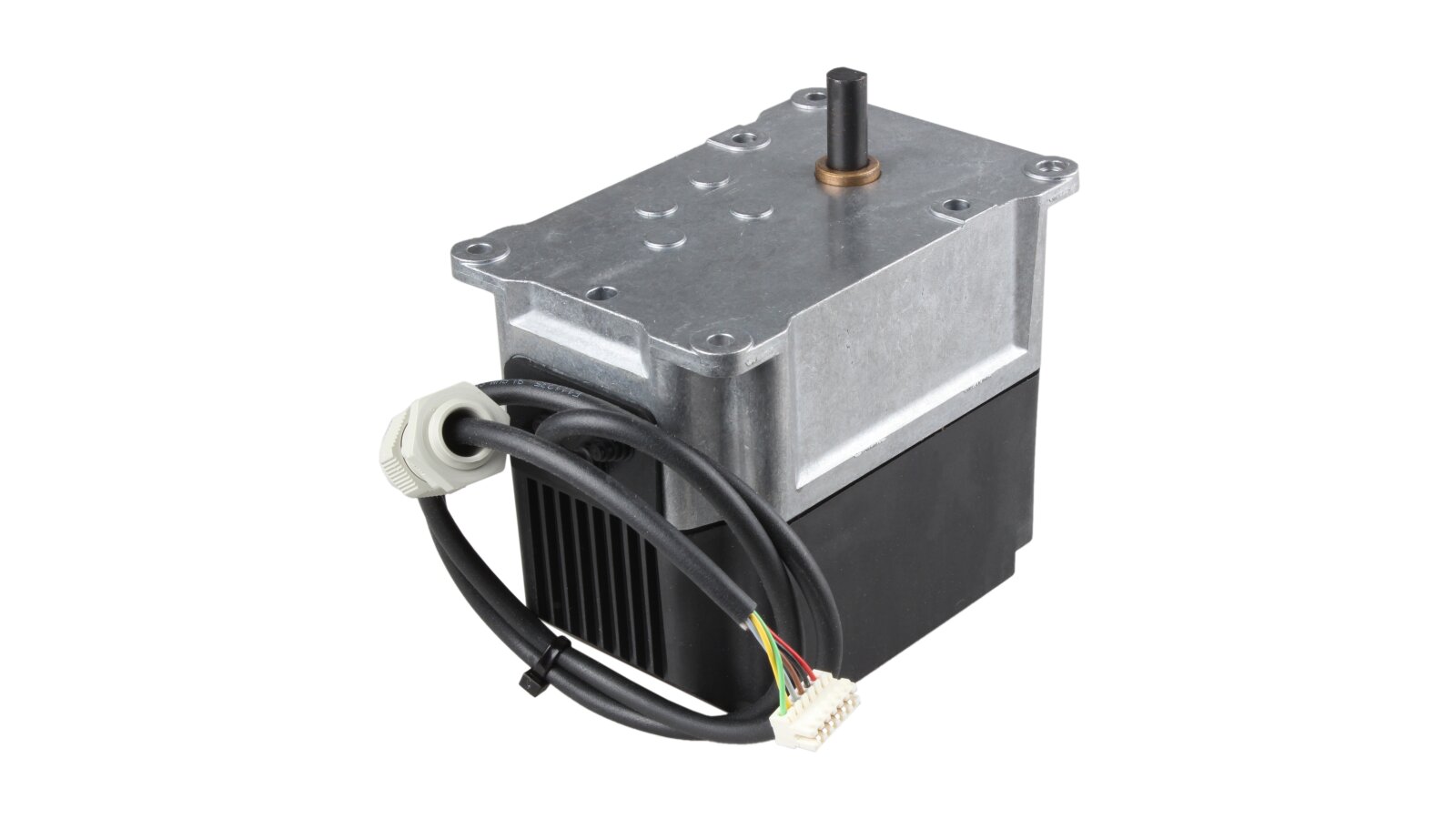

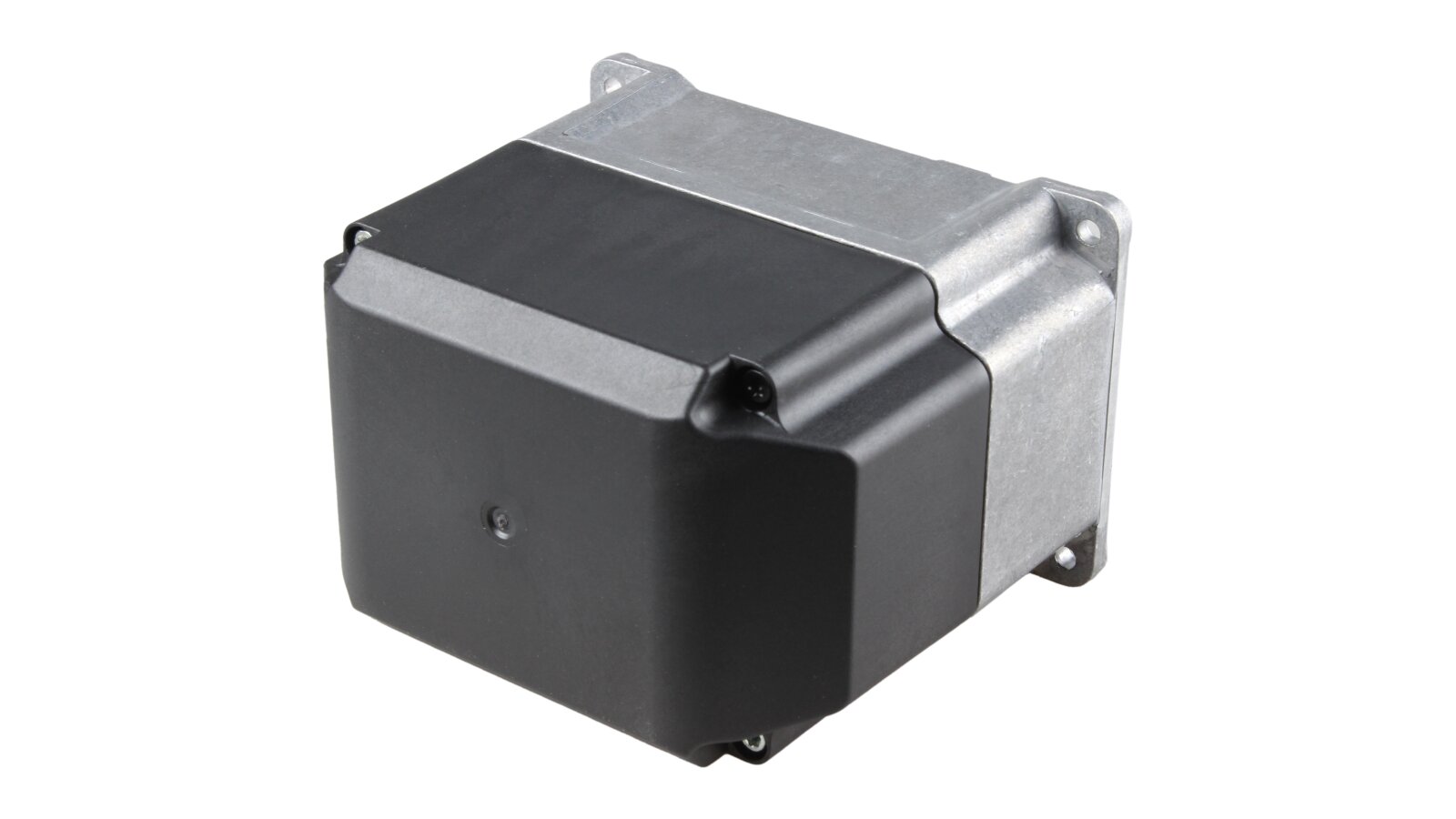

Servomotor Riello SQM33.418A9

Servo drive Riello SQM33.418A9, Part Number: 3013936 is used in industrial burners to move the gas damper when supplying gas for combustion. Together with the boiler automation, it allows you to create an optimal ratio of the components of the burnt gas-air mixture. The design is adapted for installation in Riello burners. The working unit is treated with permanent grease that does not require updating or replacement.

Parameters and features:

• operation from a 24 V power supply;

• available opening angle - 0 ... 90 °;

• duration of movement at 90 ° - 5 sec.;

• uninterrupted service regardless of voltage or load fluctuations;

• protection of electrical components from dust / moisture according to the IP54 standard;

• operation under the control of the burner automation or electronic controller;

• economical power consumption;

• precise movement of the damper taking into account the settings and commands of the automation;

• internal position indication;

• the possibility of installing a potentiometer (optional);

• self-lubricating bearing that does not require maintenance;

• easy adjustment of switches;

• permissible operating temperatures: -20 ... + 60 ° C;

• installation in any orientation;

• complete with a 730 mm power cable;

• service life - 250 thousand cycles.

Configuration

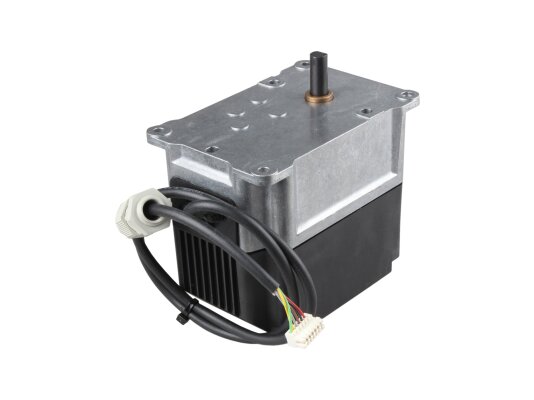

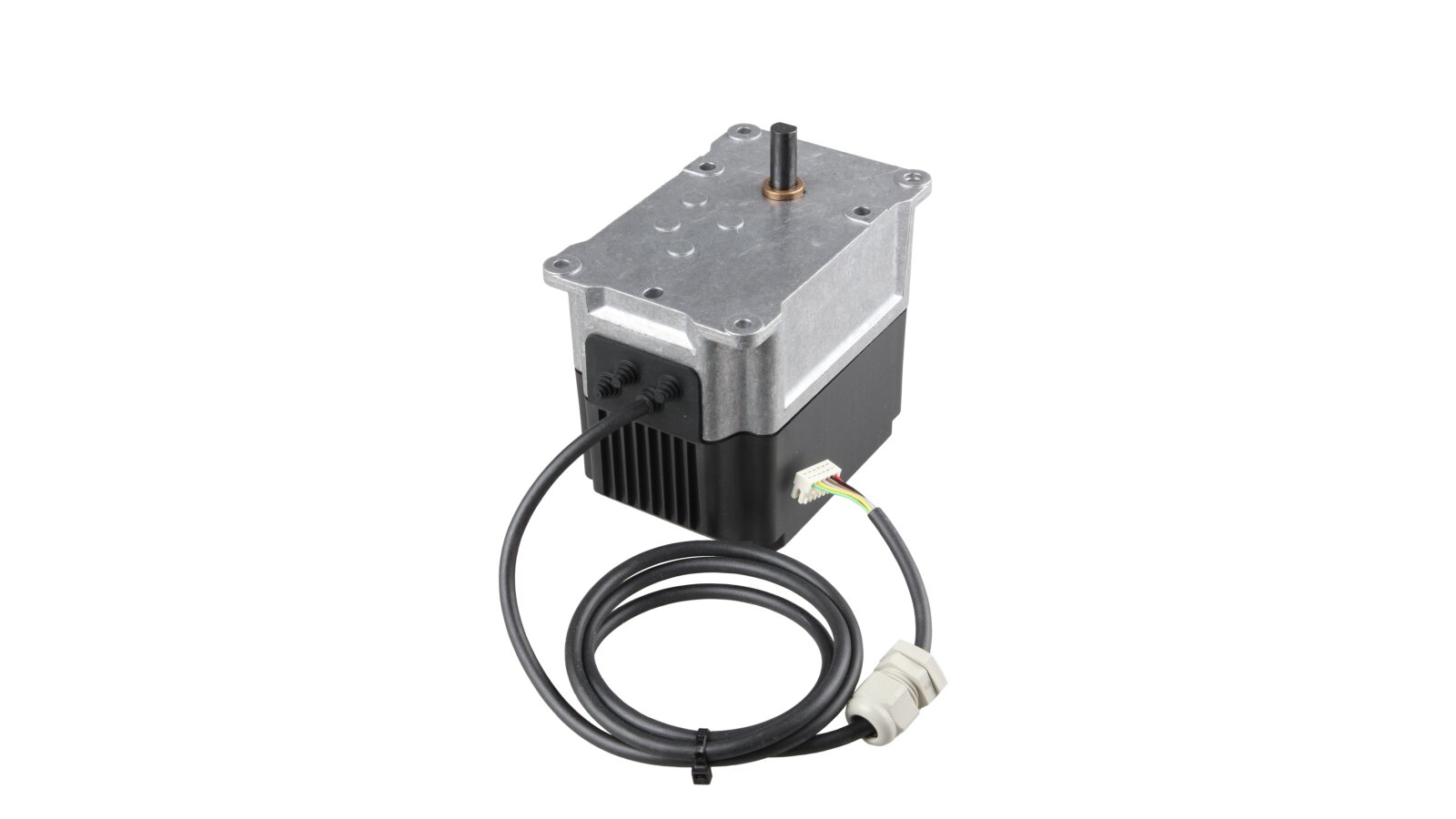

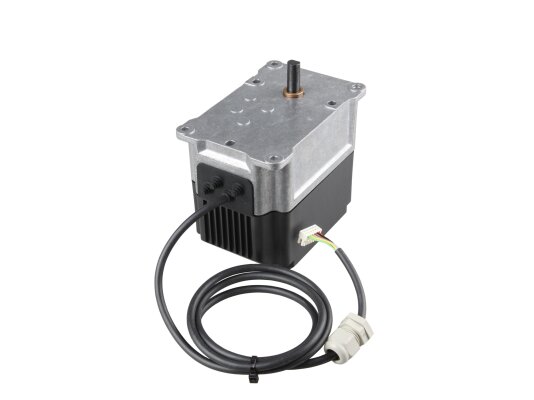

The servo drive for gas dampers is equipped with an aluminum cast housing with a plastic impact-resistant cover. The drive shaft is made of wear-resistant steel. The stepper reversible motor is protected from blocking. The operating parameters for opening the damper are set by the burner automation or another device that performs control functions.

Advantages:

• reliability of the housing and structural elements;

• reversible motor with anti-blocking function;

• protection of electrical components according to IP 54;

• precise movement of the air damper;

• economical energy consumption;

• possibility of retrofitting with an electronic module;

• working unit lubricated for the entire service life.
