Description

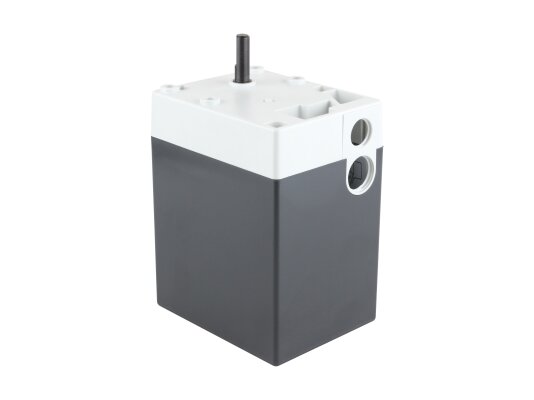

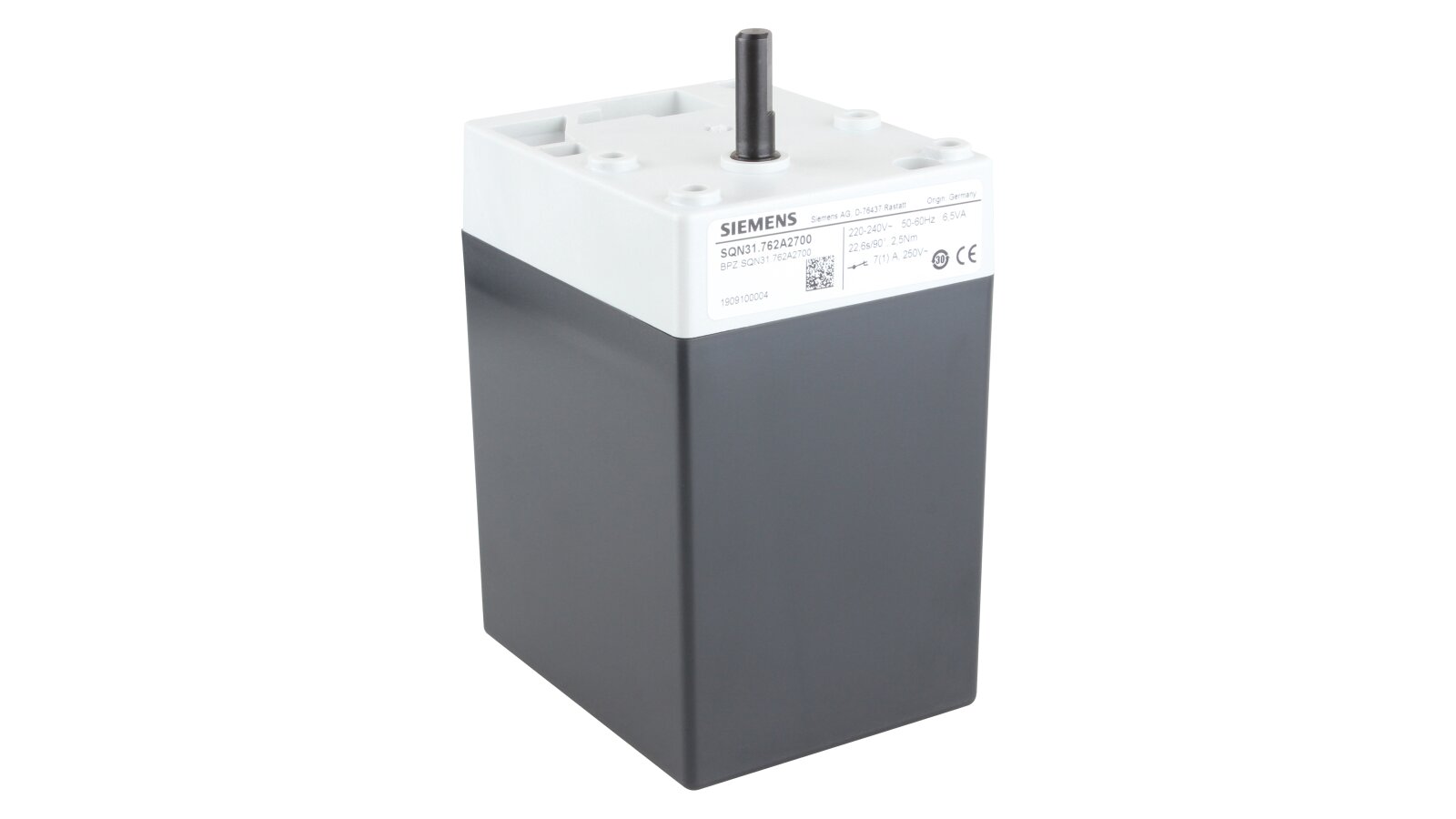

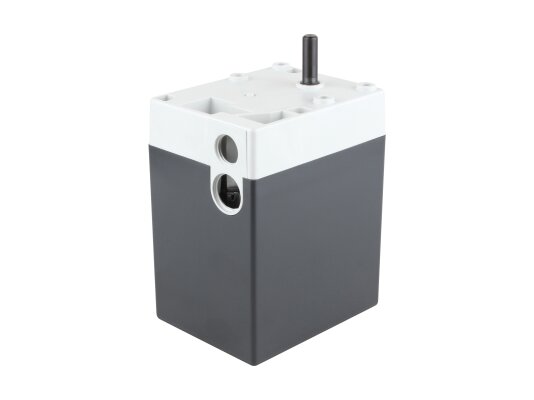

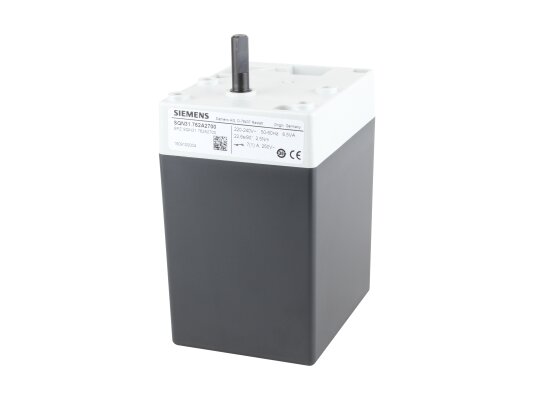

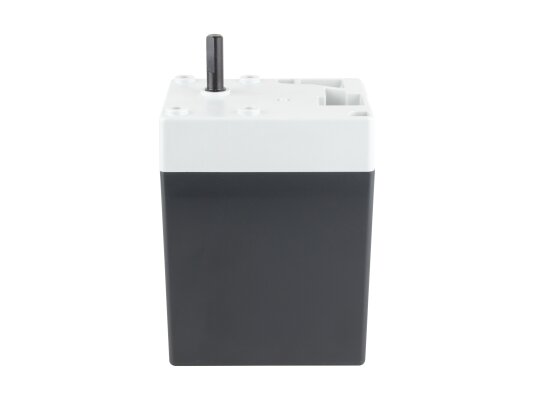

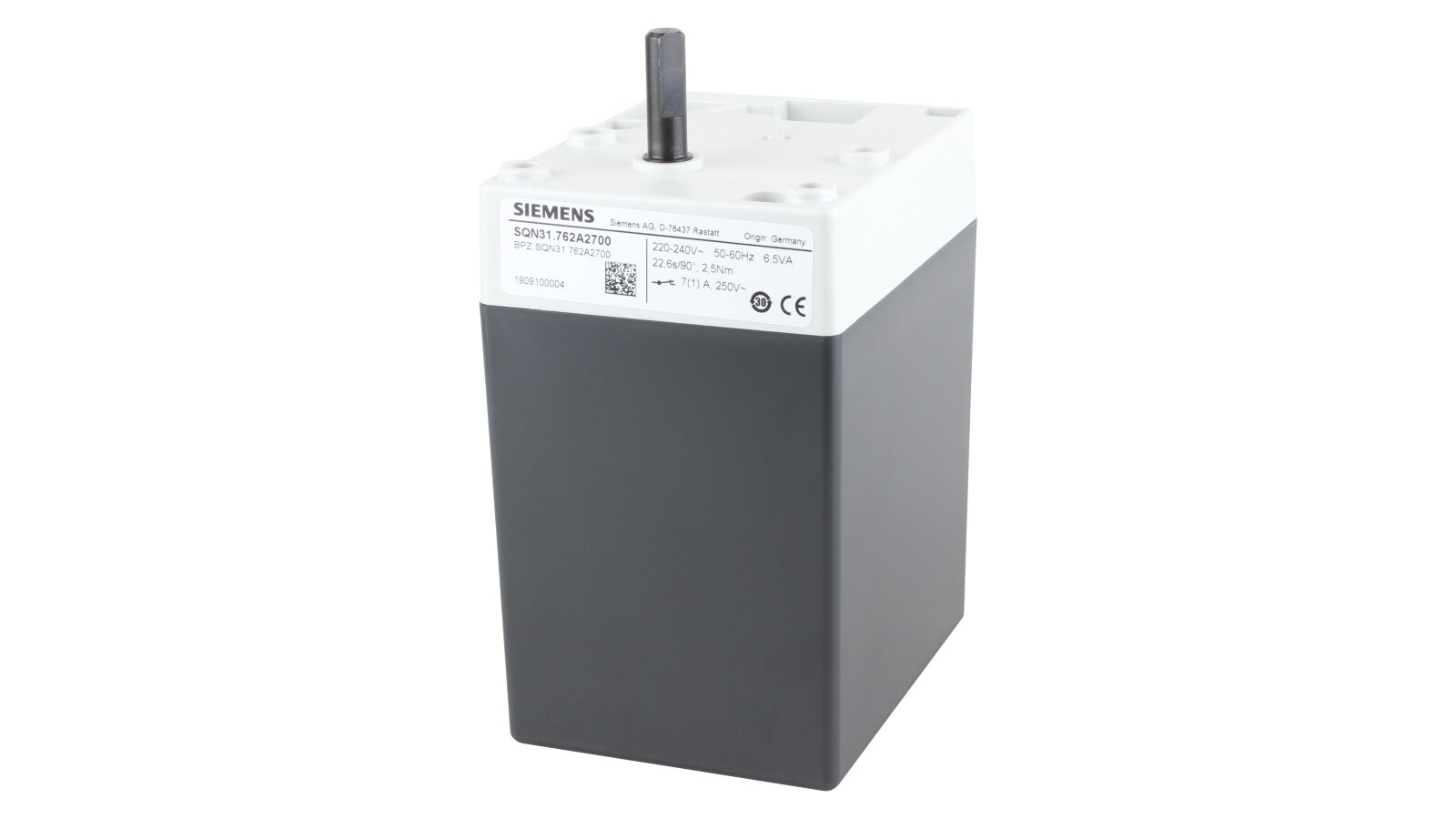

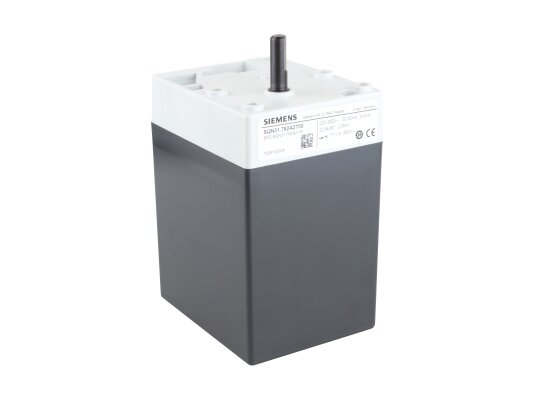

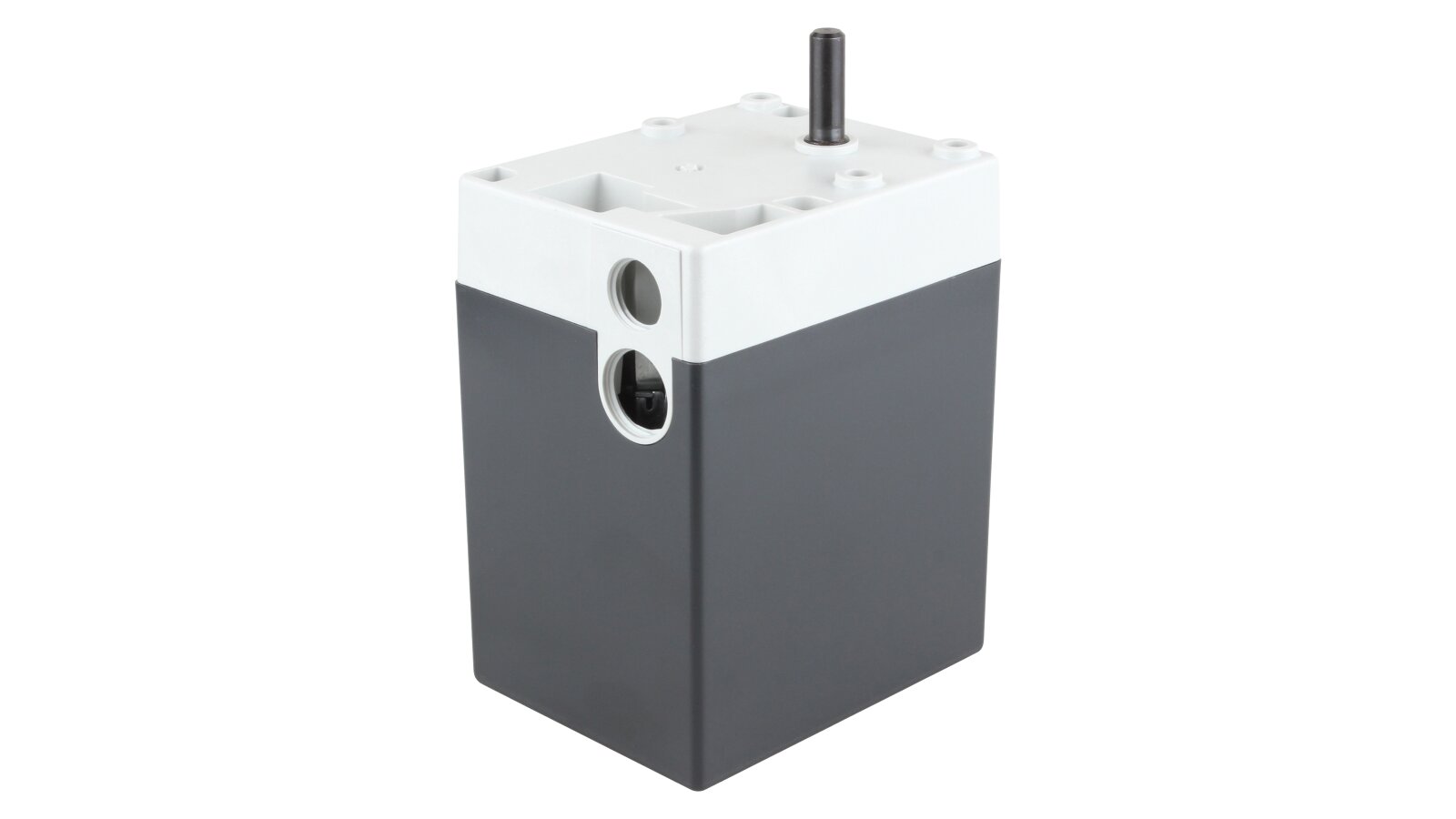

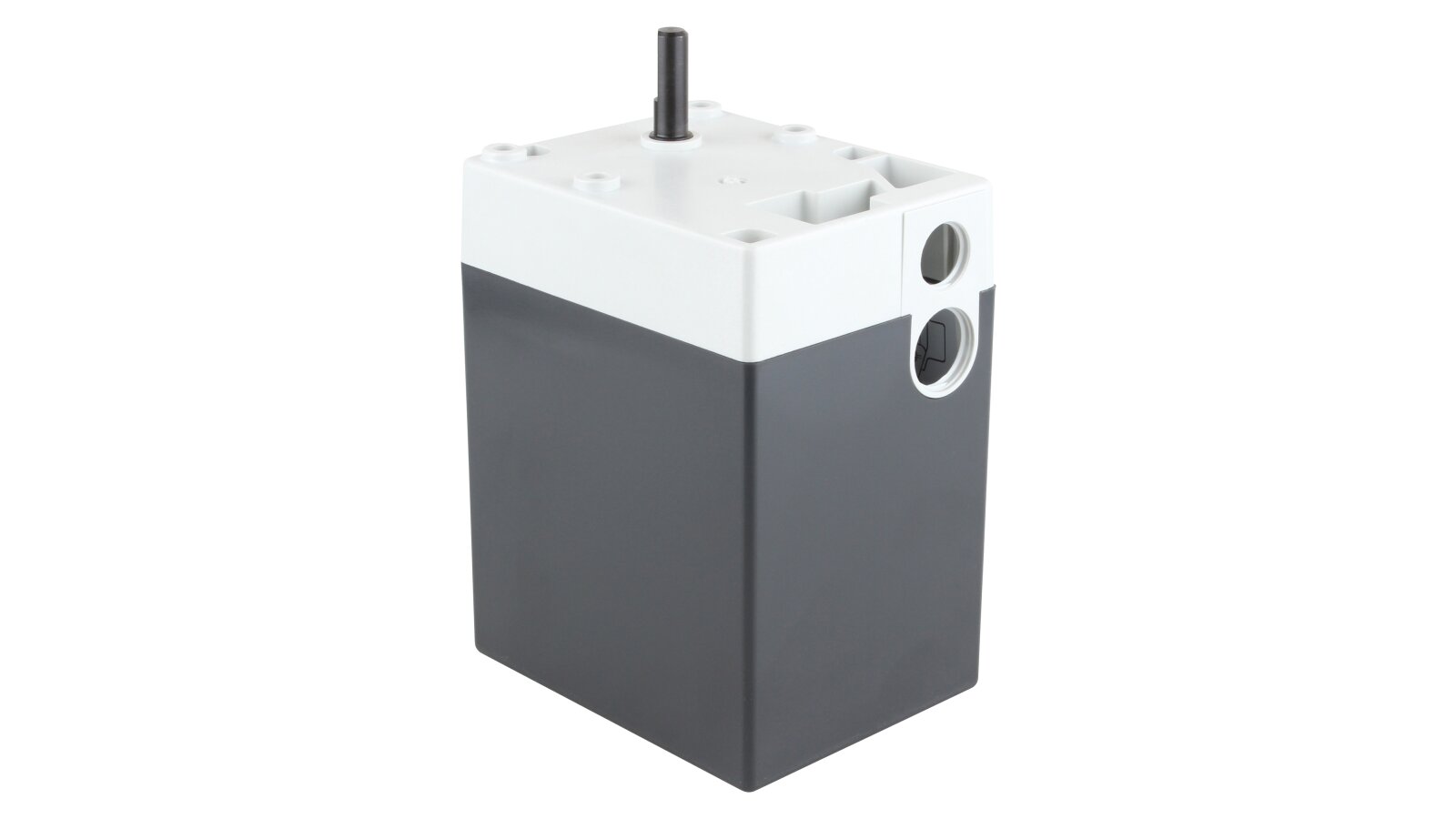

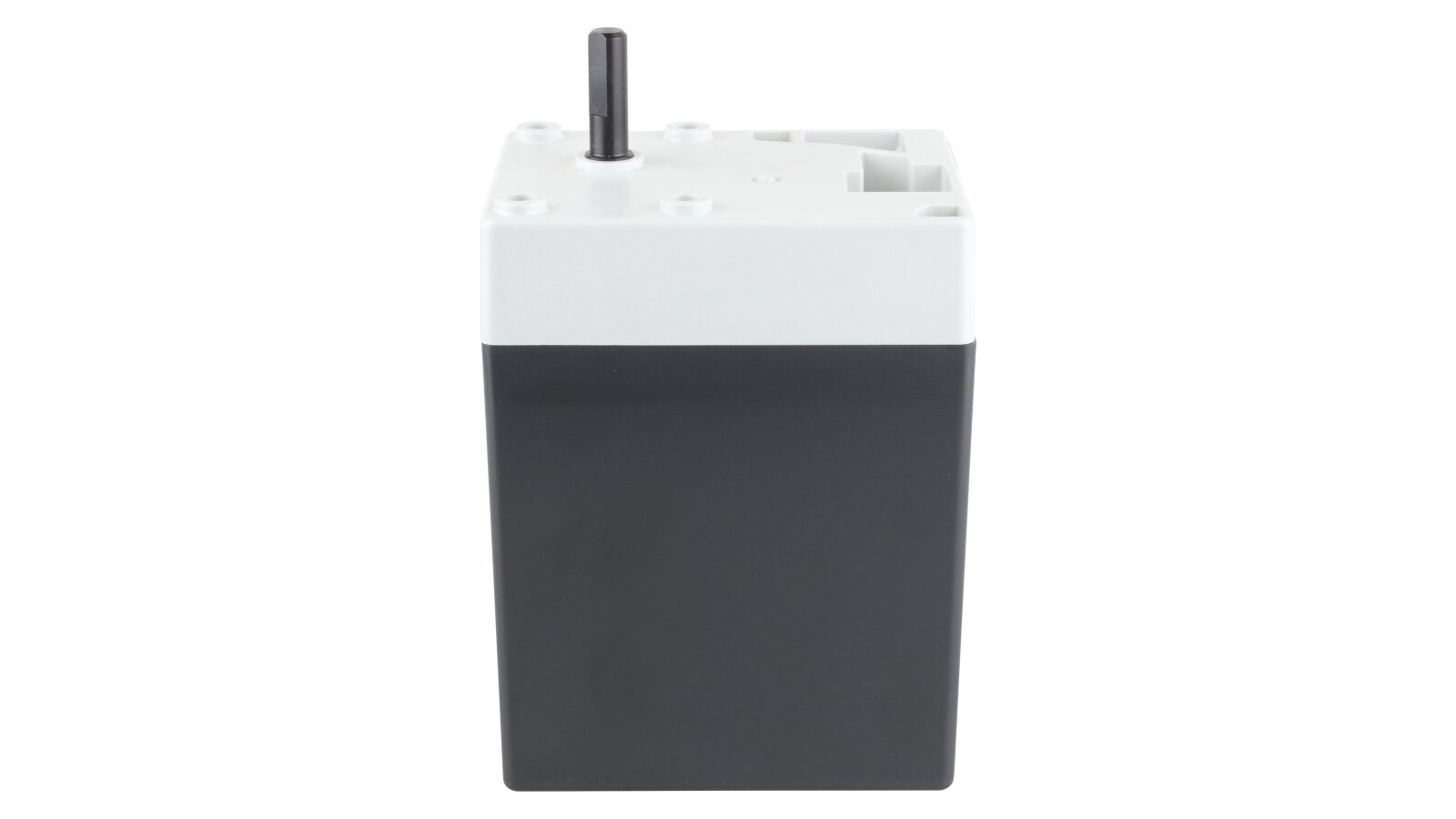

The Riello SQN31.762A2700 servo drive, Part Number: 3012916, activates the air damper and moves it to the required angle in the process of controlling the air flow required for efficient fuel combustion. It is assembled in a standard housing without space for a potentiometer. When retrofitted with a special kit for re-equipping the structure, it is possible to install a potentiometer. The drive is used in industrial burners of low and medium power.
Parameters and features:
Power parameters: 220-240 V, 50-60 Hz;
Available positioning angle - 0 ... 90 °;
Duration of full opening (at 90 °) - 22.6 sec.;
Stable operation regardless of voltage or load fluctuations;
Protection of electrical components from dust / moisture class IP40;
Economical power consumption;
Precise opening of the damper taking into account the settings and automation commands;
relays, limit and auxiliary switches for expanding the functions;
internal position indication;
housing made of heat-resistant, impact-resistant plastic;
steel drive shaft with right-hand rotation;
recommended operating temperatures: -10…+60 °C;
installation in any position;
treatment of working units with prolonged-action grease;
easy adjustment of switches;
possibility of re-equipping the design.
Design and operation of the servo drive
The servo drive for Riello air dampers is arranged in a standard housing, which can be expanded using a special kit. Inside is a synchronous reversible motor with a blocking protection function. The shaft is disconnected manually and re-engaged automatically. The drive operates in conjunction with PID and P-PI regulators or under the control of the LOA/LMO/LMG/LFL combustion manager, which determines the optimal fuel/air ratio.
Advantages:
reversible electric motor with anti-blocking function;
small dimensions, easy installation;
precise movement of the air damper;
economical power consumption;
auxiliary switches for expanding functions;
possibility of conversion to accommodate a potentiometer;
lubricated for life gearbox bearing.
On the ANKAS website you can buy a Riello SQN31 servo drive, an AGA32 conversion kit, a potentiometer and other components for assembling and upgrading industrial burners.
