Description

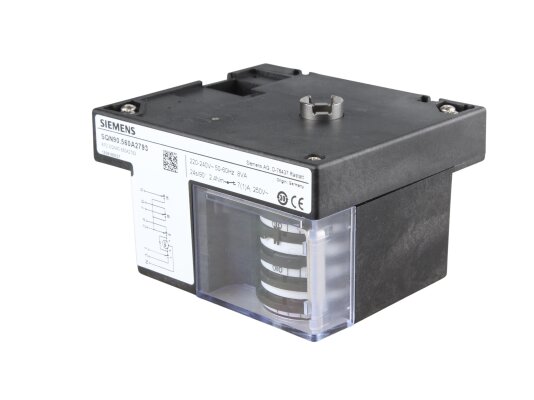

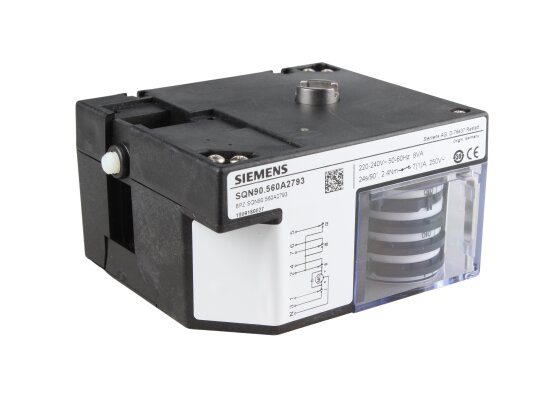

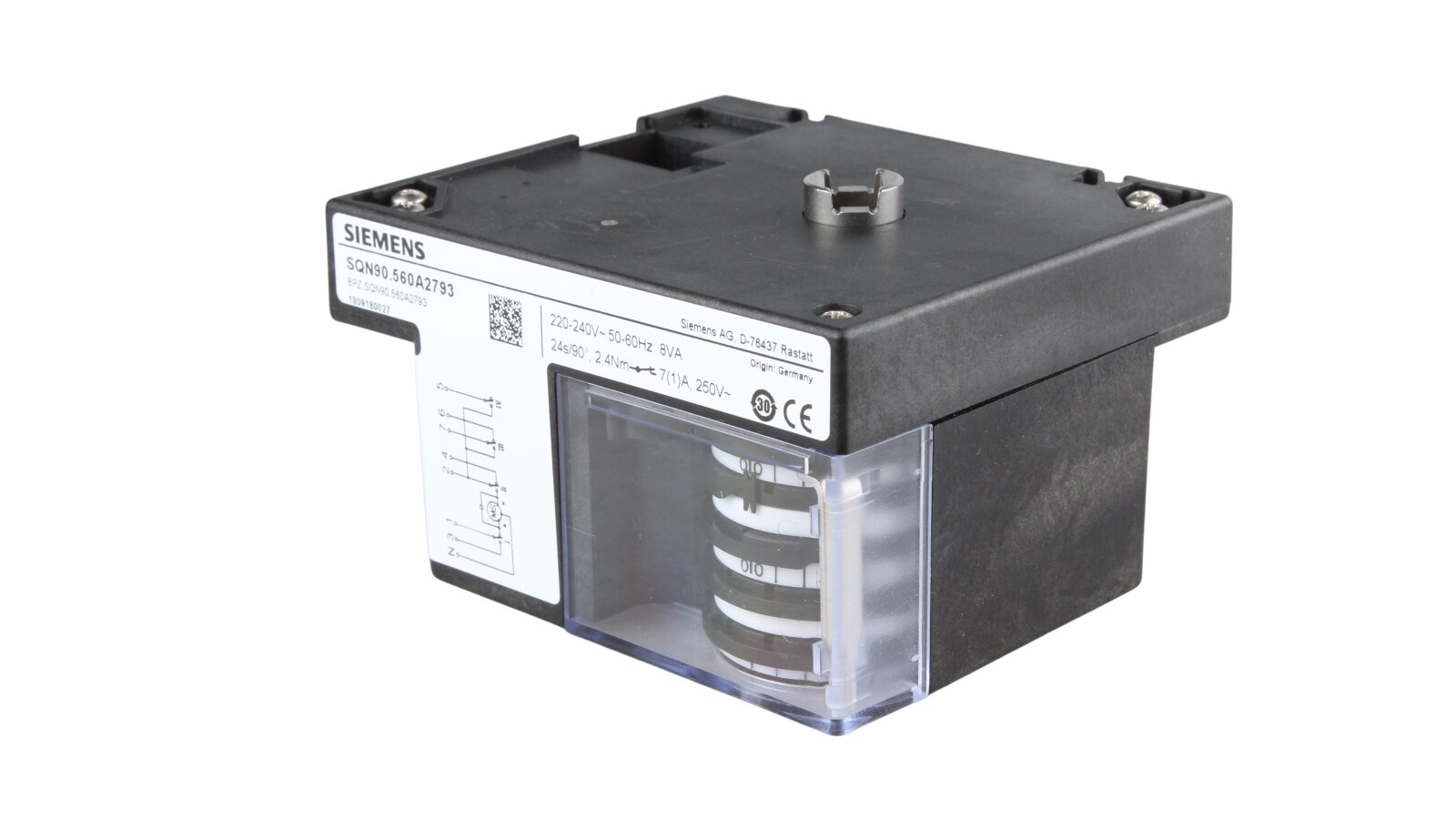

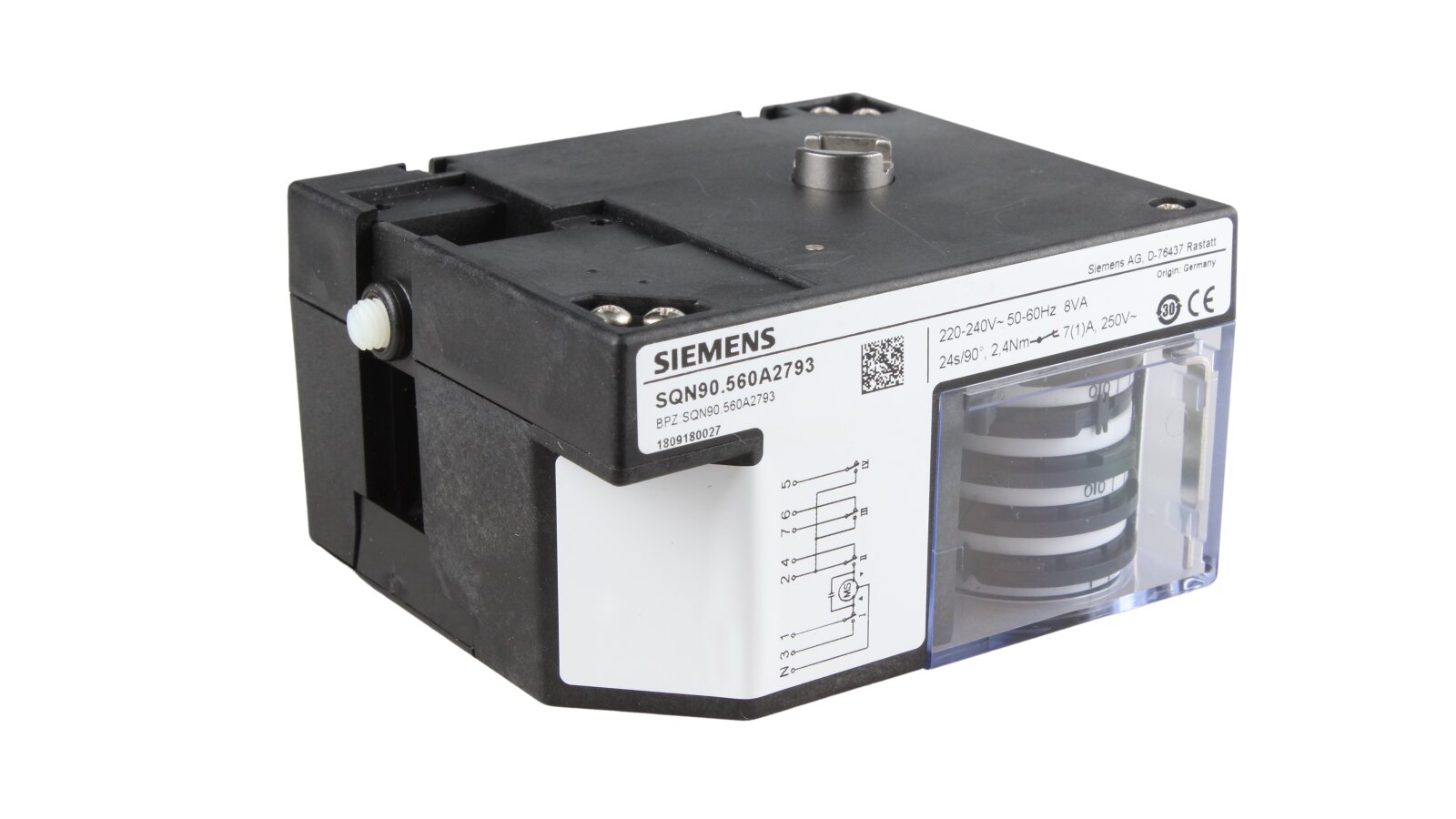

Servo drive Riello SQN90.560A2793, Part Number: 3012087 automatically moves the air damper to the required position under the control of the LOA/LMO/LMG/LFL furnace automatic control or regulator/controller. Participates in the formation of the air-fuel mixture. Designed for use in single-stage, two-stage, modulating burners burning gas or liquid fuel.
Main parameters and features:
Power supply: 220-240 V, 50-60 Hz;
Damper travel range: 0...90°;
Operation from a reversible synchronous motor with a torque of 2.4 Nm;
Opening time at 90° - 24 sec.;
Protection against dust and moisture class IP 40;
Uninterrupted operation regardless of voltage or load changes;
Economical energy consumption;
precise opening angle taking into account the settings and signals of the control device;
easy adjustment of operating parameters by rotating the cams with a scale;
internal position indication, the possibility of installing a potentiometer (optional);
permissible ambient temperatures: -20 ... + 60 ºС.
Configuration

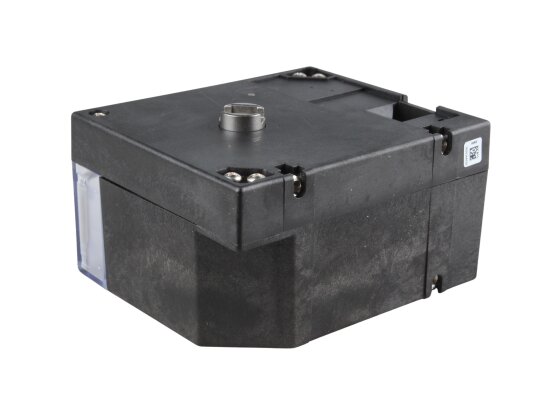

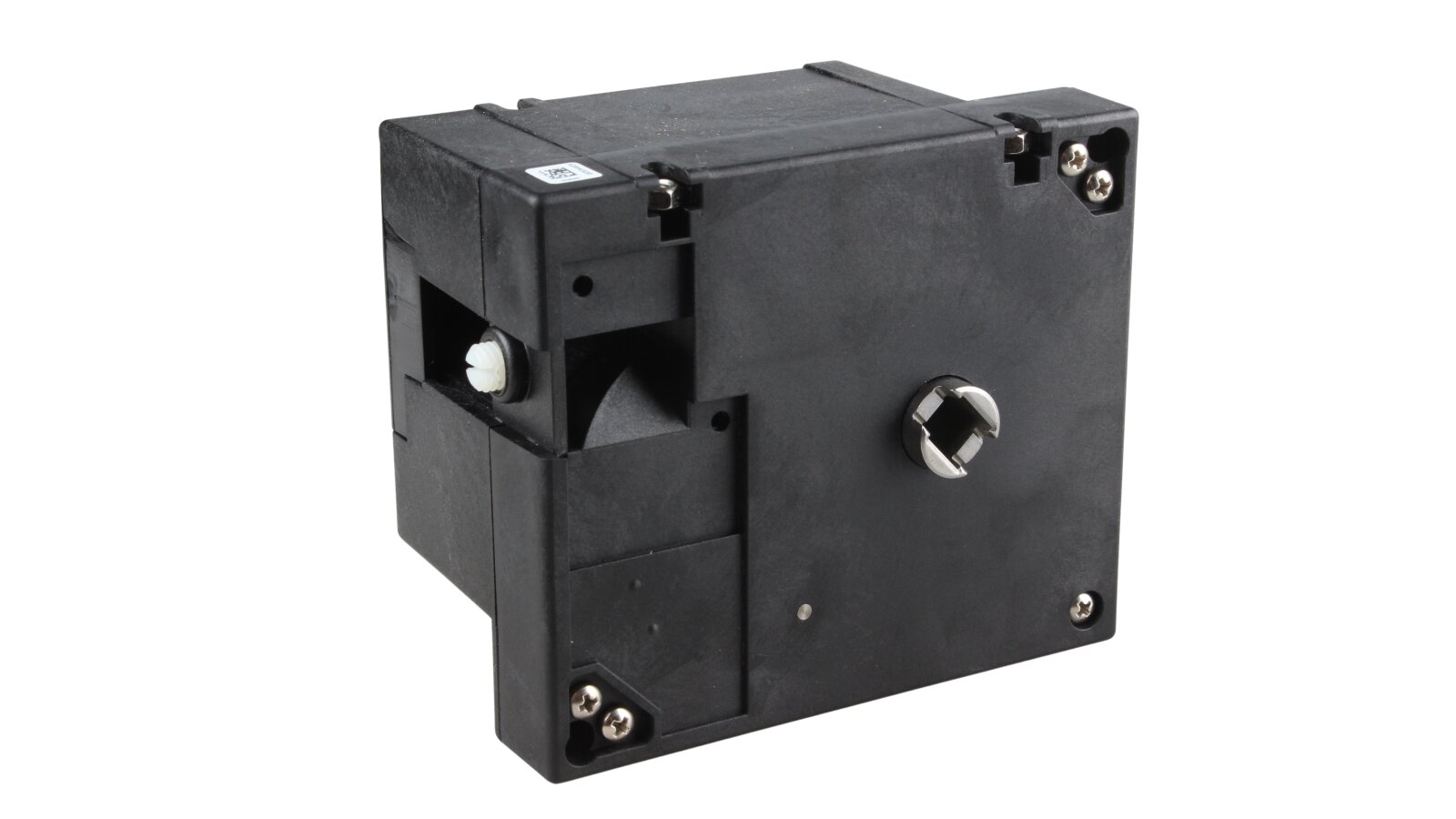

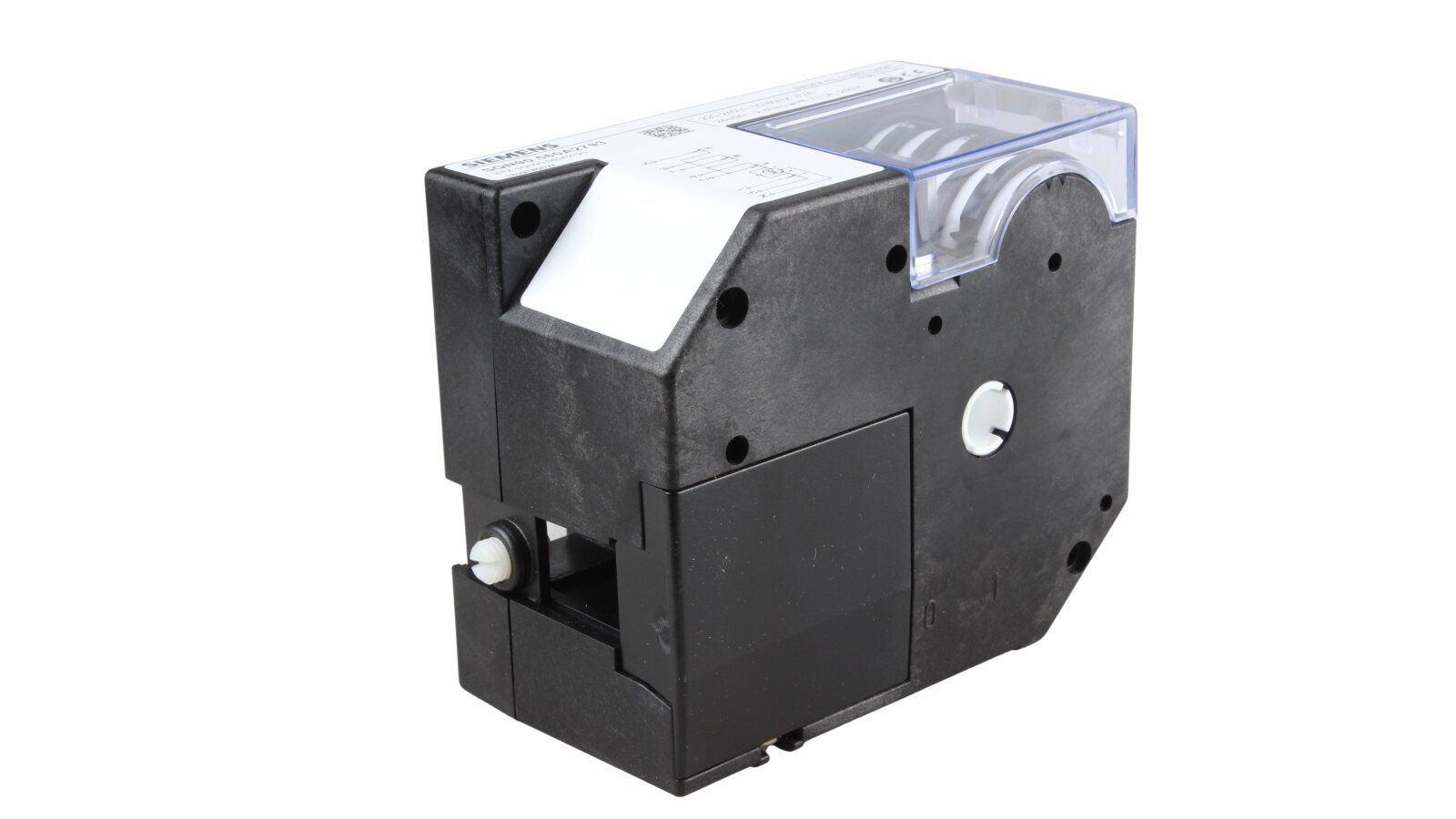

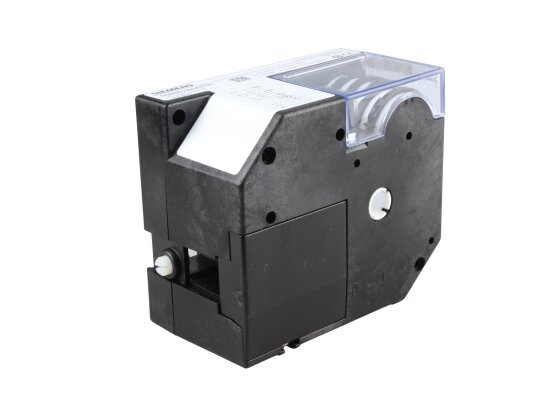

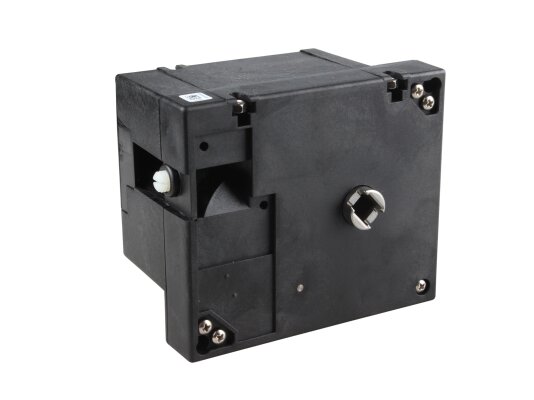

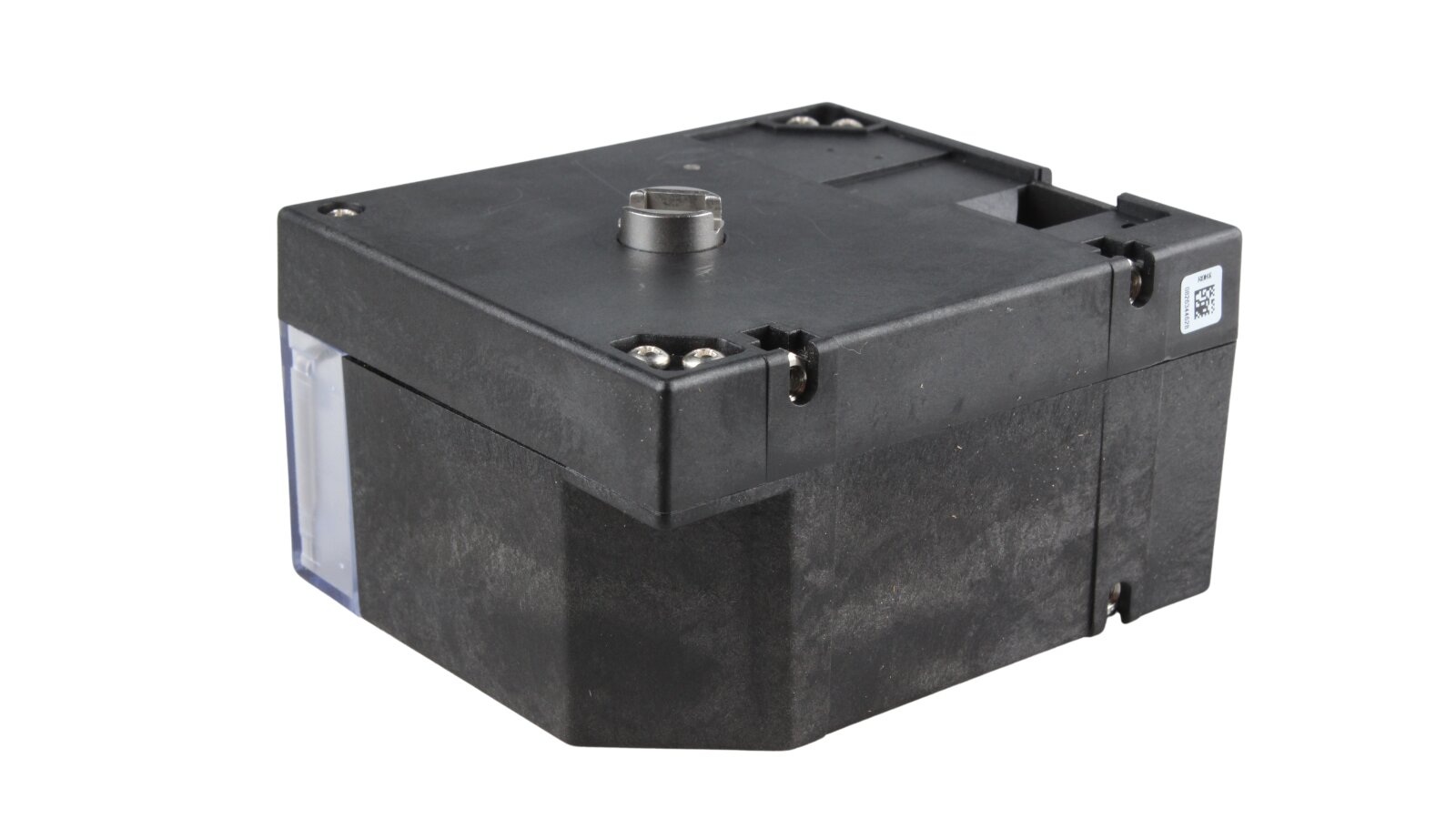

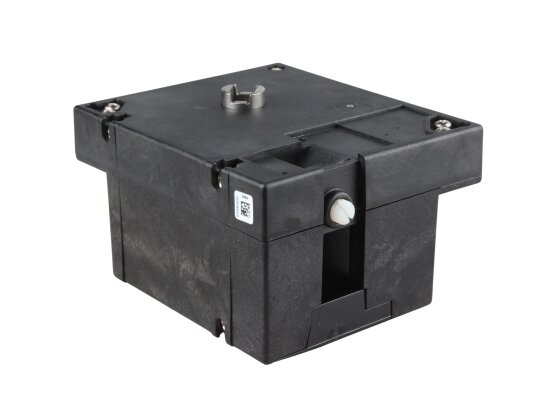

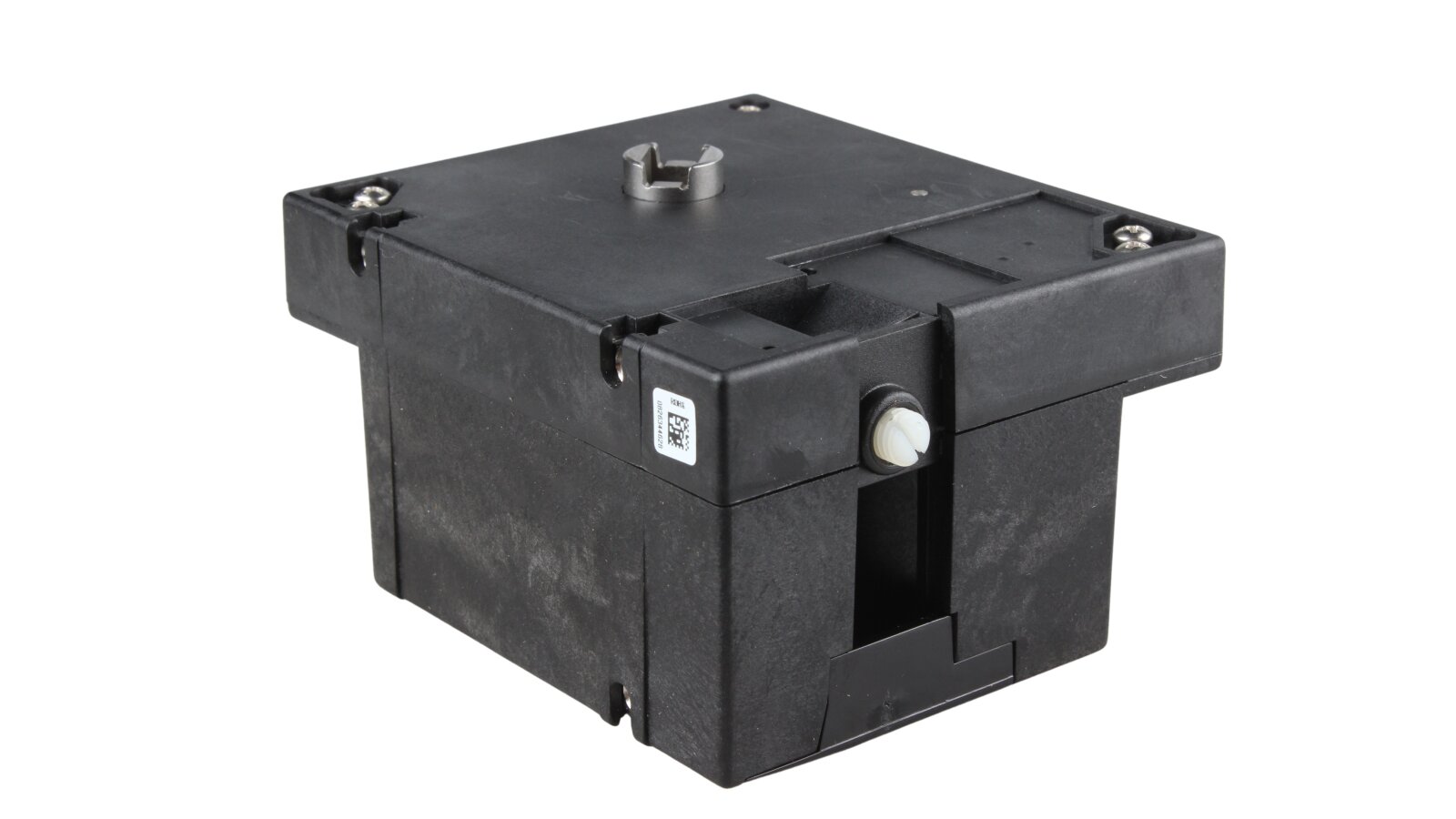

The Riello SQN90 servo drive is assembled in a compact shock-resistant plastic housing. It is equipped with a reliable working mechanism with a manually disconnected transmission and automatic engagement. The self-lubricating gearbox does not require maintenance during operation.
Advantages:
reliable housing made of shock-resistant plastic;
precise movement of the air damper;
economical power consumption;
the possibility of retrofitting a potentiometer;
lubricated for the entire service life of the working unit;
wide range of operating temperatures;
internal position indication;
easy adjustment of switches;
universality of application.
On our website you can select and buy a servo drive for any industrial burner. You can clarify the characteristics and features of the equipment with ANKAS specialists.
