Description

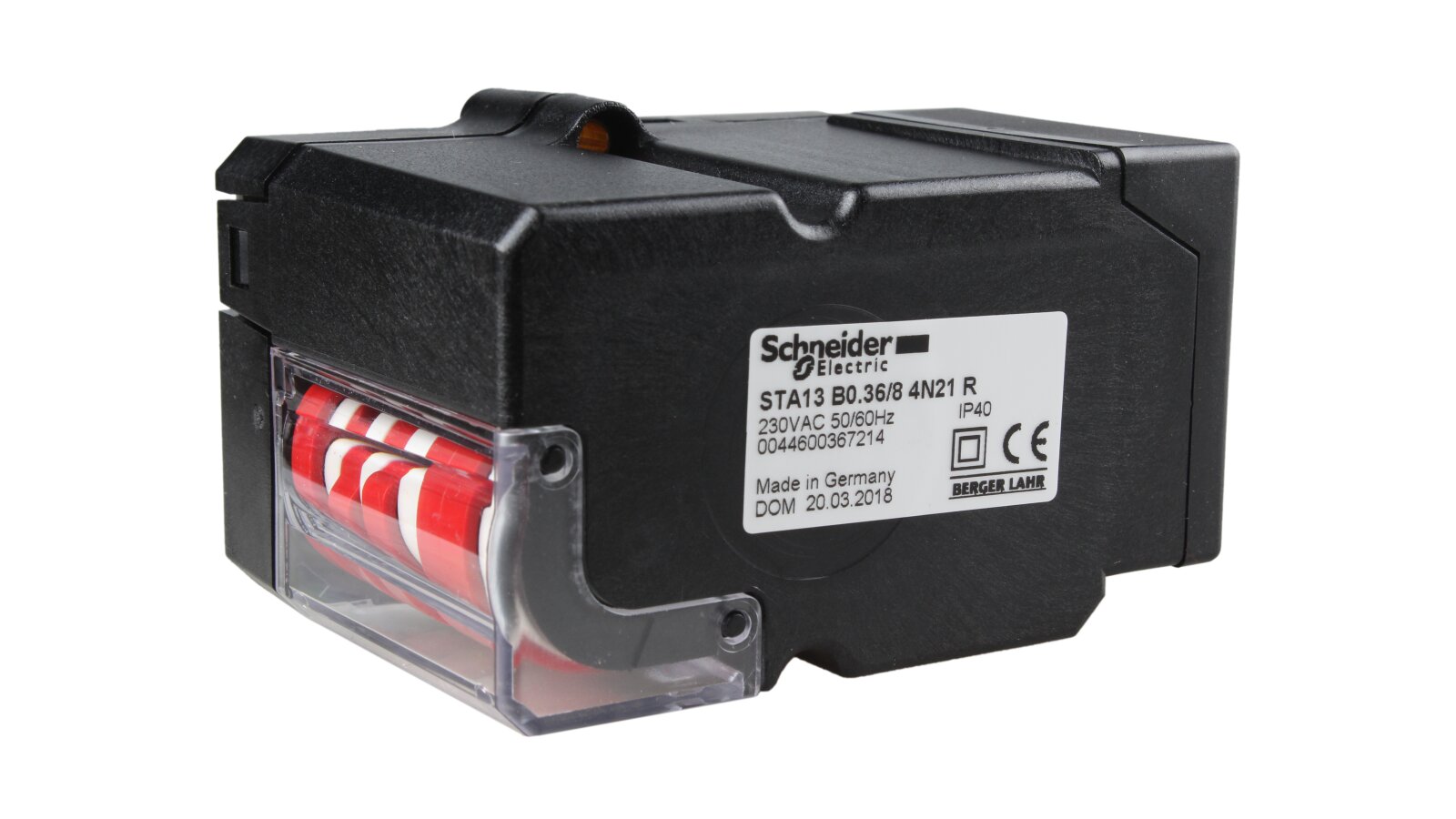

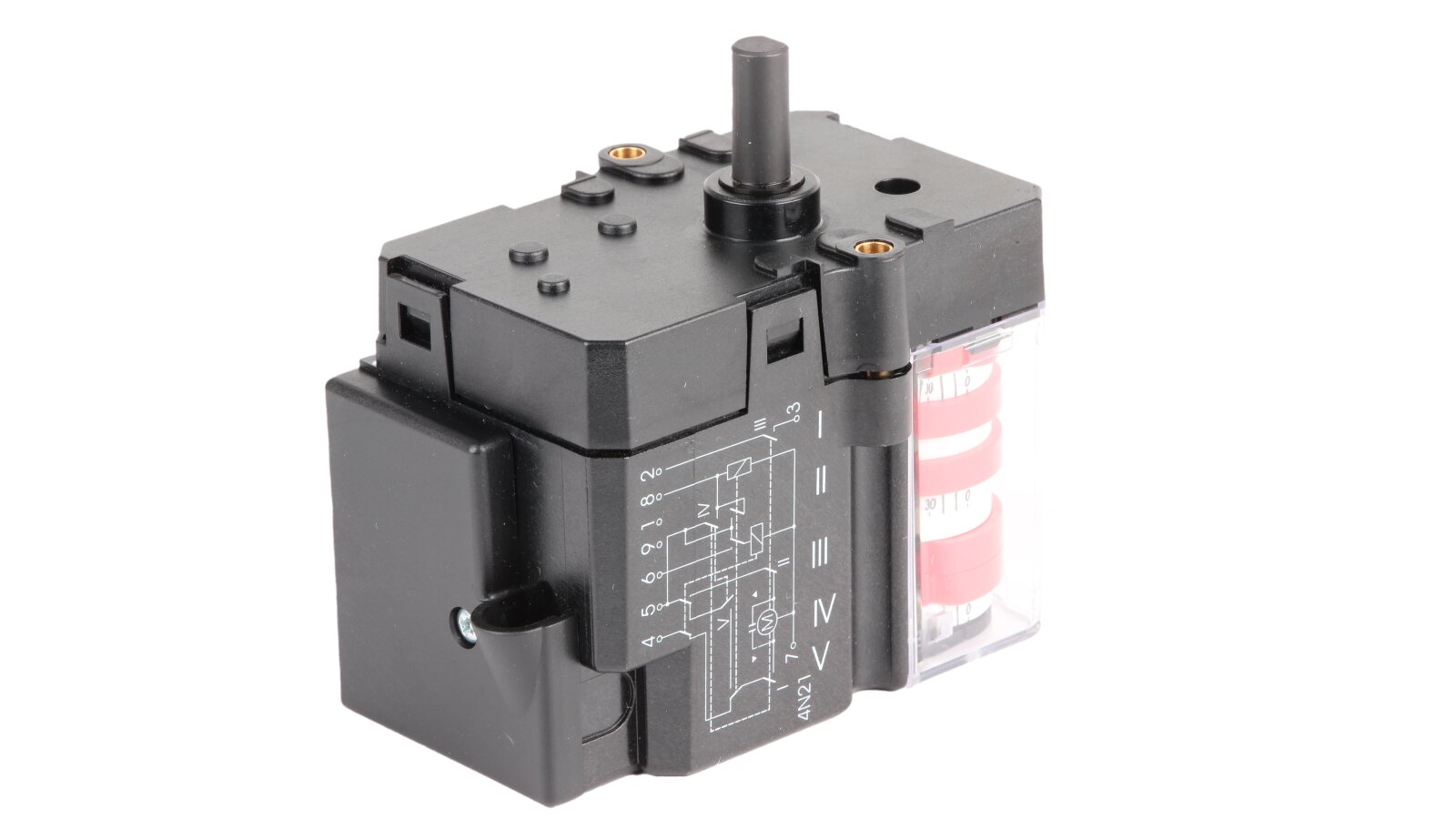

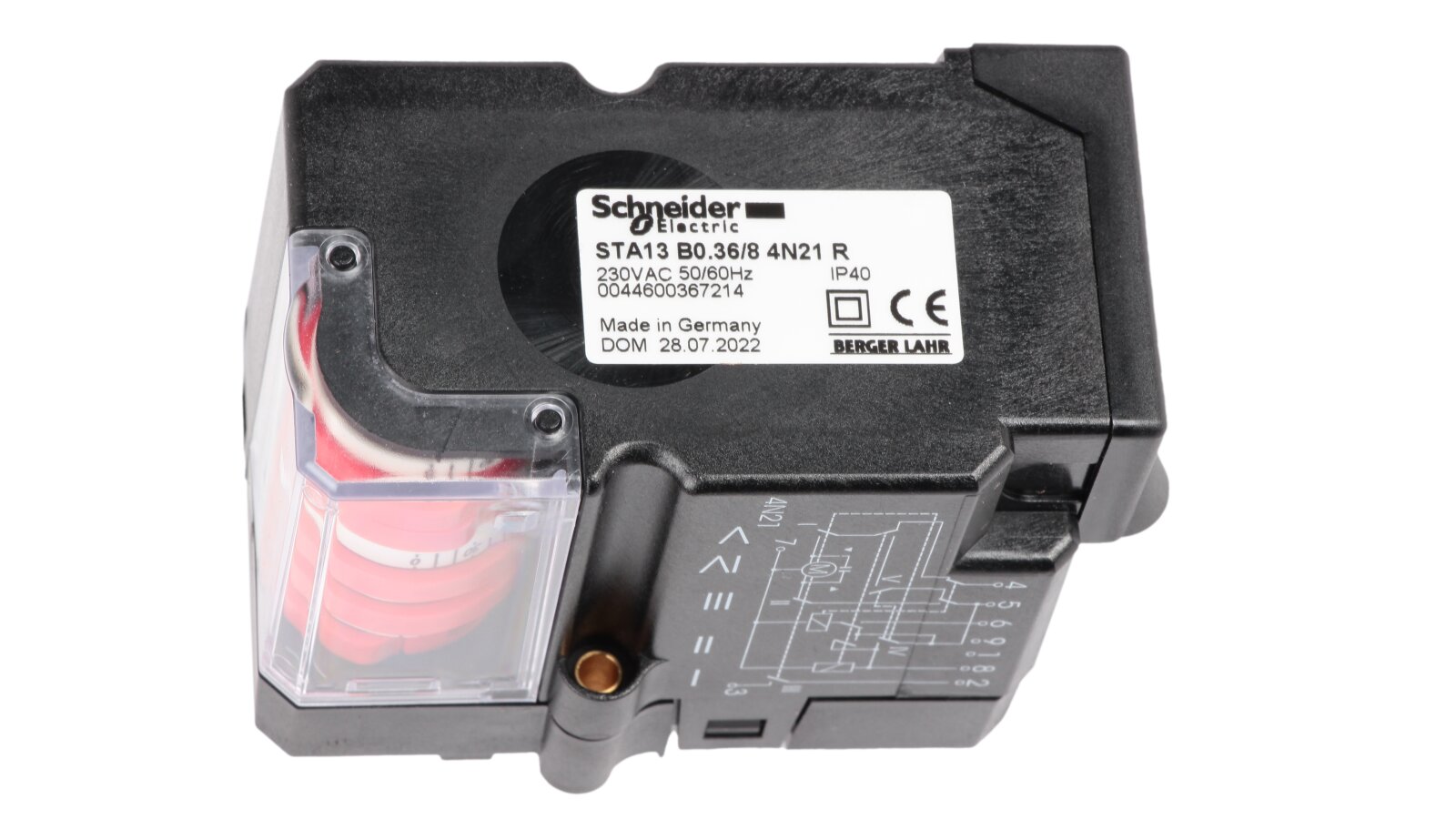

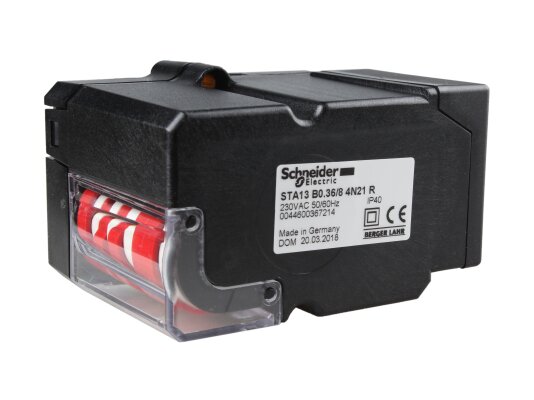

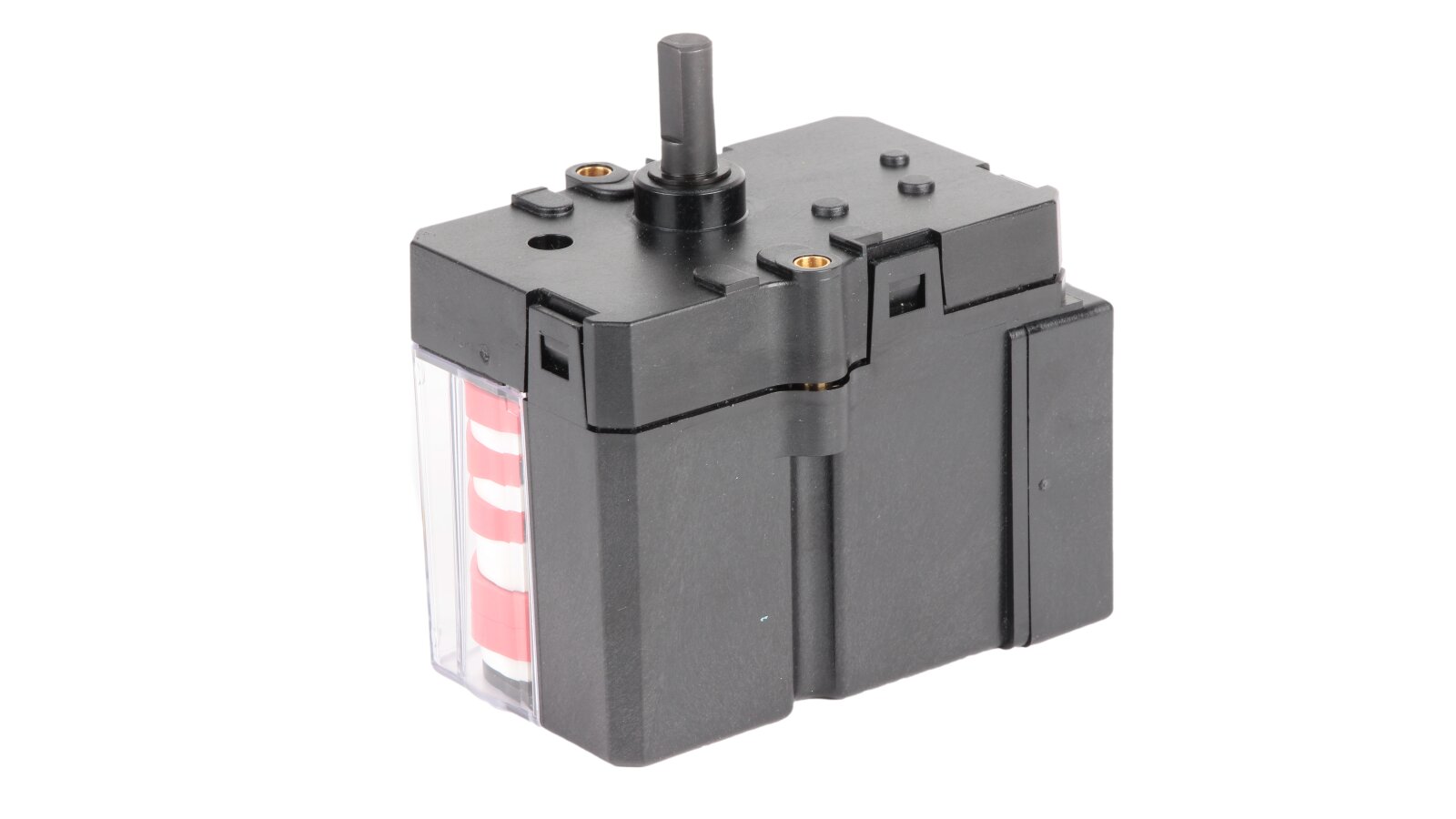

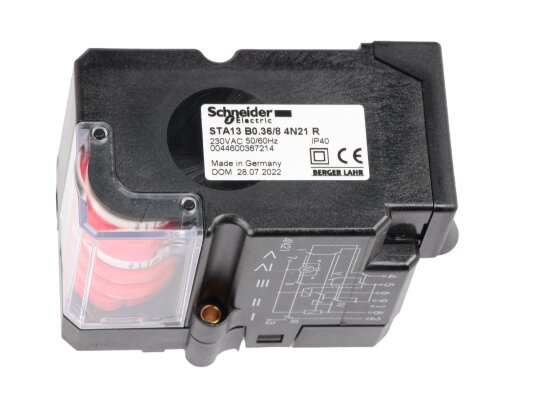

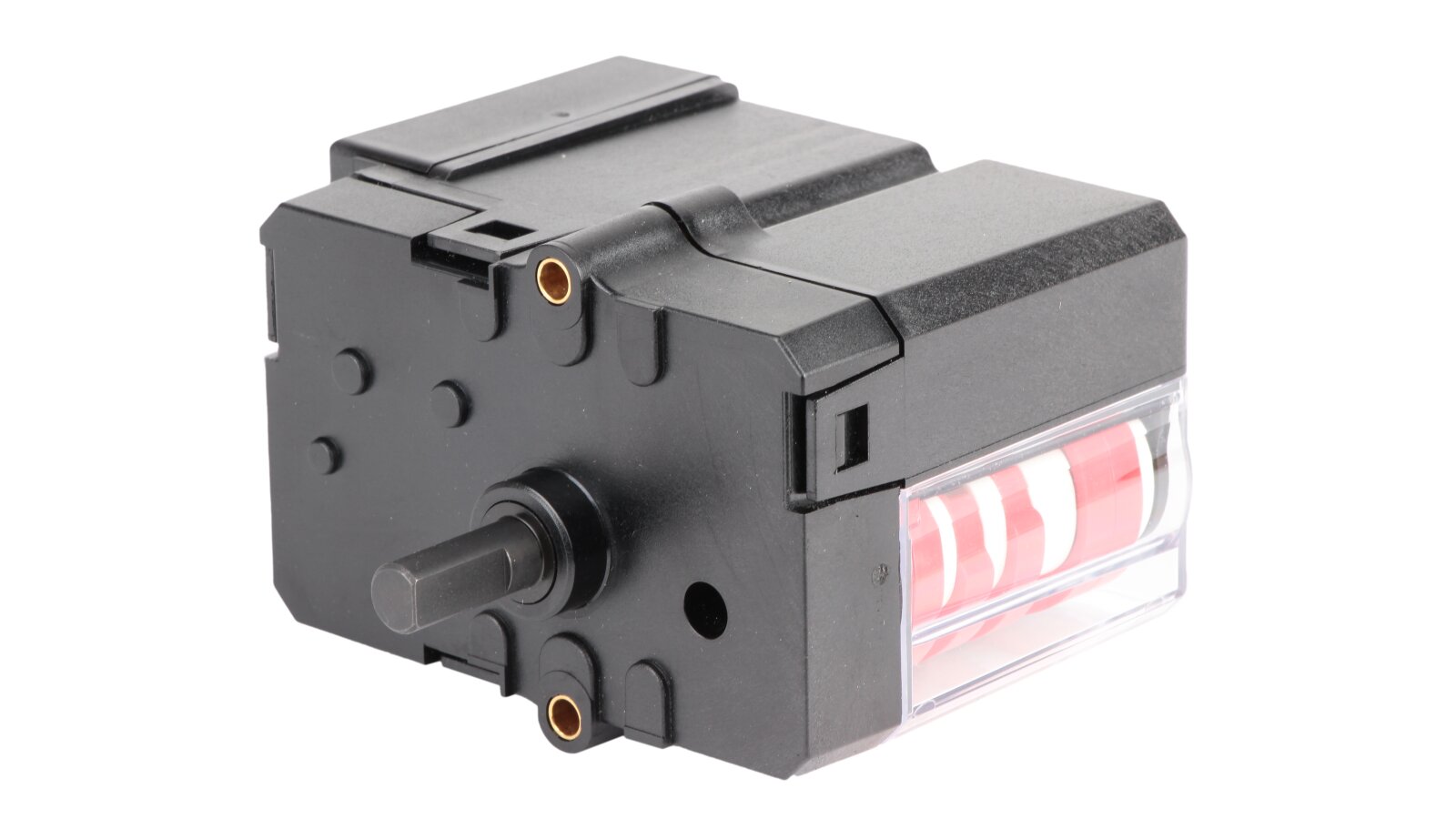

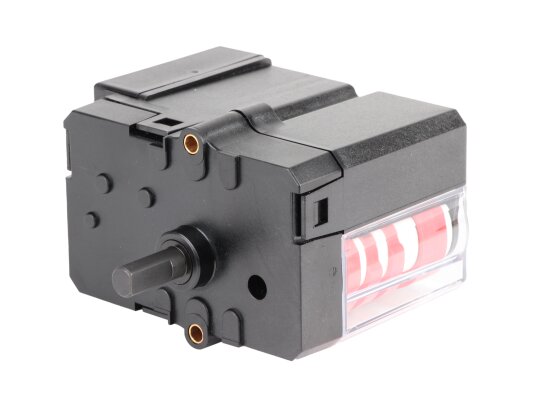

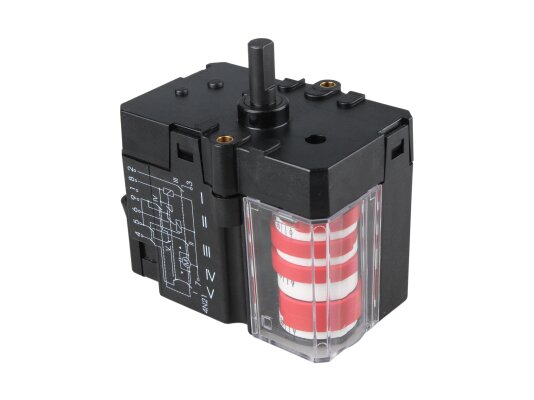

The Berger Lahr / Schneider Electric STA13 B0.36/8 4N21 R servo drive is manufactured specifically for Riello burners operating on gaseous or liquid fuel. It is an important element of the automatic fuel supply system to the burner device, and regulates the volume of air supplied to the firebox. It has manual adjustment and control using a relay.
Technical and operational characteristics:
Power supply: 220 volts, 50/60 Hz.
Duration of rotation by 90º: 13 sec.
Power consumption: 9.5 W.
Electrical protection: class IP40.
Operating temperature: 0…+60 °С.
Device and features:
ensures high switching accuracy and optimal dynamic performance;

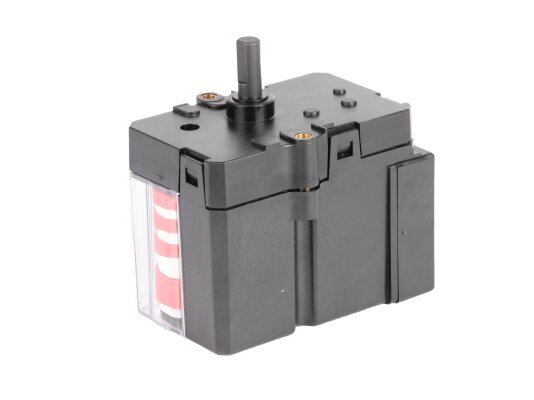

is equipped with a plastic housing that protects the working elements from external influences;

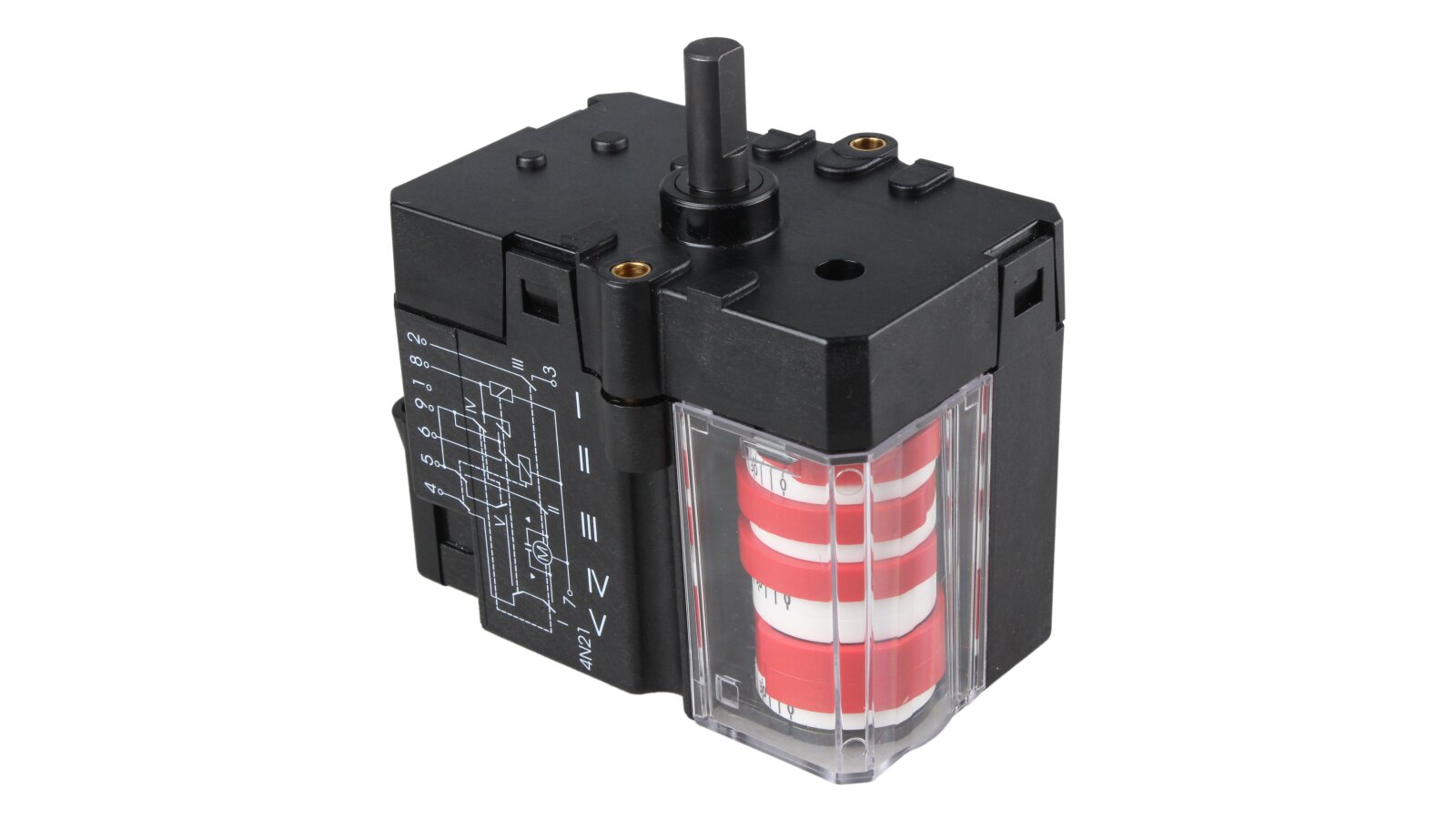

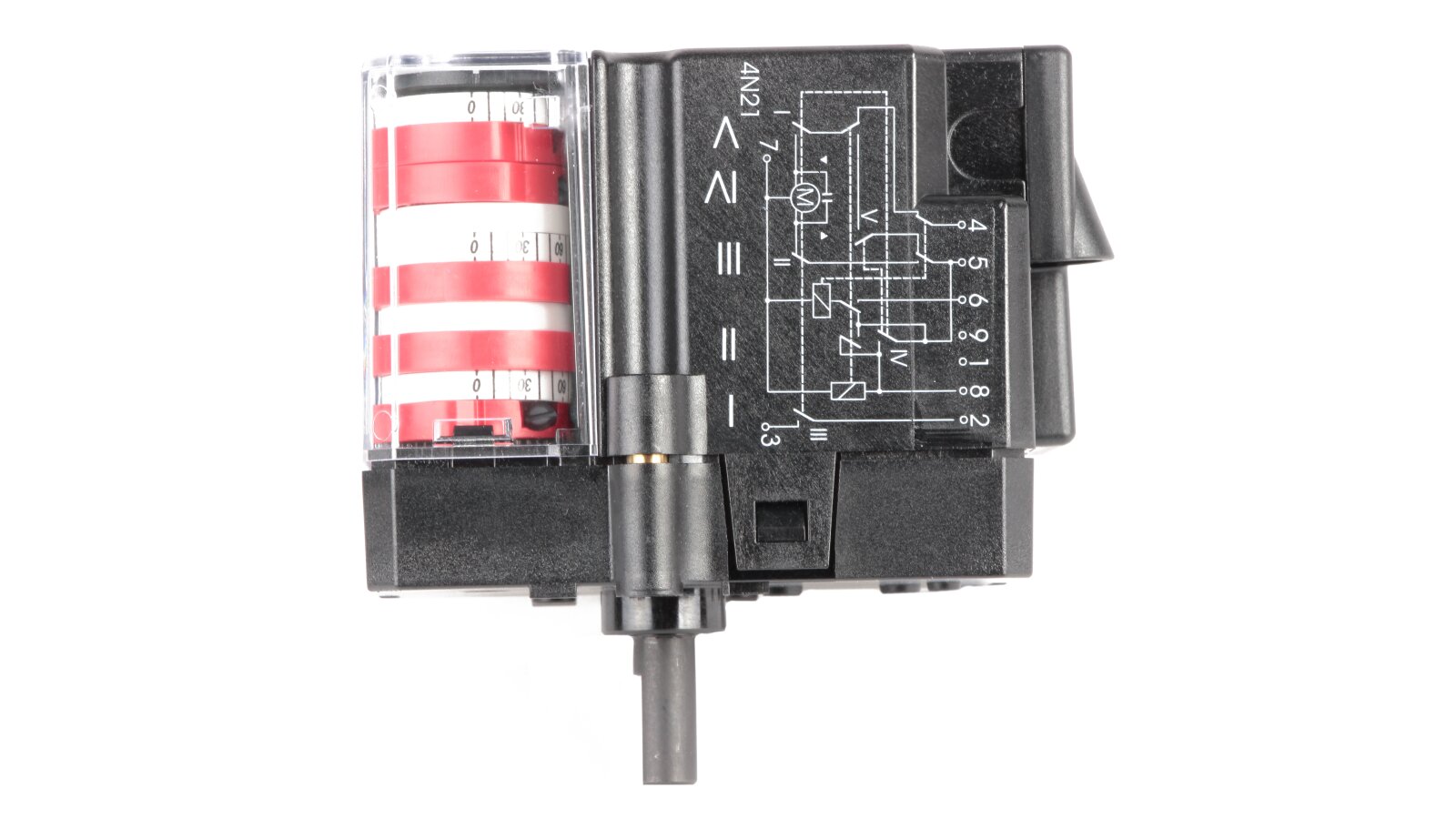

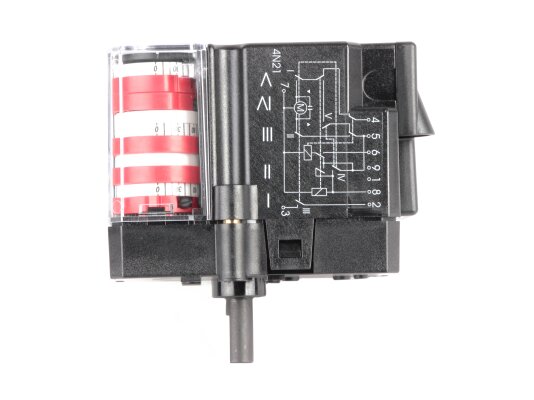

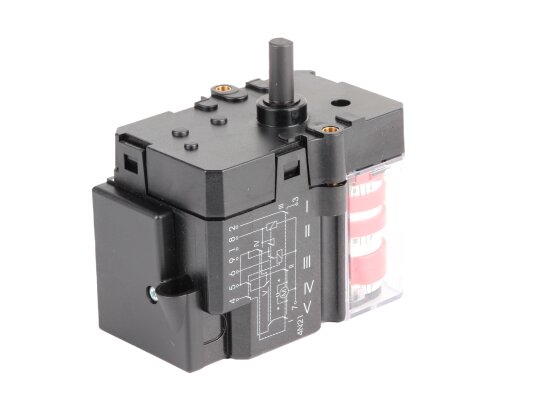

equipped with a hinged transparent cover for easy access to the adjustable cams and adjacent scales for monitoring the damper angle;
is adjusted using a regular screwdriver by tightening or loosening the screws;
has a low-maintenance working unit and a clockwise rotating drive shaft (R);
is connected to the electrical network using a plug;
has standard protection of electrical components (IP 40);
can be equipped with a potentiometer to indicate the damper position.
To buy a Berger Lahr / Schneider Electric STA13 B0.36/8 4N21 R servo drive and auxiliary accessories at dealer prices, go to the "basket" section and fill in the free fields of the order form. For questions about the complete set, delivery and features of the equipment, contact the online store consultant by phone or via online chat.
