Description

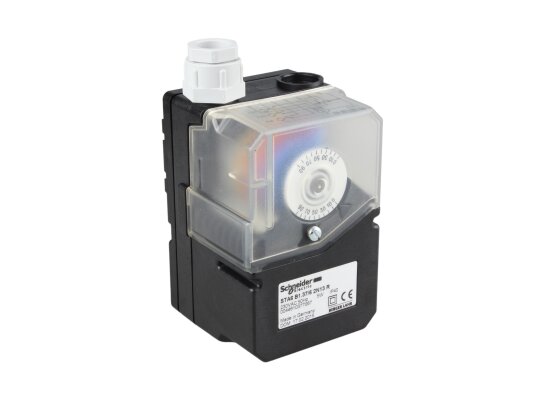

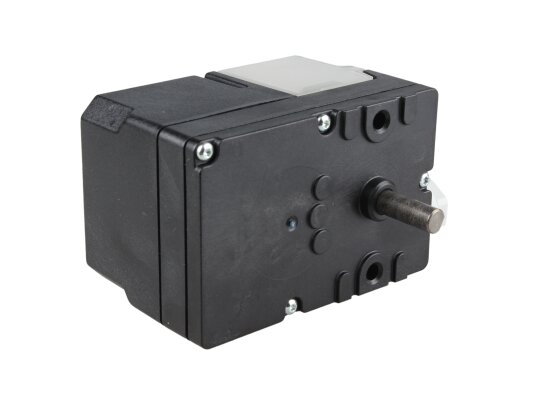

The Berger Lahr / Schneider Electric STA6 B1.37/6 2N13 R servo drive is designed to equip Riello burners. It positions the air damper during the process of creating a fuel-air mixture, ensuring the efficiency of the boiler plant and increasing efficiency. It has manual adjustment and control using a relay.
Main parameters:
Power supply: 220 V, 50/60 Hz.
90º rotation time: 6 sec.
Torque: 0.6 Nm.
Protection class: IP40.
Package contents and features:

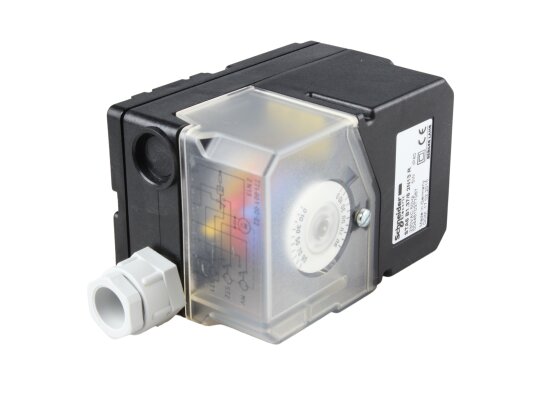

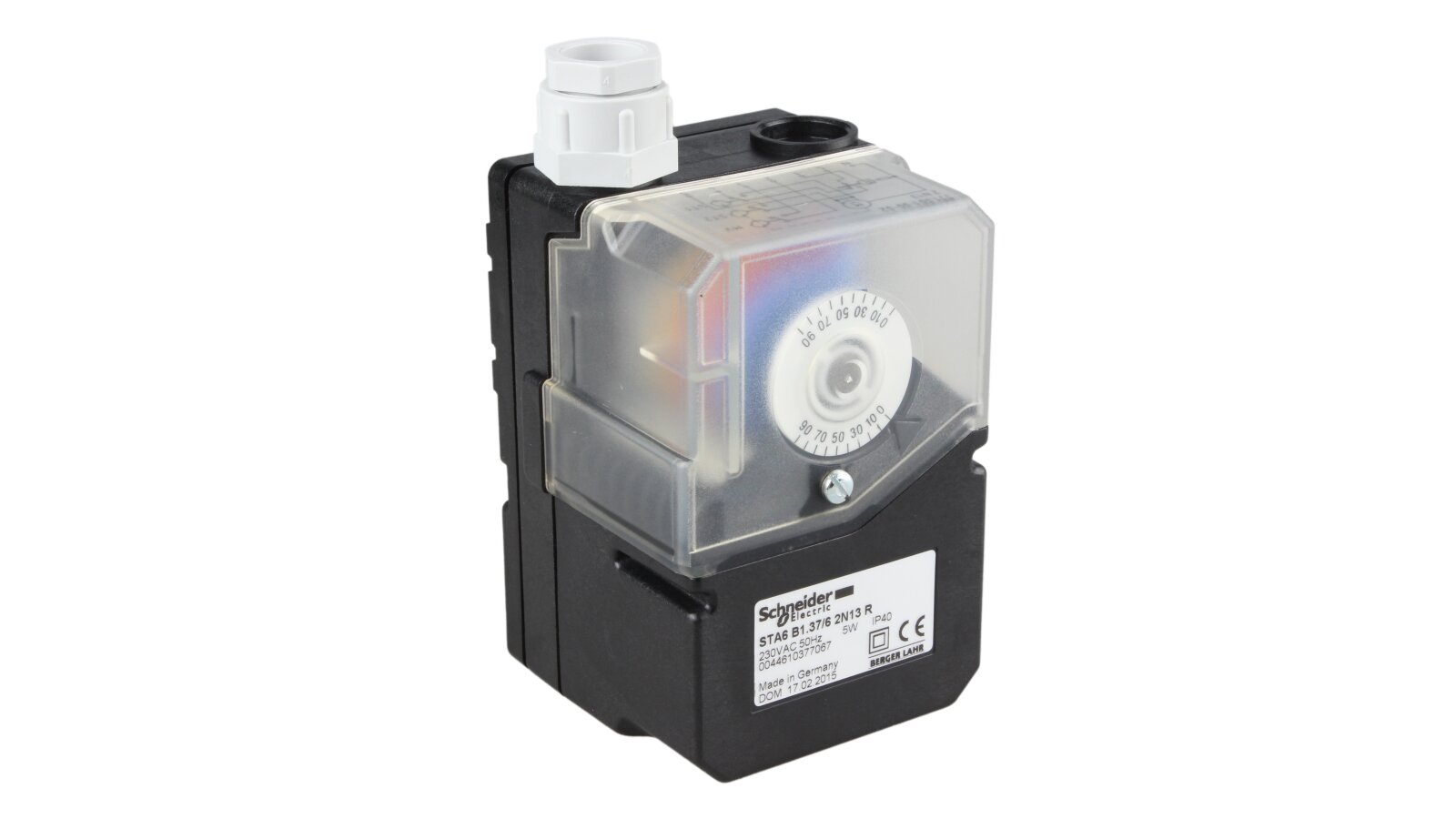

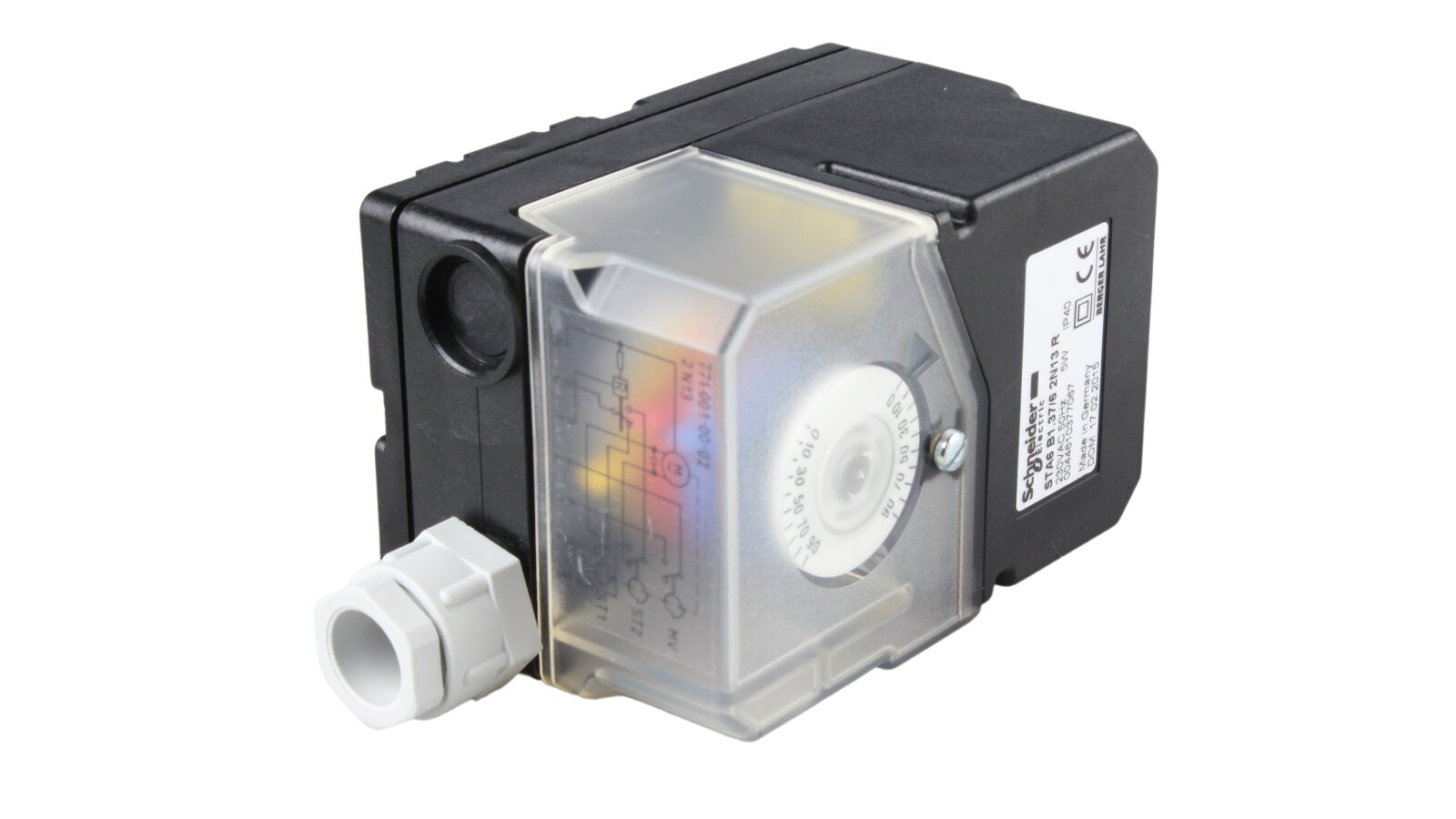

The polymer body is equipped with a hinged transparent cover for access to adjustable cams. Adjustment can be made without auxiliary tools, turning the screw left/right with a screwdriver. To control the opening angle setting, there are rings with scales next to the cams.
Electrical components are protected from external influences according to the IP40 standard.

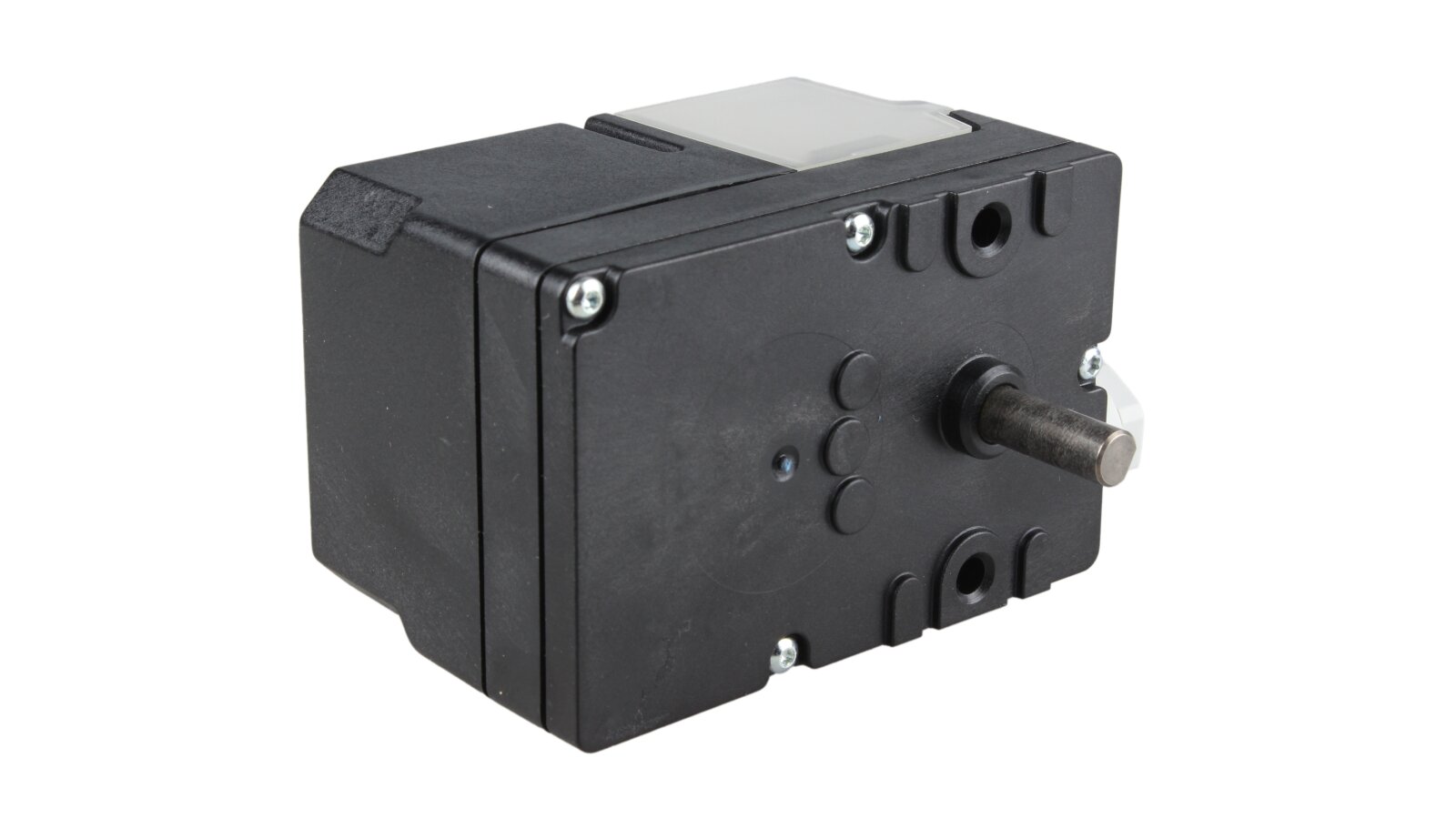

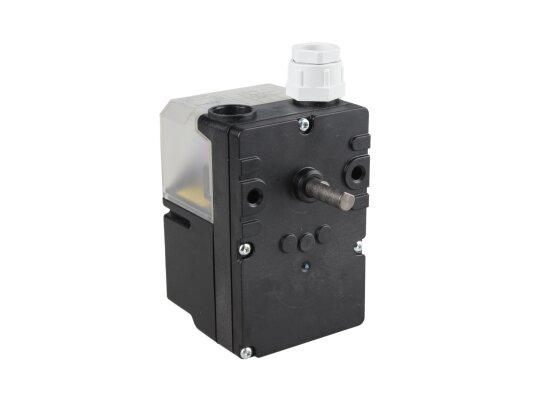

The electric motor shaft rotates clockwise (letter R in the model name).
The working unit is treated with continuous lubrication and does not require periodic maintenance.
Berger Lahr can be placed in any orientation.
Advantages:
fast response;
easy adjustment;
compact dimensions;
standard electrical protection (IP 40);
installation in any orientation;
low maintenance requirements.
You can ask a consultant a question and buy a Schneider Electric STA6 B1.37/6 2N13 R servo drive on our website. We also offer additional accessories for burners at competitive prices. For professional assistance in selecting equipment, write or call us.
