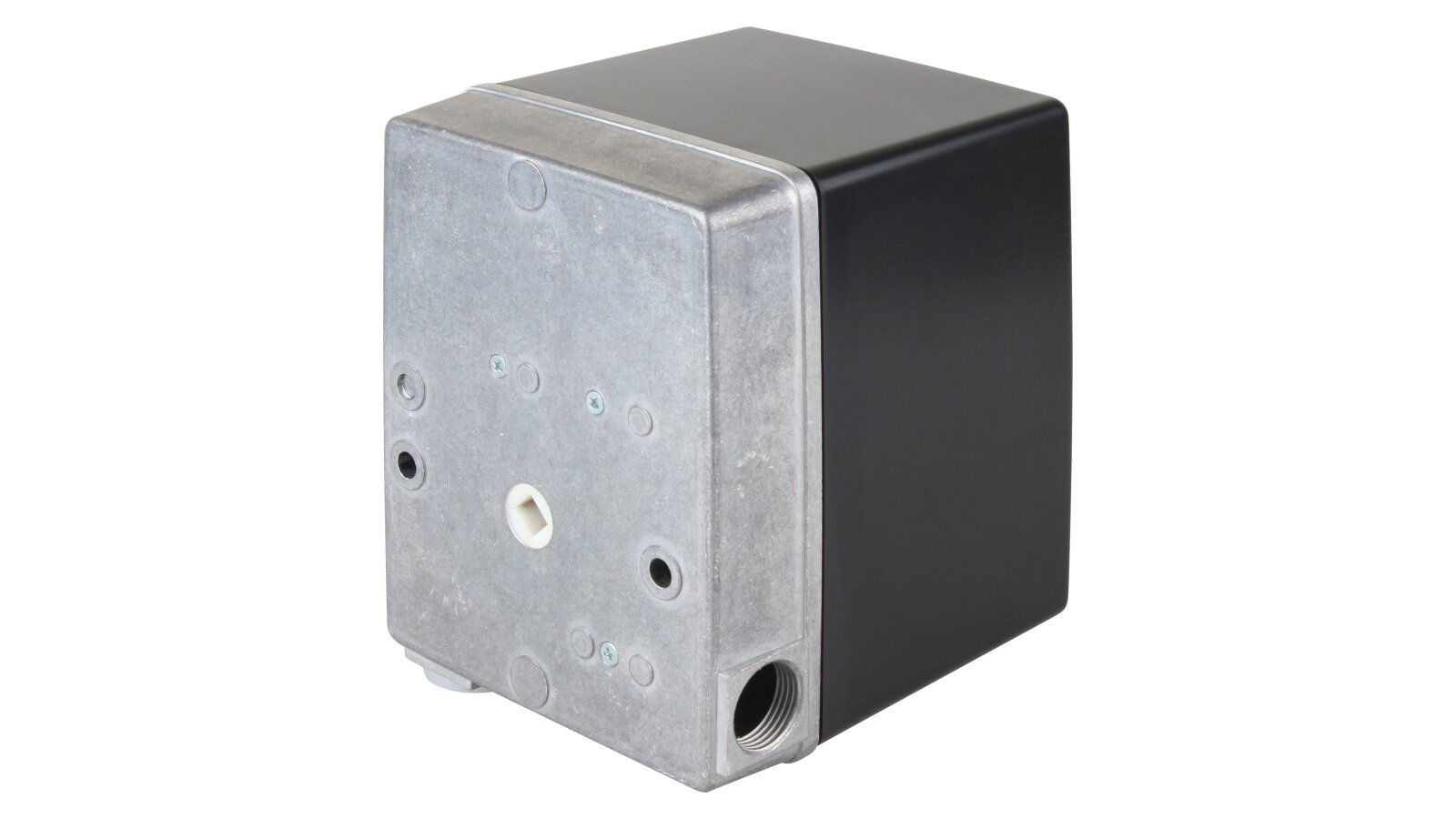

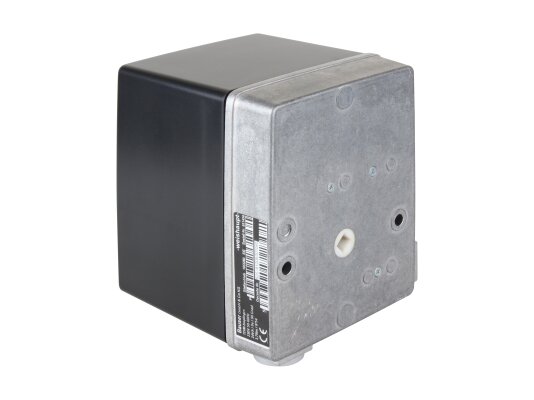

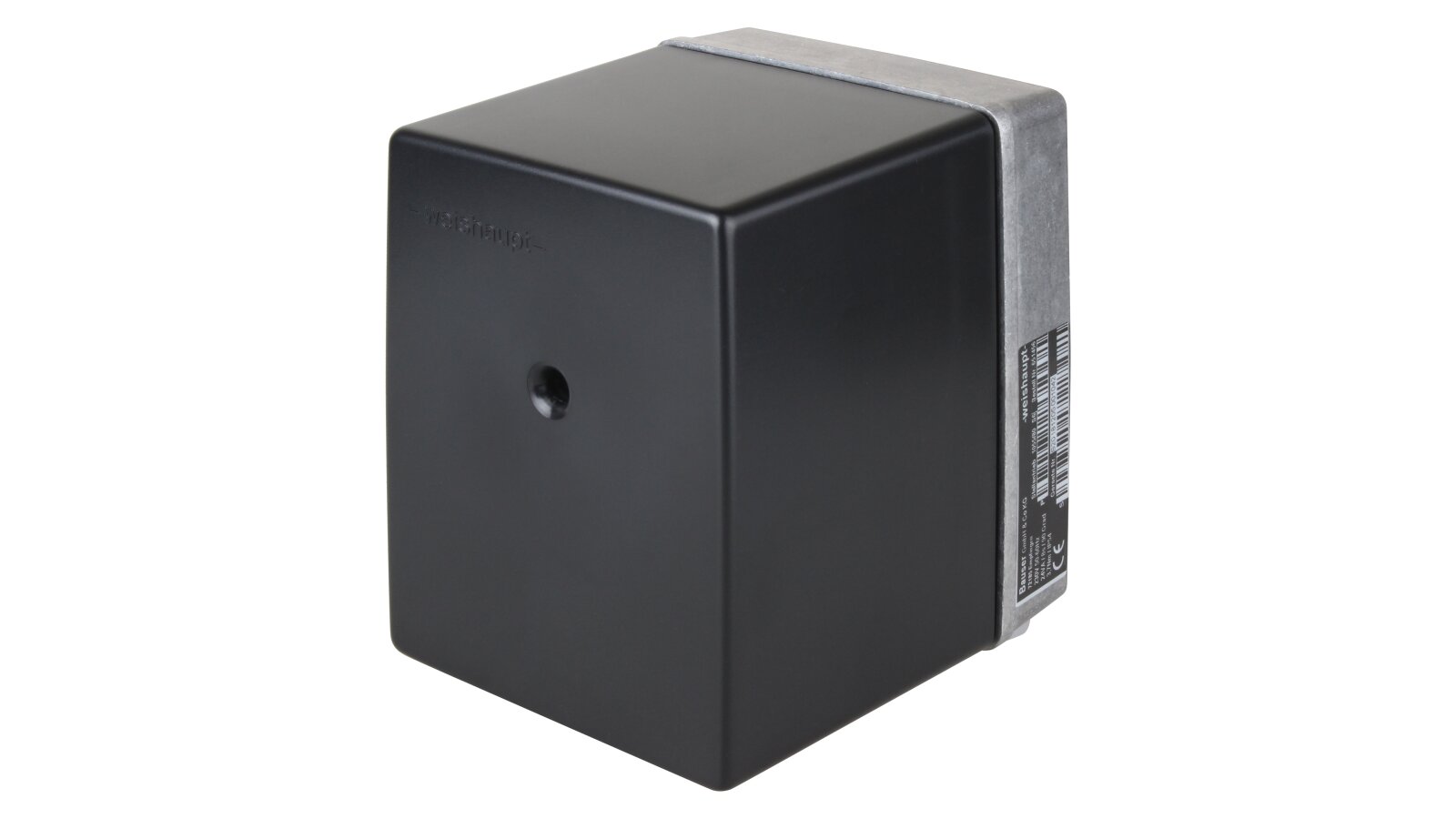

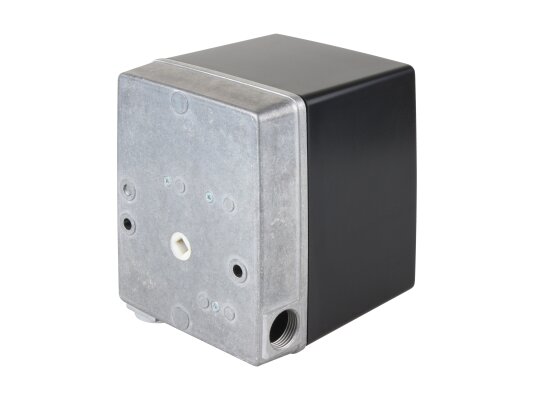

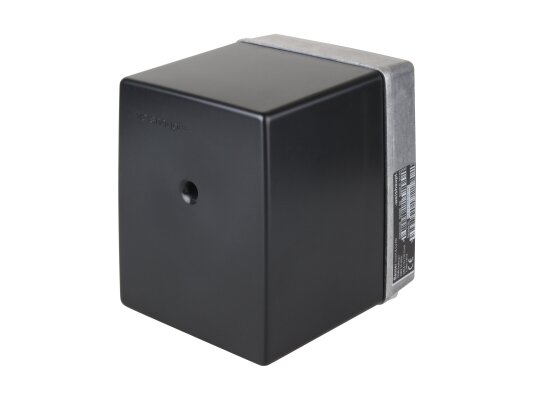

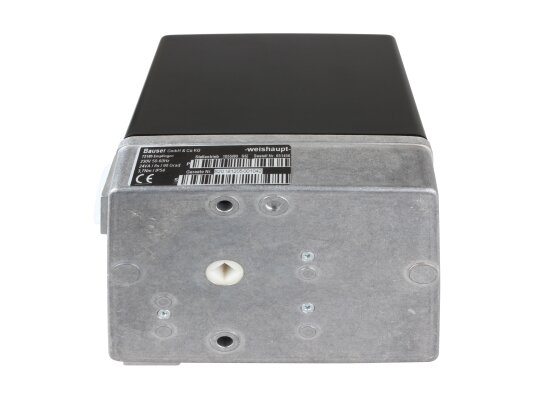

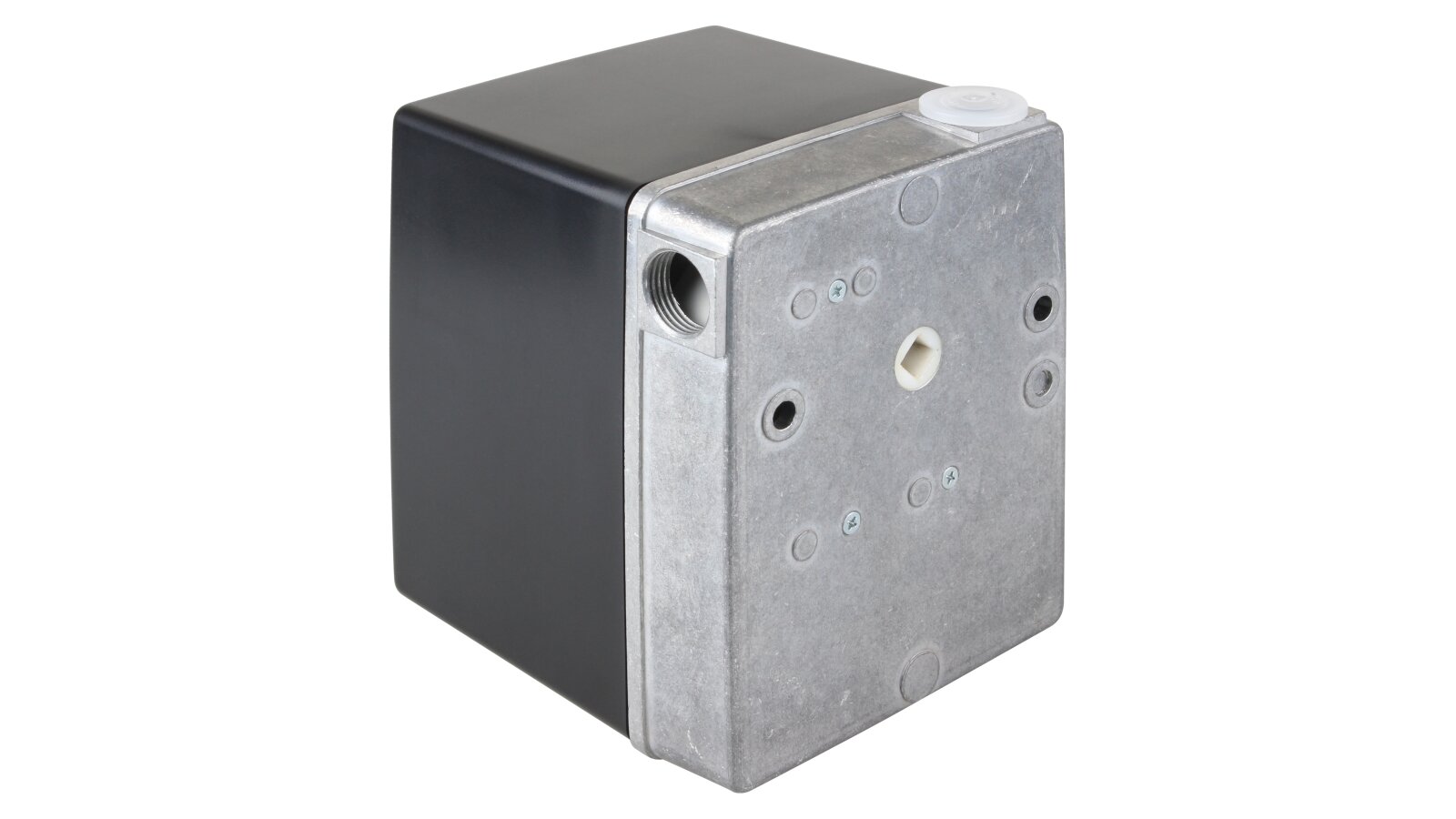

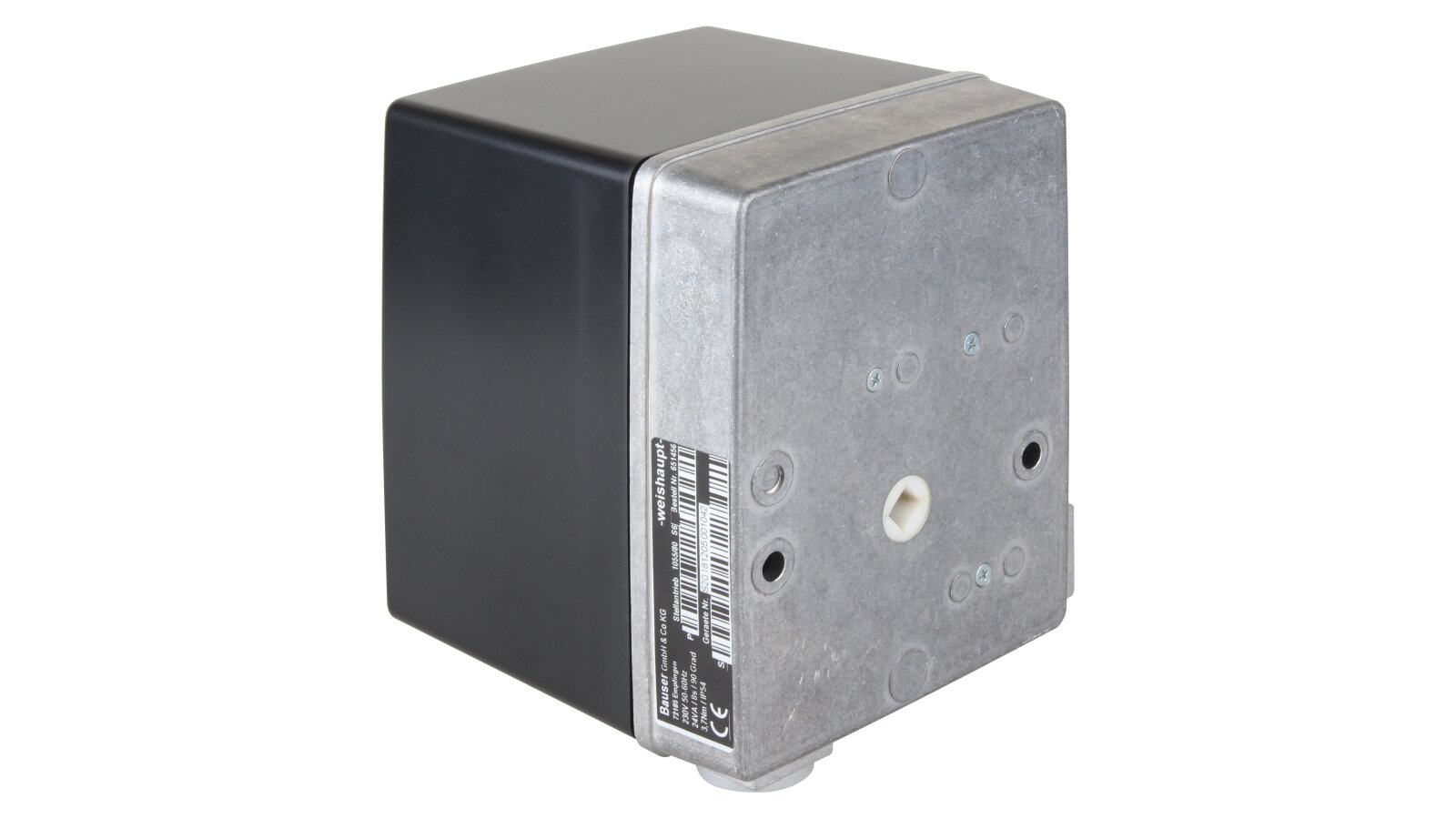

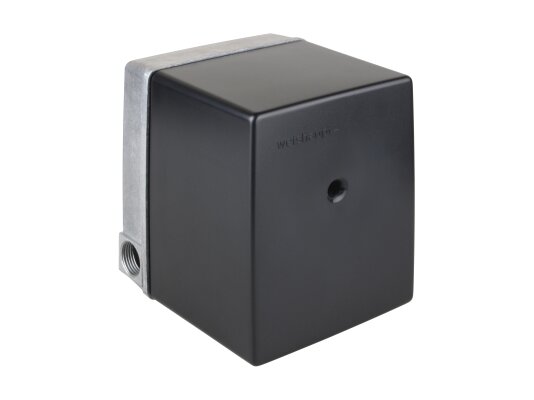

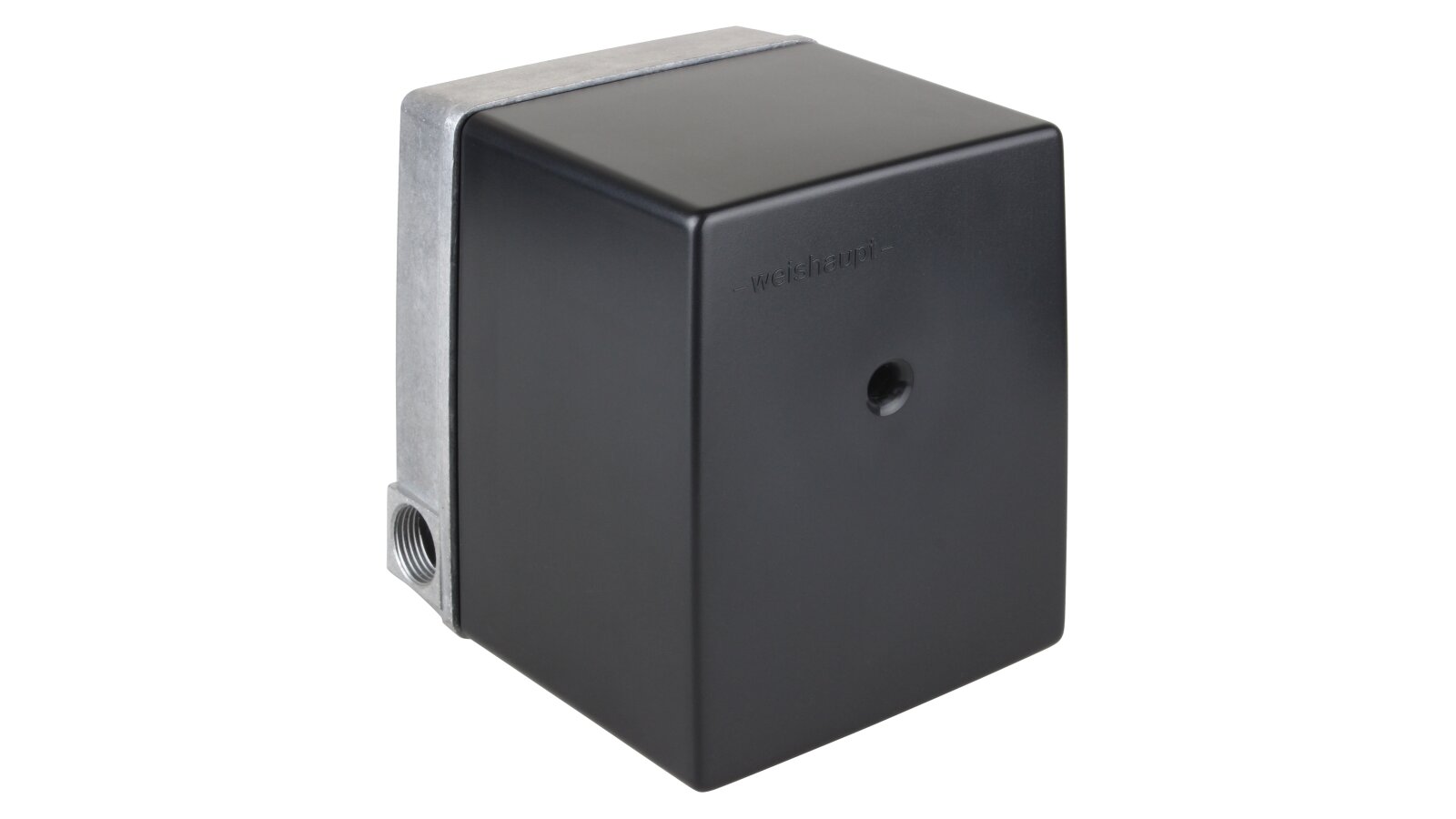

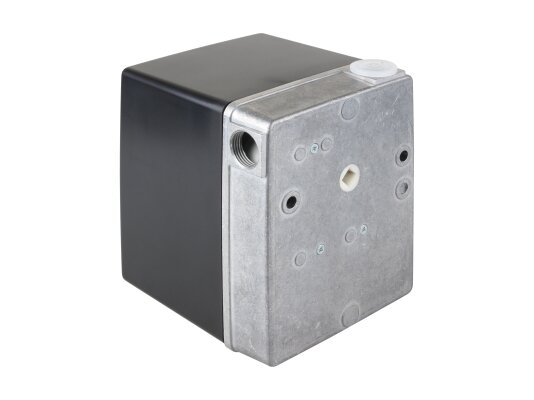

Servomotor Weishaupt / Bauser 1055/80, 651456

The Bauser 1055/80, Part Number: 651456, servo drive is used to regulate the opening angle of air dampers when operating Weishaupt industrial burners. It is involved in the preparation of the fuel-air mixture before combustion to obtain the optimal fuel-air ratio and efficient boiler operation. It is characterized by fast response, precise positioning, reliable, wear-resistant design, and low maintenance requirements.

Features:

• Electric motor powered by 230 V;

• Torque – 3.7 Nm;

• Time for full opening of the damper (90º rotation) – 8 sec.;

• Impact- and heat-resistant housing with a metal base and plastic cover;

• Protection against dust and moisture penetration according to IP 54;

• Precise damper positioning;

• Low energy consumption.

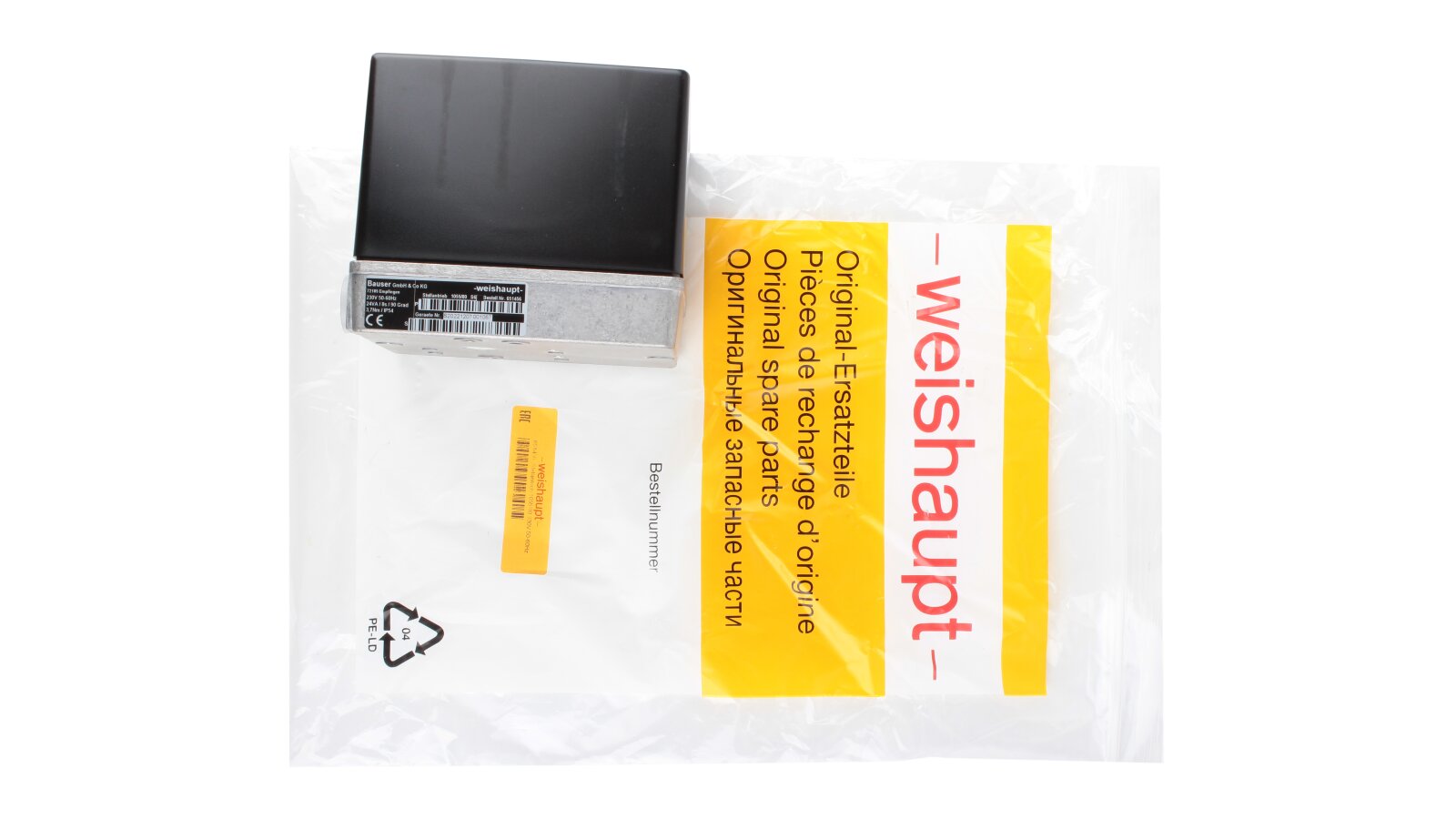

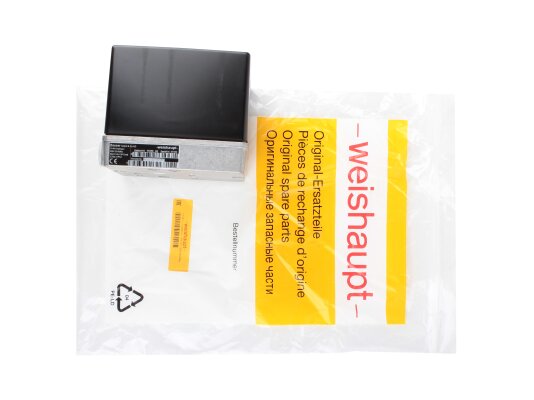

The Bauser 1055/80 servo drive is supplied complete with mounting accessories (fixing screws and washers).
