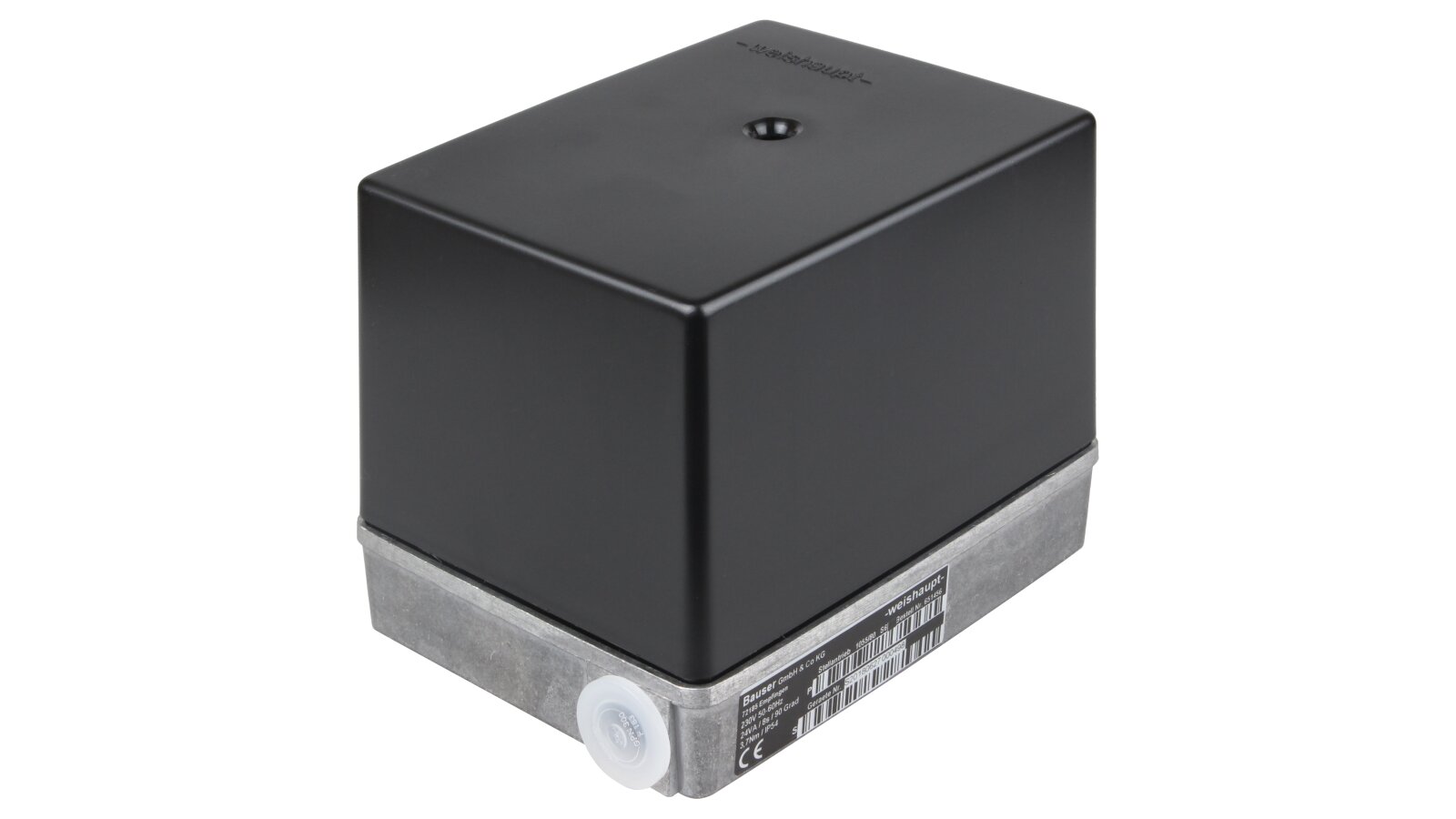

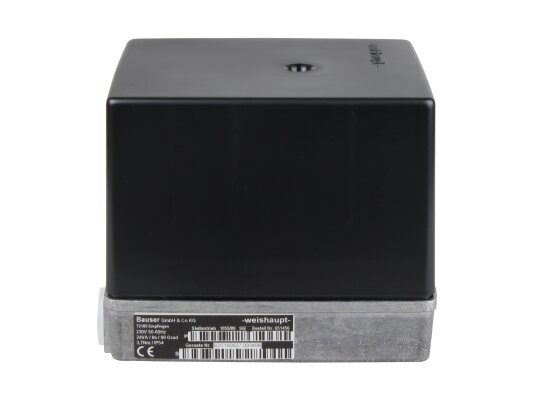

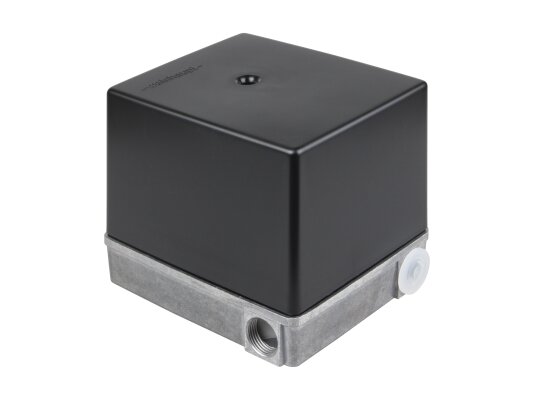

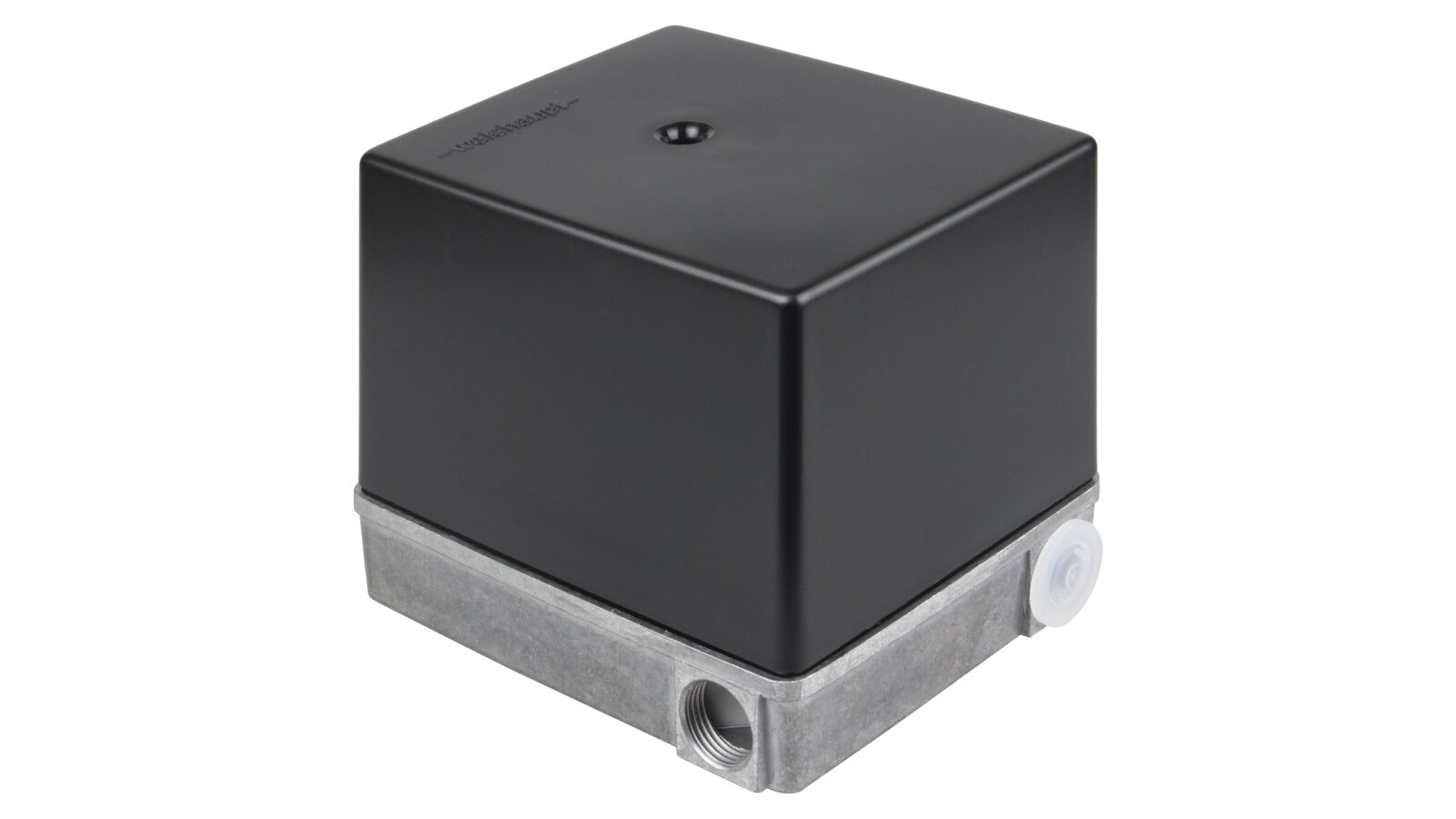

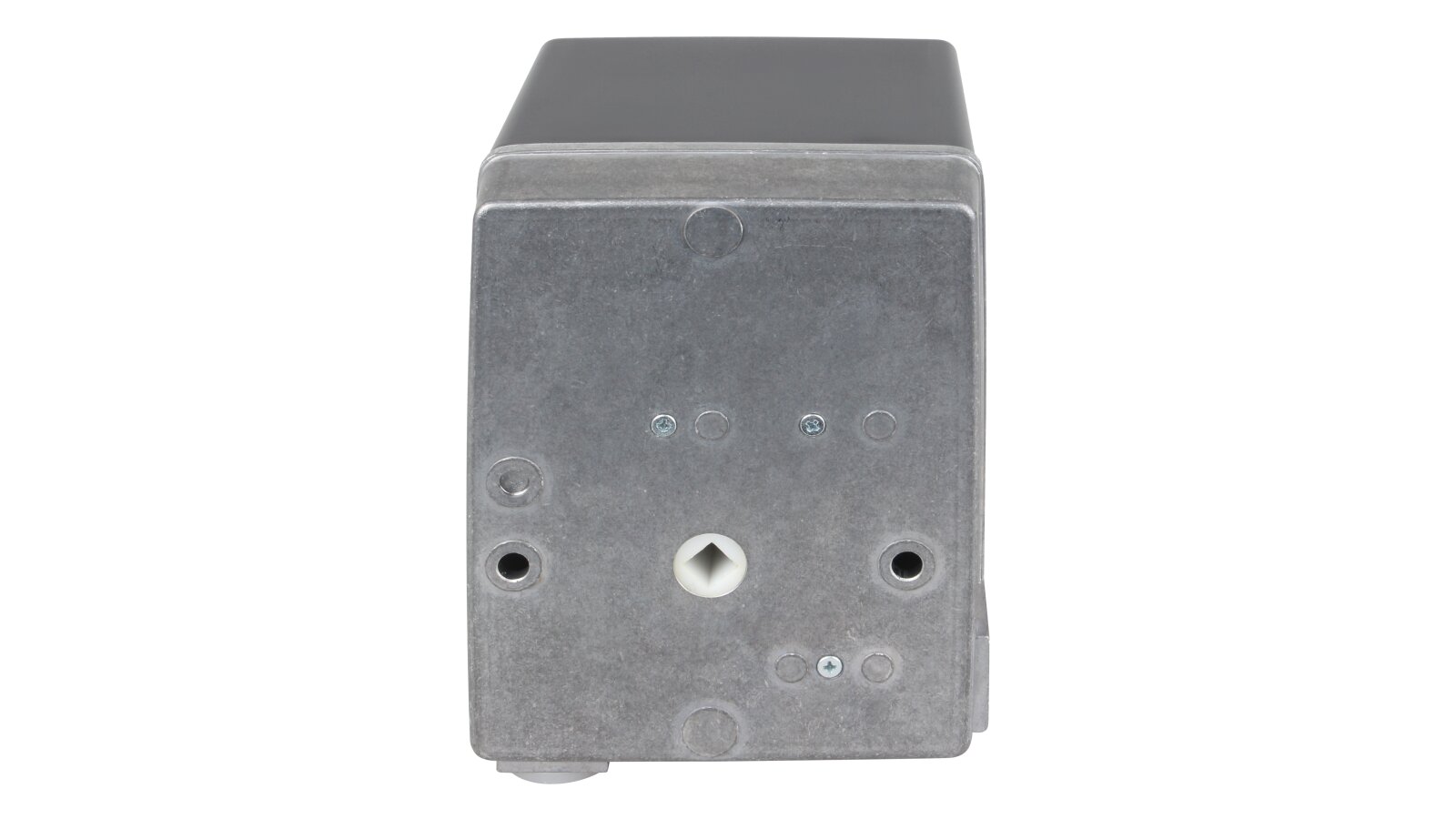

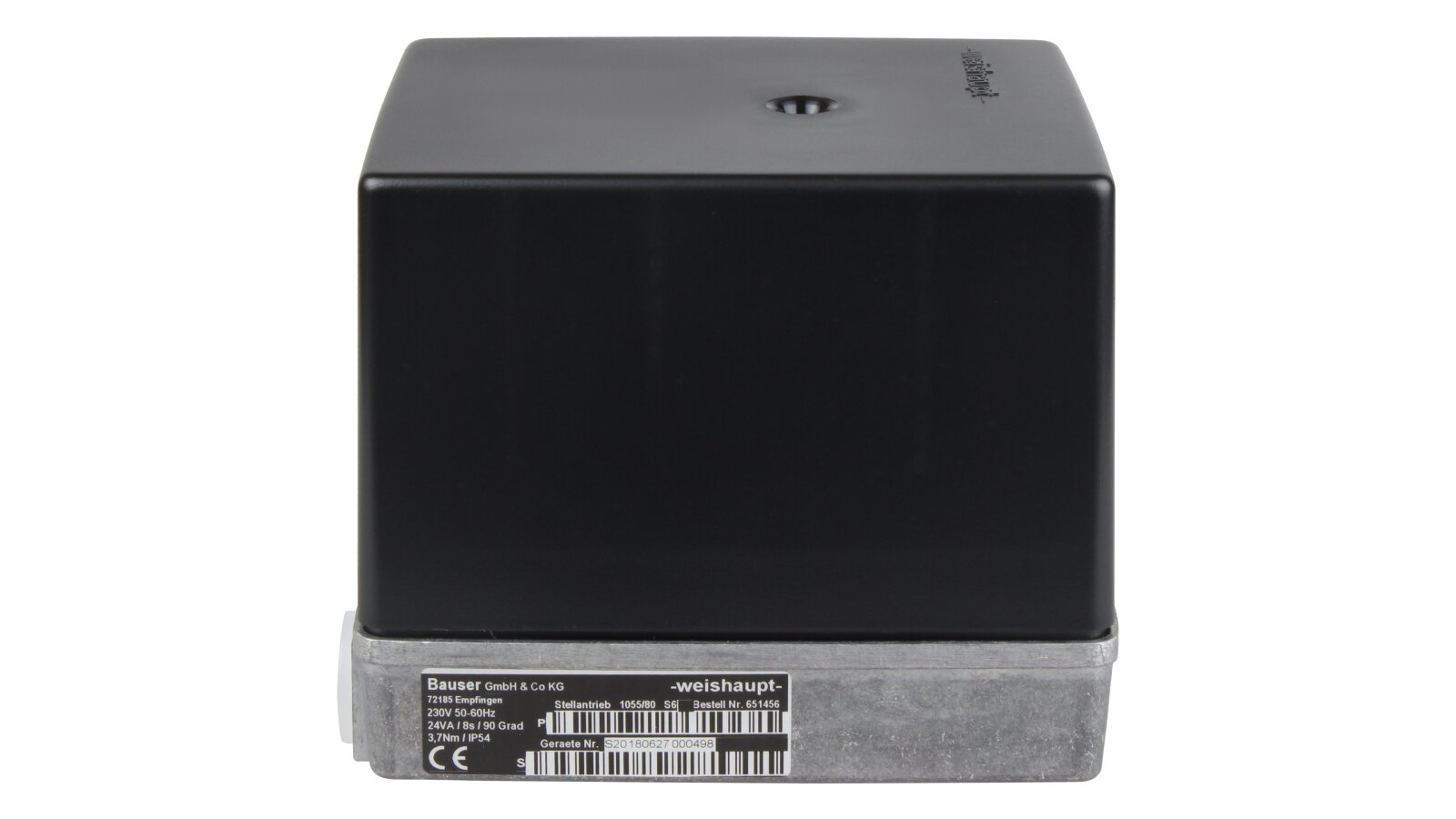

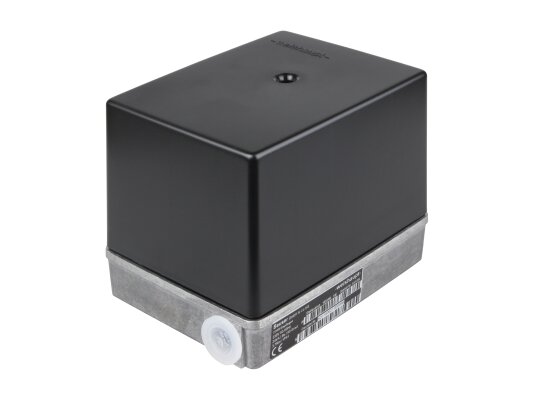

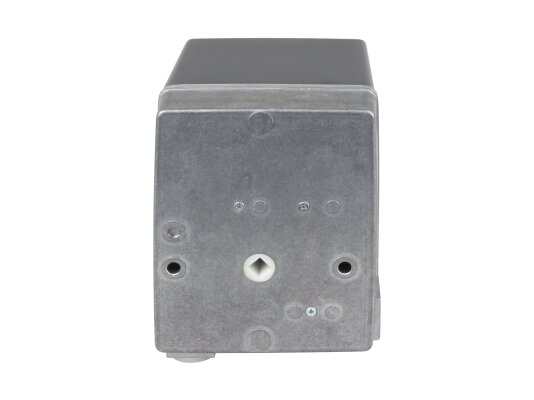

Servomotor Weishaupt / Bauser 1055/80 S6

The Bauser 1055/80 servomotor is used as an accessory for Weishaupt burners. It positions the air damper to supply a specified air volume for optimal combustion of the fuel mixture. It is an important element of the safety system and automatic control of the burner device. Using a servomotor reduces fuel consumption and helps to increase the heat output of the boiler. The kit includes installation accessories.

Operational and performance characteristics

• Power source: 220 V, 50/60 Hz.

• Power consumption: 24 VA.

• Torque: 3.7 Nm.

• Duration of rotation at 90º: 8 seconds.

• Protection level of electrical components: IP 54.

Equipment and features

• equipped with a 220-volt electric motor;

• ensures precise positioning of the damper;

• has a shock-resistant, impermeable housing made of metal and plastic;

• made according to the IP 54 electrical protection standard for stable operation in industrial conditions;

• designed to be installed in Weishaupt burners;

• offered in a set with fixing screws and washers.

The servo drive is certified, approved for operation, and comes with a factory warranty. You can write your question to the consultant and buy the Bauser 1055/23 S6 servo drive at a dealer price on the ANKAS website. Our employees are ready to answer you in the online chat.
