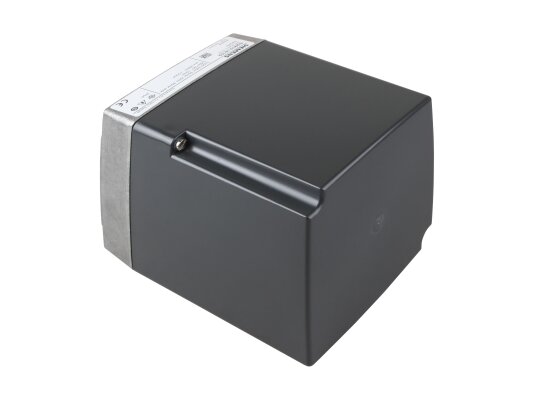

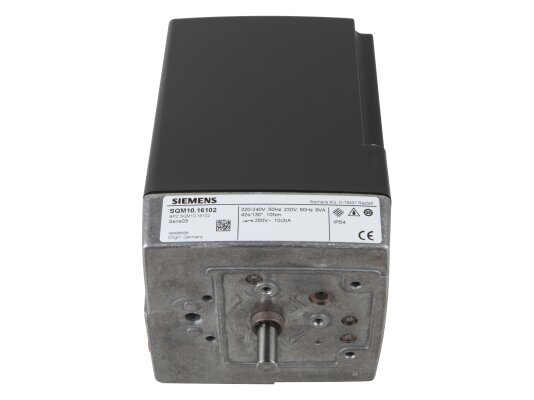

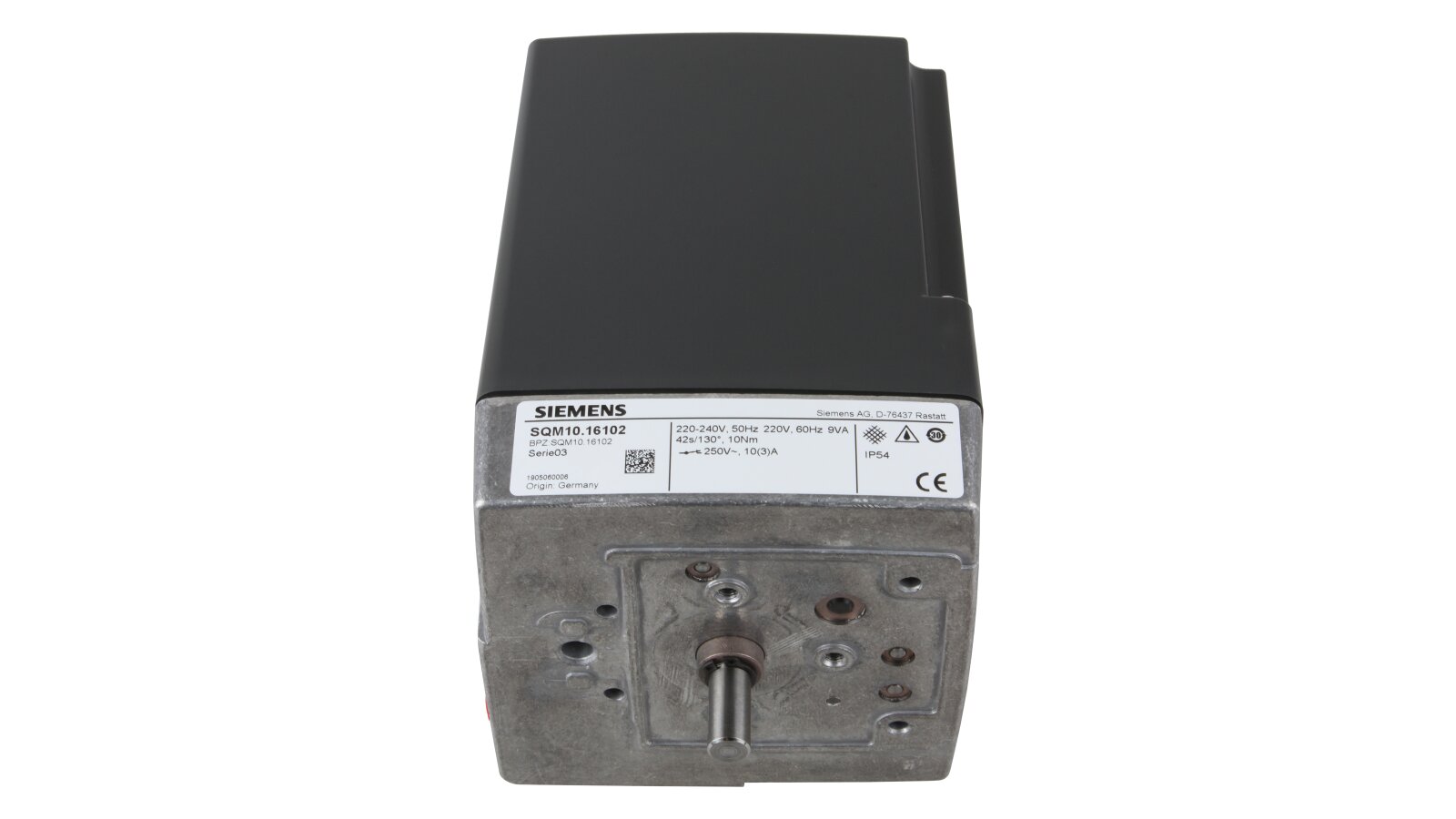

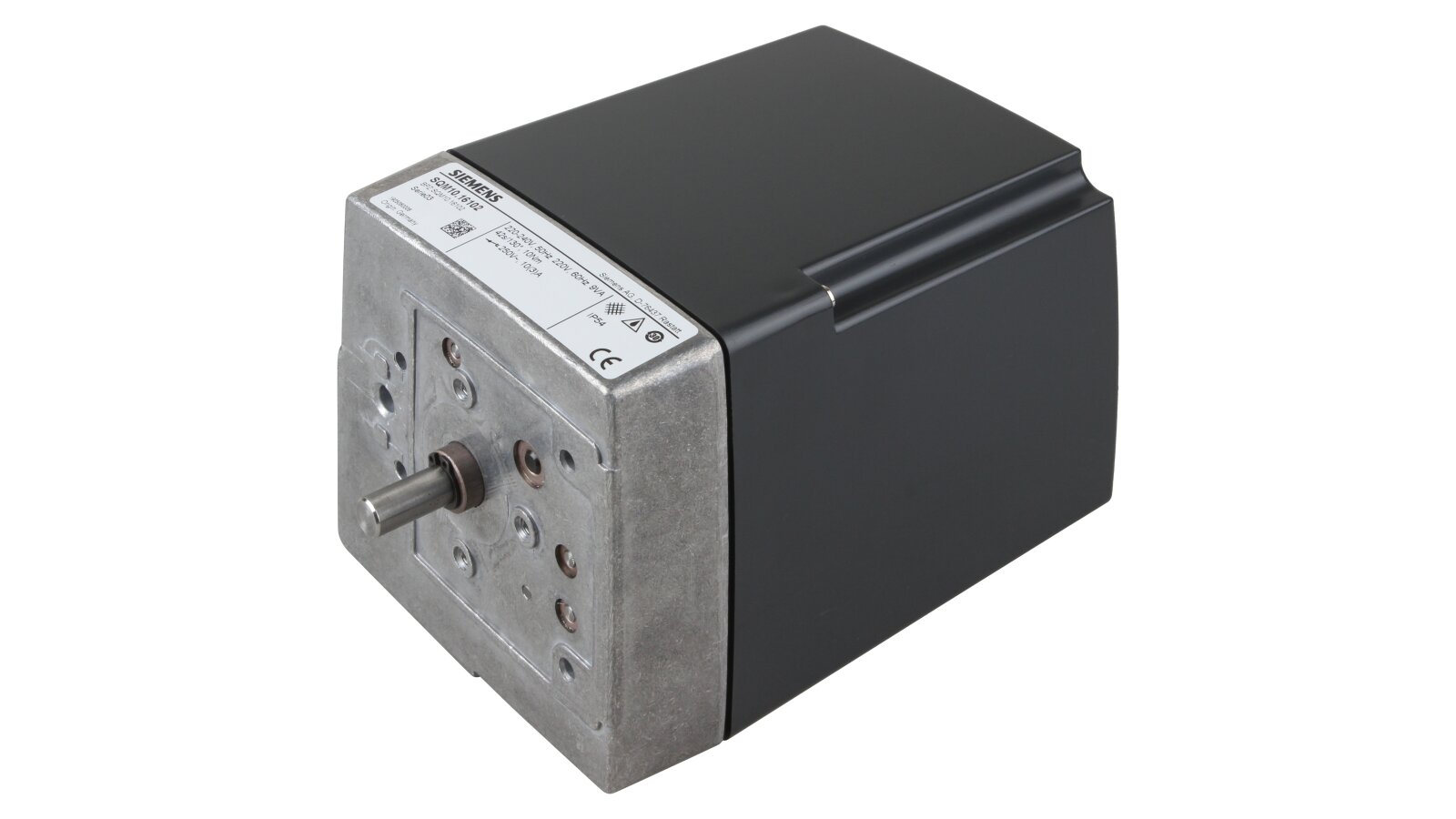

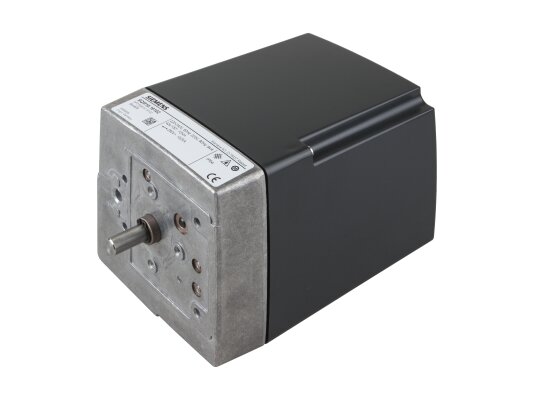

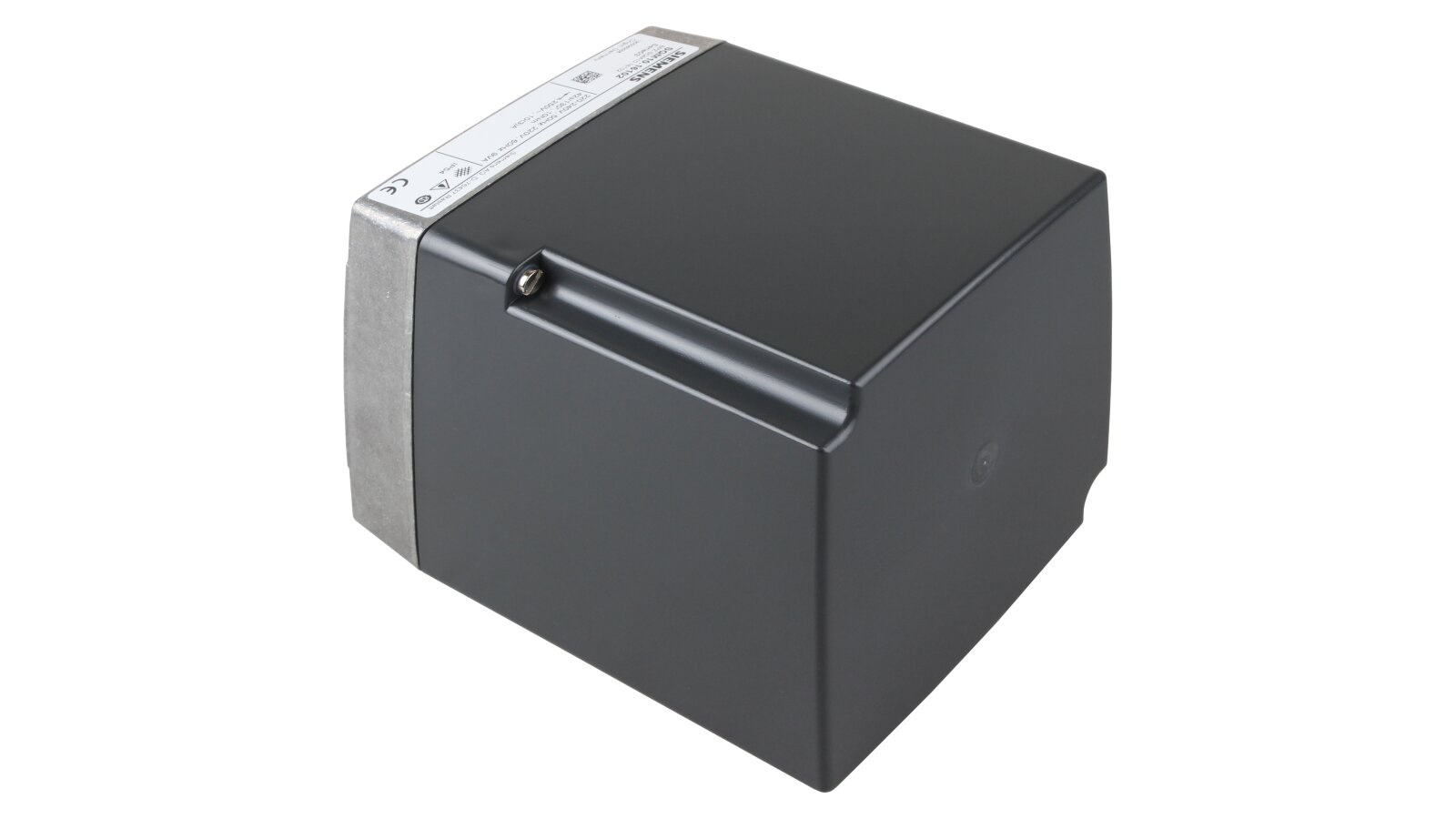

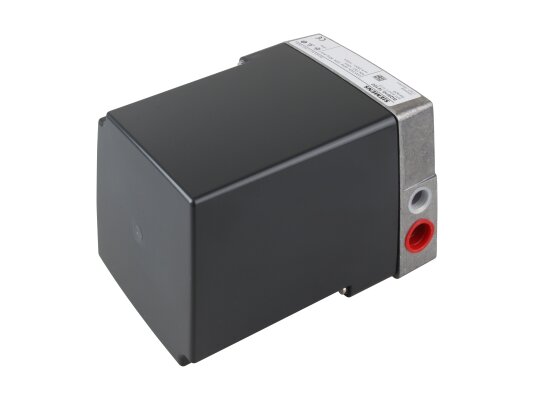

Actuator Weishaupt SQM10.16102

The Weishaupt SQM10.16102 servo drive, Part Number: 15132715102, moves the air damper during the combustion air flow regulation process. It is used in industrial burners. It operates under the control of the furnace automation, which monitors combustion and regulates the fuel/air ratio. The actuator is characterized by the accuracy of the damper opening, a reliable design for heavy loads,

Main parameters and features:

• operation from the 220-240 V, 50 Hz power grid;

• available opening range – 0...130°;

• full opening time (at 90°/ 130°) – 29/42 sec.;

• stable operation regardless of voltage or load fluctuations;

• electrical protection of the housing according to IP 40 standard;

• limit and additional switches;

• counterclockwise shaft rotation;

• metal housing, heat-resistant plastic cover;

• operating temperature range: -20…+60 °C;

• additional installation of a potentiometer (optional);

• installation in any position;

• maintenance-free transmission.

Configuration

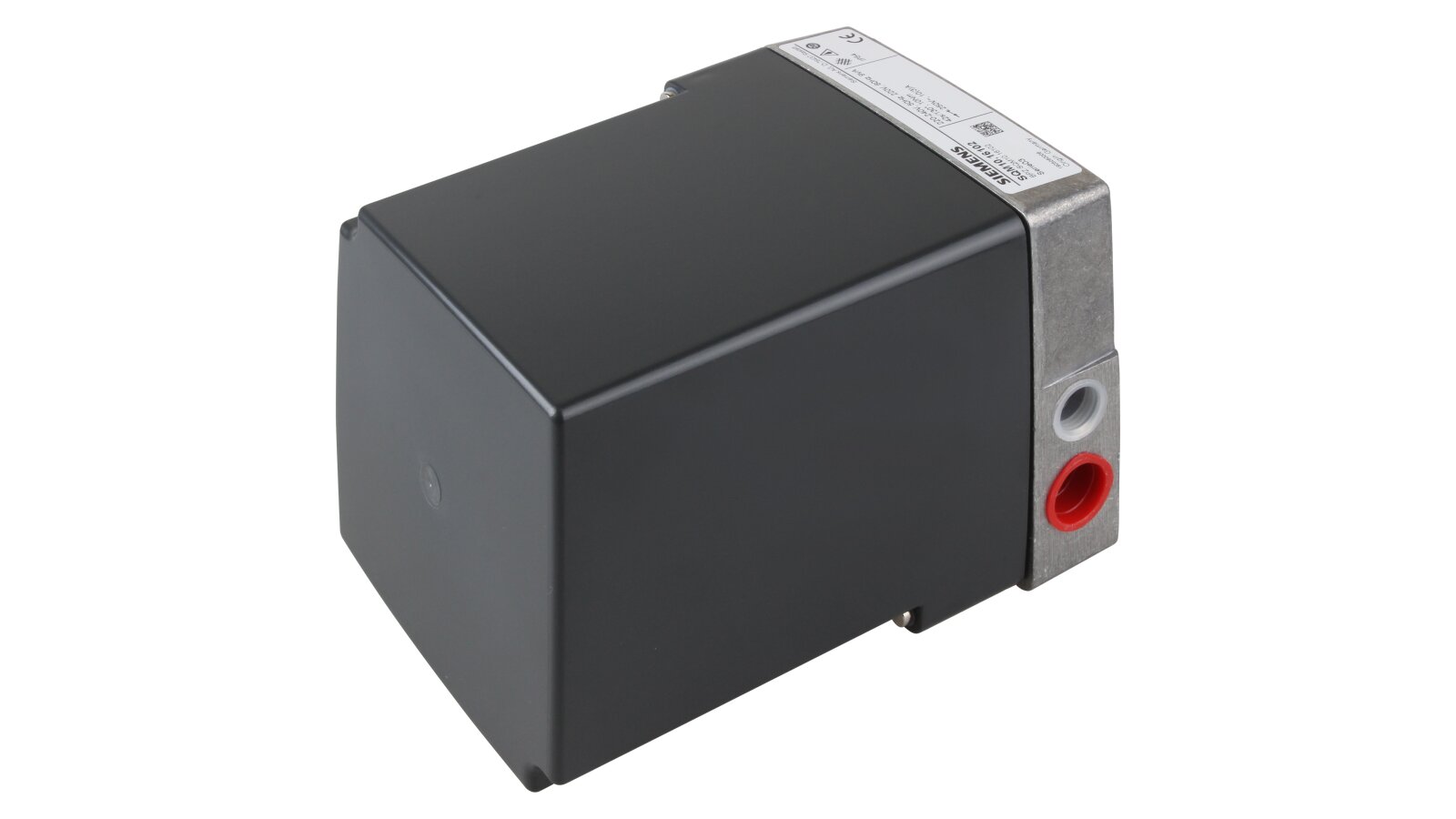

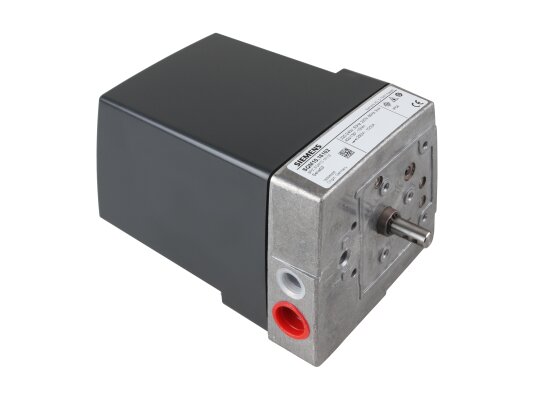

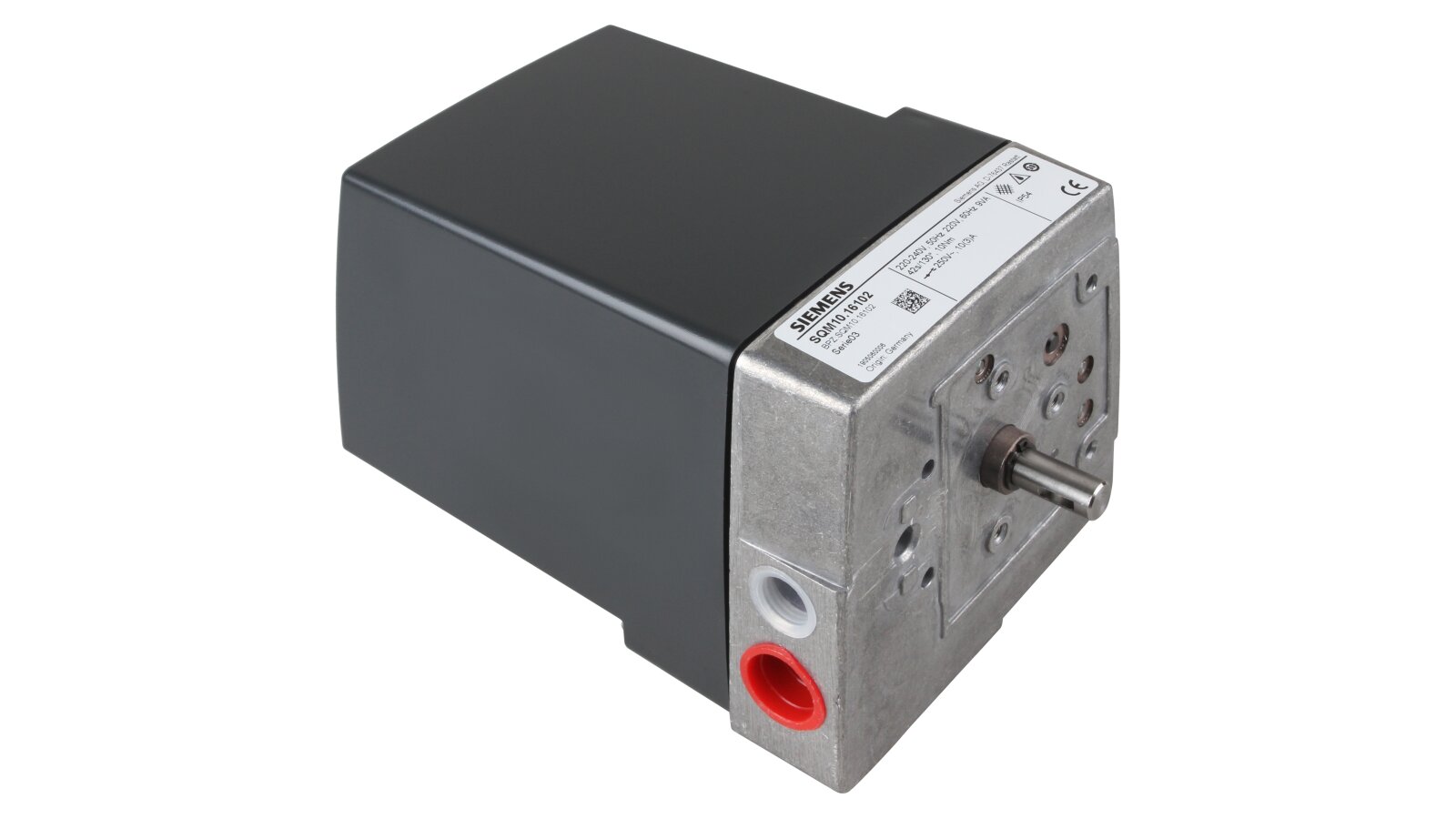

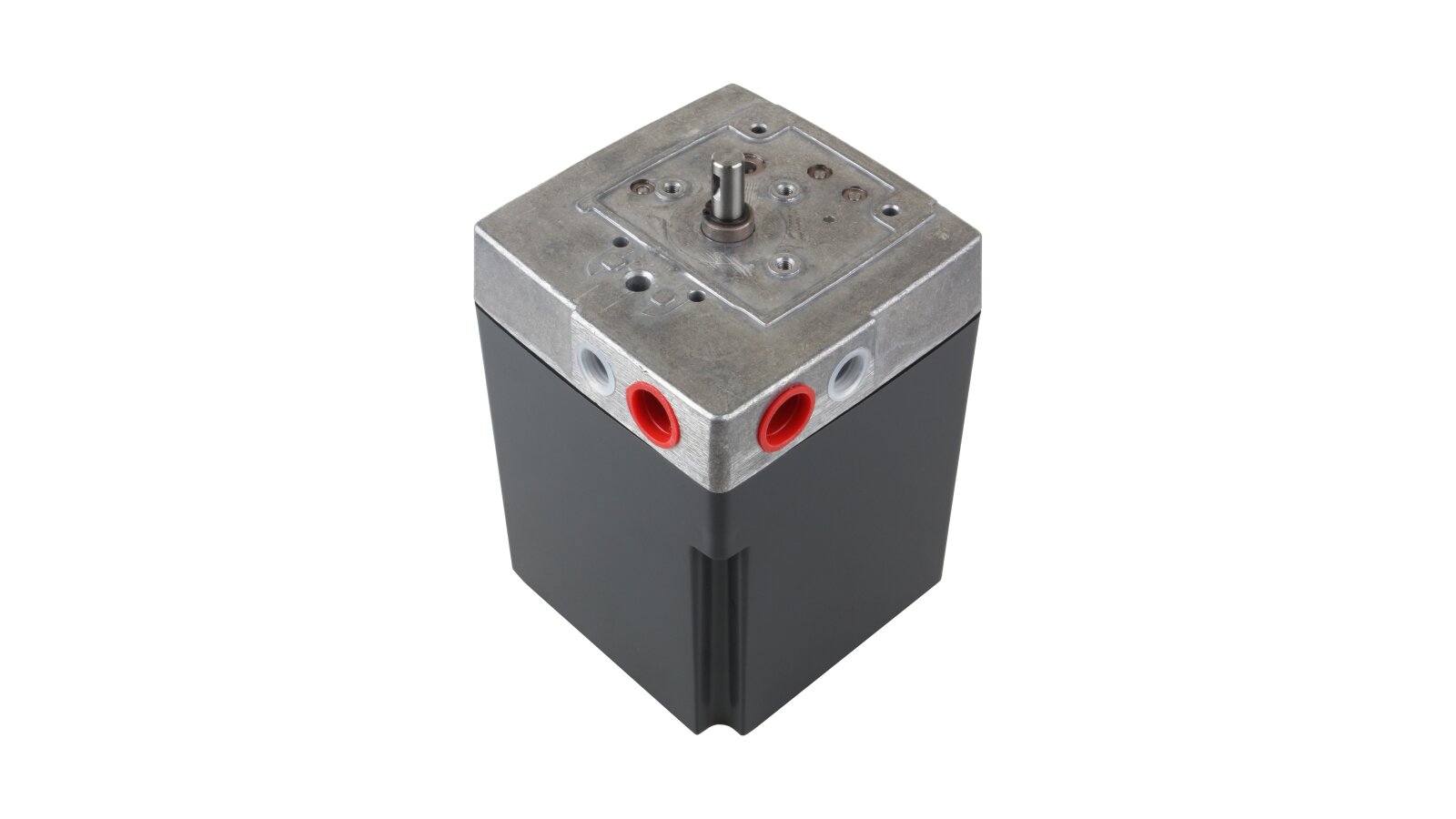

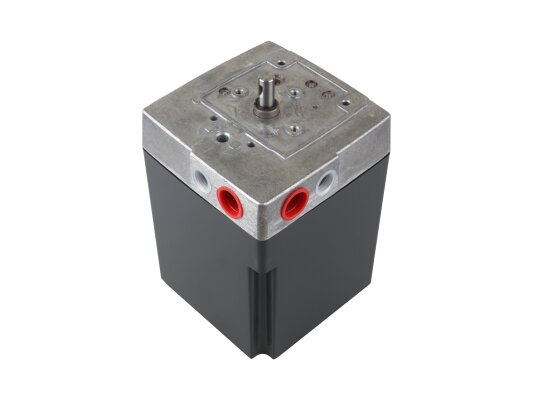

The servo drive for Weishaupt air dampers is assembled in a housing made of cast aluminum. The design of the actuator is designed for industrial loads and intensive use. The damper movement is activated by a 230 V synchronous motor with an anti-blocking function. The gearbox is equipped with a self-lubricating bearing (material - sintered bronze), which does not require additional maintenance. The housing has openings for Pg11 cable entries.

Advantages:

• precise, stable movement of the air damper;

• reliable design with a cast aluminum housing;

• heat-resistant, shock-resistant casing made of synthetic material;

• economical energy consumption;

• reversible electric motor with anti-blocking;

• the possibility of installing a potentiometer;

• low maintenance requirements.
