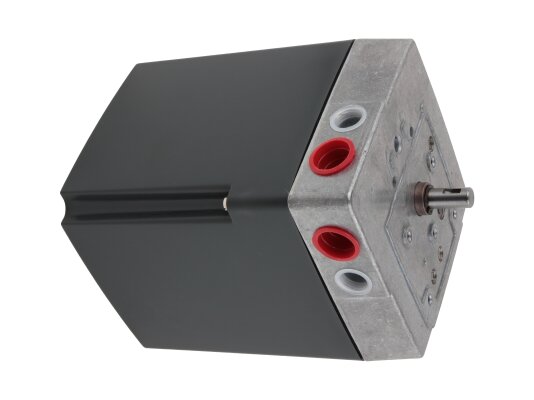

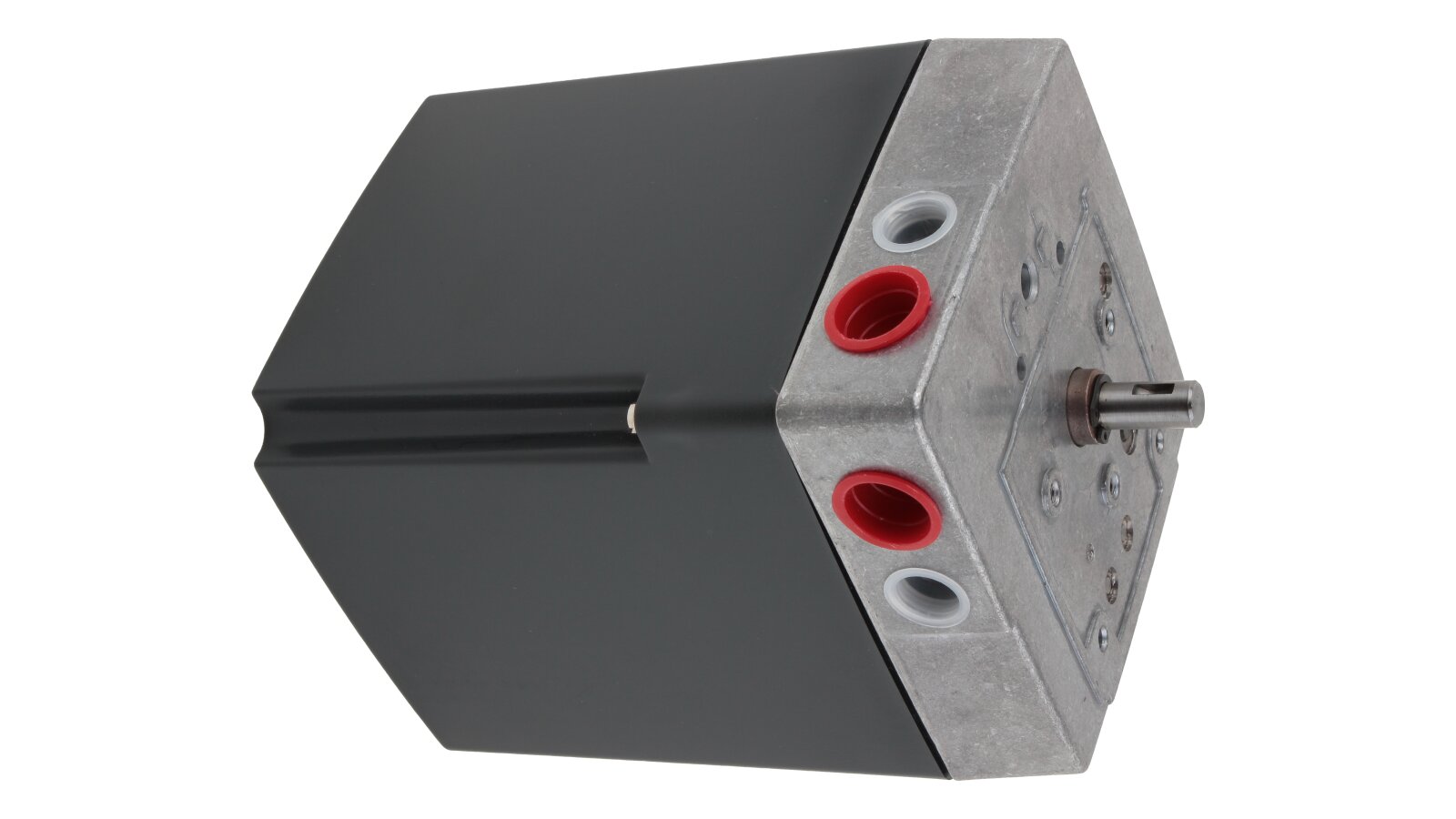

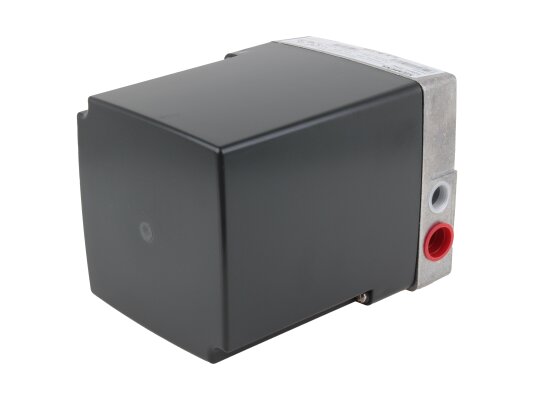

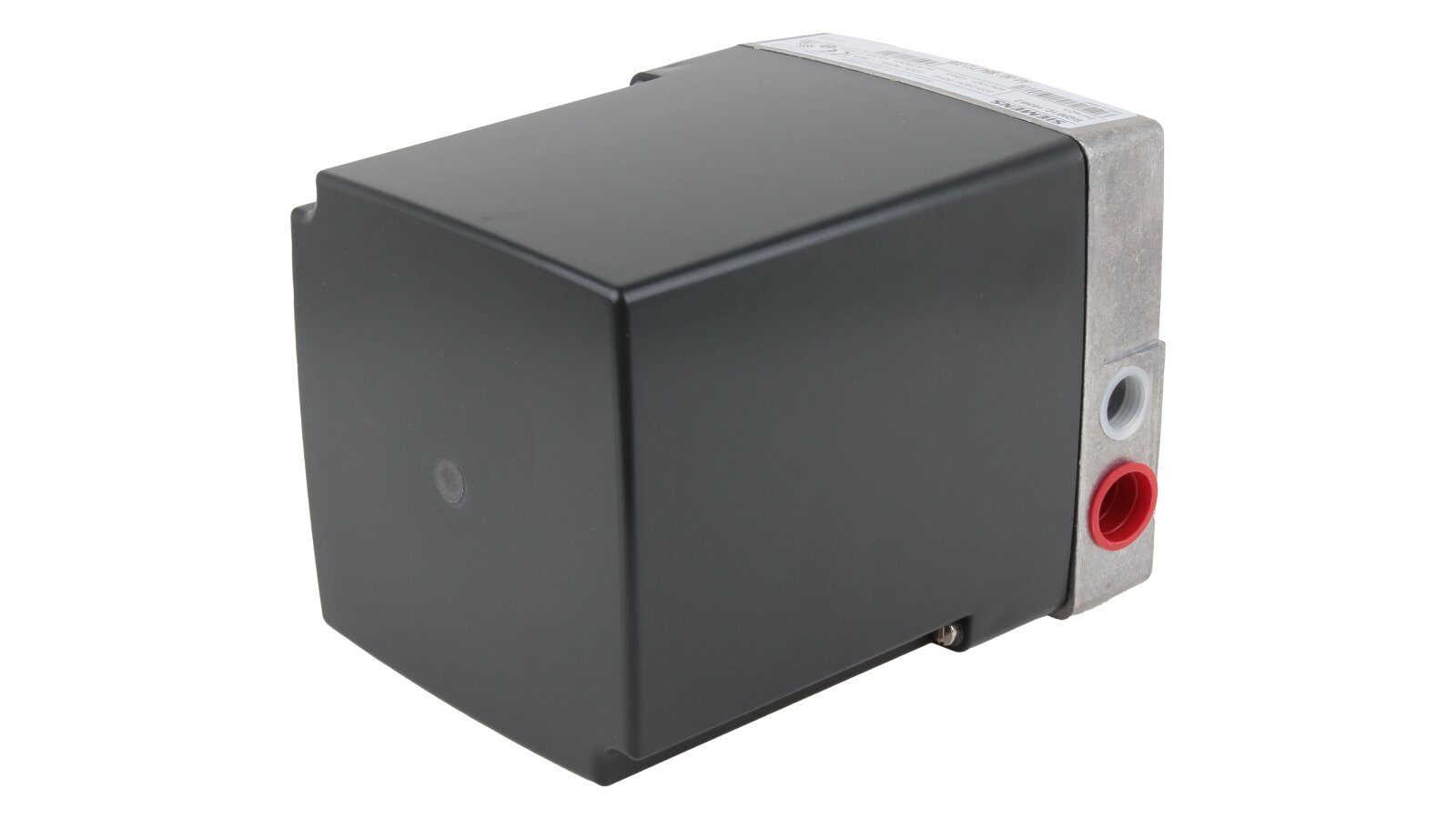

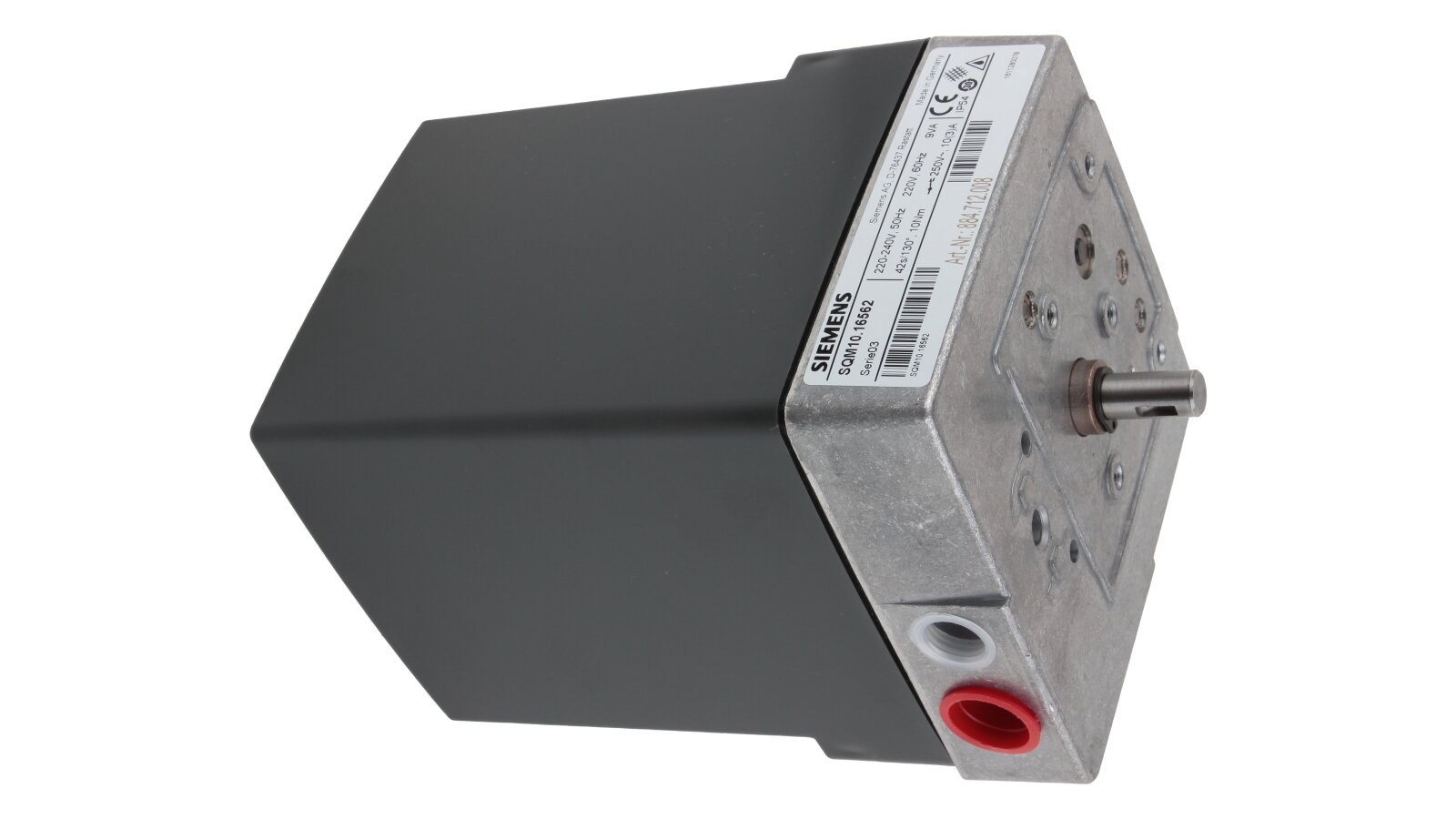

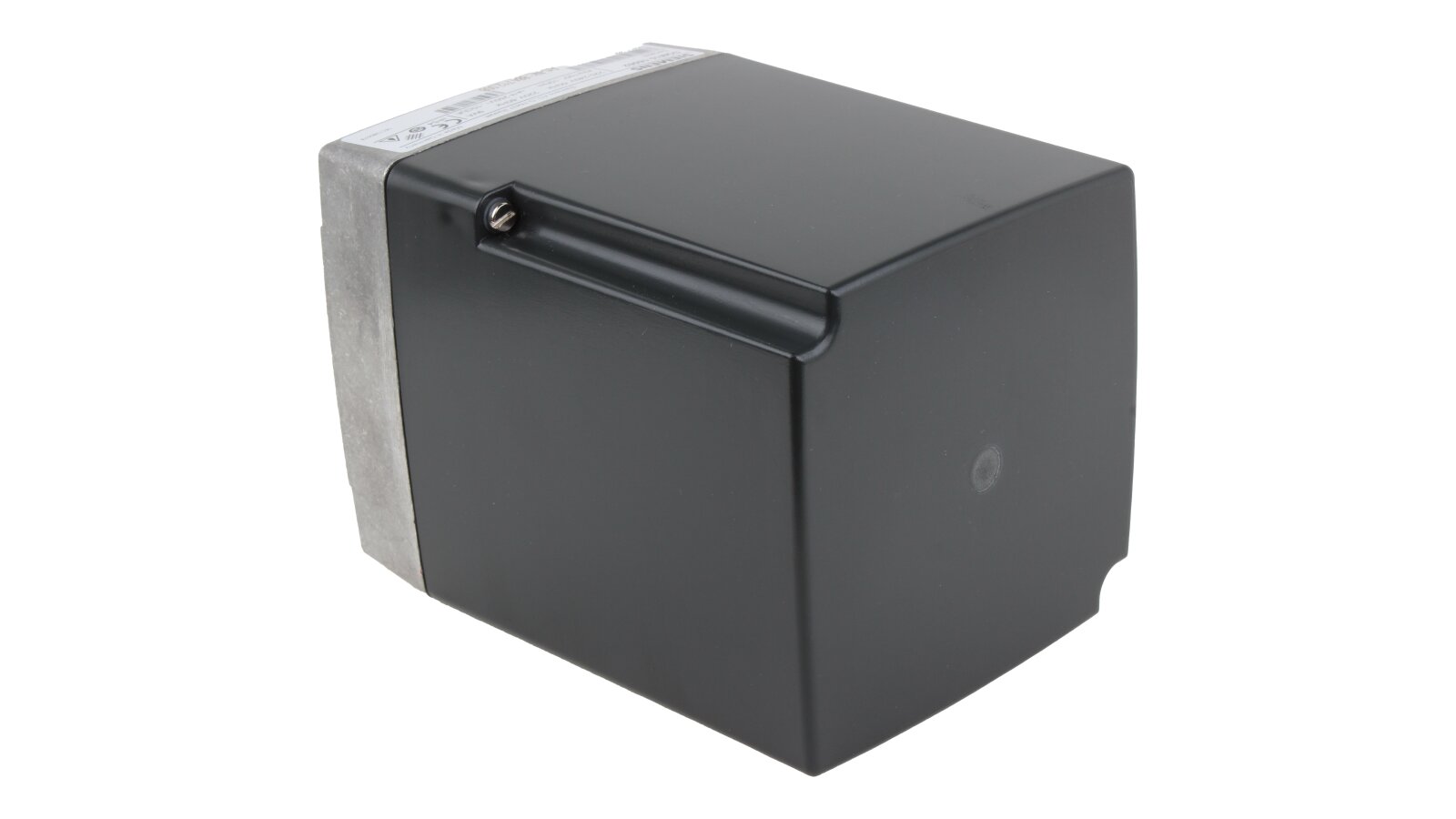

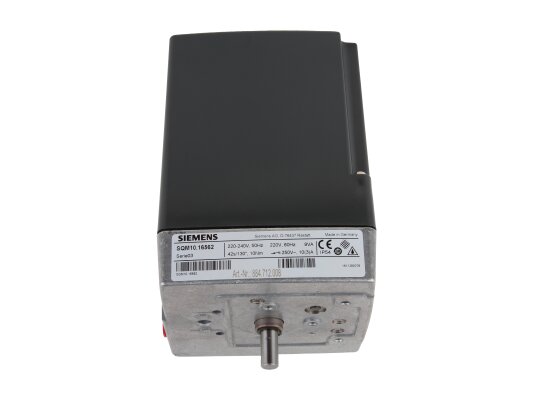

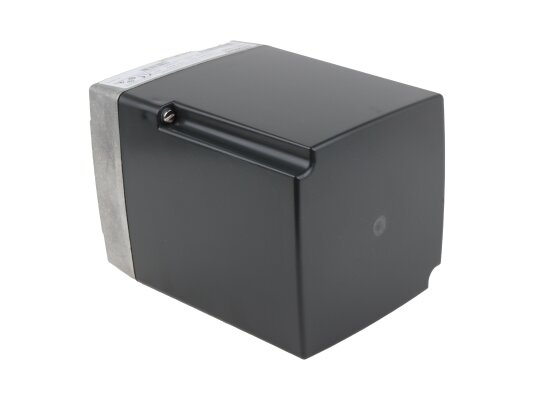

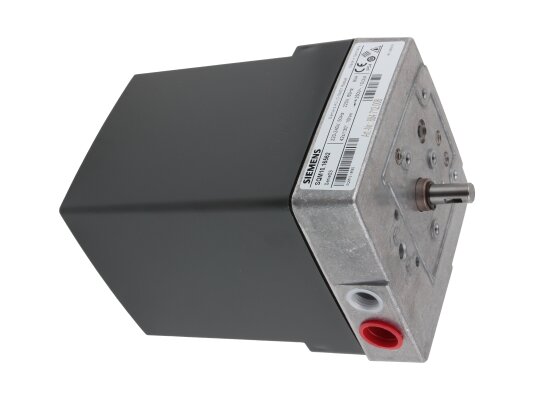

Actuator Weishaupt SQM10.16562

Servo drive Weishaupt SQM10.16562, Part Number: 651418 is used in automatic air supply control systems when forming a fuel-air mixture. Designed for significant loads and intensive use. It is built into industrial gas and liquid fuel burners. The advantage is the programmable opening time at 90°.

Operating parameters and features:

• power supply from the network 220-240 V, 50 Hz;

• full opening time (at 90°) - 30 sec.;

• 2 limit switches limiting the stroke;

• 5 additional switches for working with external devices;

• protection of electrical components from dust / moisture according to the IP 40 standard;

• internal position indication;

• additional installation of a potentiometer (optional);

• cam washers for setting parameters;

• stable operation regardless of voltage or load fluctuations;

• metal shockproof housing, heat-resistant polymer casing;

• operating temperature range: -20…+60 °C;

• 3-hole mounting;

• installation in any position;

• operating mechanism with prolonged lubrication, does not require additional maintenance.

Configuration

The servo drive for Weishaupt air dampers is assembled in a cast aluminum housing, which reliably protects the engine from mechanical and temperature effects. The design of the actuator is designed for heavy loads. The synchronous motor has an anti-lock function. The gearbox is equipped with a self-lubricating bearing made of sintered bronze. The housing has holes for Pg11 cable entries.

Advantages:

• programming of the opening time at 90 °;

• precise, stable movement of the air damper;

• robust design with a cast aluminum housing;

• economical energy consumption;

• reversible motor with anti-lock function;

• low maintenance requirements.

You can buy Weishaupt SQM10.16562 servo drive and other spare parts for industrial burners burning gas/liquid fuel from us. You can find out other information about the products in the ANKAS catalog from our specialists.
