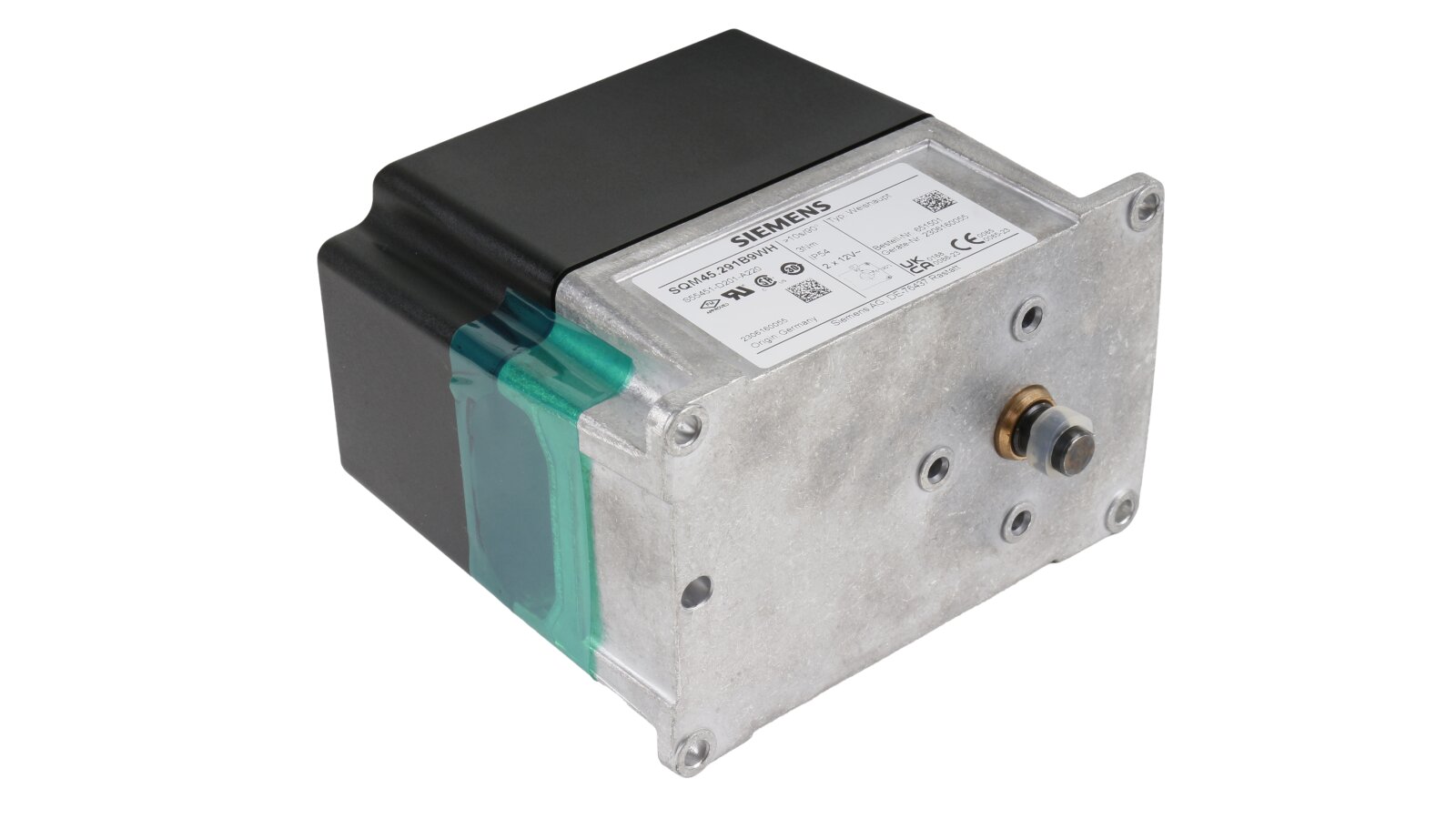

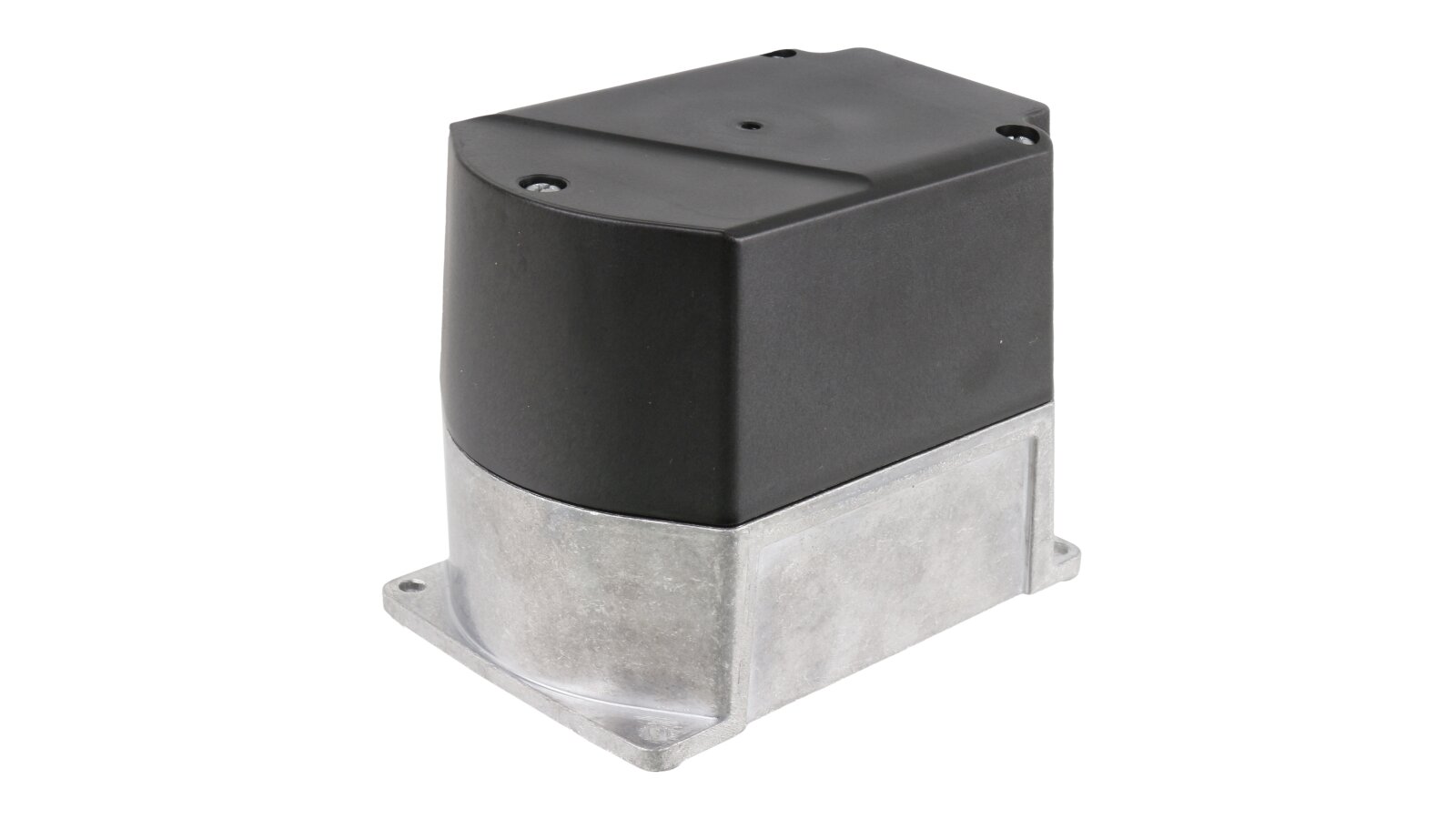

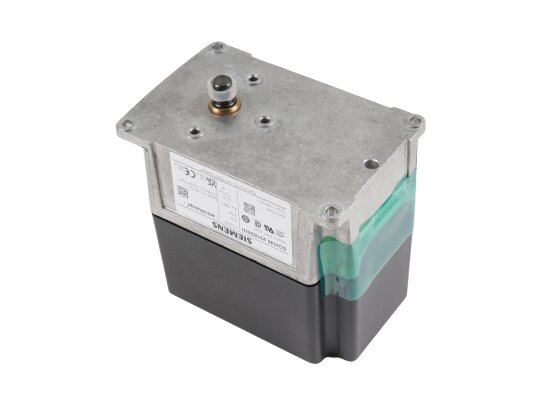

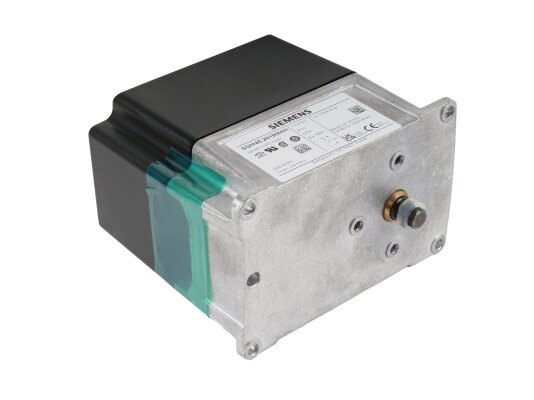

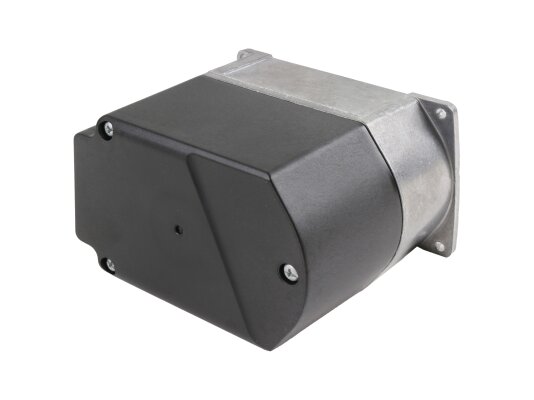

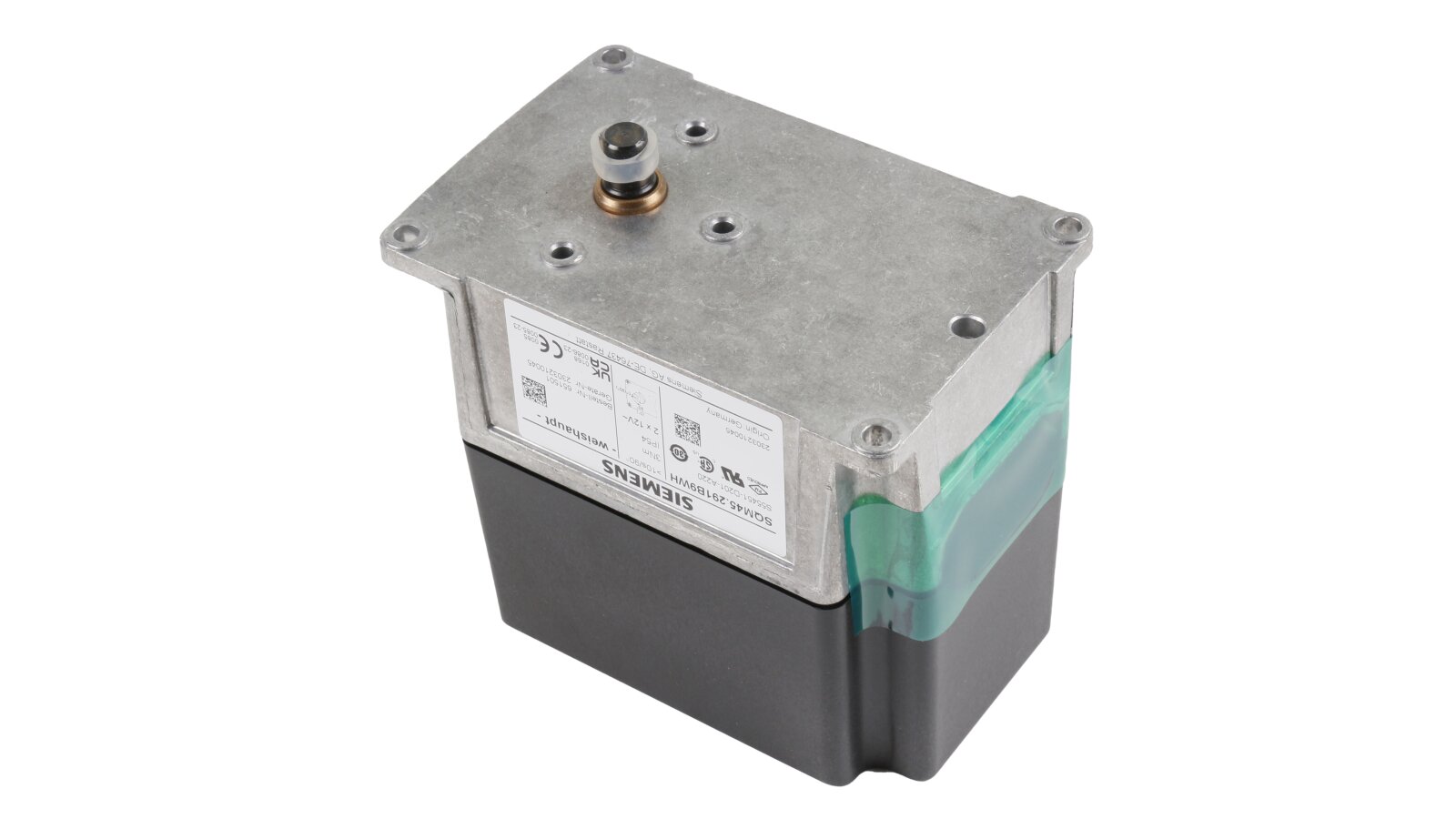

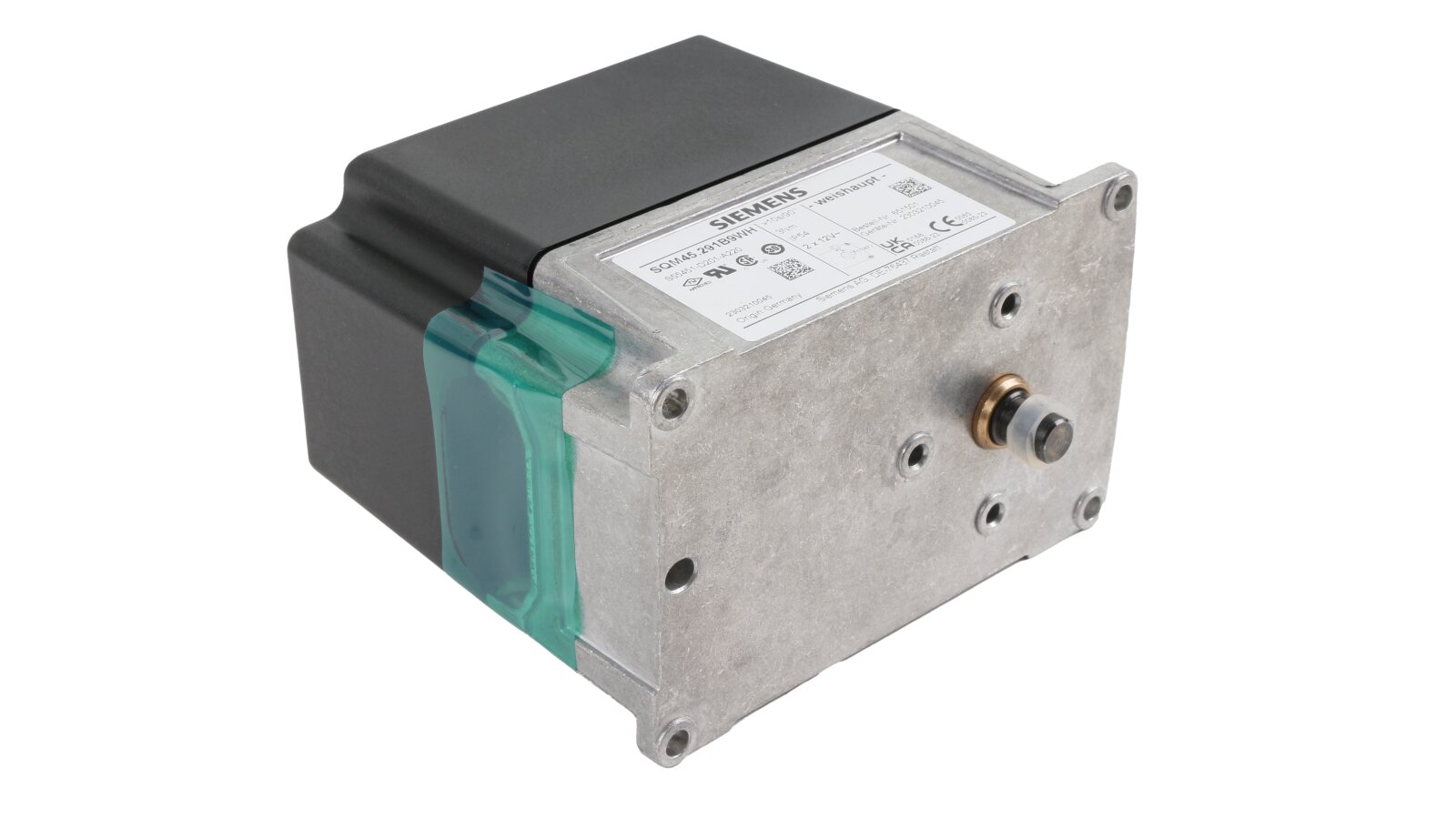

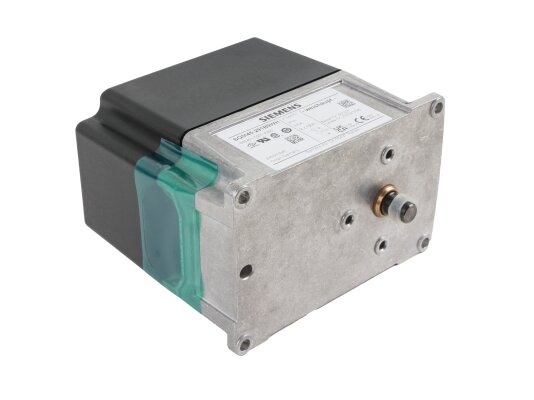

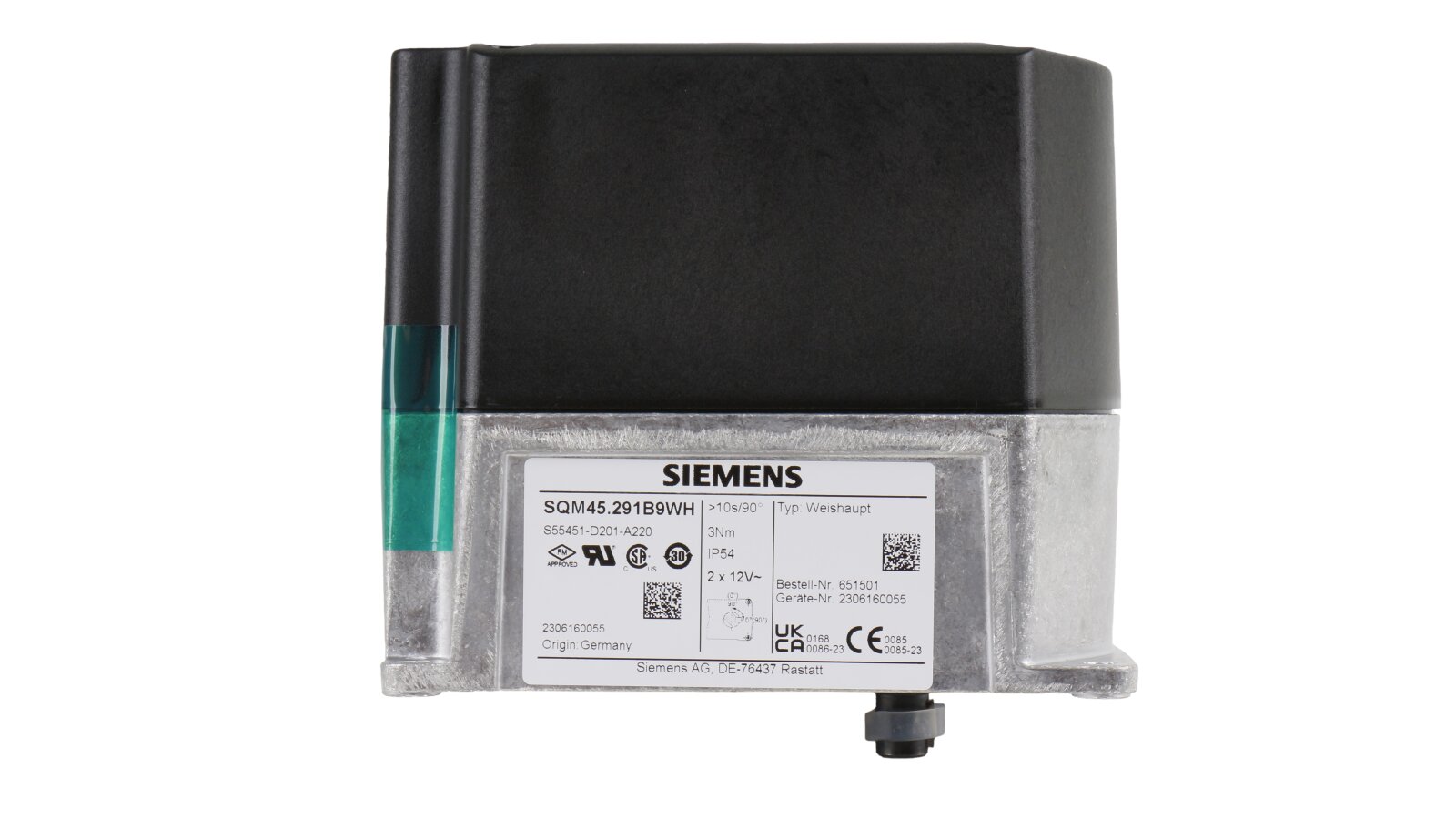

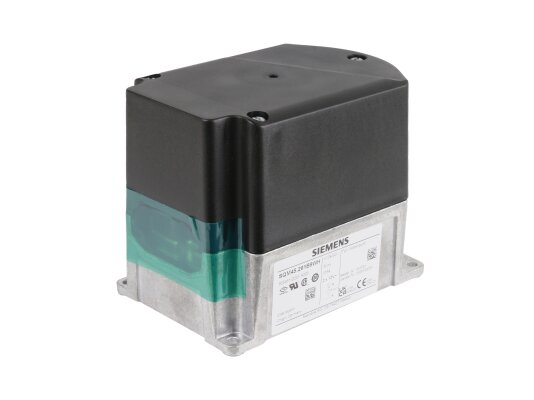

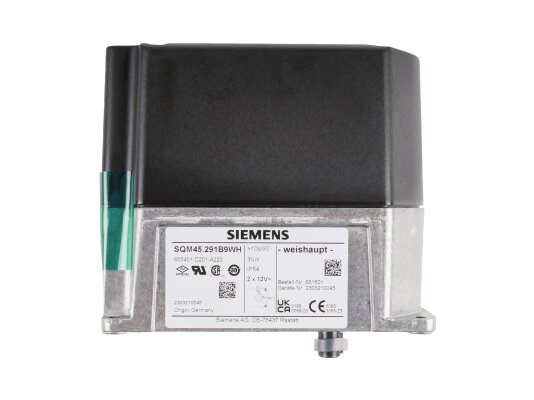

Actuator Weishaupt SQM45.291B9WH

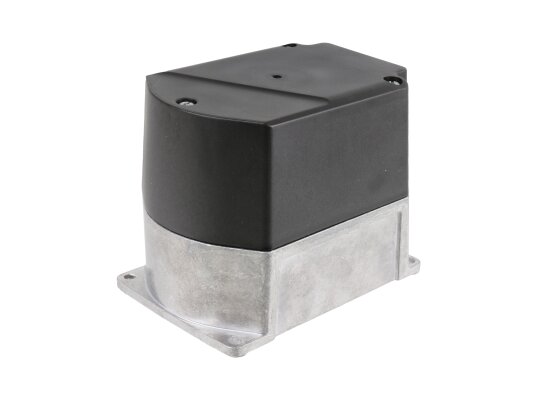

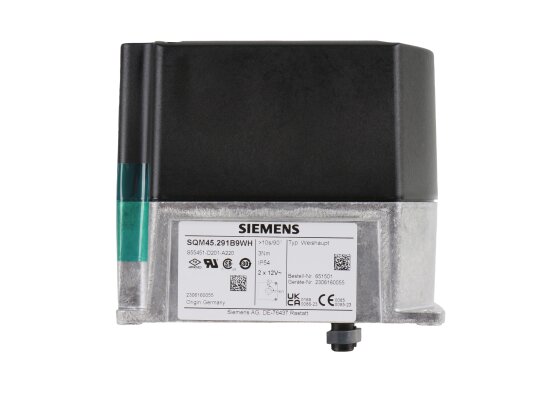

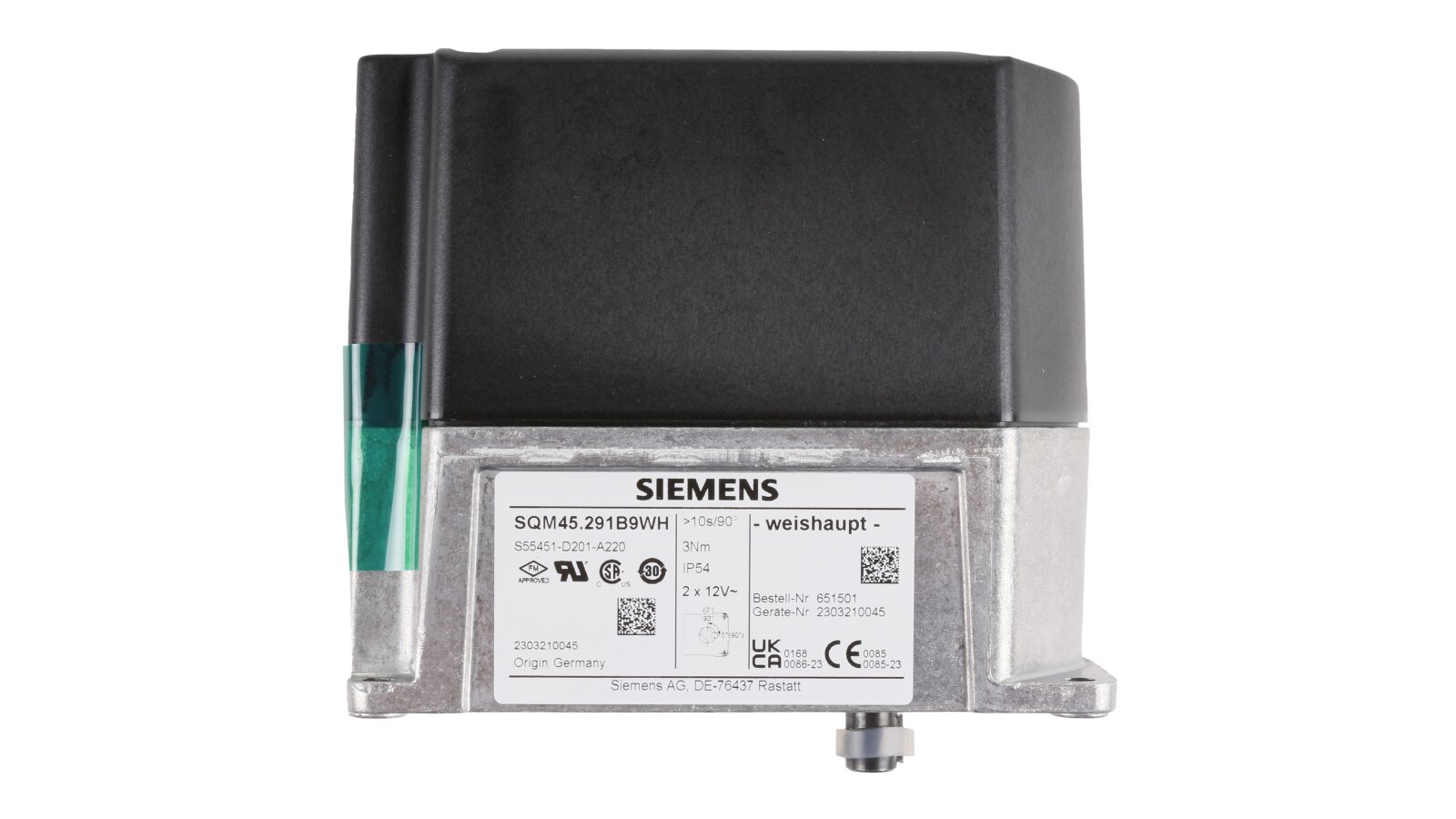

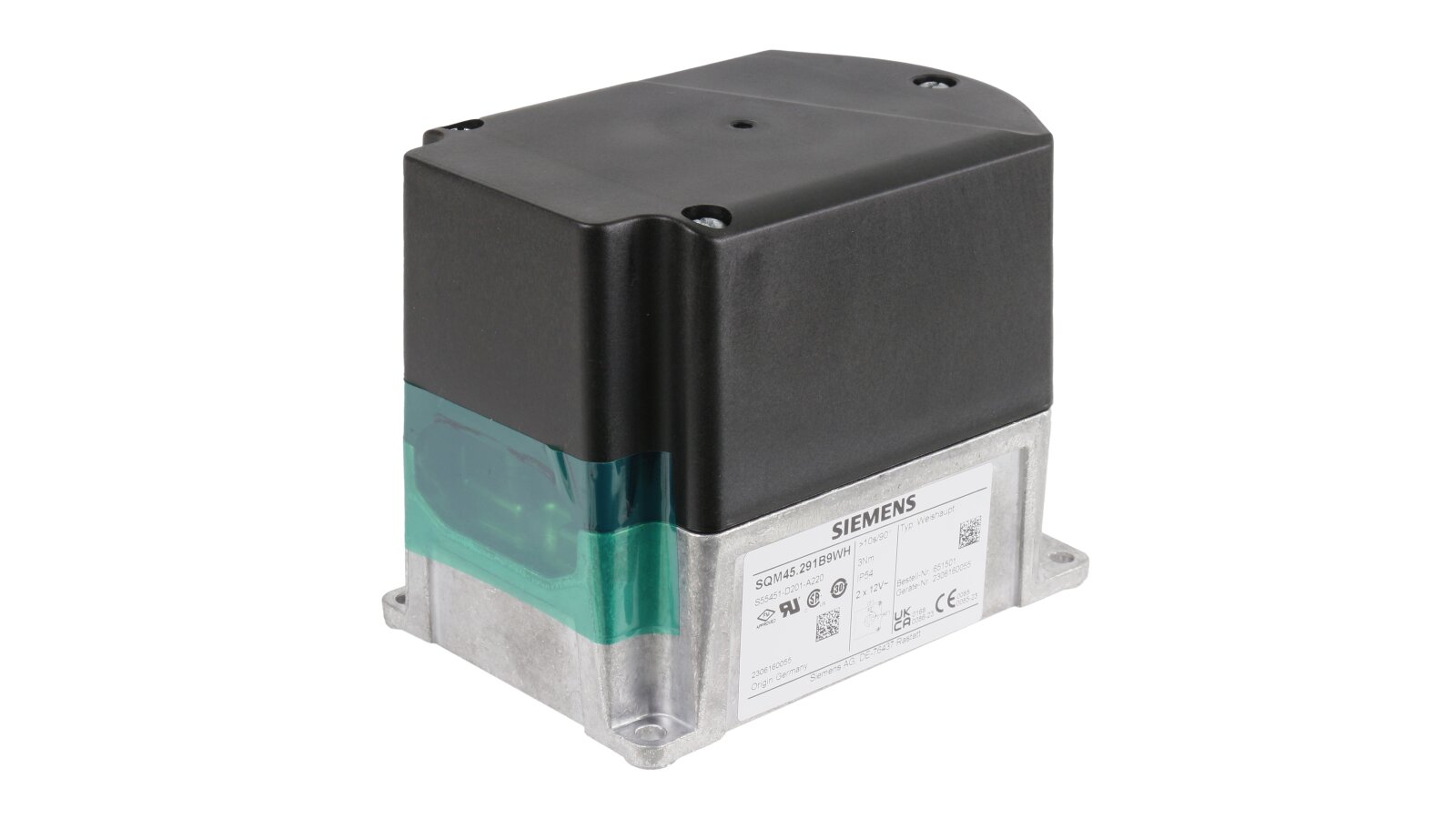

Servo drive Weishaupt SQM45.291B9, art: 651501 is used in automatic air supply control systems during boiler equipment operation. Moves the air damper or other rotary device under the control of the furnace automatic device or fuel/air ratio regulator. It features compact dimensions, precise damper positioning, operation from ultra-low supply voltage, and low maintenance requirements.

Key characteristics and features:

• power supply from 2x12 V mains;

• available damper opening angle: 0...90°;

• duration of movement at 90° – 10 sec.;

• stepper motor with a torque of 3 Nm;

• setting the direction of rotation, end points and other parameters on the control device;

• electrical protection of electrical components according to IP 54 standard (when using appropriate Pg11 seals);

• stable operation regardless of voltage or load changes;

• power supply via bus cable or transformer;

• economical power consumption;

• precise rotation of the damper to a given angle;

• operation under the control of a furnace automatic machine or other device;

• reliable housing made of aluminum alloy with heat-resistant plastic casing;

• easy adjustment of operating parameters;

• feedback on the position of the air damper via CAN bus;

• permanently lubricated gear mechanism that does not require additional maintenance;

• installation in the system in any position;

• 4 holes for secure fastening to the work surface;

• operating temperatures: -20 ... +60 ºС.

Configuration

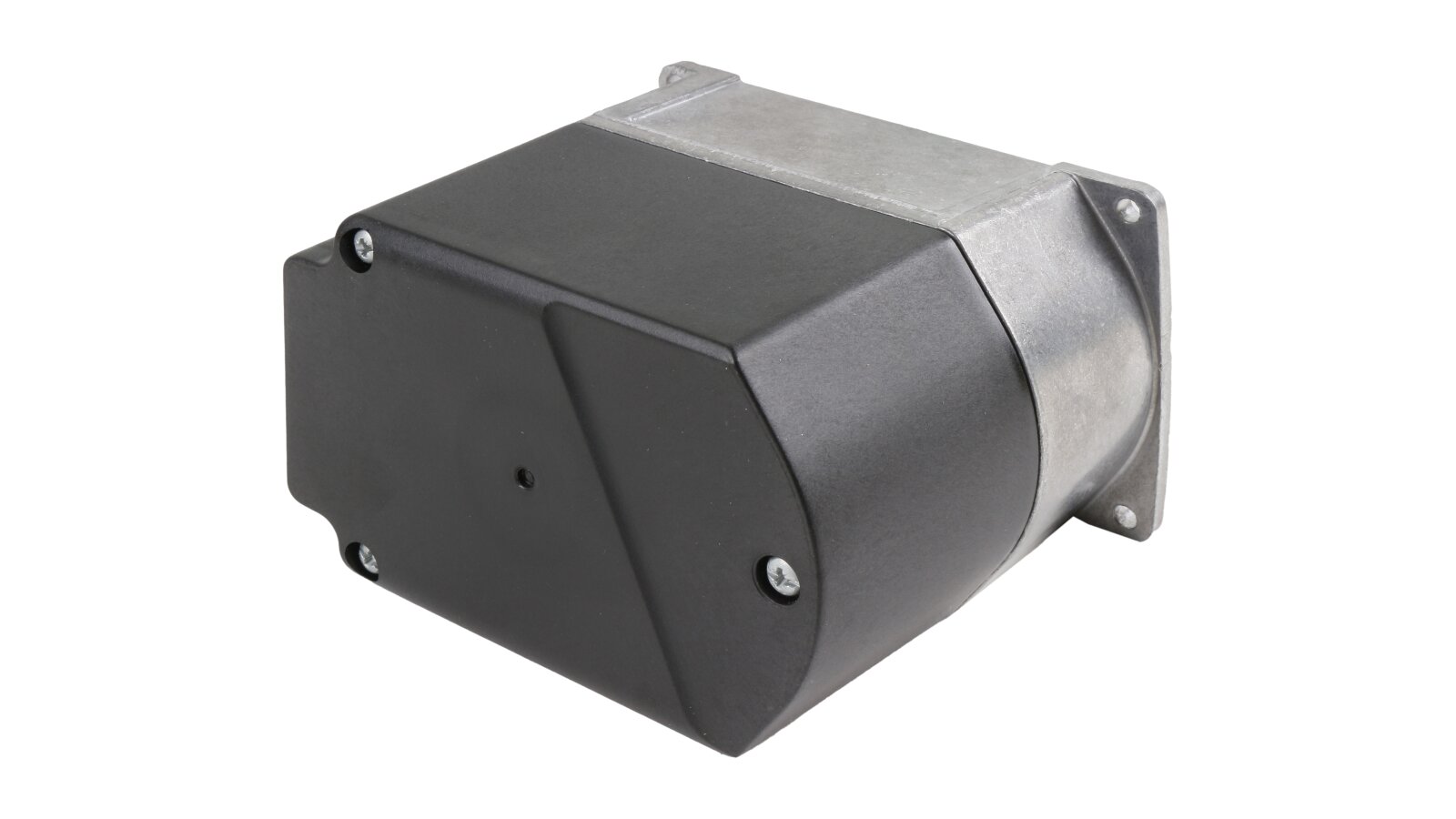

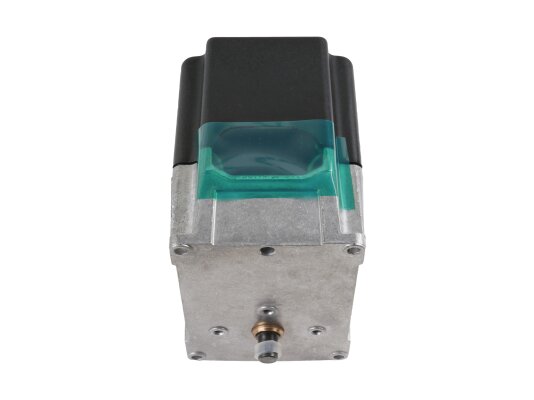

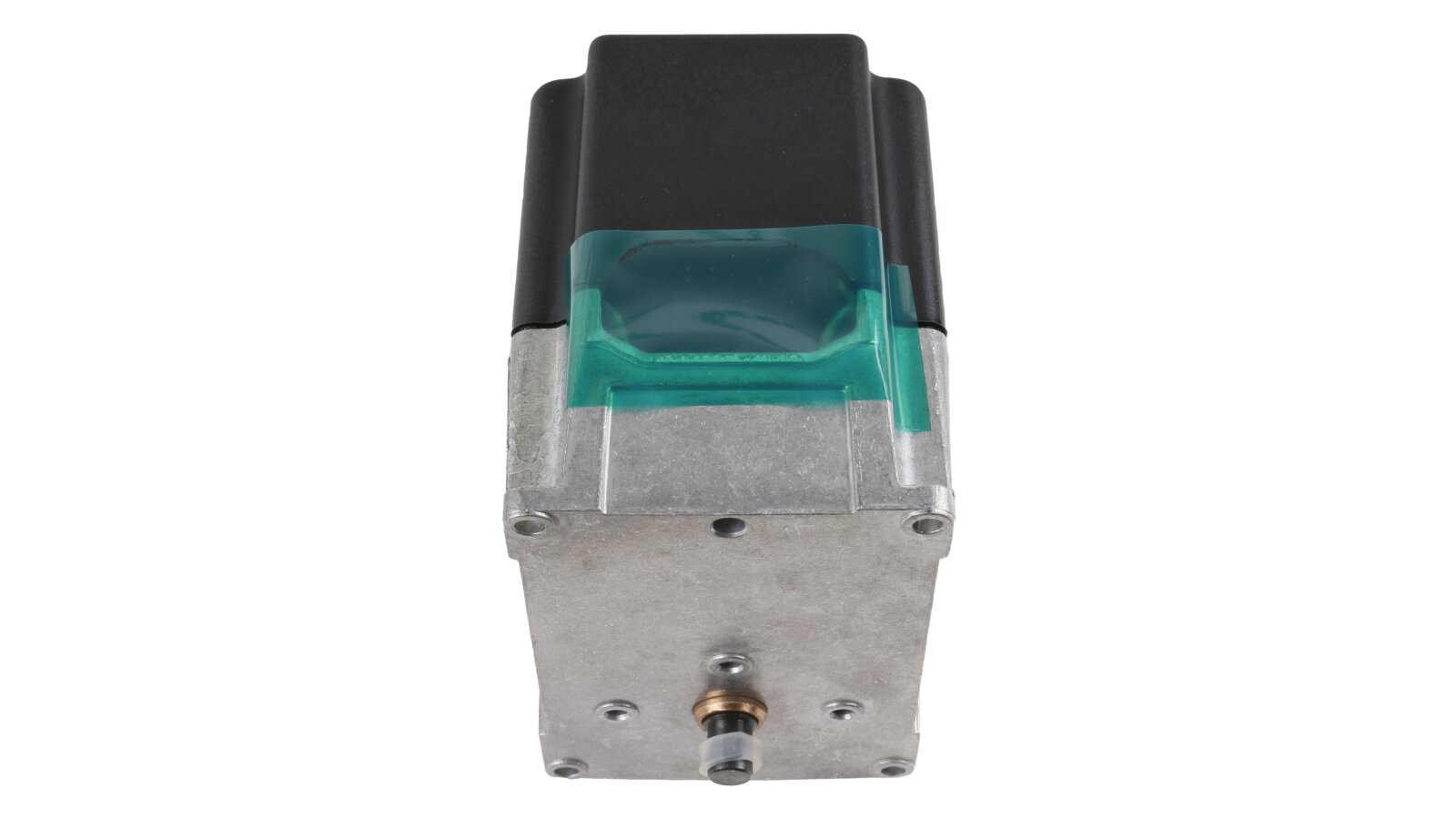

The Weishaupt SQM45 servo drive is assembled in a cast metal housing with a polymer impact-resistant, heat-resistant cover. The working unit is equipped with spur gears made of wear-resistant plastic. The high-strength drive shaft is made of steel with a blackening finish. The front side of the gear acts as a mounting surface. Due to the prolonged lubrication of the gear, the actuator does not require maintenance.

Advantages:

• Low-voltage supply voltage;

• Precise positioning of the air damper;

• Shock-resistant design with a cast aluminum housing;

• Feedback via the CAN system bus;

• Economical power consumption;

• Continuous lubrication of the gear;

• Stable operation over a wide temperature range;

• Easy installation and parameter setting.

Application

Weishaupt SQM45 servo drives are designed for use in industrial equipment. They are used to drive air dampers, liquid fuel valves and other similar devices. Opening and closing of the valves is carried out under the control of the boiler automation, the fuel/air ratio regulator.
