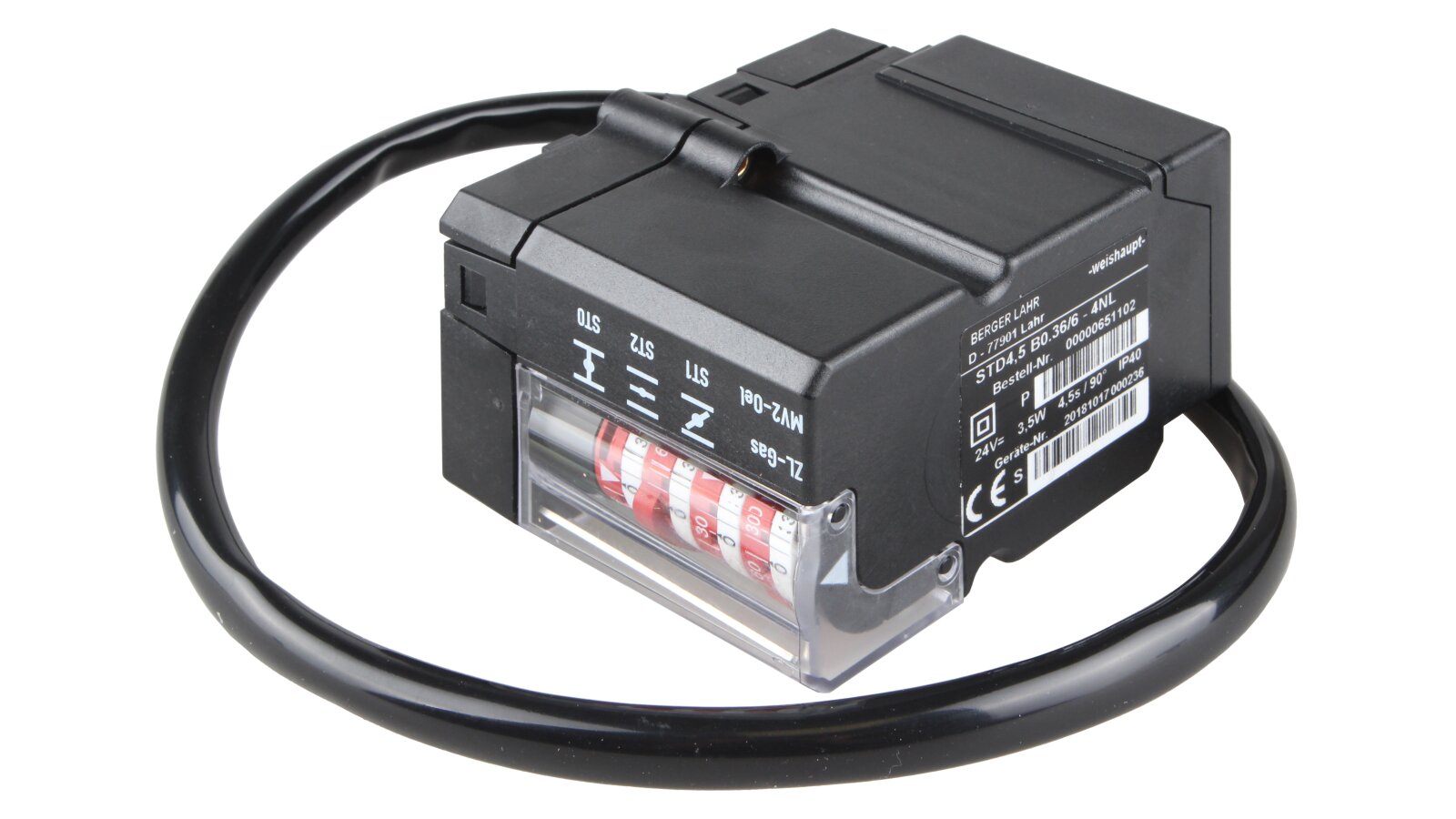

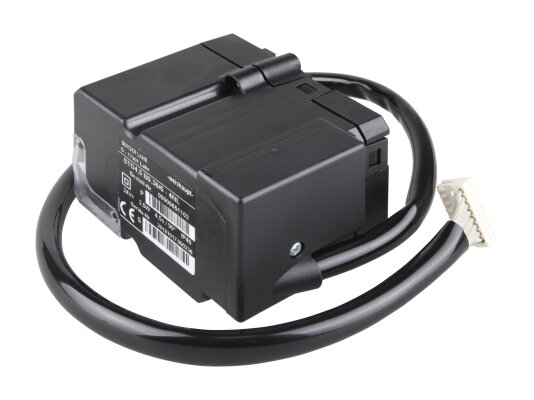

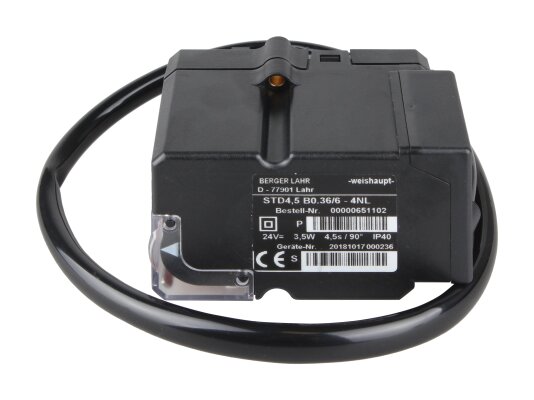

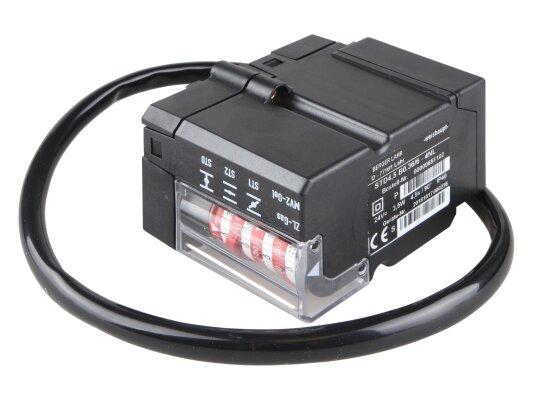

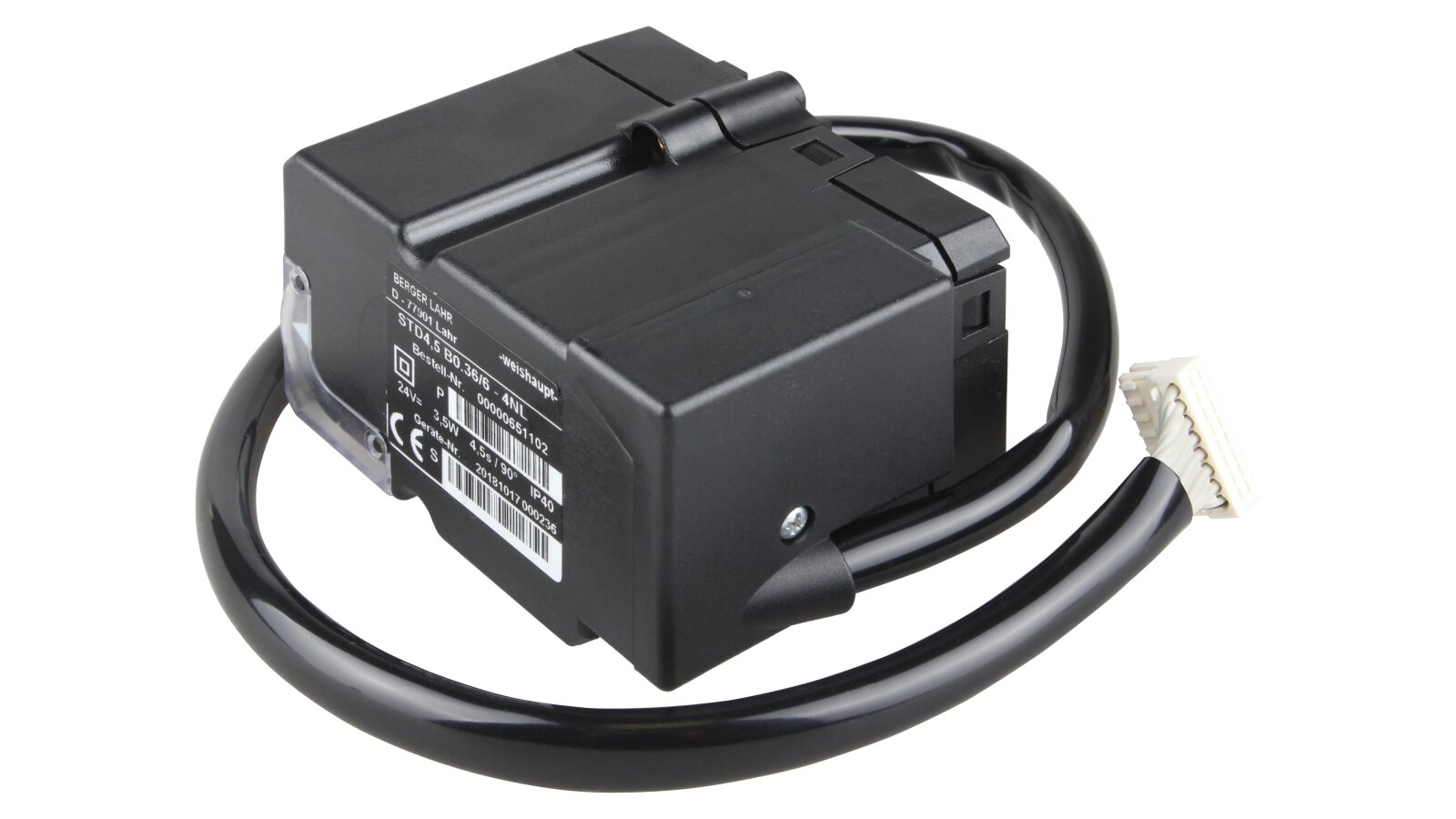

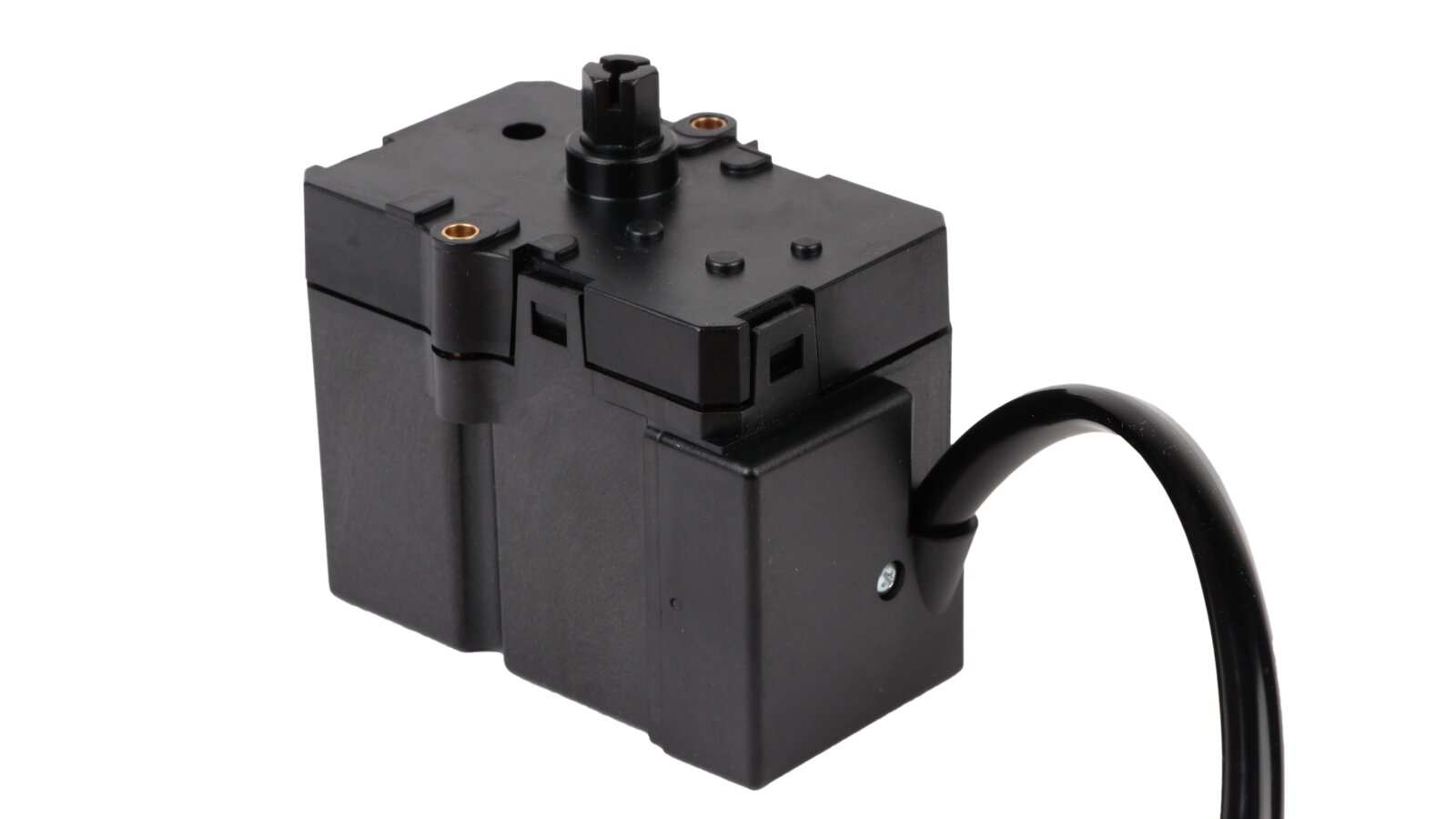

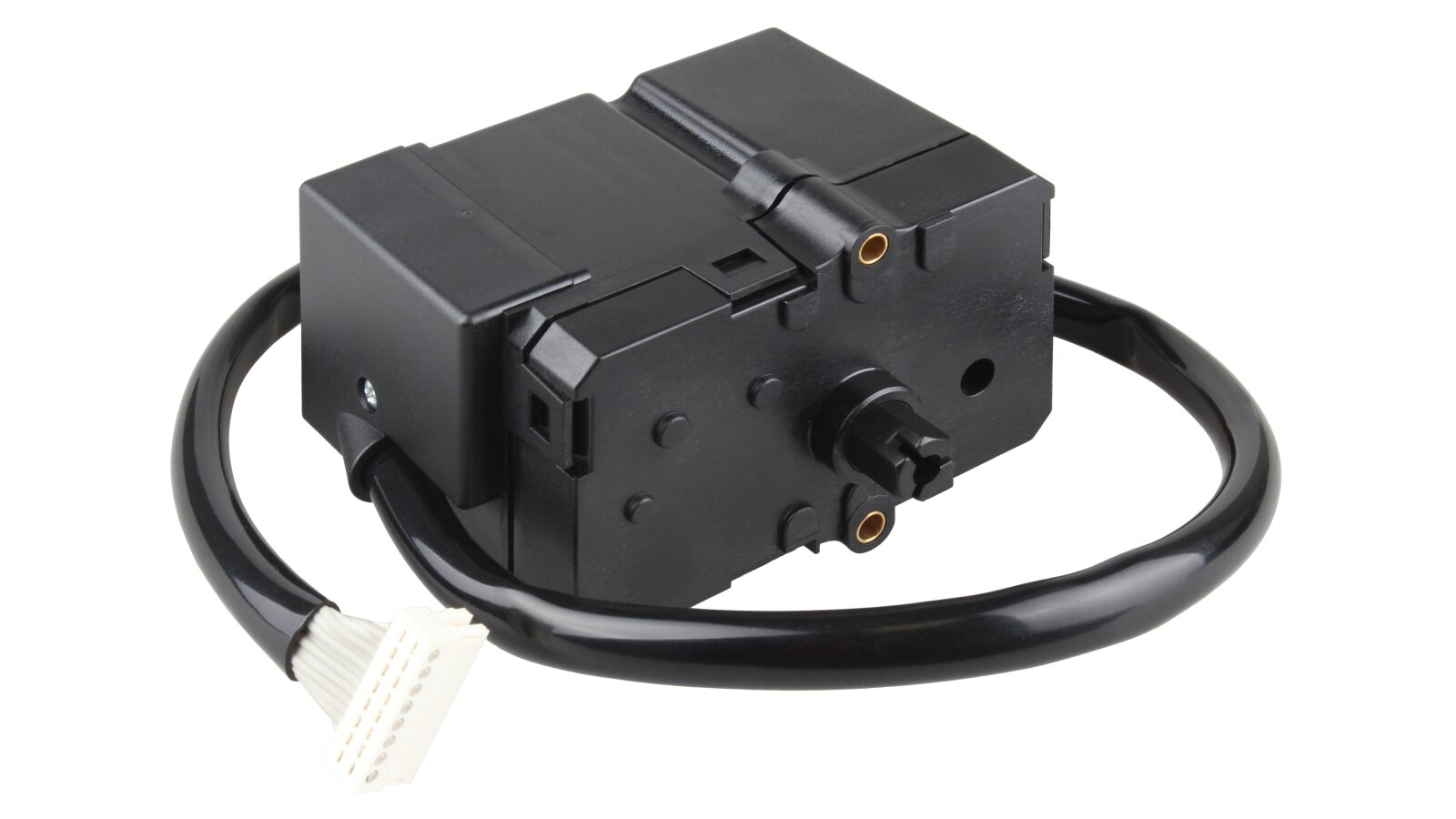

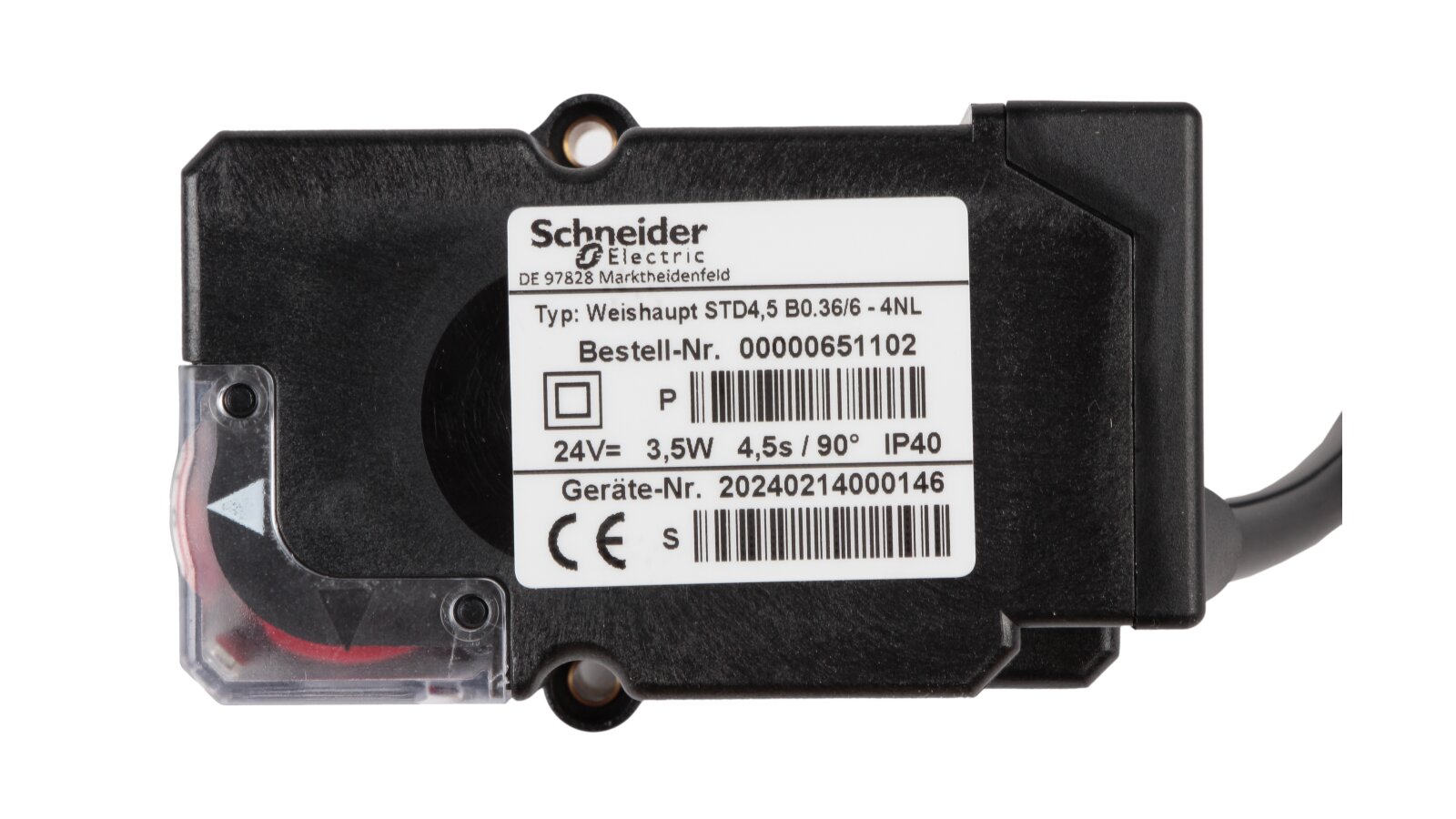

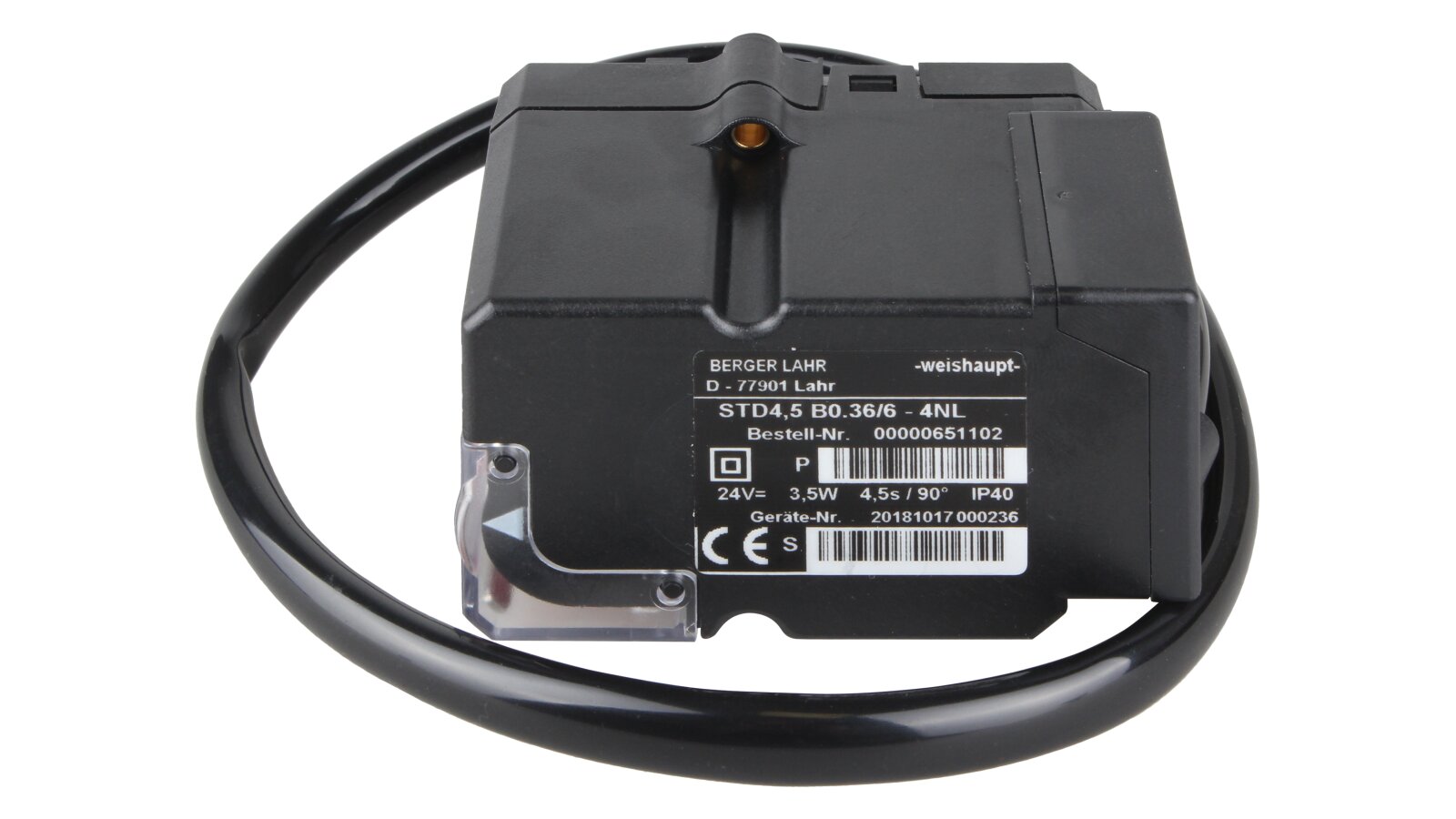

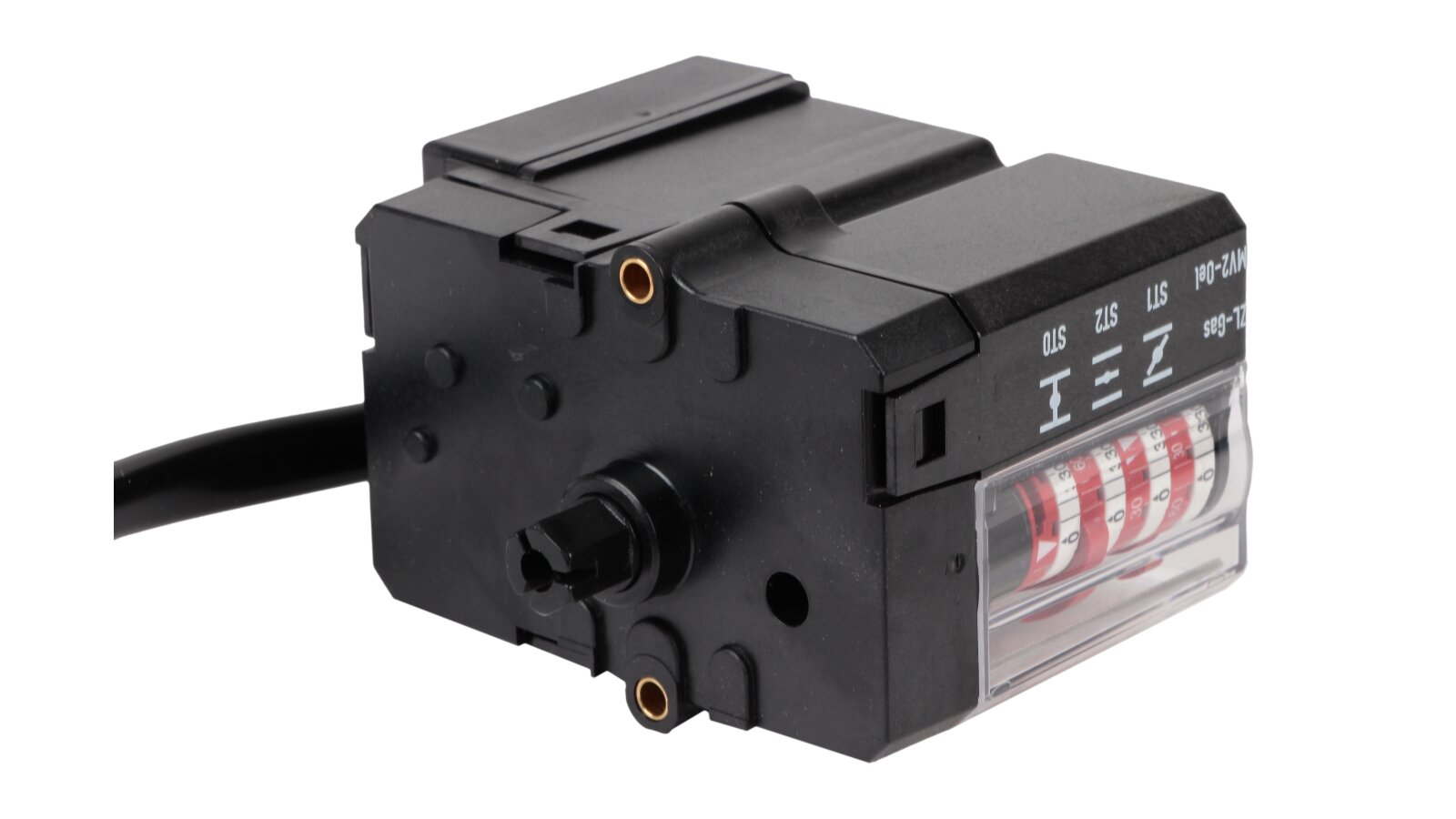

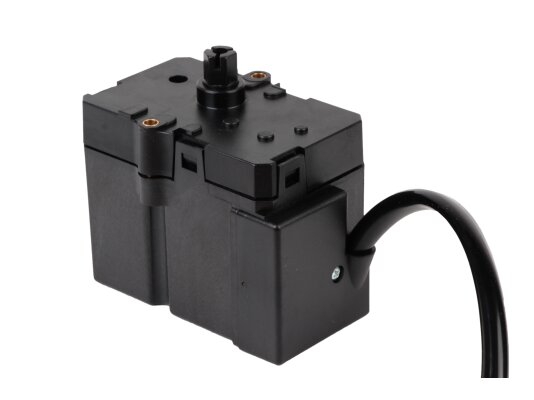

Stepping motor Weishaupt / Schneider Electric STD4.5 B0.36/6 - 4NL

The Weishaupt / Schneider Electric STD4.5 B0.36/6 - 4NL servo drive is used in burners, regulates the position of the air fan damper and changes the amount of air supplied for fuel combustion. The model is characterized by compact dimensions, simple design and extended configuration.

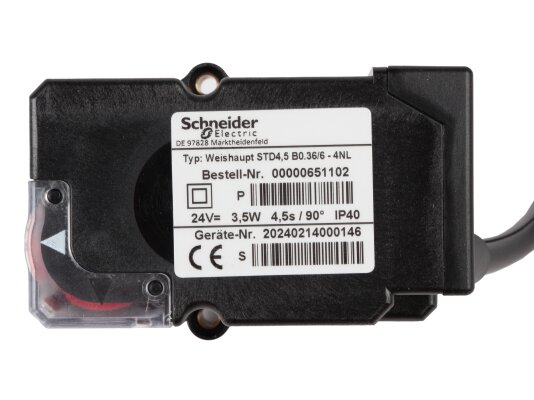

Key parameters:

• Connection to the network: 24V DC.

• Opening time at 90º: 4.5 sec.

• Power consumption: 3.5 W.

• Protection class: IP40.

Design and features:

• The compact casing is made of plastic, resistant to impacts and temperature effects. A transparent cover is provided. Electrical elements are protected in accordance with the European standard IP40.

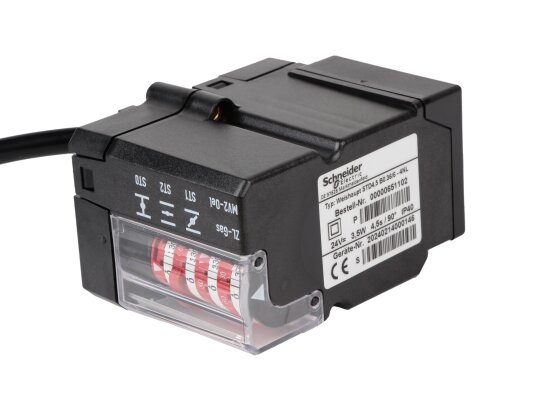

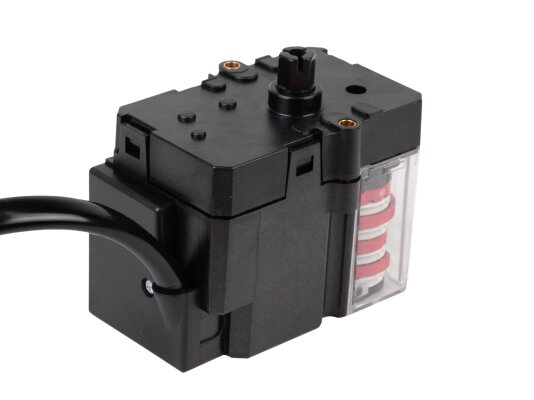

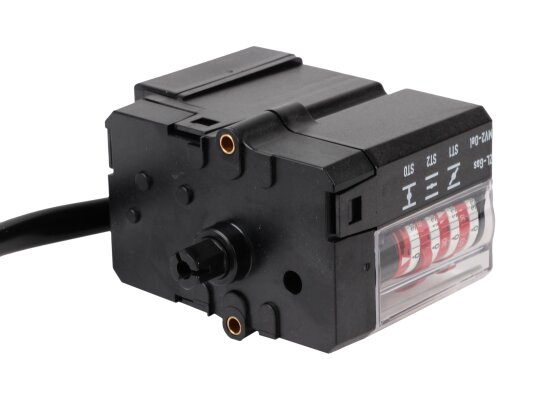

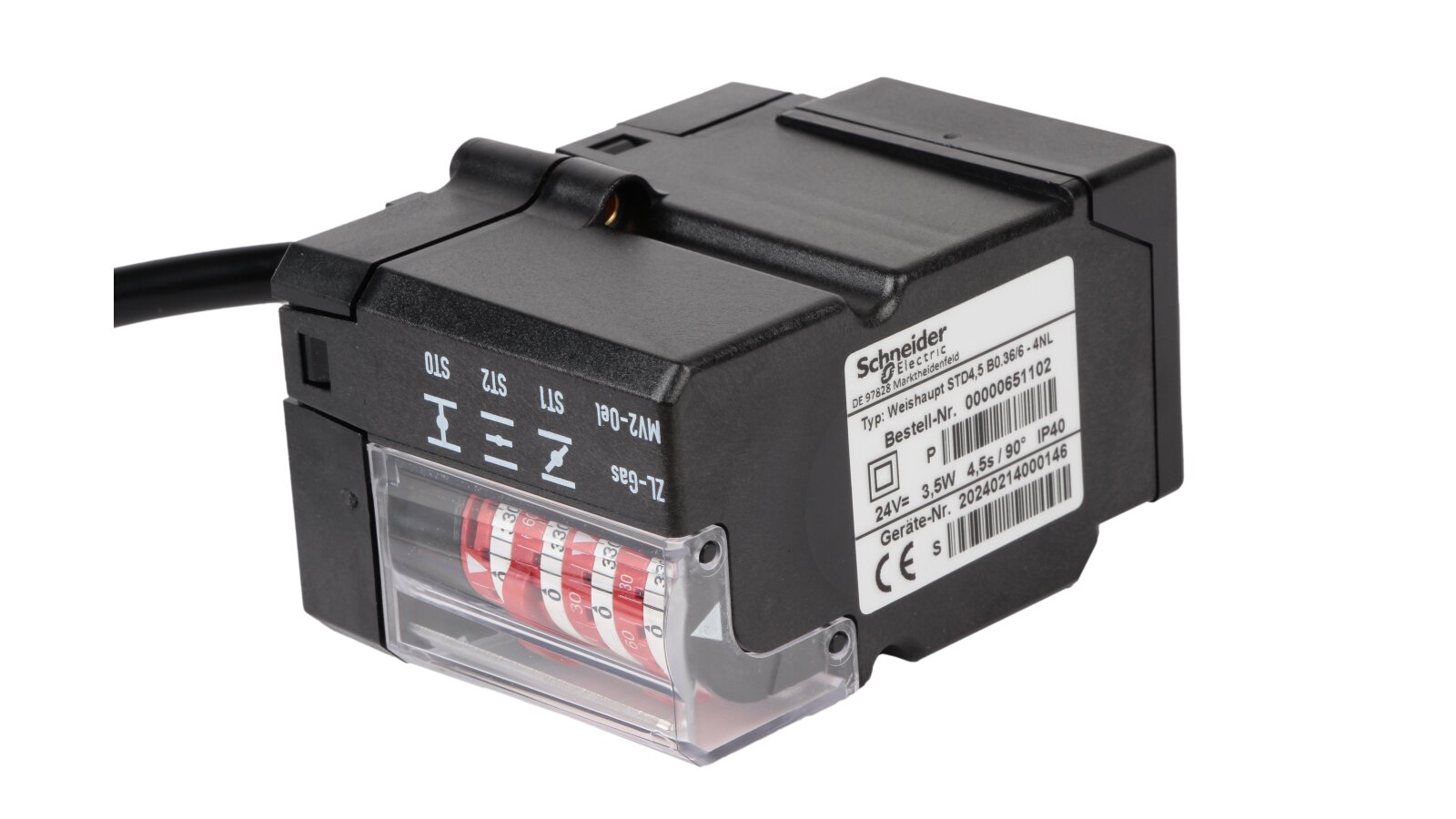

• Inside the housing there are easily adjustable cams used to set the damper angle and switch magnetically controlled valves. The adjustment operation is carried out using a screwdriver, which simplifies the actions of the personnel. To set the operating parameters, it is necessary to turn the screw inside the cam. The ring with a scale simplifies checking the correctness of the setting. The servo drive is supplied with basic settings.

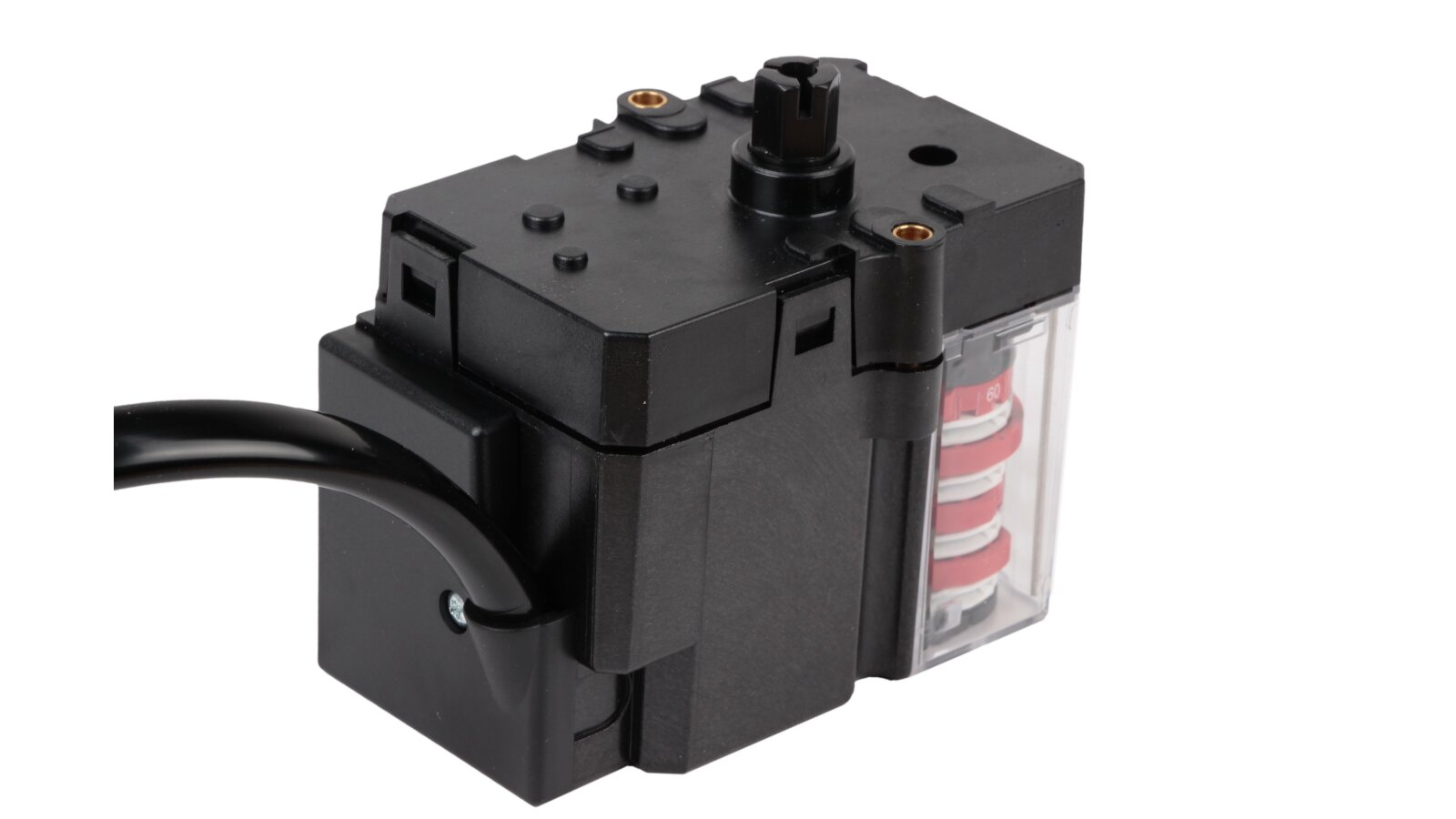

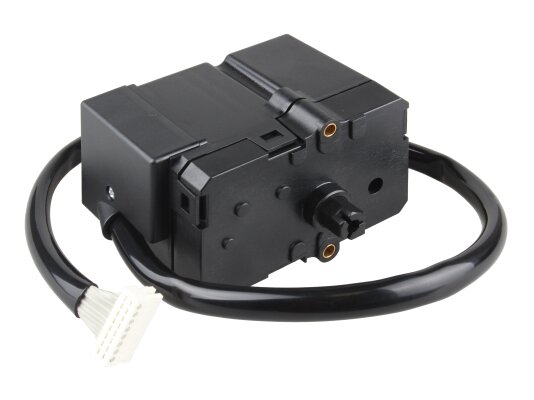

• The drive shaft rotates counterclockwise (L). The speed does not change with load changes or voltage surges.

• The mechanism is treated with long-term lubrication, does not require maintenance.

• When the burner stops, the servo drive moves the damper to the closed position, minimizing cooling losses.

• The drive device can be placed in any spatial position.

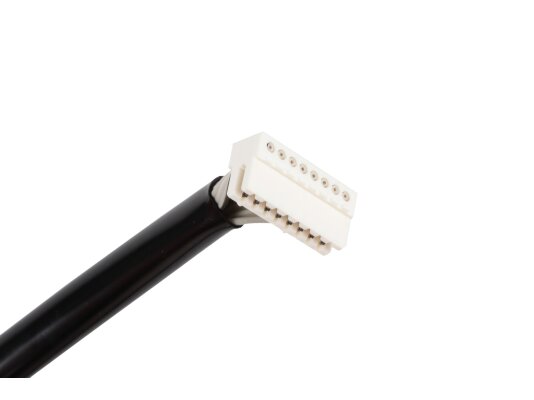

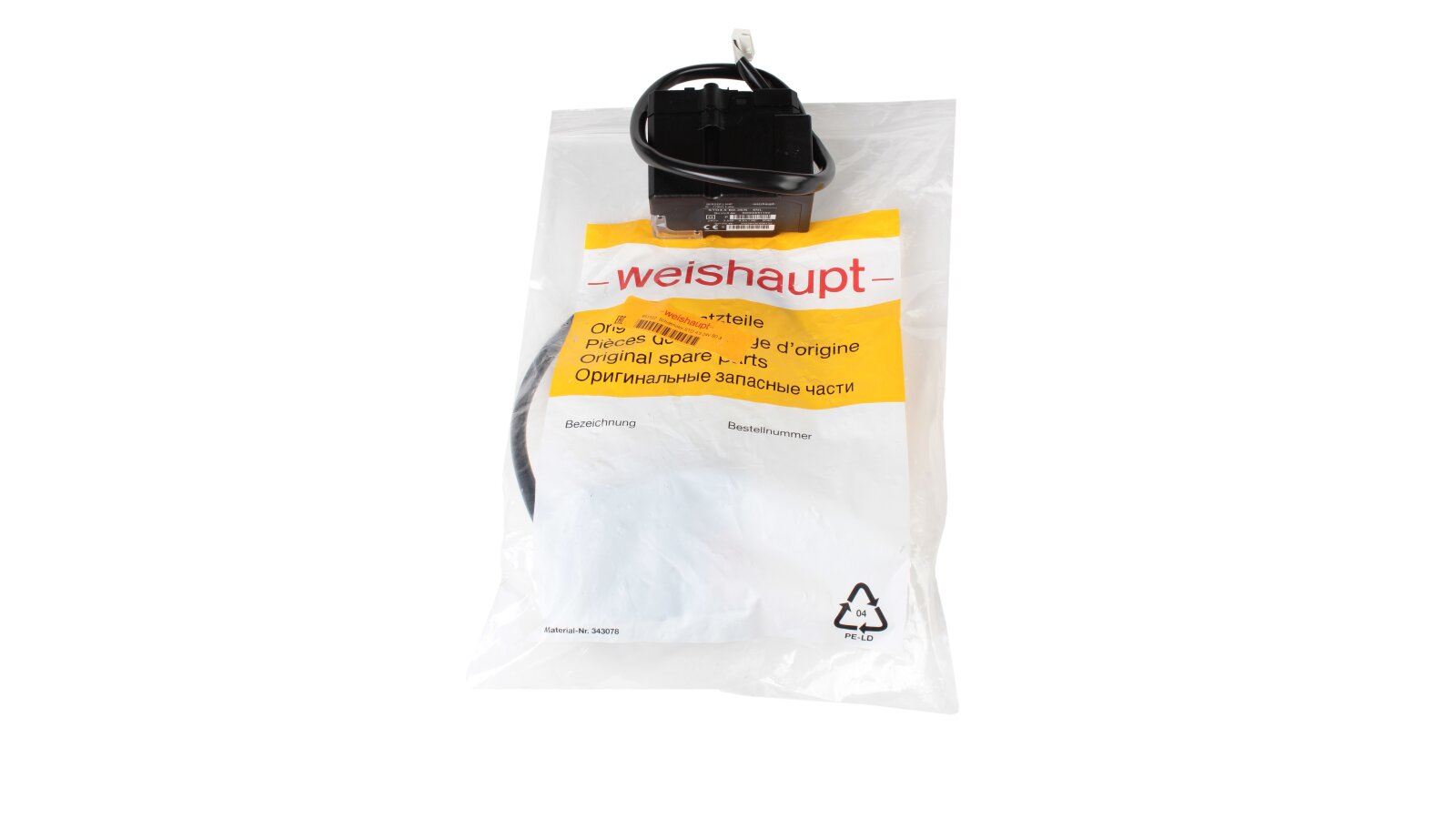

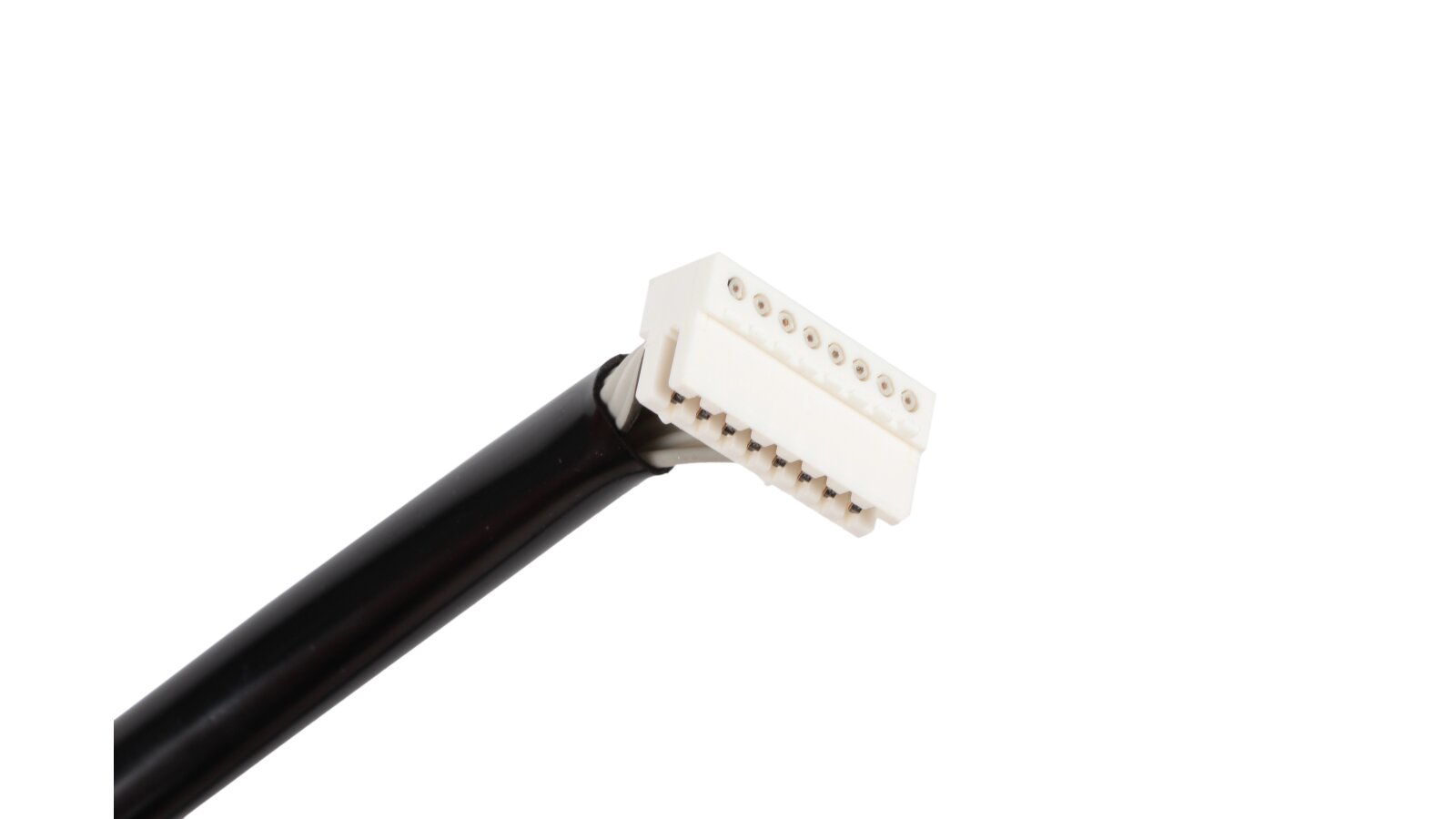

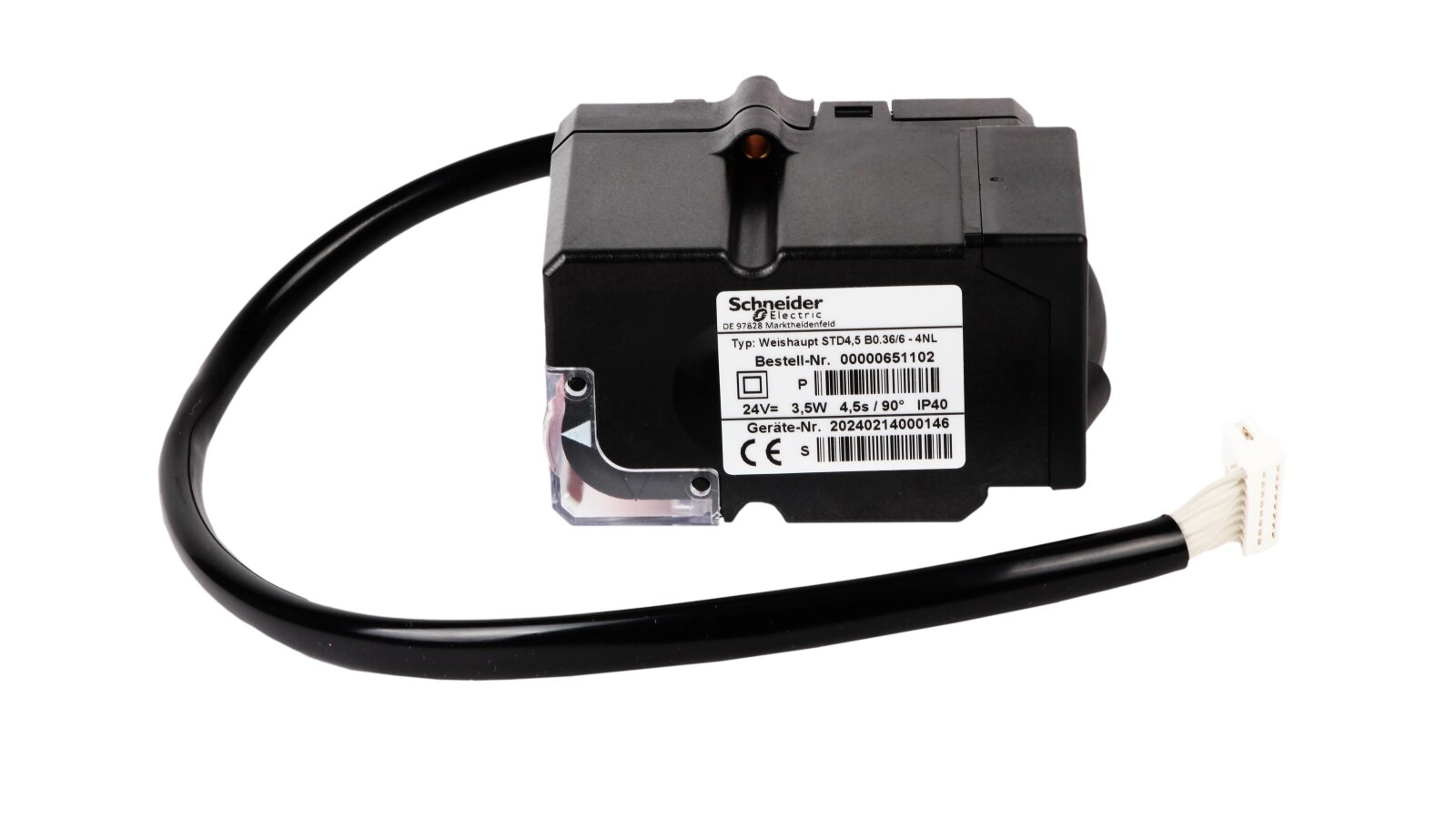

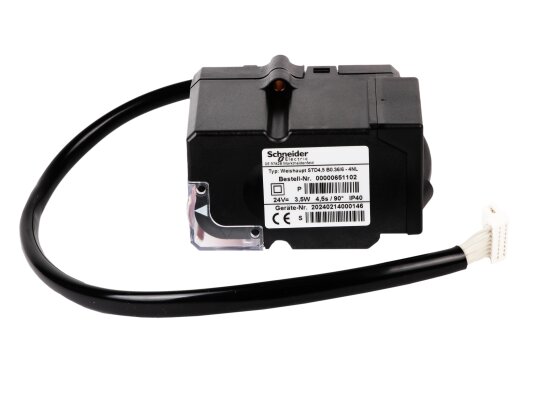

• The kit includes a power cable and a plug.
