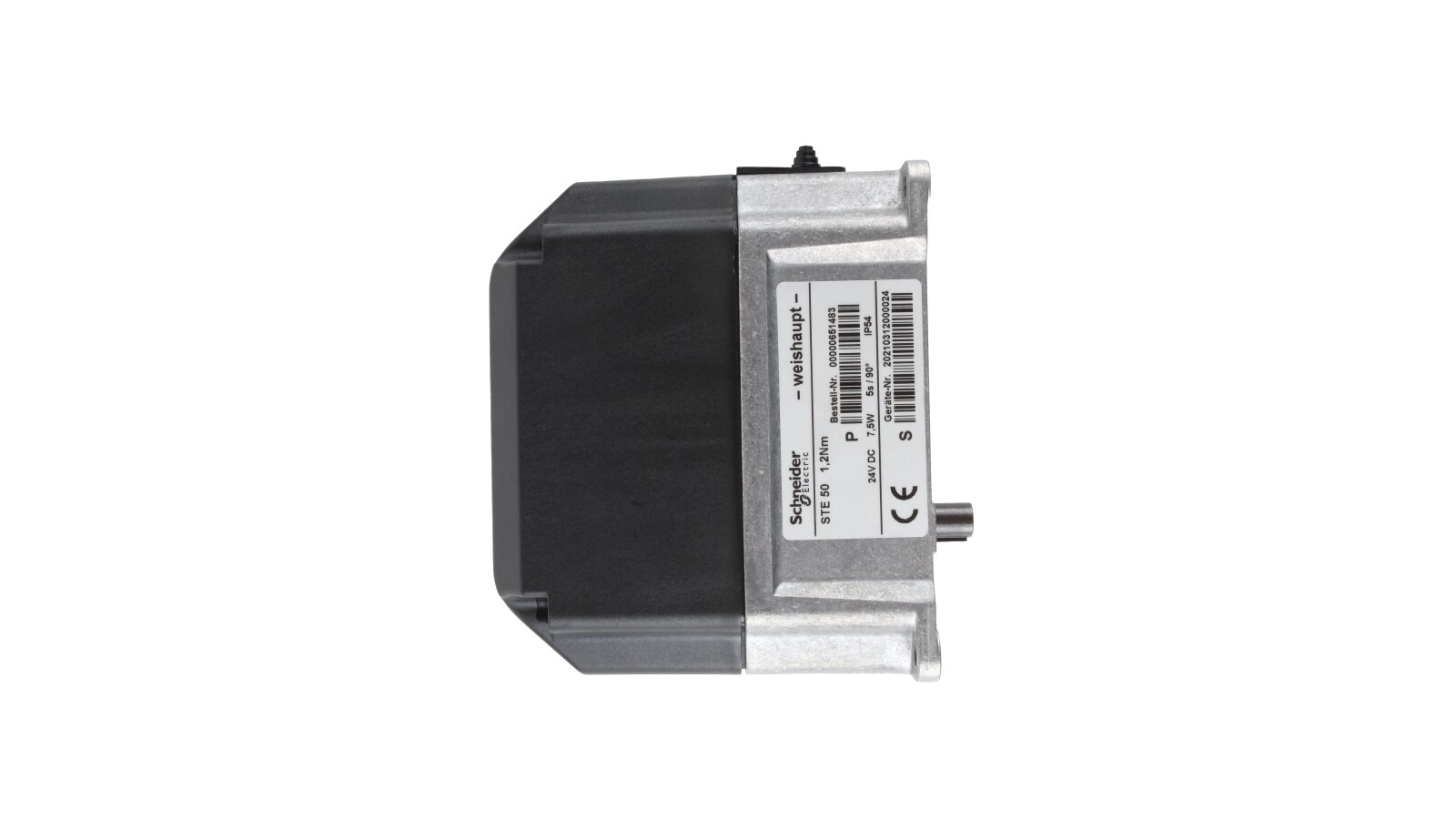

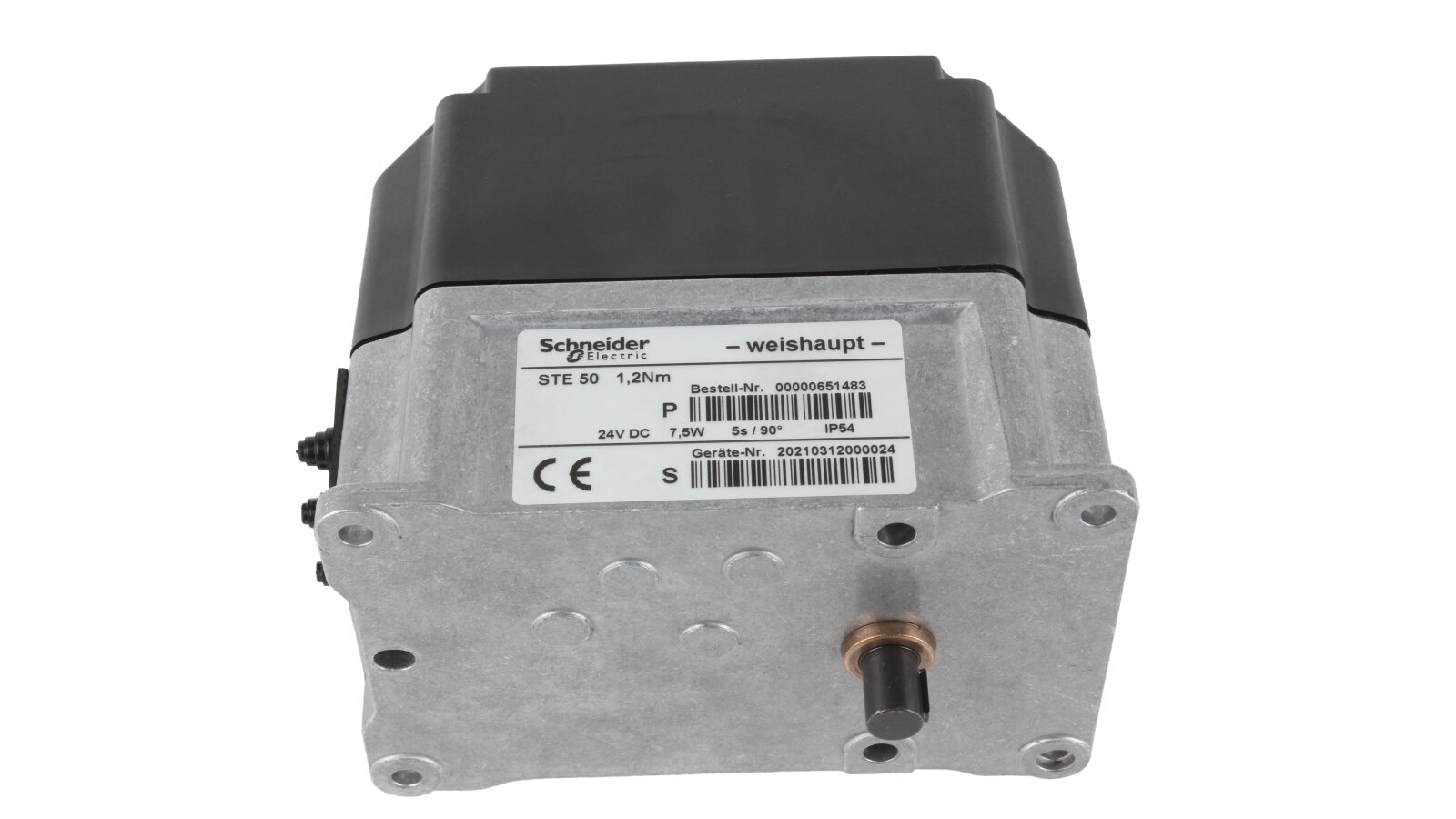

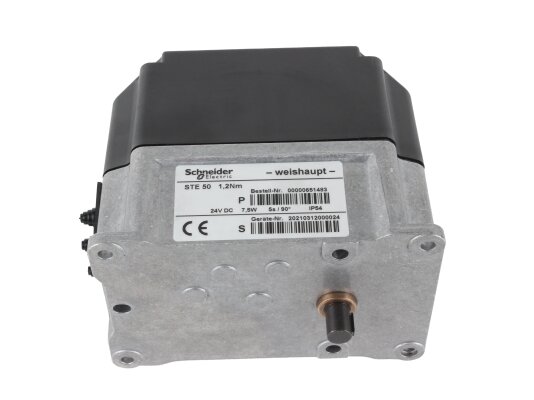

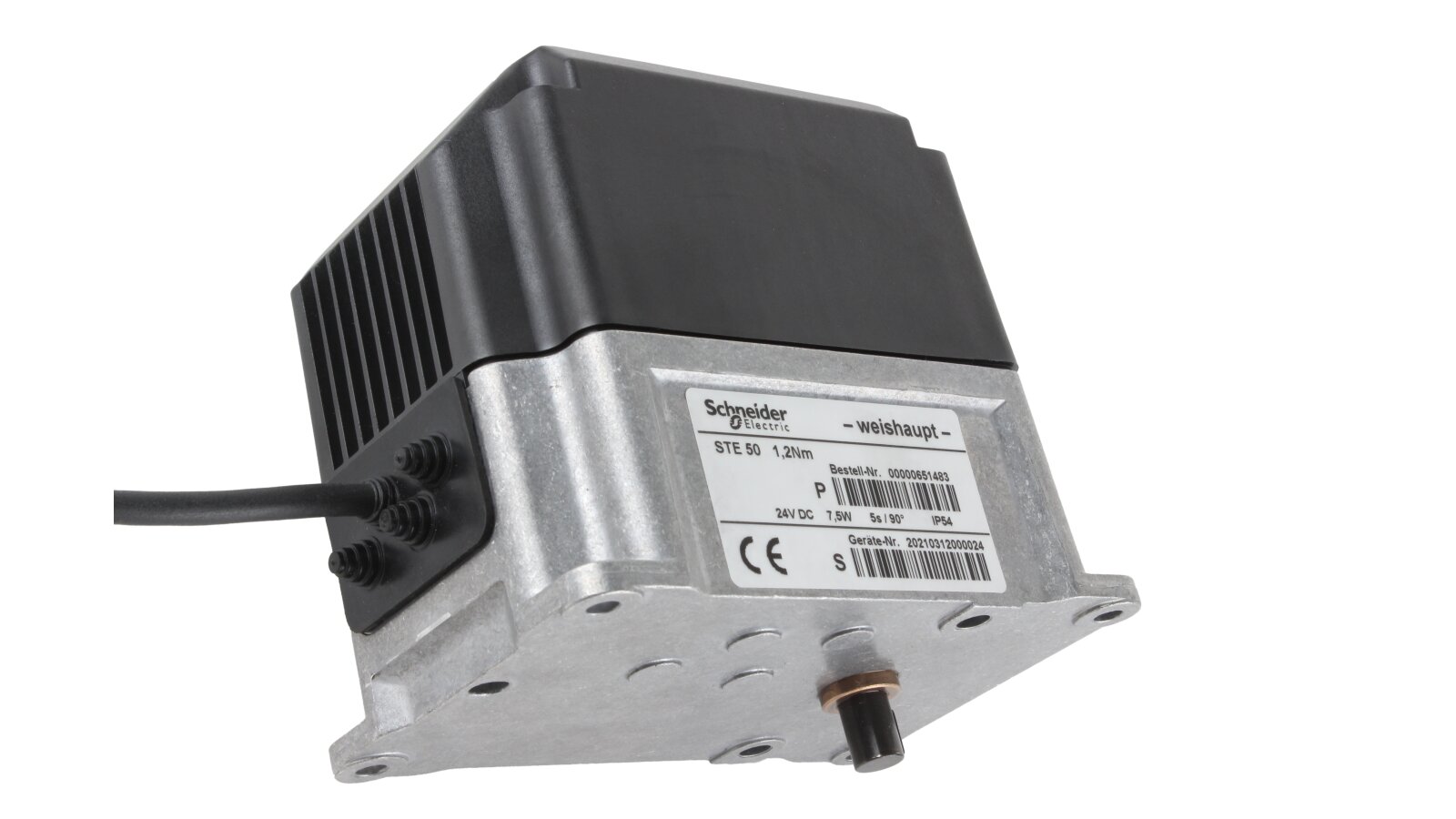

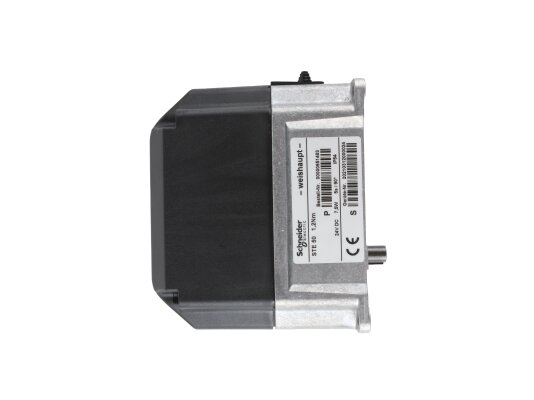

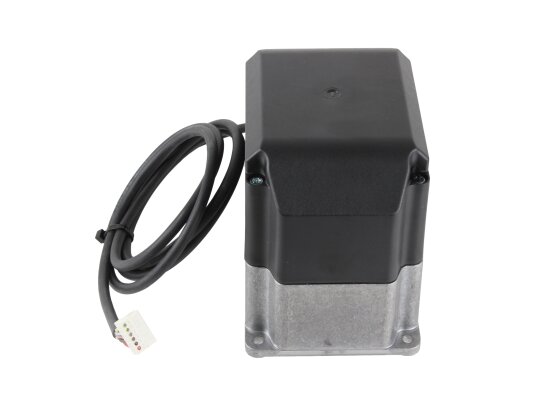

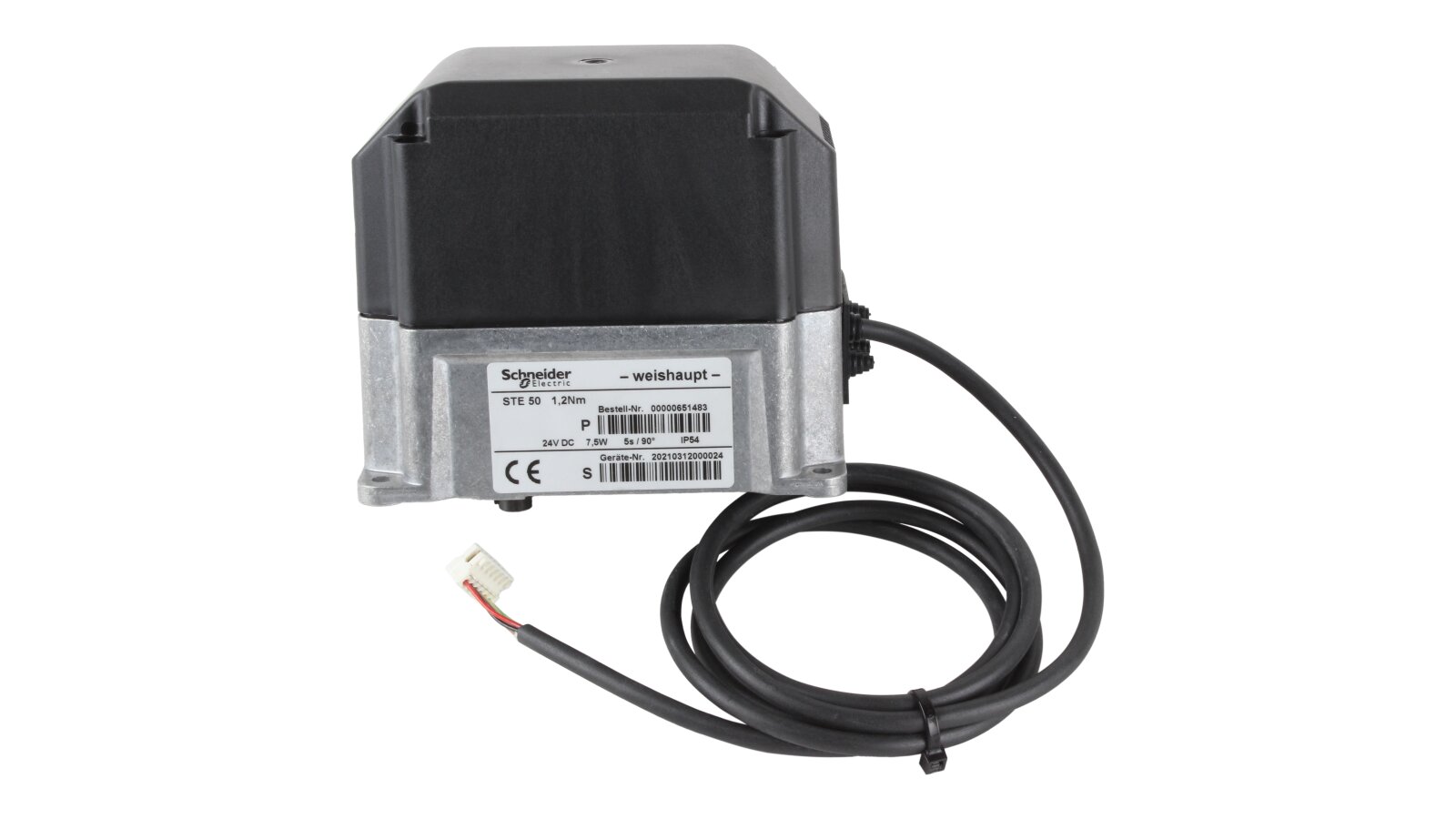

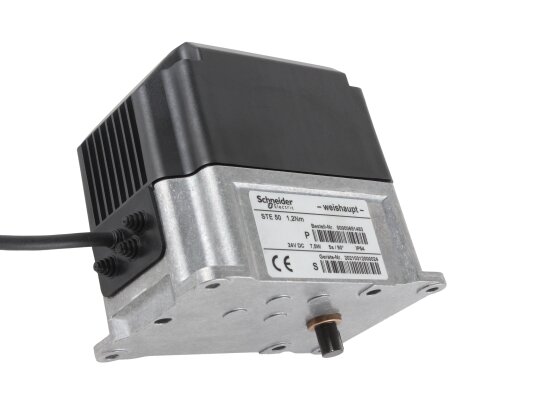

Actuator Weishaupt / Schneider Electric STE 50 1.2 Nm LUFT

The Weishaupt / Schneider Electric STE 50 1.2 Nm LUFT servo drive is designed for Weishaupt burner devices. Provides the required position of the air damper to supply the optimal amount of air to the combustion chamber. Increases boiler efficiency and reduces fuel consumption. Comes complete with a power cable.

Operating parameters:

• Power supply: 24V DC.

• 90º rotation time: 5 sec.

• Torque: 1.2 Nm.

• Power consumption: 7 W.

• Operating temperature: 0…+50 °C.

• Protection level: IP 54.

Design and features:

• The STE50 servo drive automatically regulates the position of the damper under the control of a furnace machine or electronic manager.

• The outer casing is made of plastic material resistant to impacts and temperature effects. Electrical components are protected against dust and moisture according to the IP 54 standard.

• The rotation angle can be set using analog signals. The adjustment range is from 0 to 90°. Operating parameters can be determined using limit switches.

• The drive is lubricated with a long-term compound, so it does not require maintenance.

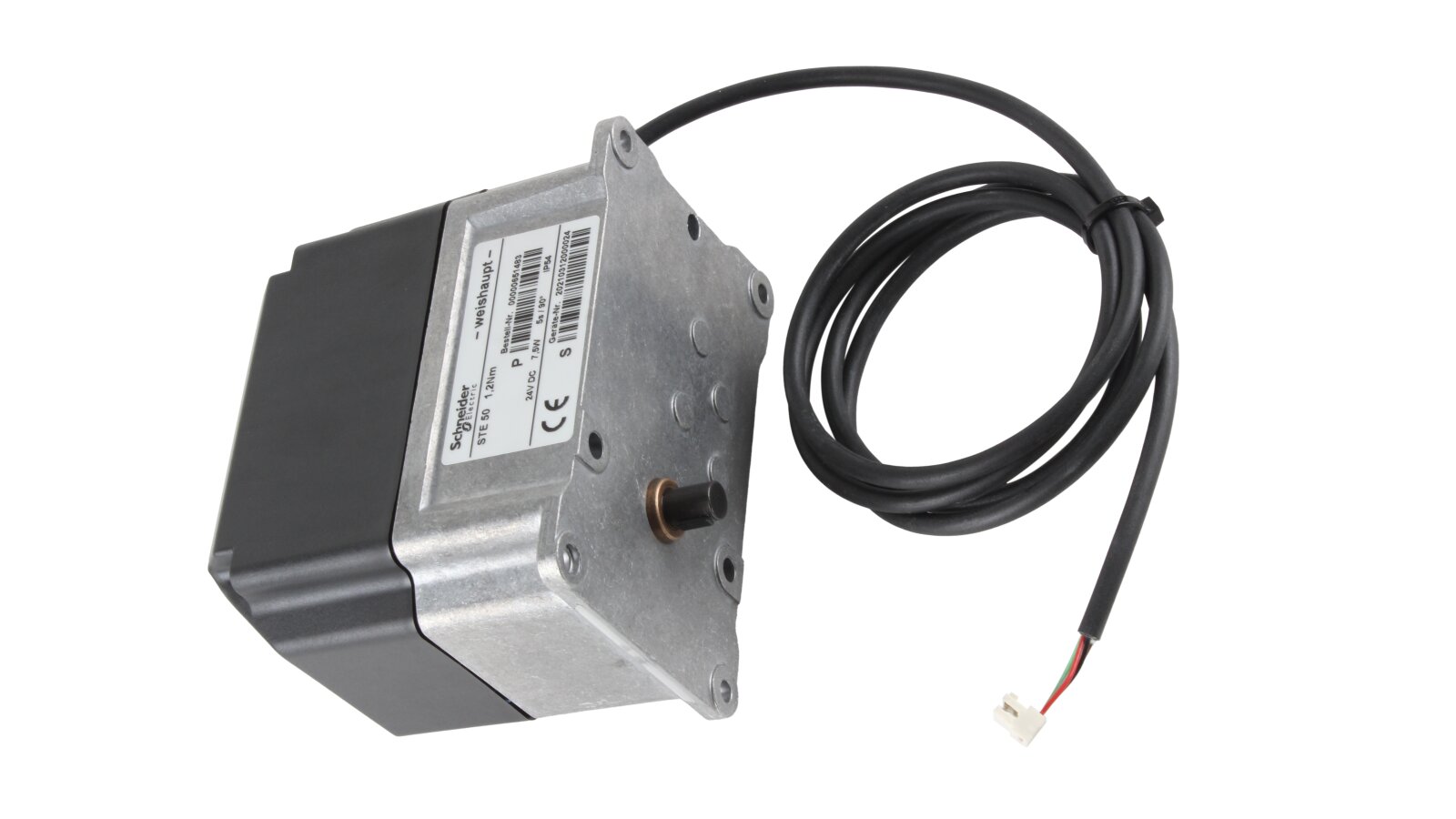

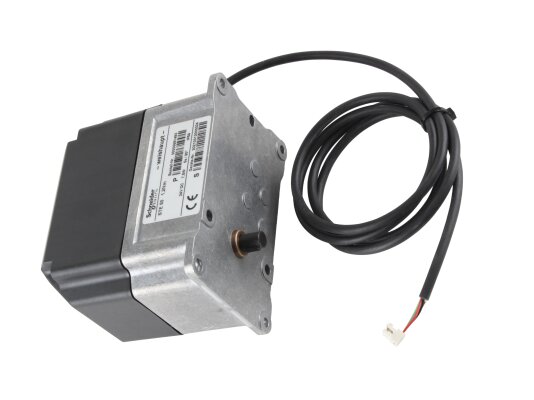

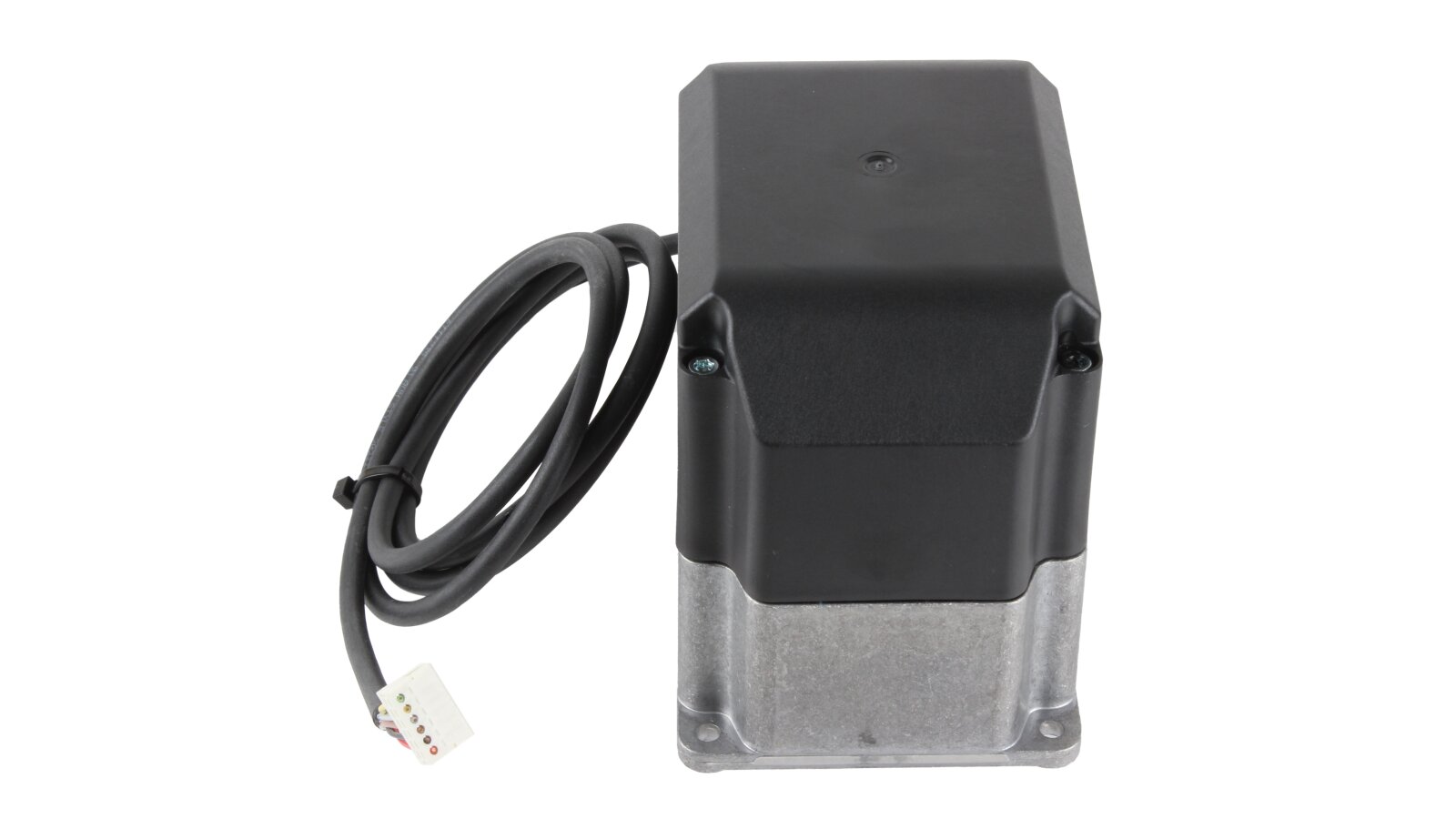

• The kit includes a 1.5 m power cable.

Advantages:

• precise switching;

• excellent dynamic characteristics;

• high level of electrical protection;

• extended equipment;

• low energy consumption;

• low maintenance requirements.

On the ANKAS website, you can get advice from a specialist on the selection of components for a heating system and buy a Weishaupt / Schneider Electric STE 50 1.2 Nm LUFT servo drive with the necessary accessories at the price of a direct supplier.
