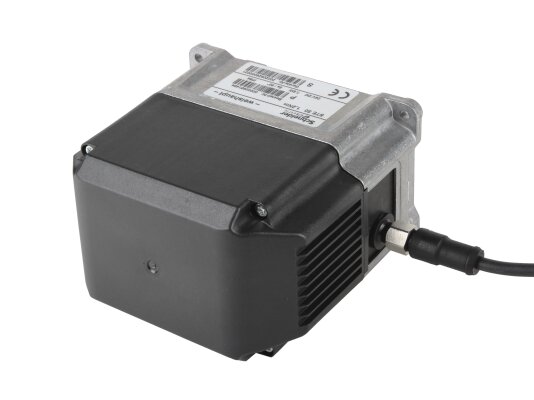

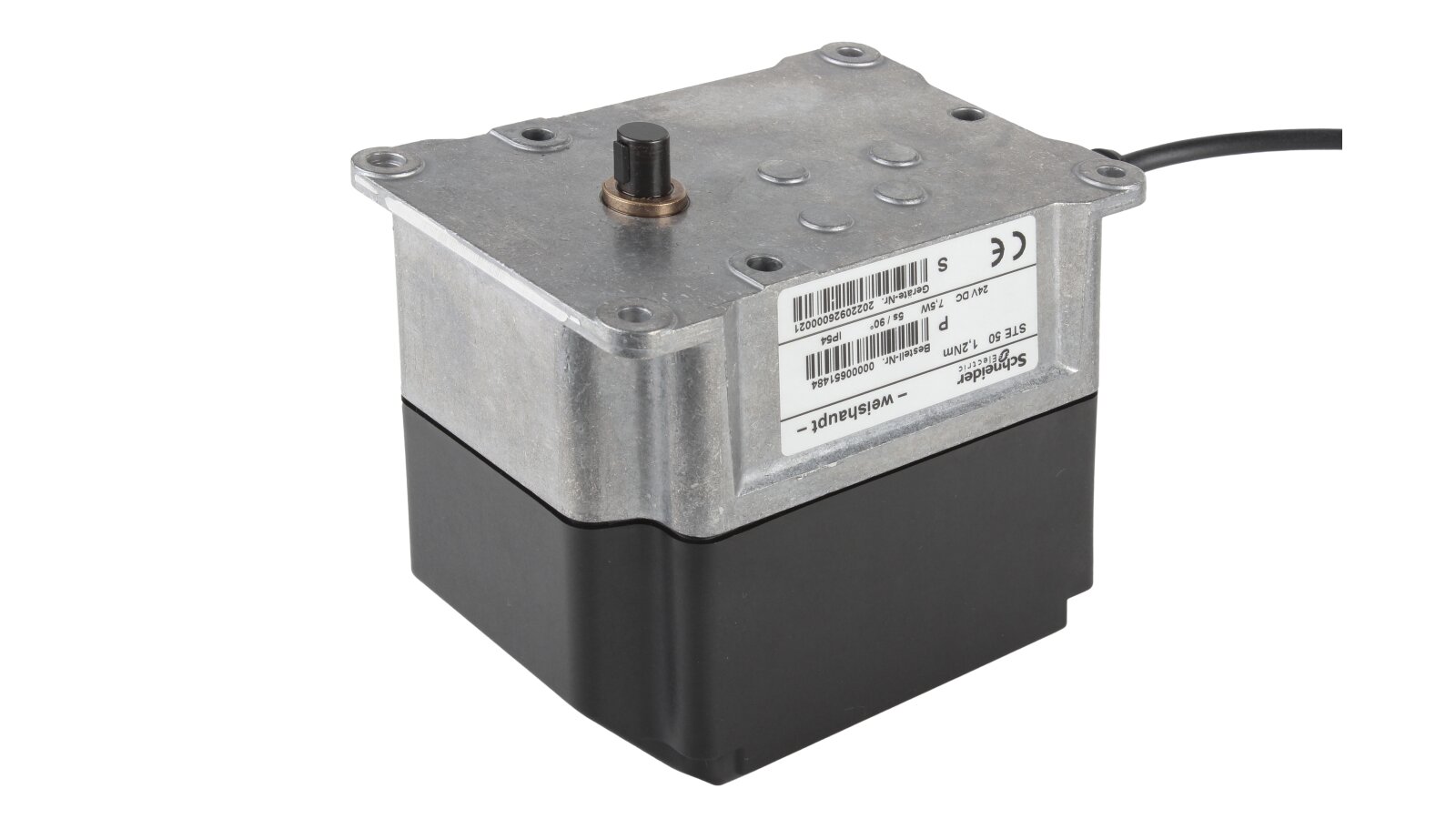

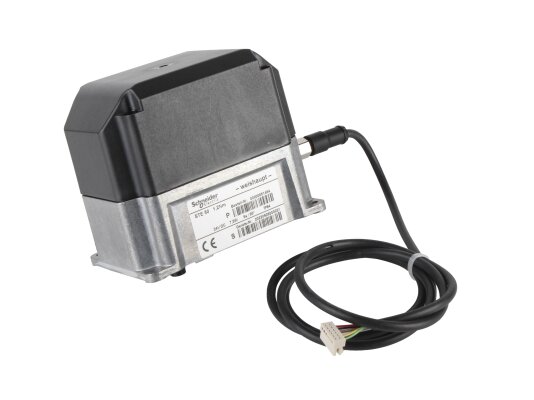

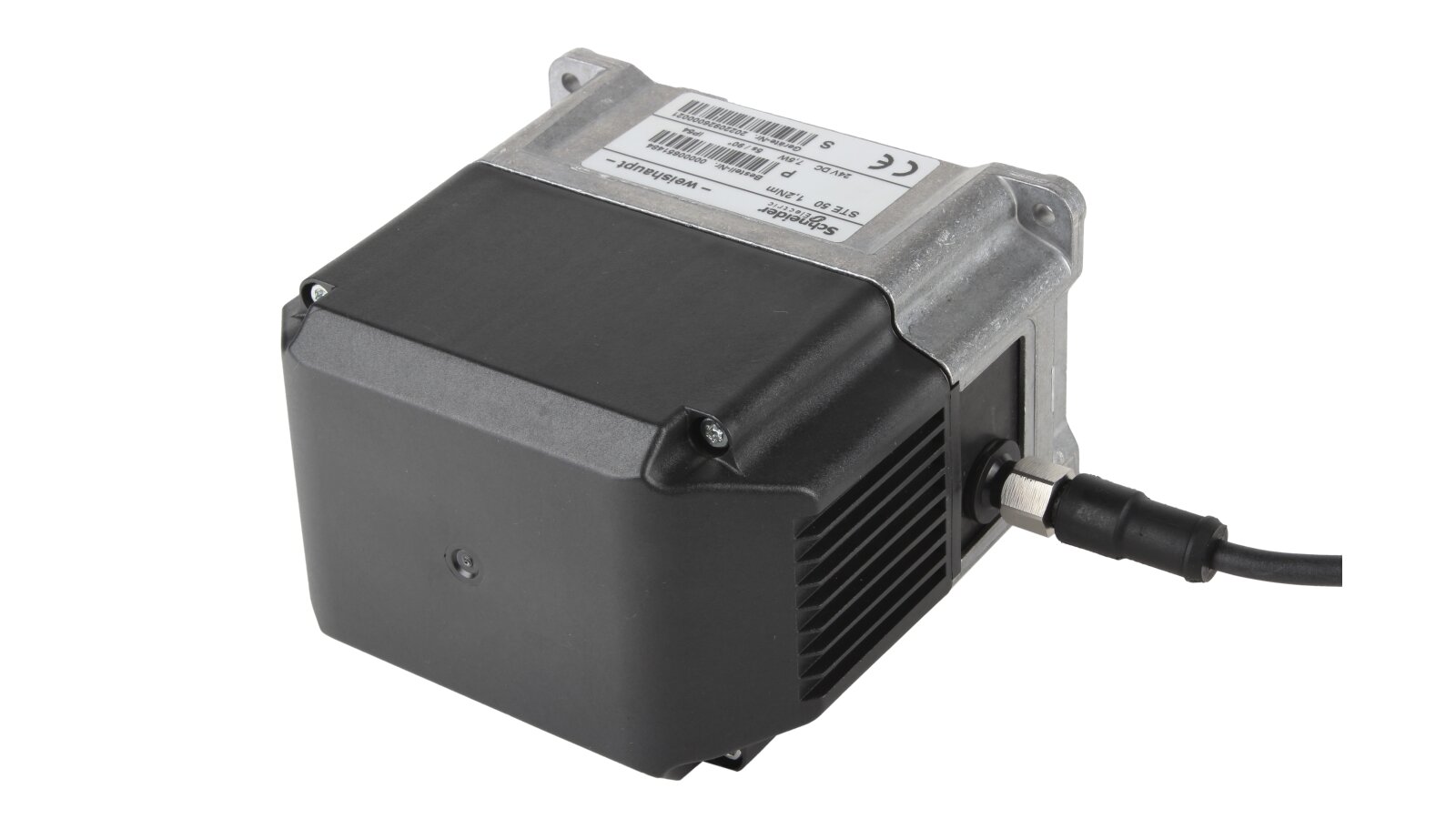

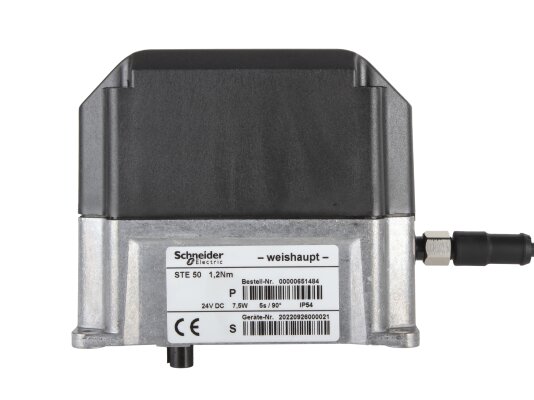

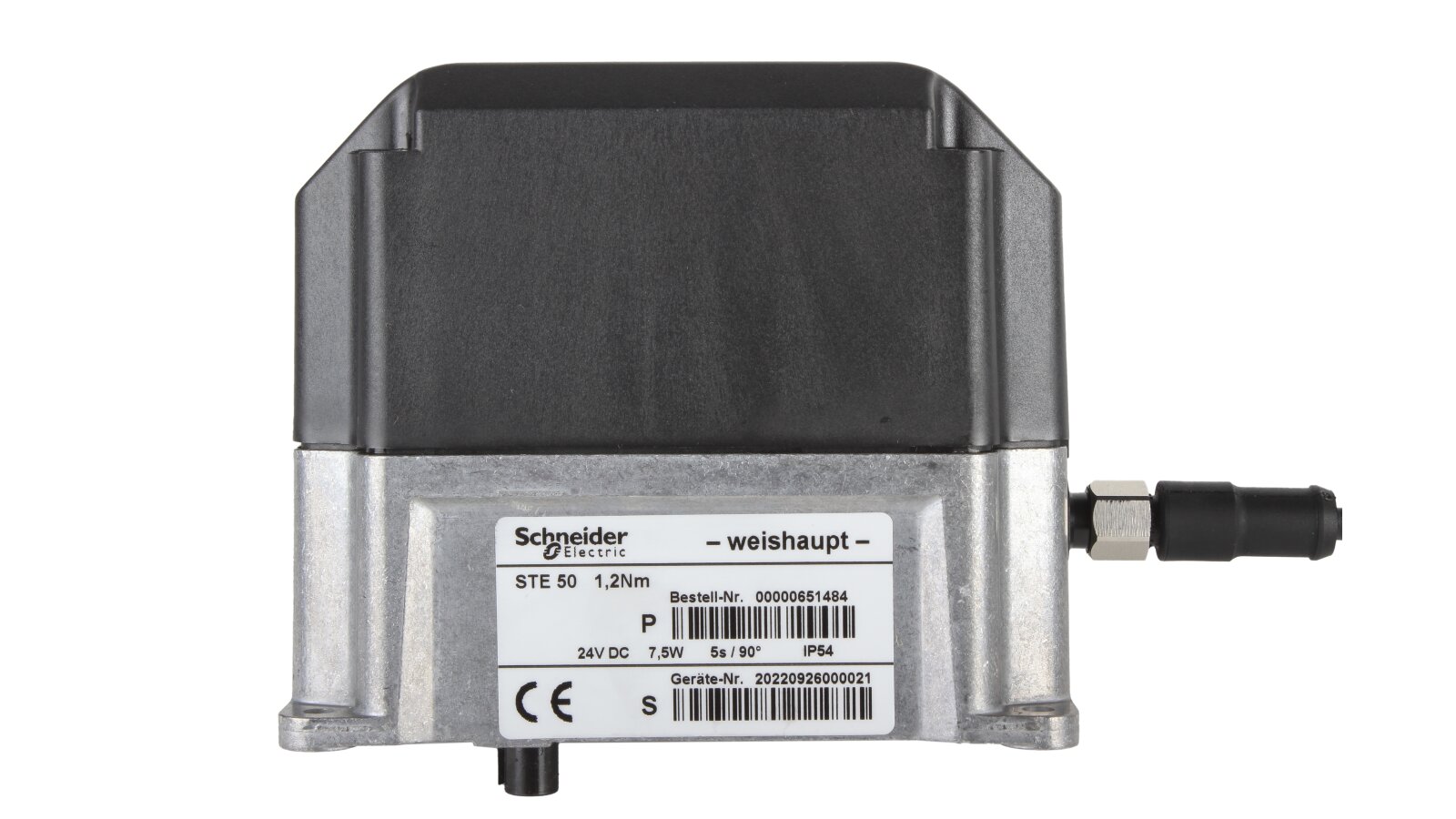

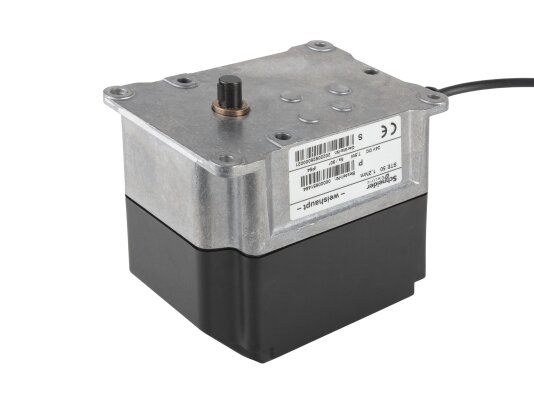

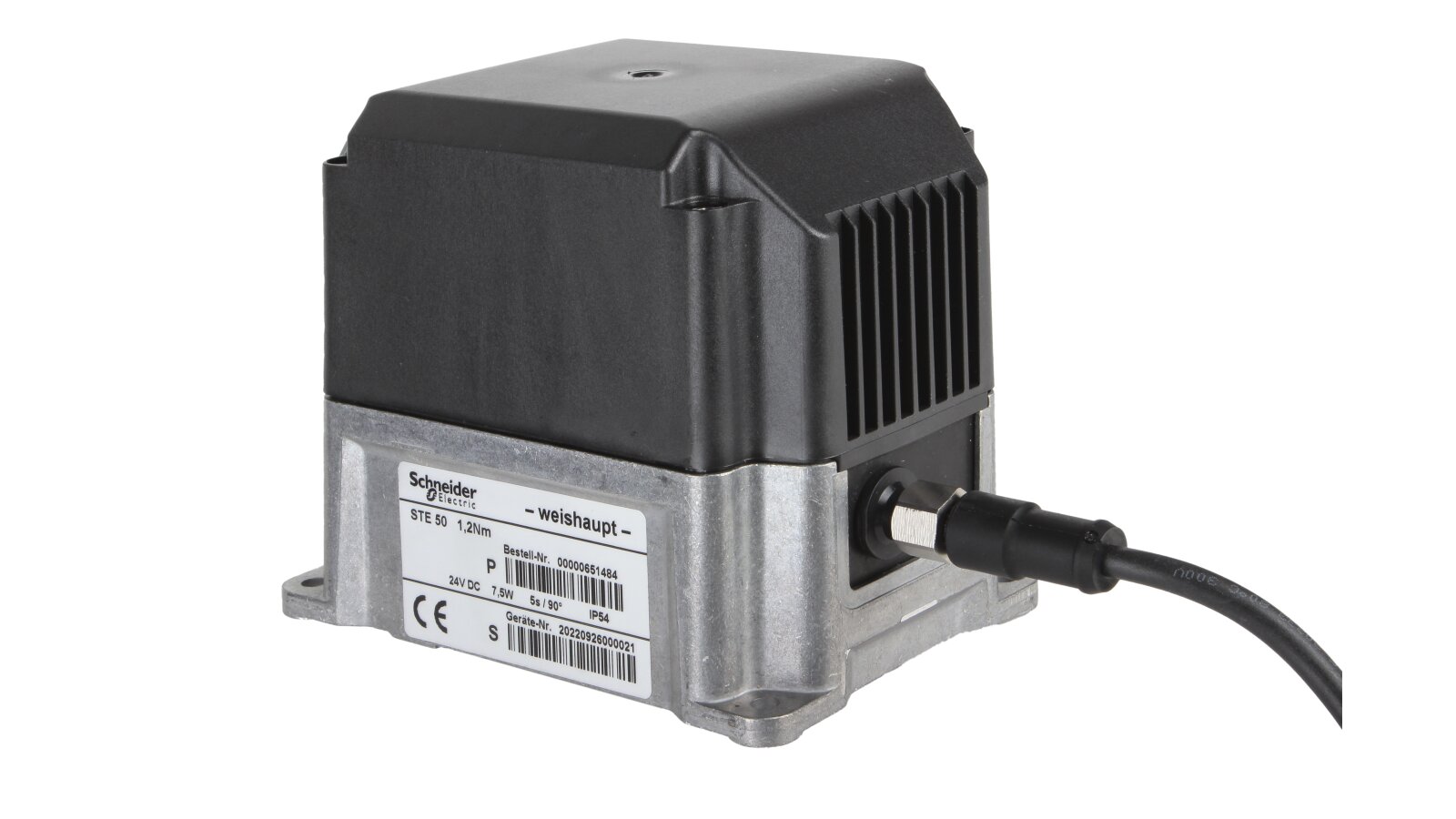

Actuator Weishaupt / Schneider Electric STE 50 1.2 Nm

The Berger Lahr / Schneider Electric STE 50 1.2Nm GAS servo drive is adapted for Weishaupt equipment. Its main function is to change the position of the gas valve to supply the required volume of gas to the furnace. The actuator is used in systems for automatic supply of gaseous fuel to the burner. Supplied complete with a power cable.

Key features:

• Power source: 24V DC.

• 90º rotation time: 5 sec.

• Torque: 1.2 Nm.

• Power consumption: 7 W.

• Operating temperature: 0…+50 °С.

• Protection class: IP 54.

Design and features:

• The STE 50 servo drive has a protective shell made according to the European IP54 standard. The polymer casing is resistant to impacts and temperature effects, does not allow dust and moisture to enter the device.

• The servo drive operates under the control of a furnace automatic control or an electronic manager.

• The damper positioning can be set using analog signals. The adjustment range is from 0 to 90°. Operating parameters can be set using limit switches.

• The servo drive mechanism does not require maintenance, it has been treated with long-term lubrication.

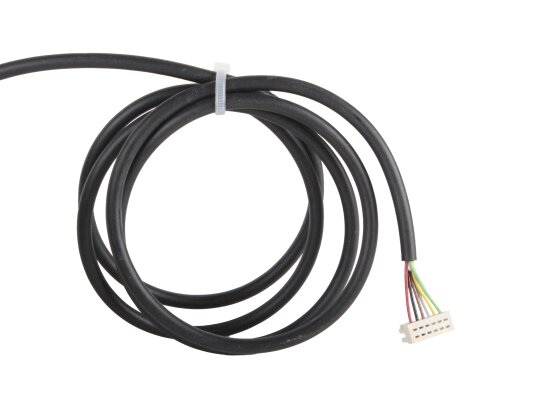

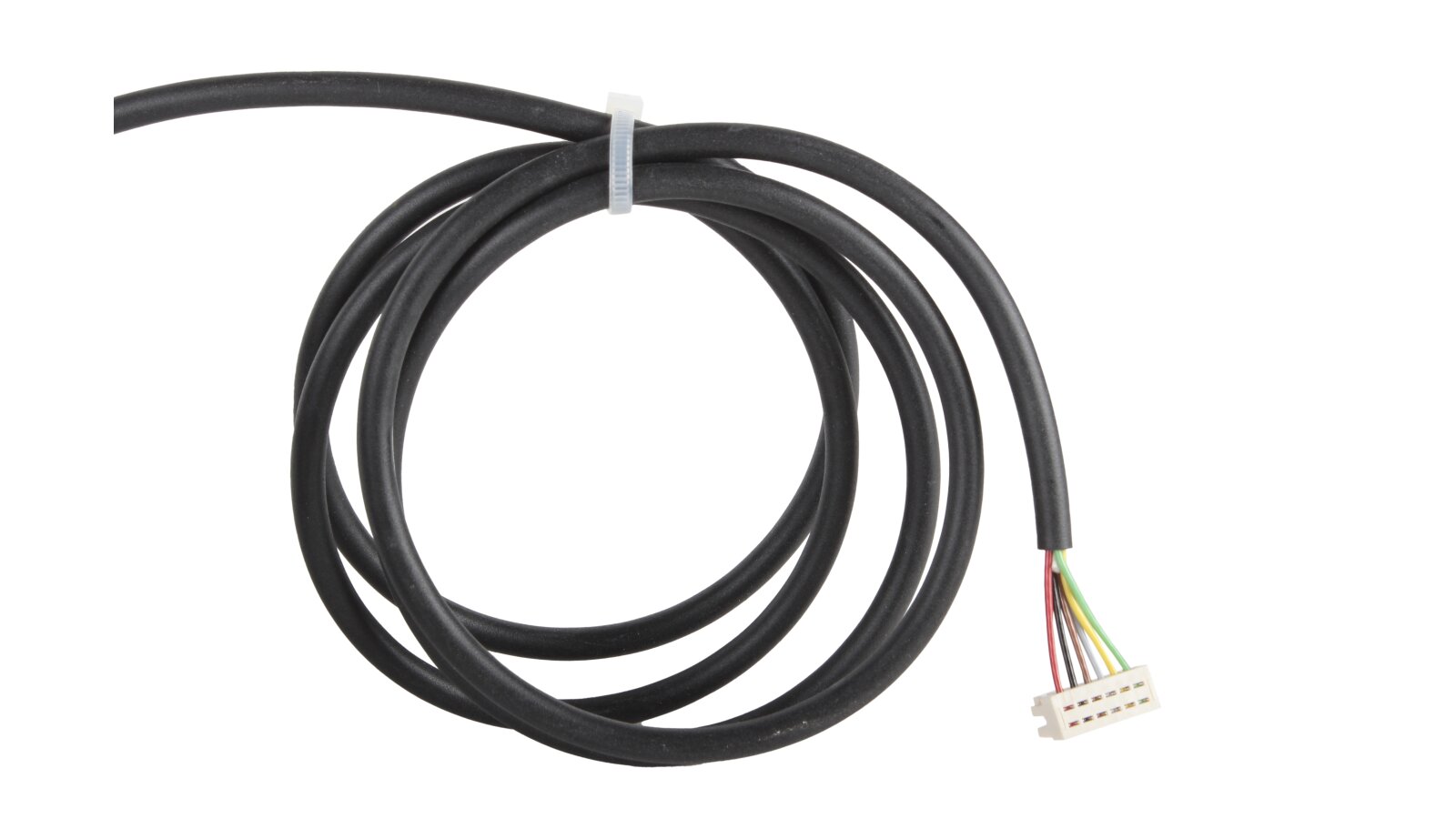

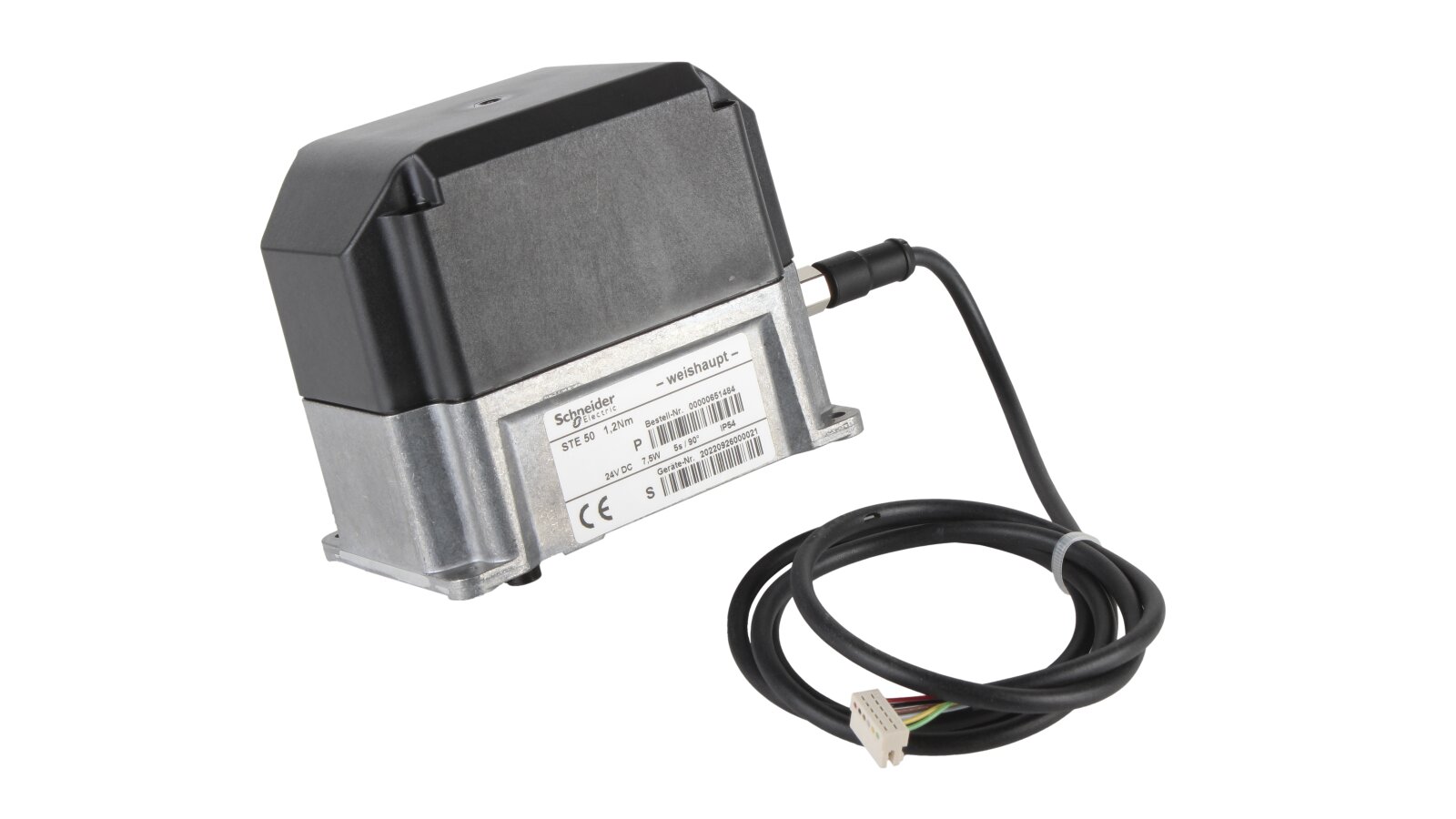

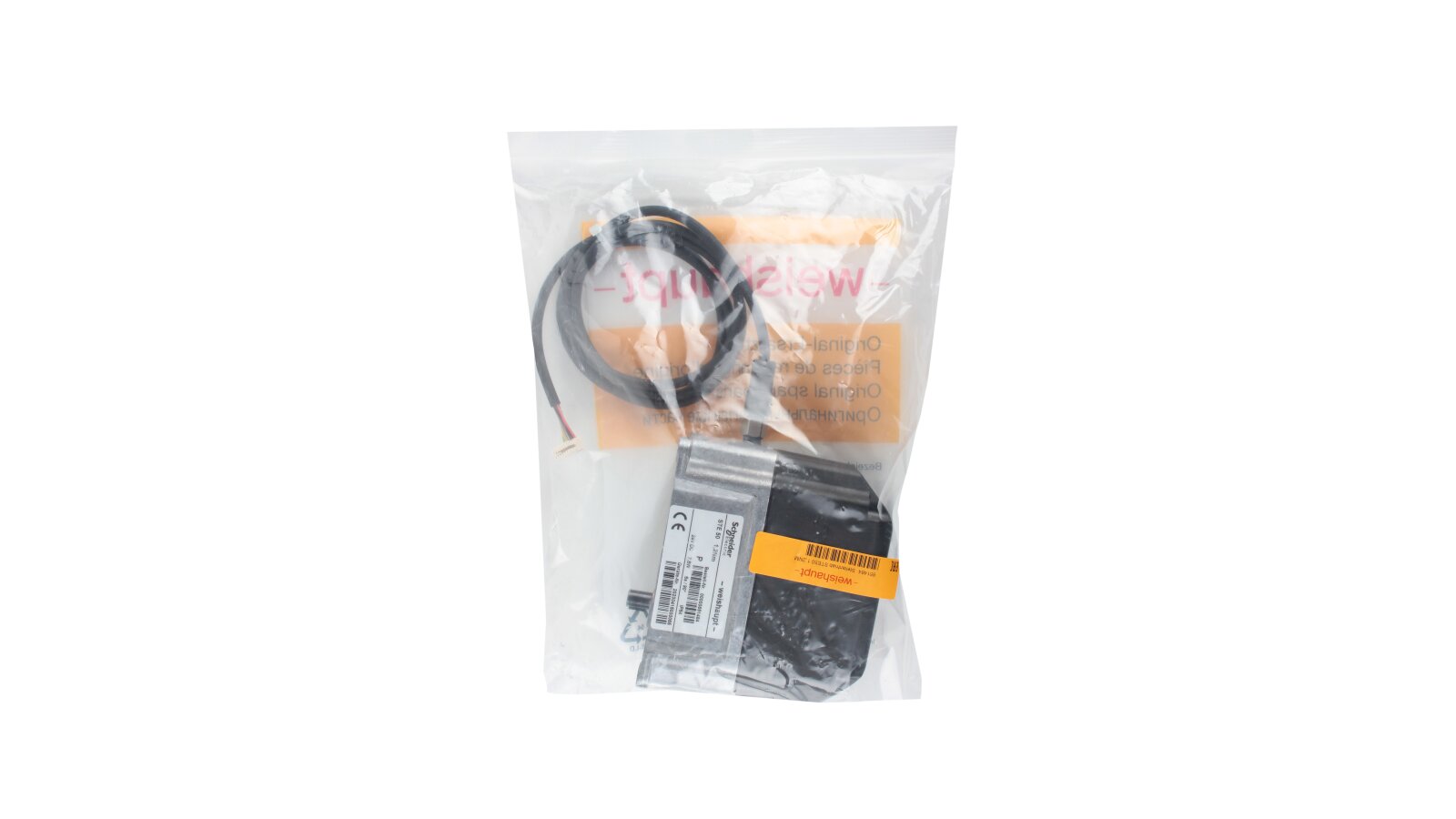

• The delivery set includes a detachable 1.5 m power cable.

Advantages:

• automatic damper control;

• precise switching;

• quick opening at 90º;

• high electrical protection class;

• economical energy consumption;

• low maintenance requirements.

You can consult with ANKAS on the selection of components for the burner and buy a Berger Lahr / Schneider Electric STE 50 1.2Nm GAS servo drive at a dealer price. The device is certified, comes with the necessary permits and a long-term manufacturer's warranty.
