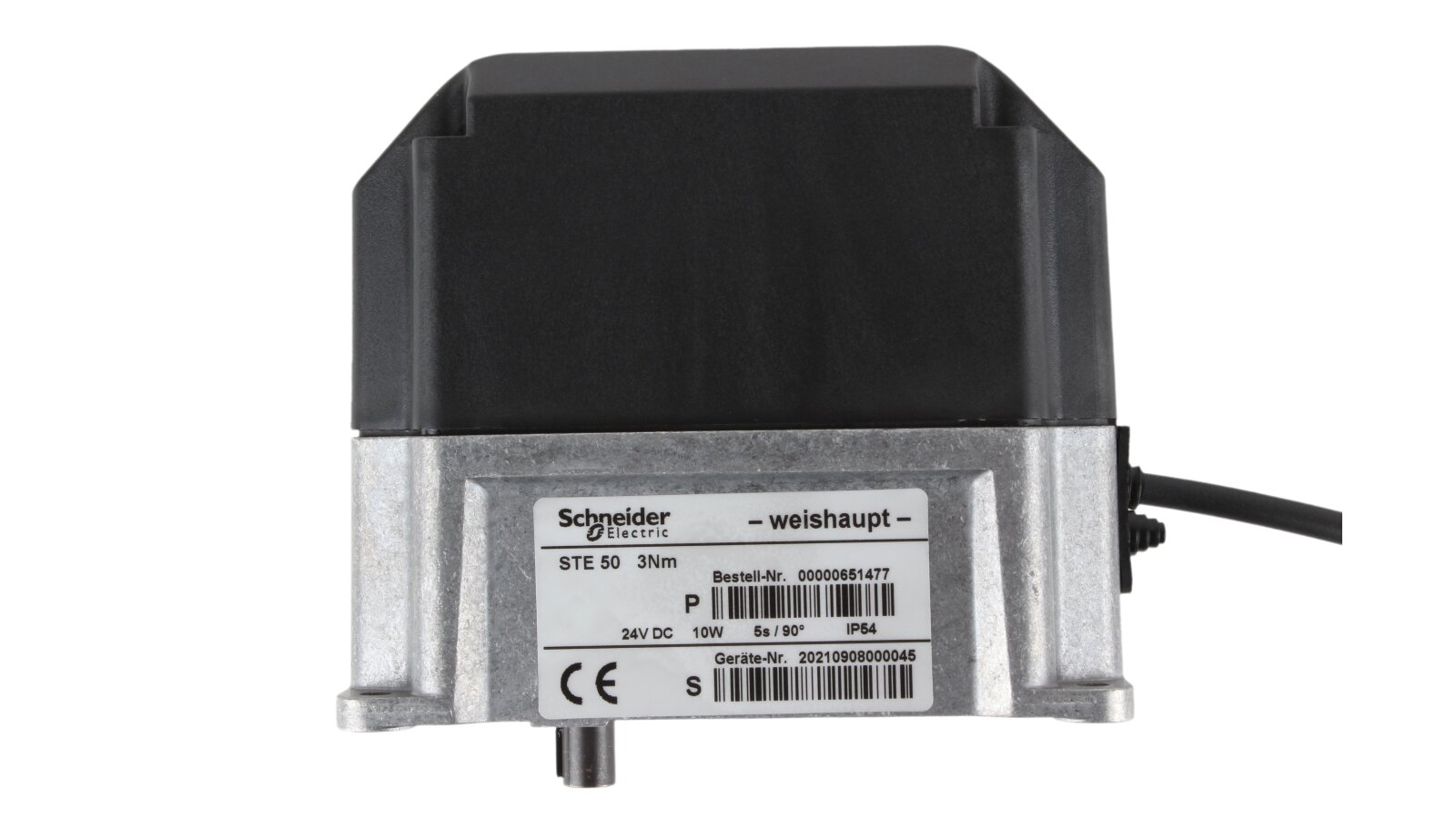

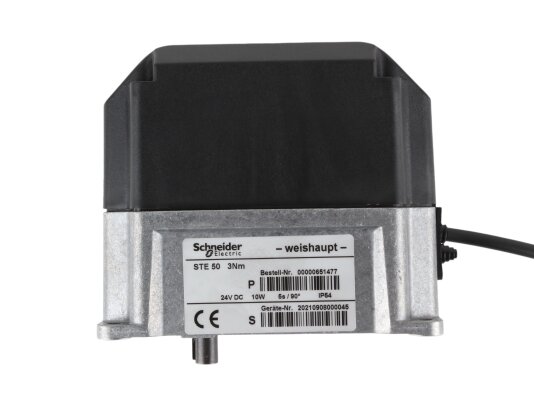

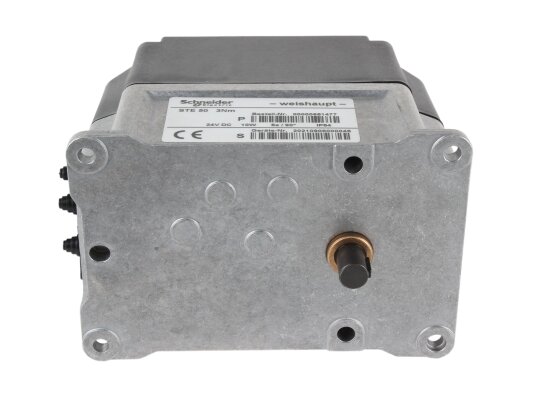

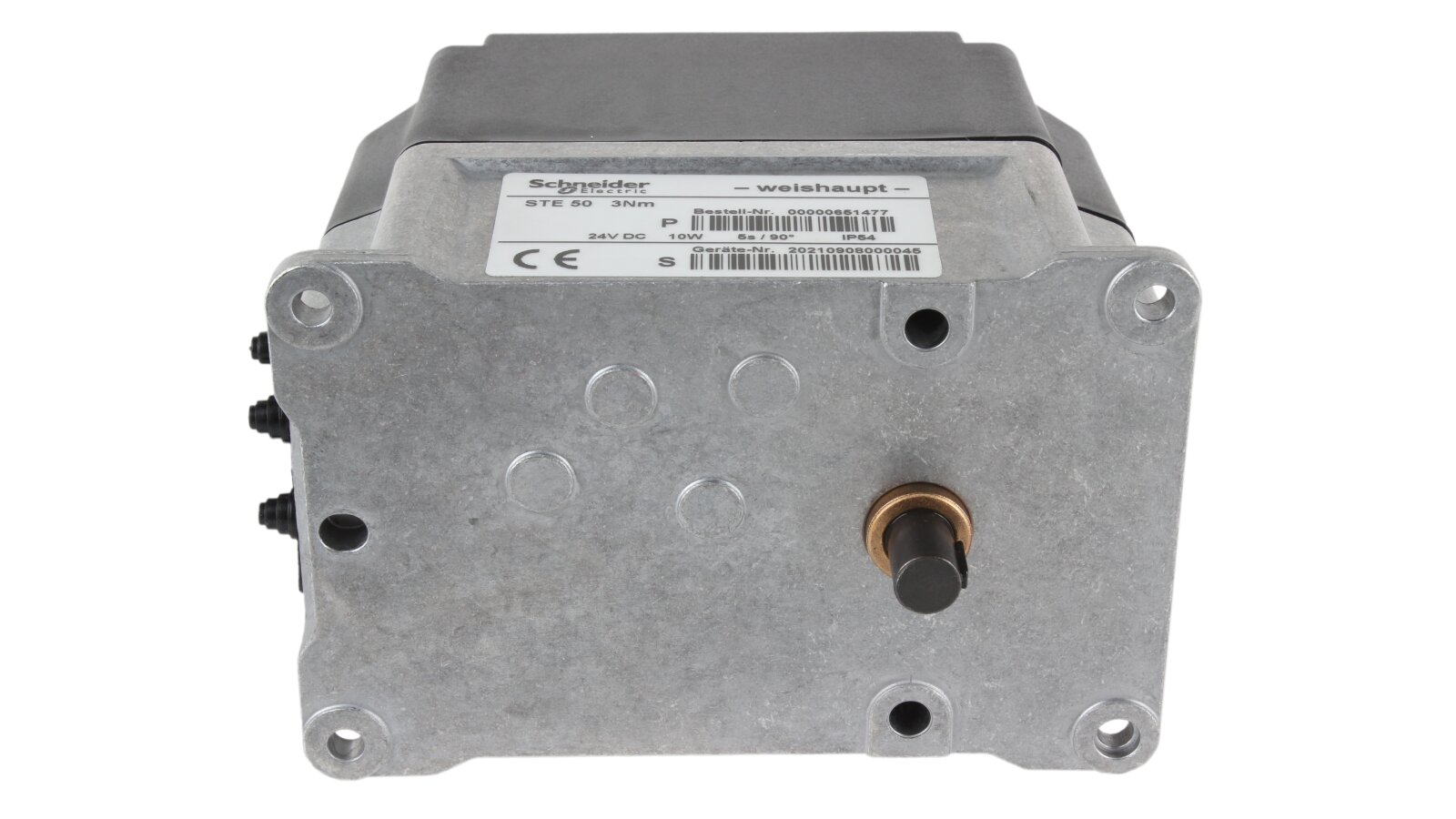

Actuator Weishaupt / Schneider Electric STE 50 3 Nm

The Weishaupt / Schneider Electric STE 50 3 Nm actuator is manufactured to complete Weishaupt brand heating equipment. It performs the task of positioning the air damper, creating the necessary proportion of air and fuel during combustion. The use of the actuator ensures increased heat transfer of the boiler and fuel savings. Supplied complete with a power cable.

Main characteristics:

• Electrical connection: 24V DC.

• Duration of rotation by 90º: 5 sec.

• Torque: 3 Nm.

• Power consumption: 10 W.

• Operating temperature: 0…+50 °С.

• External protection class: IP 54.

Design and features:

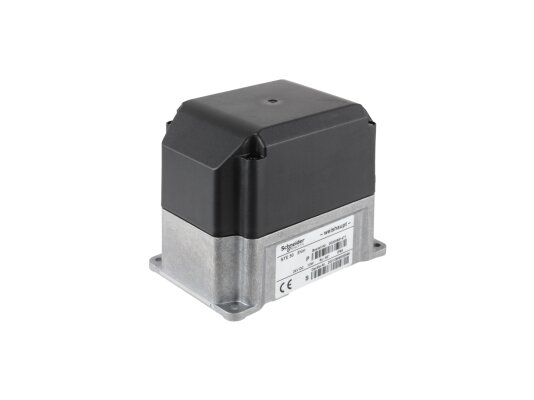

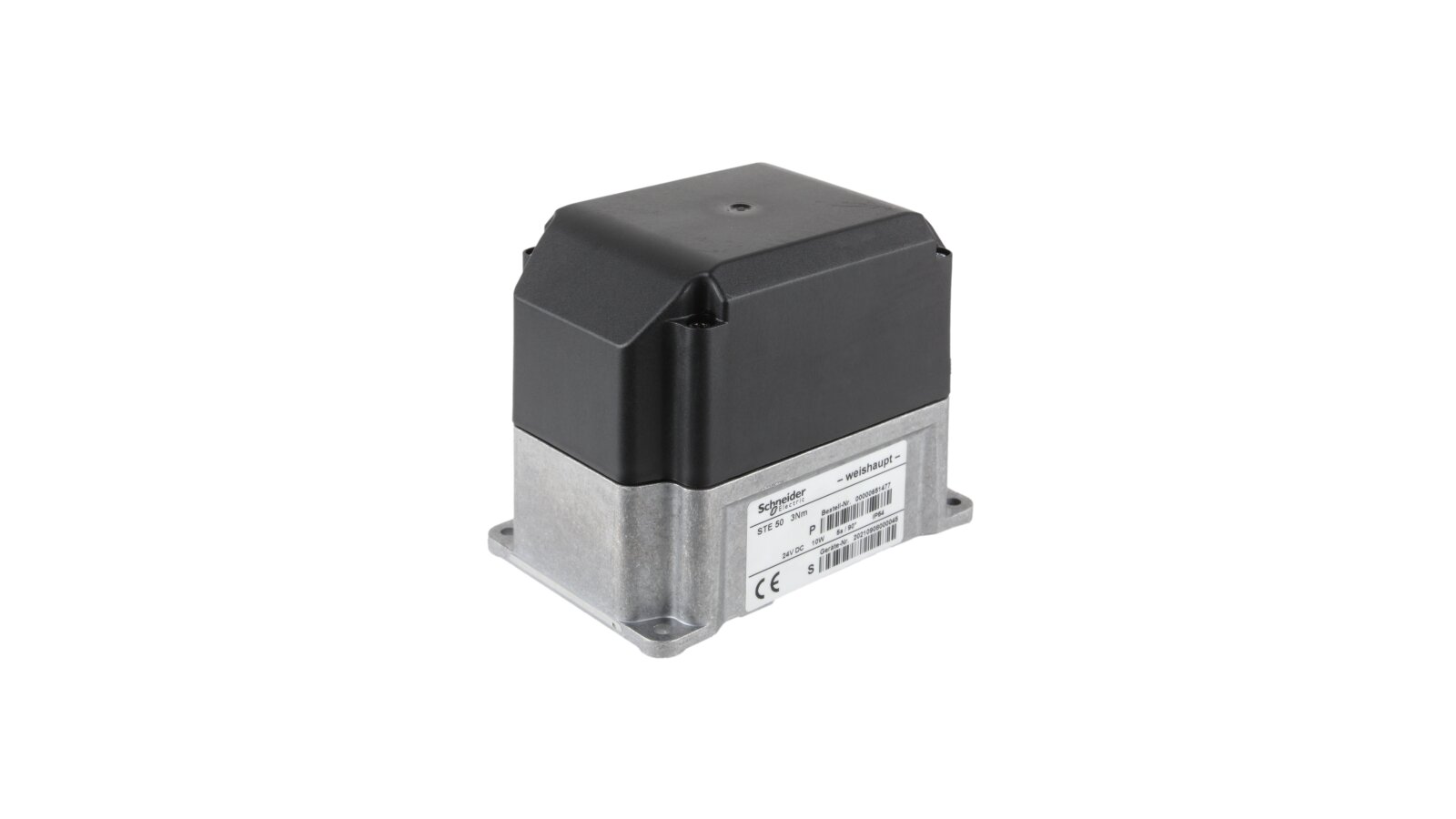

• The Weishaupt / Schneider Electric STE 50 3 Nm actuator is supplied in a compact polymer housing. The casing complies with the IP54 standard, does not allow dust and moisture particles to enter the device, and is resistant to temperature effects and accidental impacts.

• The drive operates under the control of a furnace automatic control unit or an electronic manager. The damper position changes automatically.

• The damper position can be set using analog signals. The adjustment range is from 0 to 90°. It is possible to set operating parameters using limit switches.

• The working unit is undemanding in maintenance, treated with high-quality long-lasting grease.

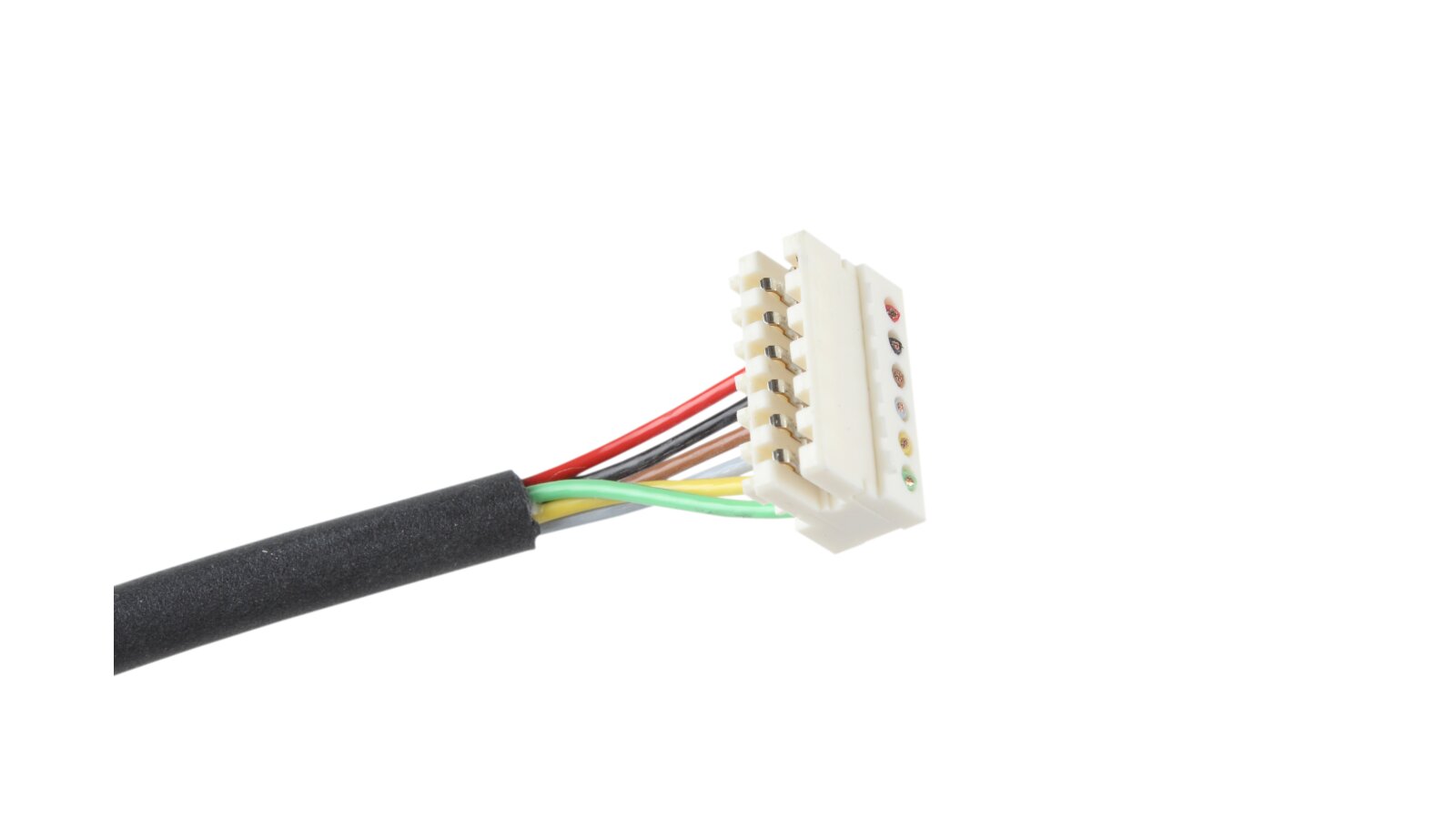

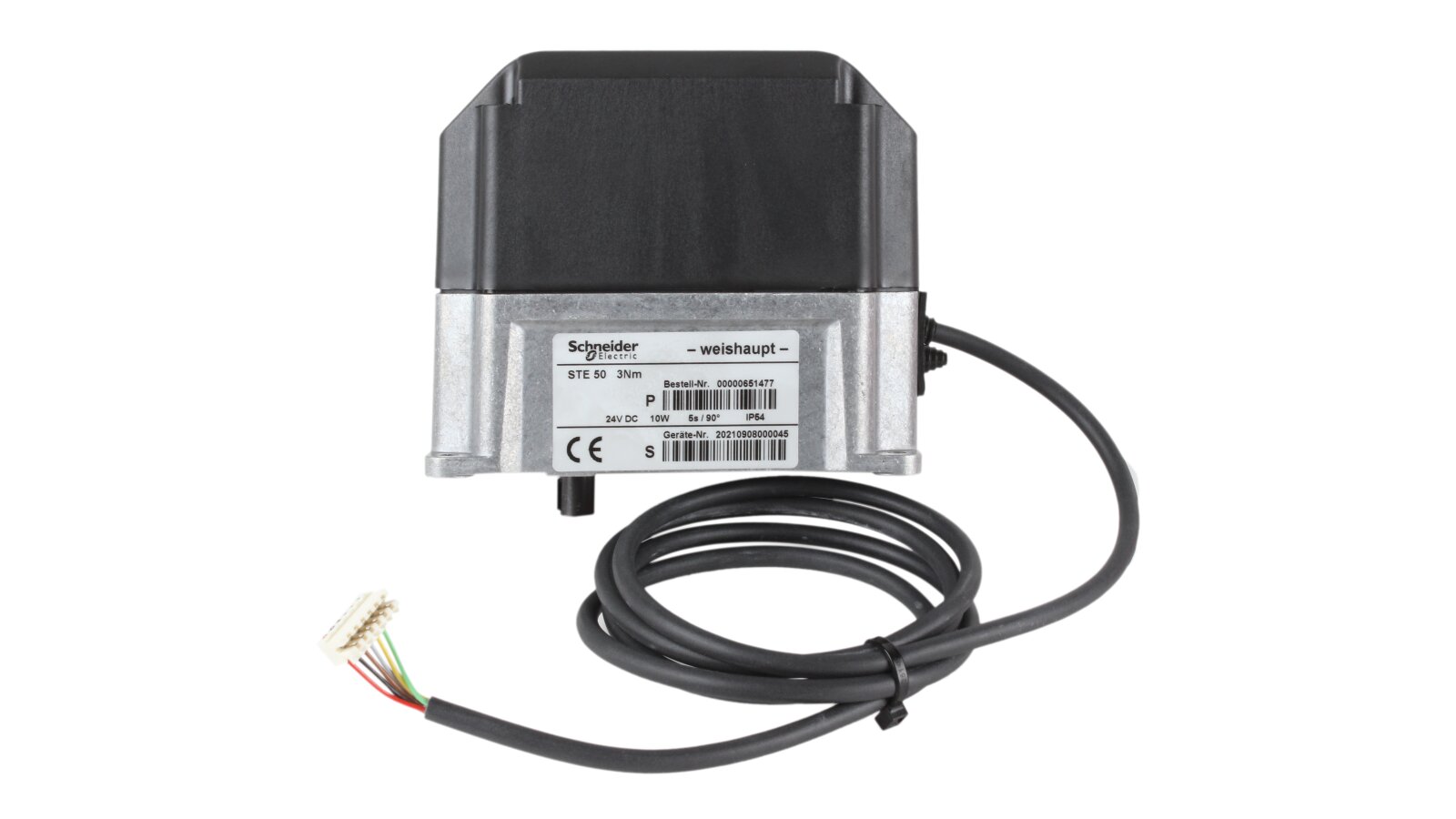

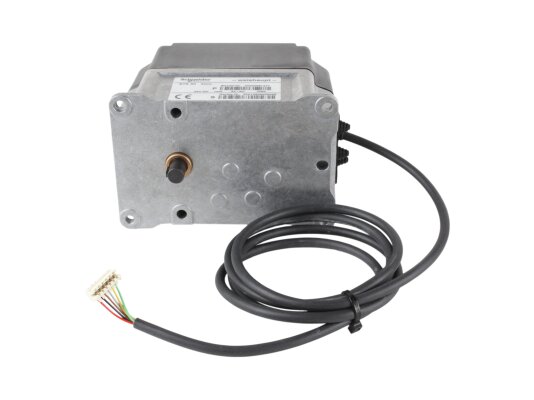

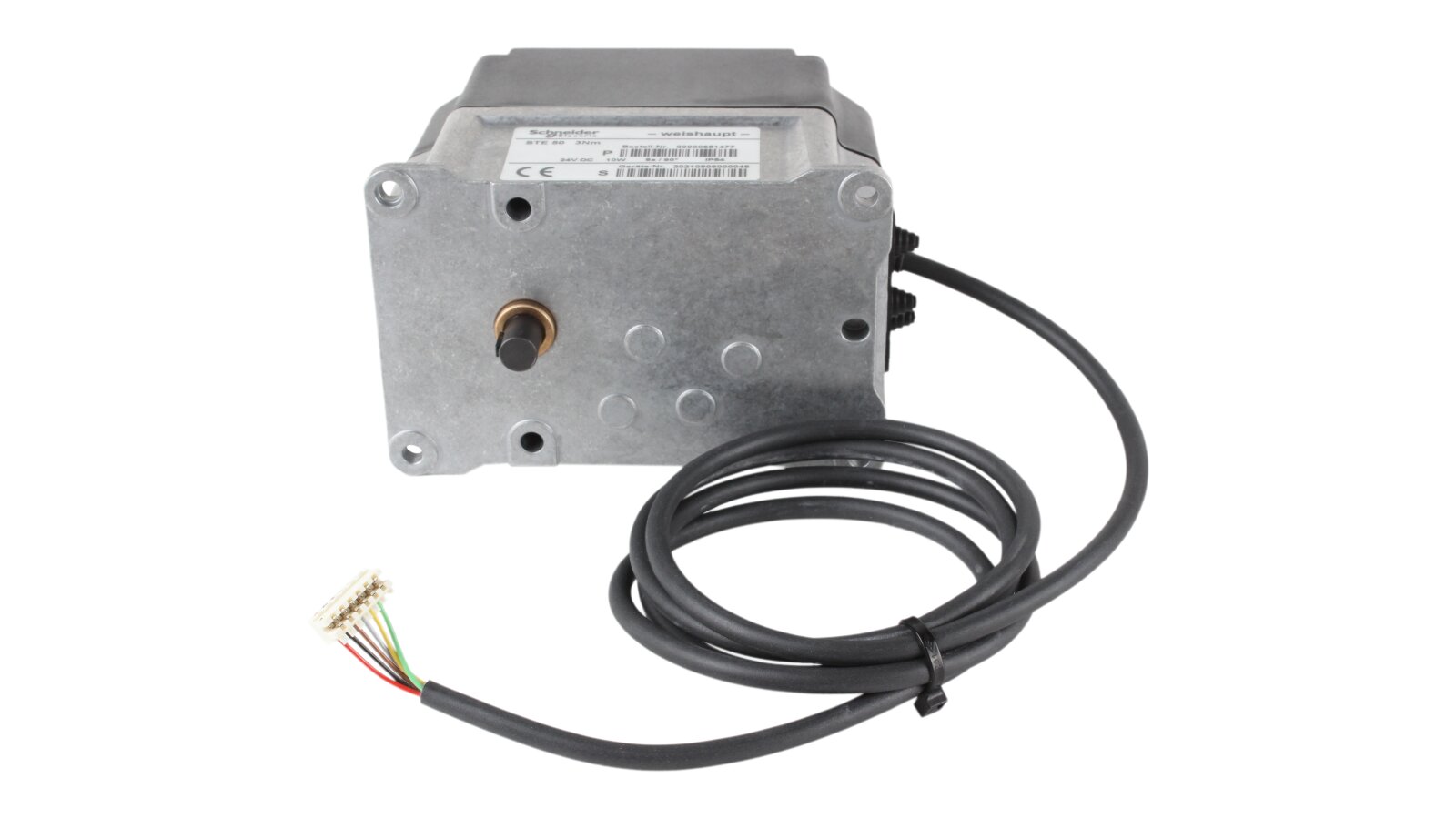

• The kit includes a 1.5 m long power cable.

Advantages:

• automatic control;

• high switching accuracy;

• quick opening at 90º;

• protection from dust and moisture according to the IP54 standard;

• cost-effectiveness.
