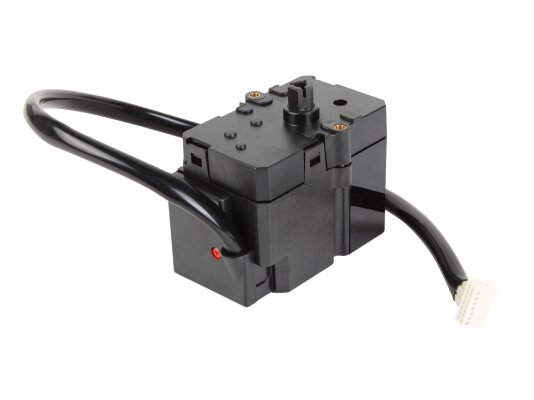

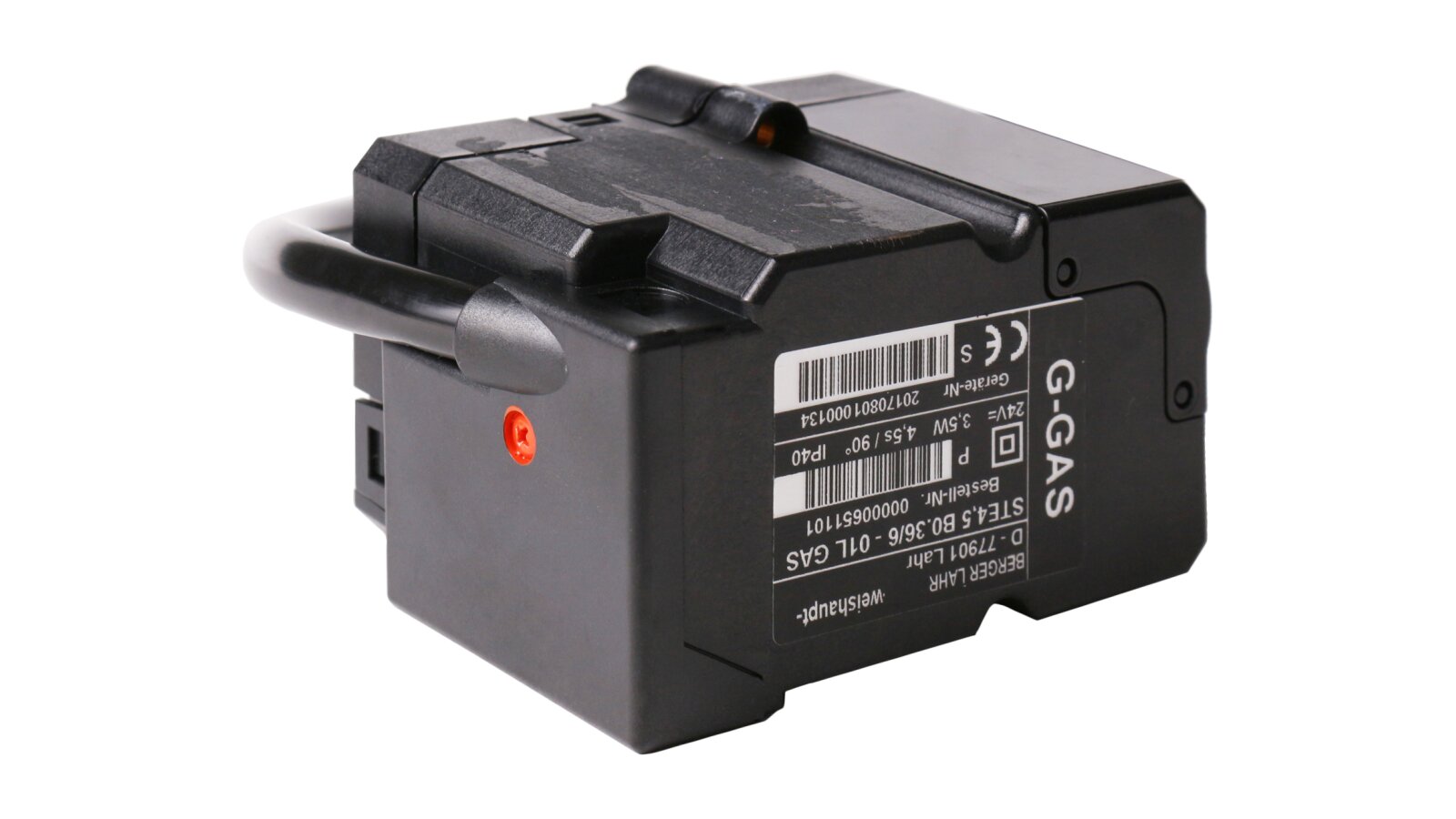

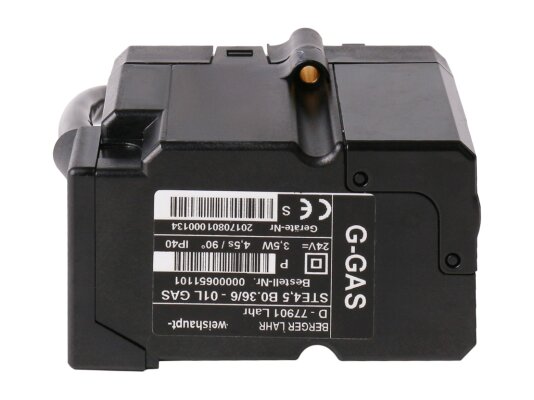

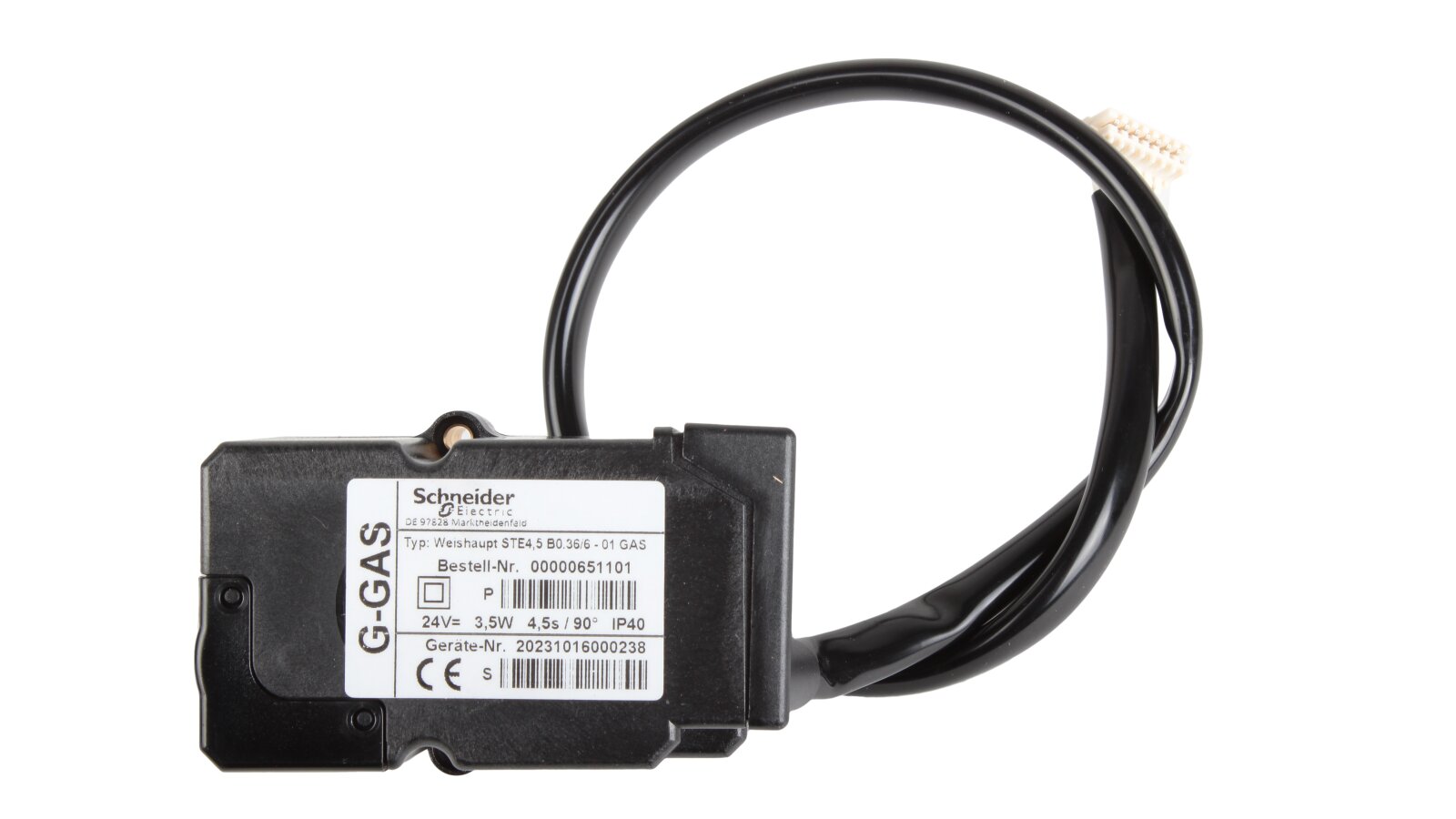

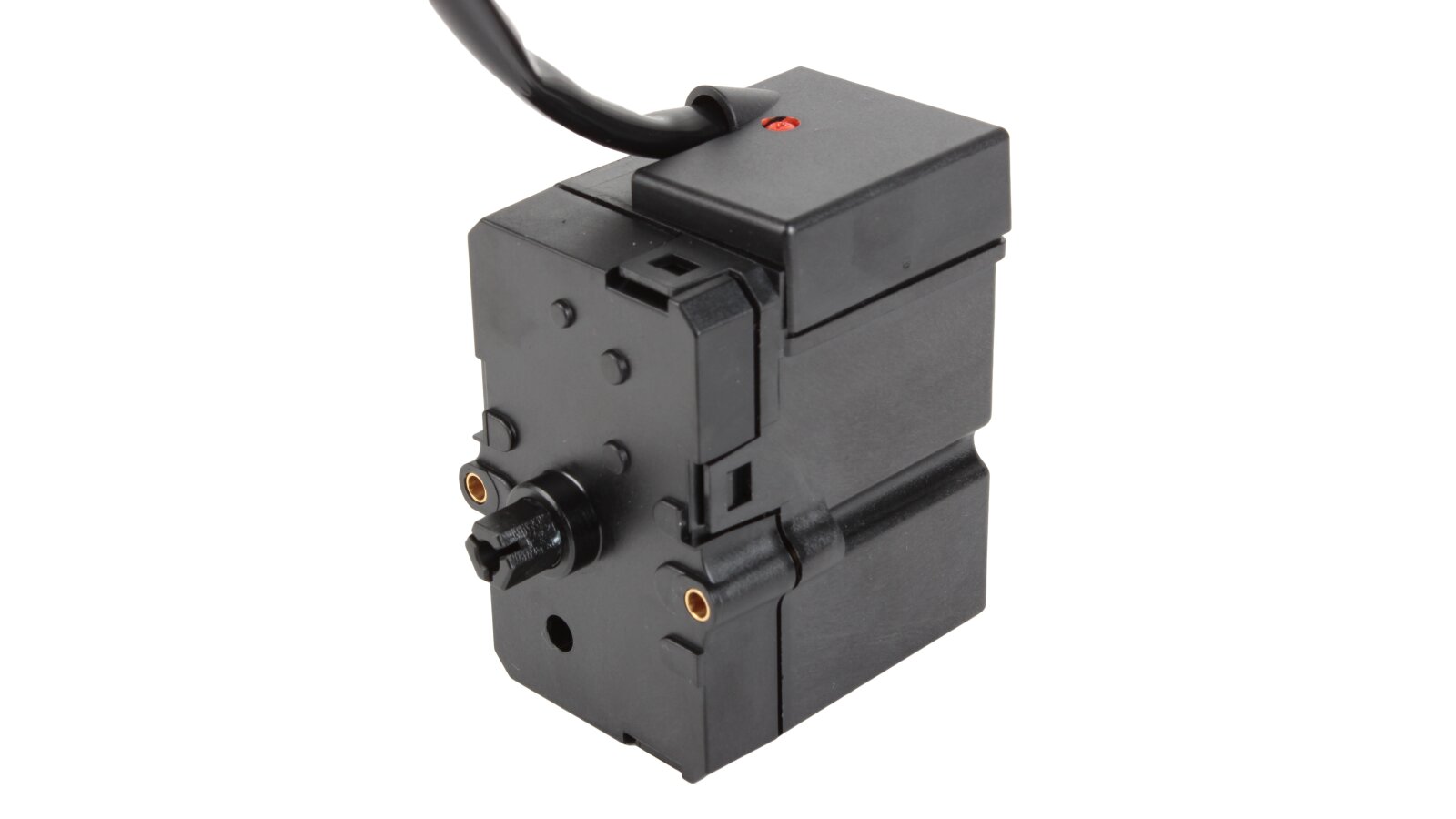

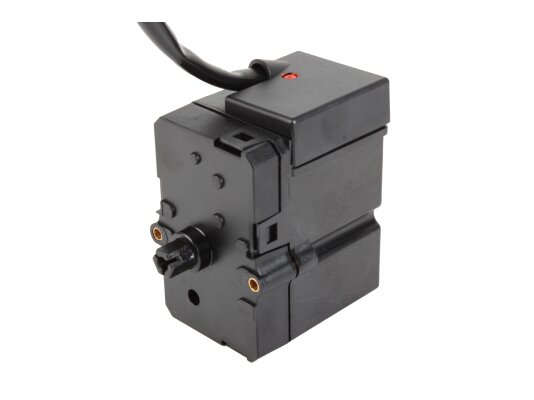

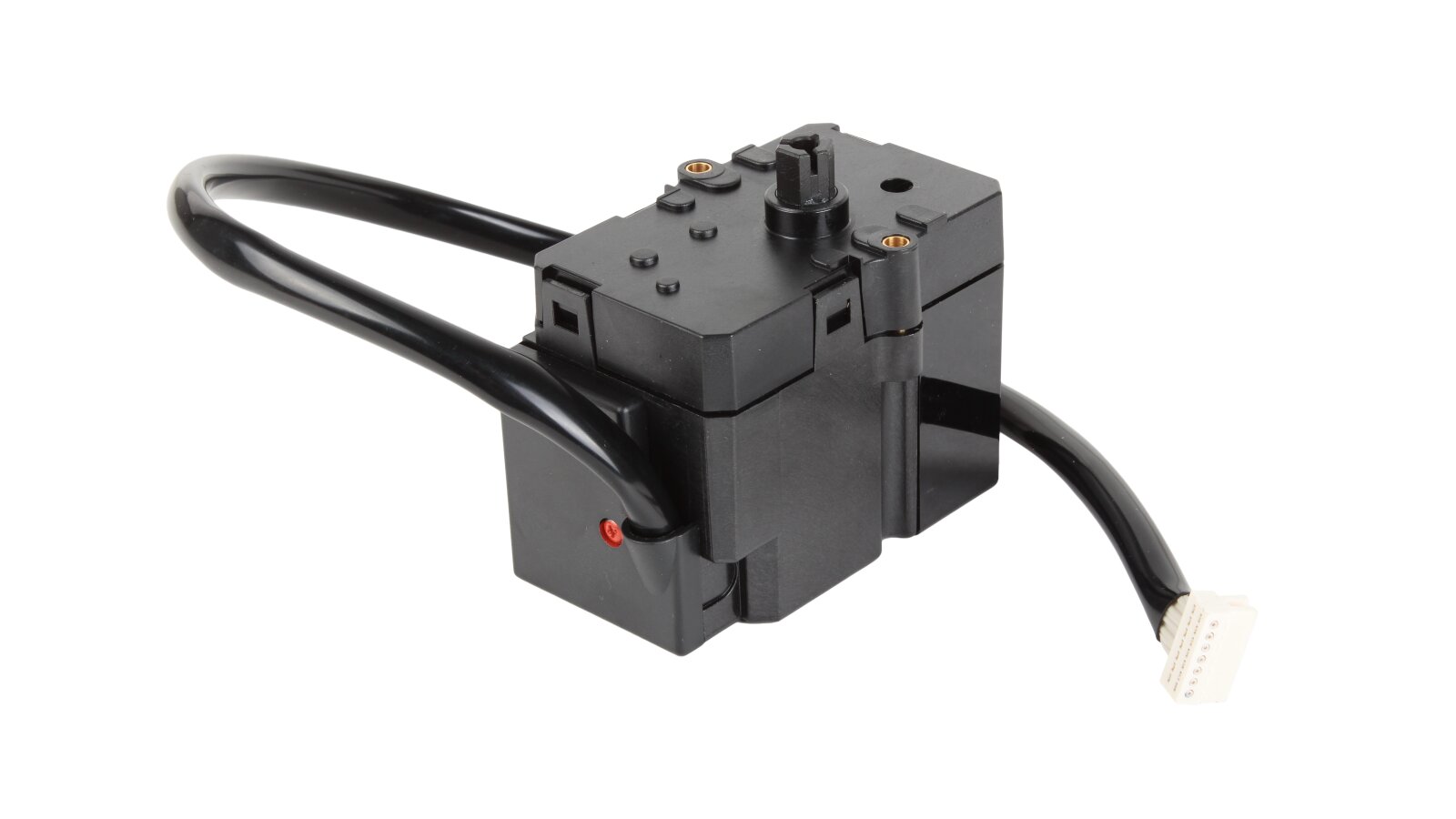

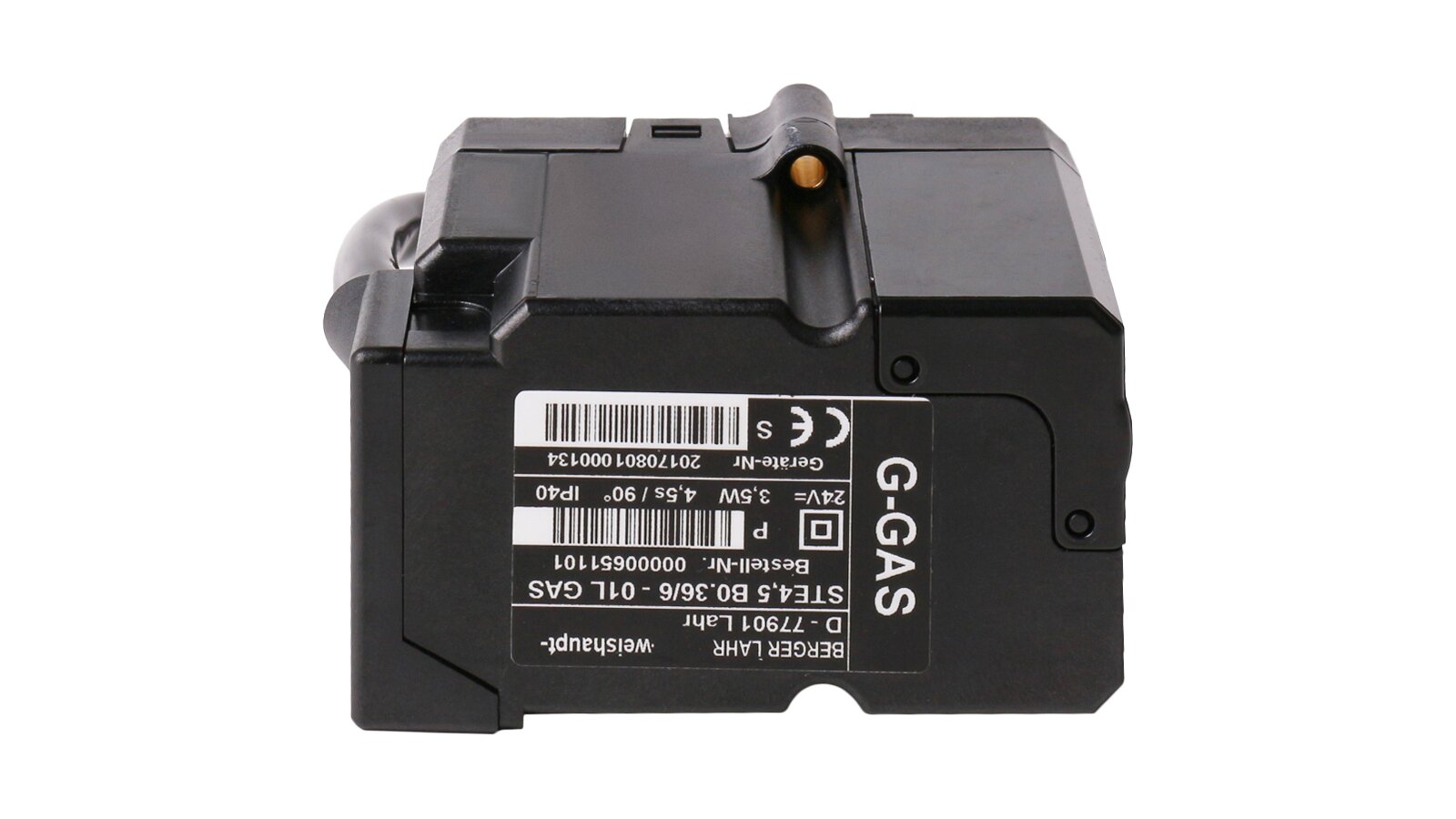

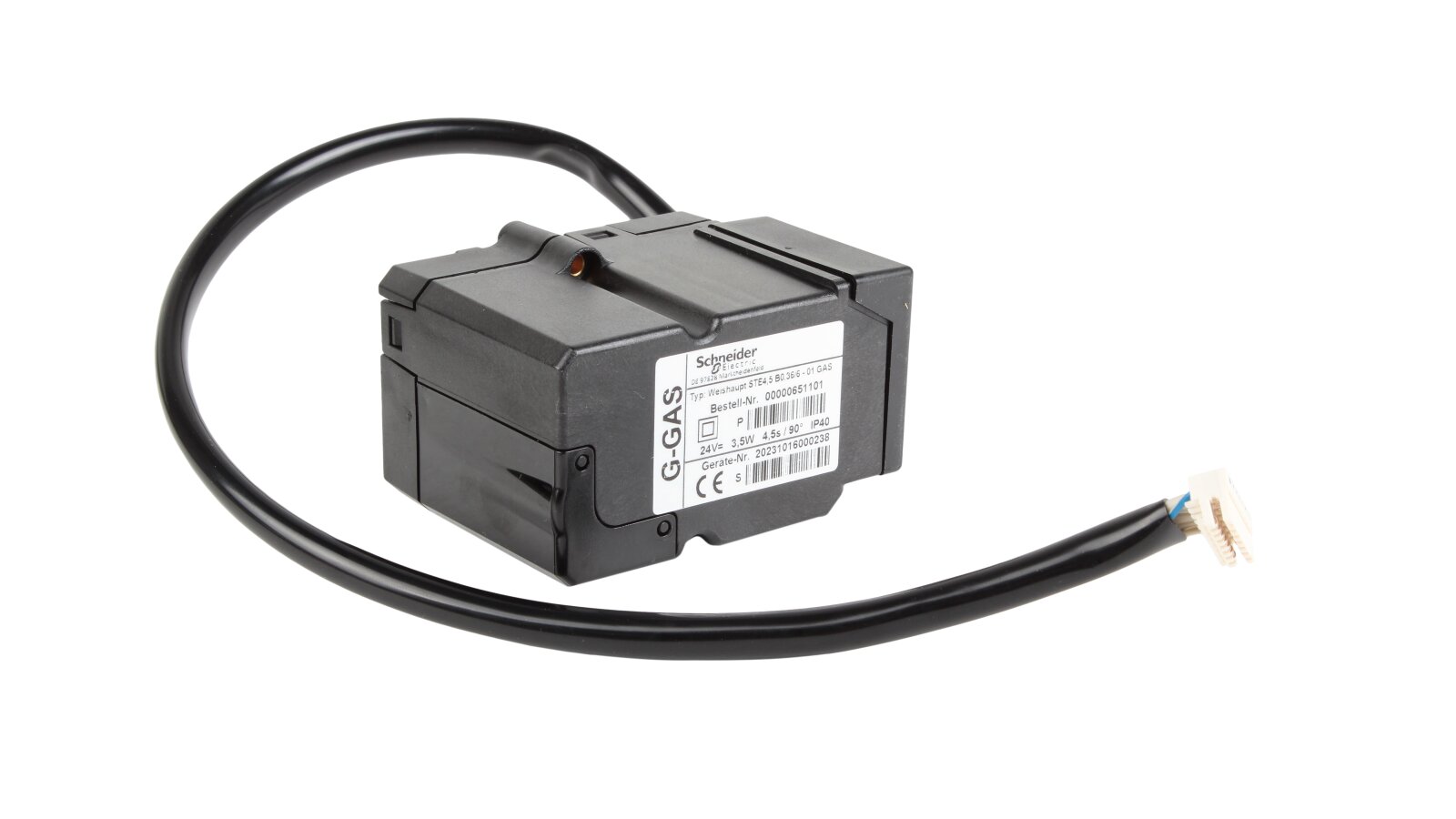

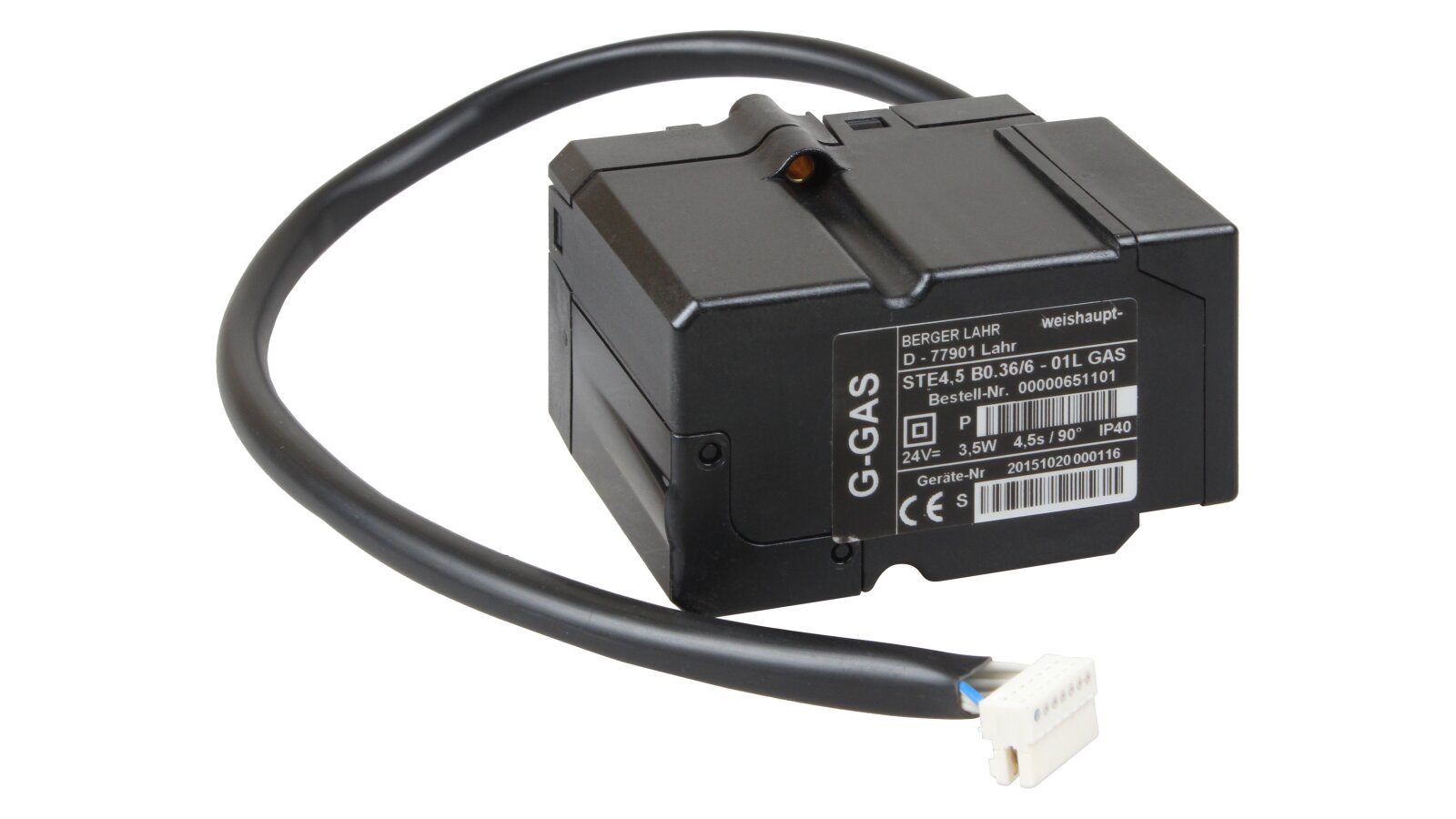

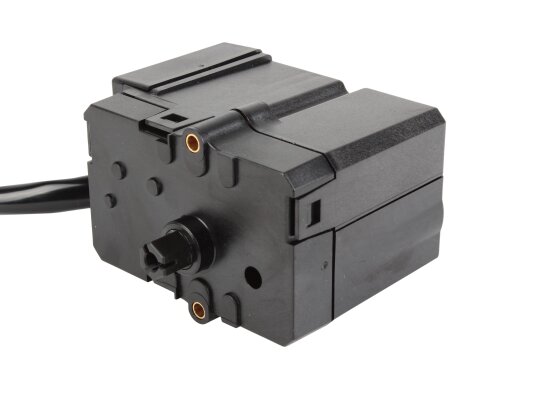

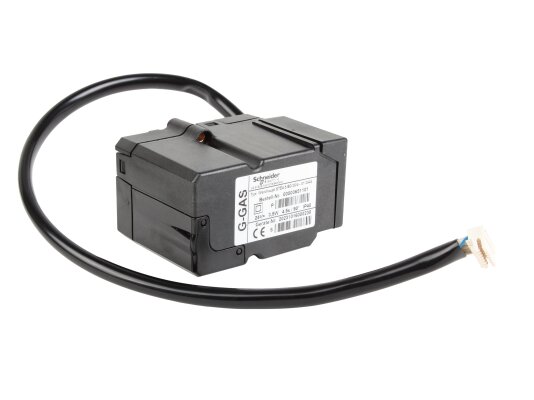

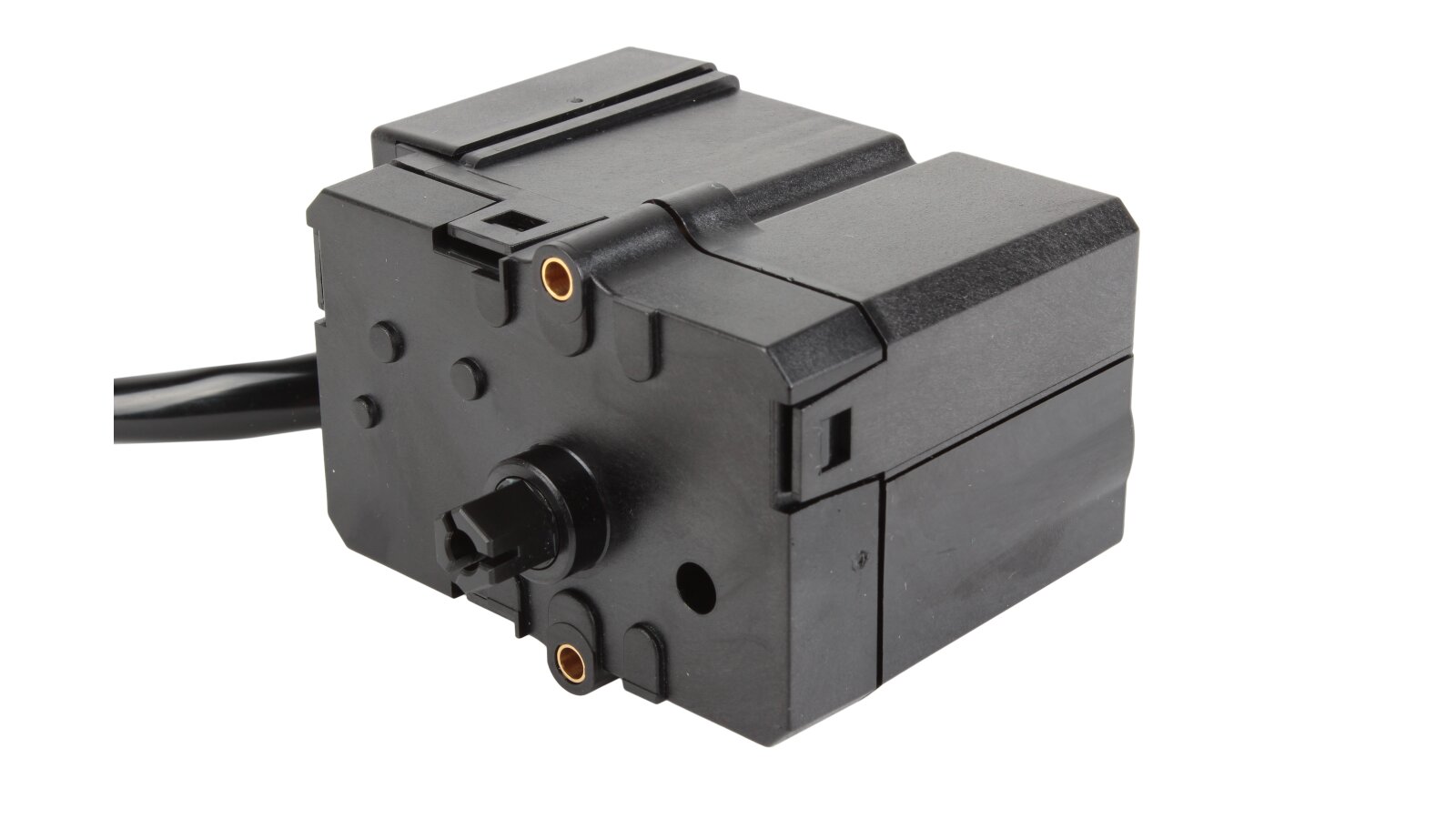

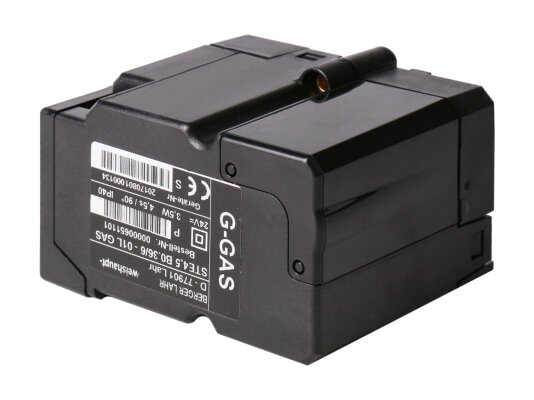

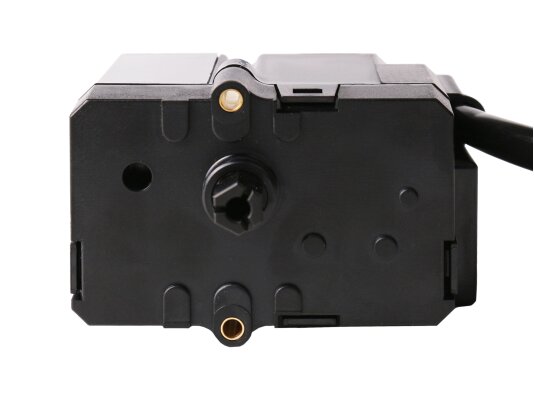

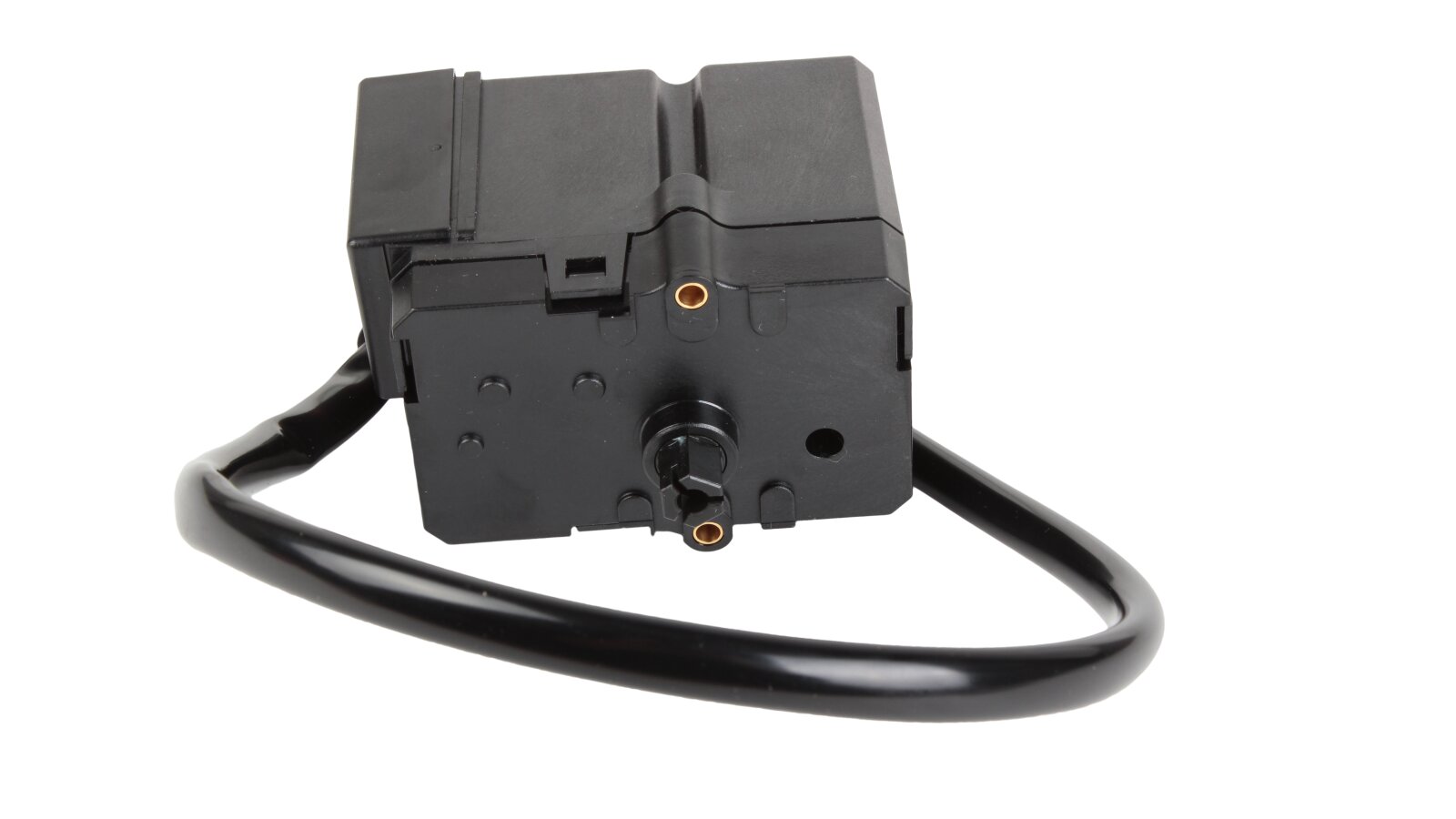

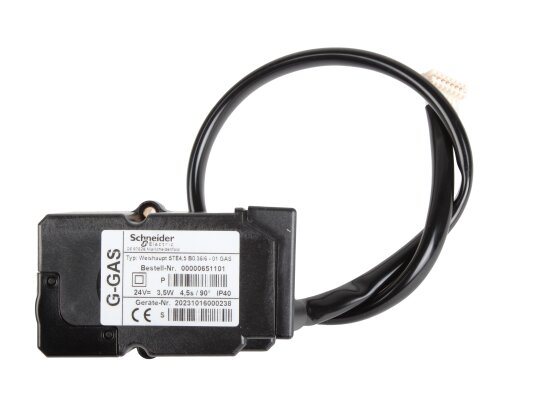

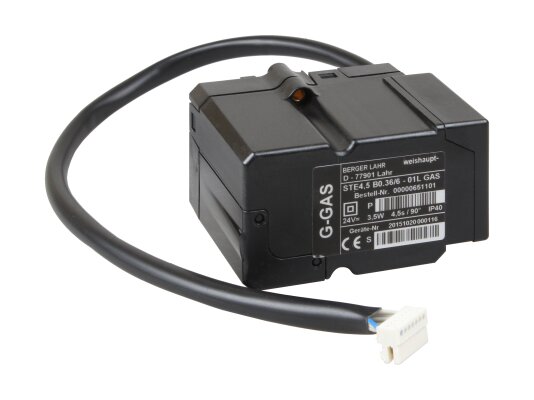

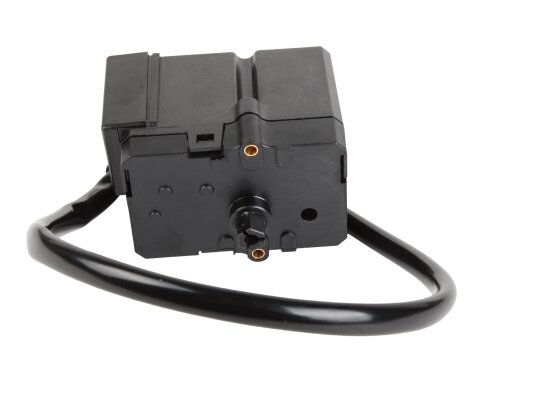

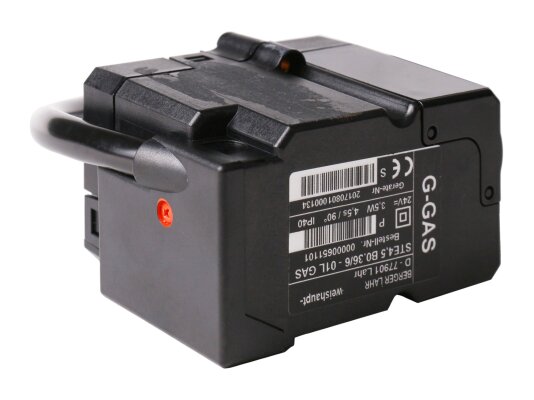

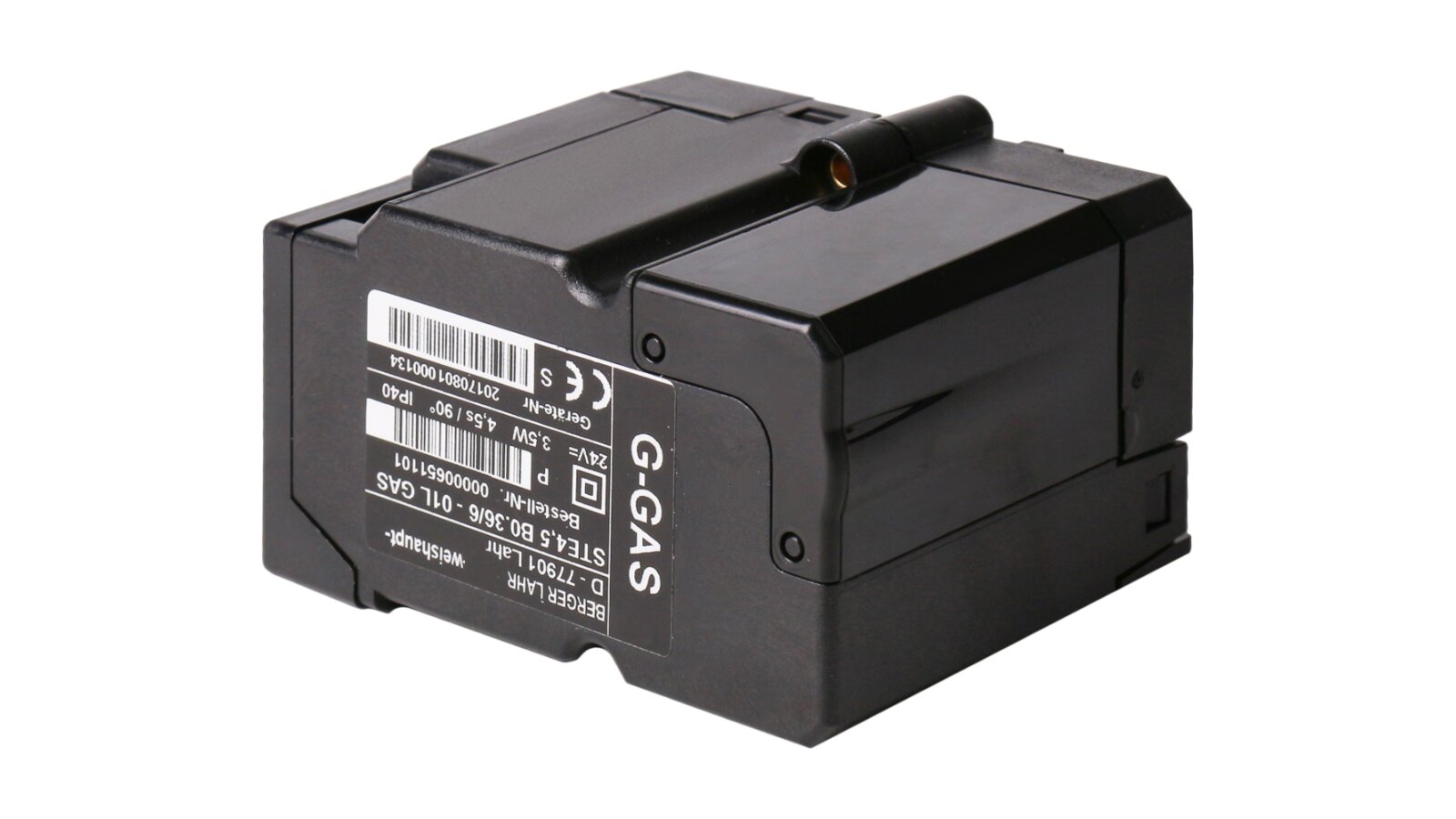

Stepping motor gas Weishaupt / Schneider Electric STE4.5 B0.36/6 - 01L GAS

Servo drive Berger Lahr / Schneider Electric STE4,5 B0.36/6 - 01L GAS – version for Weishaupt burner burning gaseous fuel. Provides regulation of the gas damper during ignition and operation of the burner device. The model has an extended package.

Characteristics:

• Power supply: 24V DC.

• Duration of opening at an angle of 90º: 4.5 sec.

• Ambient temperature: 0…+50 °С.

• Casing protection: class IP 40.

Design and features:

• The servo drive has electronic control, which is carried out by the burner control or electronic manager in automatic mode. The rotation angle can be selected using analog signals. The setting range is from 0 to 90°.

• The working range can be provided using limit switches.

• The servo drive has a compact design. The plastic housing protects the internal parts from mechanical and temperature influences. The housing is made according to the protection class IP 40.

• The working mechanism does not require maintenance, as it is treated with a permanent lubricant.

• Berger Lahr provides high switching accuracy and excellent dynamic characteristics.

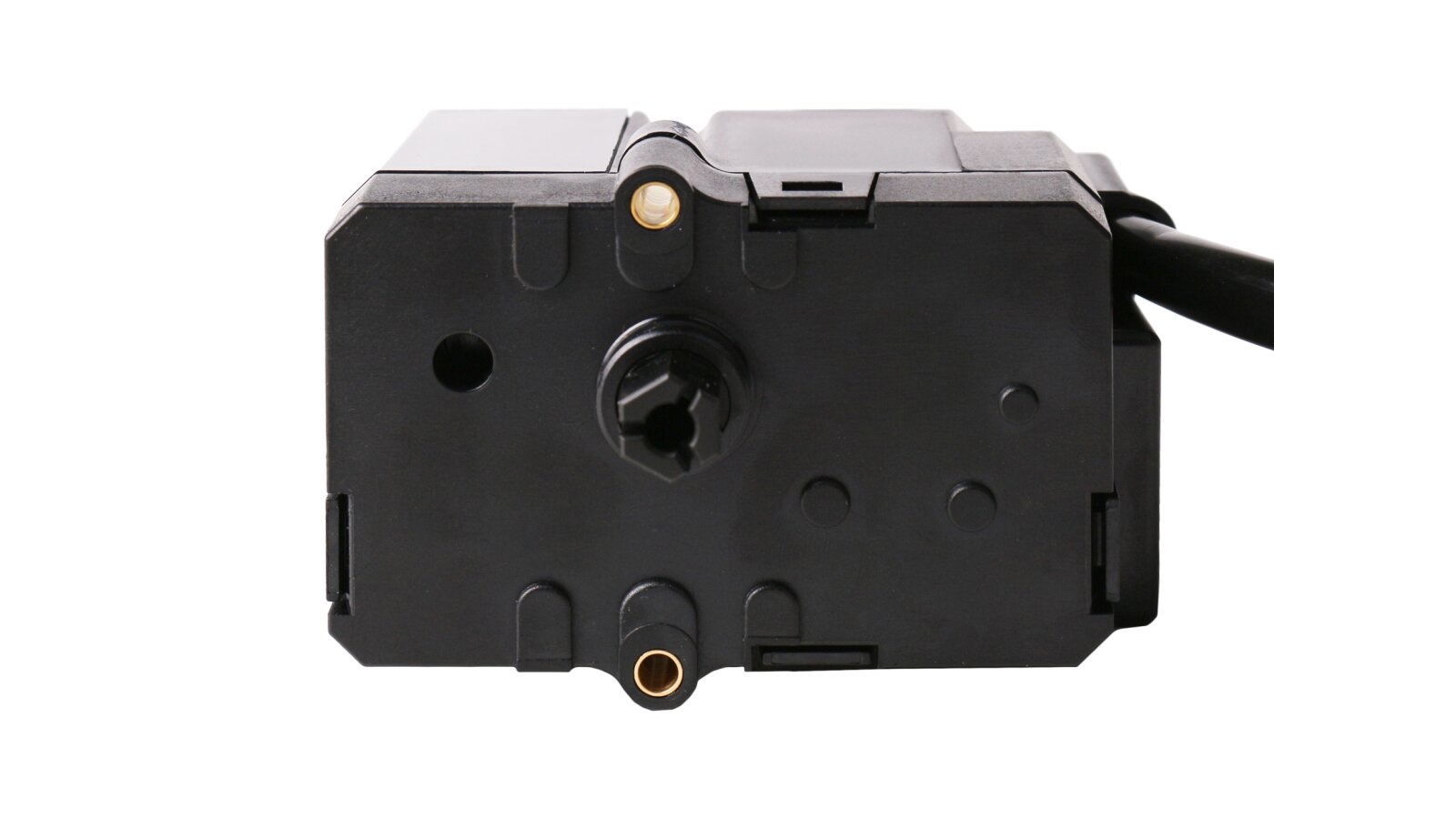

• The drive shaft rotates counterclockwise (L). The speed of rotation does not depend on the load and surges in the power grid.

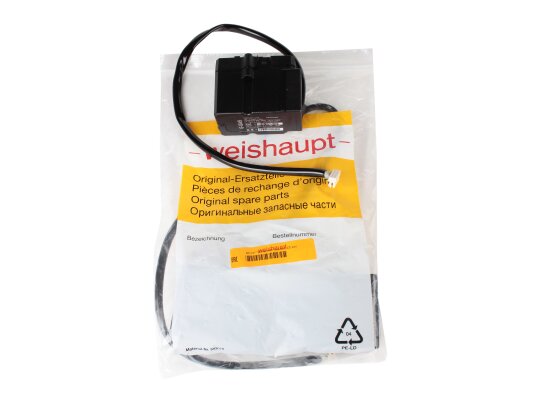

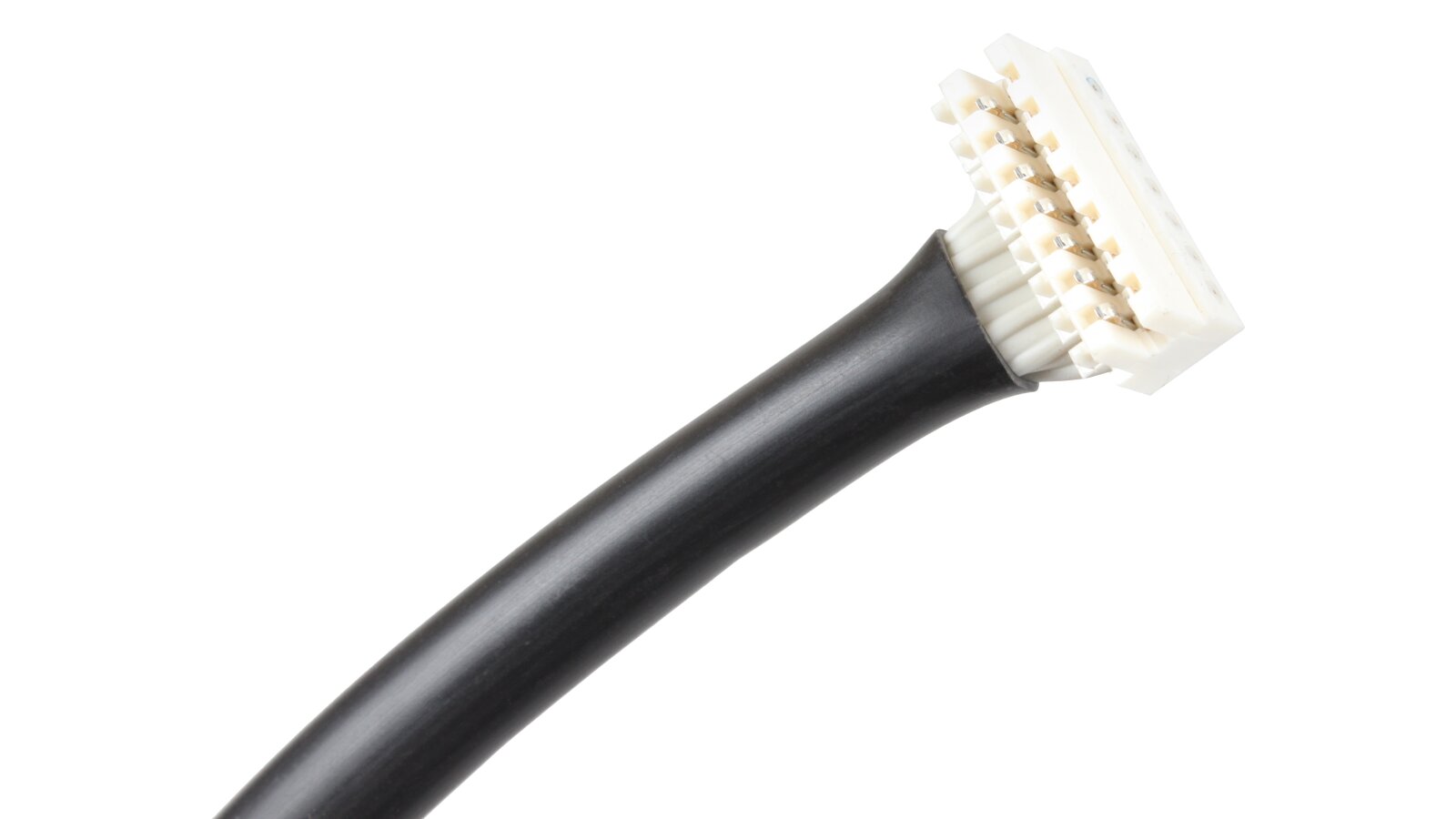

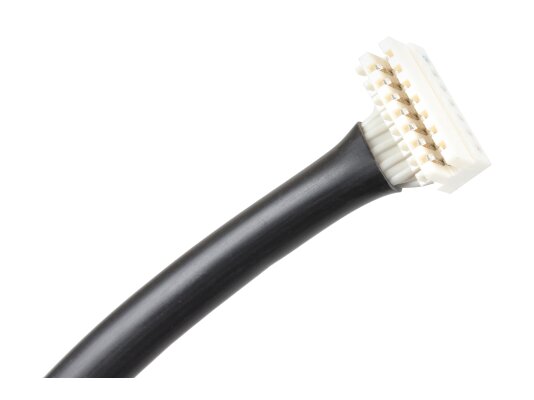

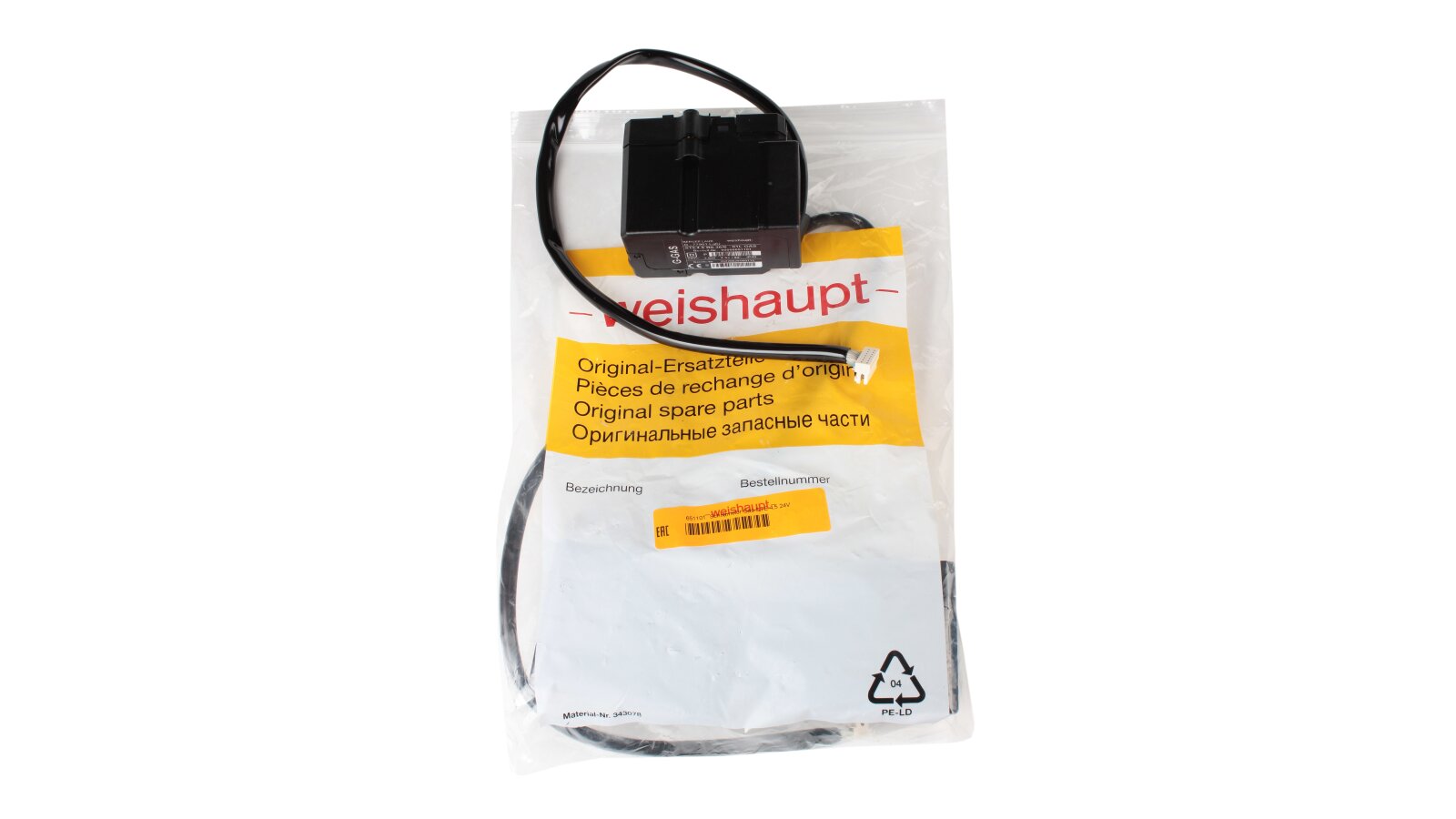

• The delivery set includes a 50 cm power cable and a plug.

In the online store "ANKAS" you can get advice from a competent specialist and buy a Berger Lahr / Schneider Electric STE4.5 B0.36 / 6 - 01L GAS servo drive at a dealer price.
