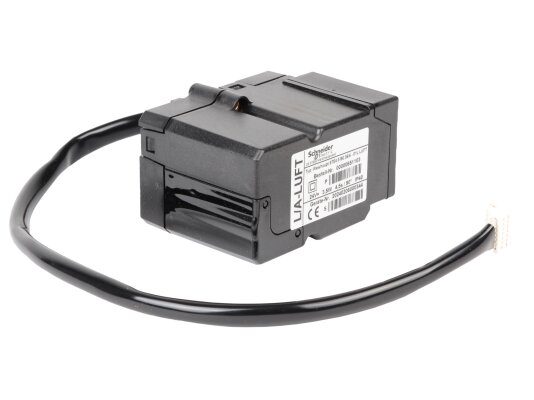

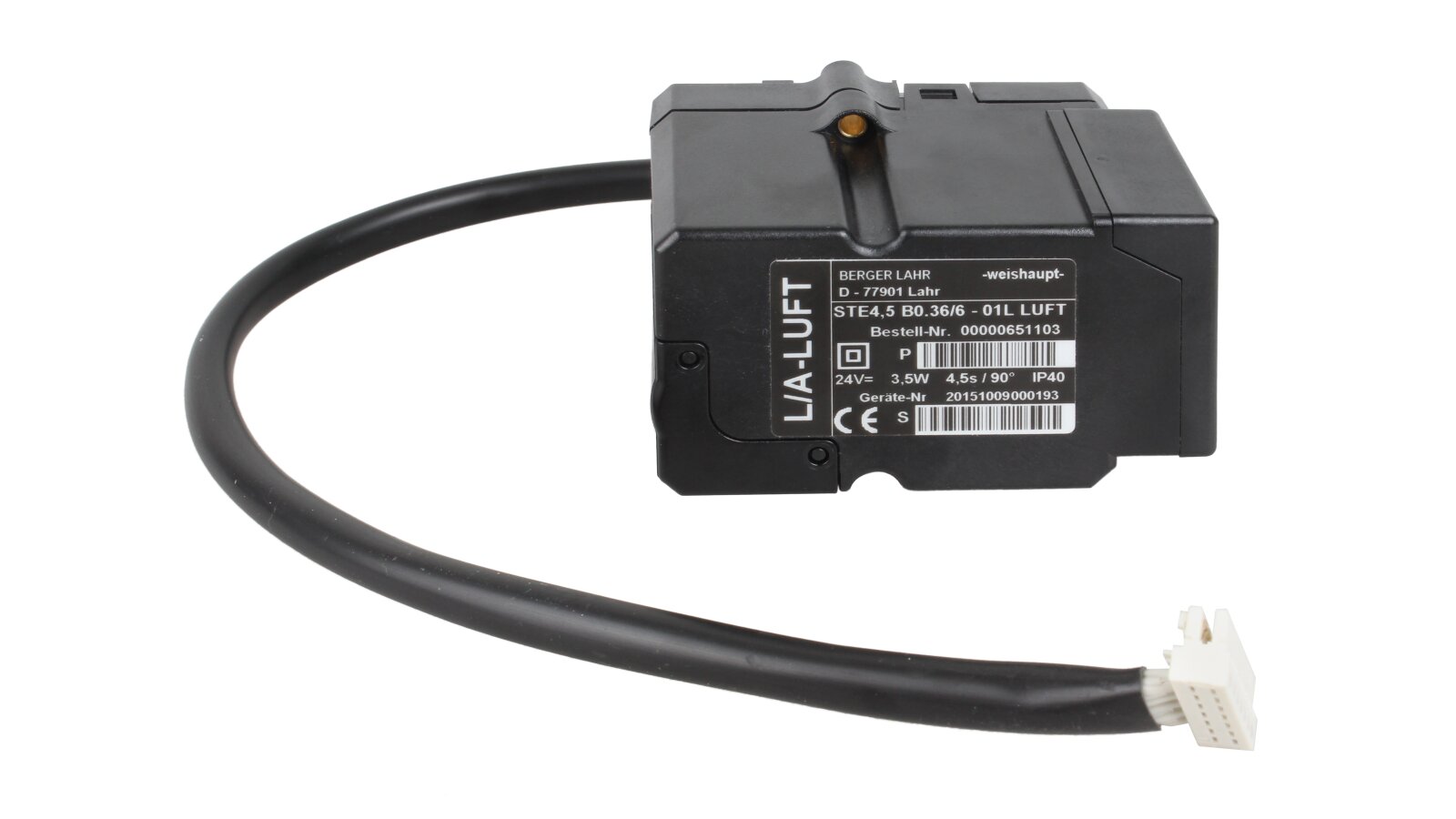

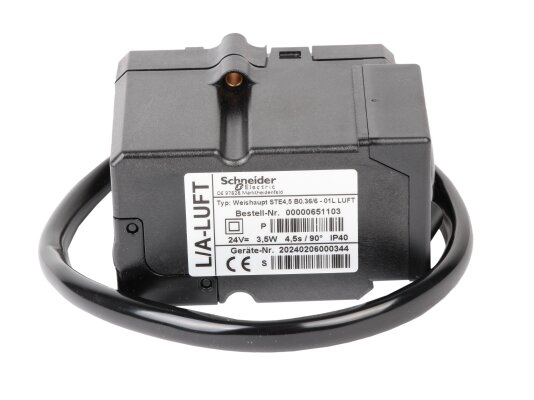

Stepping motor air Weishaupt / Schneider Electric STE4.5 B0.36/6 - 01L LUFT

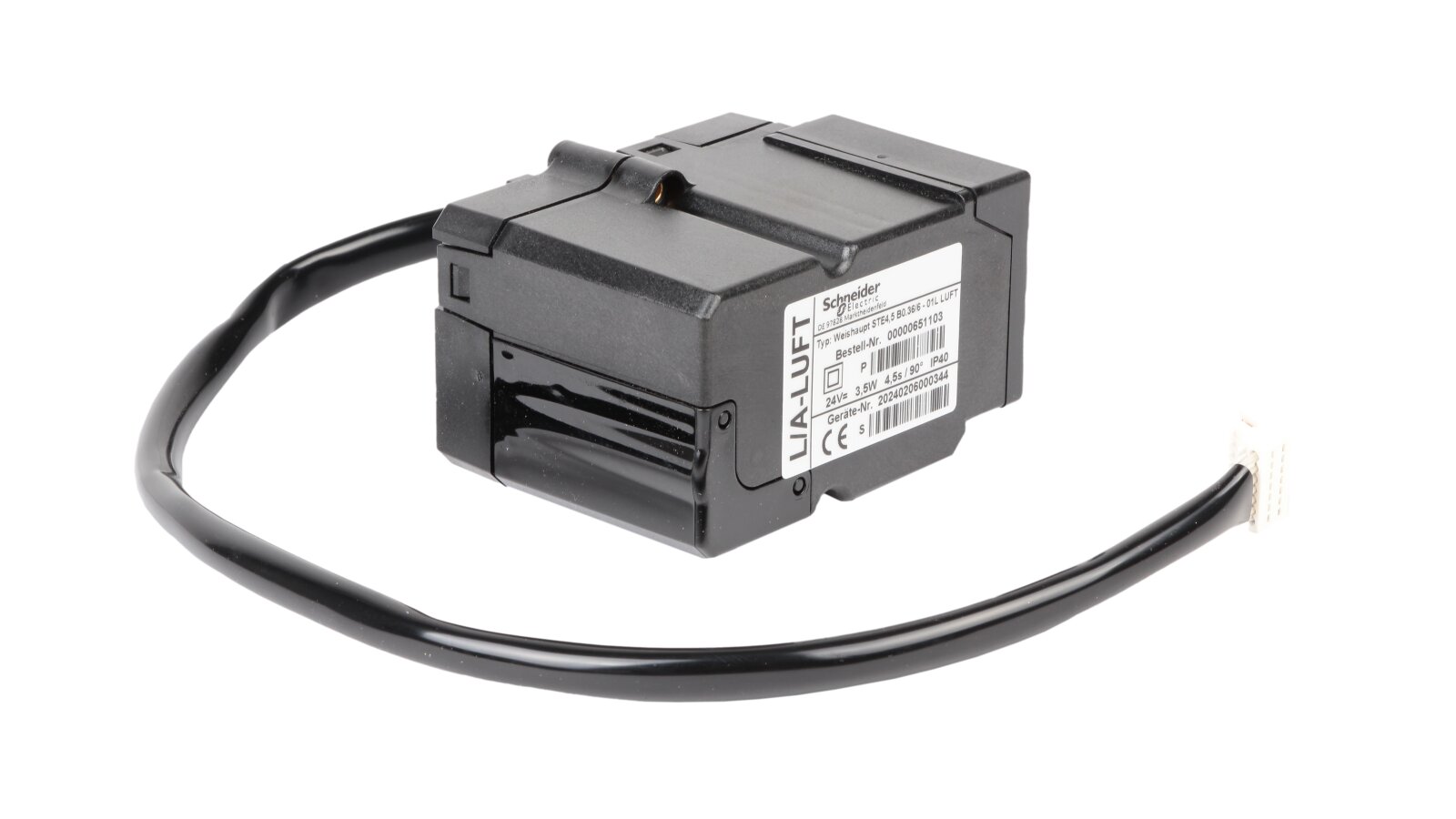

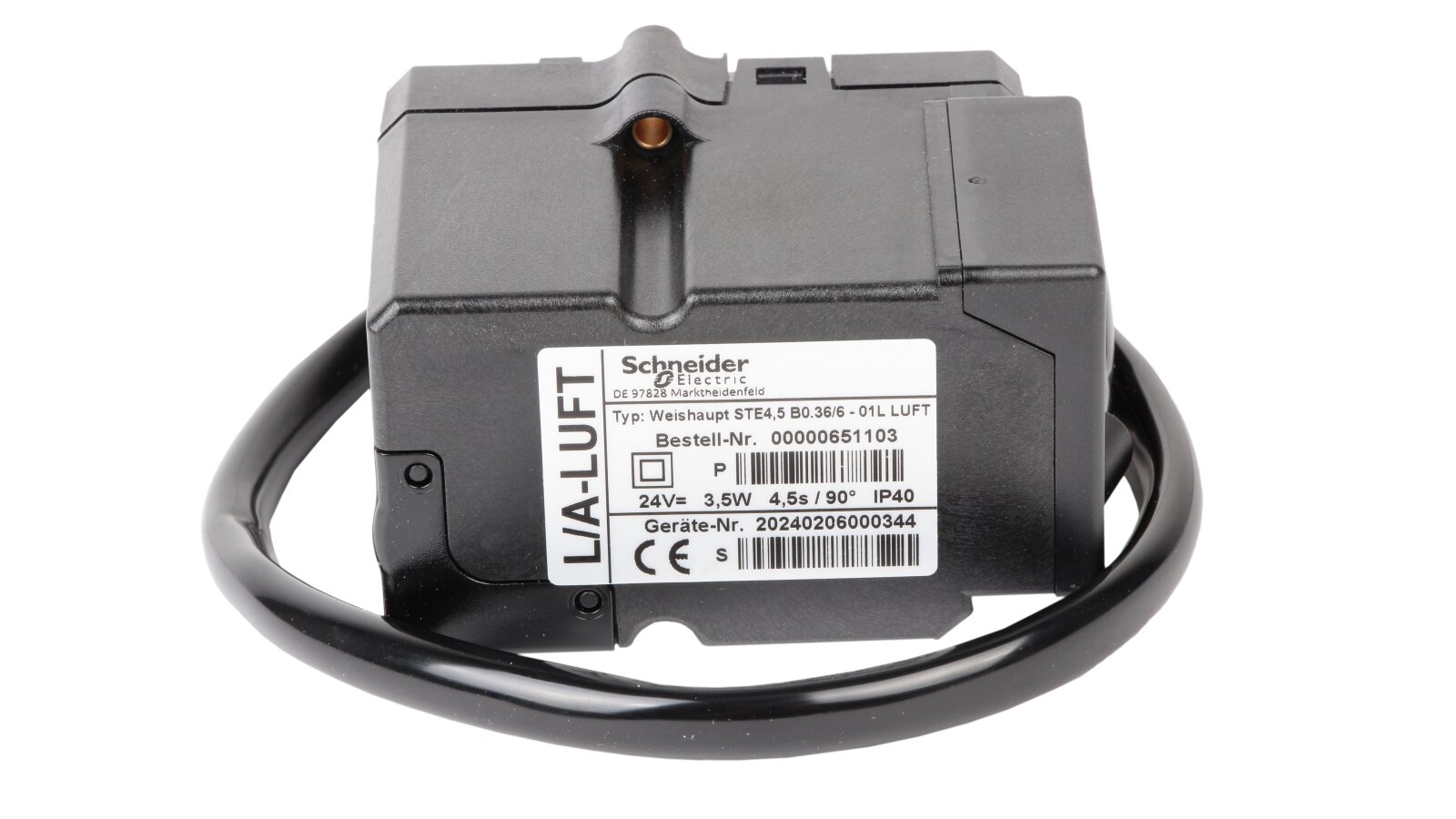

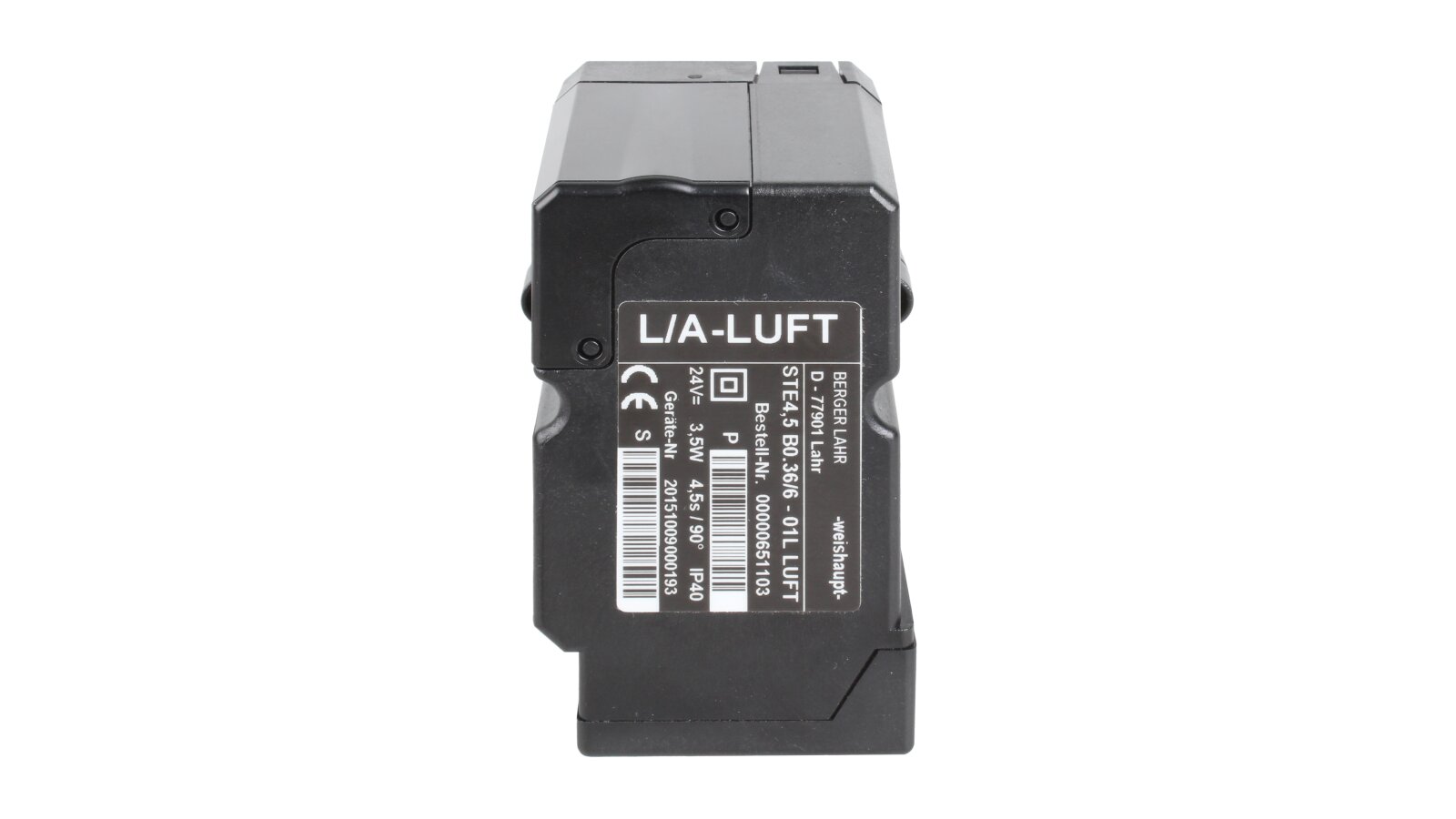

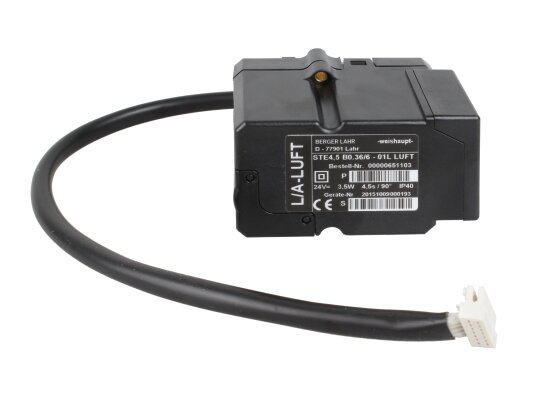

The Berger Lahr / Schneider Electric STE4,5 B0.36/6 - 01L LUFT servo drive is designed to equip Weishaupt oil and gas burners. It rotates the air damper, regulating the air flow to create the optimal proportion of the fuel mixture. The model features electronic control and an extended package.

Operating parameters:

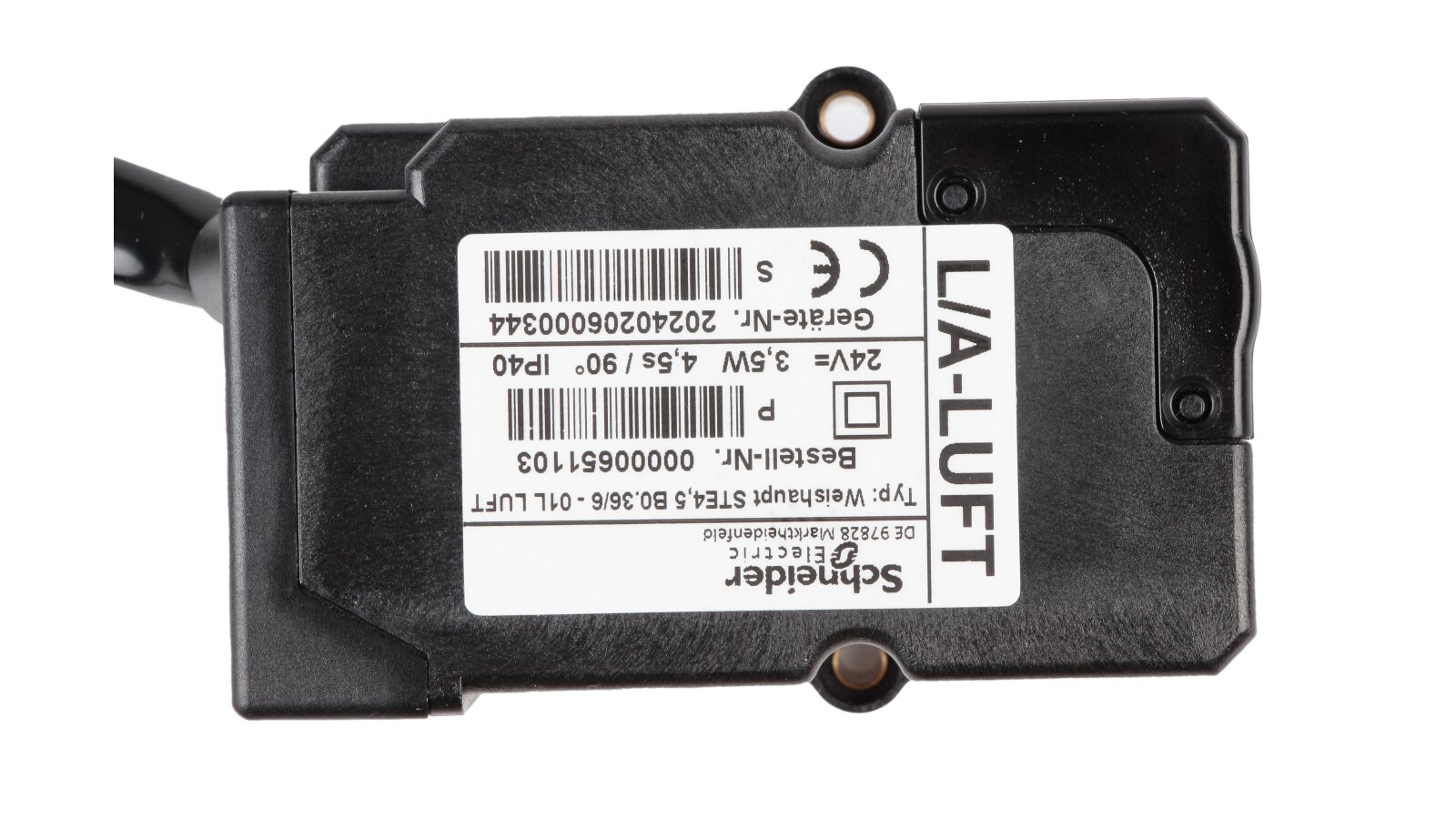

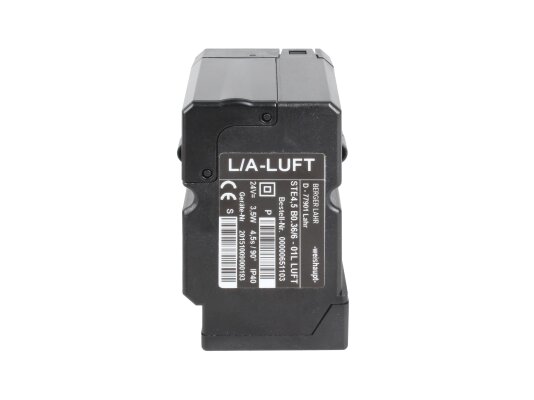

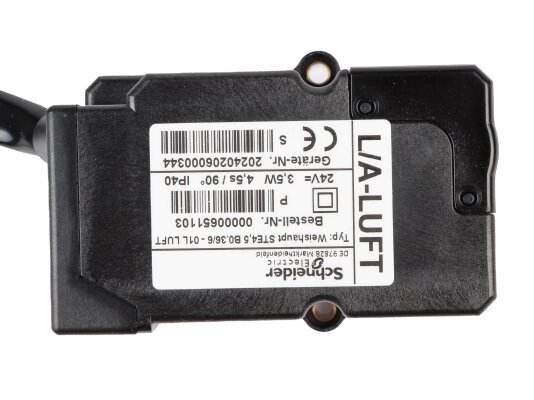

• Power supply: 24V DC.

• Duration of opening at an angle of 90º: 4.5 sec.

• Operating limits: 0…+50 °C.

• Housing protection: class IP 40.

Design and features:

• The servo drive operates under the control of a burner control or an electronic manager in automatic mode. The rotation angle can be set using analog signals. The setting range is from 0 to 90°. The operating range can be set using limit switches.

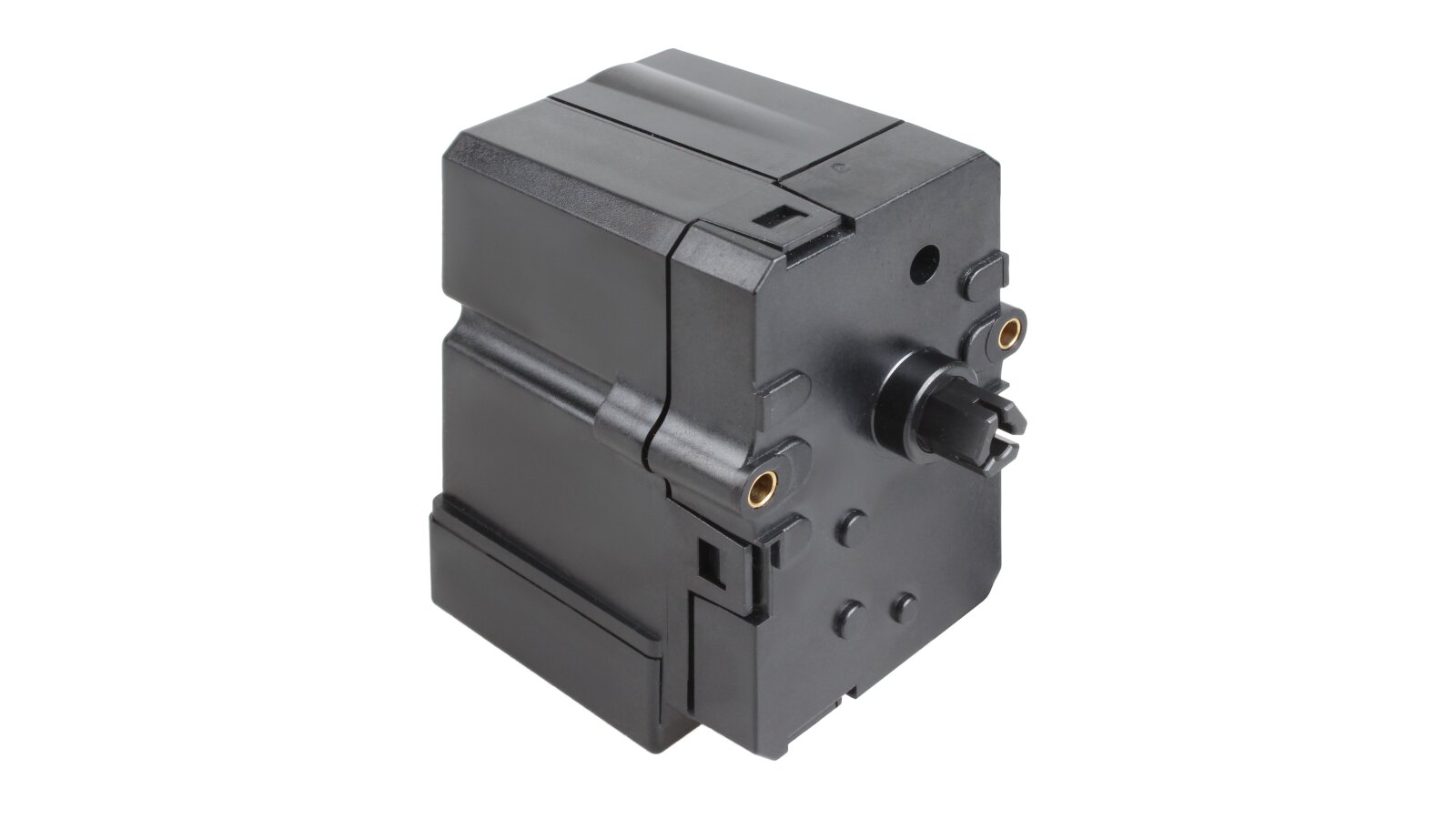

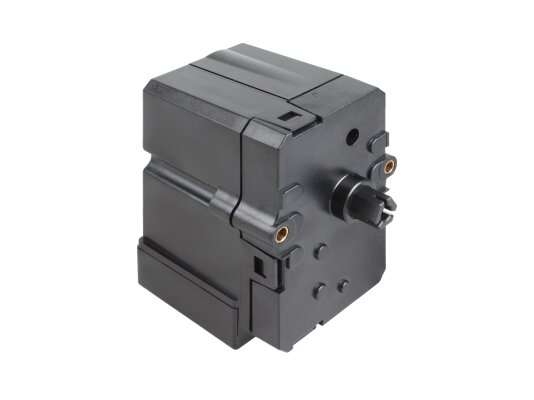

• The design has a compact design and a standard protection level (IP 40). The plastic housing protects the internal parts from impacts and high temperatures.

• The transmission is maintenance-free, as it is treated at the factory with continuous lubrication.

• The servo drive is characterized by high switching accuracy and good dynamic characteristics.

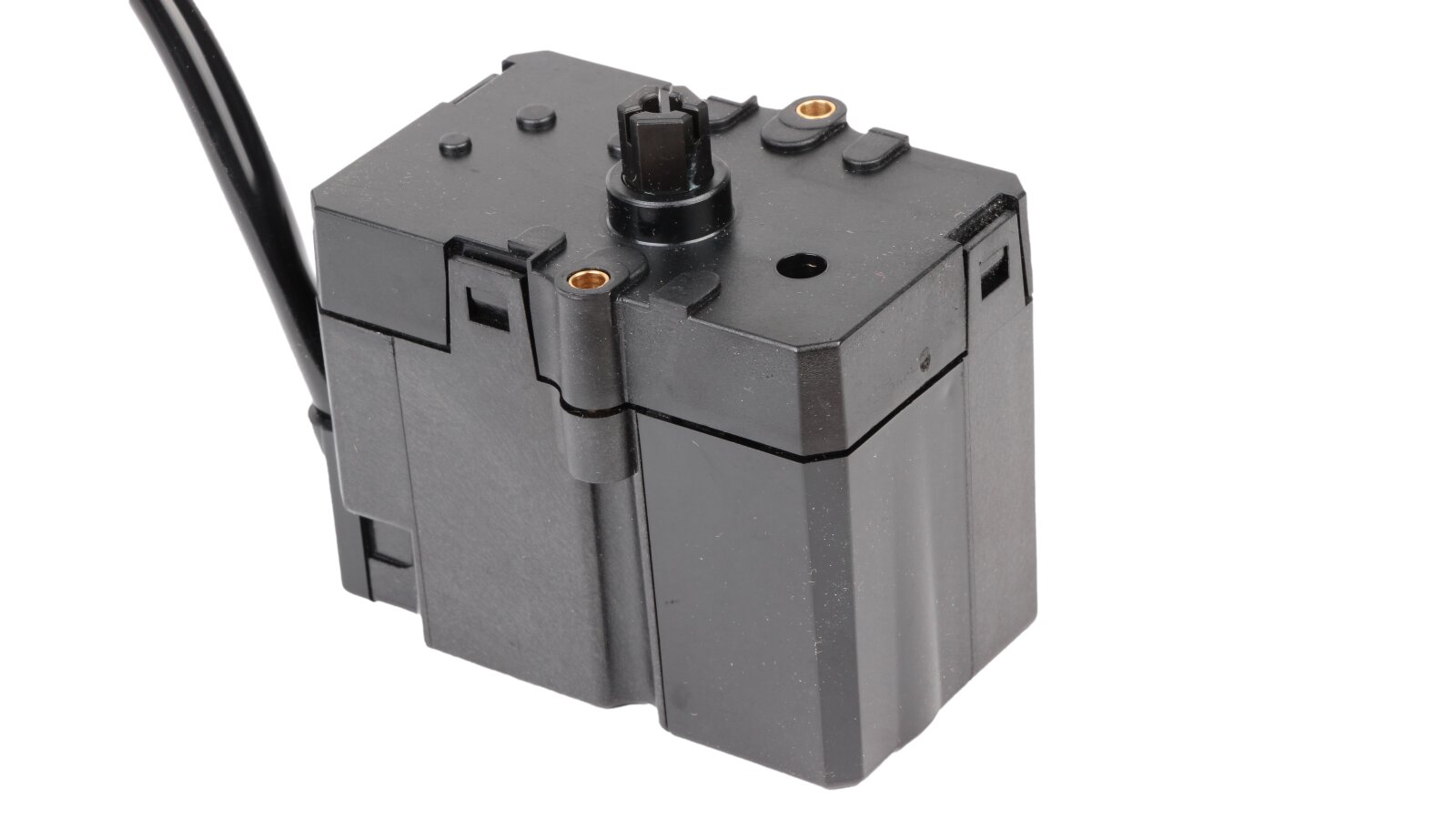

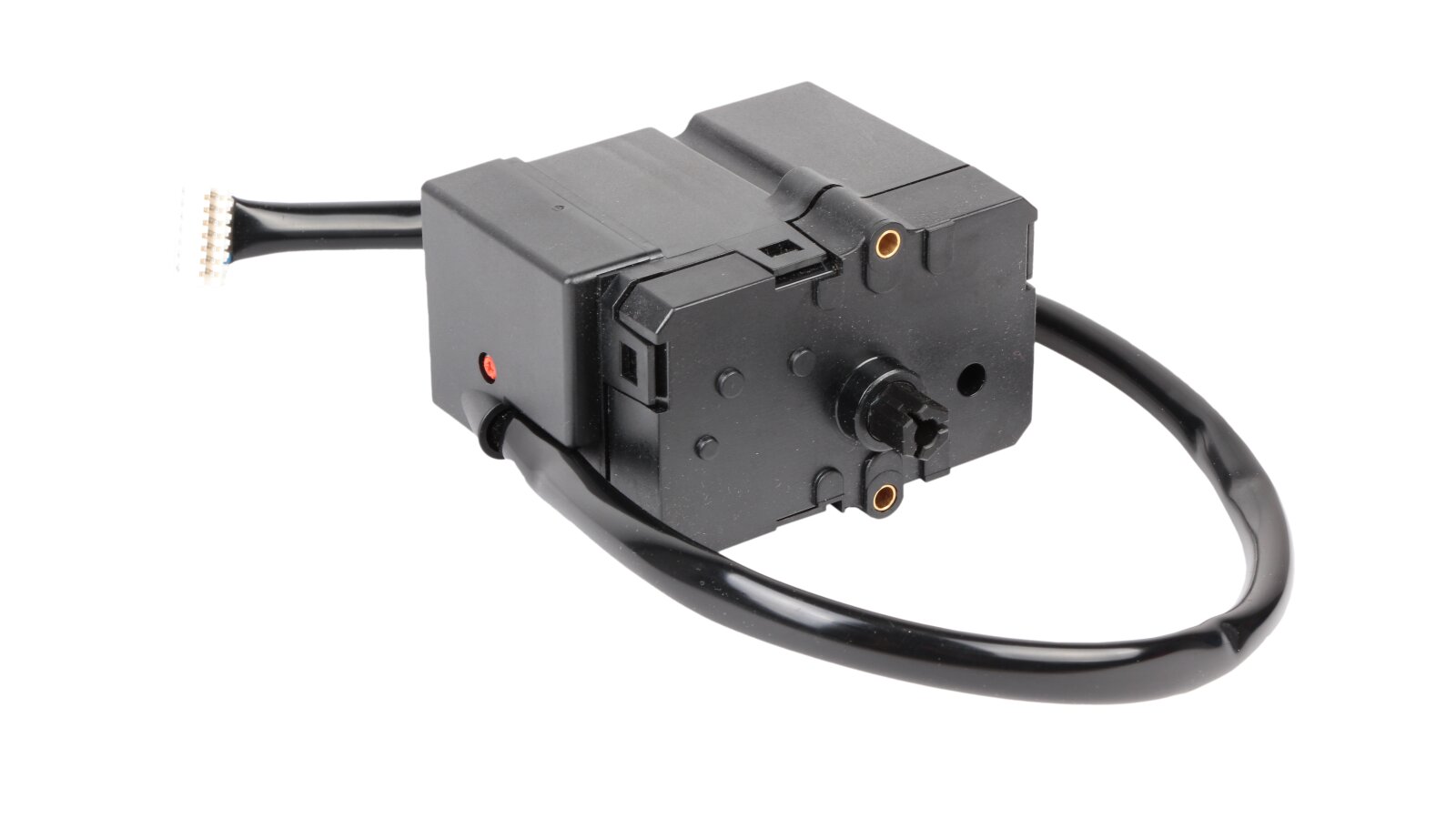

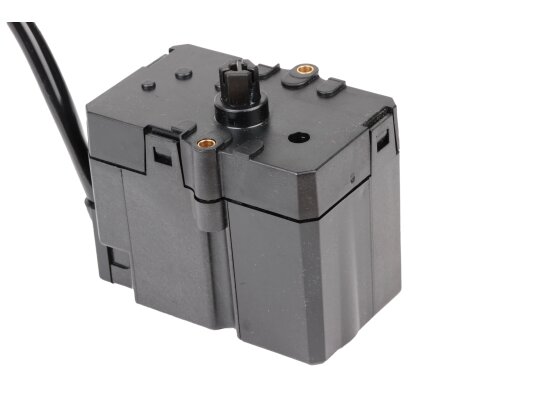

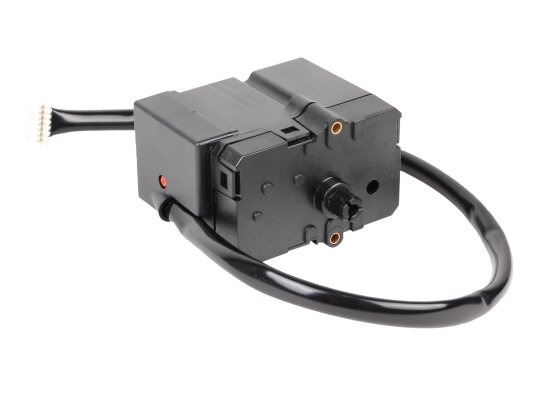

• The drive shaft rotates counterclockwise (L). The number of revolutions of the axis is not affected by loads and voltage surges.

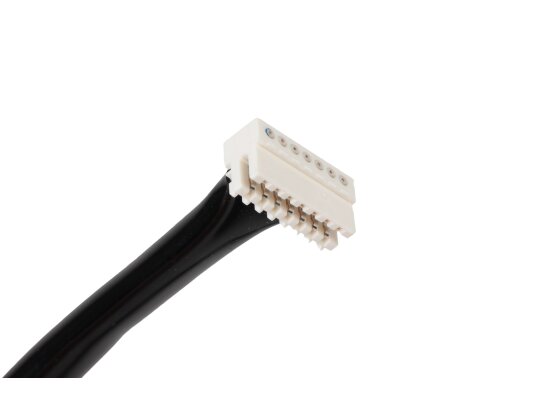

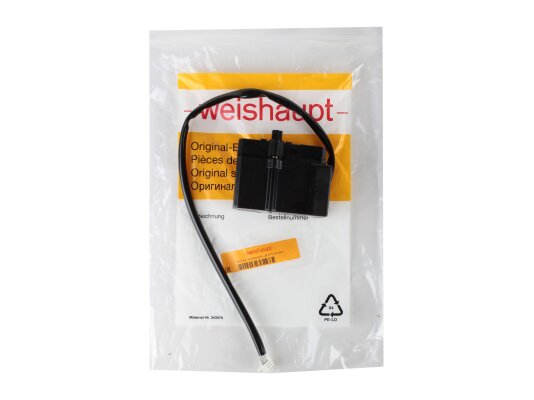

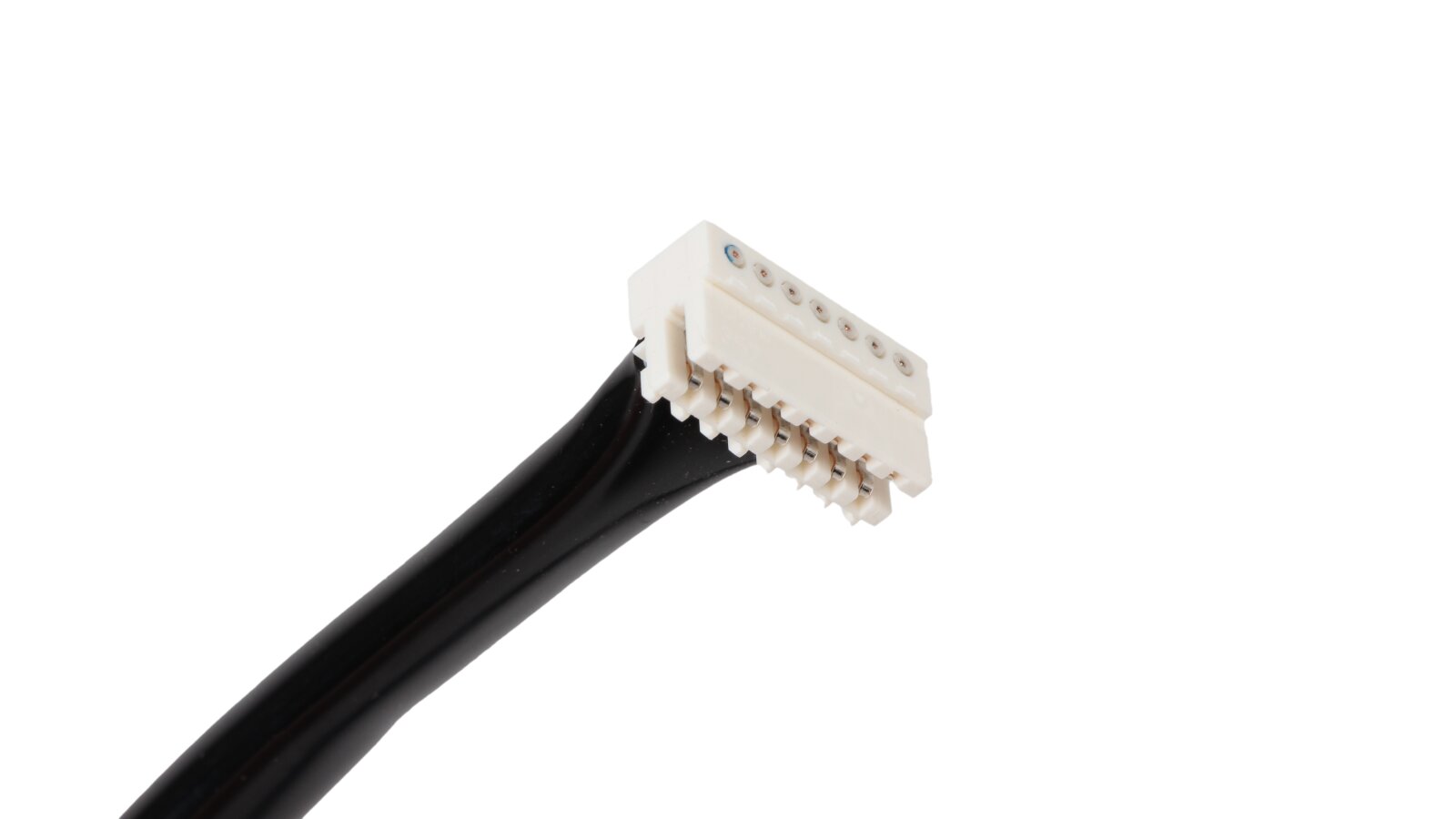

• The kit includes a 50 cm power cable and a plug.

You can get competent advice from a specialist and buy a Berger Lahr / Schneider Electric STE4.5 B0.36 / 6 - 01L LUFT servo drive at the price of an official dealer.
