Burner Pump Riello, 3007809

Riello3007809

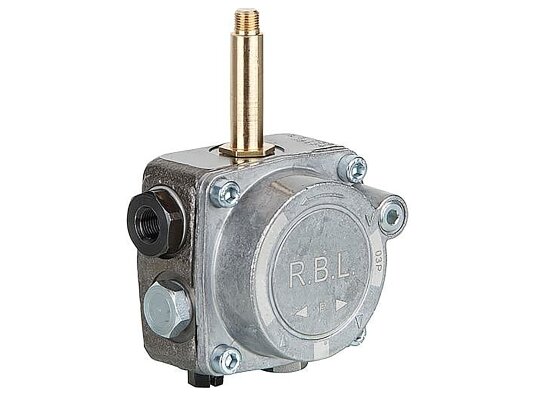

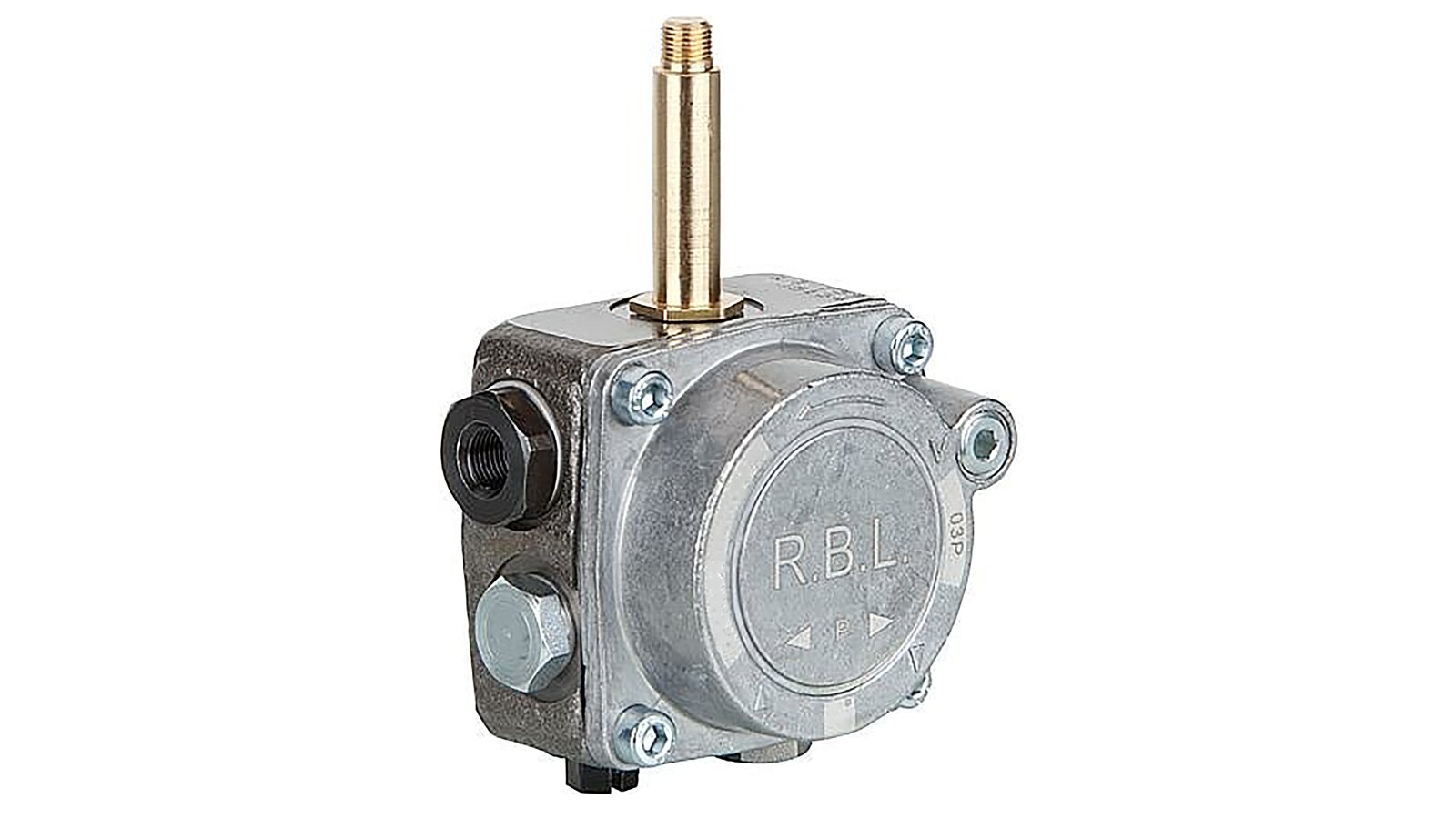

Burner Pump Riello, Part number: 3007809

About product

Go to description

Type of pumped liquid dieselSuction and return line ¼ inchNozzle outlet ⅛ inchNozzle pressure range from 7 to 15 barFactory pressure setting 12 barInstallation method sleeve ∅ 32 mm

Oil Burner Pumps

Description

The Riello burner pump, art: 3007809, is used for efficient and safe fuel pumping during boiler/heat generator operation. It is built into low-power Riello burners.

Features

It is equipped with a wear-resistant gear mechanism responsible for pumping fuel from the tank to the nozzle. It is assembled for a two-pipe system. A bypass plug is installed in the fuel return hole. When installing in a one-pipe system, it is necessary to close the fuel return channel by replacing the bypass plug with a steel one with a washer. A regulator is provided to adjust the operating pressure. The standard installation method and connection sizes expand the possibilities of using the pump.

In our catalog, you can select pumps for burners of any power, configuration and purpose. Contact us, we will select the optimal modification for your tasks.

Characteristics

Manufacturer Part Number: 3007809Type of pumped liquid: dieselSuction and return line: ¼ inchNozzle outlet: ⅛ inchNozzle pressure range: from 7 to 15 barFactory pressure setting: 12 barInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightModel type: 1 stage with electromagnetic valve

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
