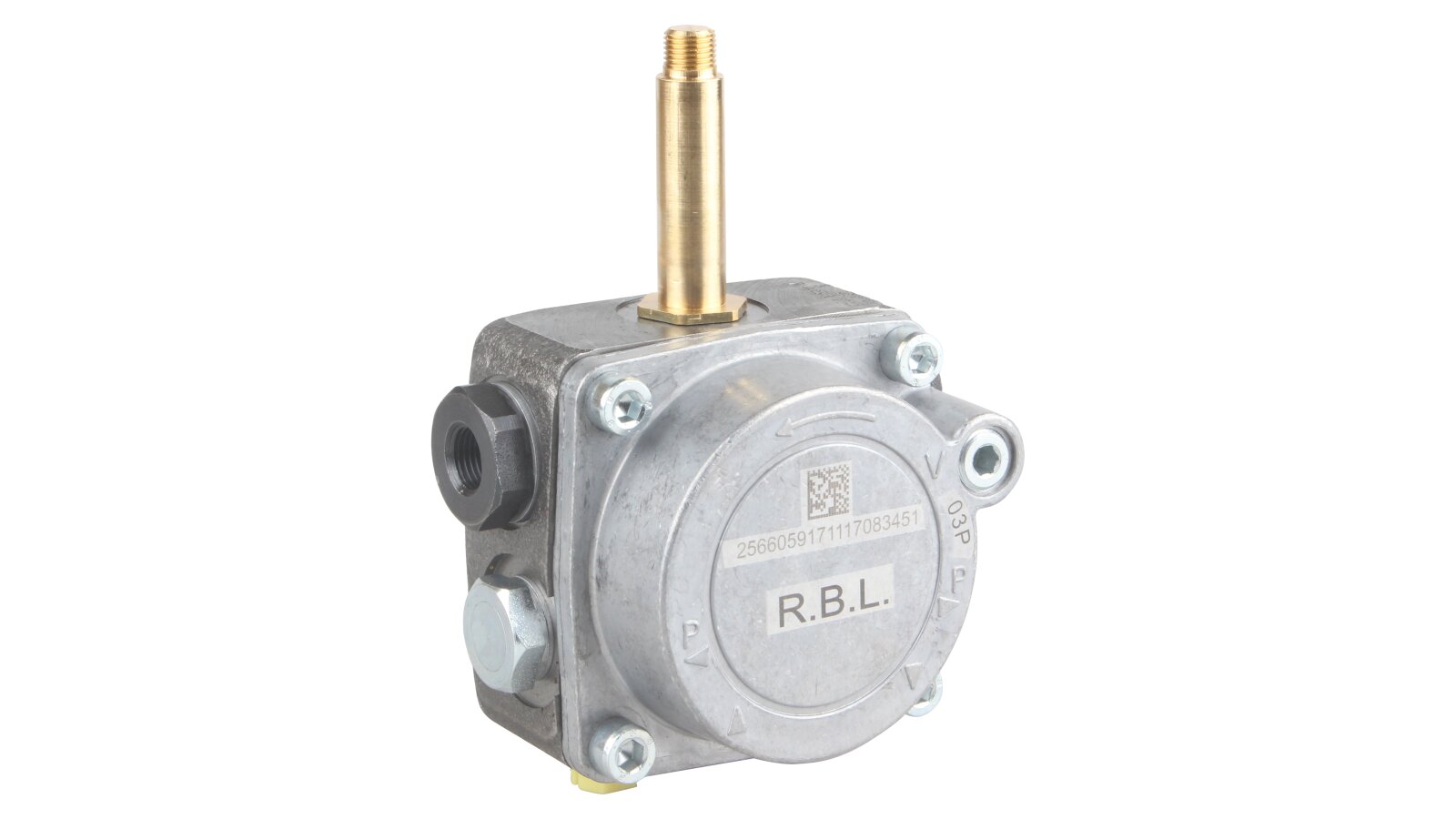

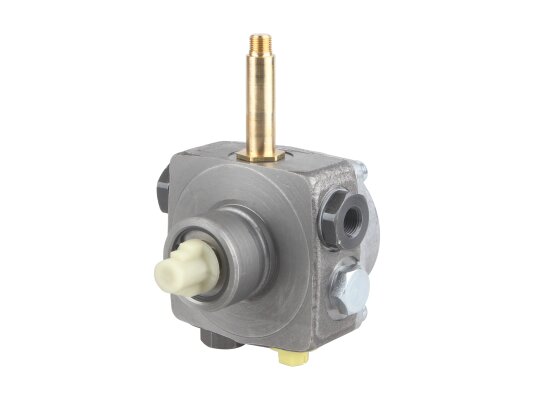

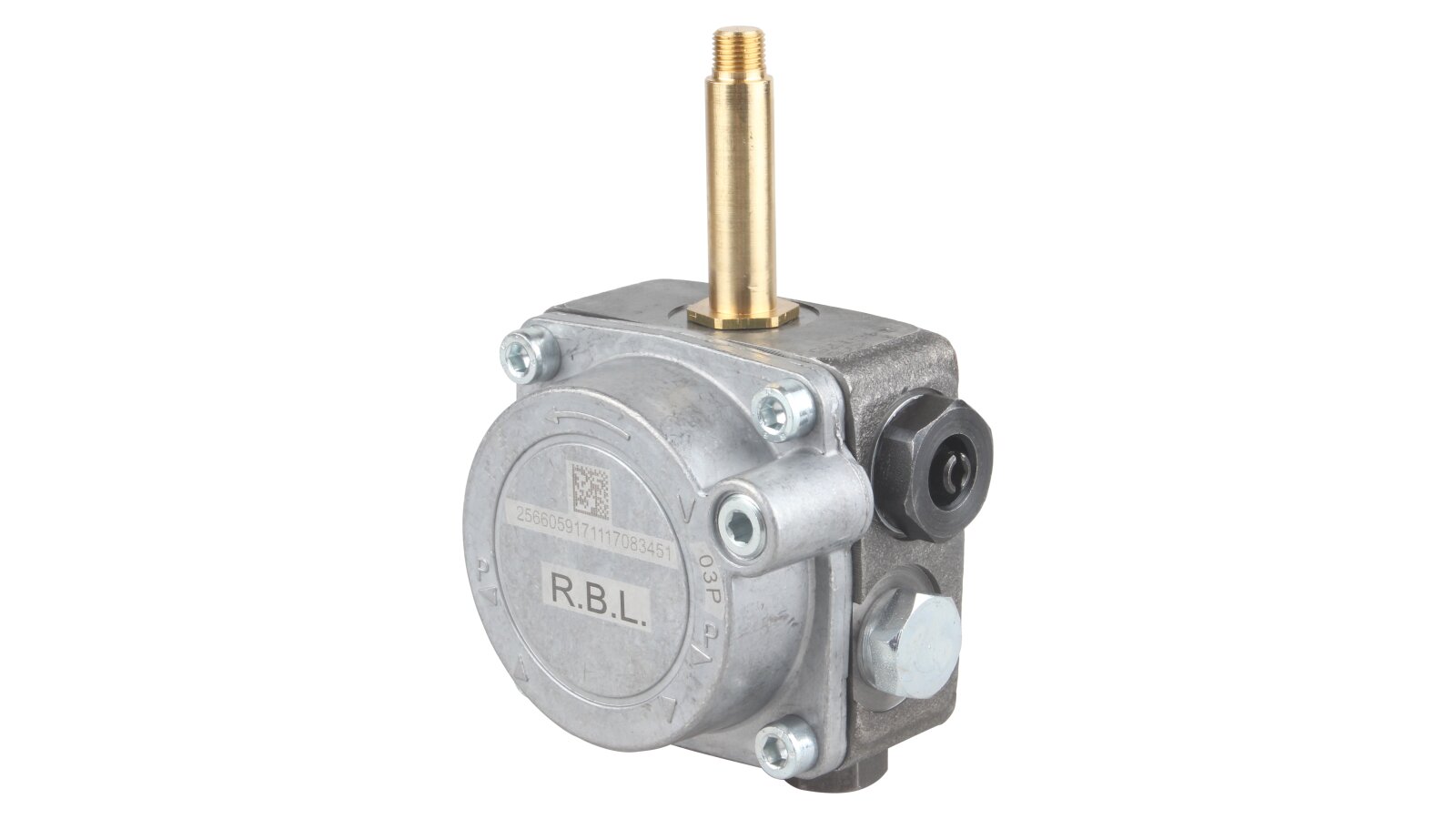

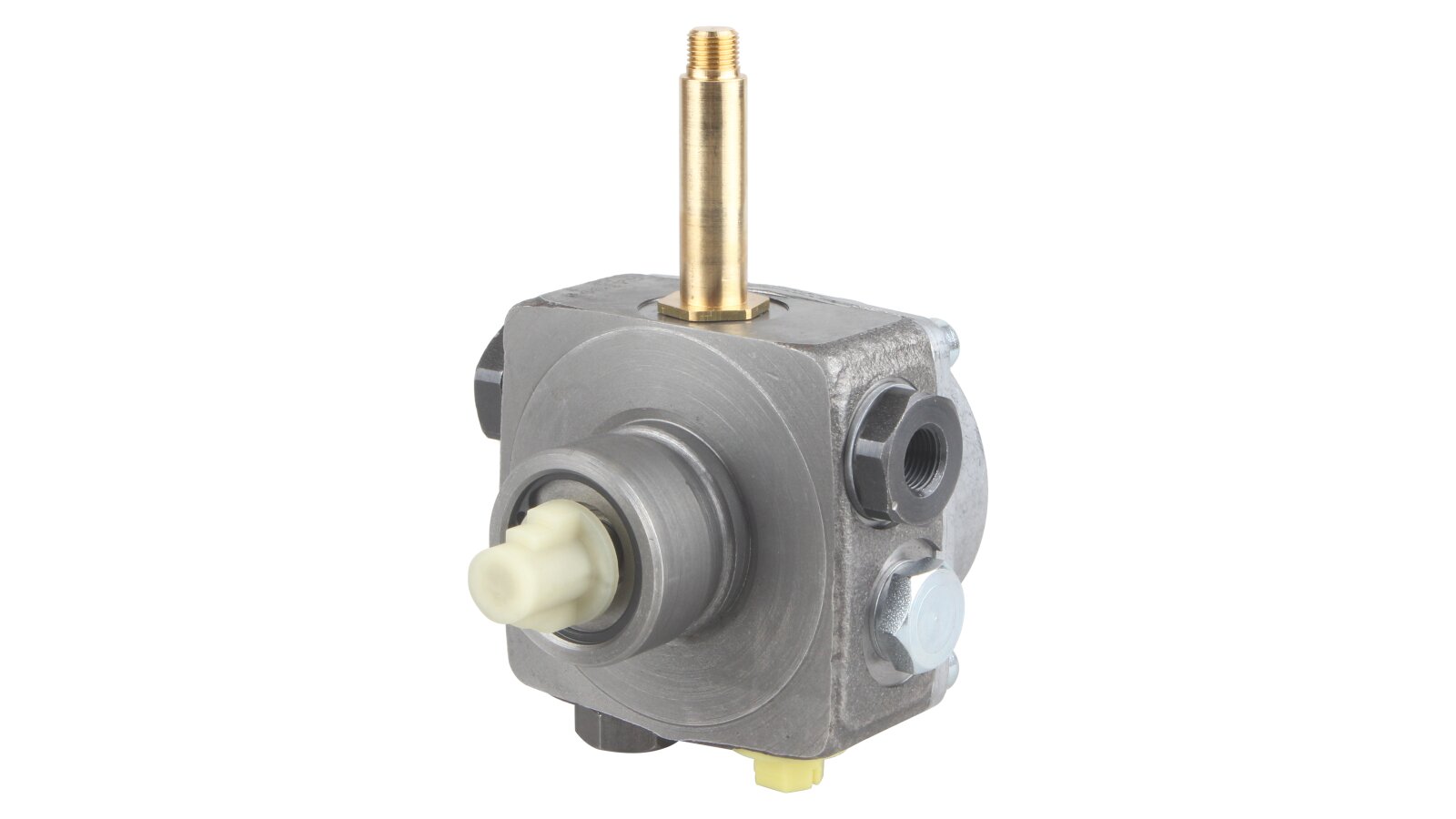

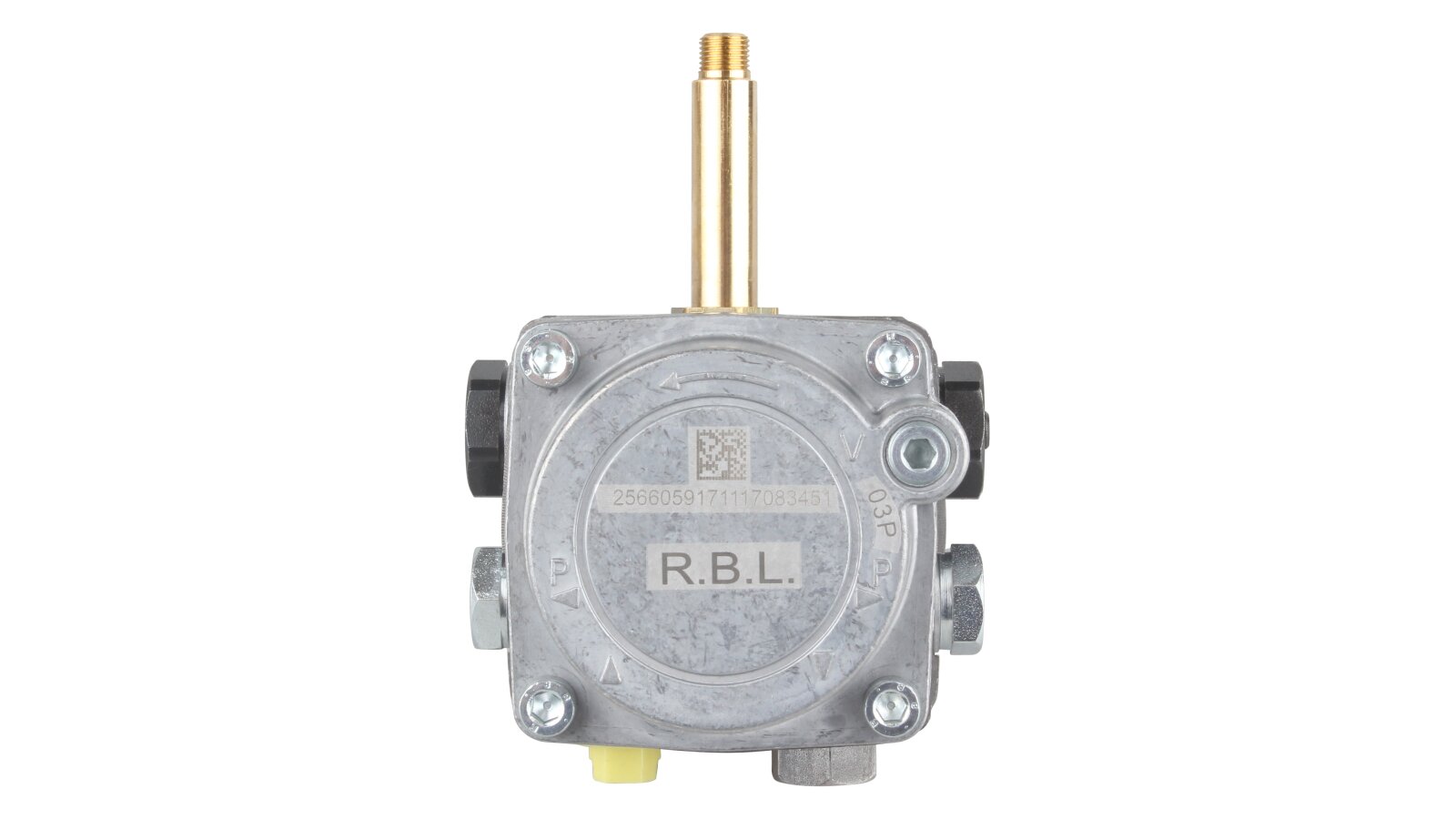

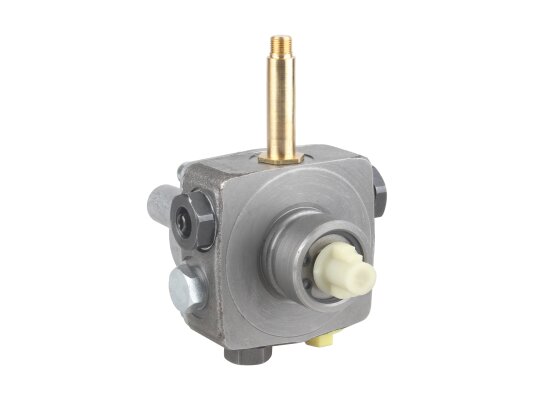

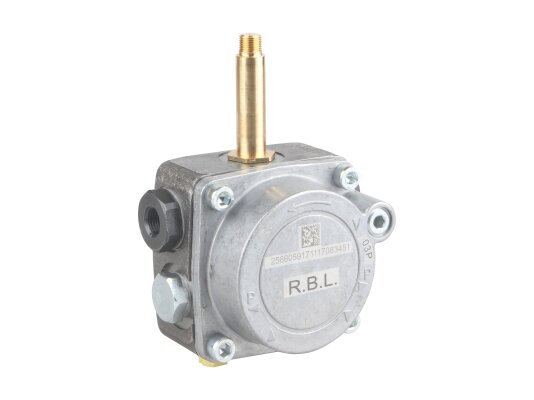

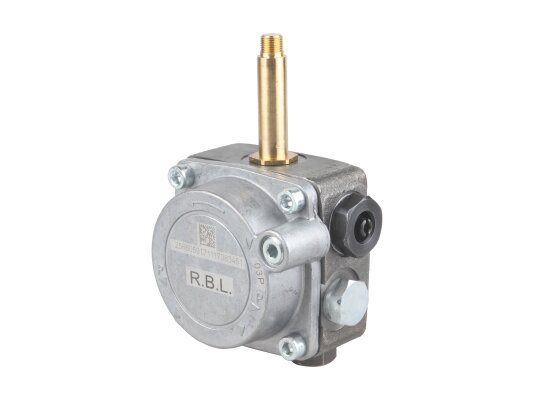

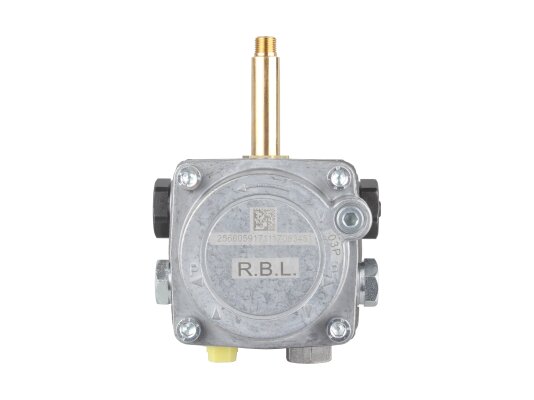

Burner Pump Riello R.B.L. 2566059

Riello3008848
AED 925
  1. Oil Burner Pumps

Description

The Riello R.B.L. 2566059 pump is designed to pump liquid fuel to the burner. Maximum feed pressure is 15 atmospheres. The model is adapted for low-power Riello burners.

Characteristics:

  • Nozzle pressure range: 7-15 bar.

  • Installation method: Ø32 mm bushing.

  • Factory feed pressure setting: 12 bar.

  • Suction line connection parameters: G¼" thread.

  • Media: diesel fuel.

Device and features:

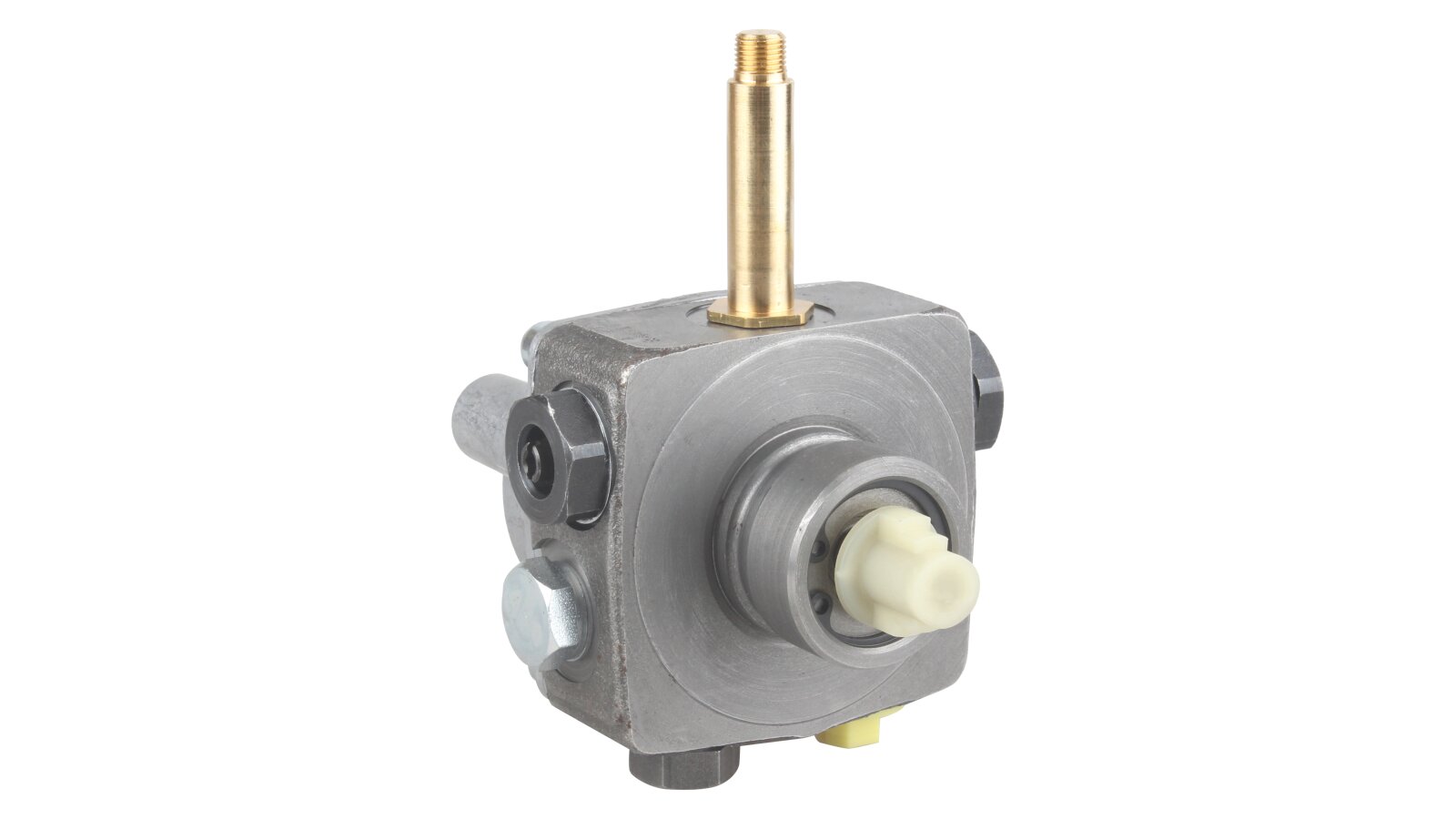

  • The Riello 2566059 pump is attached using a sleeve connection, the seat diameter is 32 mm.

  • The pump operates on the principle of gear movement. The shaft rotates clockwise.

  • The nozzle pressure is adjustable from 7 to 15 atm. Factory setting is 12 atm.

  • A G¼" cylindrical pipe thread is provided for the supply line.

  • The outlet pipe for connection to the nozzle is located on the right.

  • The kit includes an electromagnetic solenoid.

  • A plug is inserted into the return line hole to create a single-pipe system.

You can clarify information about the model with ANKAS specialists. The Riello R.B.L. pump is reliable, compact, functional equipment with an optimal quality/price ratio, which can be purchased online.

Characteristics

Manufacturer Part Number: 3008848Factory pressure setting: 12 barSuction and return line: ¼ inchNozzle outlet: ⅛ inchNozzle pressure range: from 7 to 15 barInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightModel type: 1 stage with electromagnetic valveType of pumped liquid: diesel
