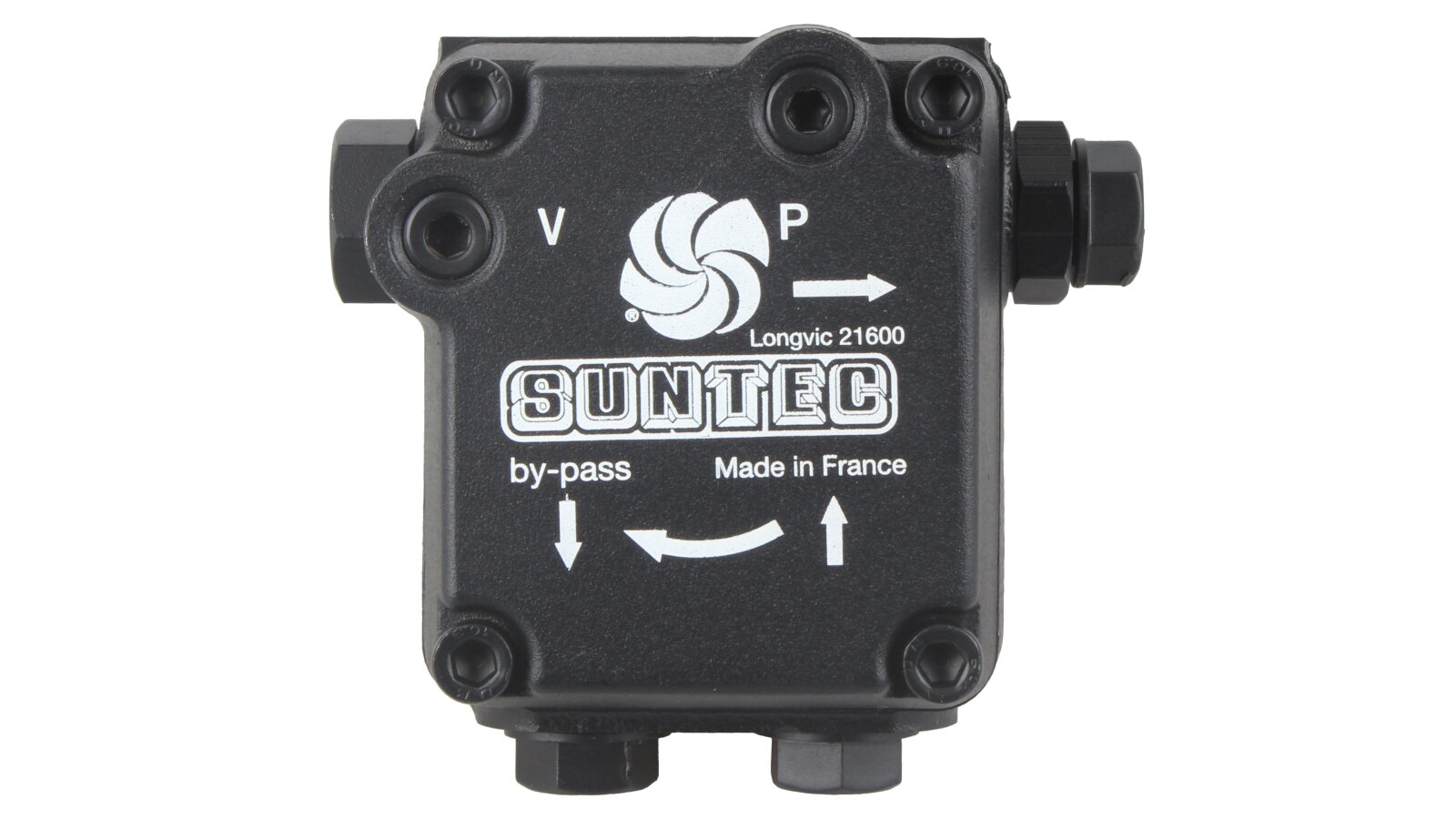

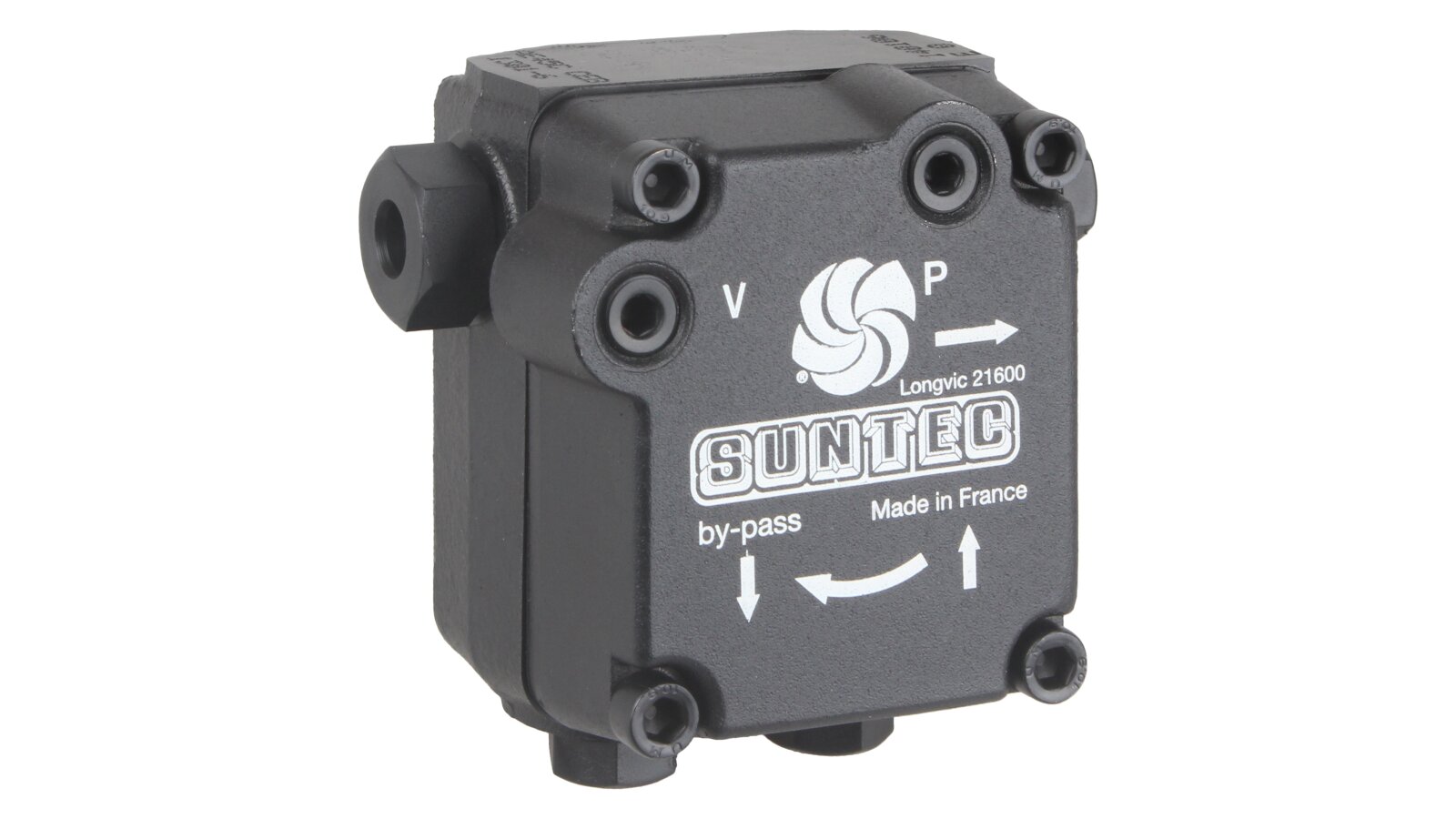

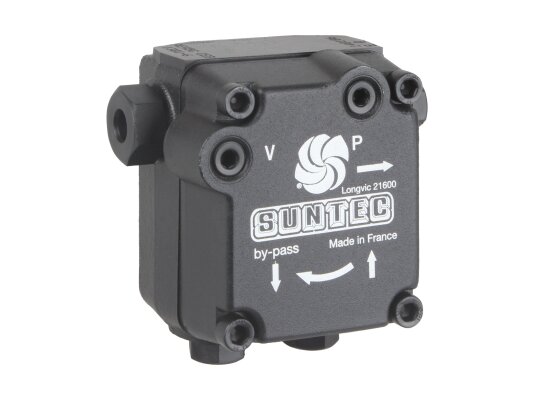

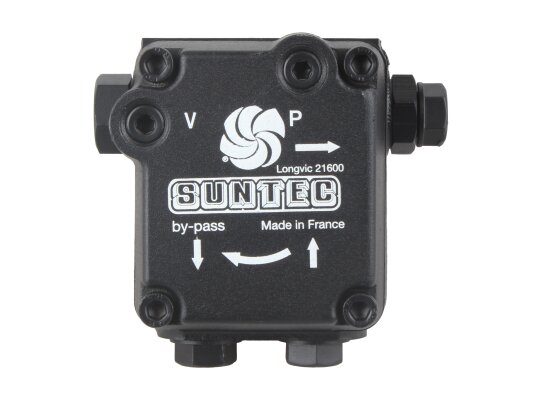

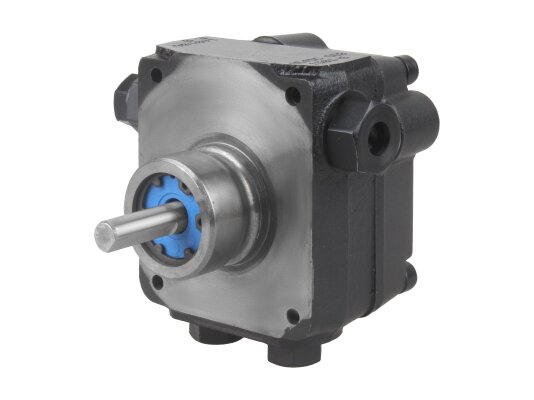

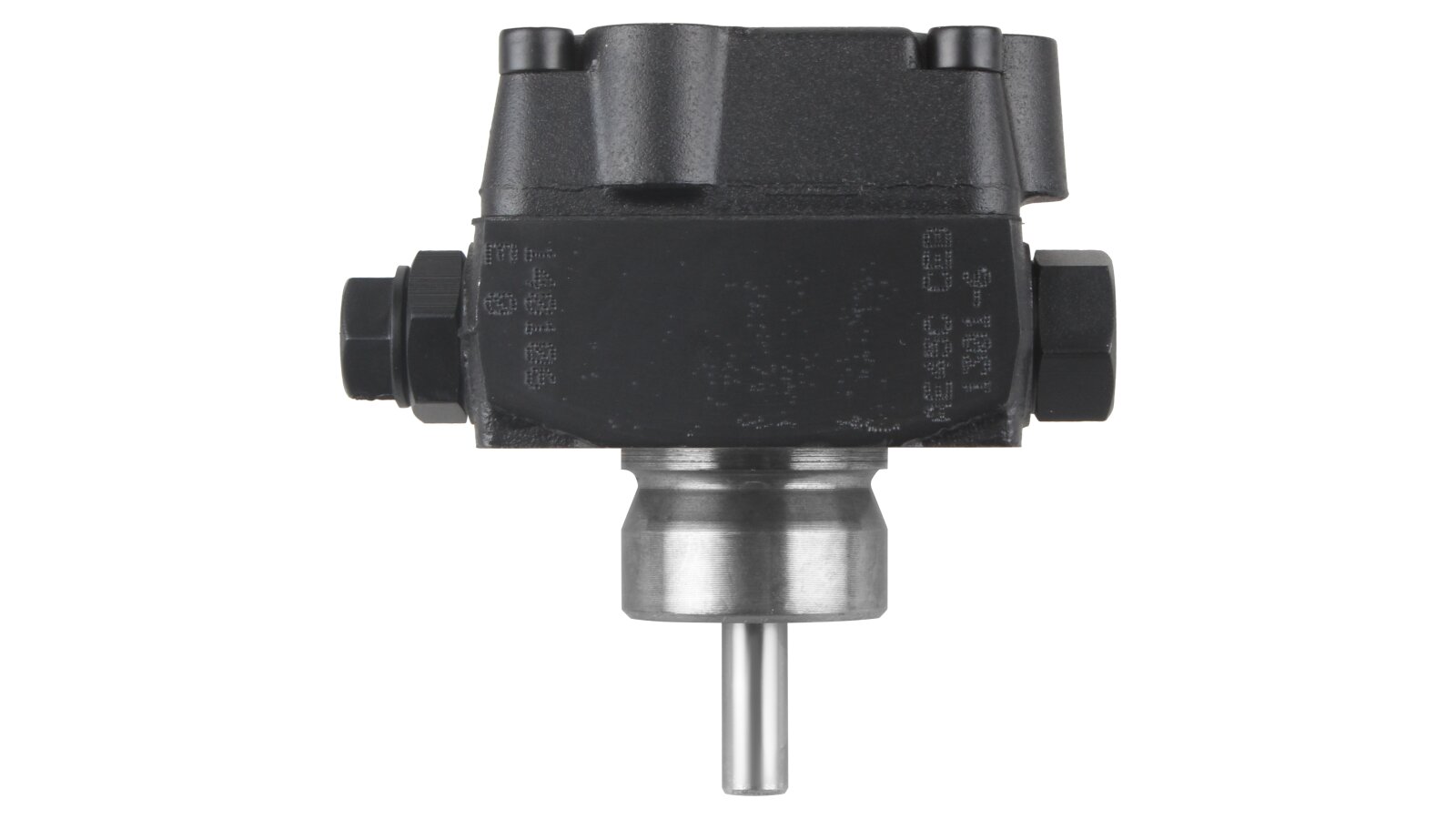

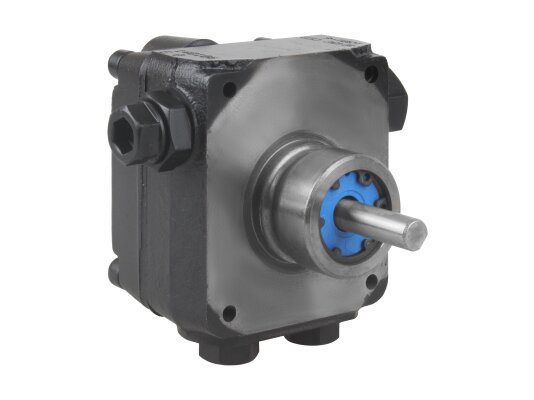

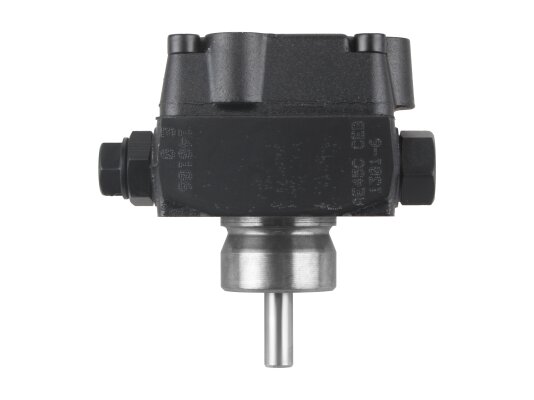

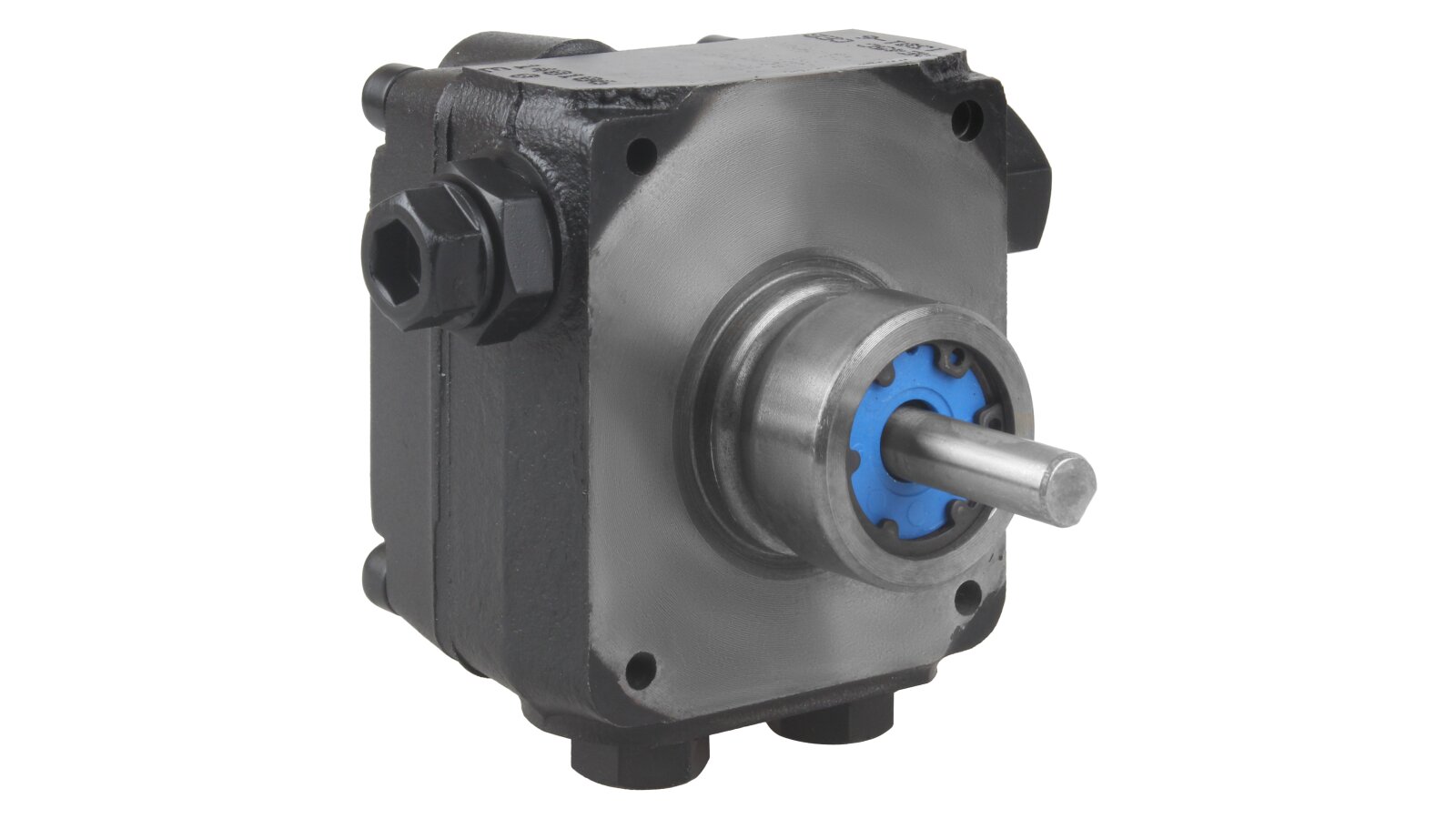

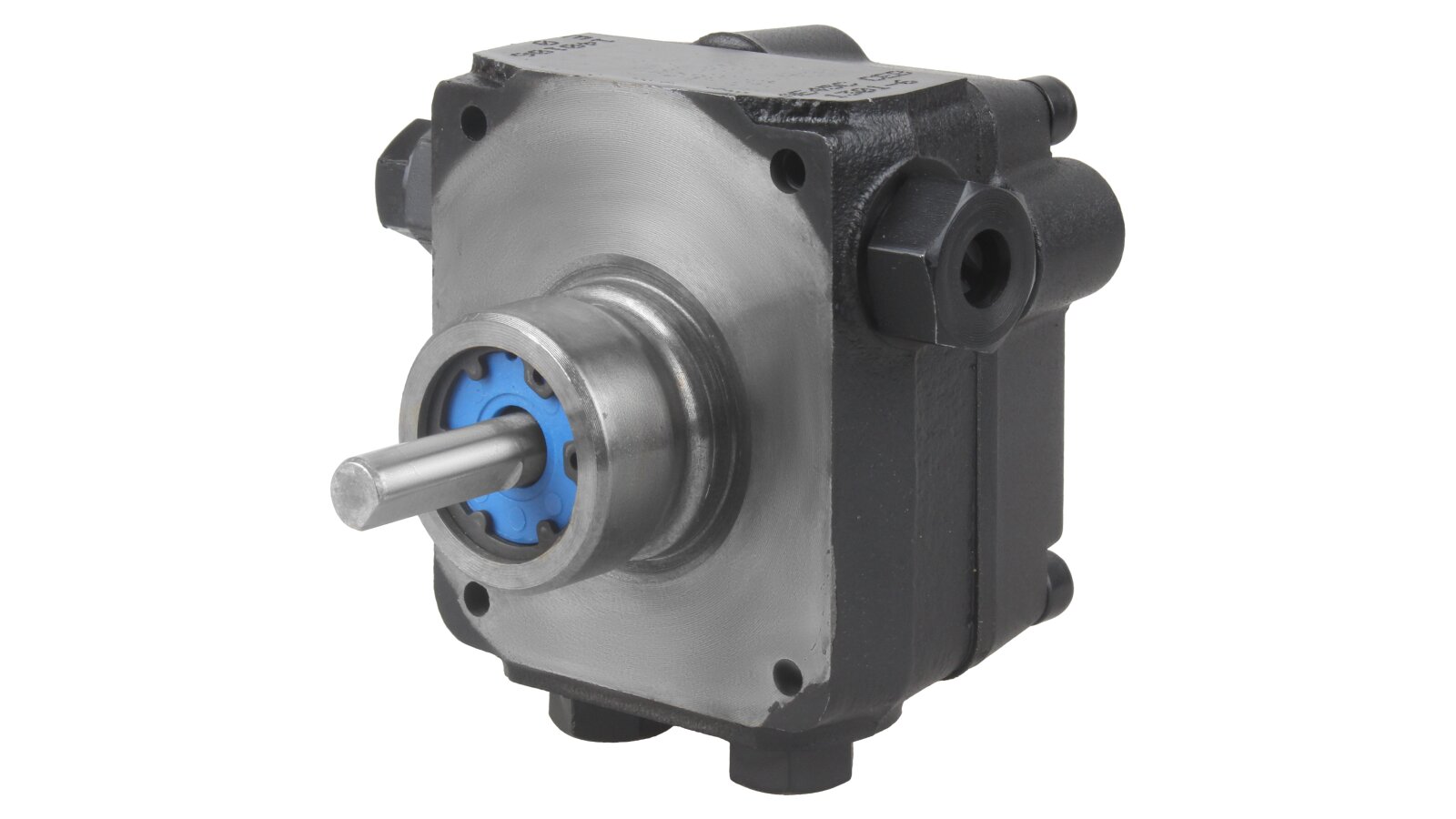

Burner Pump Suntec AE 45 C 1301 6P

Suntec

Alternative Part Number

Elco 13004798Elco 13017026Elco 13019710
AED 950
  1. Oil Burner Pumps

Description

The Suntec AE 45 C 1301 6P gear pump is a basic model that includes a pressure regulating valve. Flow locking is not implemented, this function can be activated by installing an electromagnetic valve. The working environment is diesel fuel.

Device and technical parameters

A gear mechanism is responsible for moving diesel fuel from the tank to the regulator, and then to the nozzle. Before entering the pump, the working fluid is filtered using a 150 μm mesh insert with a working area of ​​6 cm².

The valve is responsible for maintaining the pressure at 7-14 atm. You can adjust the factory pressure setting yourself by turning a special screw on the body. Since flow locking is not implemented, the supply is turned off manually. Installing an external electromagnetic valve solves this problem.

Installation in the heating system is carried out using a sleeve connection ∅ 32 mm, which complies with the European standard EN 225. This mounting method is used by many burner manufacturers.

With the help of control and measuring devices, for which ports with cylindrical threads are provided, it is possible to check the correct operation of the unit.

The Suntec AE 45 C 1301 6P gear pump can be used in systems with one or two pipes. The basic assembly is designed for installation in 2-pipe structures - unused fuel returns to the tank. If you connect the device to a 1-pipe system, you must unscrew the bypass plug and close the channel. In this case, excess fuel returns to the suction line.

Let's highlight the advantages:

  • choice of system configuration;

  • sleeve connection corresponding to the EN 225 standard;

  • the ability to change the pressure in the range of 7-14 atm.;

  • threaded ports for pressure gauge and vacuum gauge (ISO 228/1);

  • automatic air bleeding in systems with two pipes;

  • compact dimensions, insignificant weight of the structure (1 kg);

  • cleaning diesel fuel from mechanical impurities with a built-in filter.

To assemble a functional heating system, we offer to buy a Suntec AE 45 C 1301 6P pump at the price of a direct supplier. To place an order, leave a request on the website or call the indicated phone numbers.

Characteristics

Torque: 0.1 N·mOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulation without locking functionInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inchType of pumped liquid: dieselPump series: AE: base model without locking function
