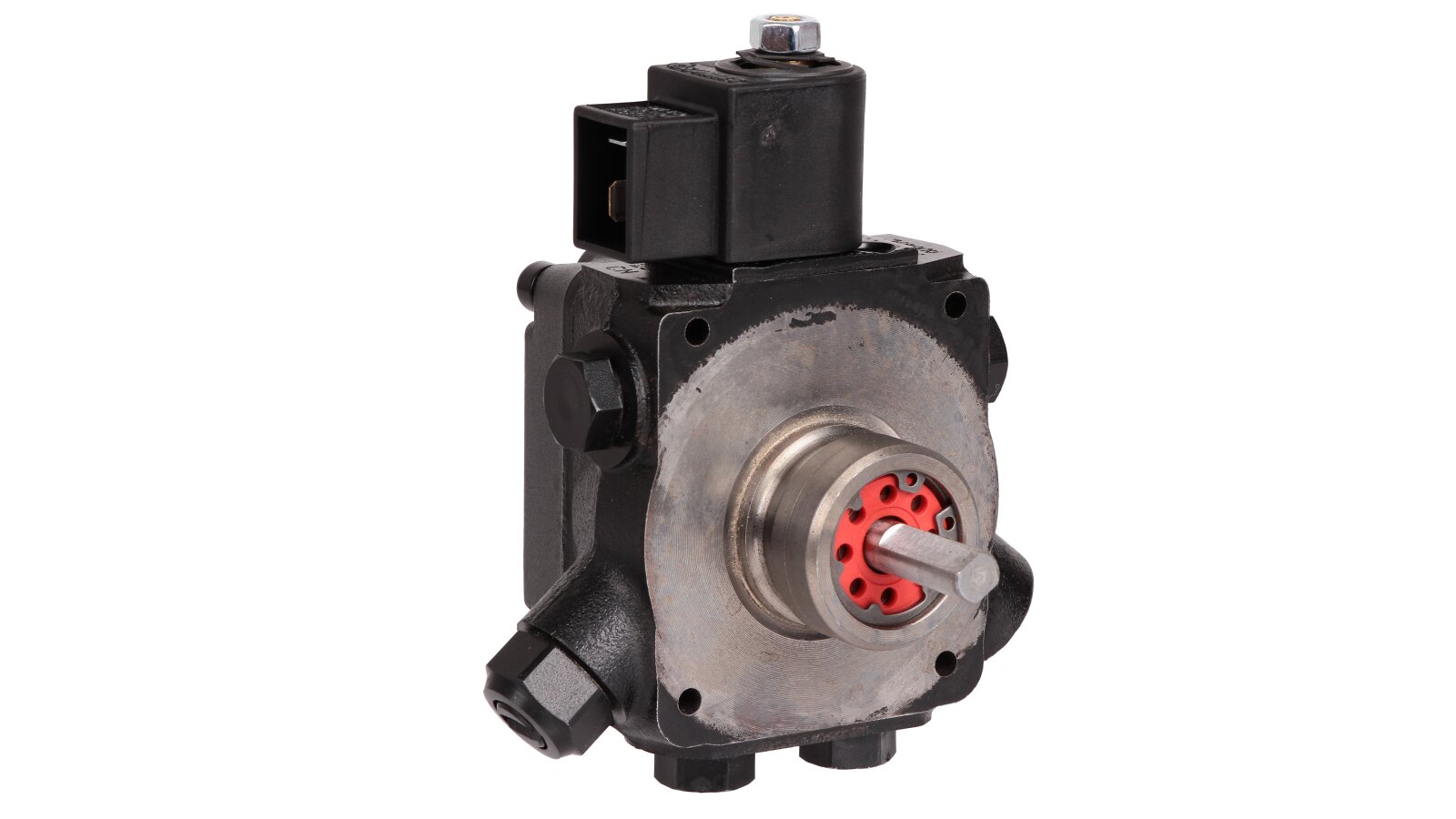

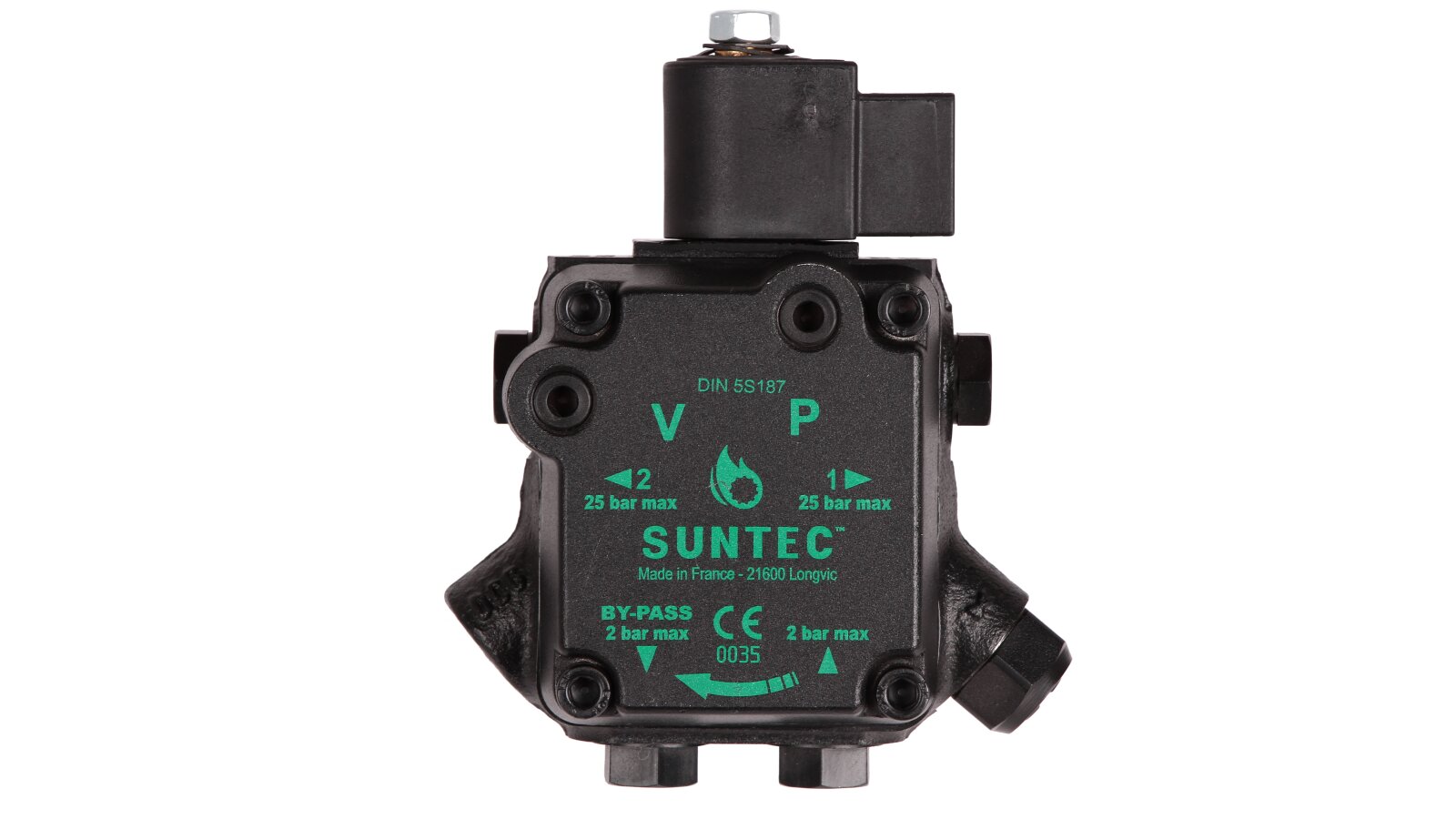

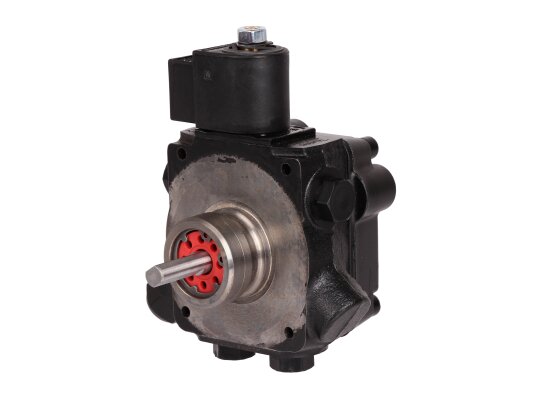

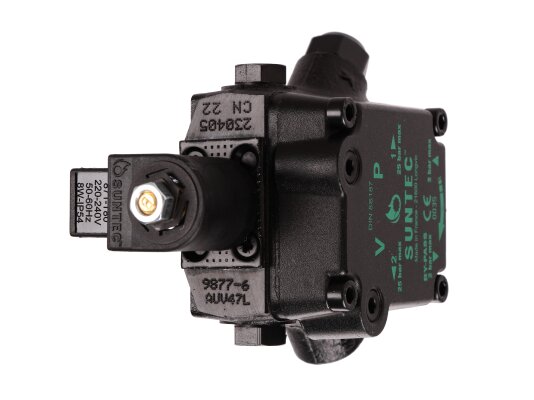

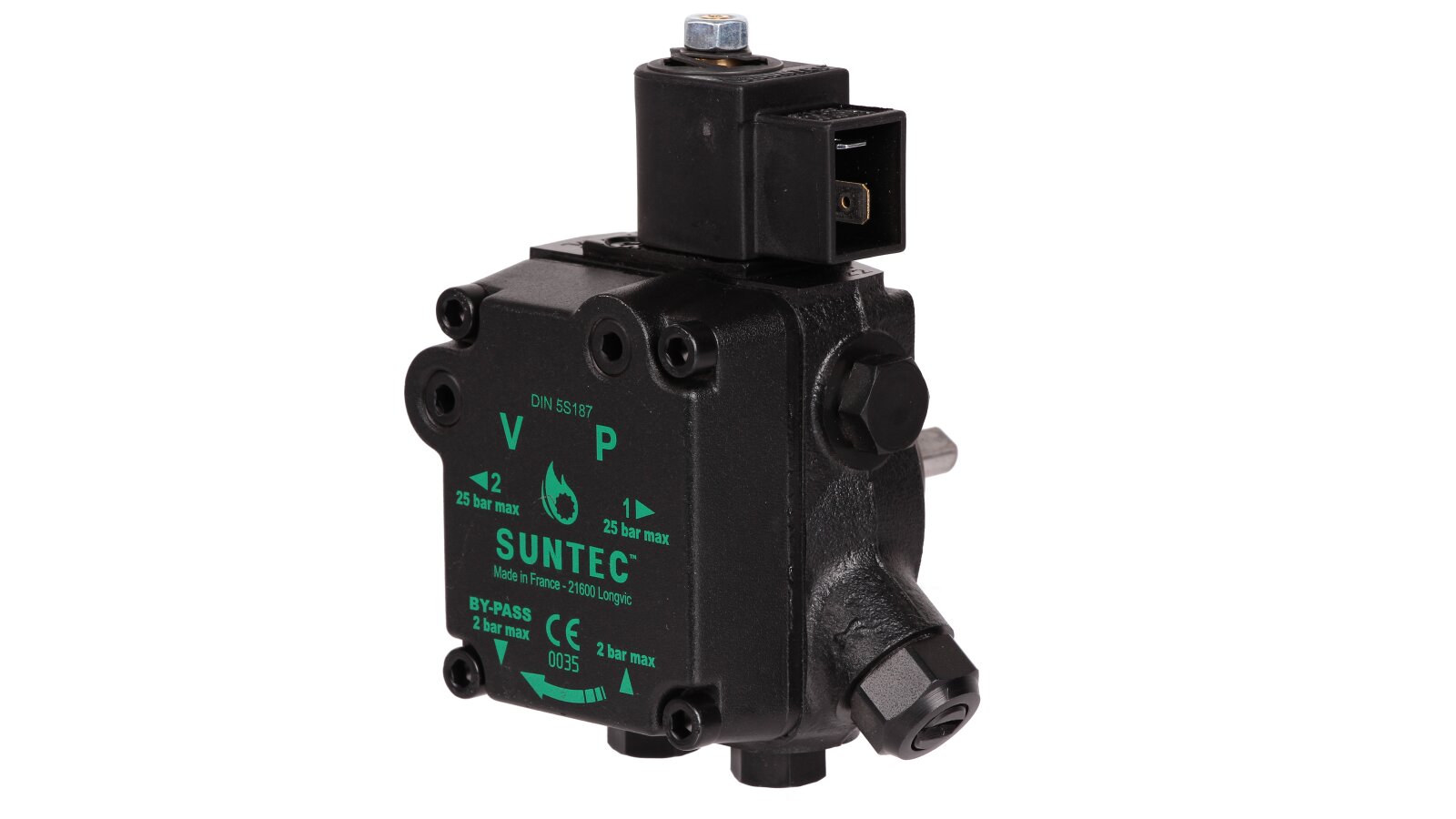

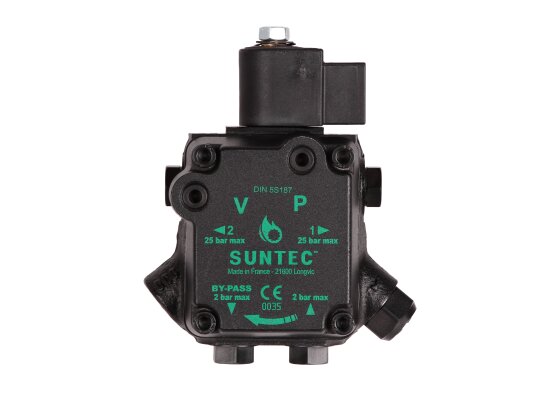

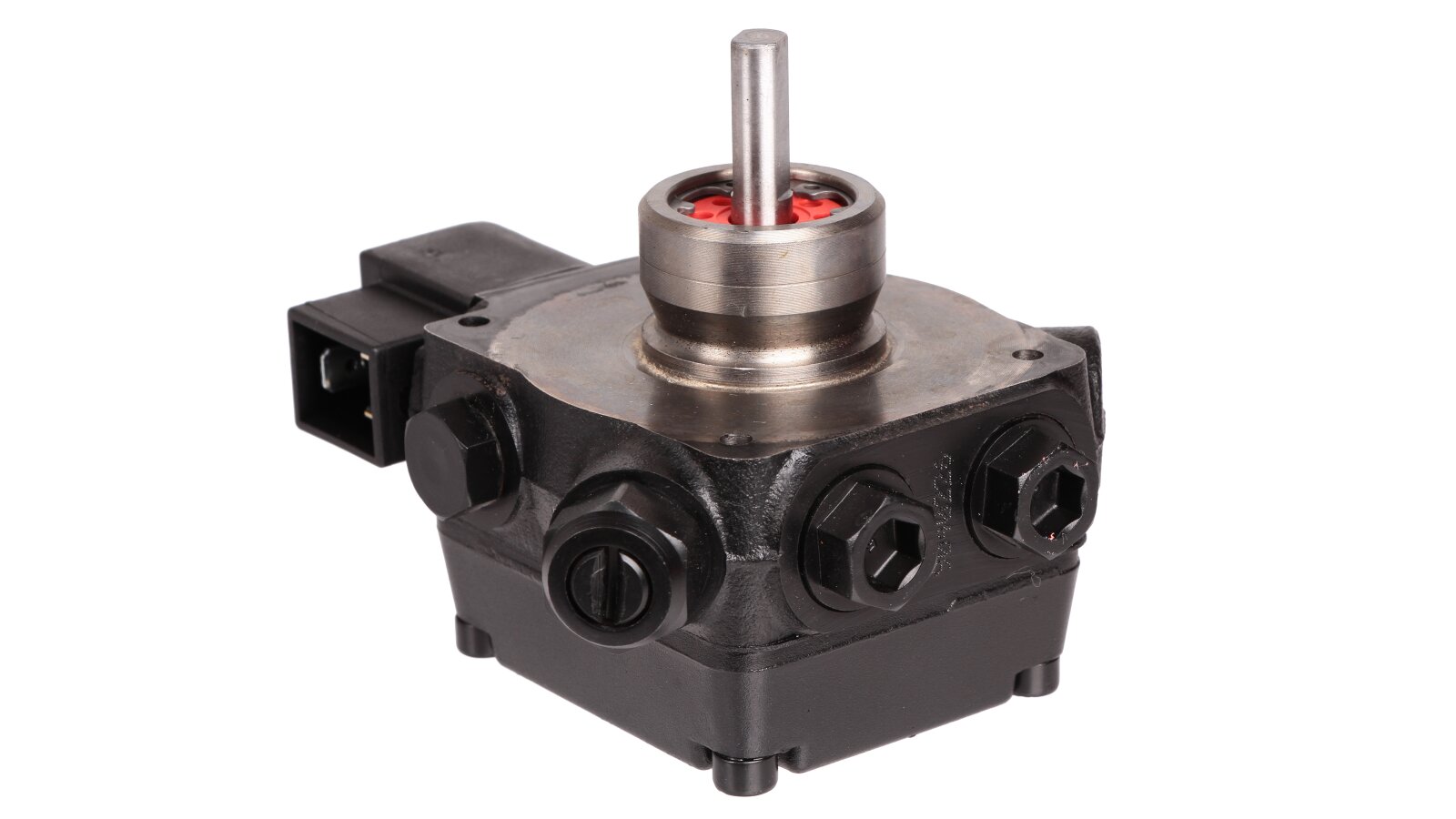

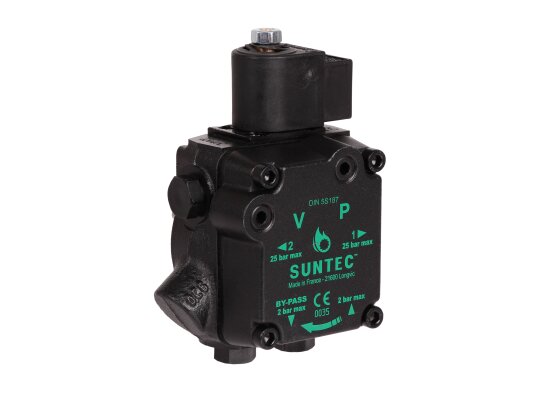

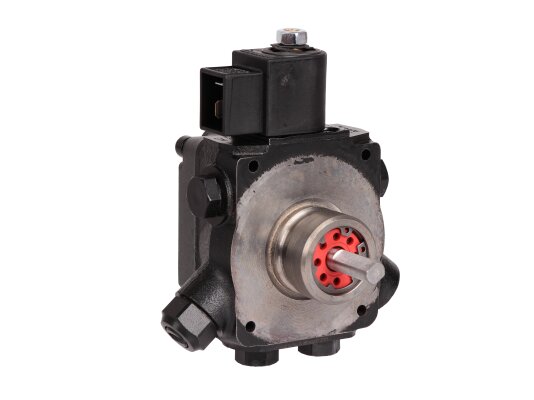

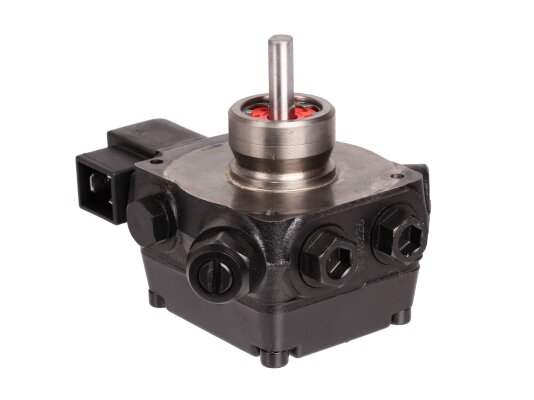

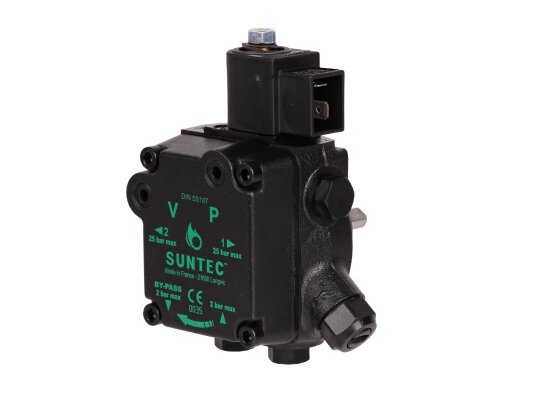

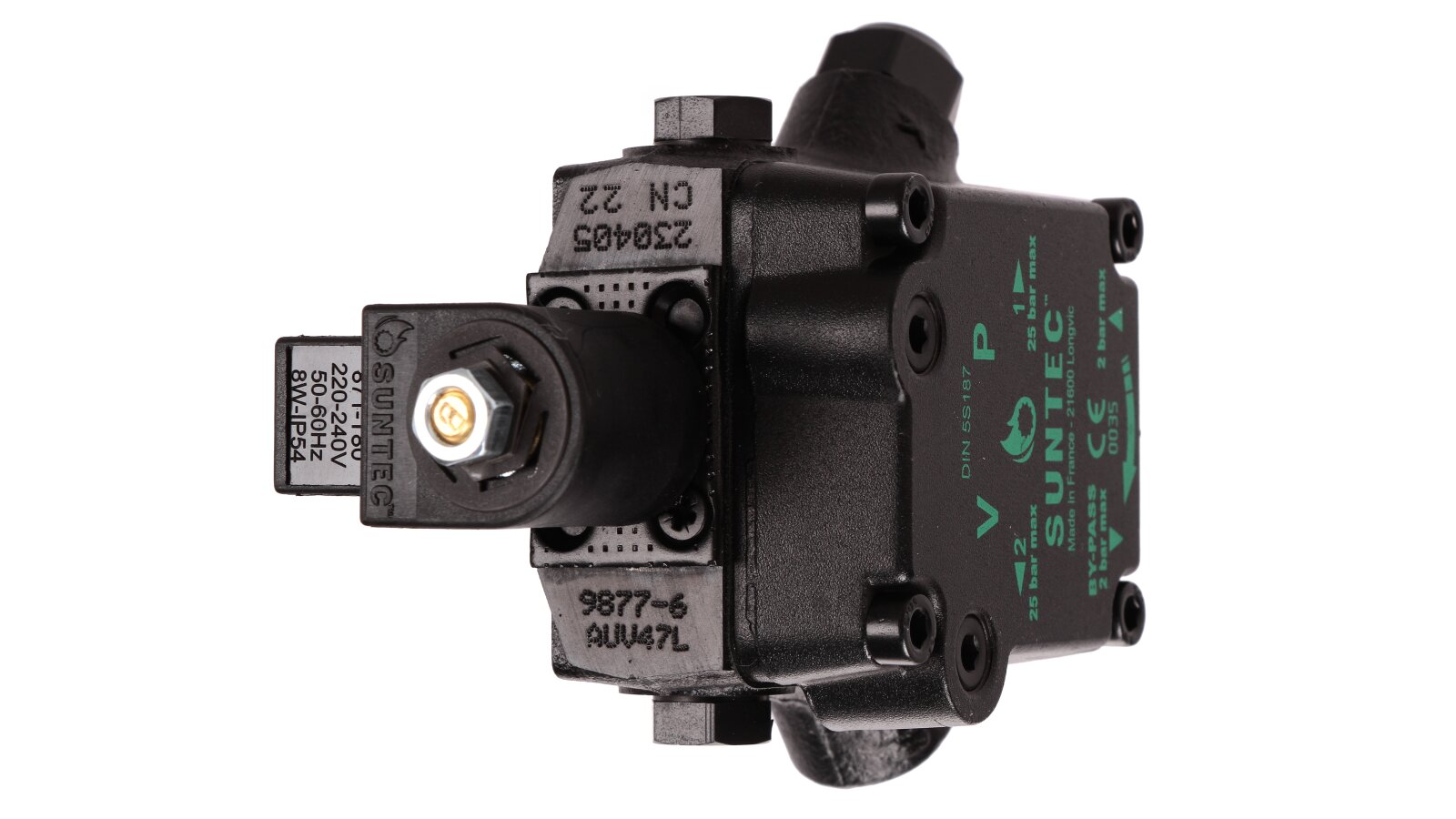

Burner Pump Suntec AU V 47 L 9877 6P 0700

Suntec

AED 1,700

Oil Burner Pumps
Products code: 36545

Description

The Suntec AU V 47 L 9877 6P 0700 burner pump is a universal equipment for pumping diesel fuel, kerosene, and biodiesel B10 mixture in a special design. The advantage of this model is the press fit of the gear transmission to prevent premature wear when working with kerosene. The pump is equipped with an electromagnetic valve with a shut-off function. Two outputs to the nozzle line provide installation variability and expand the application possibilities.

Features:

  • use in systems with one or two pipes (basic assembly - for 2-pipe connection);

  • fast response of the electromagnetic valve at any shaft speed;

  • increased wear resistance of the working unit due to the press fit of the gear transmission;

  • discharge pressure from 4 to 25 bar, factory setting - 9 bar,

  • "normally closed" electromagnetic valve in the nozzle line, quick response;

  • removable mesh filter for removing debris, sand and rust particles larger than 150 µm from fuel, with a working area of ​​6 cm²;

  • operating temperature range: 0…+60 °C;

  • sleeve fit according to European standard EN 225, ∅ 32 mm;

  • can be used in systems without a return line when replacing the bypass plug with a blind one;

  • automatic bleed of excess air in 2-pipe systems;

  • installation in any position, but not with the axis up, eliminates axial or radial load on the shaft;

  • the ability to select the outlet pipe on either side of the housing;

  • protection class IP 54 according to EN 60529 taking into account the use of the SUNTEC connecting cable;

  • connection to the inlet and return line on a G¼" thread (with the possibility of installing conical gaskets);

  • complete set without a connecting cable;

  • standard outputs for a pressure gauge and vacuum gauge G⅛".

It is additionally recommended to install a fuel filter after the Suntec AU V 47 L 9877 6P 0700 pump.

Characteristics

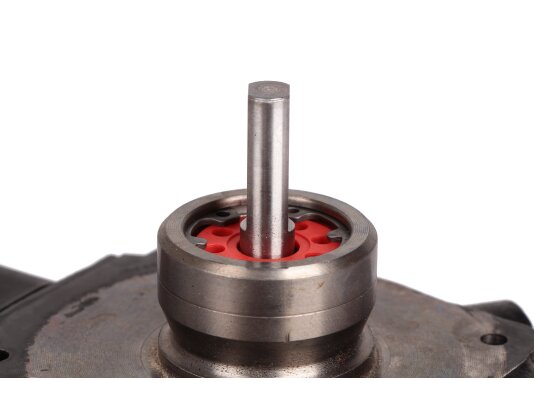

Strainer: Open area: 6 cm²Solenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 44 l/h2nd stage performance at 11 bar and 1.8 cSt viscosity for Kerosene: 24 l/hPump series: AU: replaces most AS 47 and AL 35 models. It has an integrated solenoid valve (type AL) withDirection of rotation (looking at the drive shaft): L: counterclockwise rotationStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 1 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 44 l/hPerformance at 11 bar and 1.8 cSt viscosity for Kerosene: 24 l/hInstallation method: sleeve ∅ 32 mmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 4 to 25 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmMaximum pressure of the solenoid valve: 25 barDegree of protection: IP54Type of pumped liquid: diesel, kerosene, biodiesel fuel blend B10
