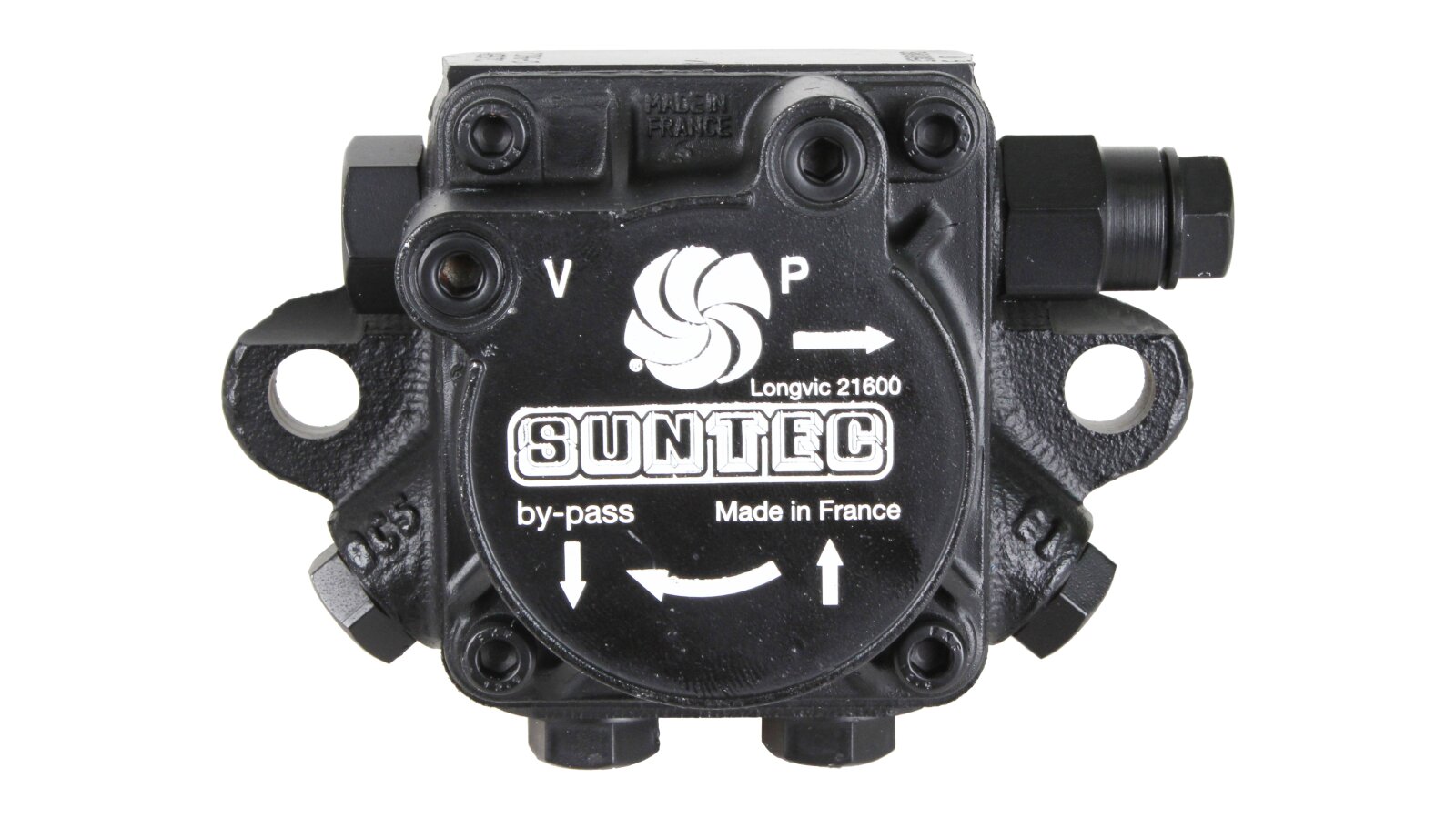

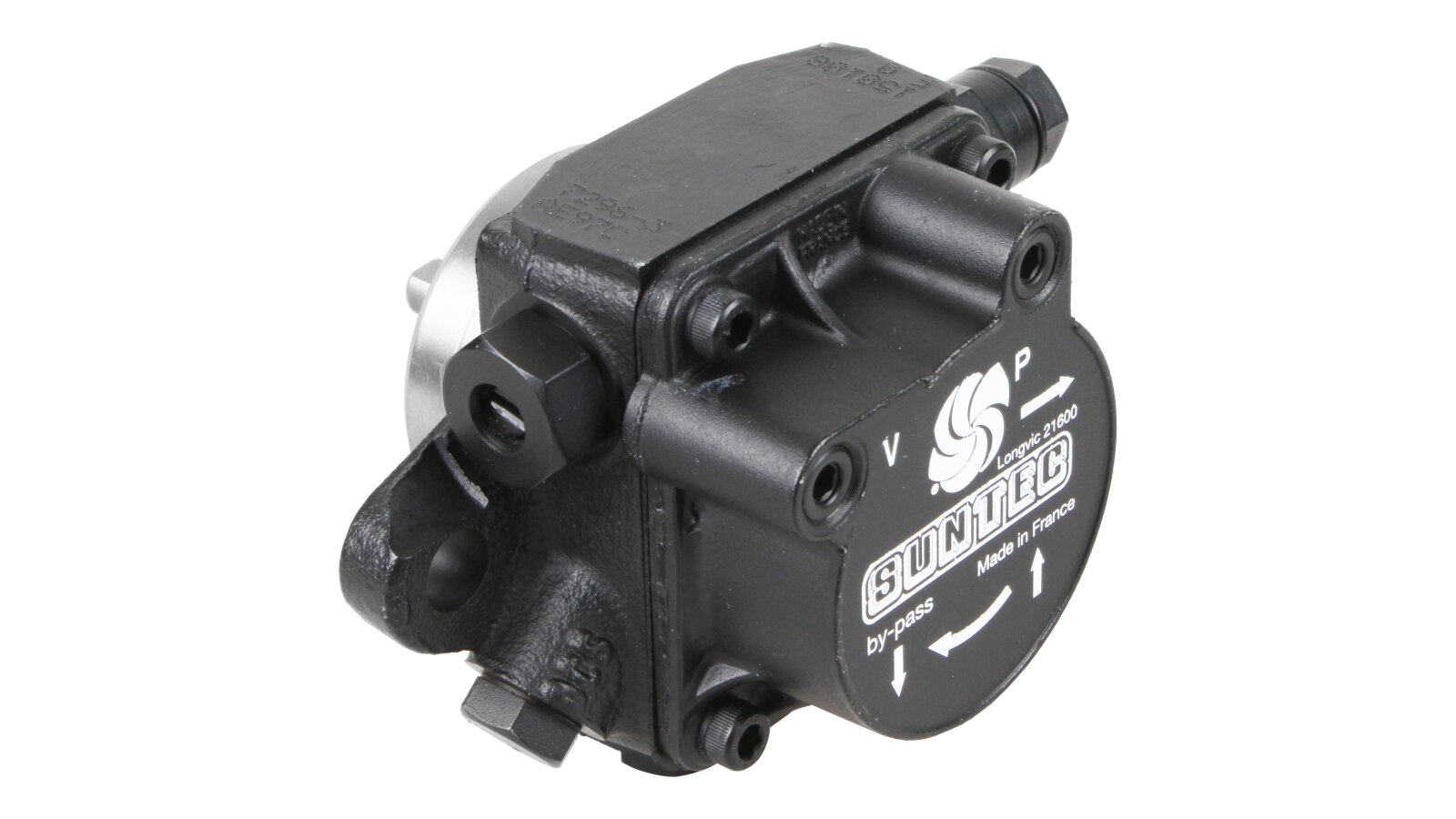

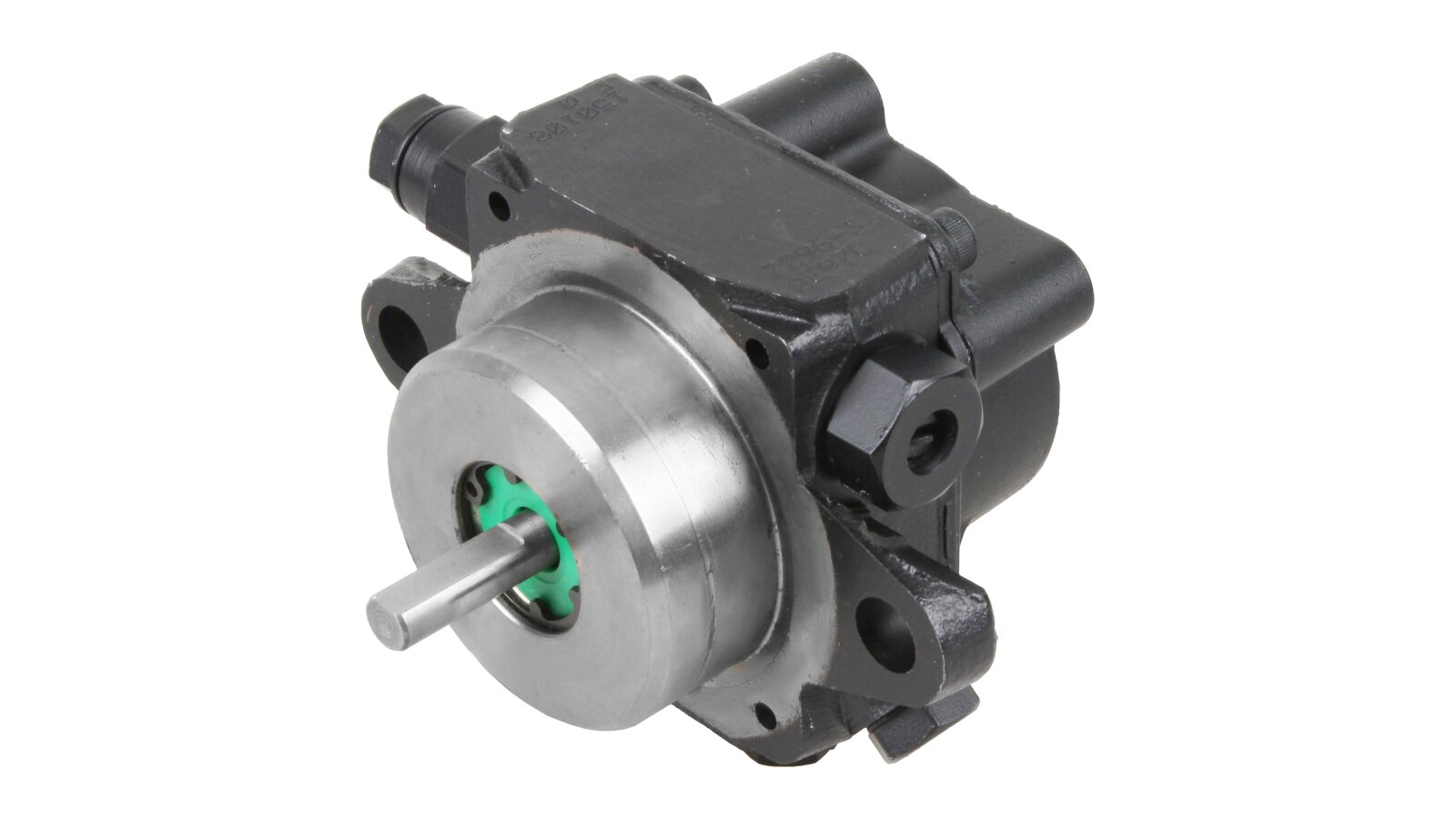

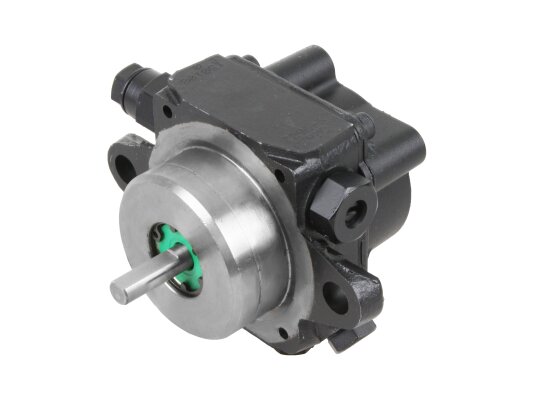

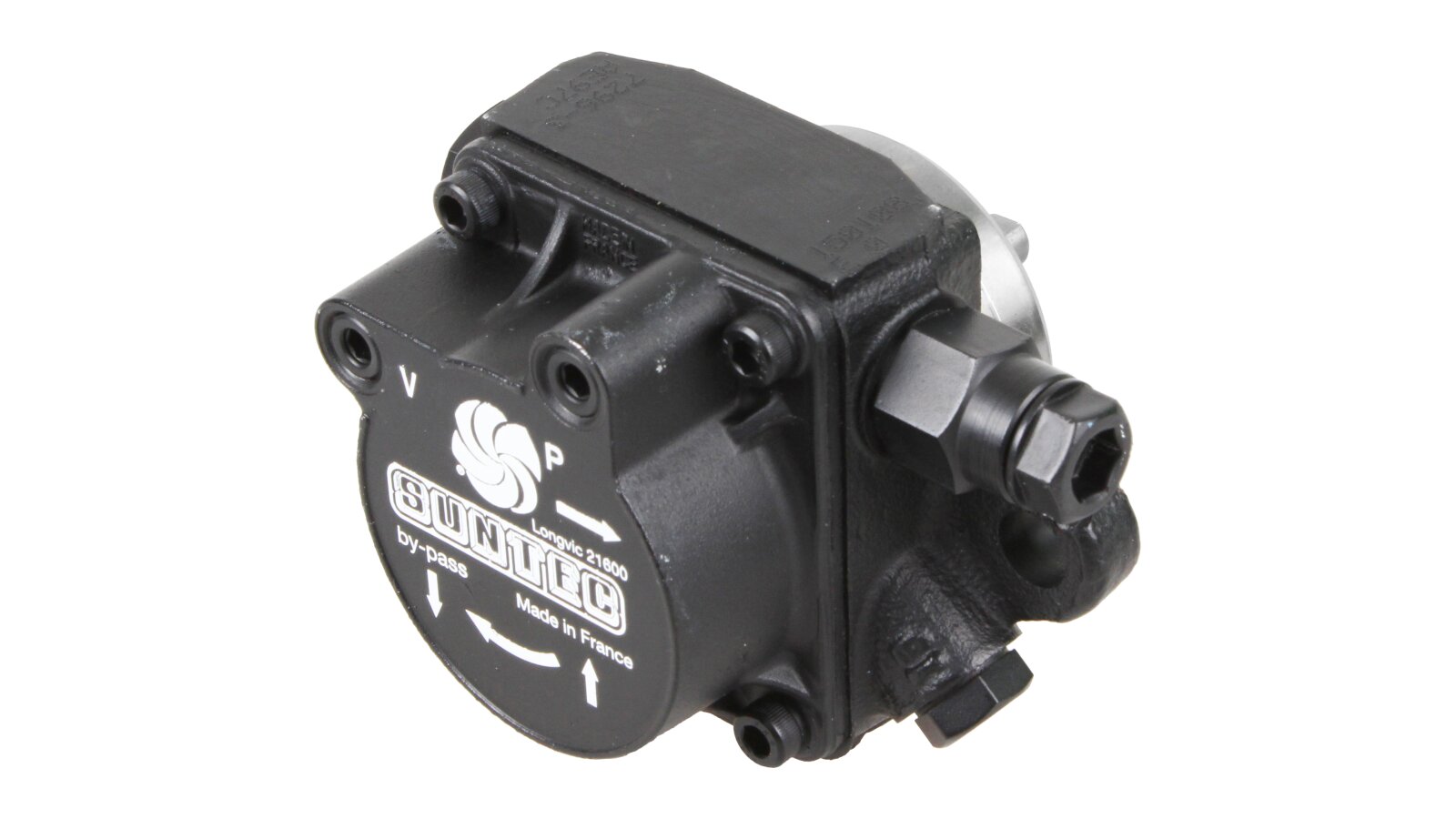

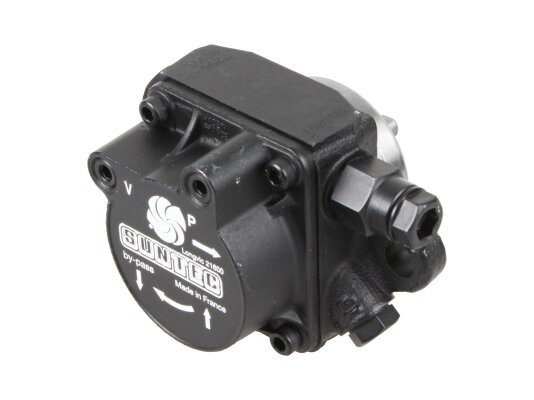

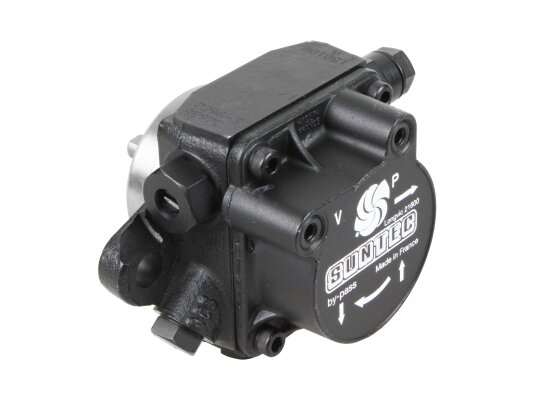

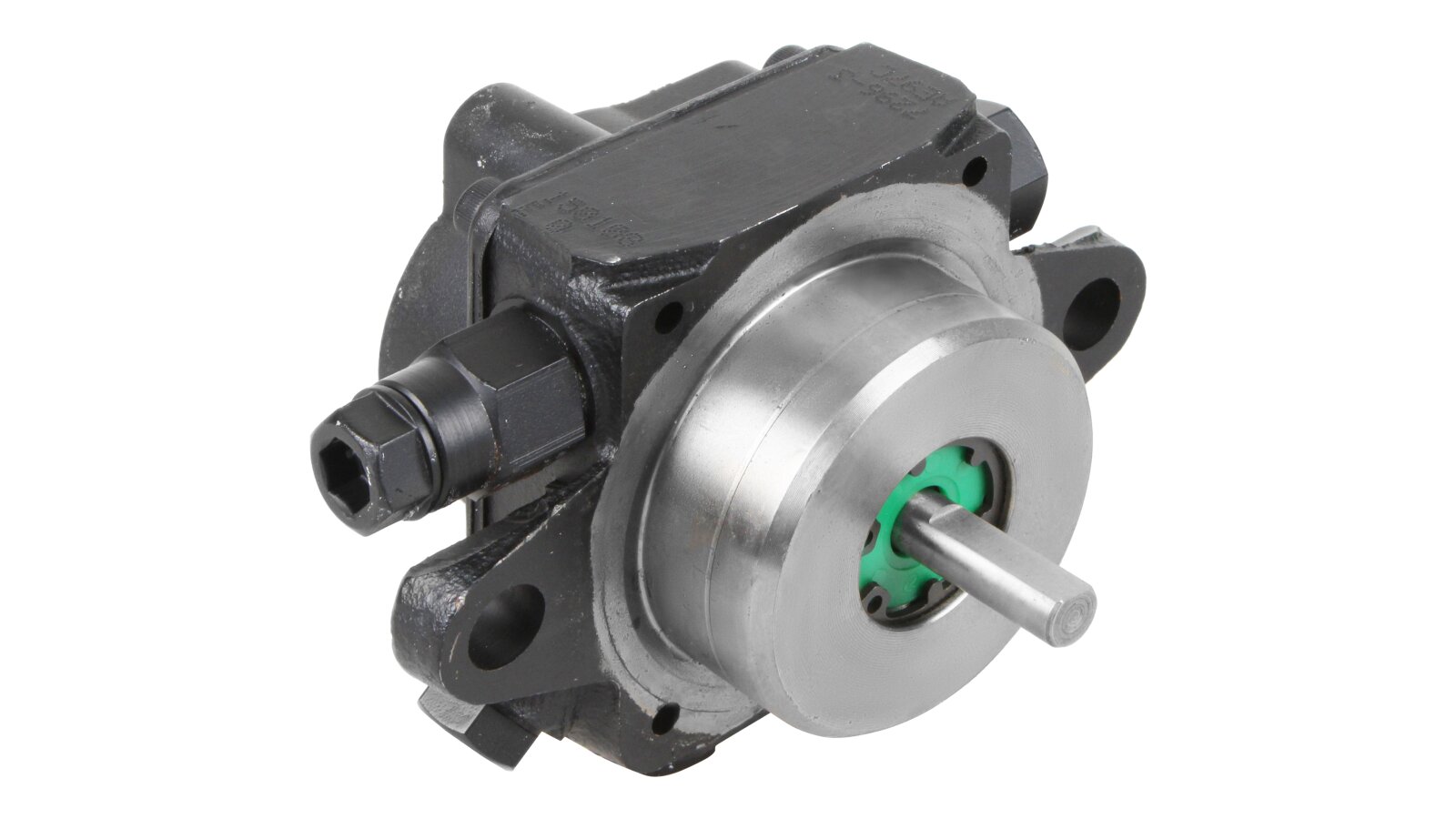

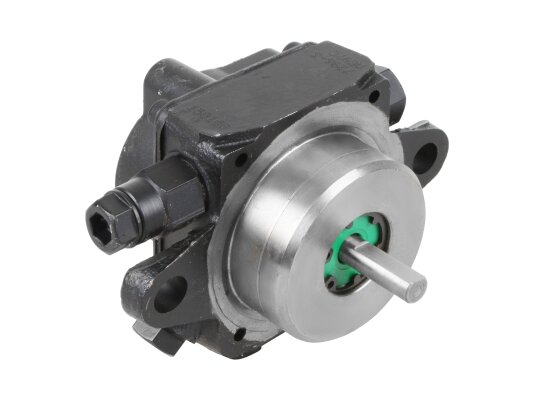

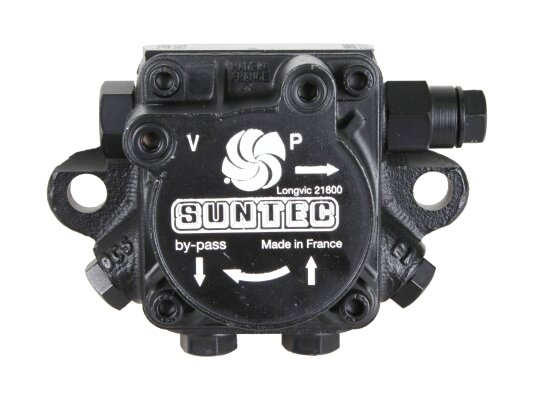

Burner Pump Suntec AE 97 C 7296 3P

Suntec

AED 1,200

  • Discontinued
Oil Burner Pumps
Products code: 1149

Description

The AE 97 C 7296 3P gear pump model for liquid fuel burners from the European company Suntec is attractive due to its high productivity — 132 l/hour and unpretentiousness to operating conditions. This unit is suitable for most burners such as Elco, Baltur, Lamborghini, and can be used on single-pipe and double-pipe fuel supply lines. The design of the adjustment mechanism does not provide for a shut-off function. To implement it, an additional electromagnetic valve must be installed. A simple intervention in the device assembly will also be required when installing in a single-pipe system. In this case, the bypass plug installed by the manufacturer is removed using a hex key and a steel one with a washer is mounted.

Technical information

  • The equipment can be used in fuel supply systems with a fuel viscosity in the range from 2 to 75 mm²/s and its temperature from 0 to +60 ° C.

  • The engine is connected via a flange mount with a diameter of 54 mm, which complies with the international standard EN 225.

  • During operation, the pressure on the nozzle is achieved within the range from 8 to 28 atm. The operating pressure set by the manufacturer is 14 bar. It is changed using a manual regulator.

The pump operates on a simple principle. A gear transmission sucks in fuel from the tank, distills it through a filter with a cell size of 150 µm and feeds it to the burners. The remaining air is removed automatically with a two-pipe connection or through nozzles - with a single-pipe connection.

The Suntec AE 97 C 7296 3P liquid fuel pump can be bought profitably on the website of the company "ANKAS", which is a reliable dealer of industrial equipment. We have a large selection of boiler equipment, which can be ordered directly on the website. Our specialists will advise you if you have any questions when choosing a unit.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 132 l/hOperating viscosity: from 2 to 75 mm²/sInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Performance for stage 2 at 11 bar and 5 cSt viscosity: 132 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmInstallation method: flange ∅ 54 mmShaft diameter: 8 mmTorque: 0.14 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barMaximum rotation speed: 3600 rpmNozzle pressure range: from 8 to 28 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityType of pumped liquid: dieselPump series: AE: base model without locking function
