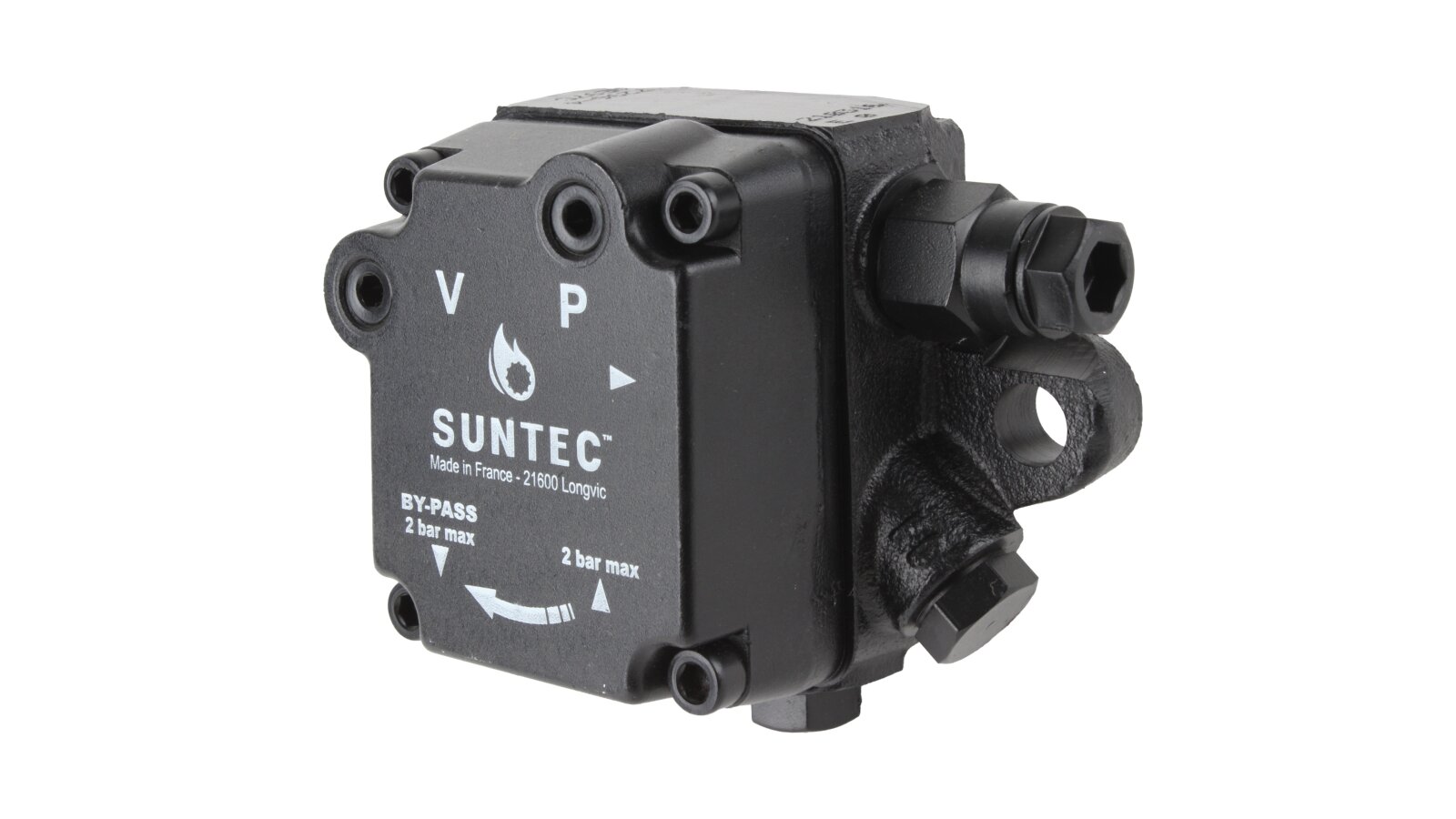

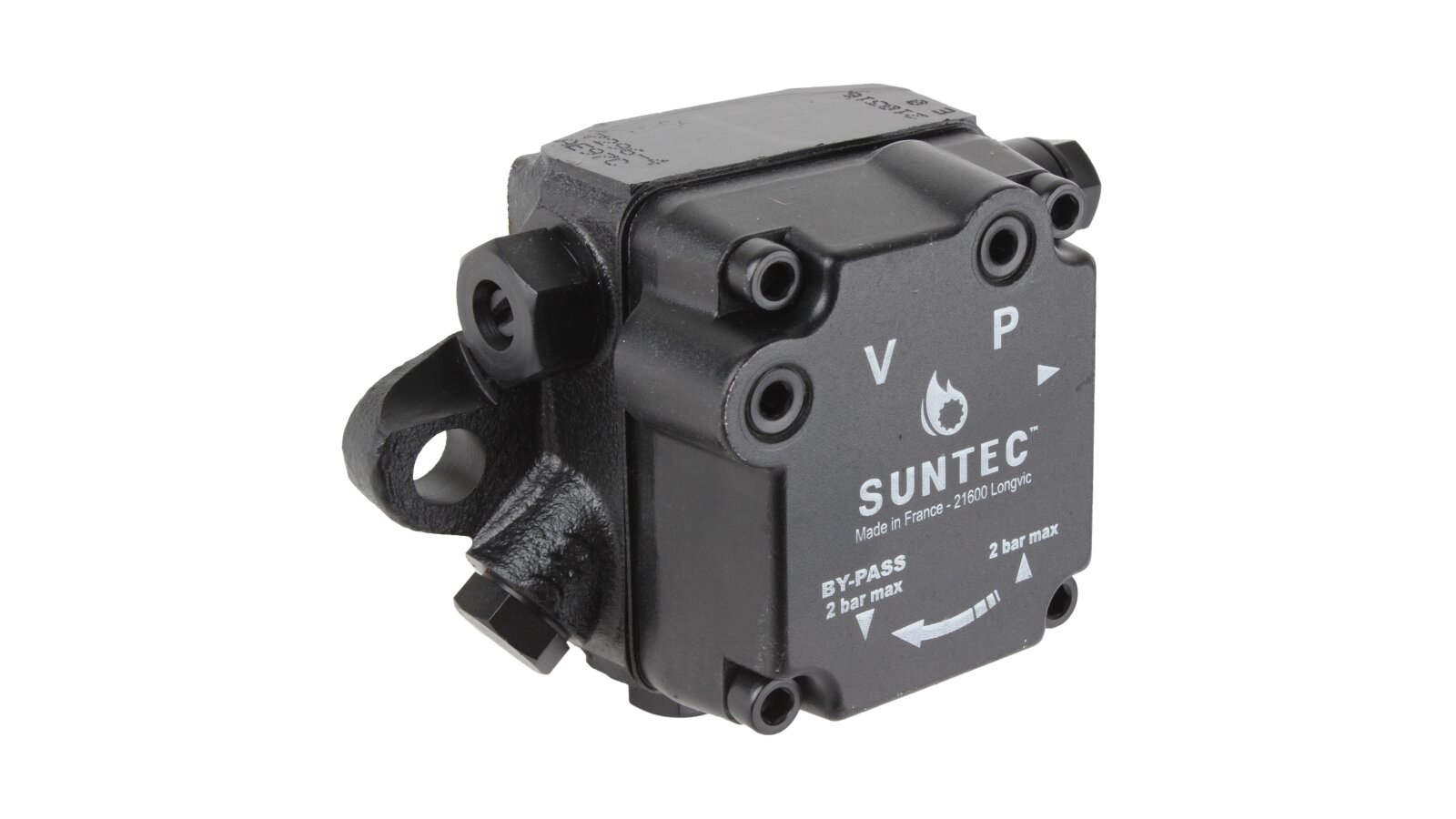

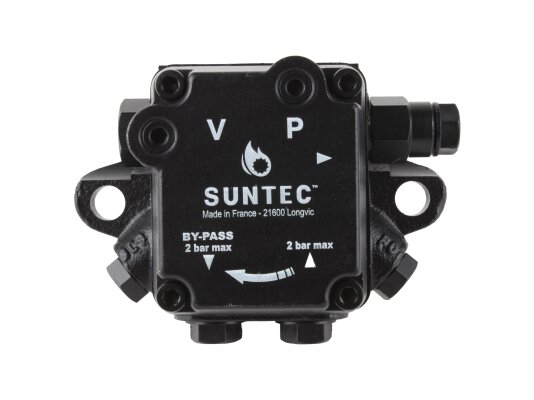

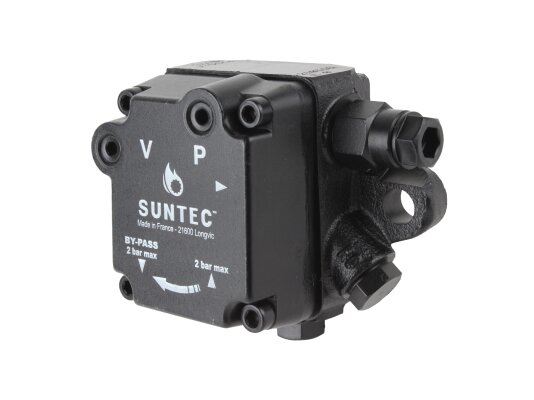

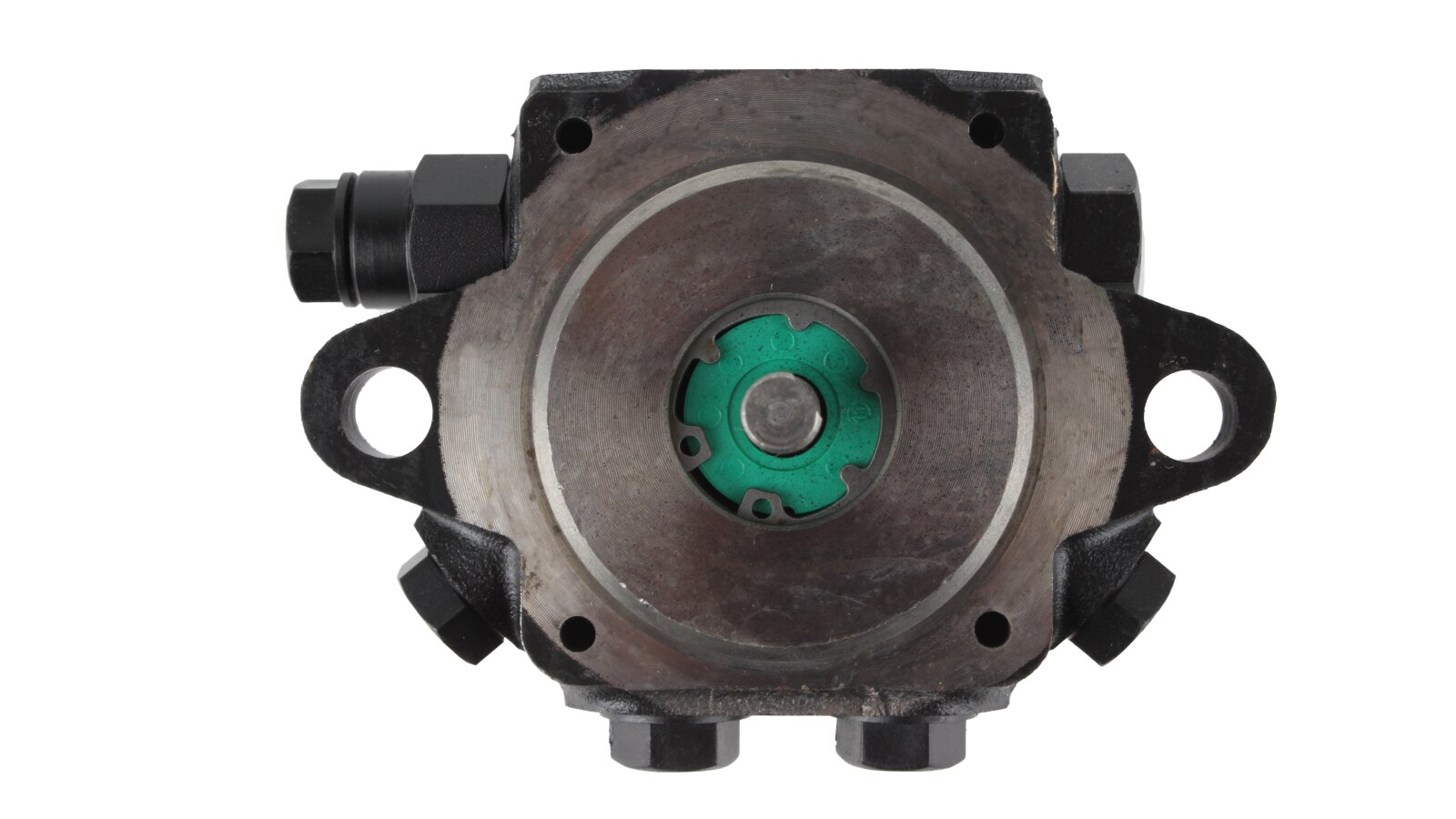

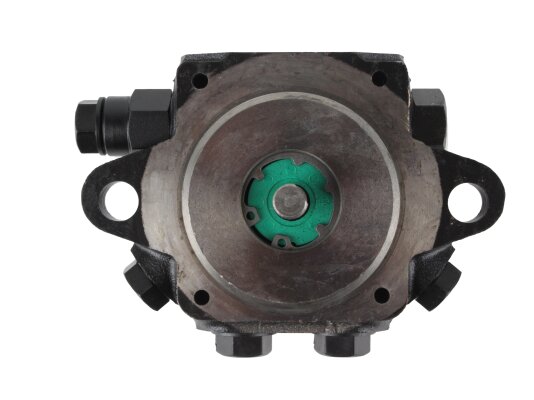

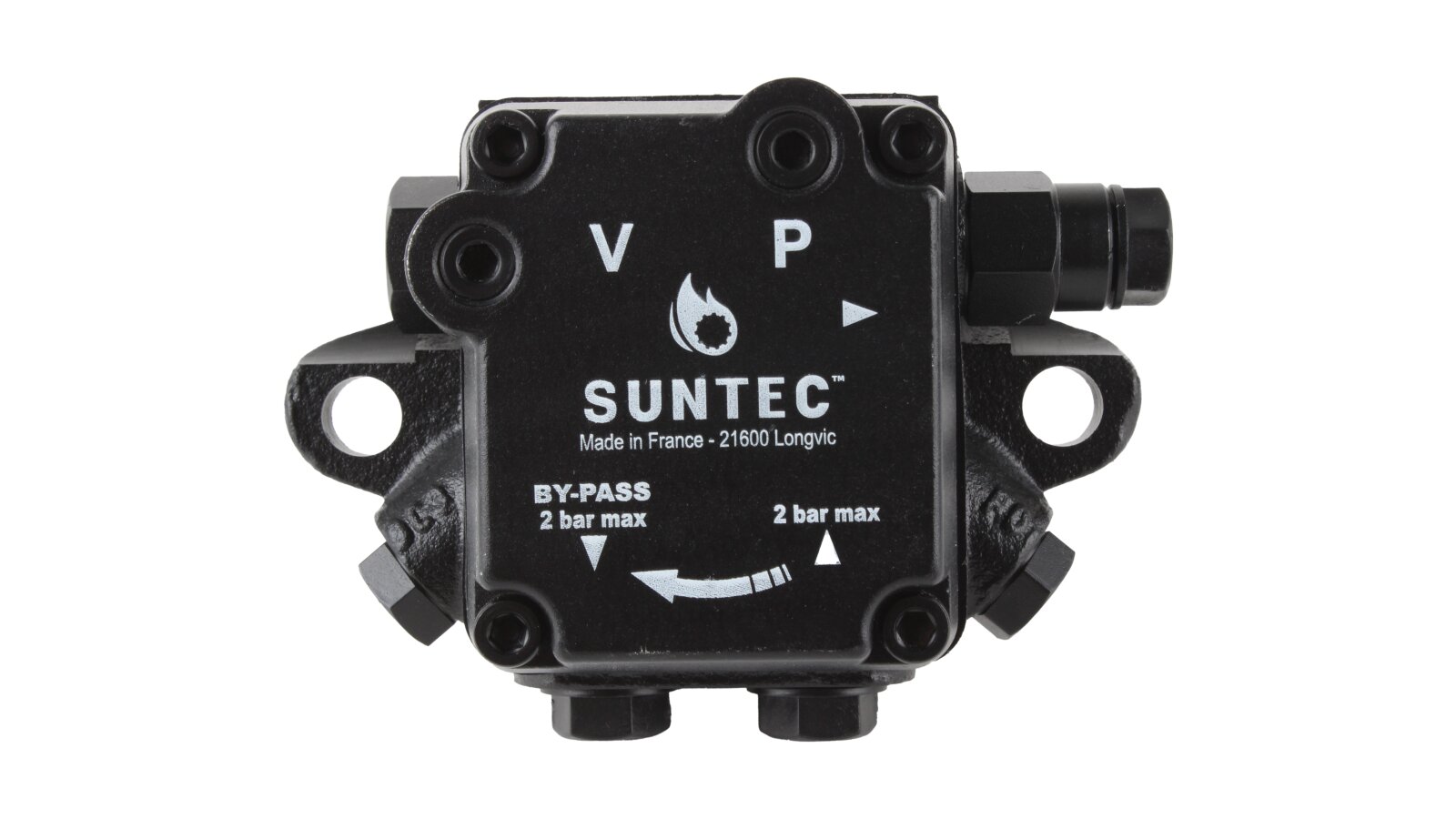

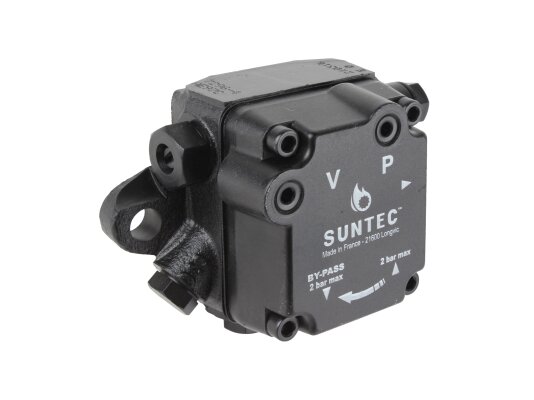

Burner Pump Suntec AE 97 C 7296 4P

Suntec

AED 1,425

Oil Burner Pumps
Products code: 54593

Description

The Suntec AE 97 C 7296 4P burner pump pumps fuel to the nozzle under pressure up to 28 bar. It is a basic model, equipped with a pressure regulating valve. It is characterized by high performance, the flow rate reaches 132 l / h at a supply pressure of 11 bar and a medium viscosity of 5 cSt. This series does not have a shut-off function. It is implemented by an additionally installed electromagnetic valve.

Features:

  • for single-pipe and two-pipe connection;

  • pumped medium: diesel fuel;

  • pressure regulating valve without a shut-off function;

  • nozzle pressure range: 8-28 bar, setting to 14 bar.

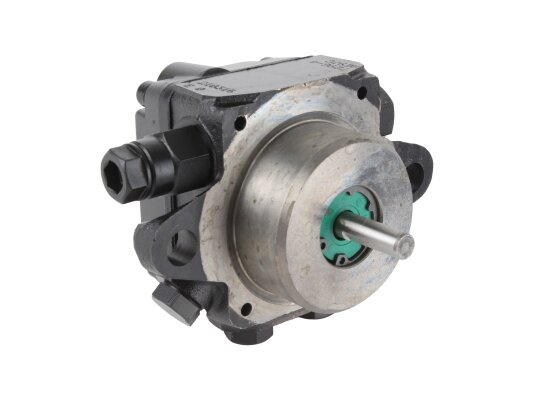

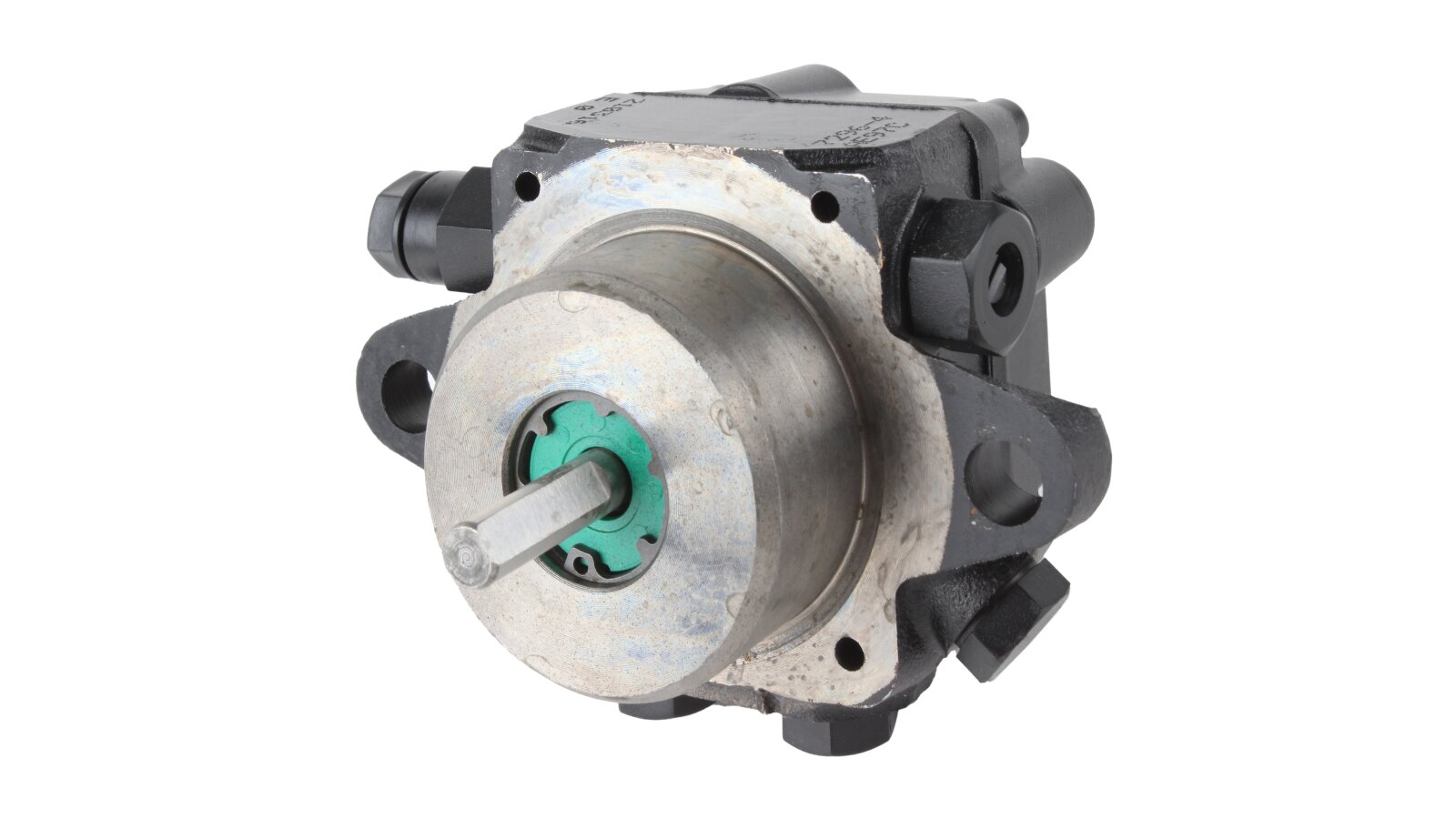

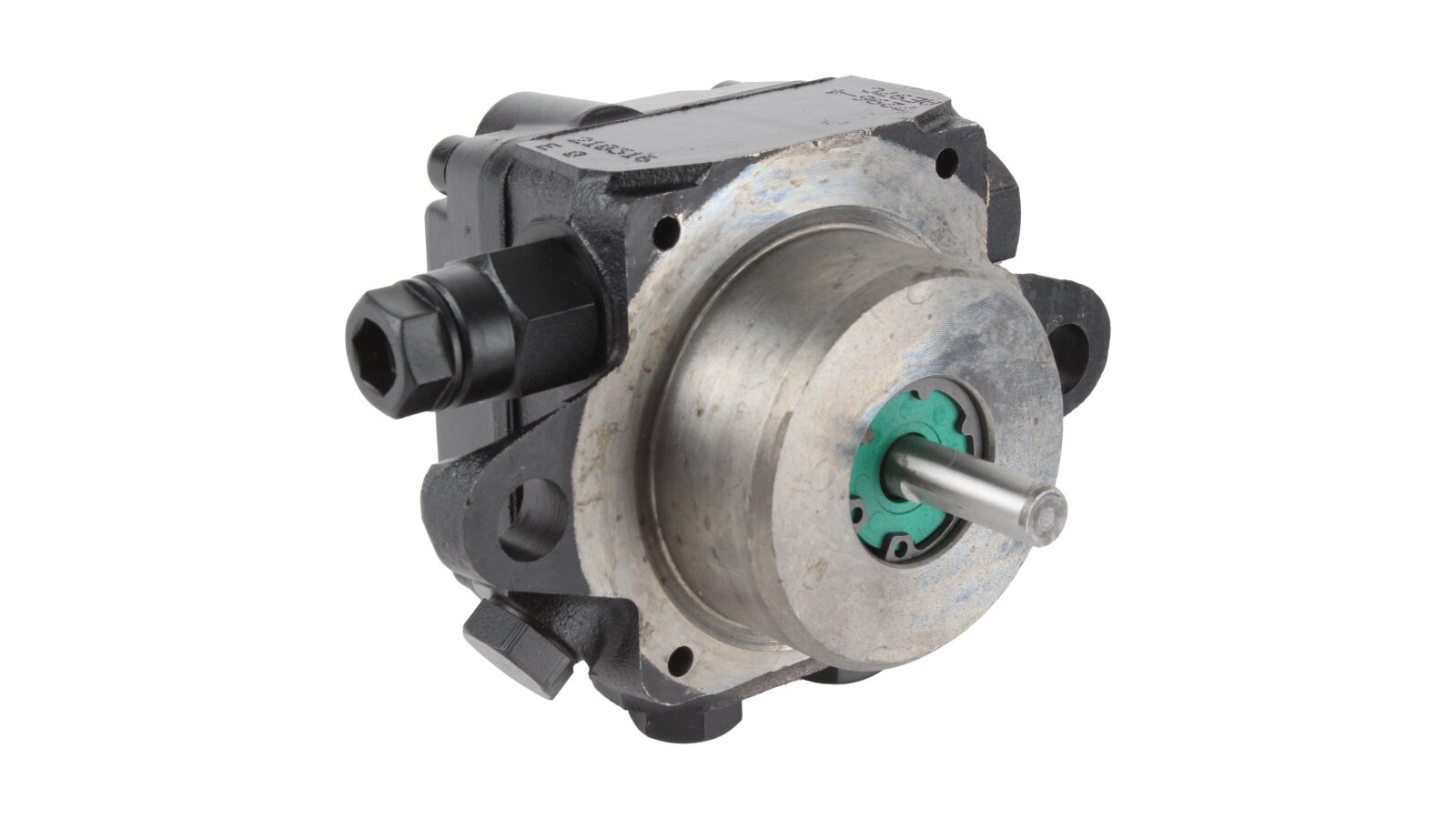

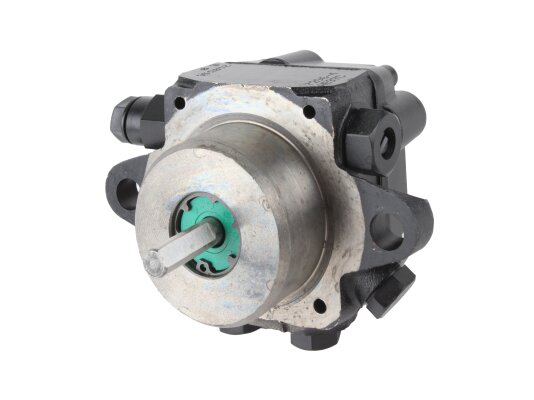

  • flange mounting method ∅ 54 mm;

  • threaded connection with suction and return pipe, ¼ inch NPTF;

  • standard ports for control and measuring devices ⅛ inch;

  • temperature of pumped fuel: 0...+60°C;

  • installation in any position, but not with the axis up;

  • maximum pressure in the feed and return lines is 2 bar;

  • air outlet through the nozzle line.

Design

The burner pump is equipped with a wear-resistant working unit. The gear mechanism is protected from damage by coarse particles by a built-in 150 μm filter, which is mounted at the flow inlet. The manufacturer recommends installing an additional filter after the pump.

Advantages:

  • high performance;

  • compactness, light weight;

  • compatible with most burners;

  • built-in filter to protect gears;

  • wide pressure adjustment range;

  • standard ports and outlets.

The Suntec AE 97 C 7296 4P burner pump in the basic assembly is ready for a two-pipe connection. For single-pipe use, you need to unscrew the bypass plug and close the hole.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 132 l/hOperating viscosity: from 2 to 75 mm²/sInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Performance for stage 2 at 11 bar and 5 cSt viscosity: 132 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmInstallation method: flange ∅ 54 mmShaft diameter: 8 mmTorque: 0.14 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barMaximum rotation speed: 3600 rpmNozzle pressure range: from 8 to 28 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityType of pumped liquid: dieselPump series: AE: base model without locking function
