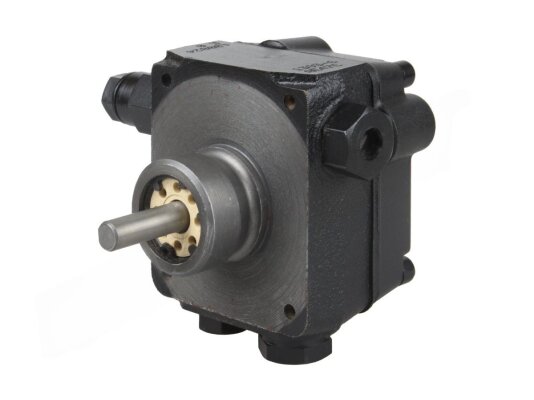

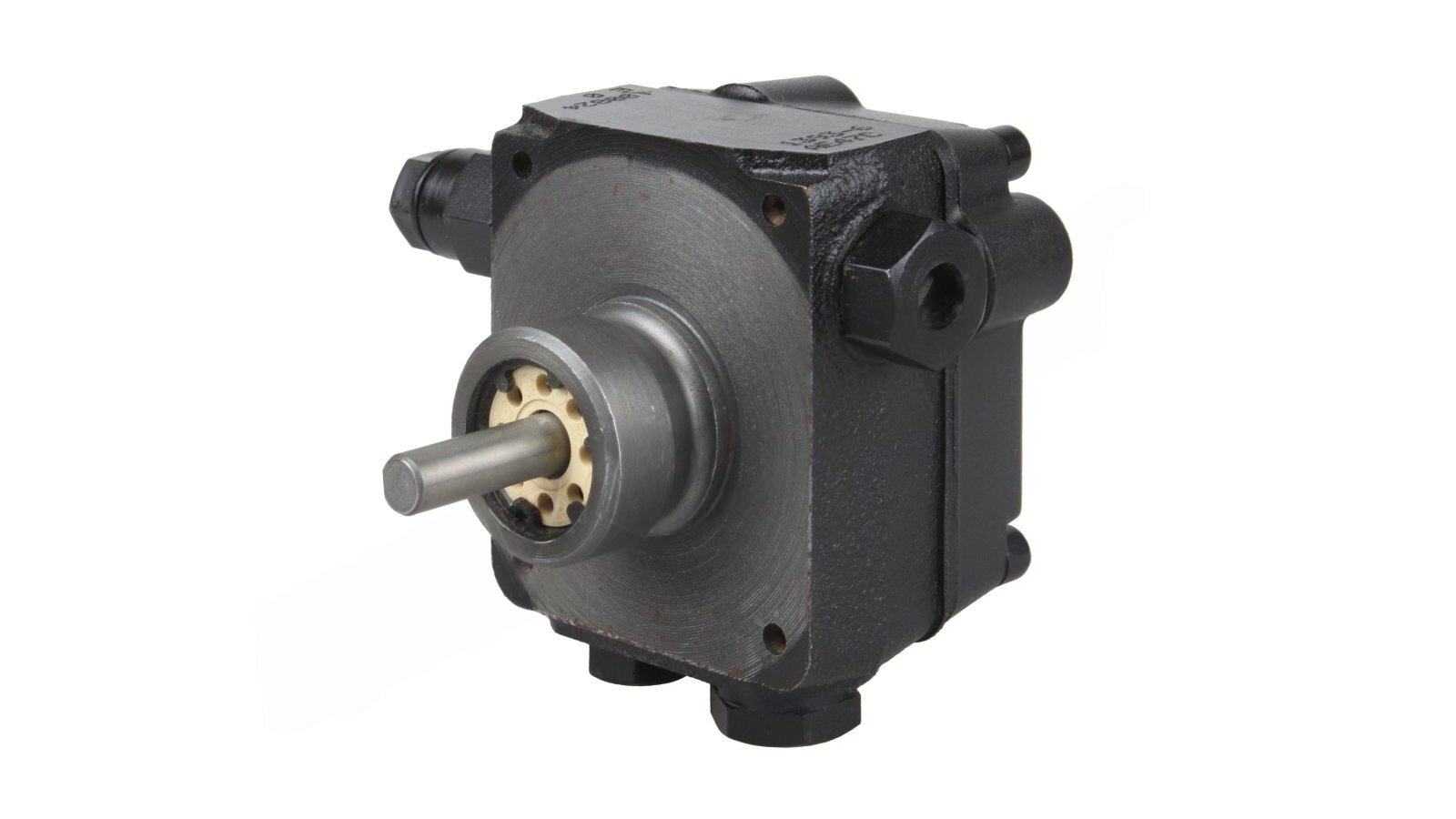

Burner Pump Suntec AE V 47 C 1394 6P

Suntec
AED 675
  1. Oil Burner Pumps

Description

The Suntec AE V 47 C 1394 6P burner pump pumps diesel fuel and B10 biodiesel under pressure up to 14 bar. Equipped with a pressure regulating valve. The shut-off function is not provided. It is implemented using an external solenoid valve. The capacity varies depending on the supply pressure and fuel flow parameters (44 l/h when set to 11 bar and a viscosity of 5 cSt).

Features:

  • universal application, suitable for diesel fuel and biofuel;

  • heat-resistant Viton seals;

  • for systems of single-pipe and dual-pipe configuration;

  • AE series without a shut-off function;

  • pressure regulating valve, setting range 7-14 bar, adjusted to 9 bar.

  • spigot connection ∅ 32 mm;

  • threaded method of fastening to the suction and return line, ¼ inch NPTF;

  • ports for control and measuring instruments of ⅛ inch size;

  • temperature of pumped fuel: 0...+60°C;

  • installation in the system in any position, but not with the axis up;

  • permissible pressure in the supply and return lines - no more than 2 bar;

  • air outlet through the nozzle line.

Design

The burner pump is designed for intensive use, equipped with a wear-resistant working mechanism. The gear pair is protected from damage by a coarse filter of 150 microns located at the flow inlet. The power unit is an electric motor with a shaft speed of up to 3600 rpm. In the basic version, the pump is ready for installation in a system with a return line. If it is missing, it is necessary to replace the bypass plug with a blind one.

Advantages:

  • versatility, pumping diesel fuel and biodiesel;

  • optimal performance;

  • compact dimensions of the design, variability of installation;

  • protection of gears from mechanical coarse particles;

  • compatibility with most burners;

  • pressure regulation;

  • standard ports and outlets.

The manufacturer recommends installing an additional filter after the pump for the Suntec AE V 47 C 1394 6P burner to protect the nozzle from clogging.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 44 l/hOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulation without locking functionModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Performance for stage 2 at 11 bar and 5 cSt viscosity: 44 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 7 to 14 barFactory pressure setting: 9 barShaft design: one cavityType of pumped liquid: diesel, biodiesel fuel blend B10Pump series: AE: base model without locking functionInstalling the bypass plug: P: bypass plug installed in return line for two-pipe system
