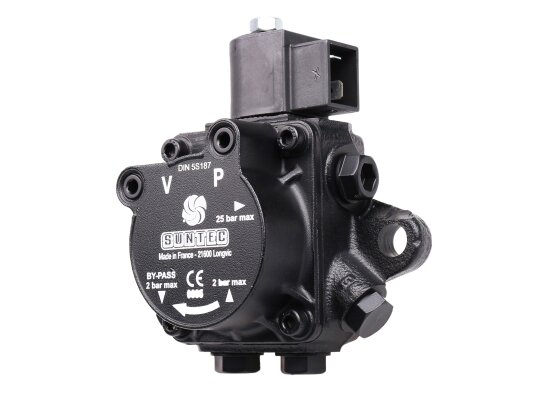

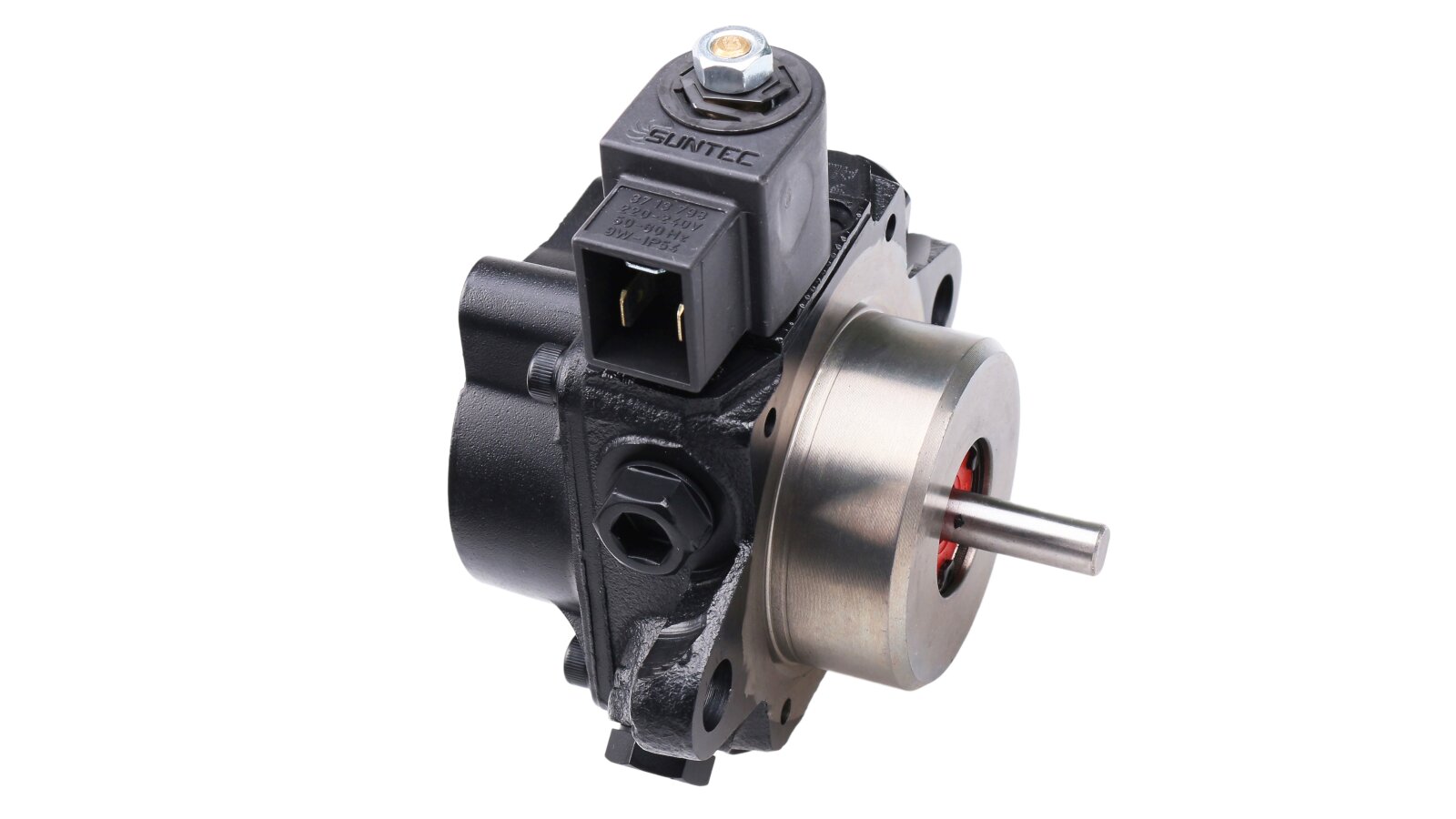

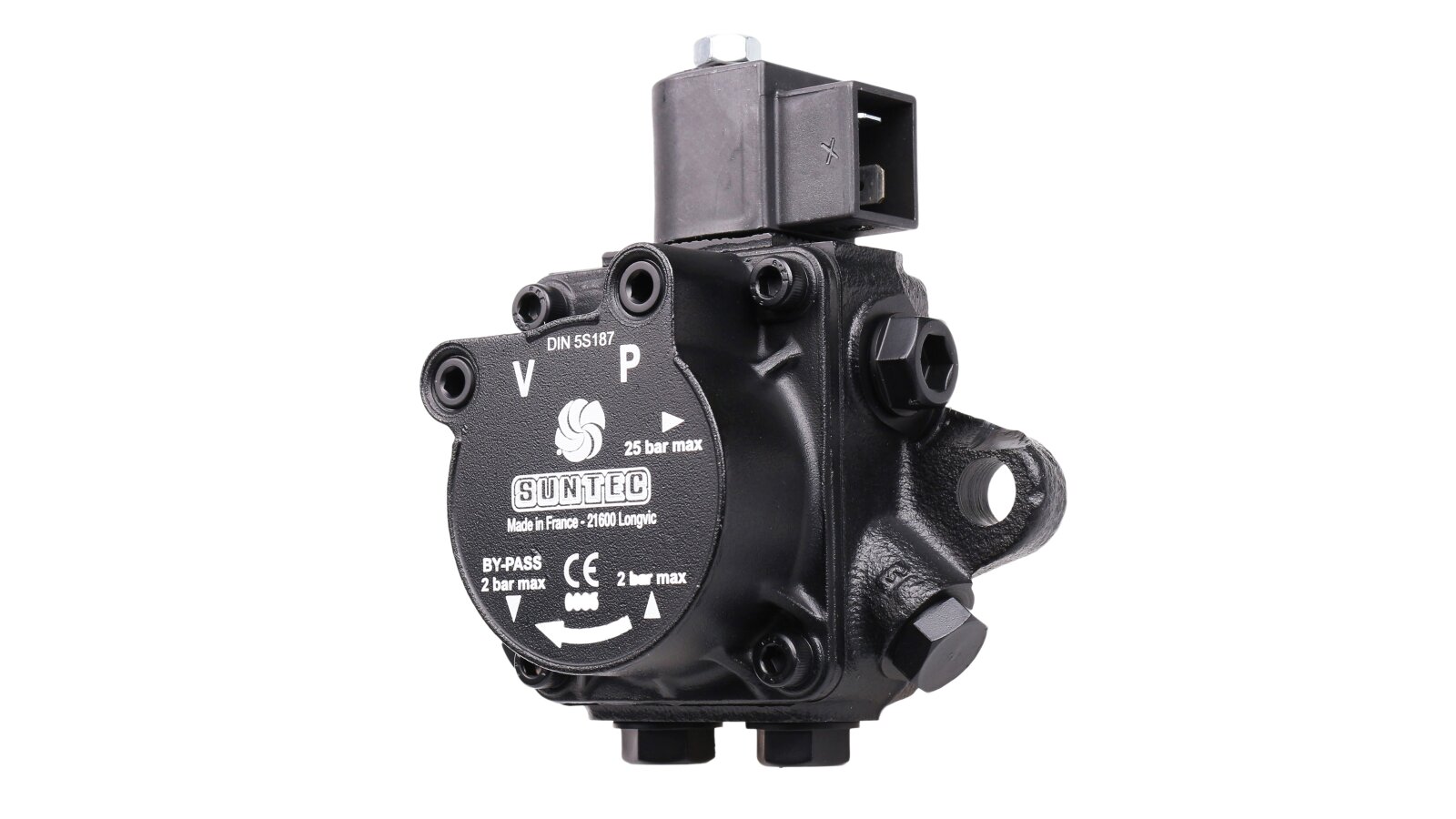

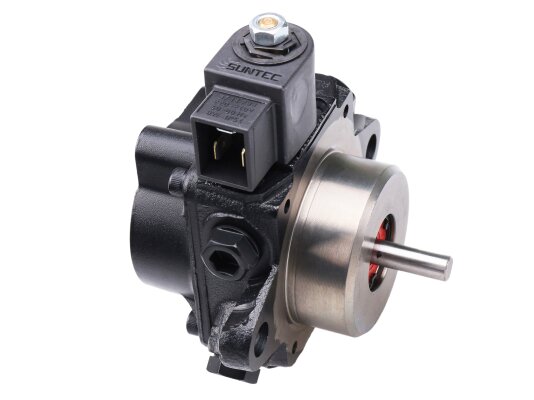

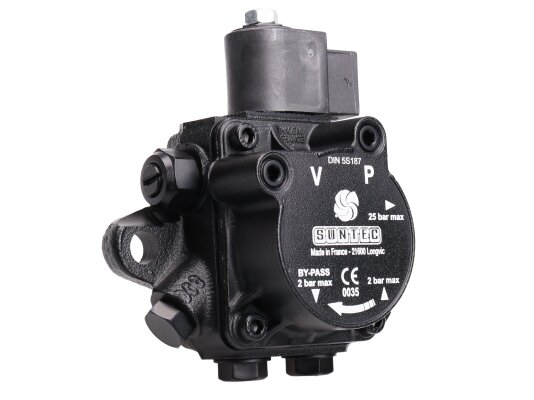

Burner Pump Suntec AL 35 A 9526 6P 0500

Suntec

AED 1,075

Oil Burner Pumps
Products code: 1171

Description

The French company Suntec — a global manufacturer of pumps for liquid fuel burners of various types — presents a new single-stage gear pump AL 35 A 9526 6P 0500 with a capacity of up to 40 l/h. This is an excellent solution for burners with a capacity of up to 1000 kW. The main feature of the AL series is a built-in electromagnetic valve of the "normally closed" type, which controls the fuel supply to the nozzle.

Operating principle

  • Diesel fuel from the tank enters the gear pair of the device through a mesh serviceable filter with a useful area of ​​6 cm² and a cell cross-section of 150 µm. It protects the mechanism from foreign objects and small debris.

  • After passing between the gears rotating clockwise, the fuel enters the cavity of the electromagnetic shut-off valve. Its task is to connect and disconnect the pump with the injector line by means of a directed 220-240 V electrical signal to the coil with the core. This model can be set to a working feed pressure in the range of 8-15 atm. The maximum valve pressure is 25 atm.

  • Fuel that does not enter the feed line is drained back into the tank through a specially provided hole - bypass (with a two-pipe connection scheme) or goes to the gears (with a single-pipe).

Main advantages:

  • reliable parts and high-quality assembly of fuel pumps for heating burners;

  • simple repairable system;

  • pumps diesel fuel with a viscosity of 2 to 12 mm² / s;

  • has a blocking electromagnetic valve with a locking function;

  • the device body has an IP54 protection class - protects internal elements from dust and splashes of water;

  • small dimensions and weight no more than 1.1 kg.

Application area

The use of Suntec fuel pumps is appropriate when operating low-power household and industrial burners Elco, Weishaupt, Baltur and Lamborghini, equipped with electric control of the fuel supply to the nozzle. In addition, a pressure gauge and vacuum gauge can be additionally connected to the device for accurate monitoring of its operation. The online store "ANKAS" offers to buy a pump for AL series burners at an affordable price.

Characteristics

Direction of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightPerformance at 11 bar pressure and 5 cSt viscosity: 40 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 40 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.1 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
