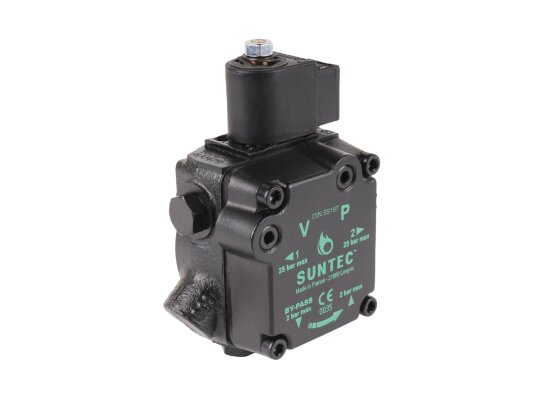

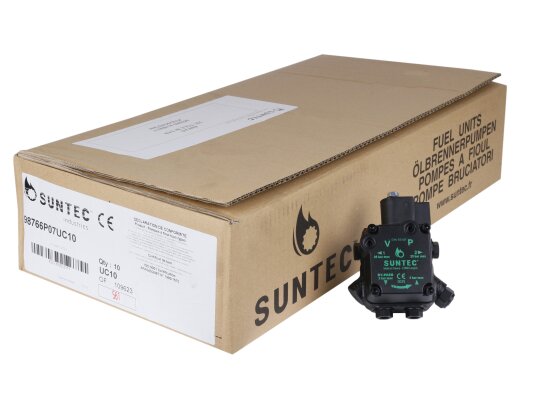

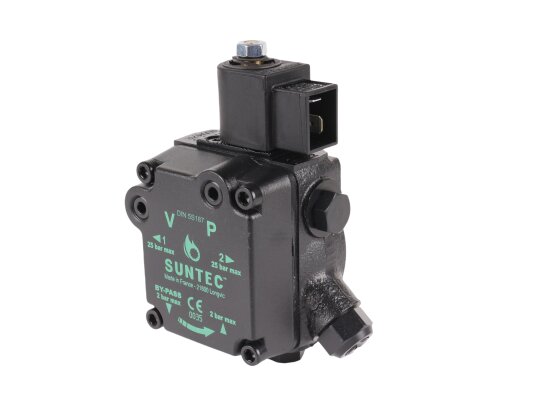

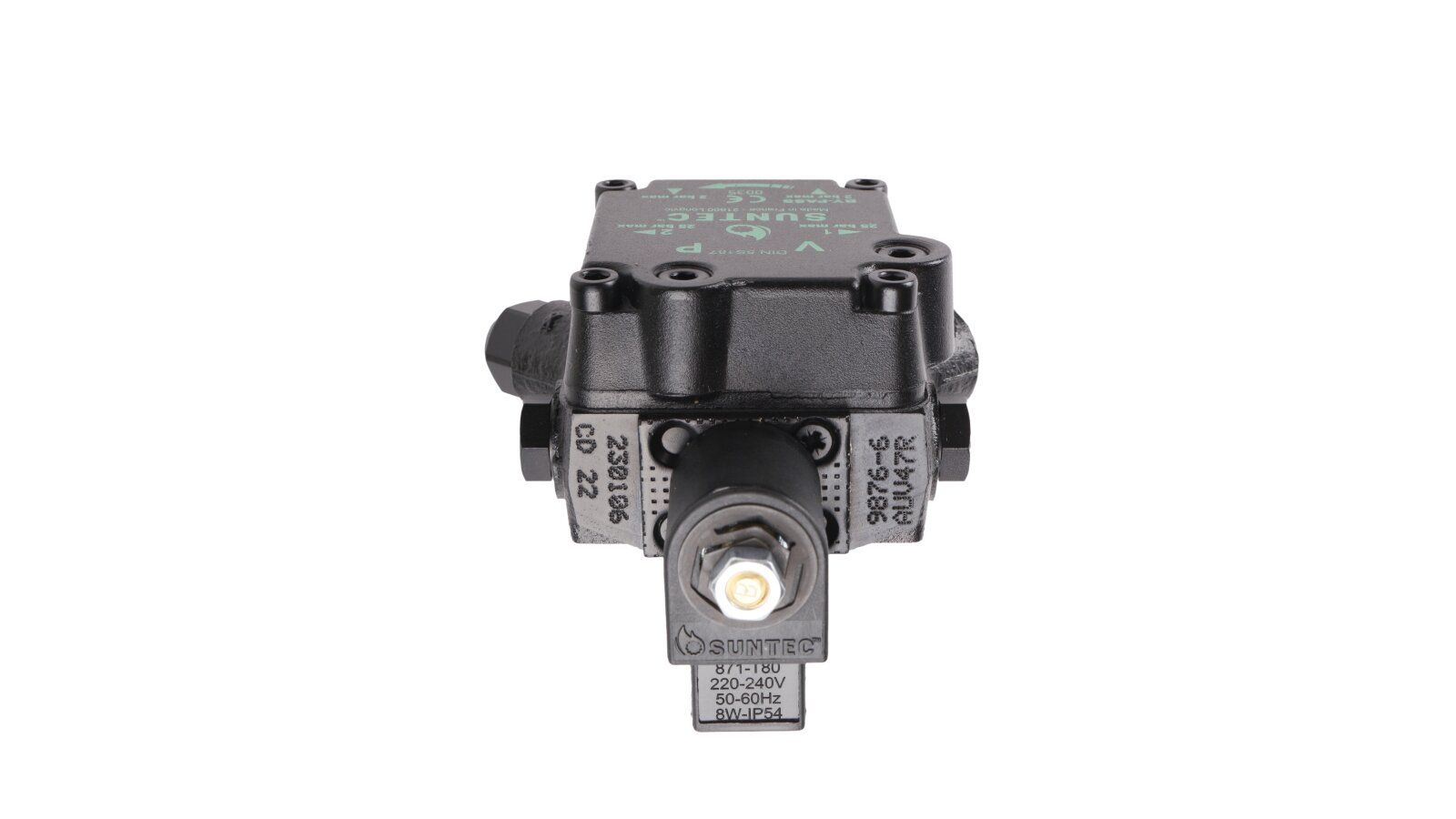

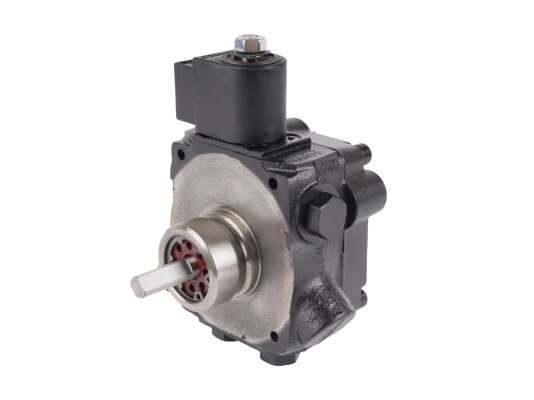

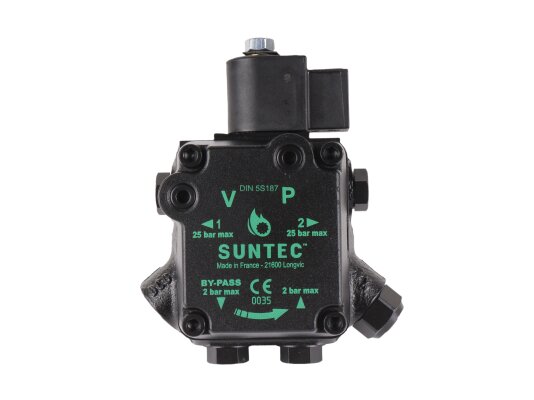

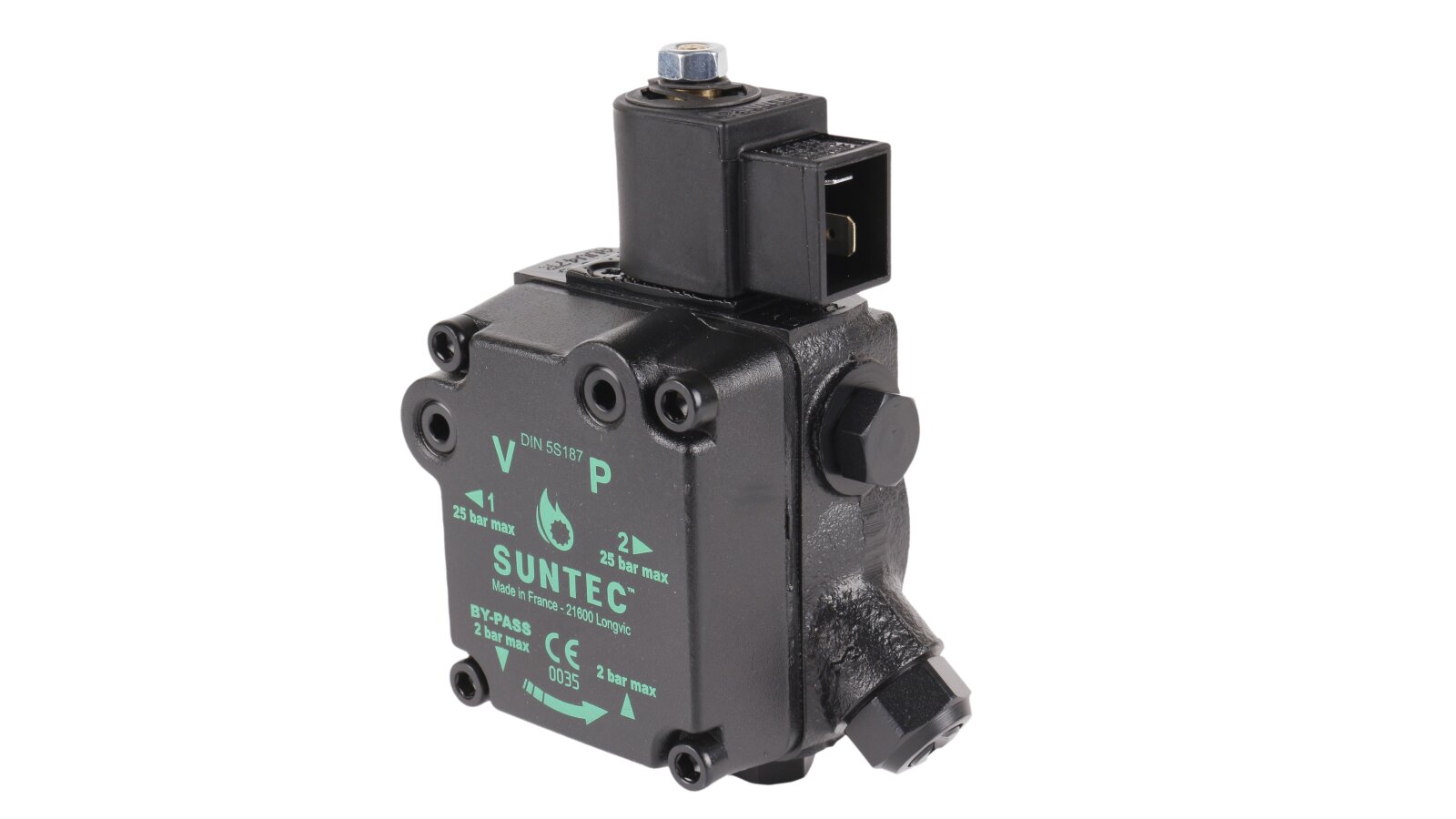

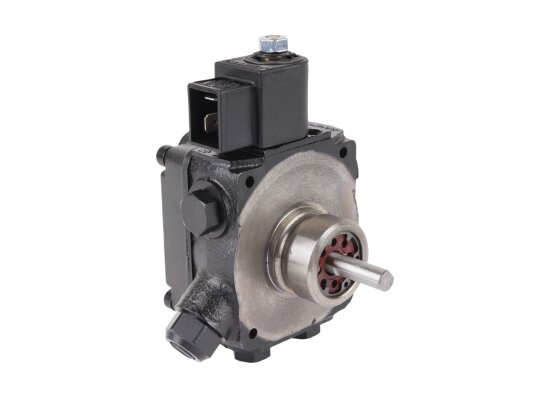

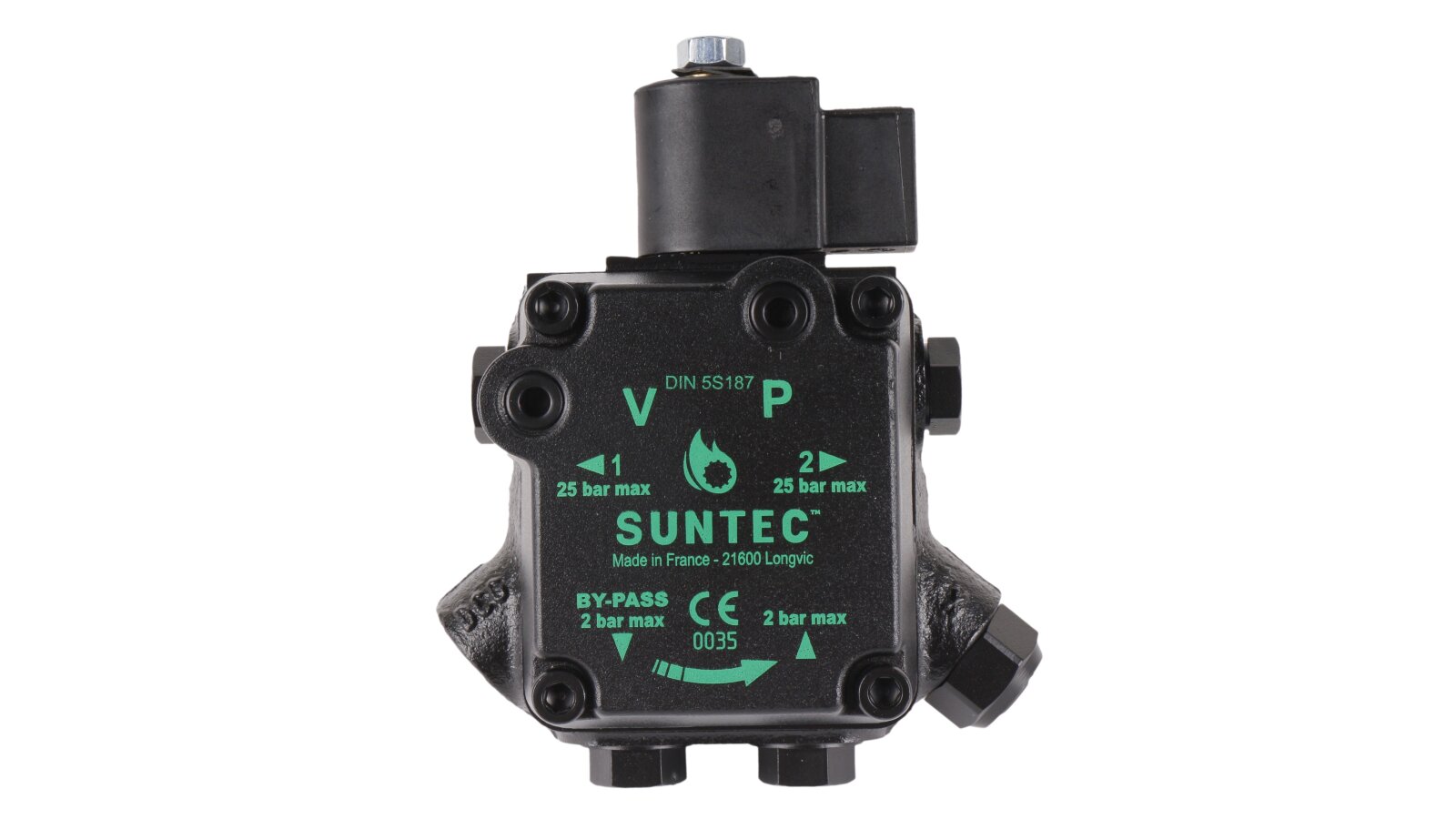

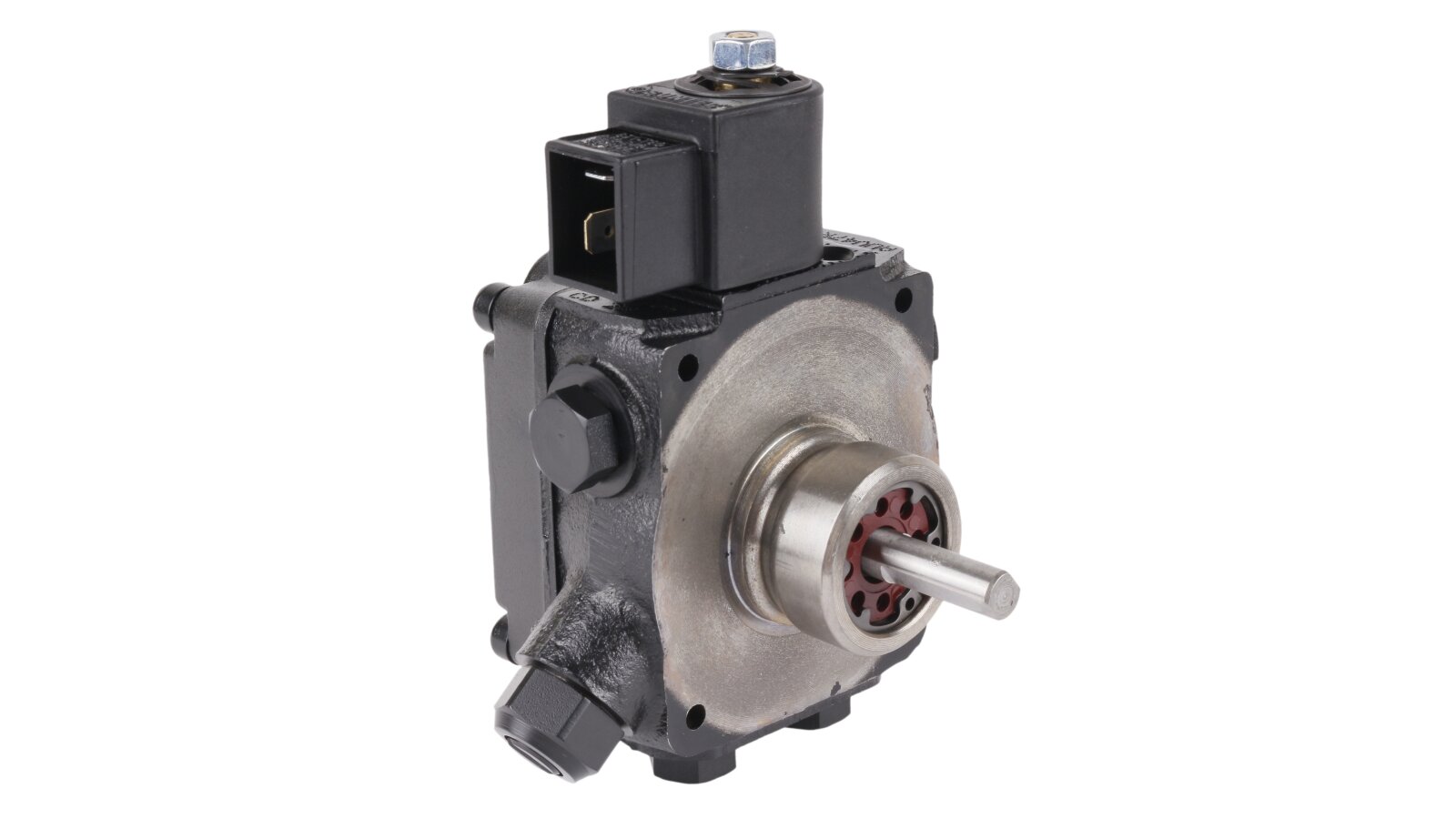

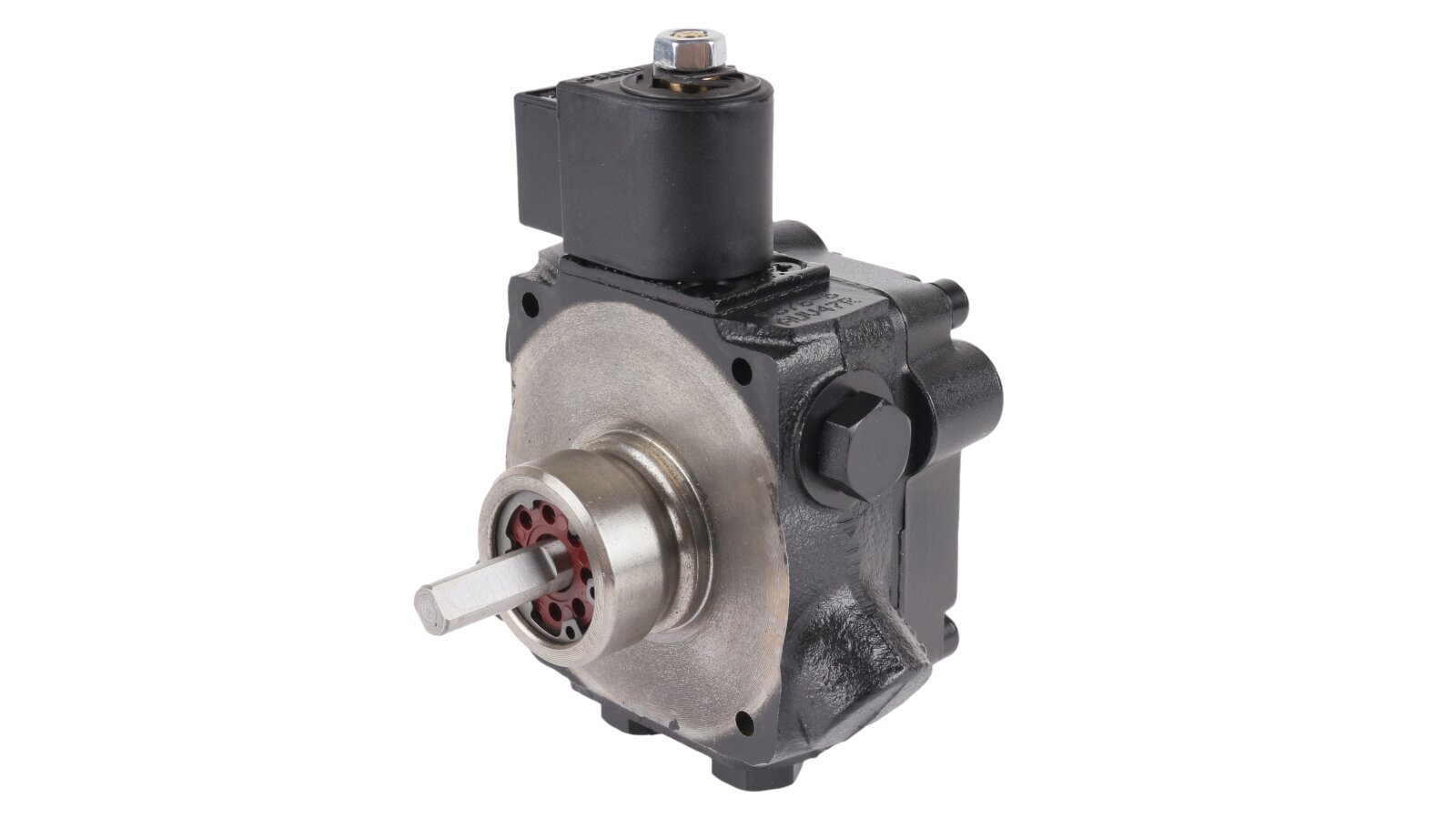

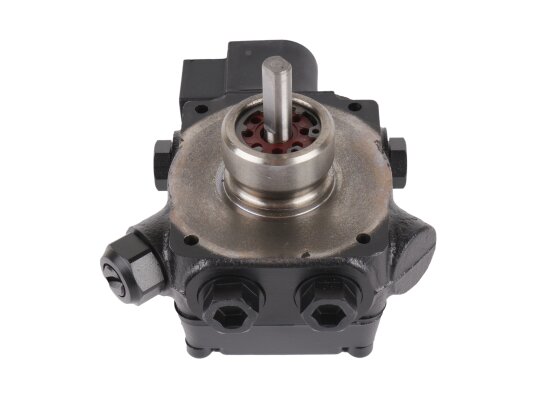

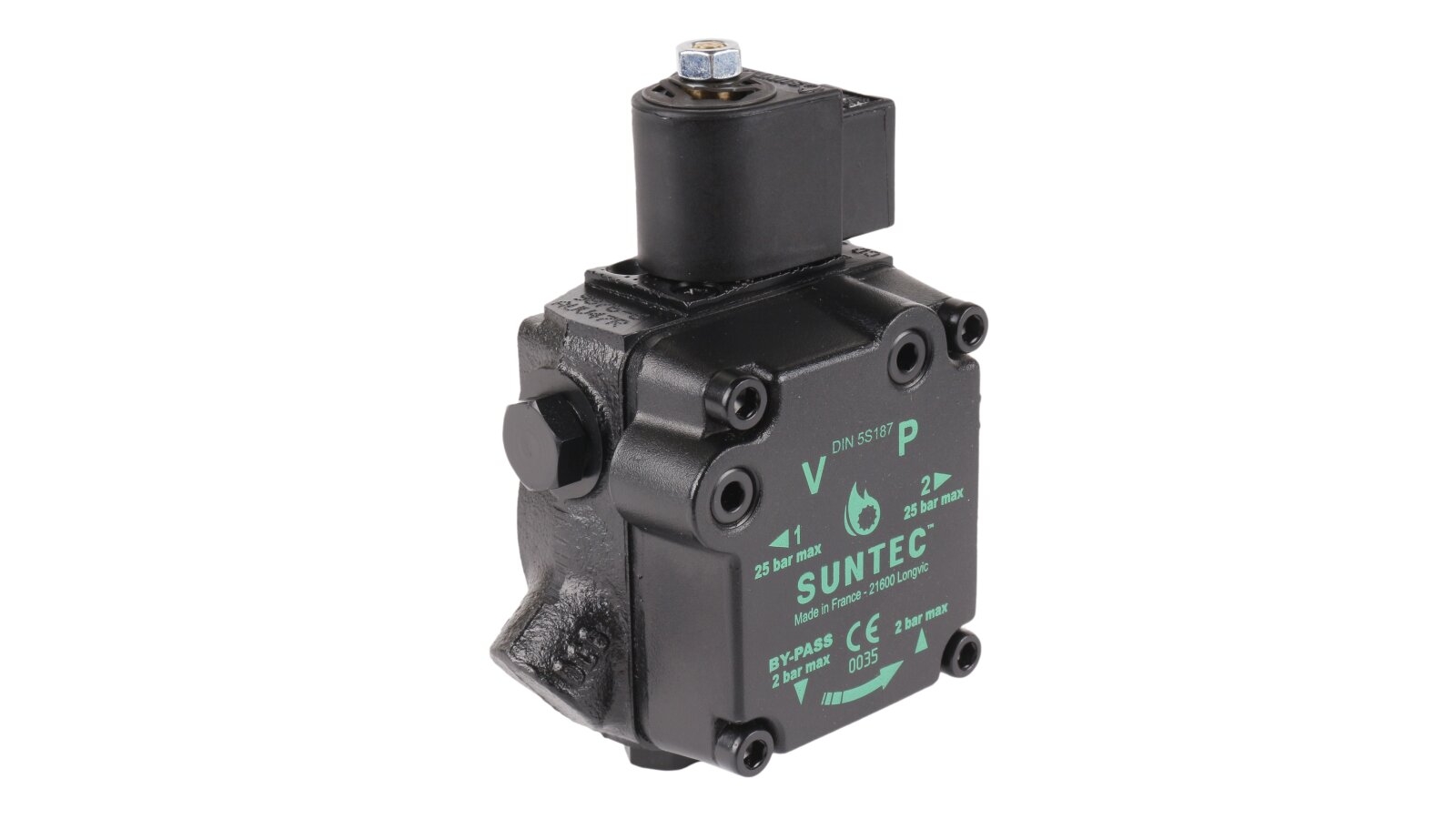

Burner Pump Suntec AU V 47 R 9876 6P 0700

Suntec
AED 1,750
  1. Oil Burner Pumps

Description

The Suntec AU V 47 R 9876 6P 0700 burner pump is suitable for universal use. It supplies diesel fuel, kerosene, and B10 biodiesel mixture for combustion. It can be used to replace the AS47 and AL35 models. The pump is equipped with an electromagnetic shut-off valve and two outlets per nozzle.

Features and important parameters:

  • for liquid fuel burners with single-stage power regulation;

  • built-in filter, cleaning capacity 150 μm;

  • viscosity of pumped fuel 1-12 cSt;

  • series with electromagnetic valve and two outlets per nozzle;

  • pressure adjustment range 4-25 bar, default – 9 bar;

  • permissible fuel temperature inside the pump – 0...+60 °C;

  • sleeve mounting method, ∅ 32 mm;

  • dust and moisture protection level IP 54 according to EN6052;

  • wear-resistant design, reliable gears;

  • press fit of the gear transmission;

  • ¼ inch NPTF thread for connecting the suction and return pipes;

  • standard ports for measuring pressure and vacuum pressure;

  • automatic release of excess air in two-pipe systems;

  • inlet / outlet pressure - up to 2 bar.

The Suntec AU burner pump in the factory assembly is designed for installation in a two-pipe system. A bypass plug is installed in the return drain hole. With a single-pipe wiring scheme, it is necessary to hermetically close the return channel by installing a steel plug with a washer.

Characteristics

2nd stage performance at 11 bar and 1.8 cSt viscosity for Kerosene: 24 l/hInstallation method: sleeve ∅ 32 mmOperating viscosity: from 1 to 12 mm²/sSolenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 44 l/hMaximum pressure of the solenoid valve: 25 barPump series: AU: replaces most AS 47 and AL 35 models. It has an integrated solenoid valve (type AL) withStrainer: Open area: 6 cm²Strainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpValve function: pressure regulatingModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemReturn pressure: 2 barPerformance at 11 bar and 1.8 cSt viscosity for Kerosene: 24 l/hPerformance at 11 bar pressure and 5 cSt viscosity: 44 l/hTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 4 to 25 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmDegree of protection: IP54Direction of rotation (looking at the drive shaft): R: вращение по часовой стрелкеType of pumped liquid: diesel, kerosene, biodiesel fuel blend B10
