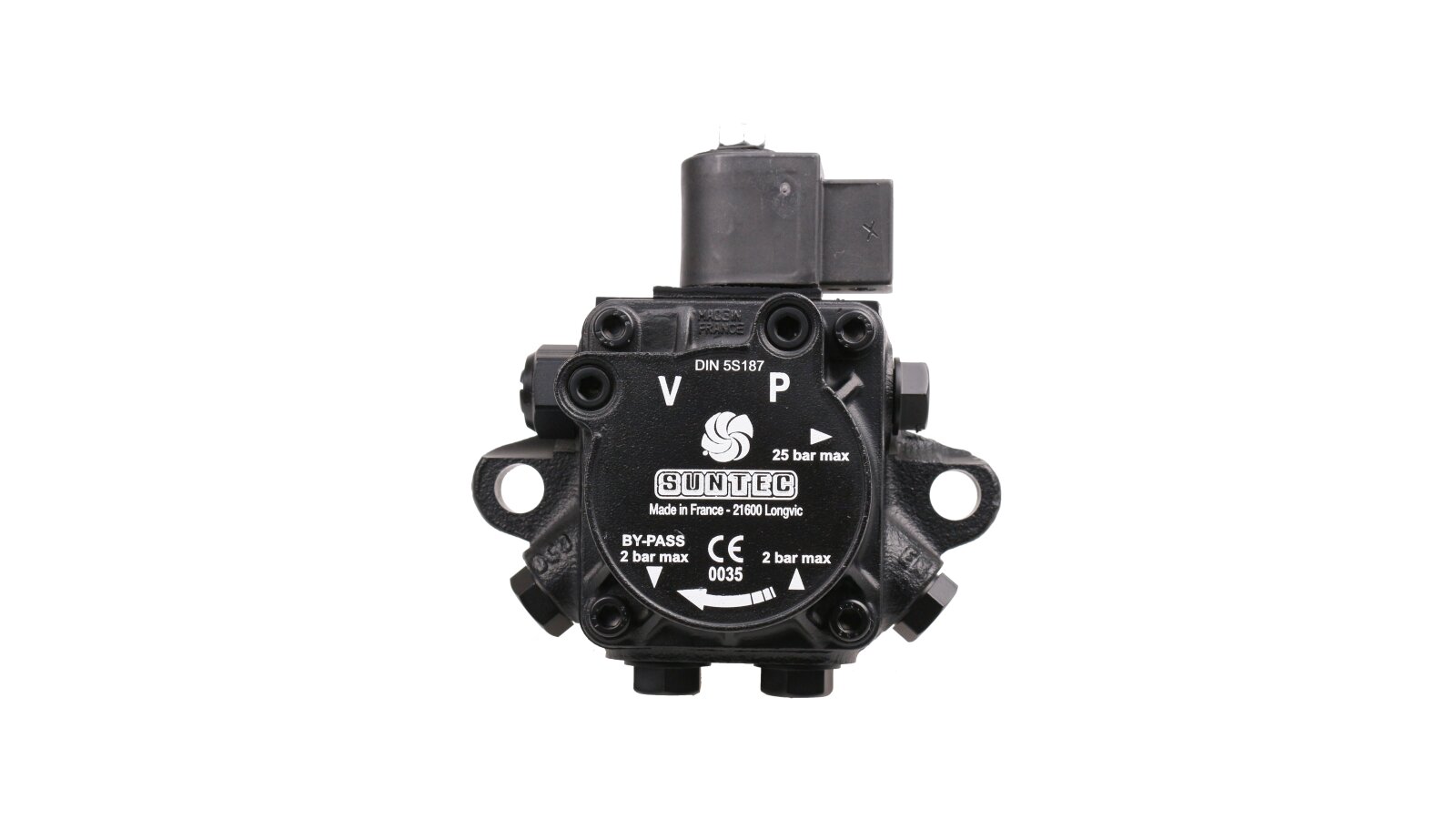

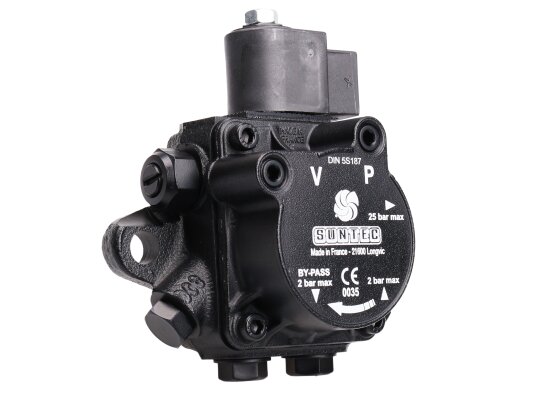

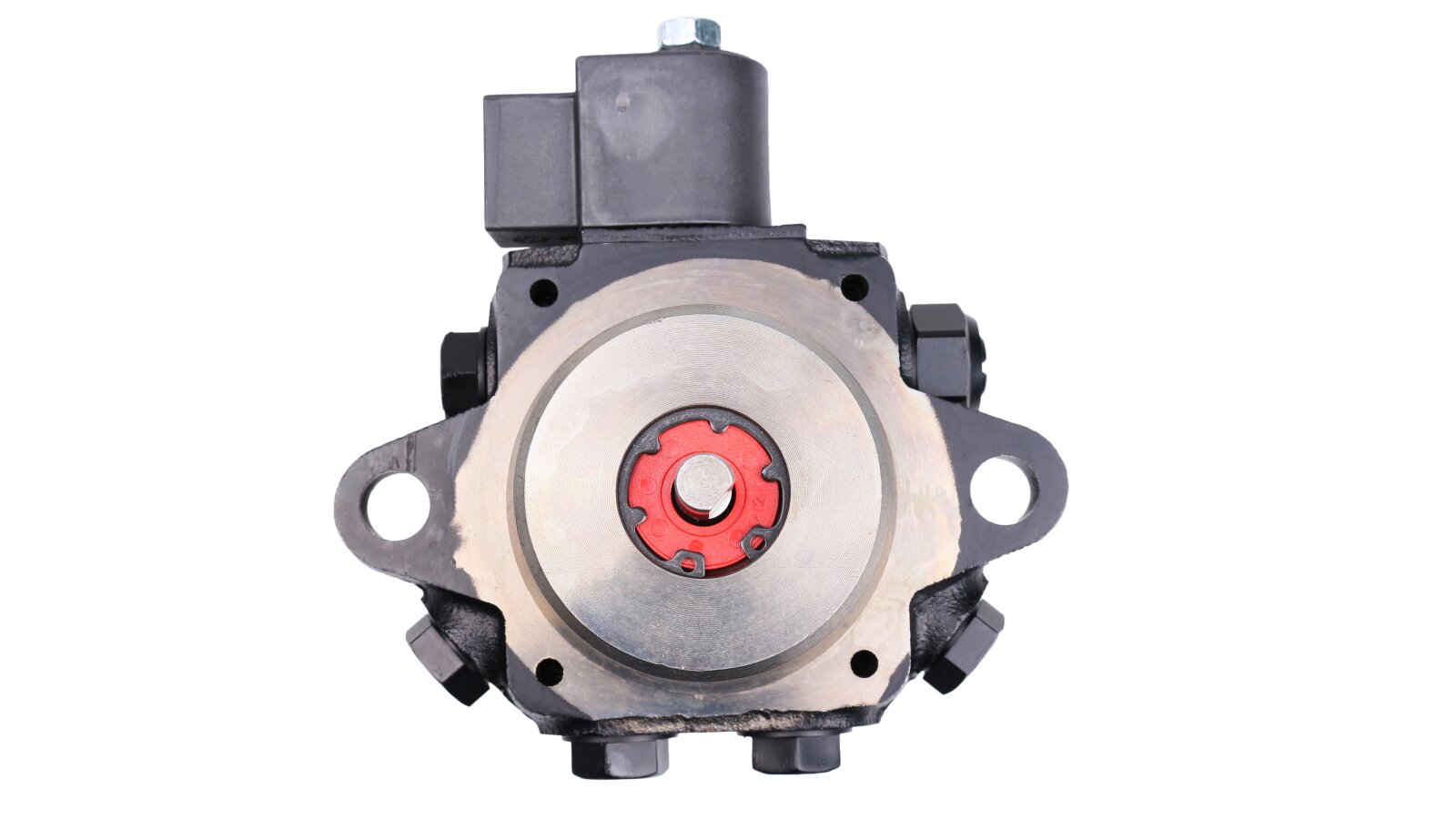

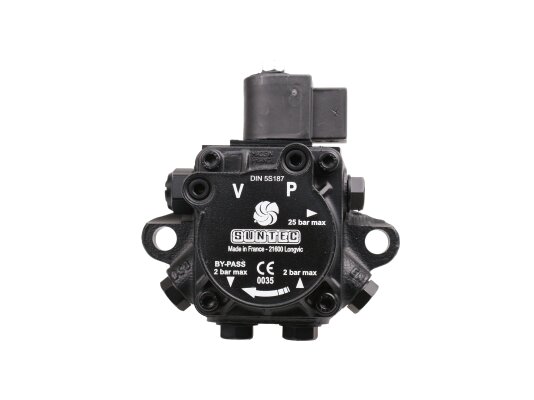

Burner Pump Suntec AL 35 C 9519 6P 0700

Suntec

Alternative Part Number

Viessmann

7834263

Viessmann

7818075

AED 1,050

  • Discontinued
Oil Burner Pumps
Products code: 1174

Description

AL 35 C 9519 6P 0700 is a model of a modern single-stage pump designed for diesel burners. The device with a capacity of 40 l/h is used in liquid fuel heating systems for domestic and commercial use. This development of the French company Suntec is in great demand due to its high level of reliability and unpretentiousness to operating modes. The equipment is often used as a component of heating systems of various types and configurations, and can be connected to both single-pipe and double-pipe fuel supply lines.

The presented modification is fully compatible with Baltur, Elco, Weishaupt or Lamborghini burners, which determines a wide range of applications.

Design features

  • The main functional unit of the pump is a gear pair. With its help, the fuel mixture is moved from the tank to the nozzles of the diesel burner. The design of the device includes a built-in pre-filter with a flow area of ​​6 cm². A cell size of 150 µm is sufficient to retain debris, rust and mechanical particles.

  • The pump has a control valve. Its purpose is to maintain the pressure level in the system from 8 to 15 atm. Automatic cessation of fuel supply is ensured by the operation of the electromagnetic valve. In the inactive state, it is closed and the fuel is directed to the tank or to the suction line, depending on the design features of the system.

  • Recommendation: it is advisable to install a fine fuel filter together with the pump. It will prevent clogging of the injectors with the smallest dirt and significantly extend their service life.

Main advantages:

  • the possibility of installing pressure control devices on the suction and pressure lines;

  • protection of internal elements from water and dust using a sealed housing with IP54;

  • factory settings of nozzle pressure (0.9 MPa) are easily changed manually in the range from 8 to 15 bar;

  • the weight of the device does not exceed 1.1 kg.

You can buy the Suntec AL 35 C 9519 6P 0700 pump at the manufacturer's price from the company "ANKAS". Buyers are offered a wide range of equipment for completing heating systems. All products have a quality guarantee and are distinguished by a high level of reliability. It is possible to order any batch of goods directly on the website.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 40 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 40 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.1 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
