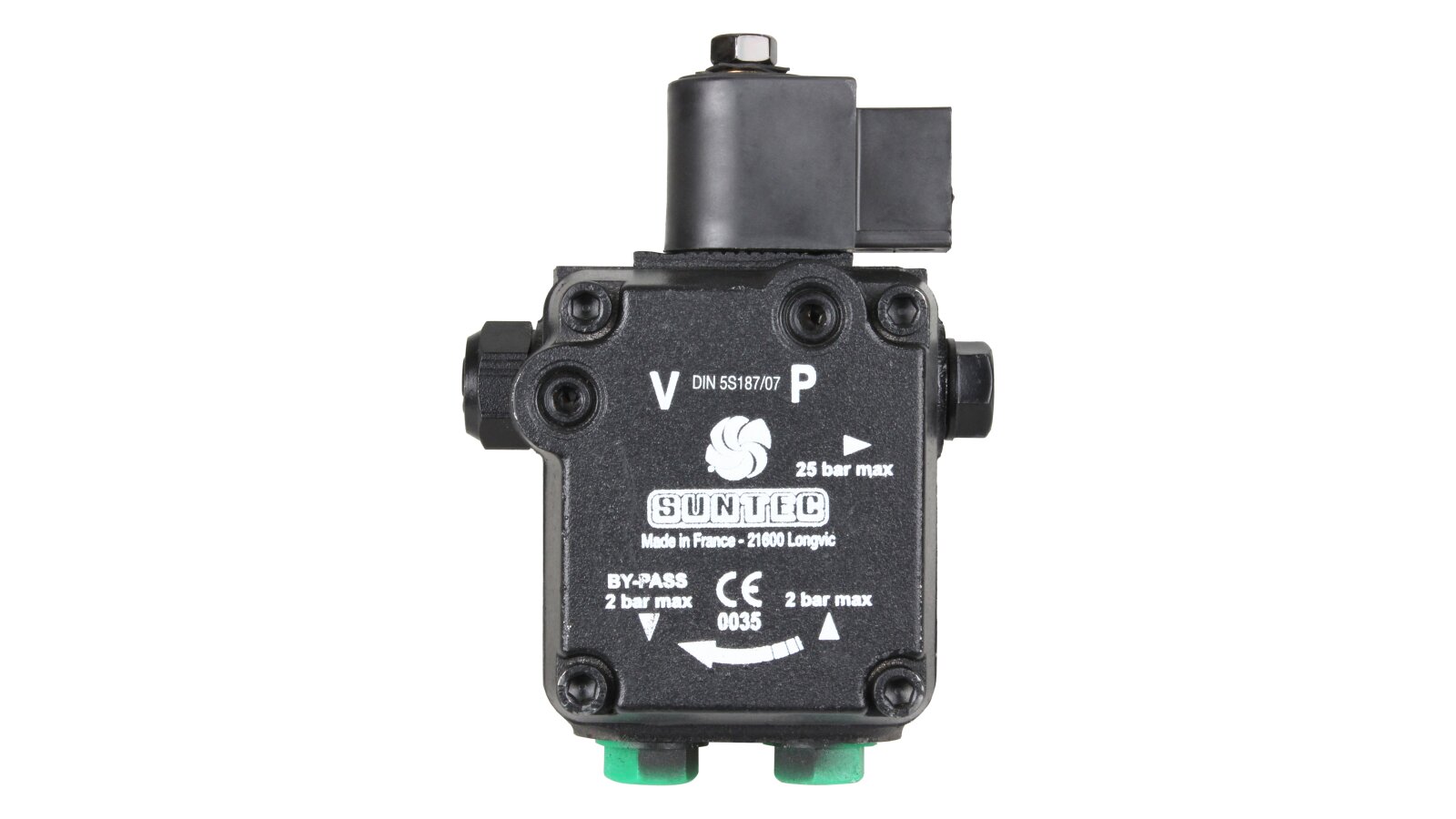

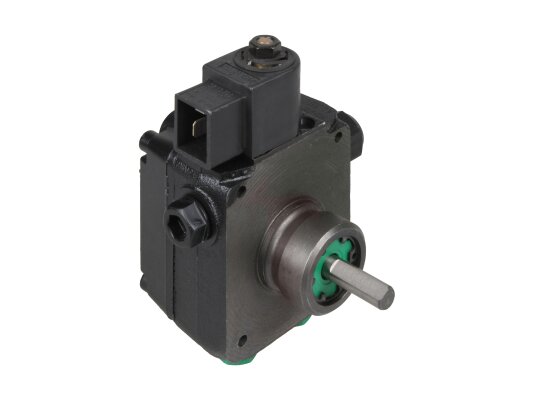

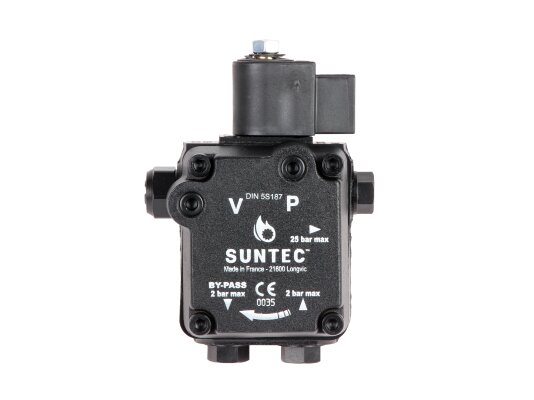

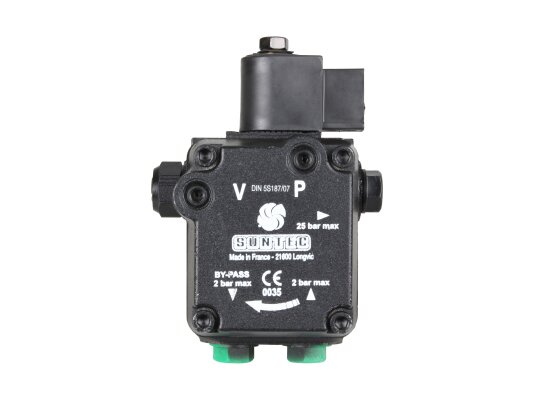

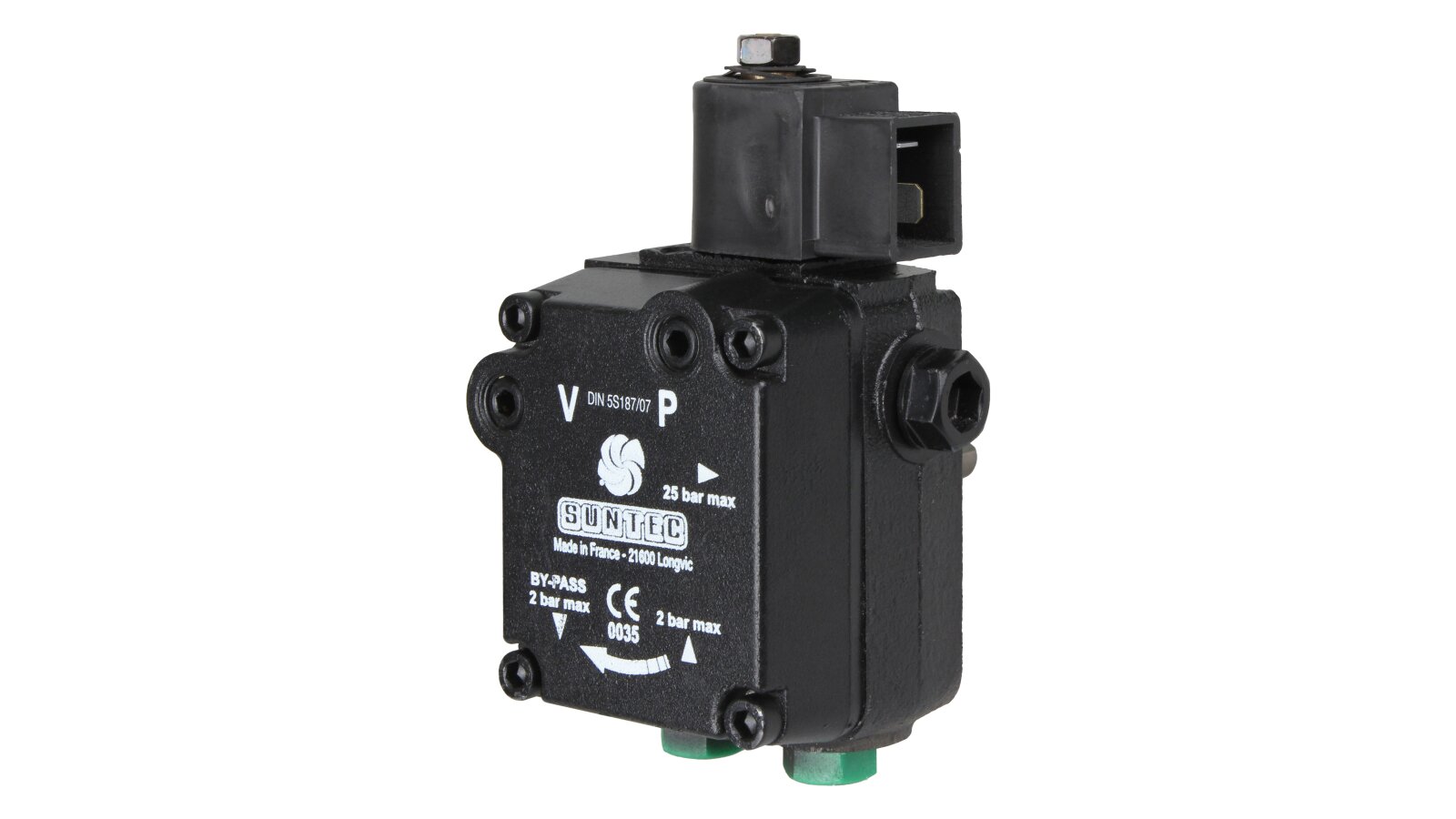

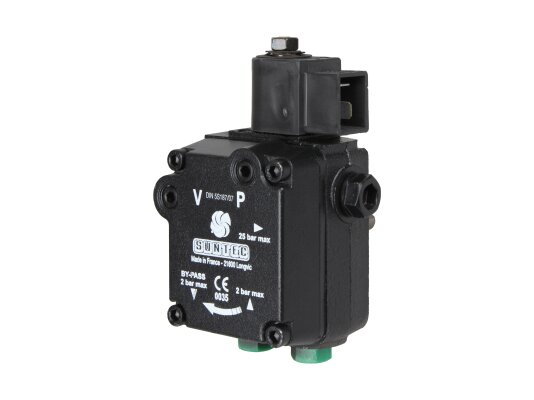

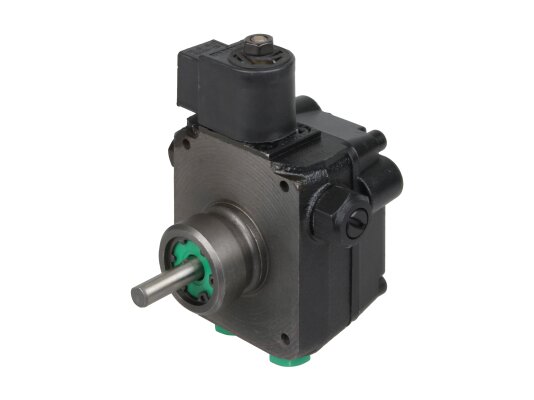

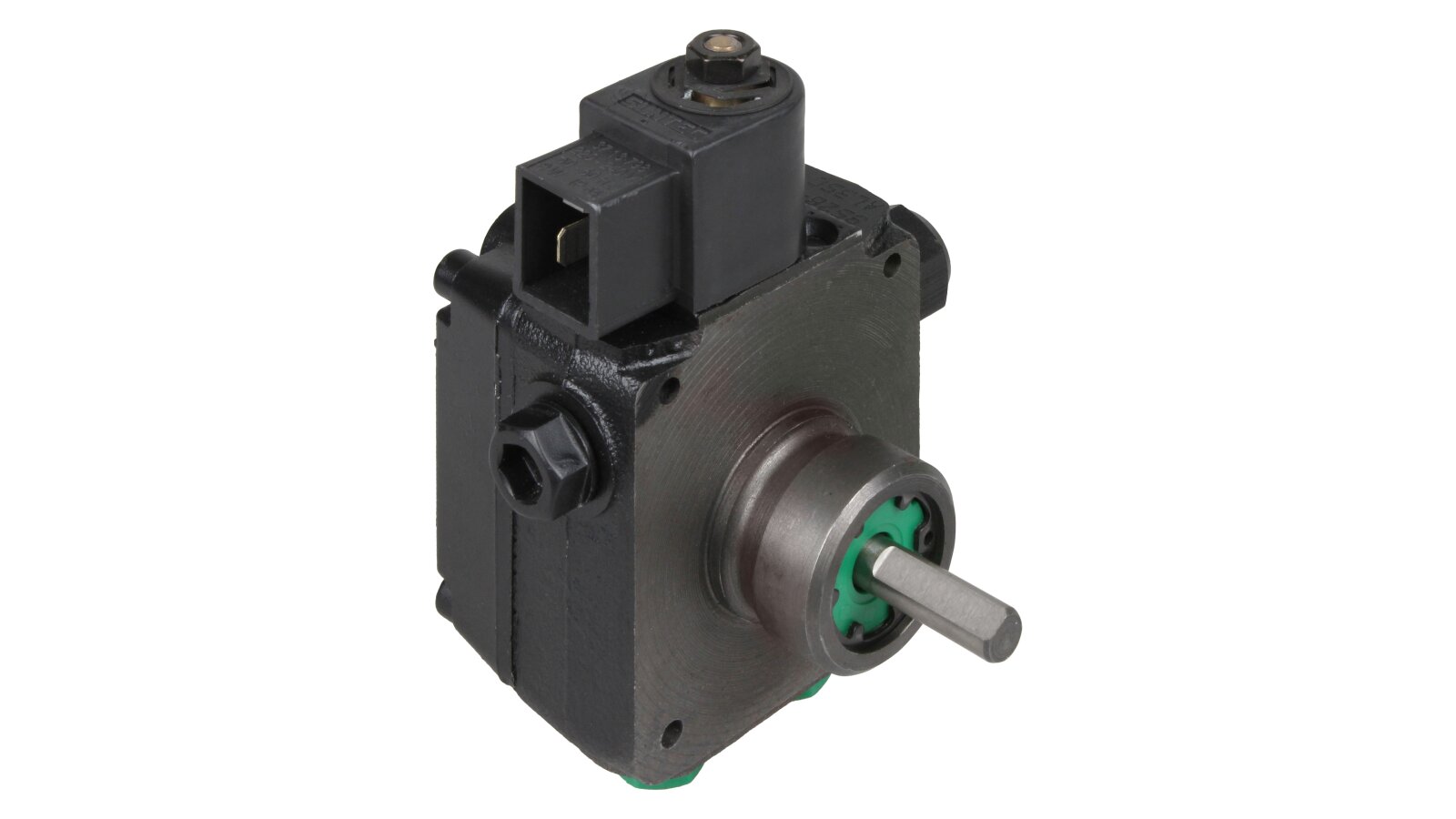

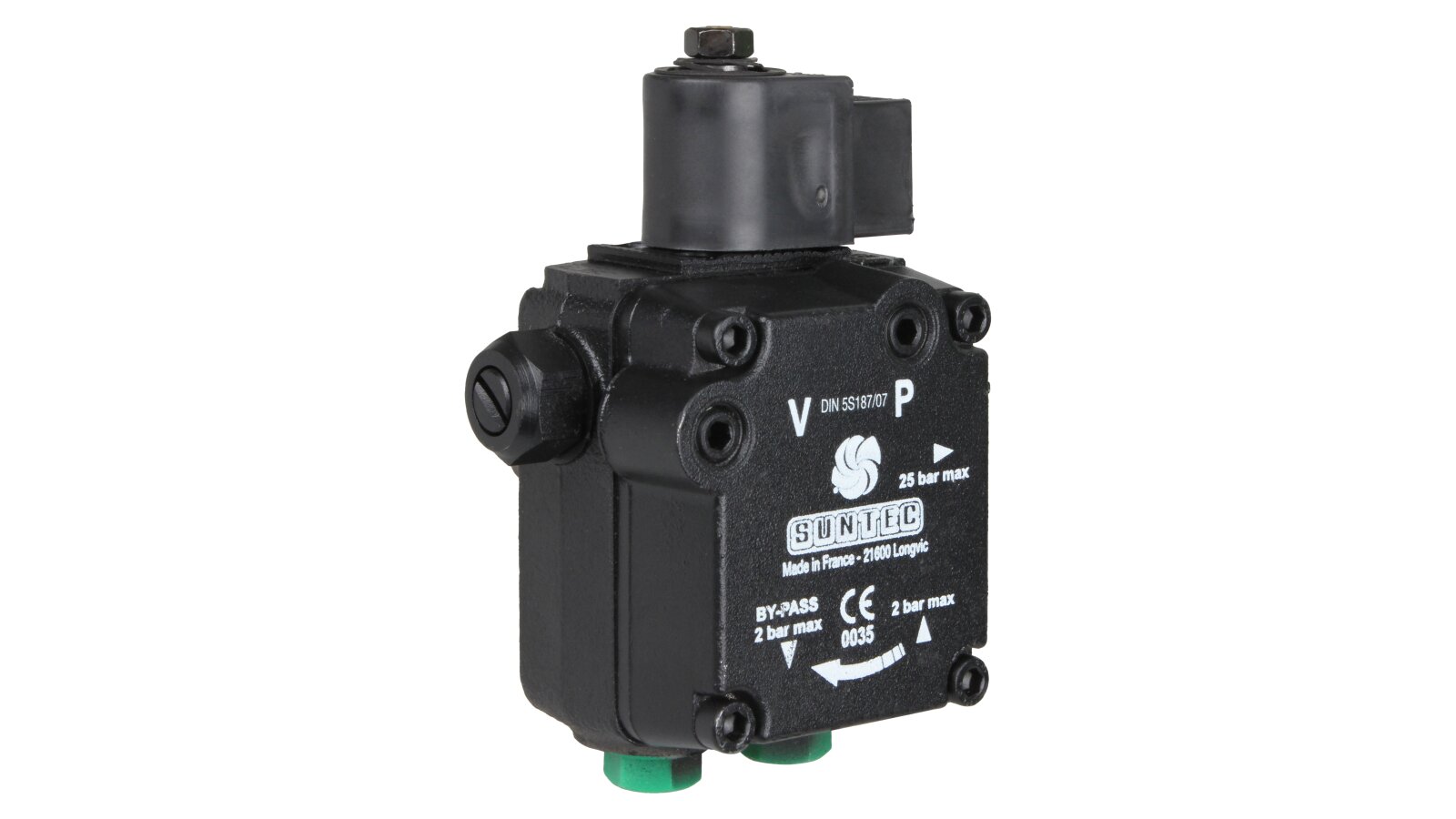

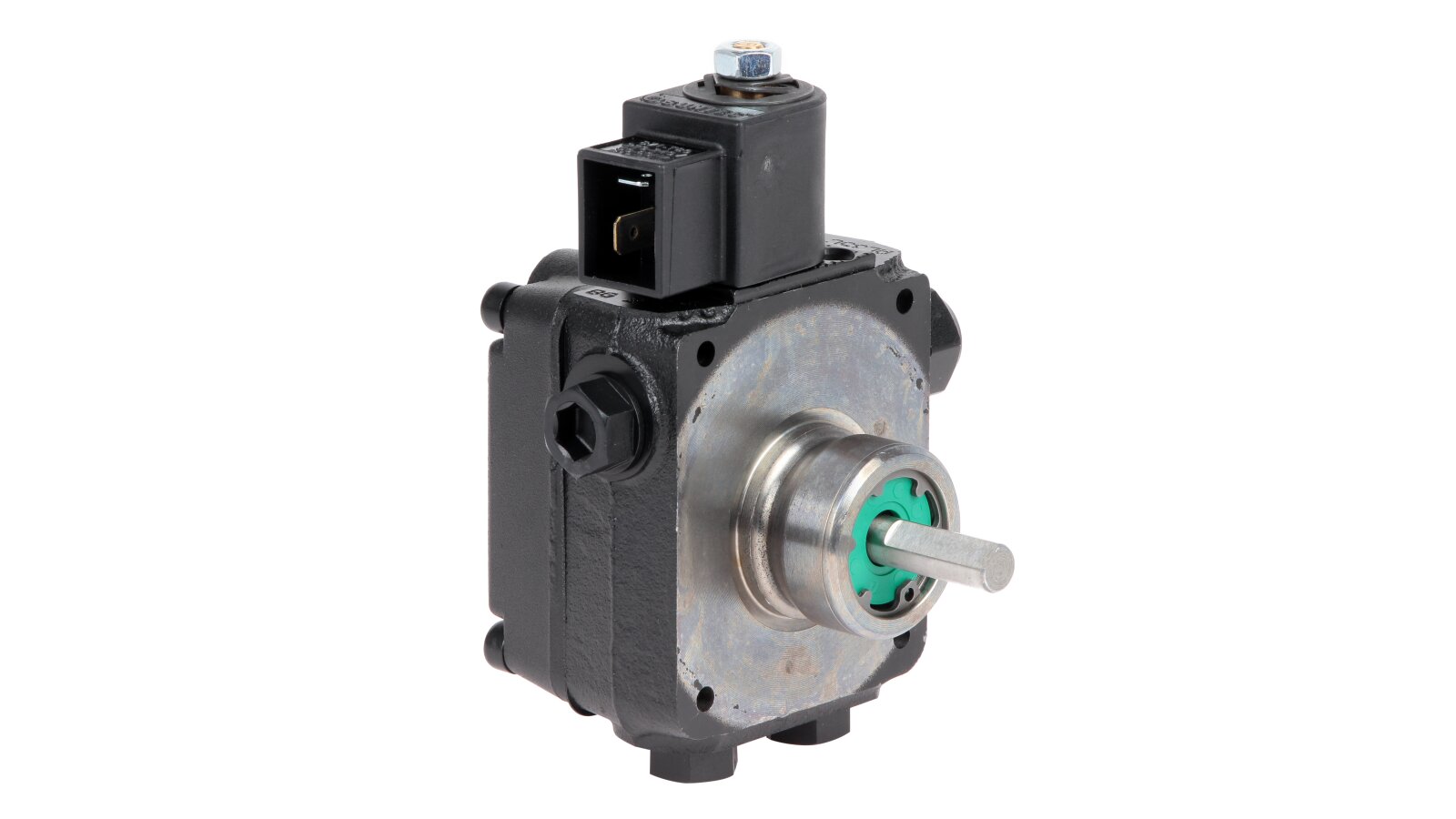

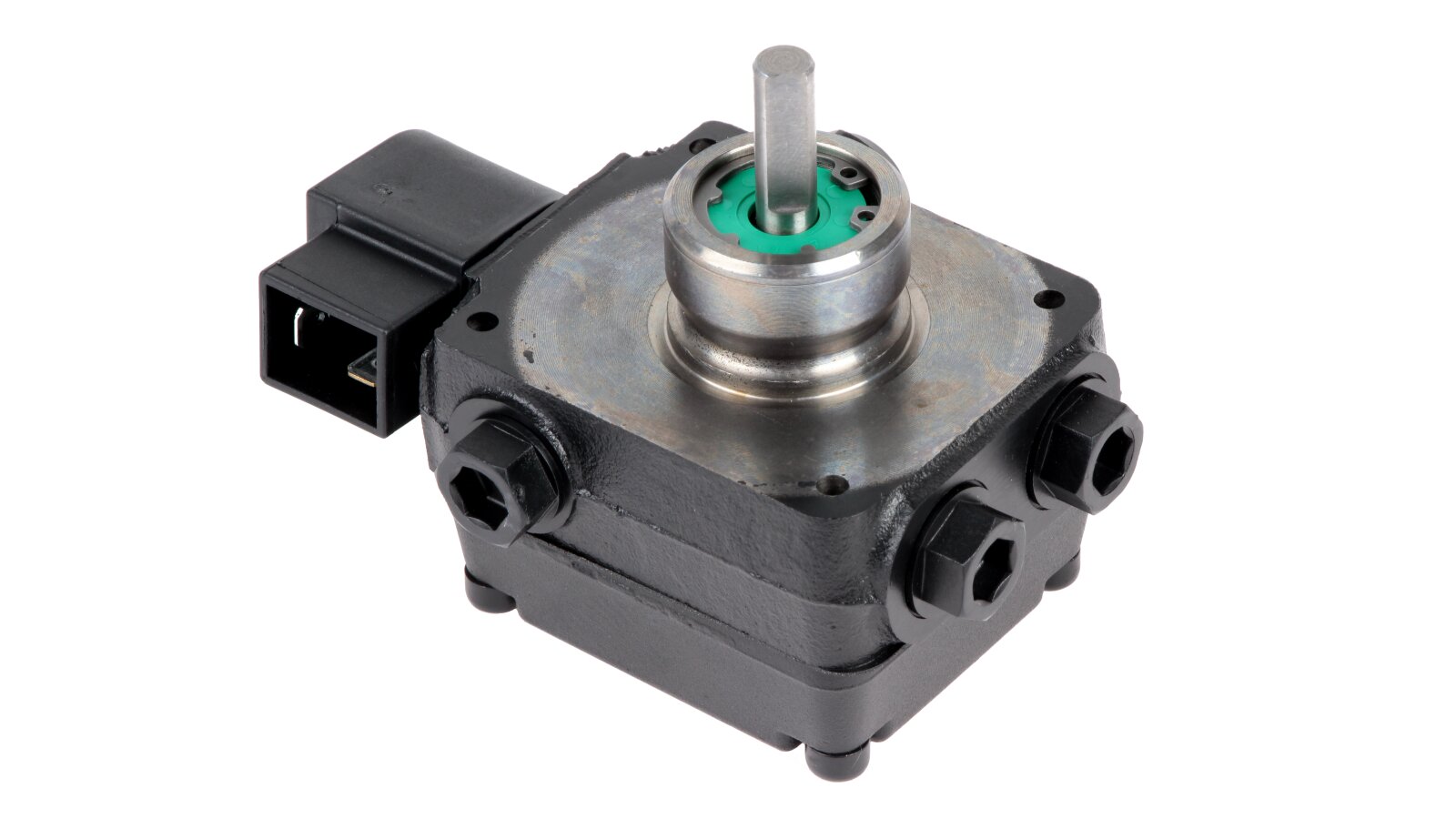

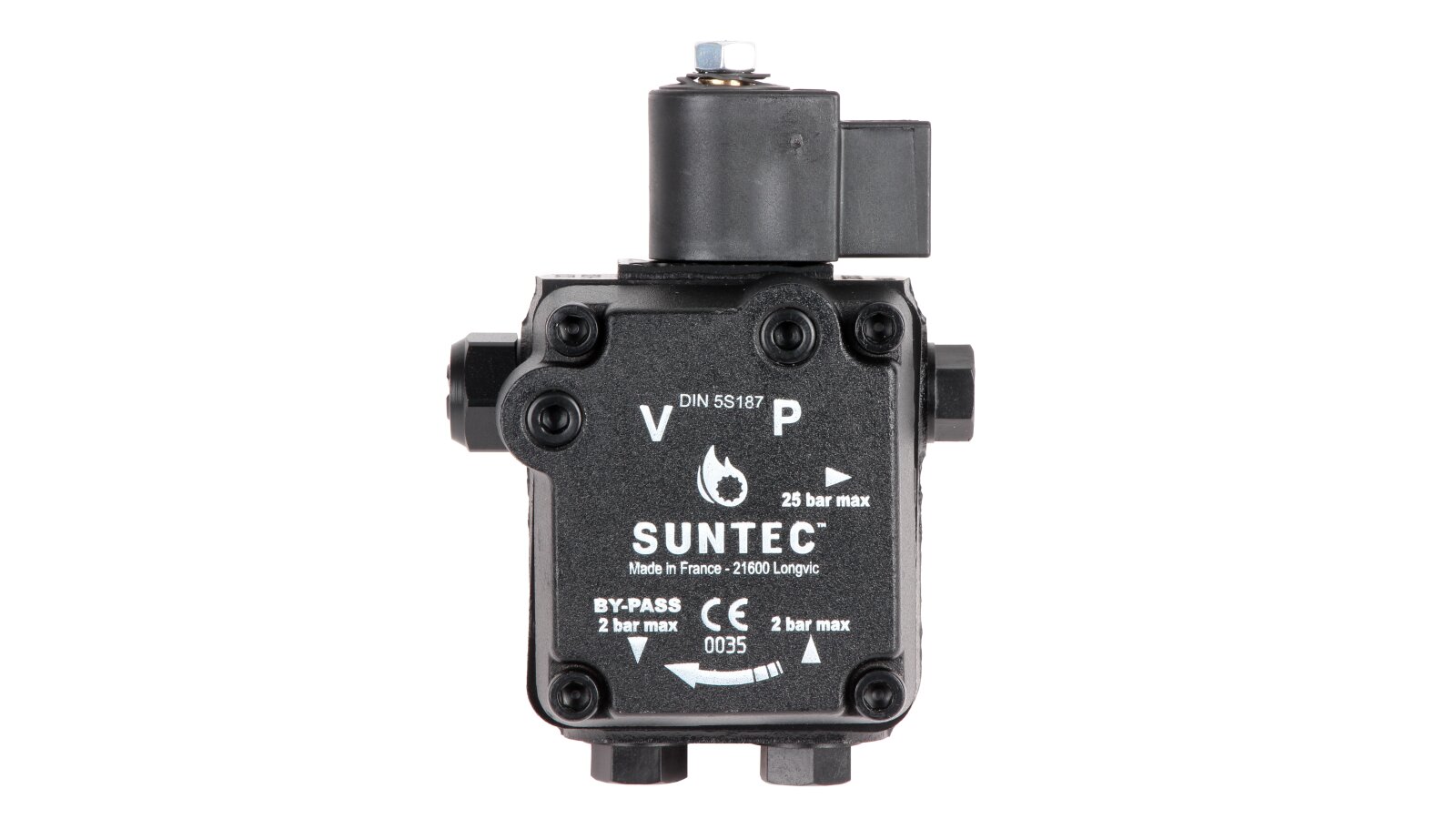

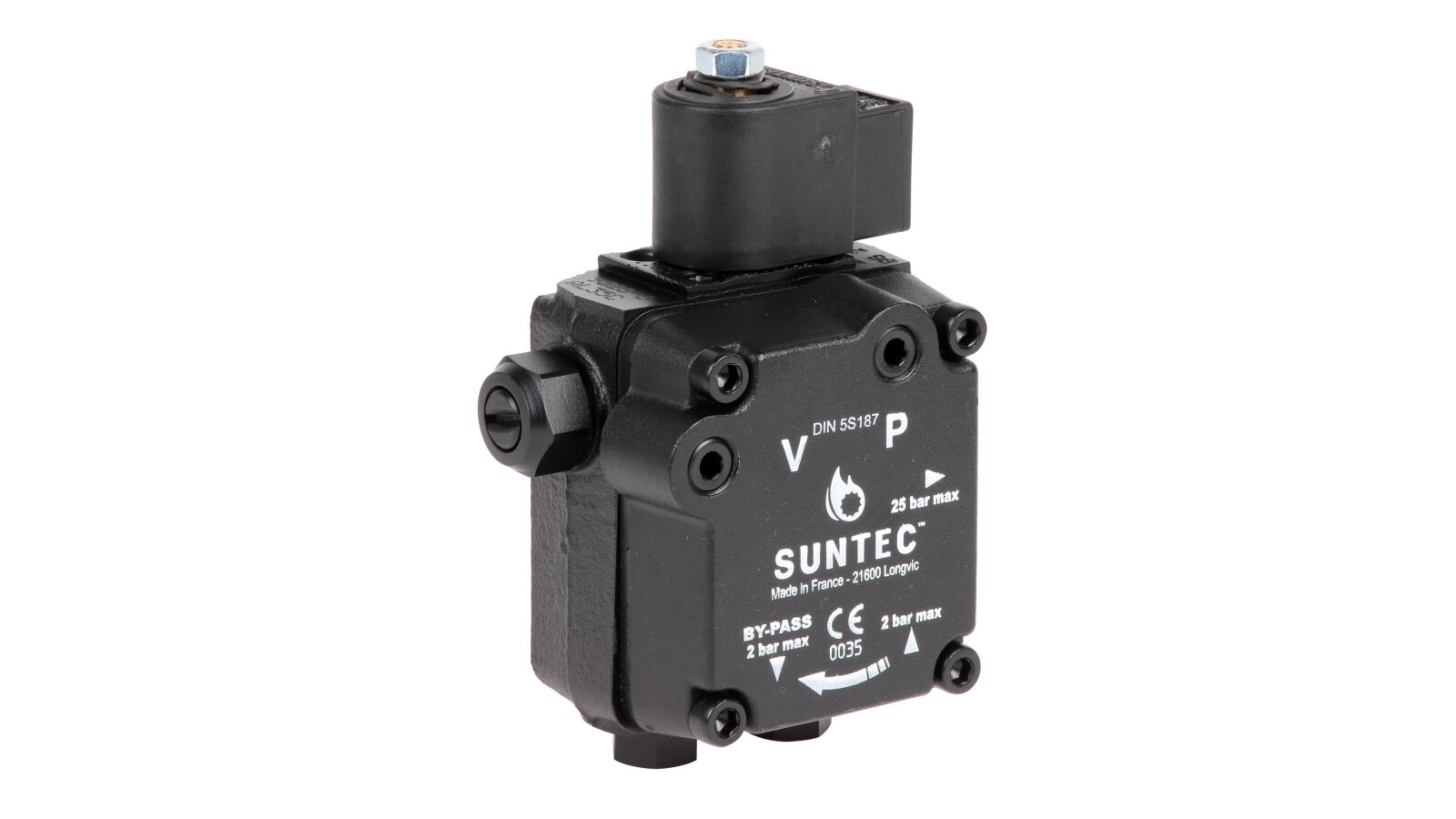

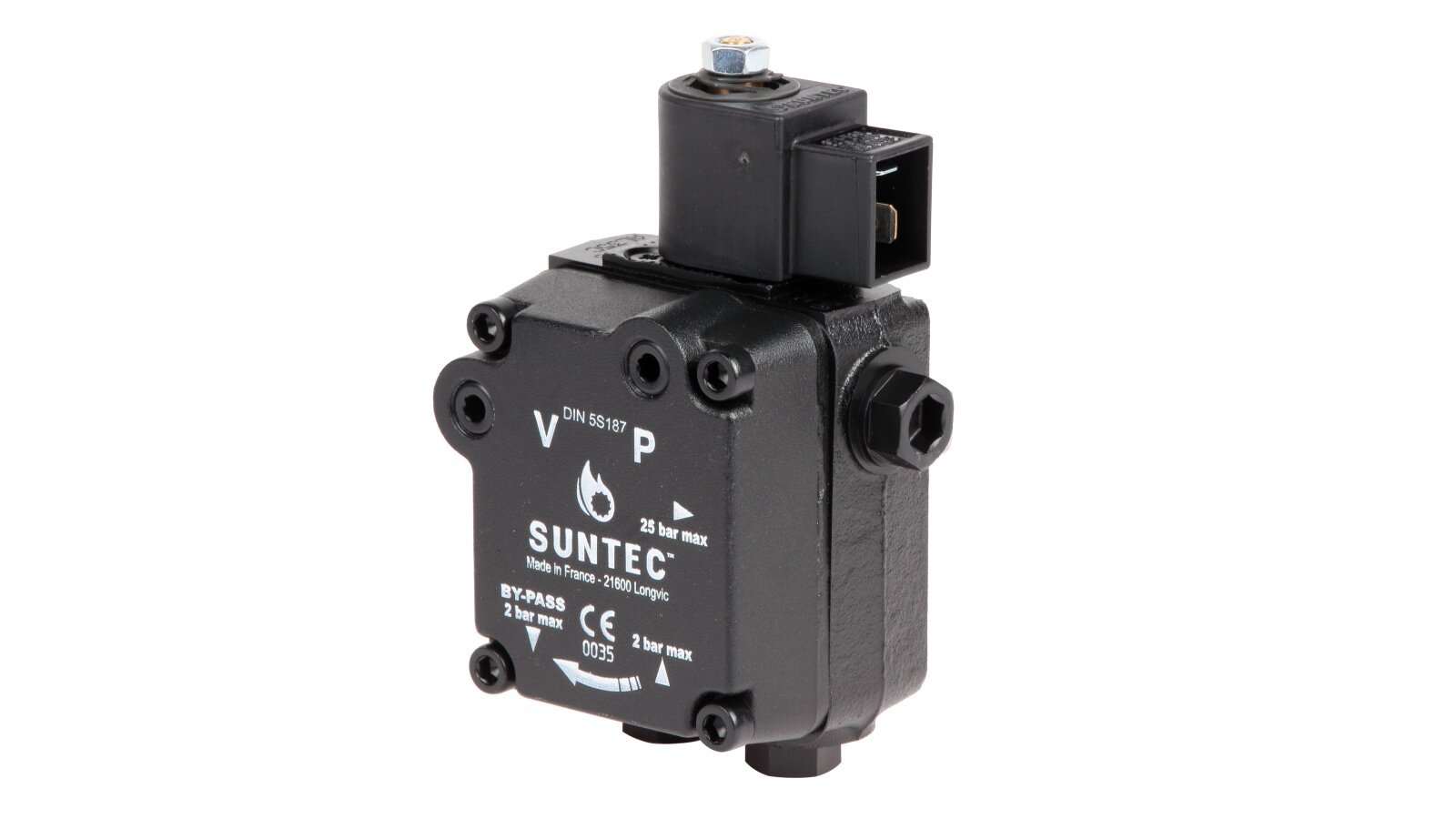

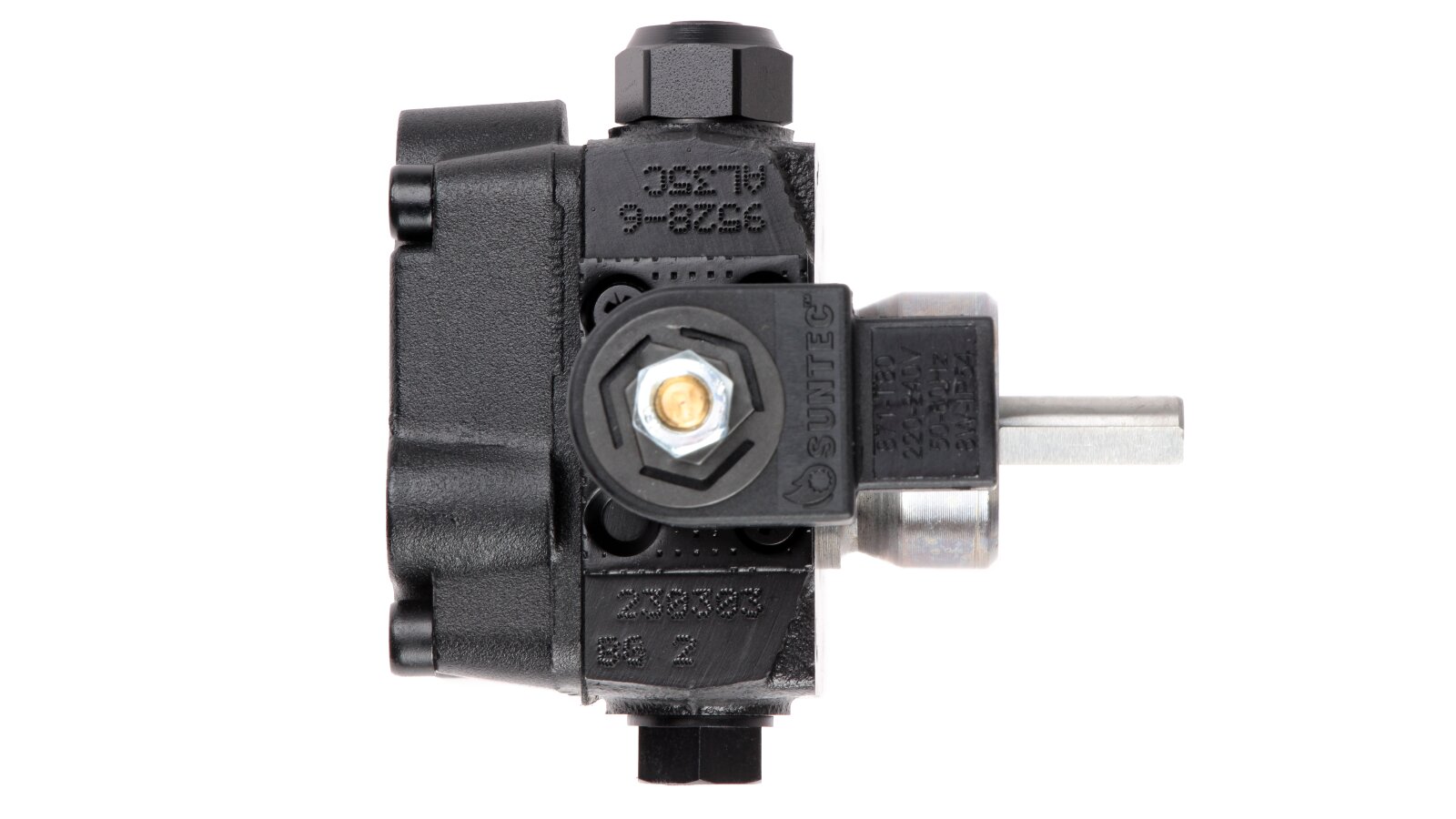

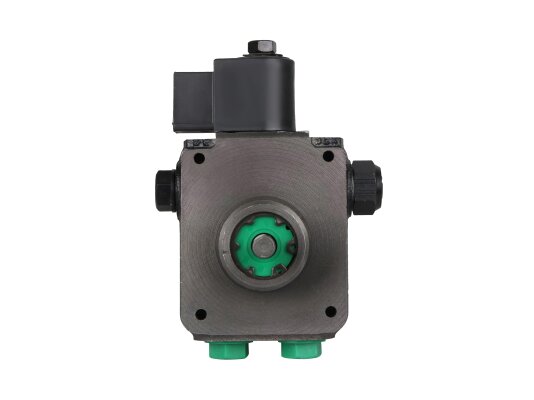

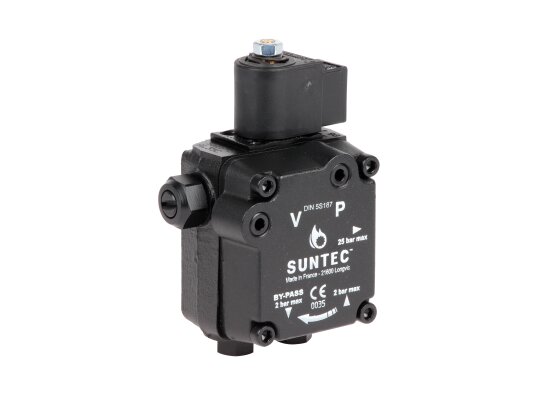

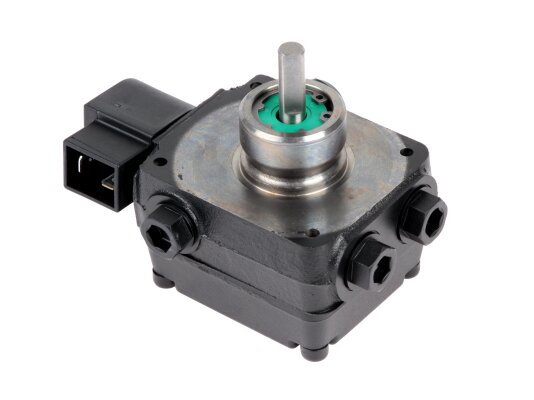

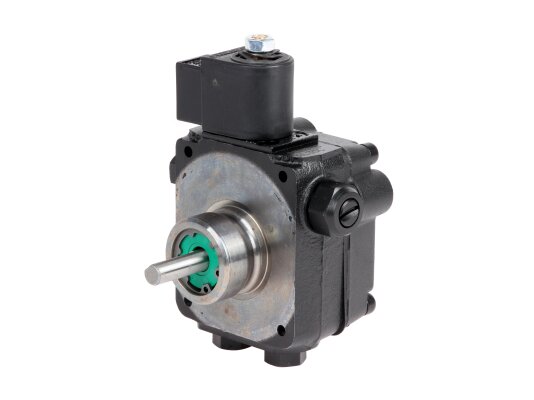

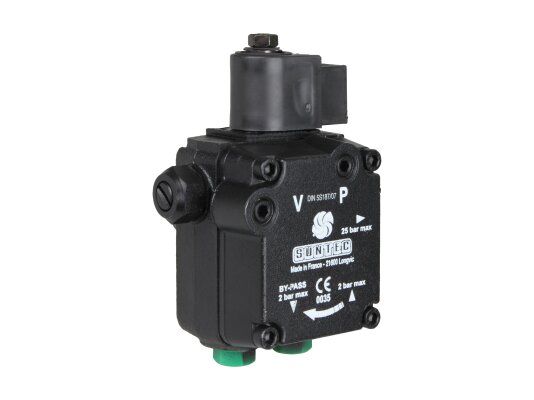

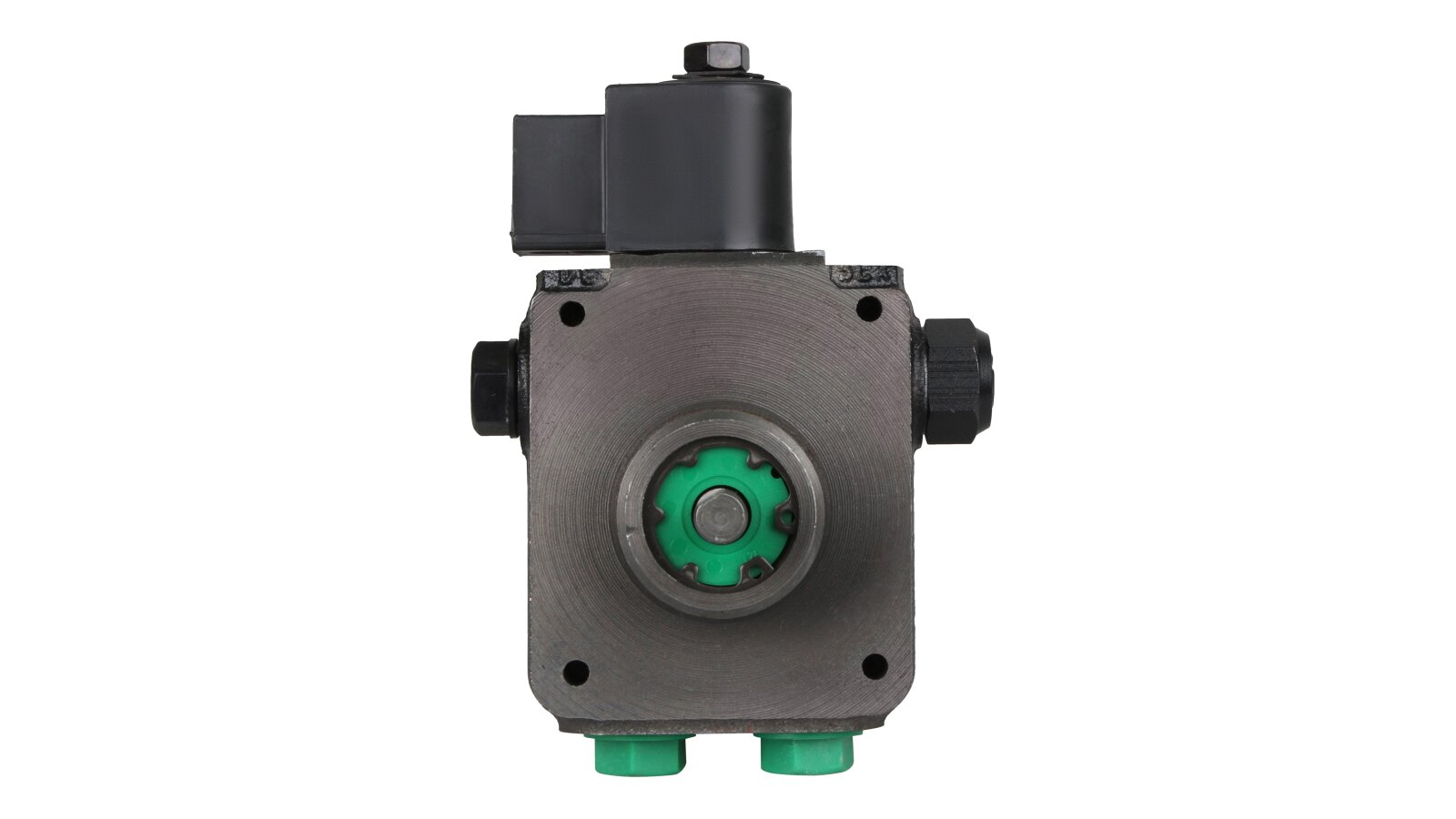

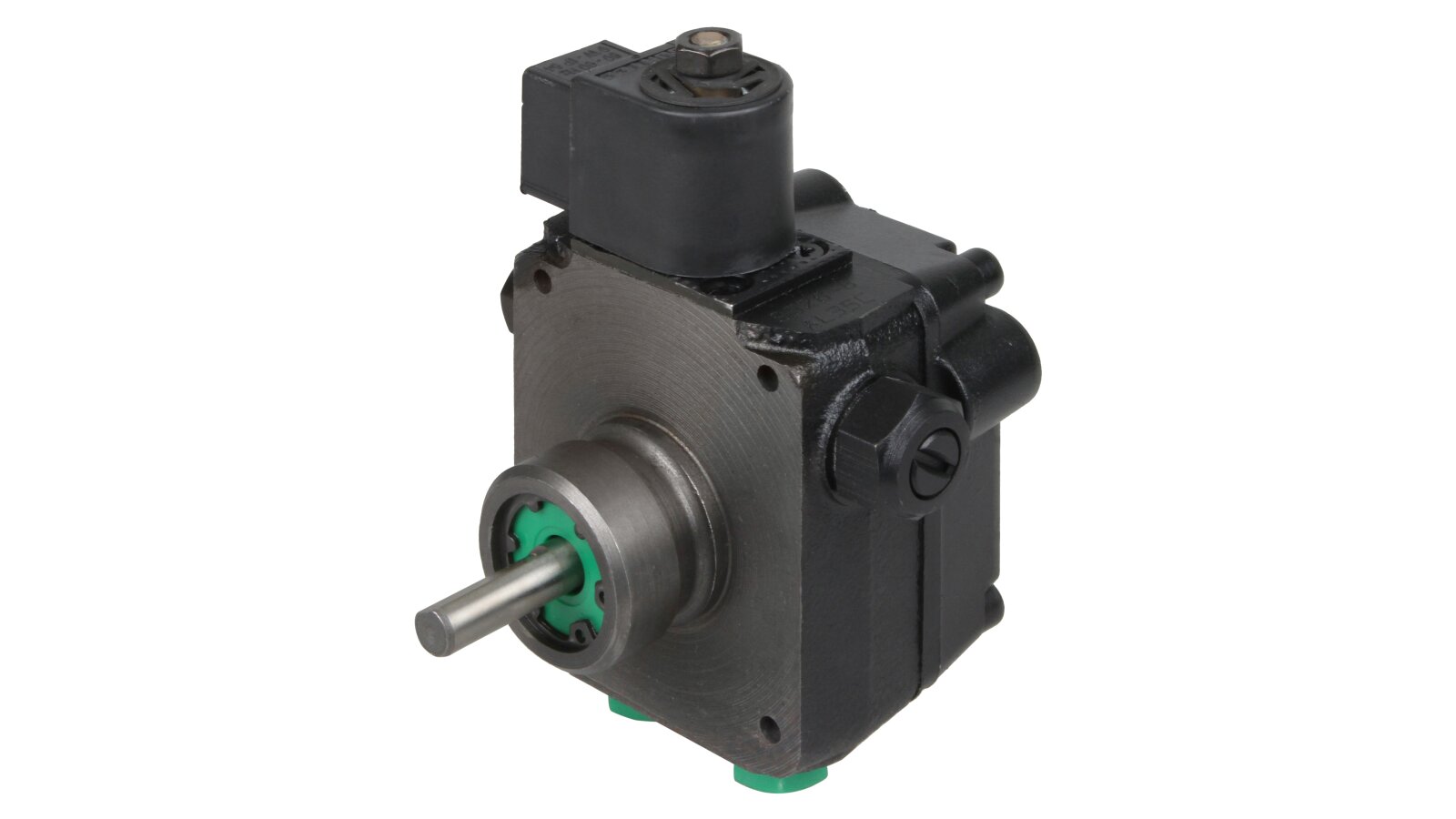

Burner Pump Suntec AL 35 C 9528 6P 0700

Suntec

Alternative Part Number

244175

120735

104712

Viessmann

7822086

AED 725

Oil Burner Pumps
Products code: 1175

Description

The modern fuel pump AL 35 C 9528 6P 0500 with a capacity of 40 l/h is designed to complete diesel burners used in the heating system of residential and commercial premises. This is an advanced development of the well-known concern "Santek" (France), which occupies top positions in the field of boiler equipment. A distinctive feature of this modification is the presence of an electromagnetic valve, which performs a shut-off function. The single-stage pump has a high service life and reliability. It is compatible with Lamborghini, Baltur, Elco and Weishaupt diesel burners.

Design features

  • The basic working element of the unit is a toothed pair of gears. It is responsible for sucking fuel from the tank and feeding it to the nozzle line. In this section, the liquid undergoes preliminary cleaning, for which a built-in filter with a throughput area of ​​6 cm² is responsible.

  • The pump is equipped with a "normally closed" electromagnetic valve. In the activated position, it is open and does not interfere with the supply of fuel to the injectors under pressure in the range of 8-15 atm. When the operating mode changes, regardless of the rotation speed of the electric drive, the valve is able to instantly stop the fuel supply.

  • In the inactive position, the EM valve completely blocks the flow. The working fluid pumped by the gears is fed through the pressure regulator back to the tank or to the suction line (depending on how the system circuit is assembled).

Important! To prevent clogging of the fuel injectors and significantly increase their service life, it is recommended to additionally install a fine filter.

Main advantages of the model:

  • automatic air bleed with a two-pipe connection;

  • standardized thread G⅛" for installing a pressure gauge and vacuum gauge directly on the gear pump body;

  • smooth adjustment of liquid pressure within 8-15 bar;

  • high degree of protection of the body from foreign particles, dust and water — IP54;

  • sleeve mounting method with a landing size of 32 mm.

The company "ANKAS" is an official distributor of components for heating systems from European manufacturers. You can buy fuel pumps for diesel burners from us at a reasonable price.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 40 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 40 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.1 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
