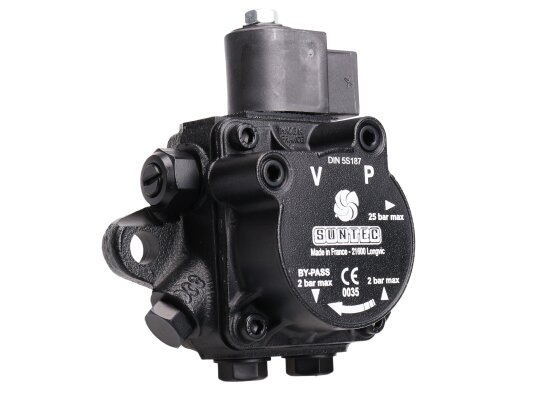

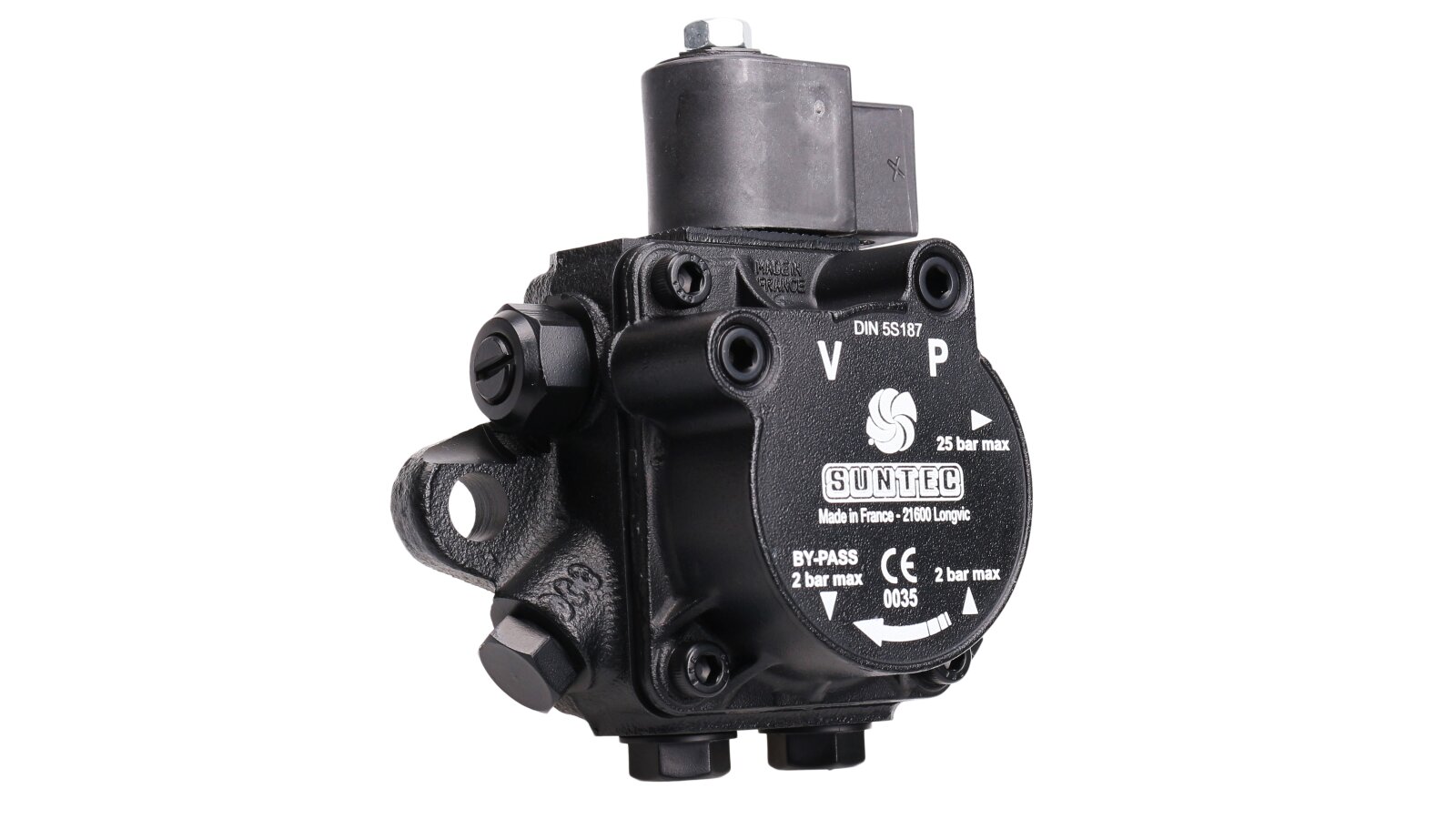

Burner Pump Suntec AL 65 C 9525 6P 0500

Suntec
  • Discontinued
  1. Oil Burner Pumps

Description

The Suntec AL 65 C 9525 6P 0500 pump is used to equip diesel burners with a capacity of up to 1000 kW. The design includes a blocking electromagnetic valve with a shut-off function. Placement in the nozzle line ensures instantaneous operation of the EM valve in any engine operating mode.

Features

  • The pump is equipped with a reliable housing with a high level of protection against dust and moisture (European standard IP54).

  • The pump gears are protected from damage by a mesh filter that holds sand, rust and other abrasive particles larger than 150 microns.

  • The electromagnetic "normally closed" valve is installed in the nozzle line, which ensures an instant response. When the EM valve is active, fuel enters the nozzle line under the pressure set by the regulating valve.

  • At the factory, the pump is set to 9 bar. If necessary, the pressure on the nozzle can be changed in the range from 8 to 15 bar. The pump is ready for a 2-pipe connection (a bypass plug is installed in the return line). When installing in a one-pipe system, the bypass plug should be removed and the drain hole should be closed with a steel plug and washer.

  • Installation is carried out using a ∅32 mm sleeve connection that complies with the EN 225 standard, which allows the pump to be used with burners from most manufacturers.

Advantages:

  • optimal performance;

  • blocking EM valve with a locking function;

  • universal mounting method;

  • fuel cleaning before entering the gear mechanism;

  • high level of protection against dust and moisture (IP54);

  • one- and two-pipe connection;

  • instantaneous response of the EM valve;

  • ports for measuring equipment;

  • uninterrupted service.

We offer to buy the Suntec AL 65 C 9525 6P 0500 pump and all the necessary spare parts for assembling the heating system on our website. Additional questions regarding equipment characteristics and selection of components can be asked to ANKAS online consultants.

Characteristics

Maximum pressure of the solenoid valve: 25 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveValve function: pressure regulatingOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 81 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barOperating viscosity: from 2 to 12 mm²/sNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.12 N·mType of pumped liquid: dieselDegree of protection: IP54
