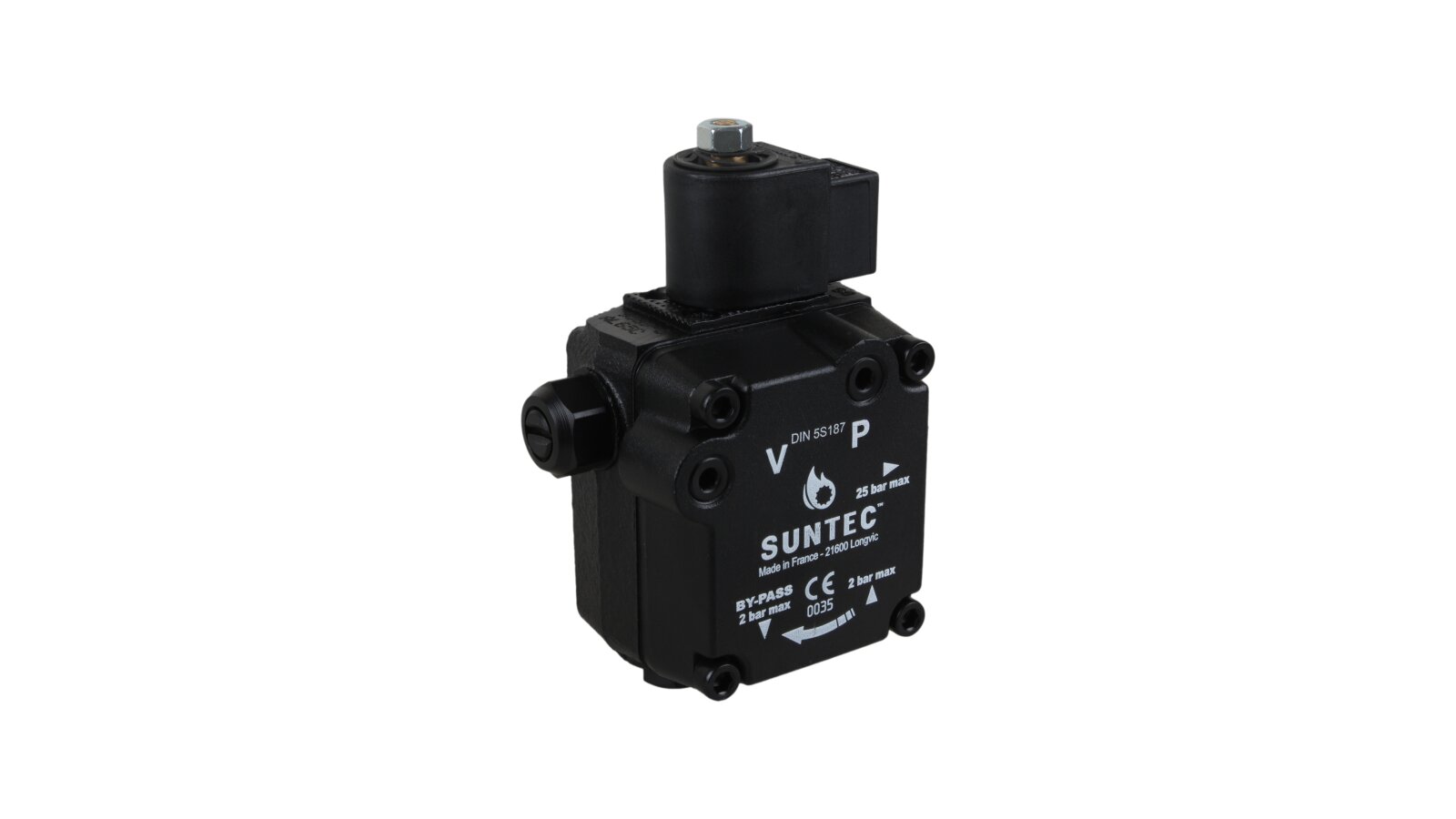

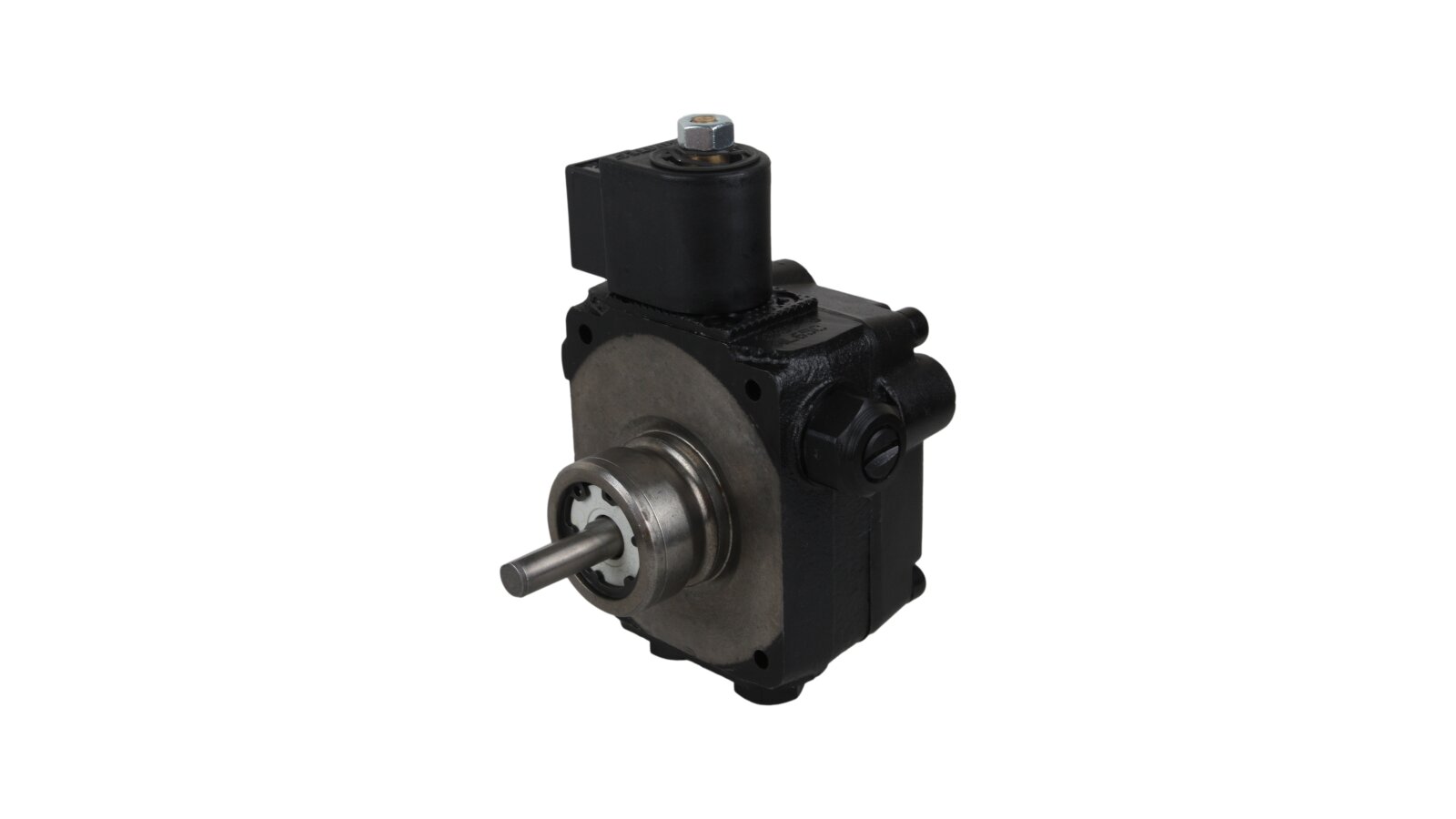

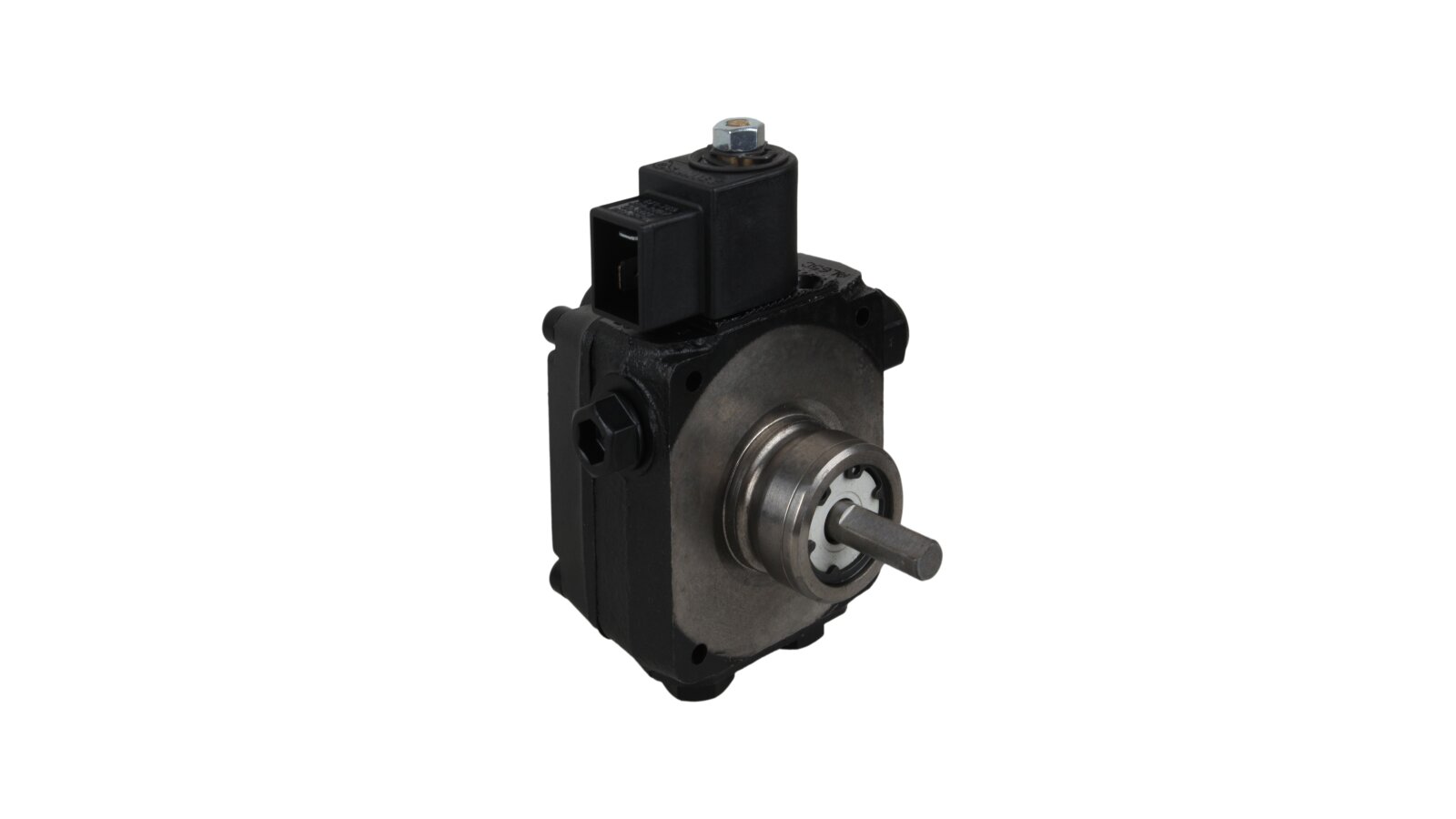

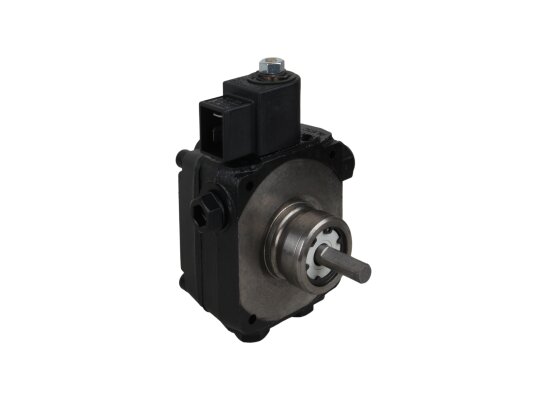

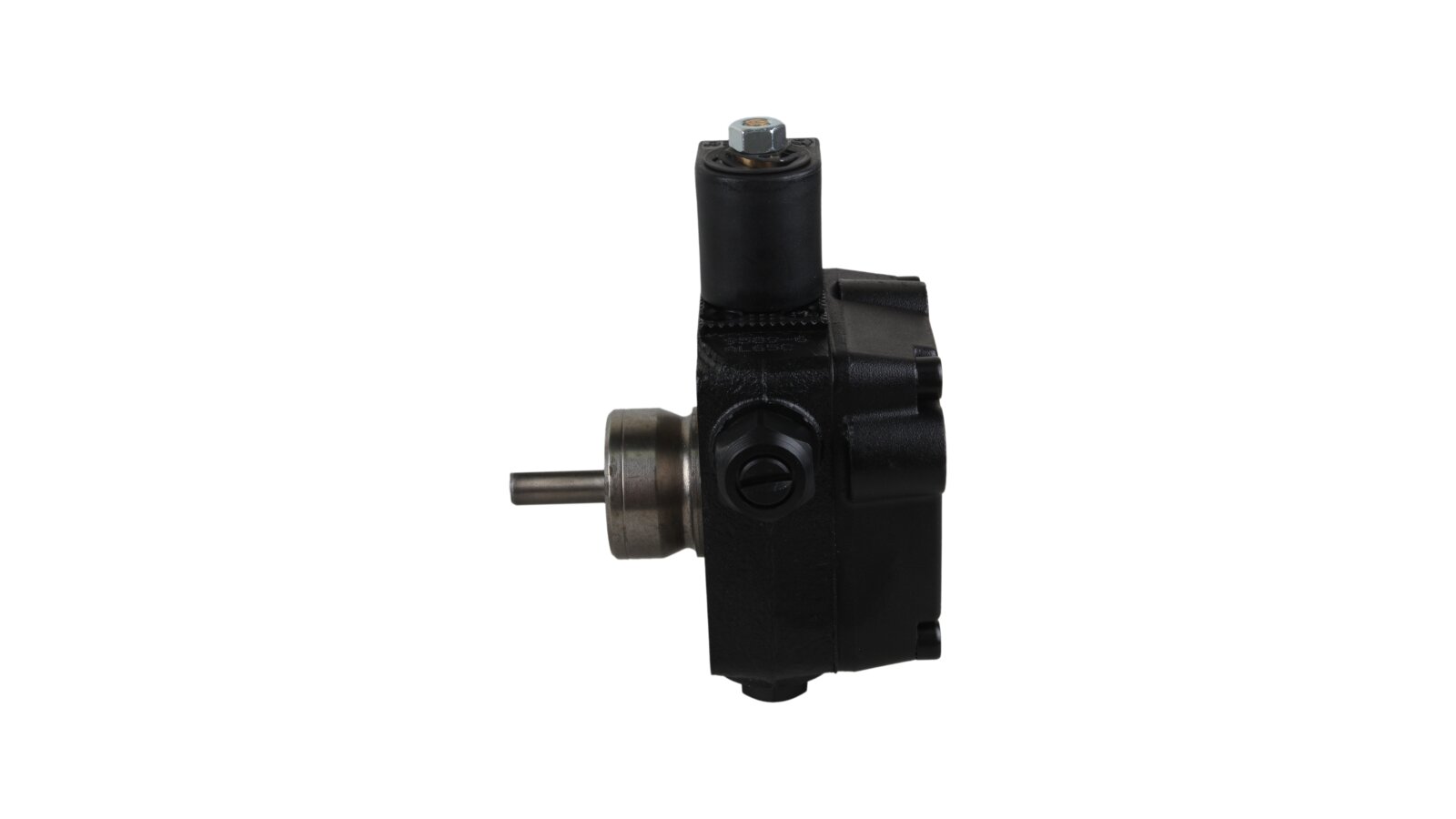

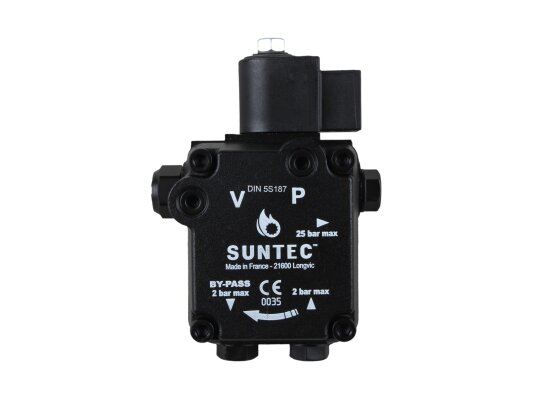

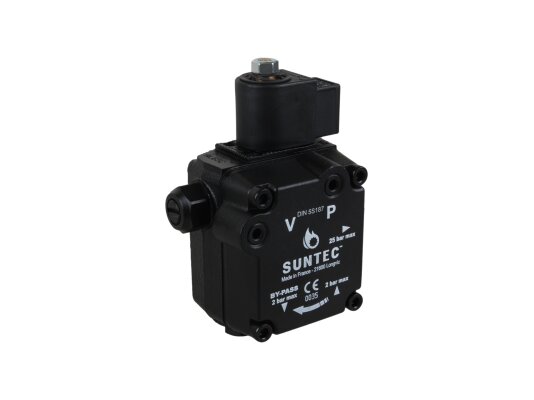

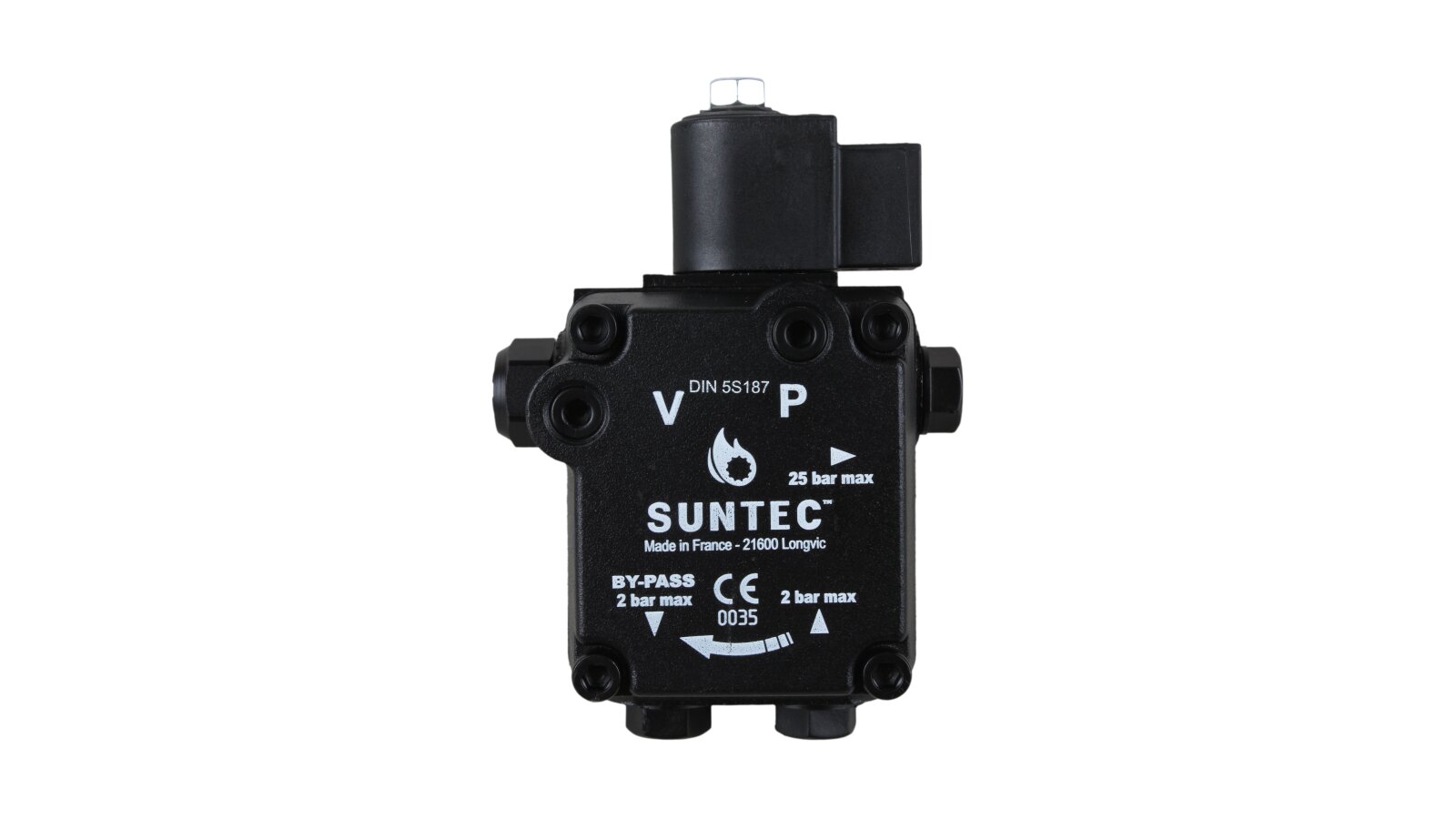

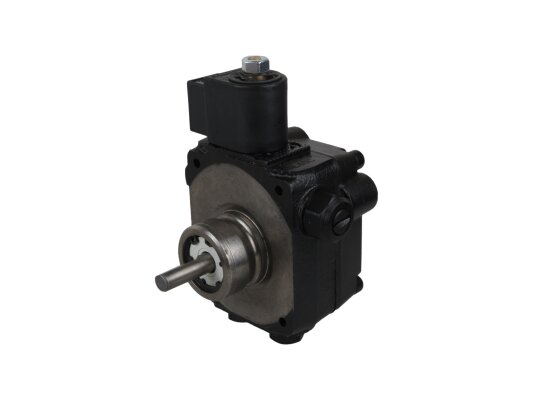

Burner Pump Suntec AL 65 C 9589 6P 0700

Suntec

AED 800

Oil Burner Pumps
Products code: 1179

Description

The single-stage gear pump AL 65 C 9589 6P 0700 is used to equip liquid fuel burners. This is a modern development of the SANTEC company, one of the European leaders in the design and production of boiler equipment. The model with a capacity of 81 l / h differs from its analogues by the presence of an electromagnetic valve-blocker, which provides instant shut-off of the liquid flow, as well as a fuel pressure regulator on the injector line. The unit is distinguished by significant reliability and an increased working life. It is compatible with diesel burners of the brands Lamborghini, Elco, Weishaupt, Baltur and others.

Design features

  • A toothed pair of gears is responsible for sucking fuel from the tank and feeding it to the injectors. In this section, the liquid undergoes preliminary cleaning, which is made possible by the presence of a built-in filter with a throughput area of ​​​​6 cm2.

  • Important! The manufacturer recommends additionally using a fine filter. This simple solution will help prevent injectors from clogging and significantly increase their service life.

  • The pump is equipped with a "normally closed" electromagnetic valve. In the activated position, it provides a flow of diesel fuel under pressure in the range from 8 to 15 atm and is capable of instantly stopping its supply at any engine speed. If the valve is inactive, the flow is completely blocked, and the fuel is supplied to the suction line through the pressure regulator or returned to the tank (depending on how the circuit is mounted).

The main advantages of the model:

  • can be connected to single-pipe and double-pipe fuel line circuits;

  • maximum permissible pressure on the shut-off valve is 2.5 MPa;

  • standardized drive shaft according to EN 225;

  • high degree of protection of the housing from dust and water ingress into the device - IP54;

  • optimal performance (up to 81 l/h) with a small weight - 1.1 kg.

The company "ANKAS" specializes in the supply of modern European equipment for heating systems. You can buy a pump for diesel burners of any capacity and modification from us. As an official distributor, we provide affordable prices and original quality of all components.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 81 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 81 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.12 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
