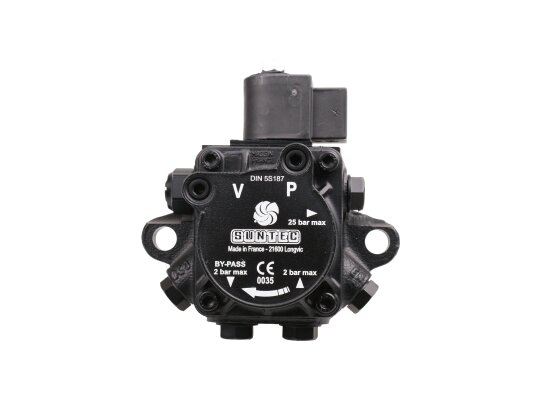

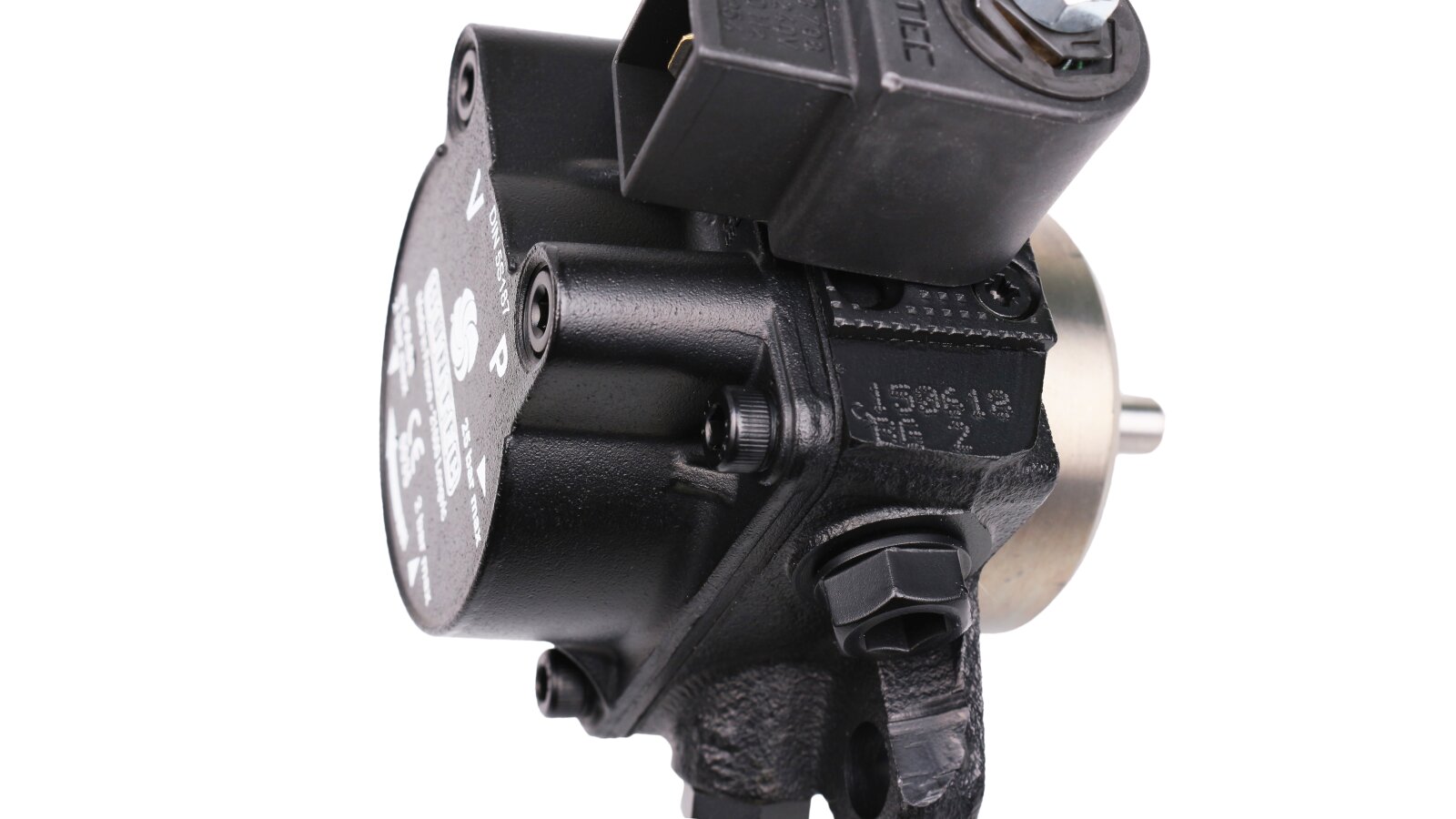

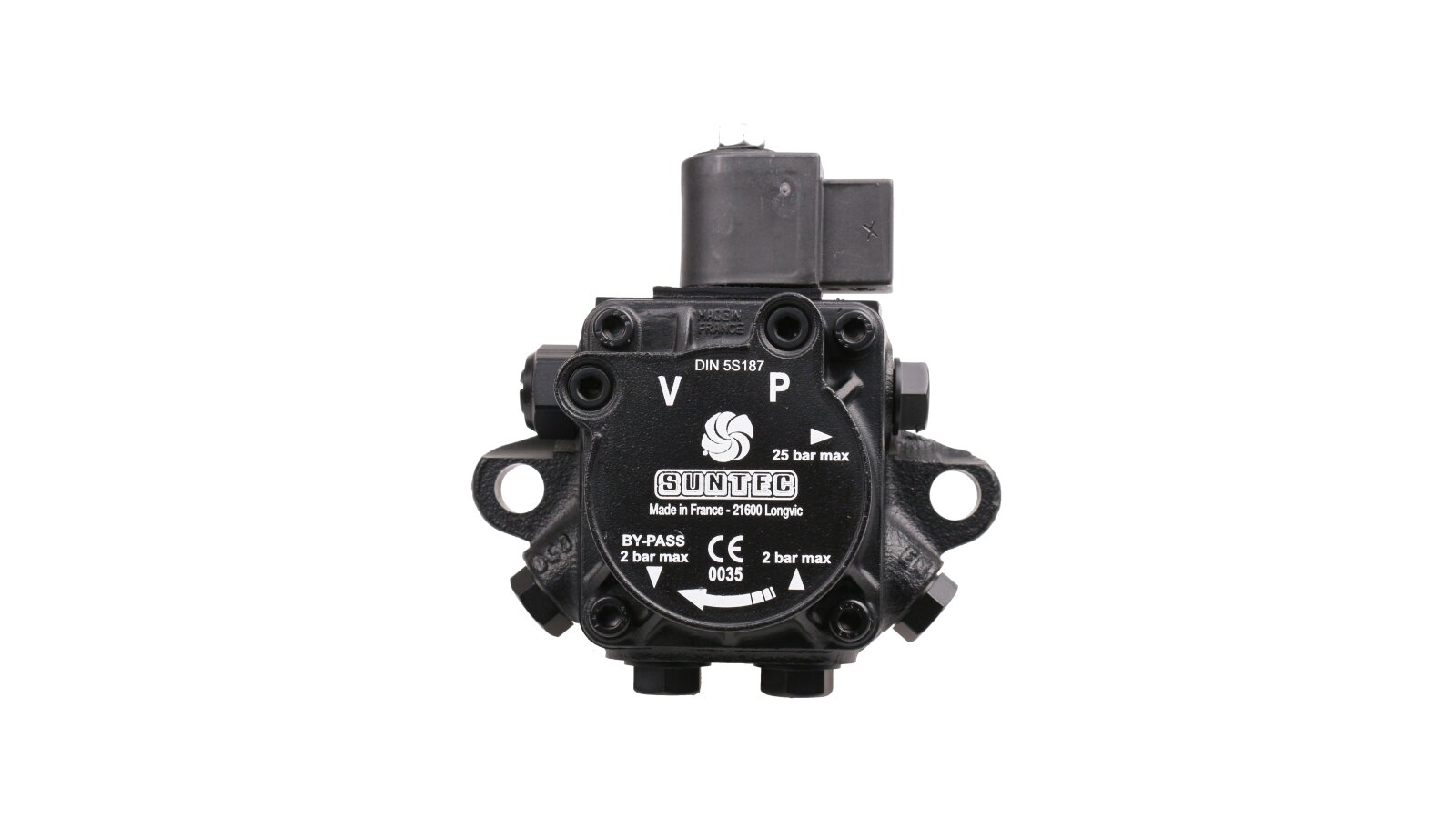

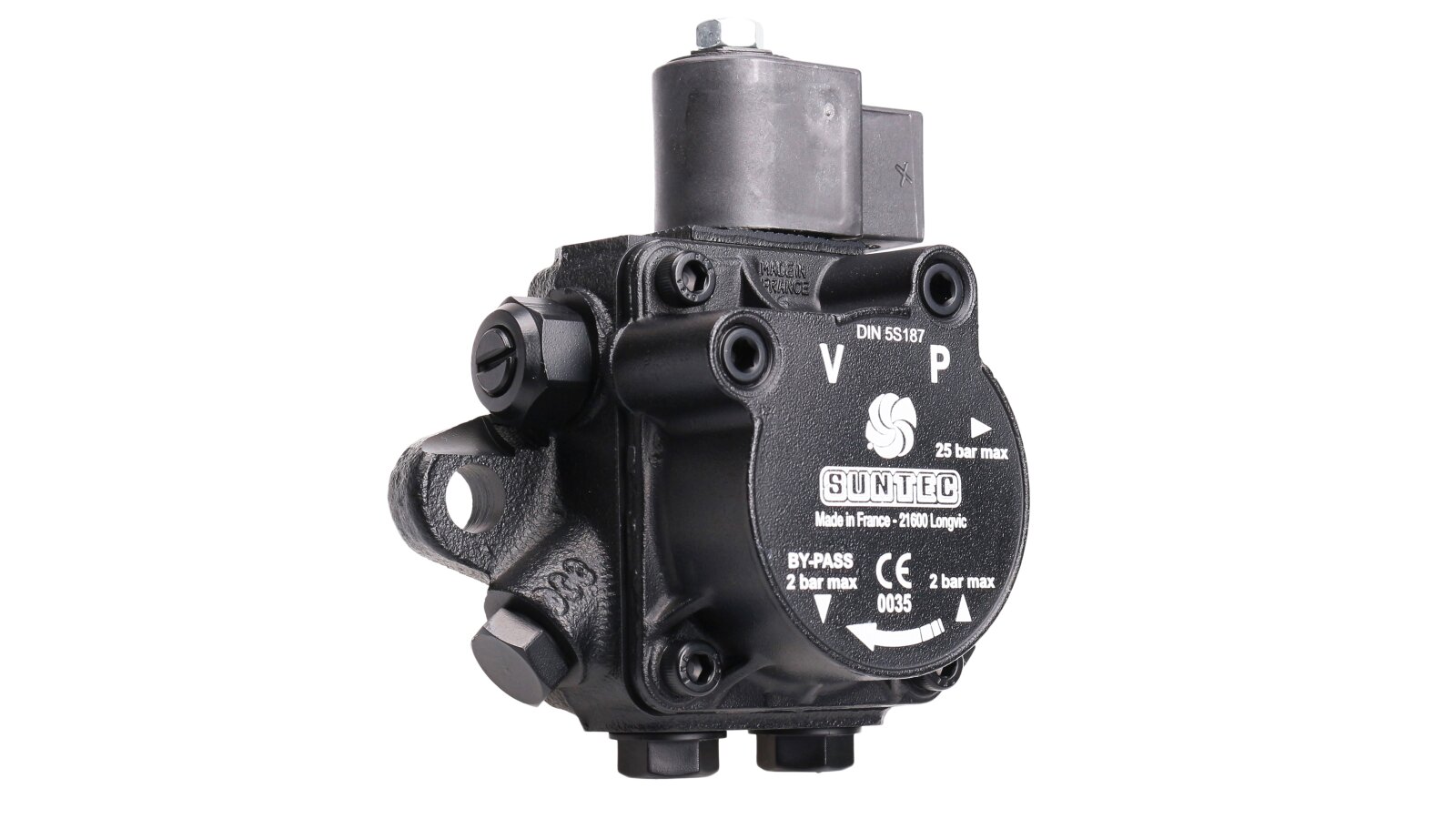

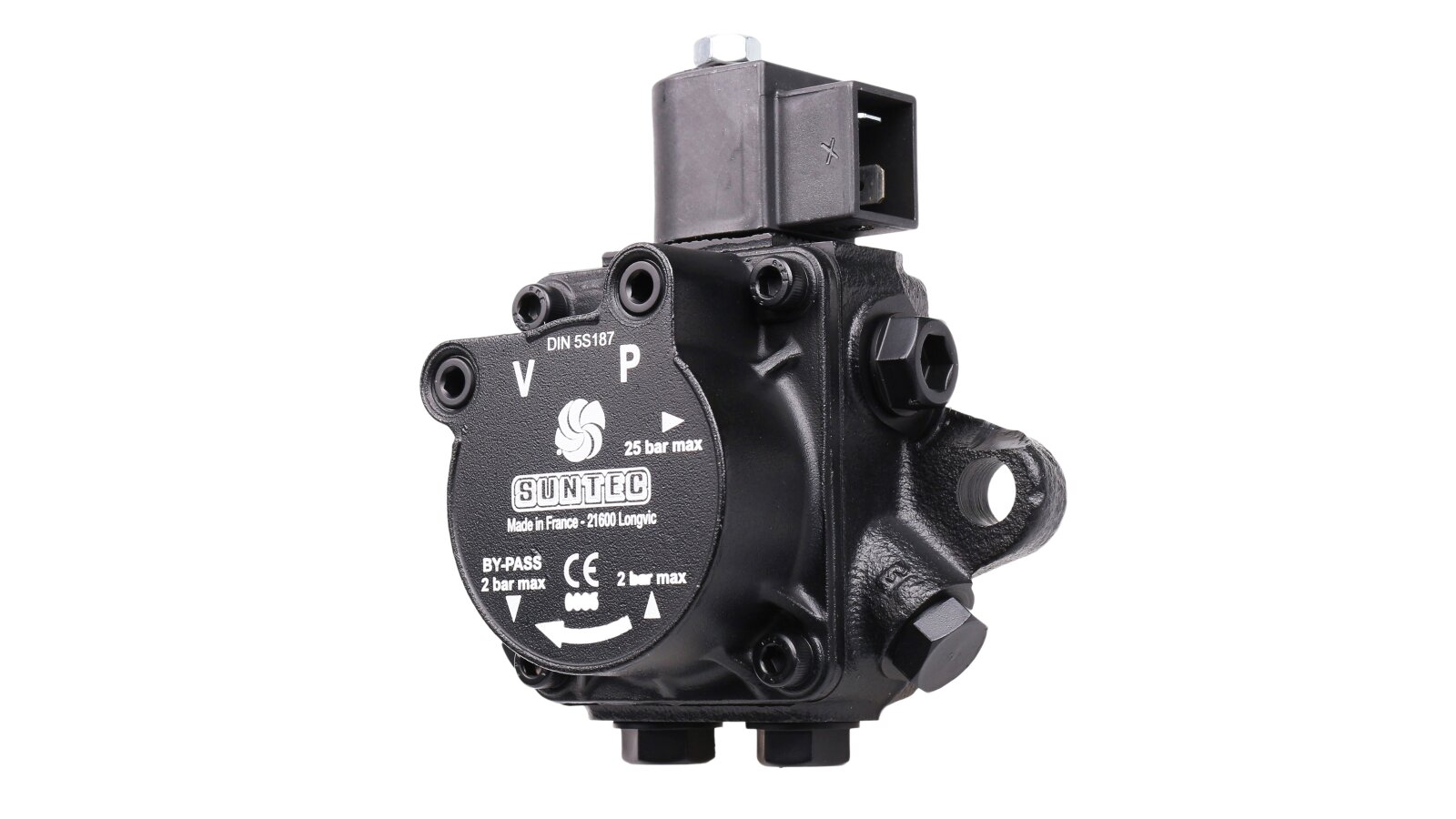

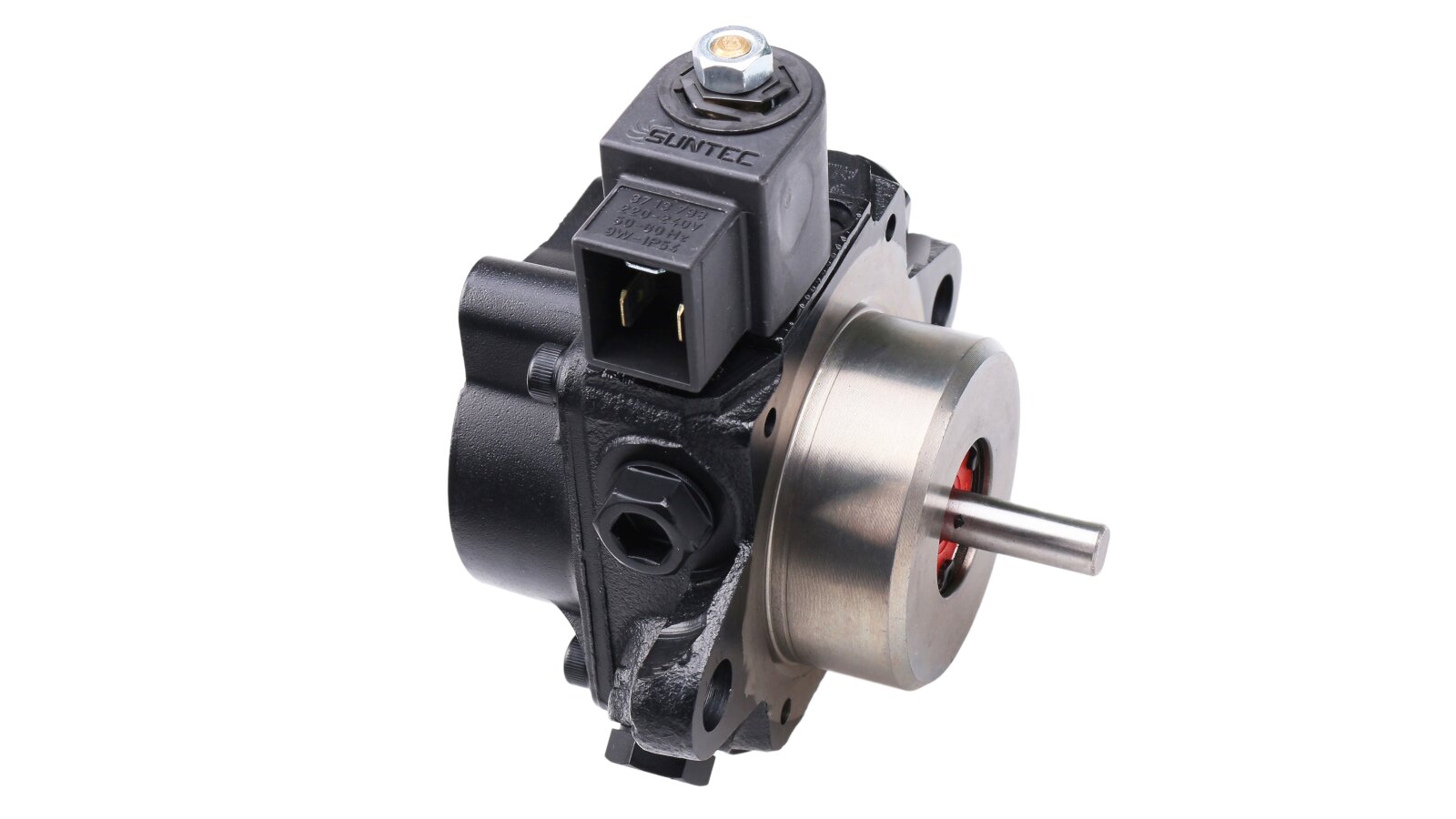

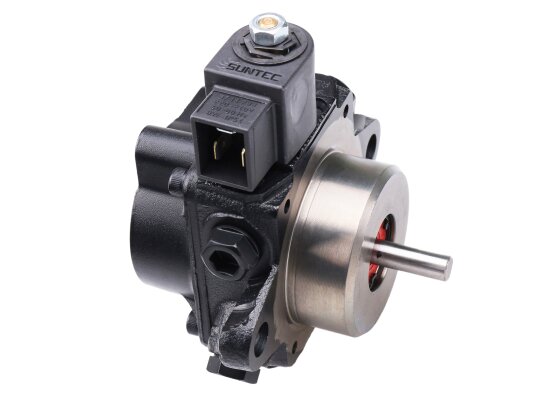

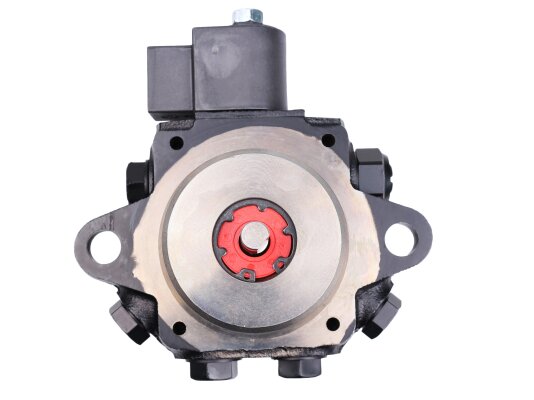

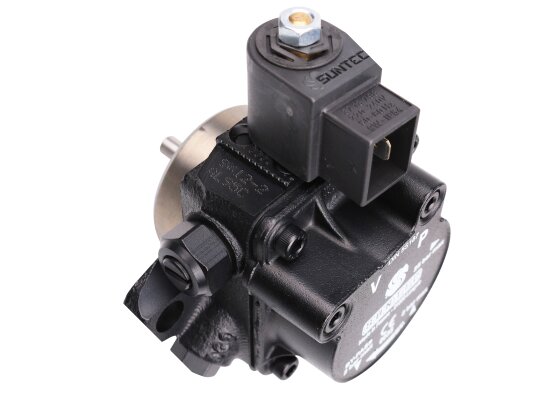

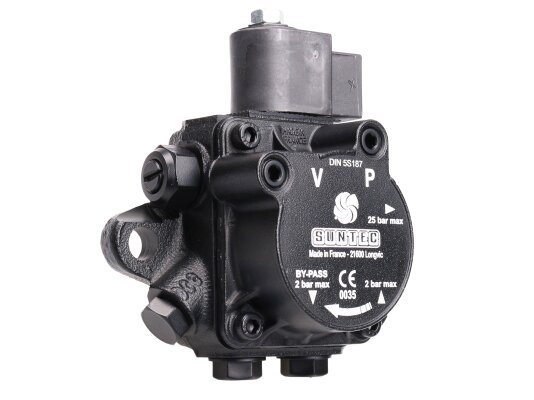

Burner Pump Suntec AL 95 C 9412 2P 0500

Suntec
  • Discontinued
Oil Burner Pumps
Products code: 1182

Description

Single-stage liquid fuel pumps of the AL series from the French company Suntec are very popular. The AL 95 C 9412 2P 0500 model with a capacity of up to 128 l/h, equipped with an electromagnetic shut-off valve, is no exception. This device is designed to complete burners that operate on diesel fuel.

The gear pump has excellent technical characteristics and a long service life. It can be used in various heating systems, as it is compatible with burners of famous brands: Elco, Weishaupt, Baltur and Lamborghini.

Features of the model

  • The main functional unit of the unit is a gear pair. It is responsible for moving fuel from the tank to the nozzle line. During the supply process, the working mixture undergoes additional cleaning using a built-in filter device with a throughput area of ​​20 cm².

  • The electromagnetic valve withstands fuel pressure up to 25 atm. Its task is to operate upon receipt of a signal from the control unit and stop the supply of working fluid to the injectors regardless of the operating mode of the electric drive.

  • In the inactive state, the valve has a closed position, and the fuel pumped by the gear pair is directed to the suction line or to the fuel tank, depending on the type of fuel line connection.

  • Additional information! When installing the pump, it is recommended to install a fine filter in the system. It will prevent clogging of the injectors and significantly extend their service life.

Main advantages:

  • high performance of the model with a viscosity of 5 cSt - 128 l / h;

  • optimal degree of protection of the housing from dust and water penetration into the device - IP54;

  • convenient flange mounting with a seat size of 54 mm;

  • the possibility of installation in single-pipe and two-pipe fuel line systems.

The company "ANKAS" offers to buy a fuel pump AL 95 C 9412 2P 050 at the manufacturer's price. There is also a large selection of other equipment for completing heating systems.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 128 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 128 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: flange ∅ 54 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 12 barTorque: 0.2 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
