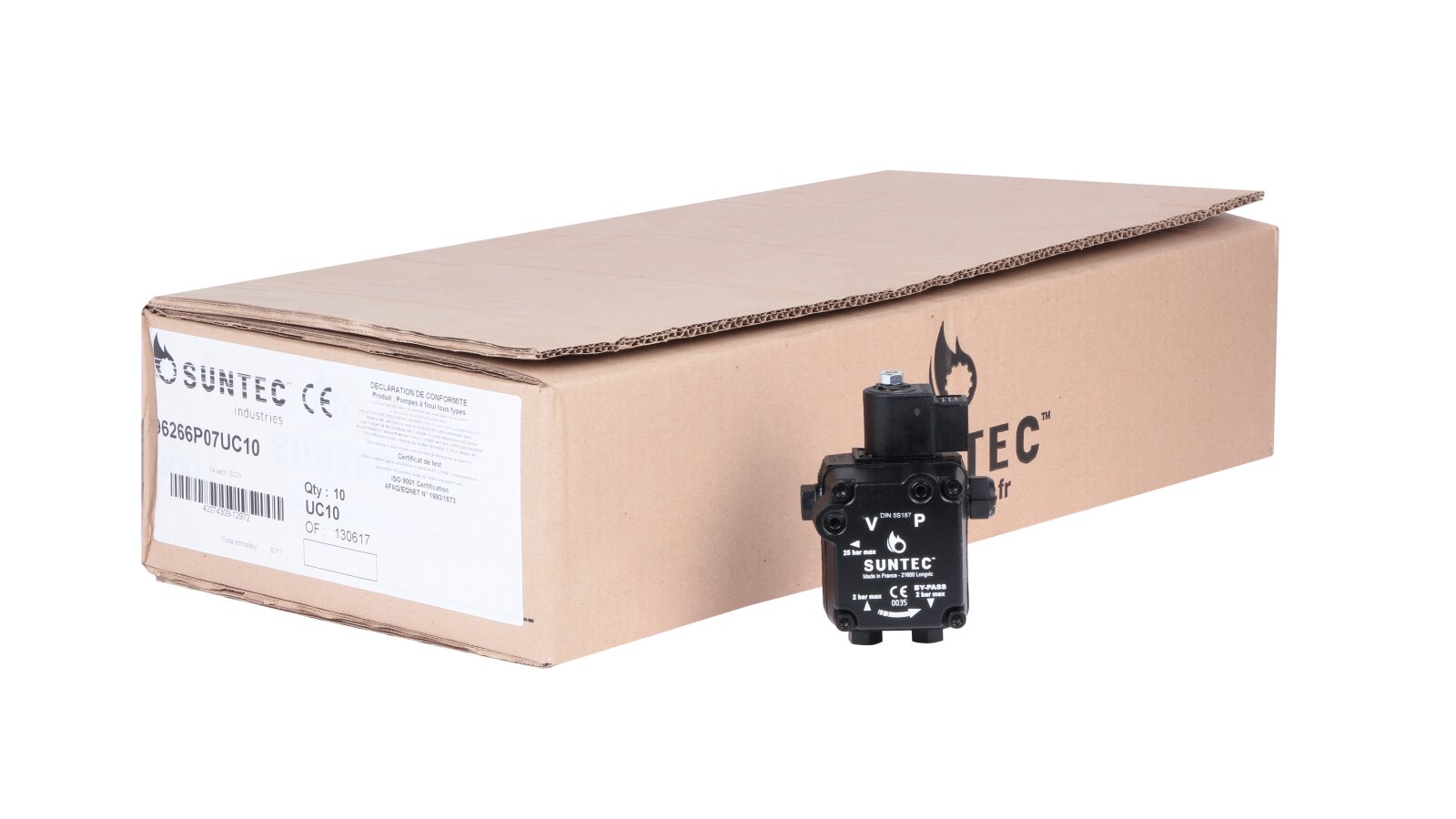

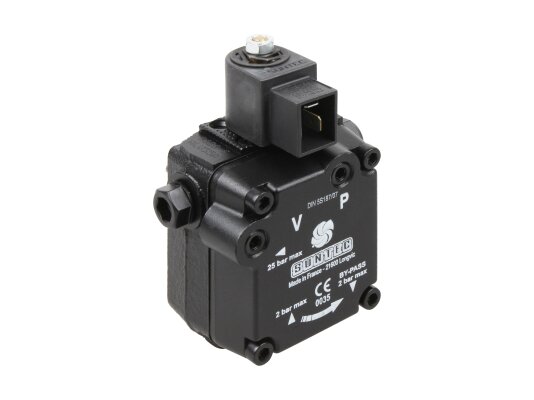

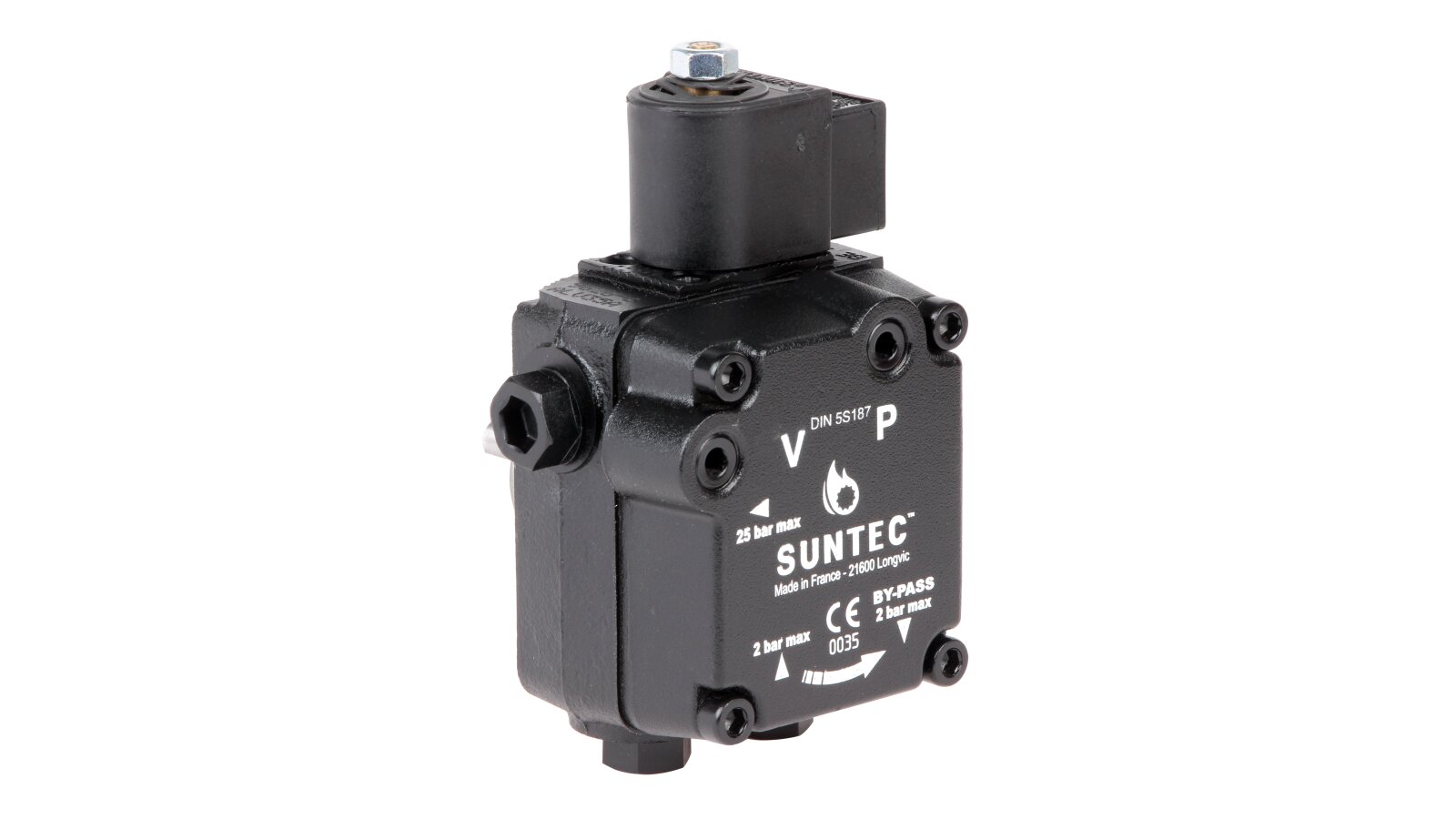

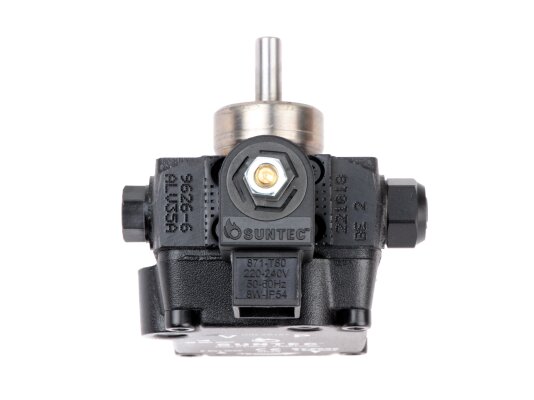

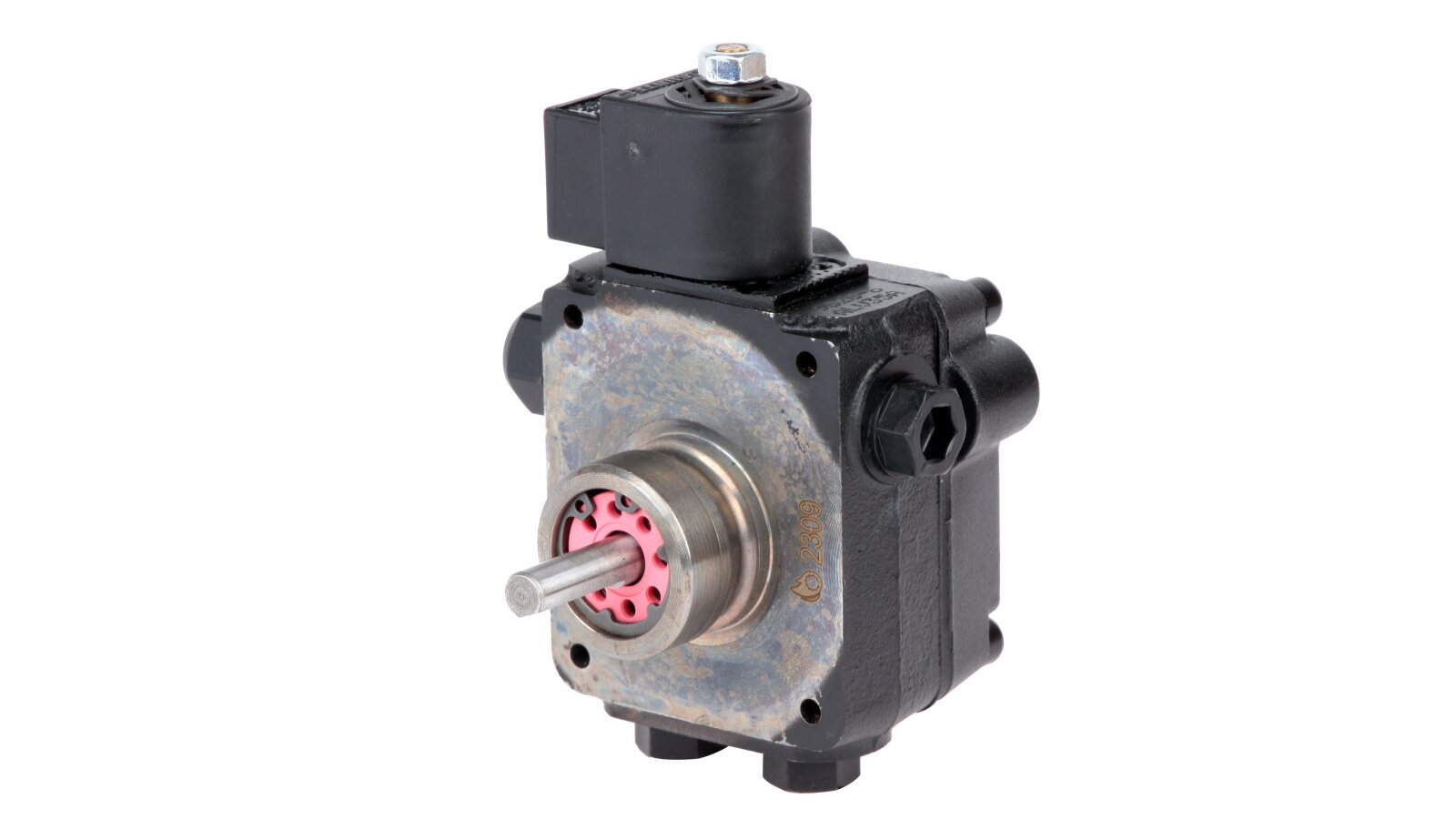

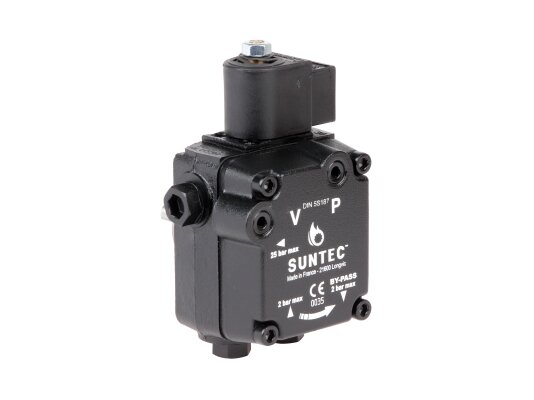

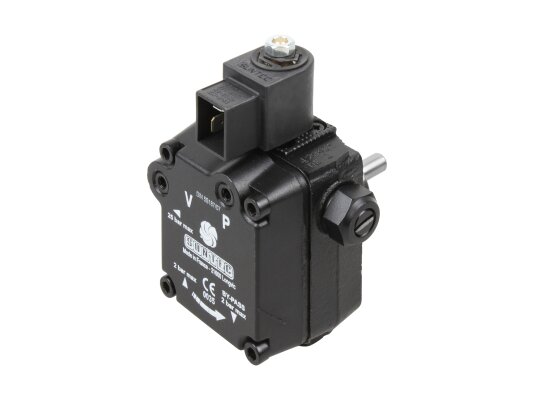

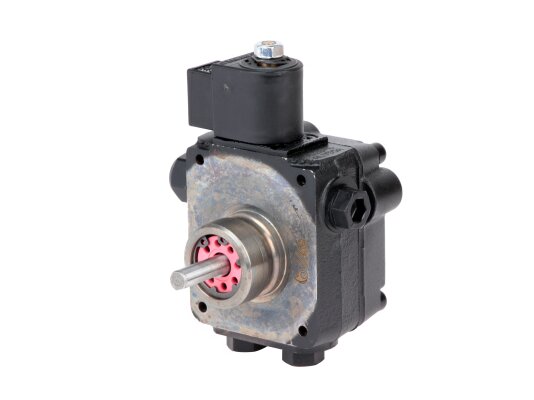

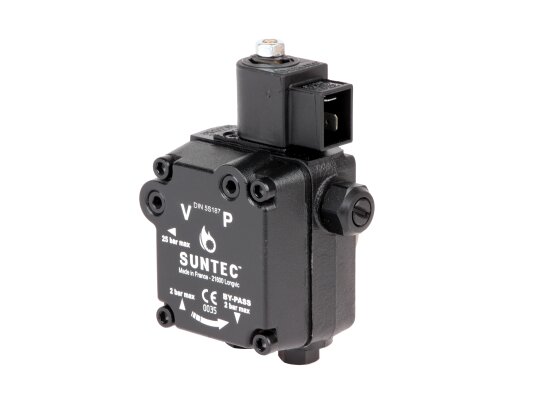

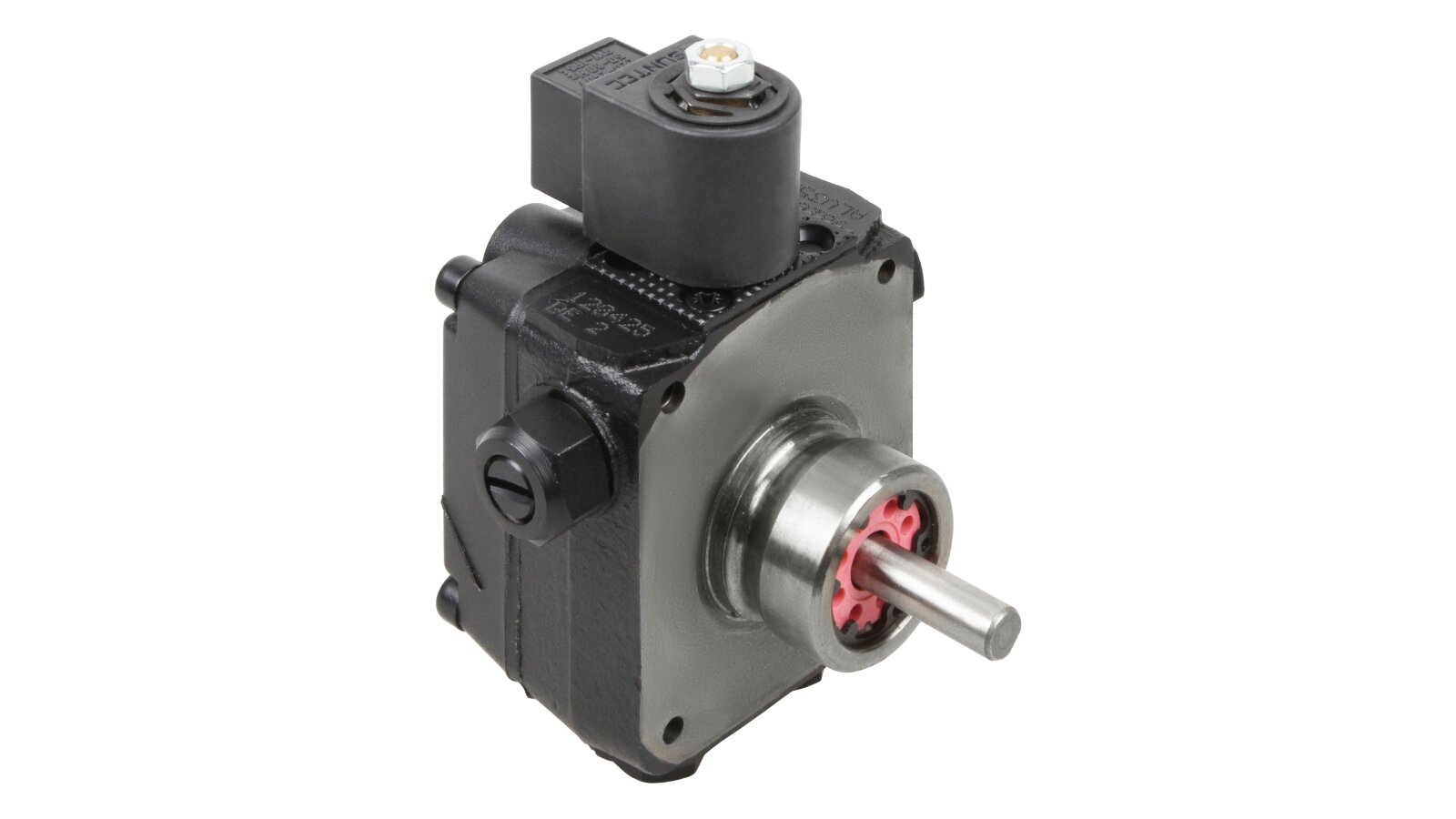

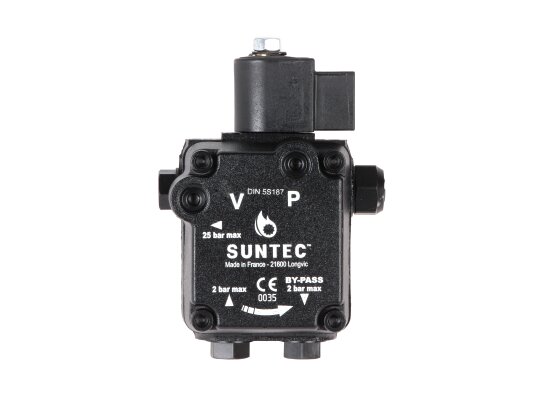

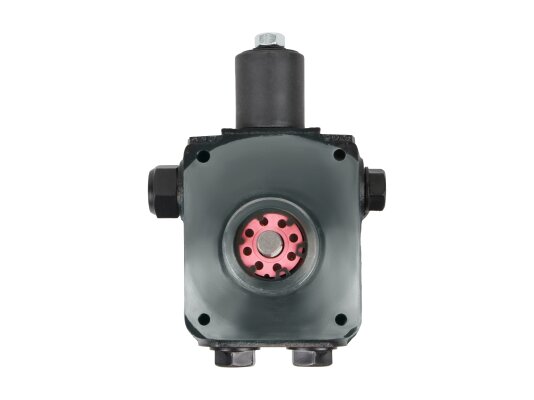

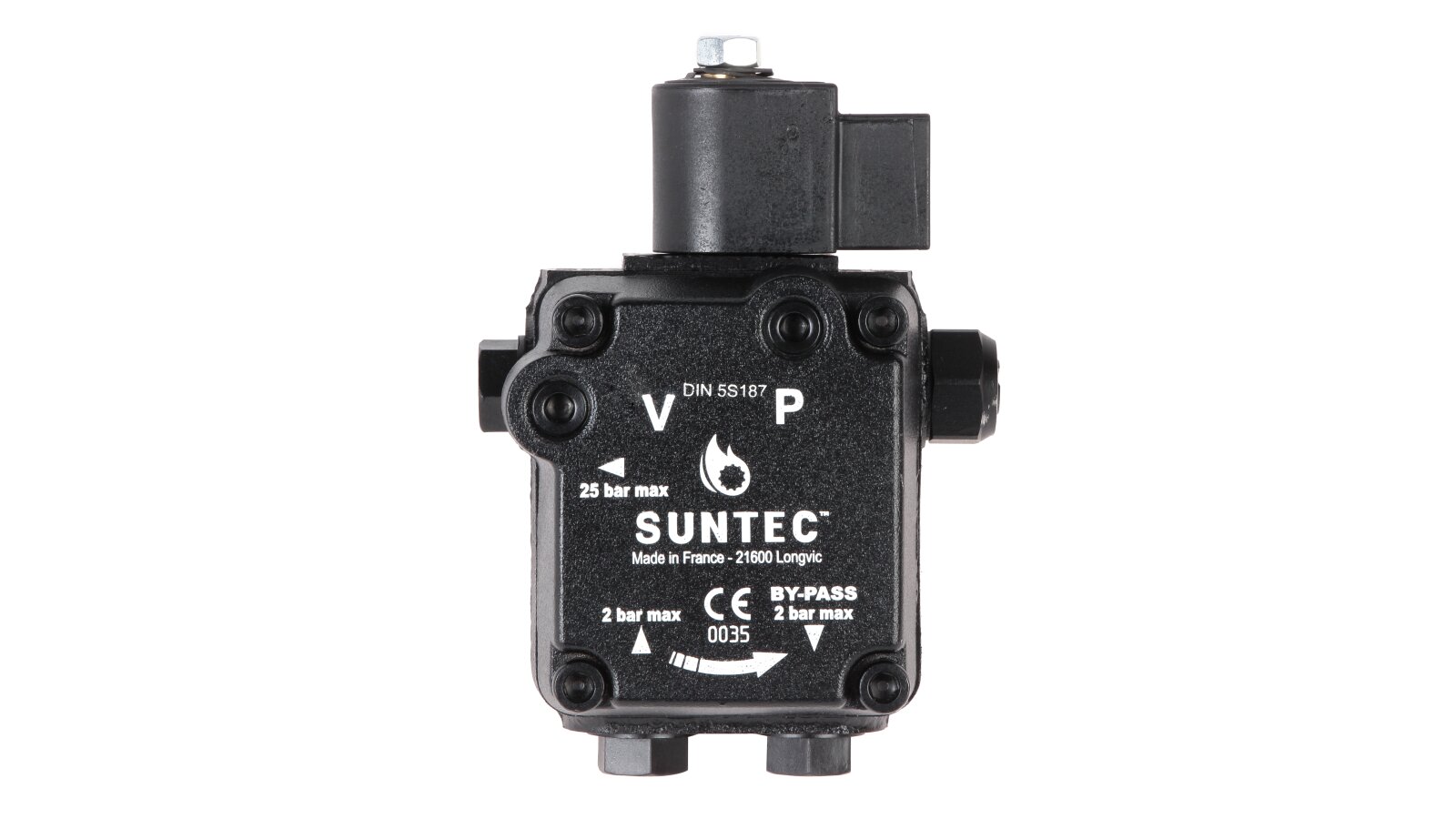

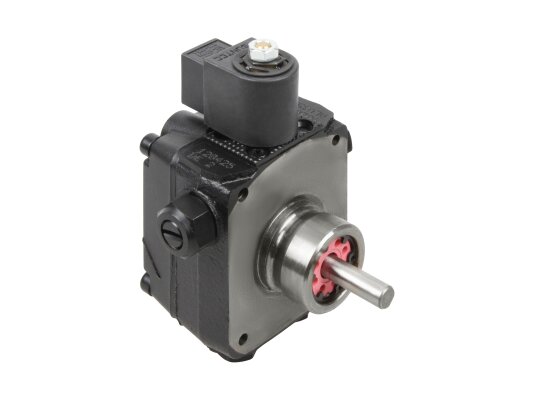

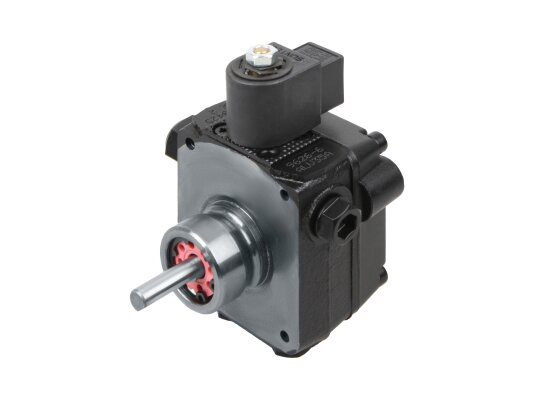

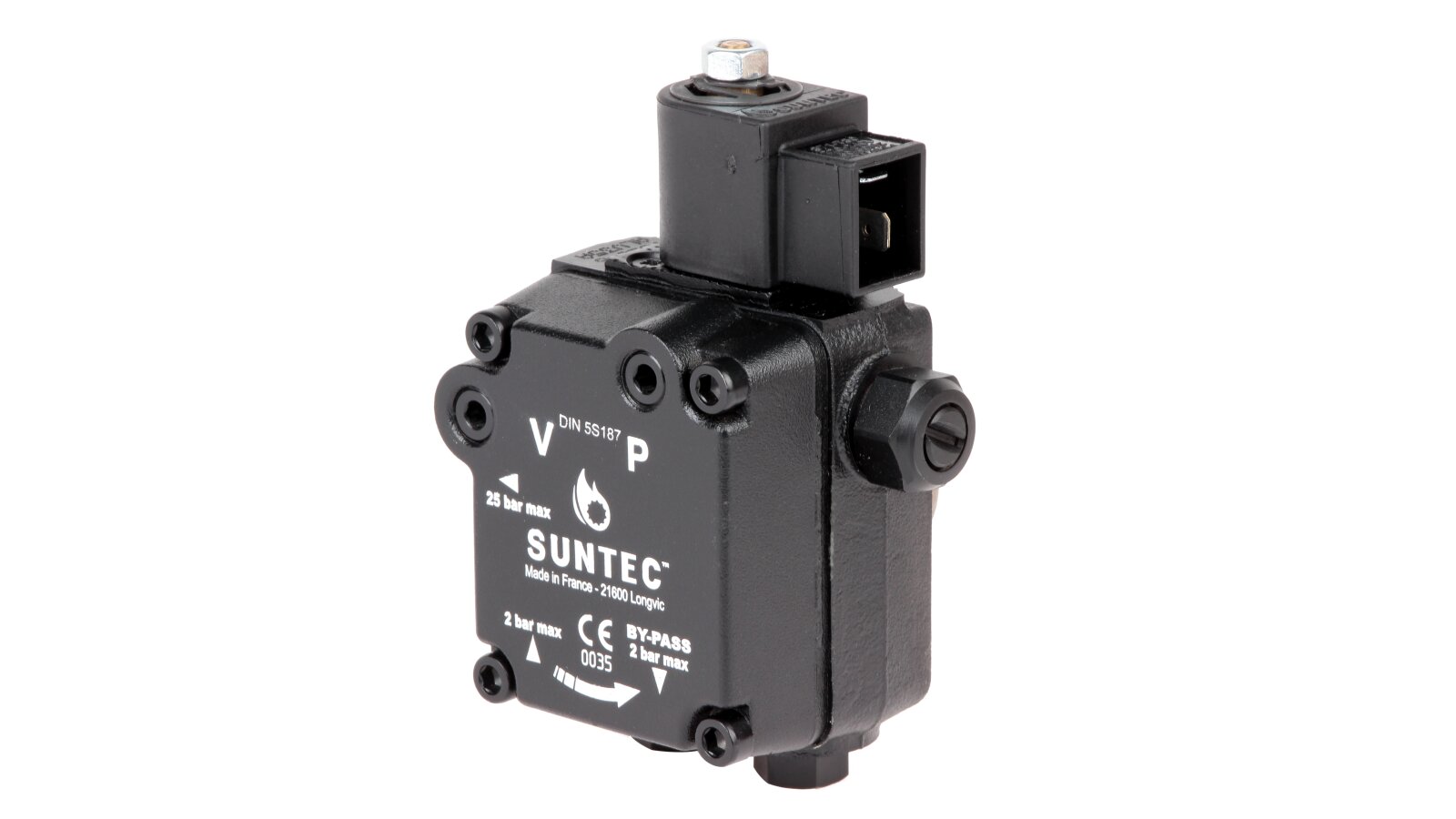

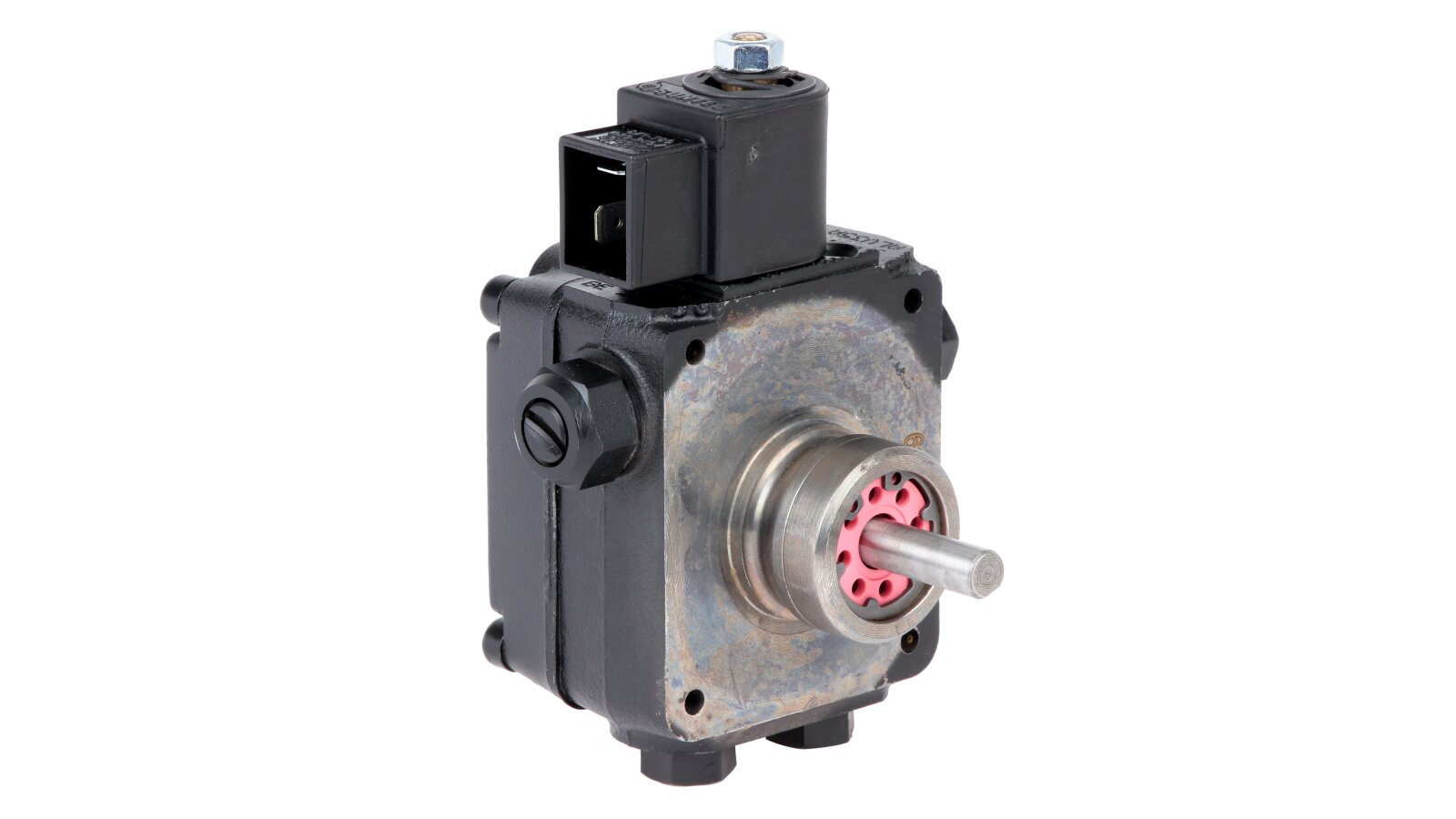

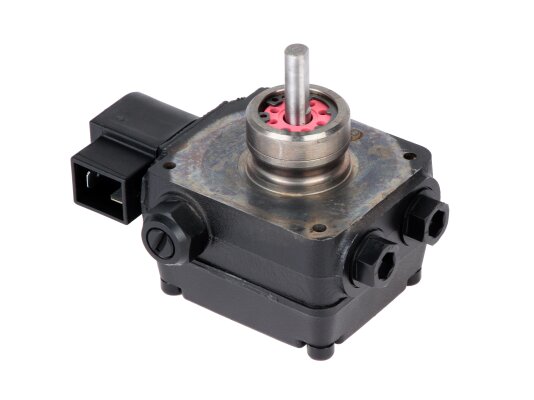

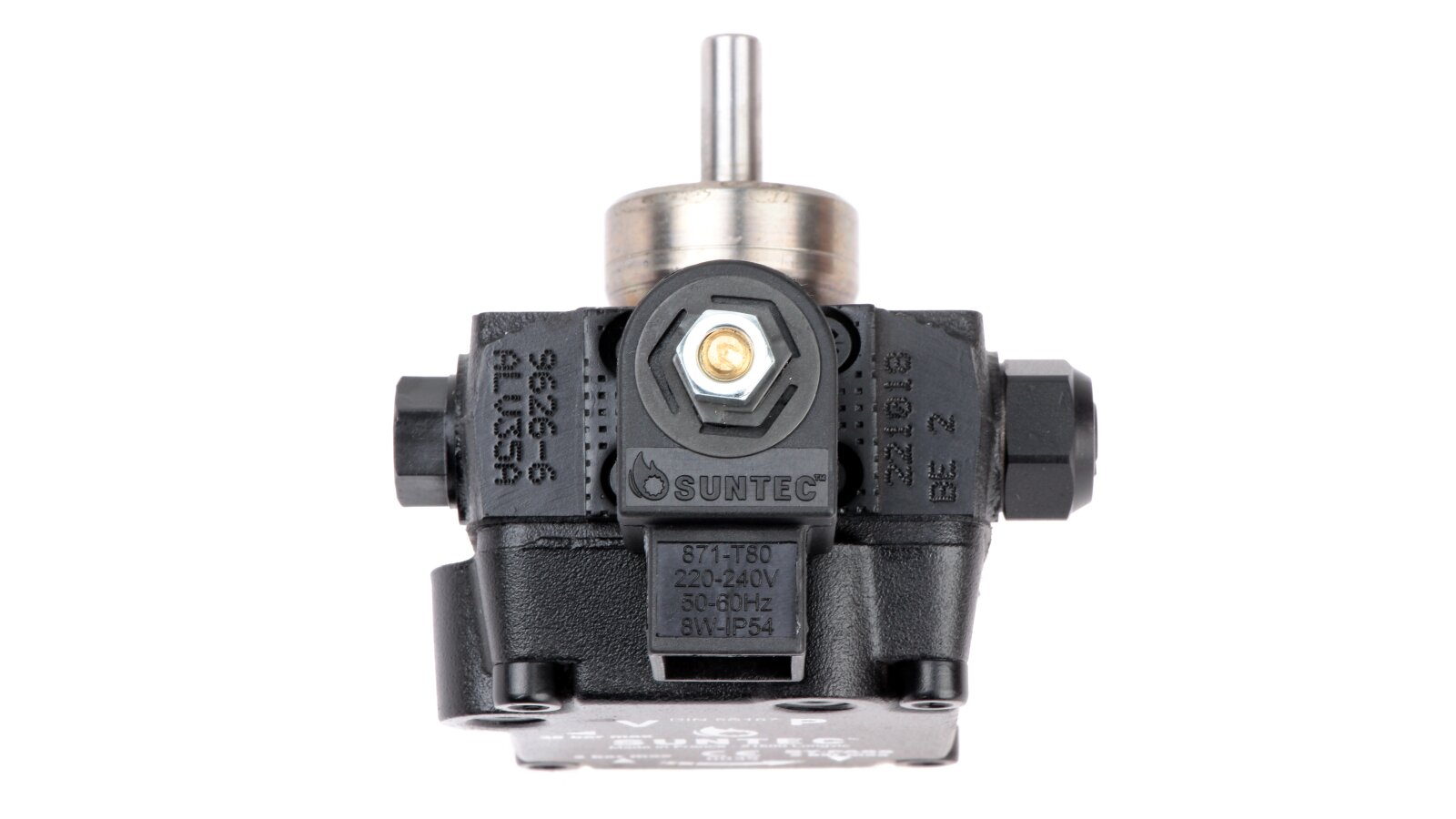

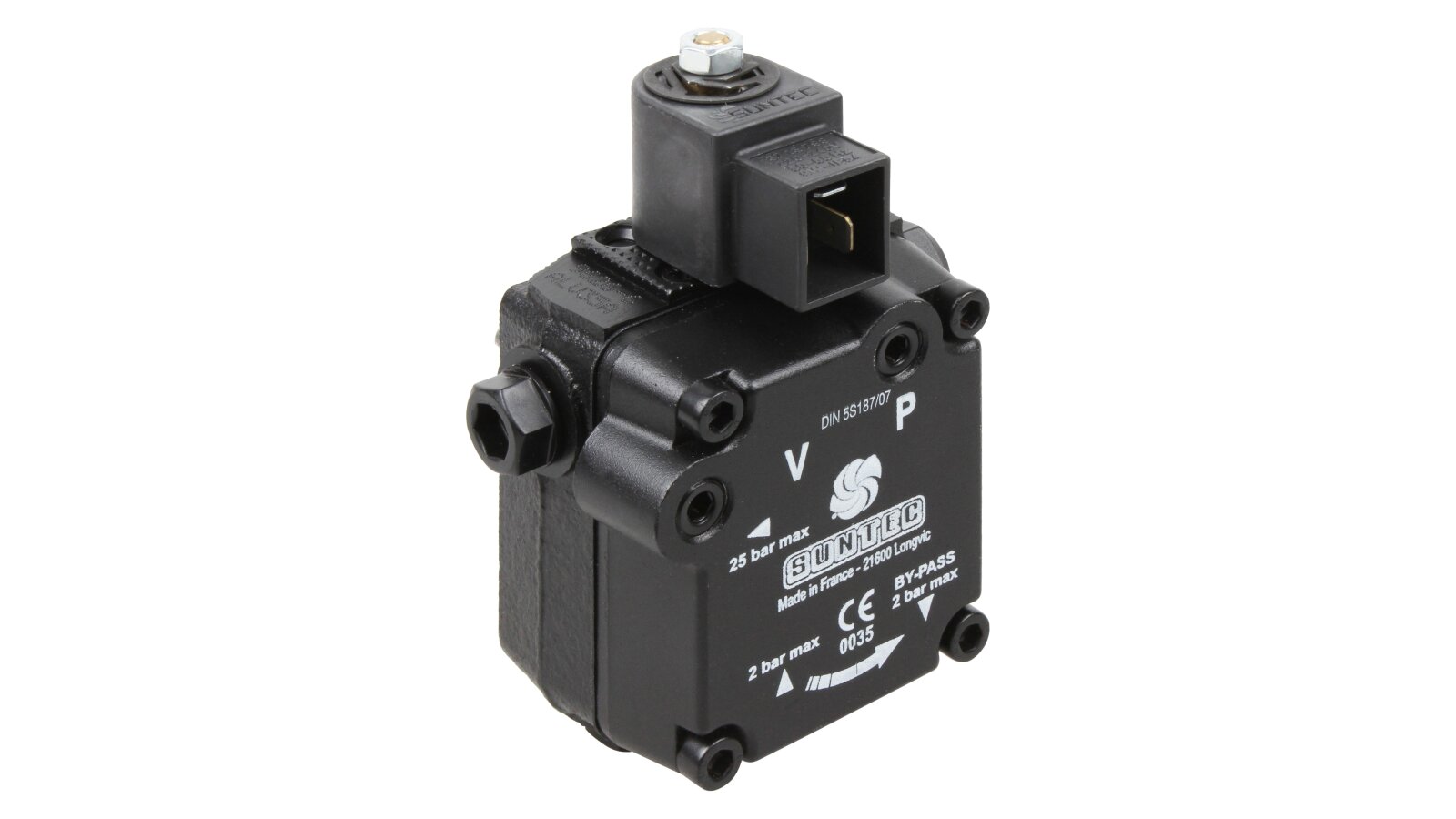

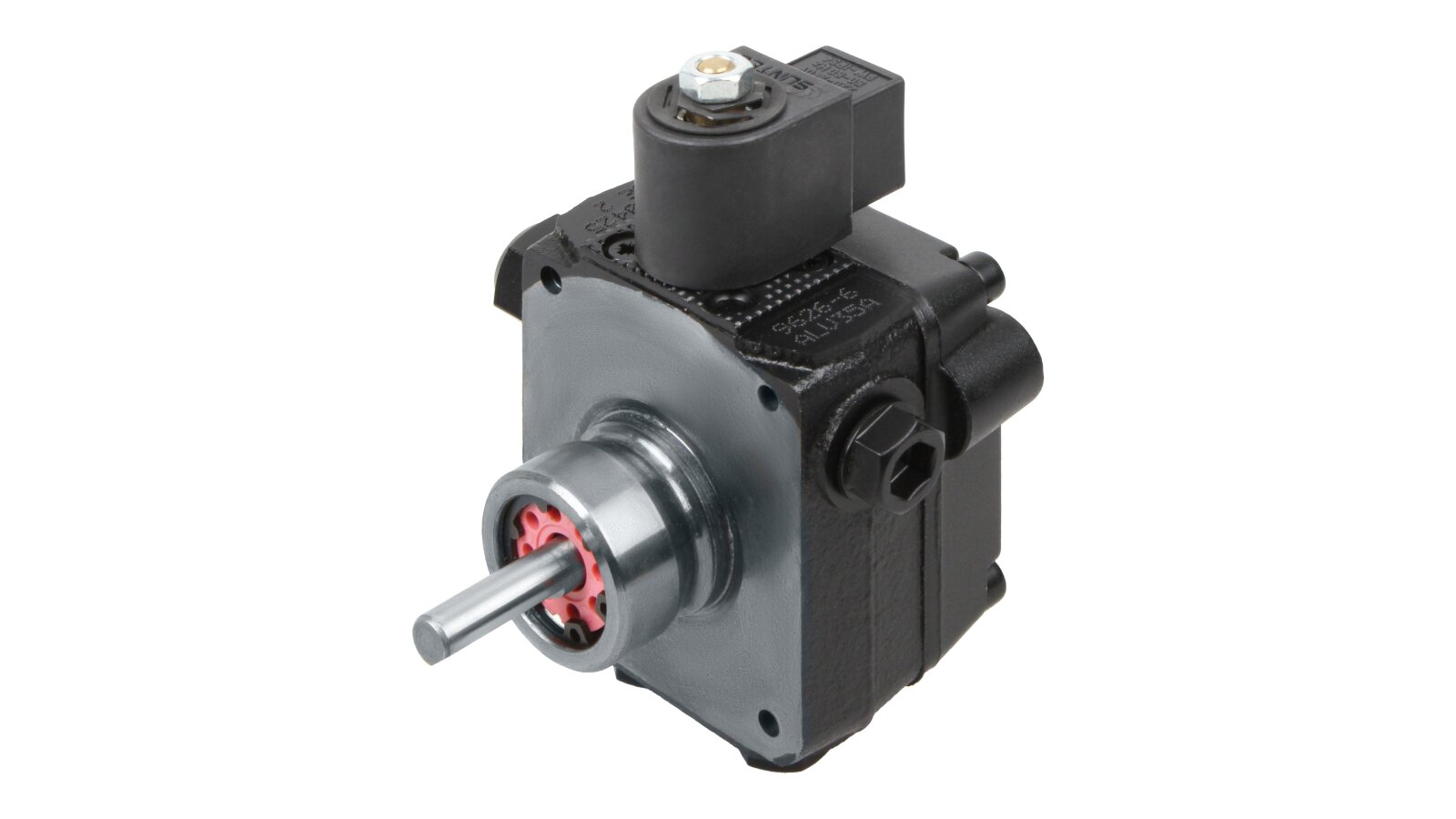

Burner Pump Suntec AL V 35 A 9626 6P 0700

Suntec

Alternative Part Number

Ecoflam

65325113

840040003500

AED 675

Oil Burner Pumps
Products code: 1173

Description

The single-stage pump of the AL 35 series is designed to complete liquid fuel burners. This is one of the latest developments of the French company Suntec, specializing in the production of boiler equipment.

The main feature of the model is the presence of a shut-off electromagnetic valve and a regulating valve, which will allow fuel to be supplied to the injectors with a pressure in the range of 8-15 bar. The equipment is reliable and provides a long period of operation without repair and expensive maintenance. It belongs to the universal category, because it is compatible with burners of many brands Weishaupt, Lamborghini, Baltur, Elco and others.

Design features

  • The main working unit of the unit is a gear pair that supplies fuel from the tank to the line leading to the injectors. During the movement, the fuel is passed through a filter device, which has a throughput area of ​​6 cm². With its help, the working mixture is pre-cleaned from mechanical particles and dirt.

  • The design of the pump for heating burners includes a regulating valve. Its task is to maintain the pressure on the line within the required limits. The electromagnetic valve shuts off the fuel supply and directs it to the suction line or fuel tank, depending on the fuel system configuration.

Important! Experts recommend installing a fine filter with the pump. This will significantly extend the service life of the injectors and prevent them from becoming clogged with tiny suspended particles.

Advantages of the model:

  • the ability to pump not only diesel fuel, but also biodiesel with a kinematic viscosity of 2 to 12 cSt;

  • wide range of working fluid temperatures - from 0 to 60 ° C;

  • optimal performance with minimal energy consumption - up to 40 l / h;

  • clockwise shaft rotation and right-hand location of the injector;

  • sleeve mounting method with a landing diameter of 32 mm.

You can buy the SuntecAL V 35 A 9626 6P 0700 pump on the website of the ANKAS company, which is the official representative of the Suntec concern. We always have a large selection of high-quality equipment and components for sale at an affordable price.

Characteristics

Type of pumped liquid: diesel / biodiesel fuel blend B30Strainer: Open area: 6 cm²Solenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 40 l/hPump series: AL: pressure regulation and interlock solenoid valve with shut-off functionDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 40 l/hMaximum pressure of the solenoid valve: 25 barTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: sleeve ∅ 32 mmDegree of protection: IP54
