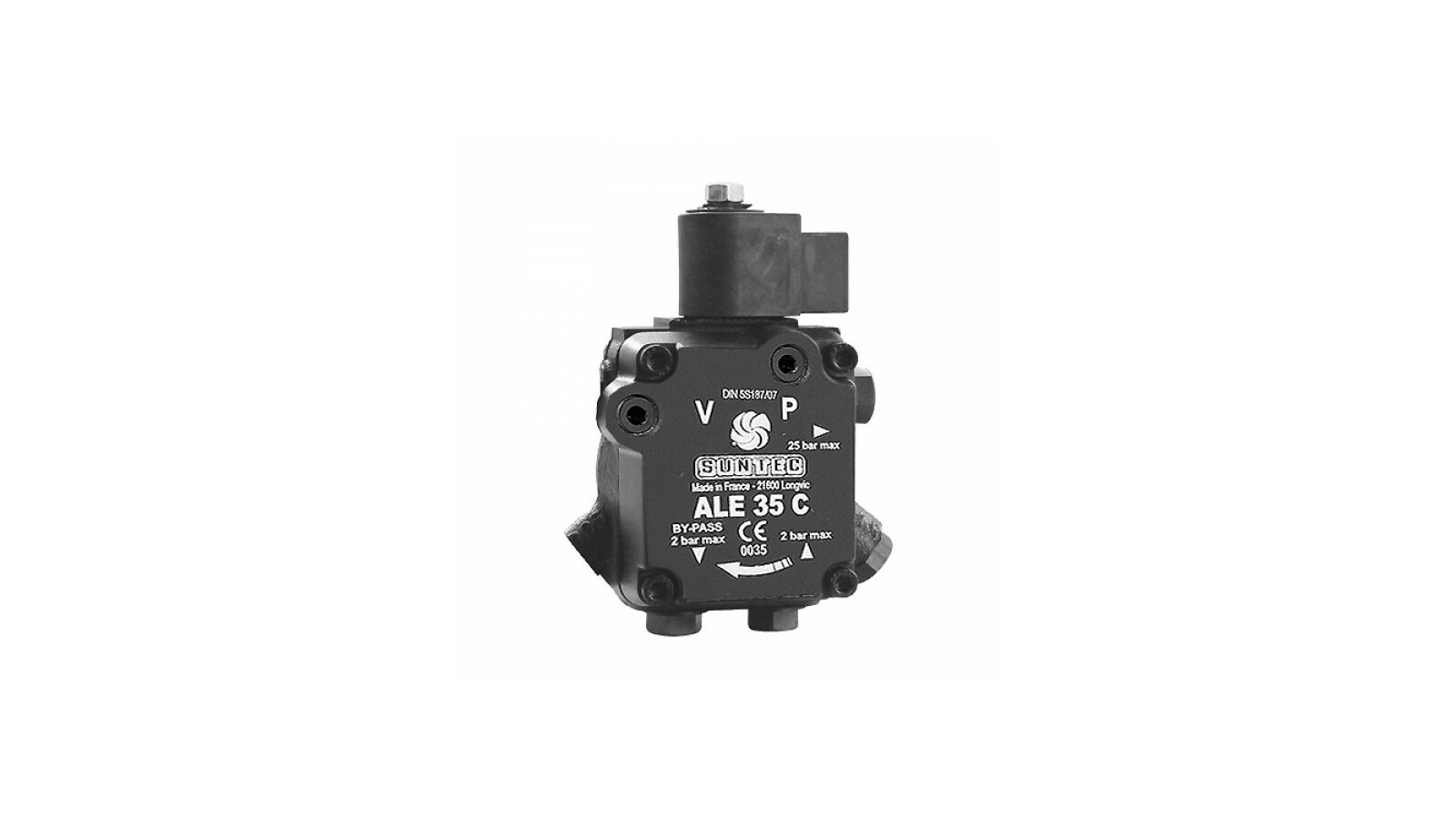

Burner Pump Suntec ALE 35 C 9324 6P 0700

Suntec

AED 1,000

Oil Burner Pumps
Products code: 9292

Description

The Suntec ALE 35 C 9324 6P 0700 burner pump is used to pump diesel fuel and kerosene in low-power heating systems. It is equipped with a blocking electromagnetic valve with a shut-off function and a pressure relief device in the discharge line. The pump can be used in systems with a single-pipe and two-pipe connection scheme.

Features:

  • feed pressure adjustment from 8 to 15 bar, by default the pump is set to 9 bar;

  • Viton seals for safe operation with kerosene;

  • removable filter for cleaning fuel from dirt particles and foreign impurities (mesh 6 cm², holes 150 μm);

  • permissible range of operating temperatures (fuel and air): from 0 to +60 °;

  • dust and moisture protection according to IP 41 standard;

  • quick switching of the electromagnetic valve at any engine speed;

  • use in systems with or without a return line;

  • factory assembly for a two-pipe system, for a one-pipe installation it is necessary to replace the bypass plug with a blind one;

  • automatic air bleeding in a two-pipe system, acceleration by loosening the pressure gauge plug;

  • standard fit on a ∅ 32 mm bushing according to the European standard EN225;

  • connection to the inlet and return line on a tapered thread ¼ inch NPTF;

  • ports for connecting measuring instruments.

Additional installation of a filter after the pump for the Suntec ALE 35 C 9324 6P 0700 burner will significantly extend the service life of the nozzle.

Characteristics

Strainer: Open area: 6 cm²Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftSolenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 40 l/hPump series: ALE: blocking solenoid valve with shut-off function and pressure relief device in line fInstallation method: sleeve ∅ 32 mmStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 40 l/hMaximum pressure of the solenoid valve: 15 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barDegree of protection: IP41Nozzle pressure range: from 8 to 15 barShaft diameter: 8 mmBypass valve opening pressure: 3.5 barReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchTorque: 0.1 N·mSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Type of pumped liquid: diesel, kerosene
