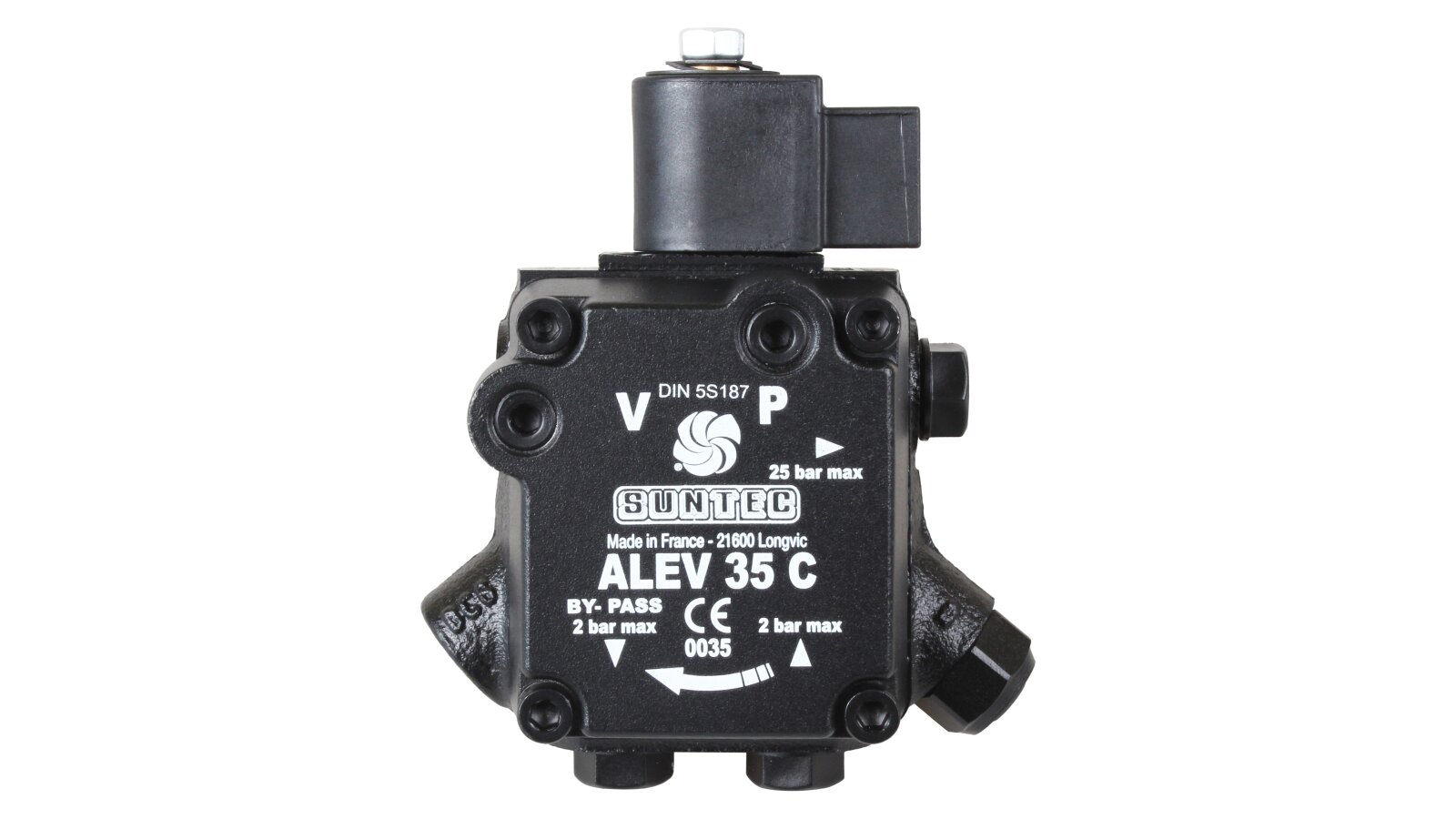

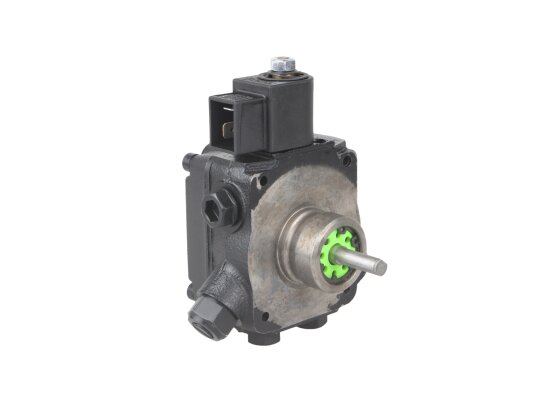

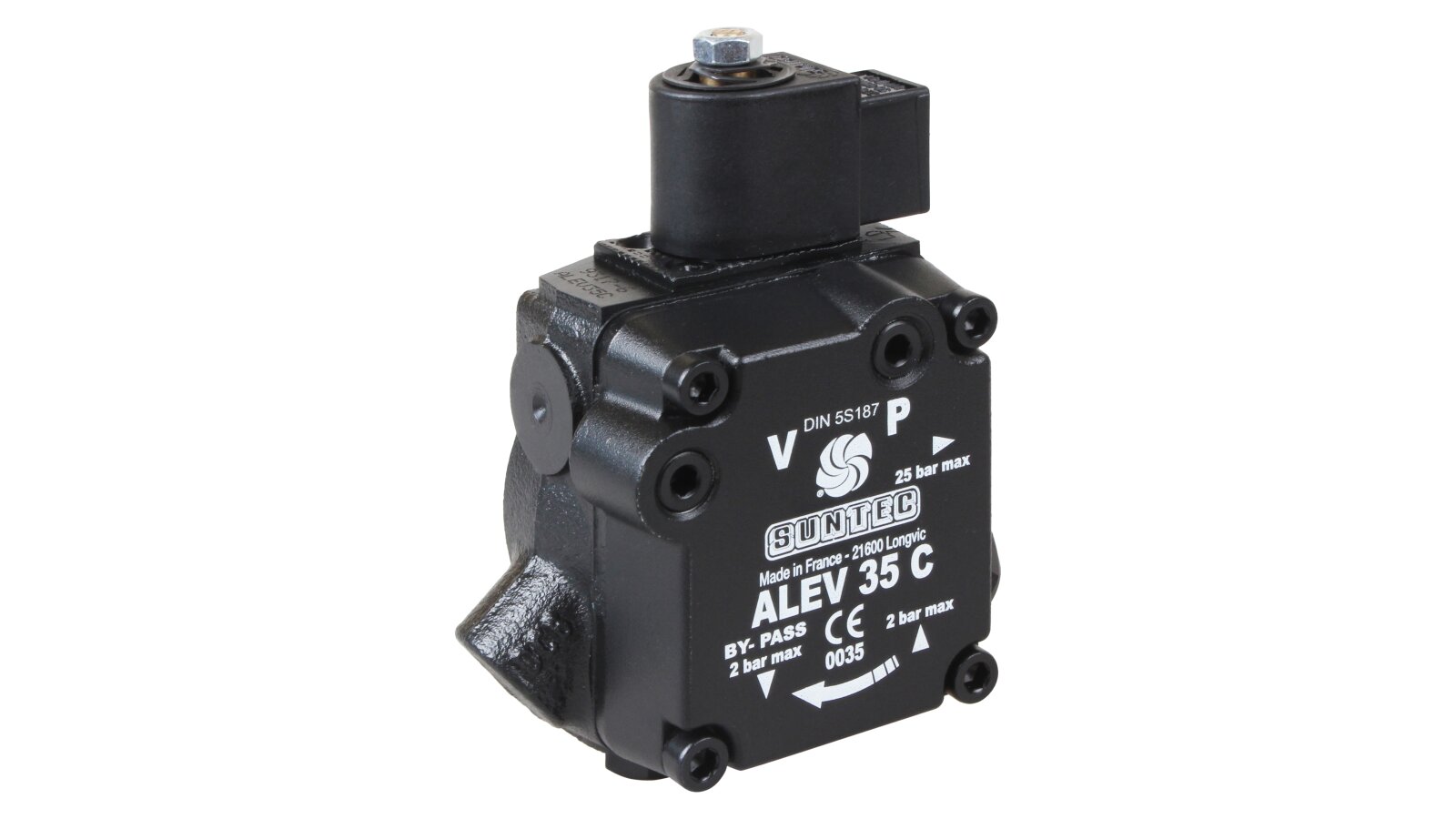

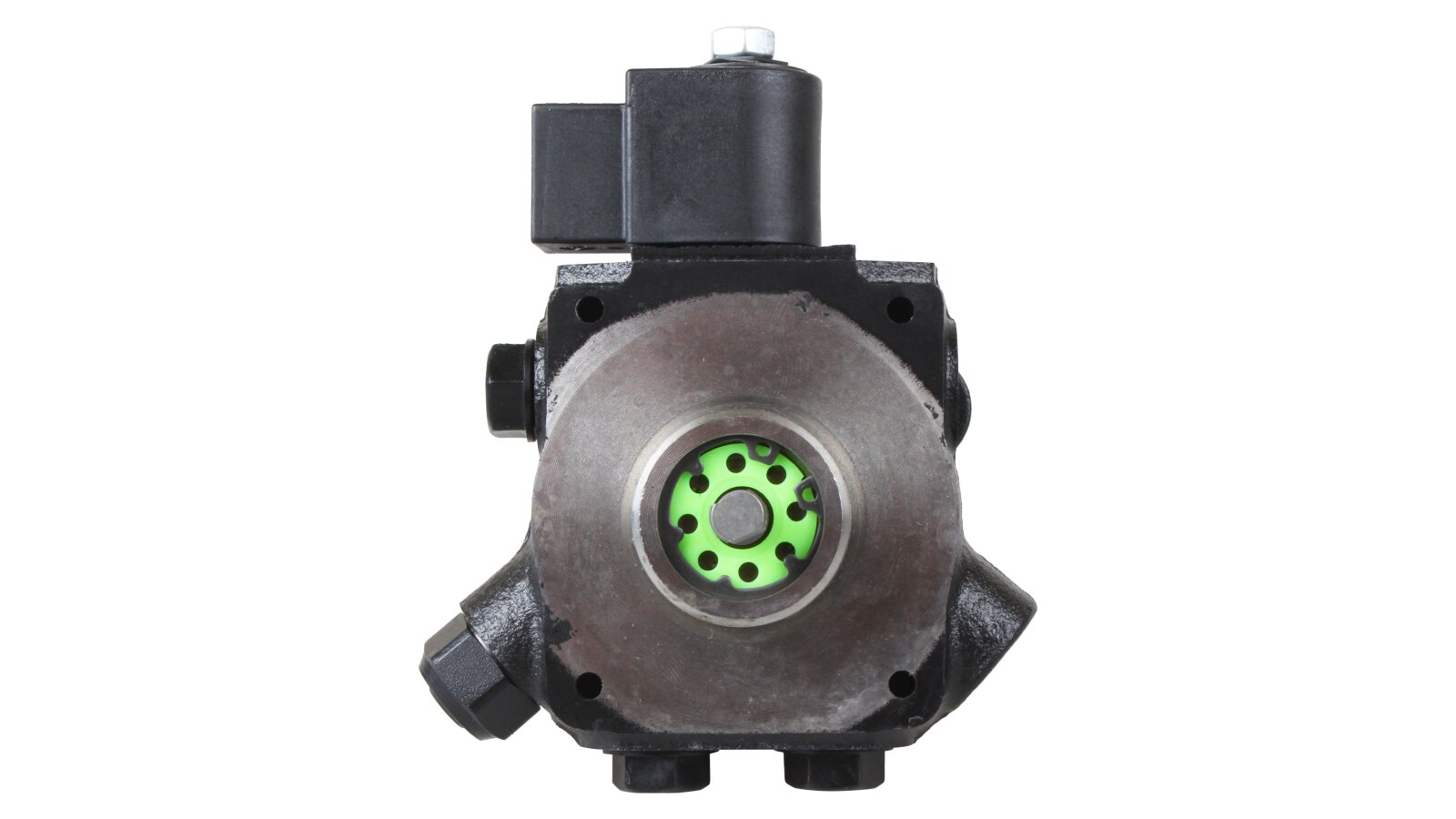

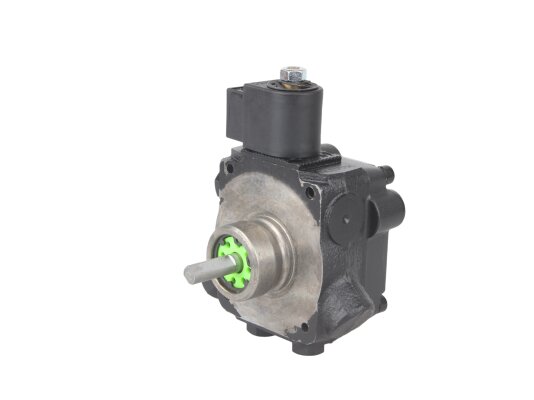

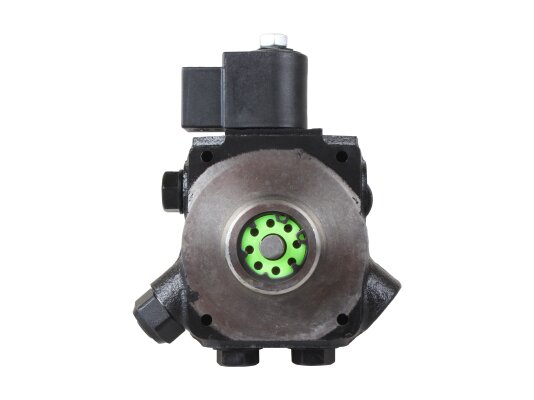

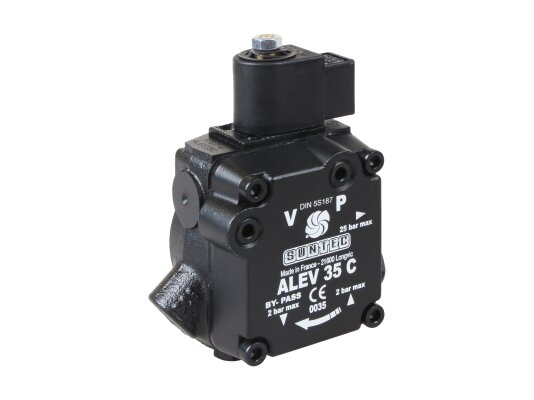

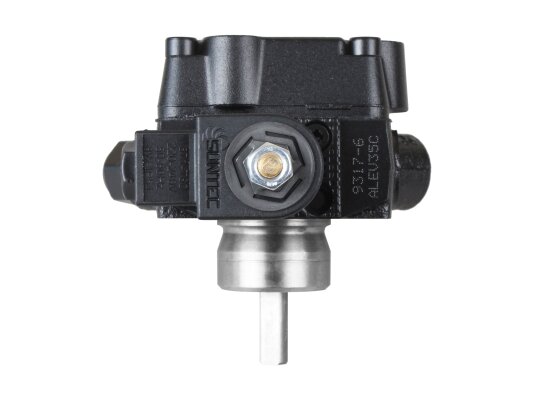

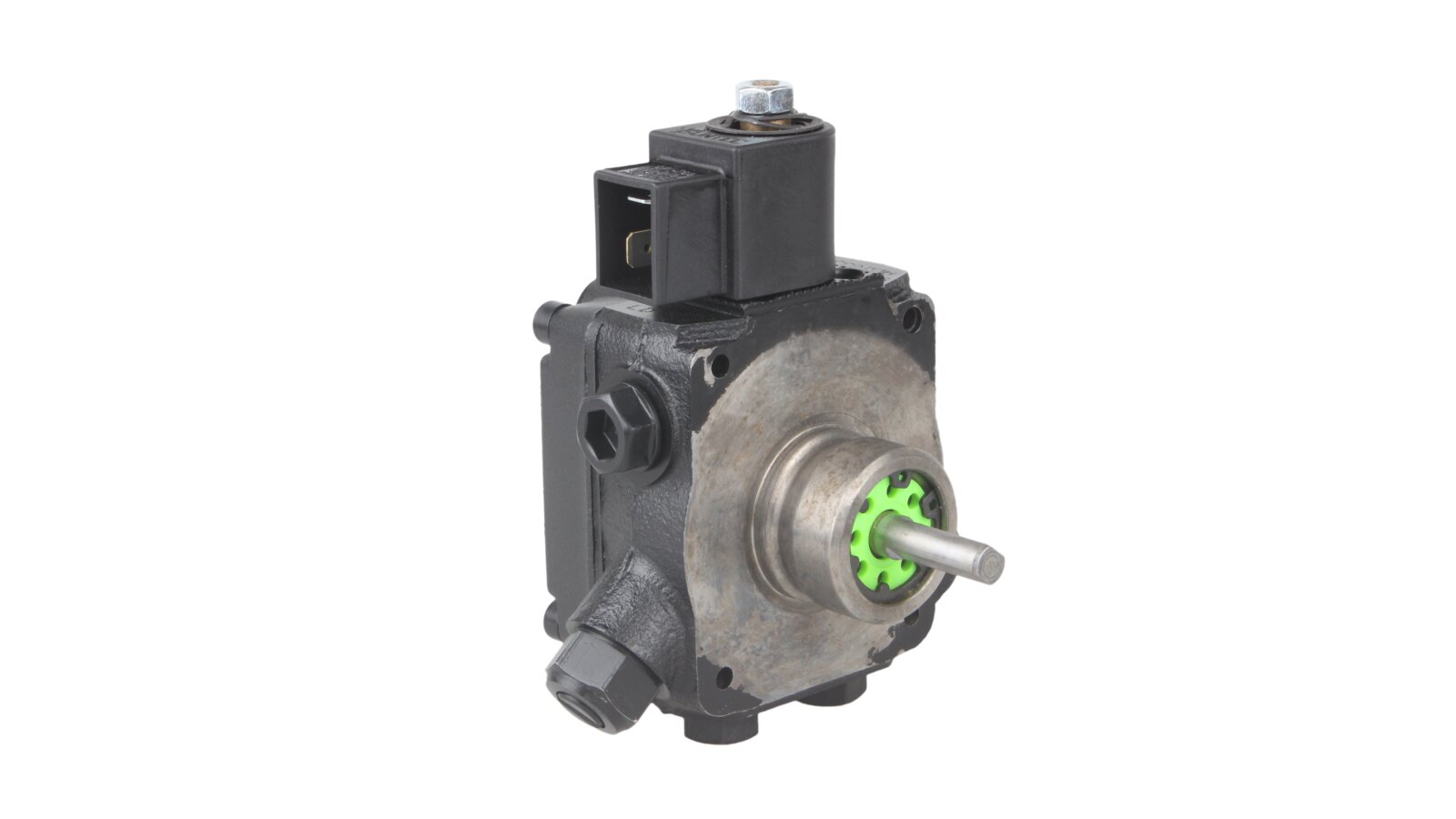

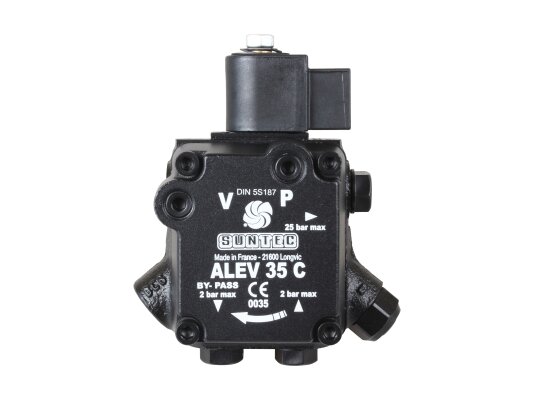

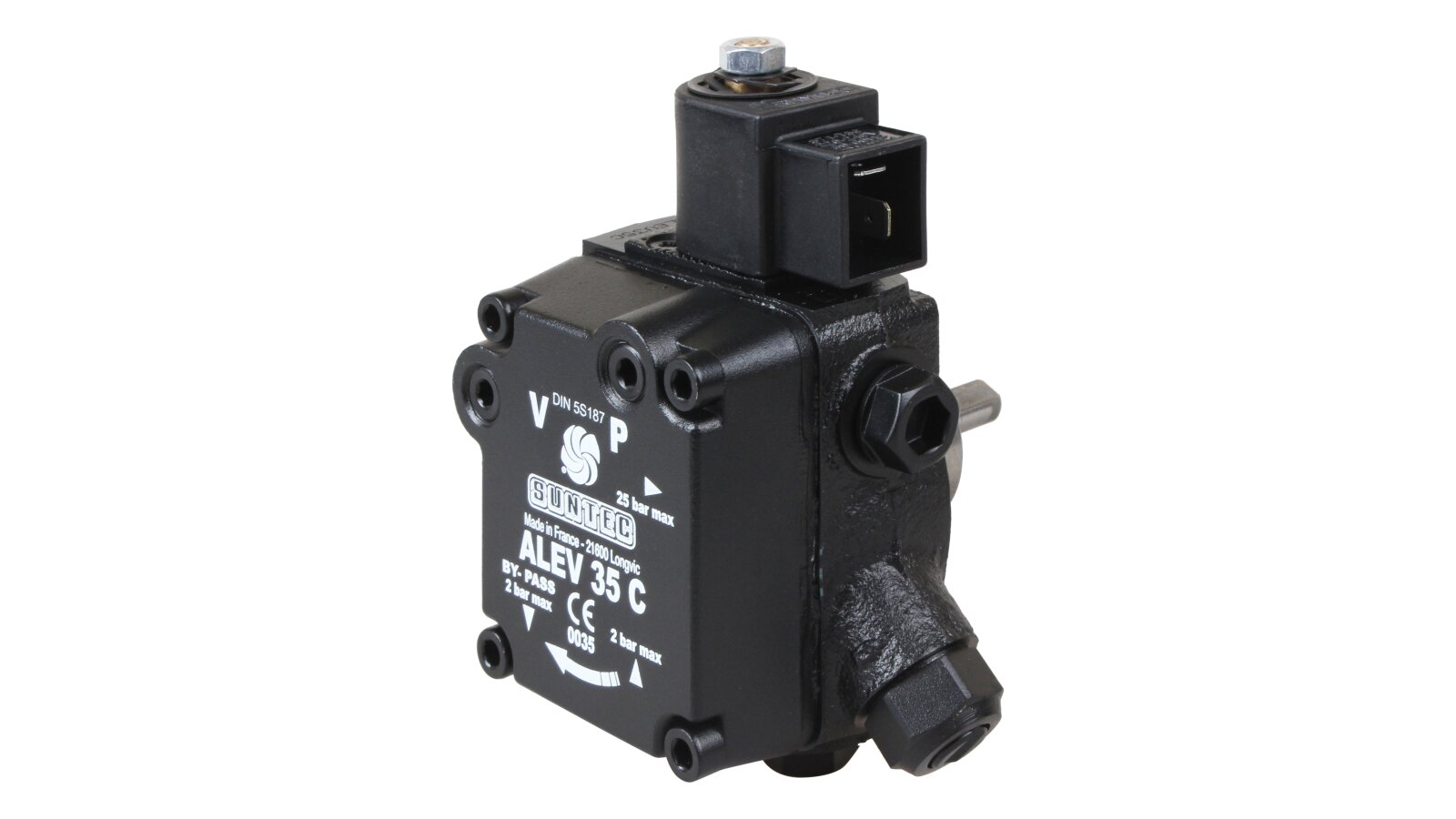

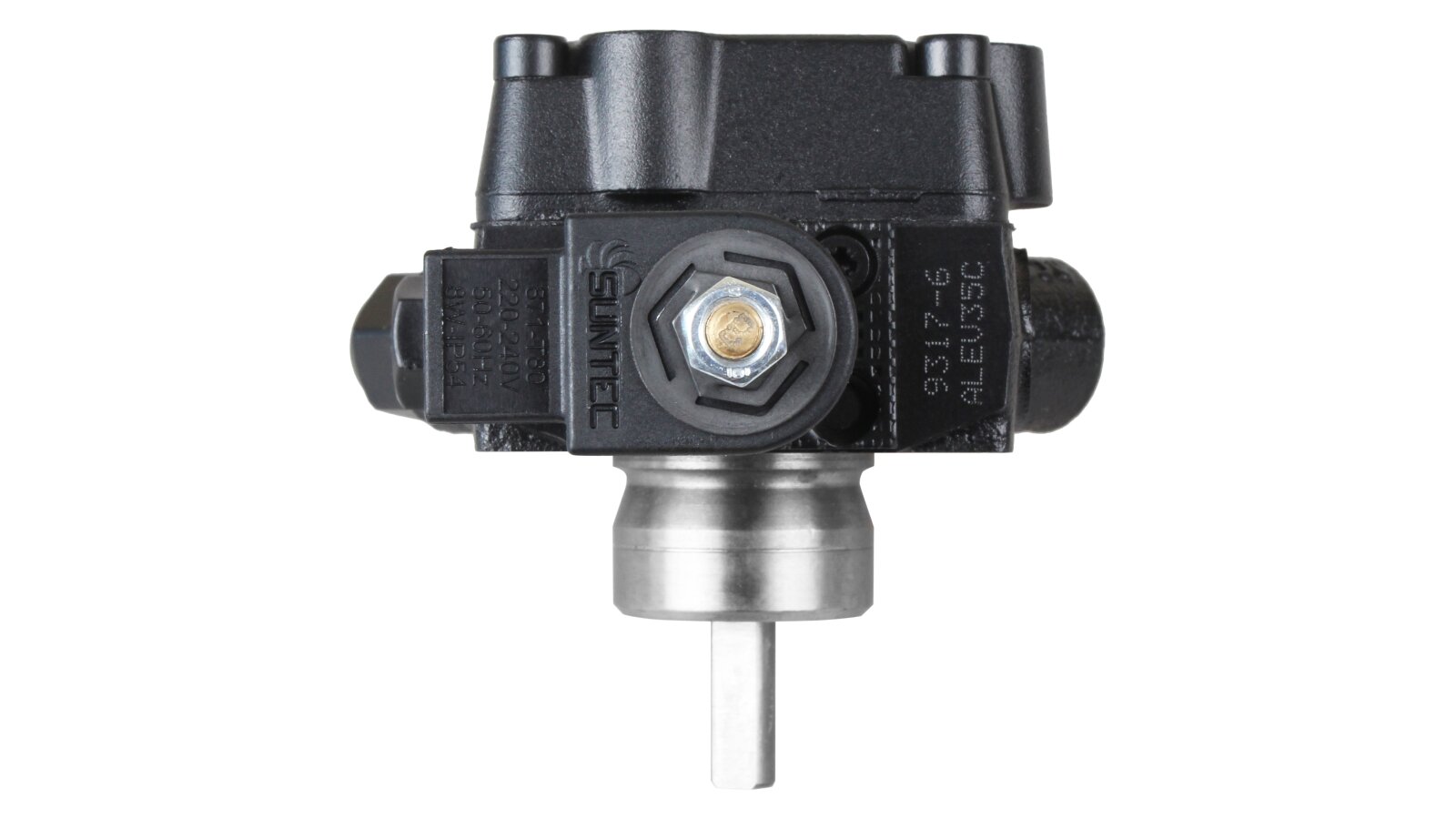

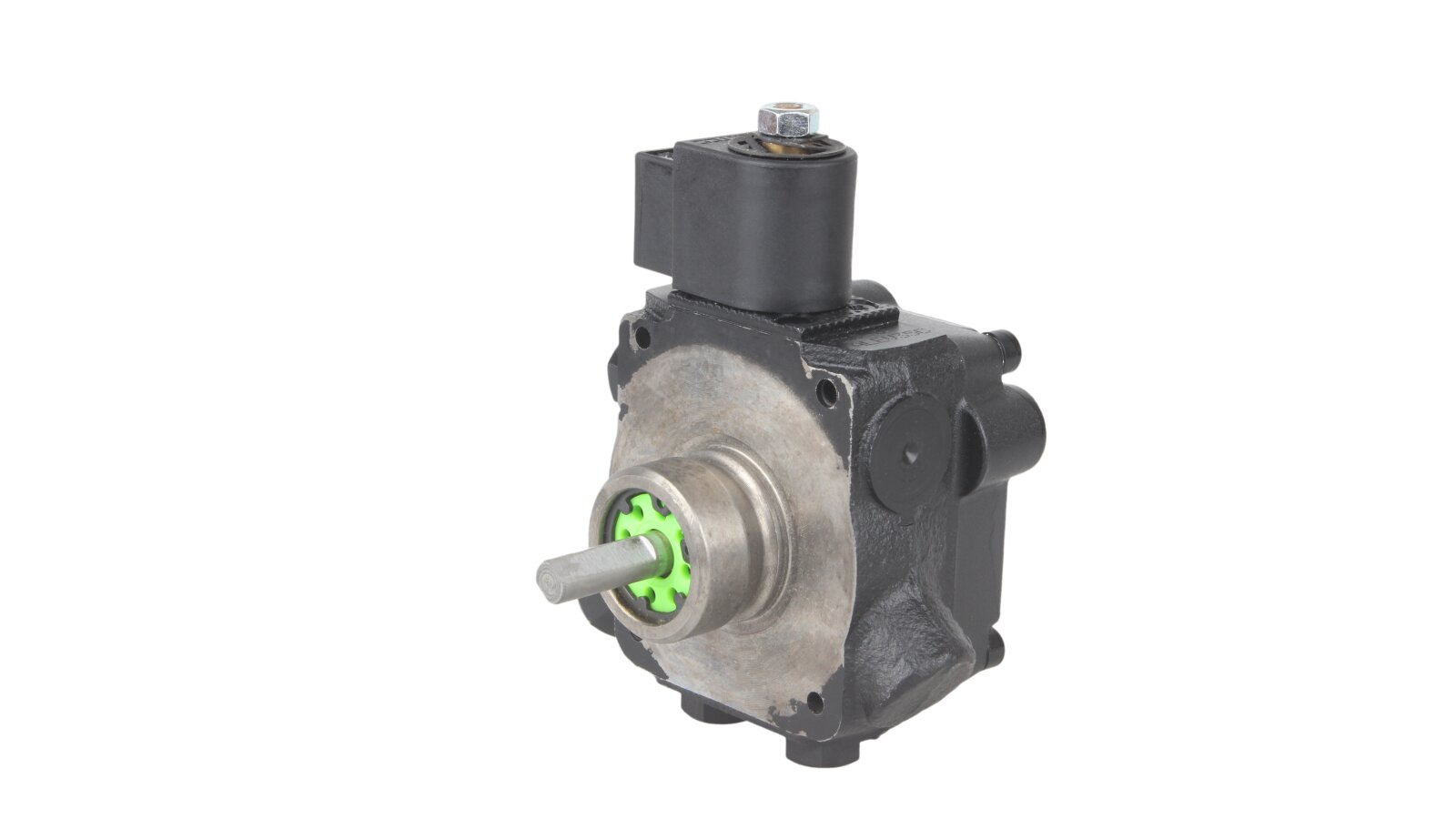

Burner Pump Suntec ALE V 35 C 9317 6P 0700

Suntec

Alternative Part Number

Viessmann

7840264

AED 875

Oil Burner Pumps
Products code: 1183

Description

The Suntec ALE V 35 C 9317 6P 0700 pump, article number: 7840264, is installed in burners burning diesel fuel and biodiesel. The presence of a blocking electromagnetic valve, combined with a check valve, provides a locking function and release of excess pressure in the nozzle line.

Features

The pump can pump biodiesel thanks to Viton seals. In the factory assembly, the pump is ready for installation in a two-pipe system. By removing the bypass plug and closing the drain hole, it is possible to form a single-pipe fuel line design. The normally closed electromagnetic valve is located in the nozzle line and is characterized by quick response. The outlet pipe for connection to the nozzle is located on the left side of the body.

Design and operating parameters

The toothed working mechanism is responsible for moving fuel from the tank to the nozzle. The fuel is pre-filtered by a built-in mesh that holds all foreign particles larger than 150 µm, protecting the structural elements from clogging, damage and early wear. The filter ensures uninterrupted operation of the equipment.

A 32 mm bushing (EN 225 European standard) is provided for connection to the engine, making the pump universal and available for equipping a wide range of burners from well-known companies. The pump body is manufactured in accordance with the IP41 dust and moisture protection class.

The regulating valve maintains the pressure at a given level. The factory setting is 9 bar. The pressure can be adjusted within 8-15 bar. The pump pumps 40 liters of fuel per hour at a pressure of 11 atm. and a viscosity of 5 cSt.

Advantages:

  • pumping diesel fuel and biodiesel;

  • optimal performance;

  • EM valve combined with a check valve;

  • universal fit;

  • fast response of the EM valve;

  • installation in two- and one-pipe systems;

  • preliminary cleaning of fuel from abrasive particles;

  • ports for connecting measuring devices (ISO 228/1).

Detailed information about the product can be obtained from our online consultants.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Pump series: ALE: blocking solenoid valve with shut-off function and pressure relief device in line fDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftSolenoid valve voltage: 220-240 or 110-120 or 24 VNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 40 l/hInstallation method: sleeve ∅ 32 mmStrainer: Open area: 6 cm²Strainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 40 l/hMaximum rotation speed: 3600 rpmDegree of protection: IP41Torque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barBypass valve opening pressure: 3.5 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum pressure of the solenoid valve: 15 bar
