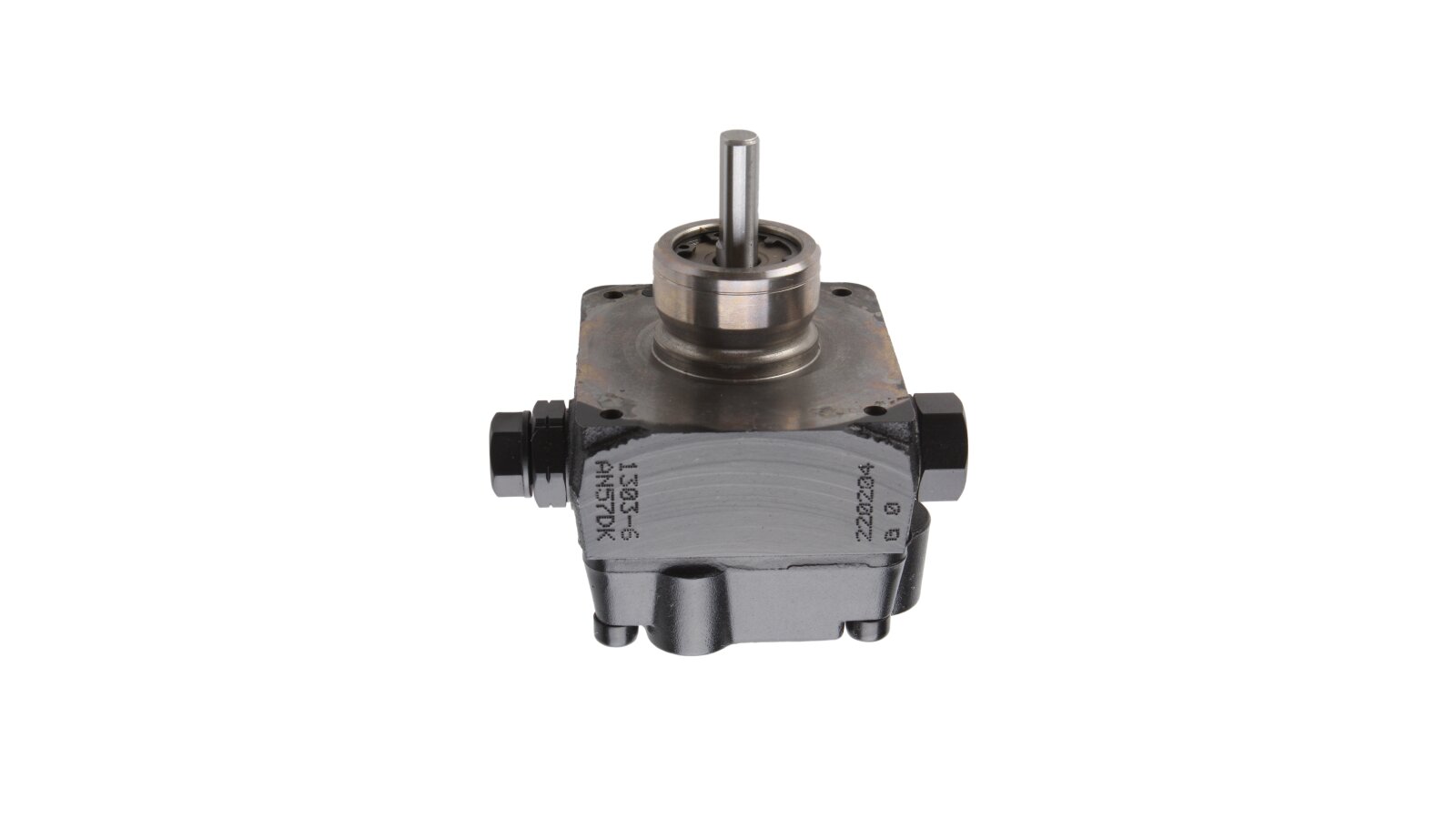

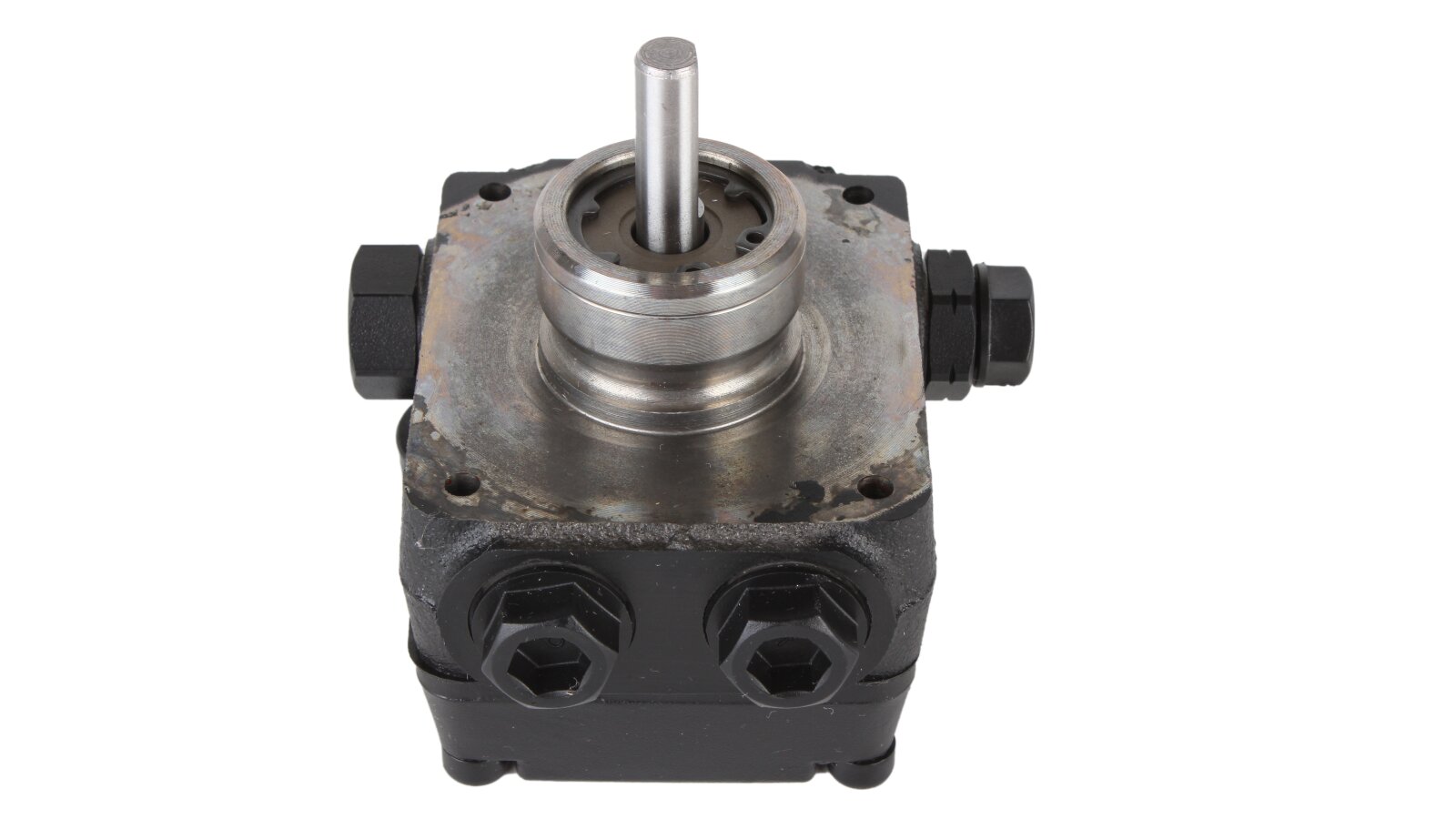

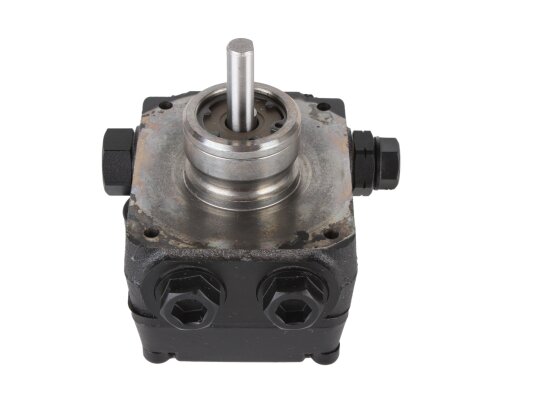

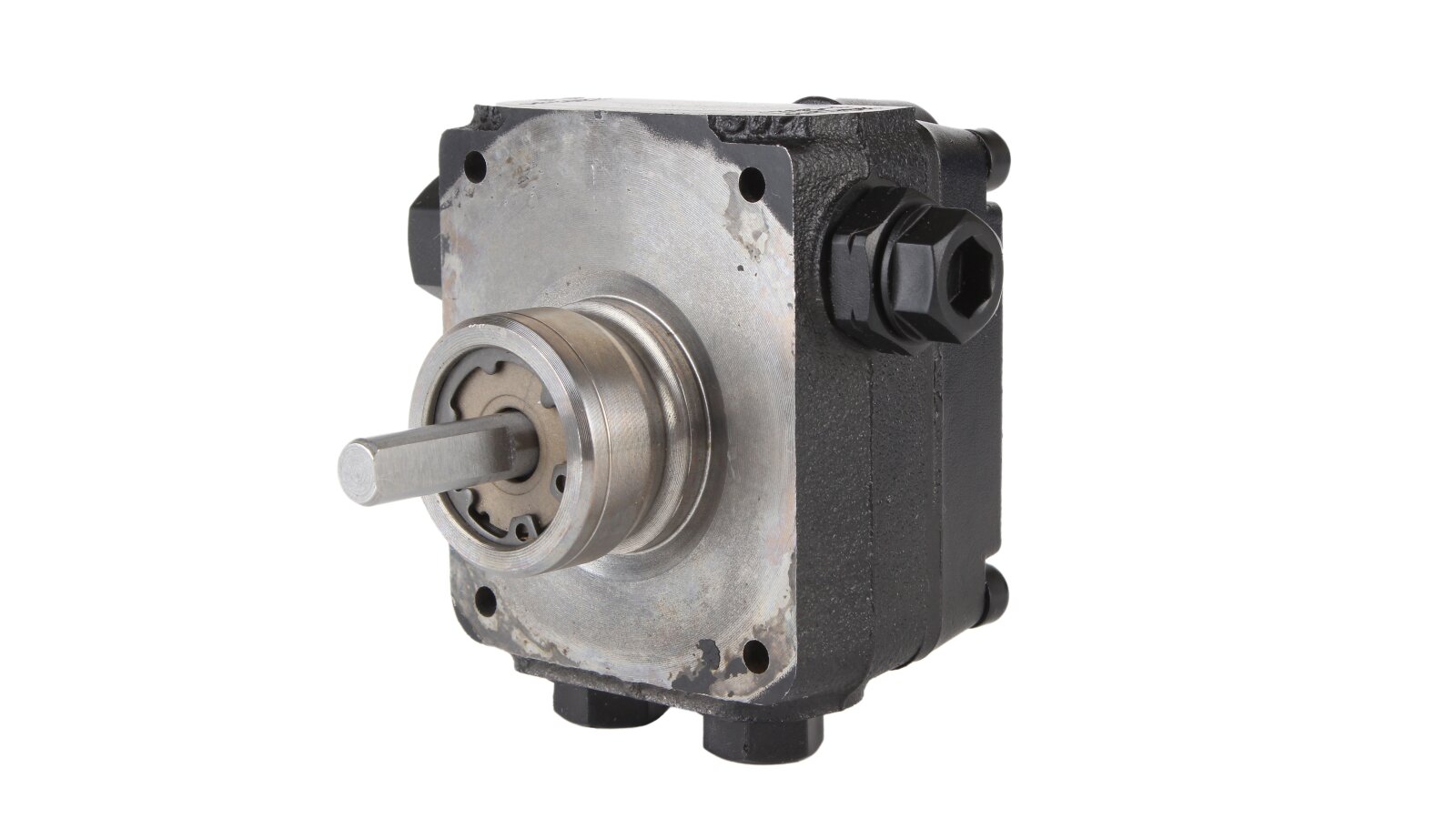

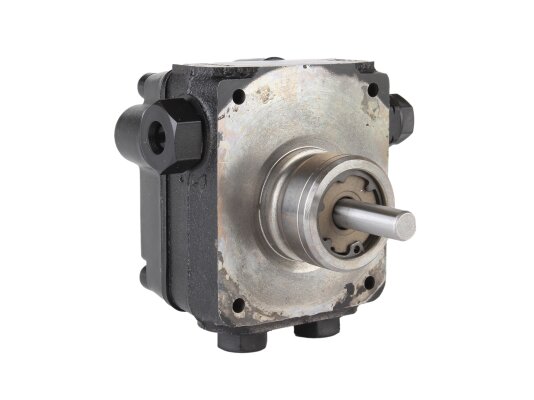

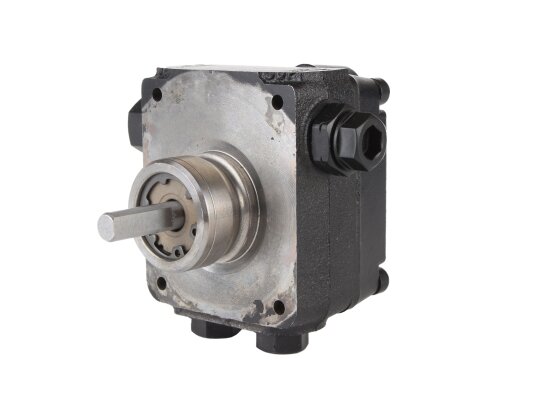

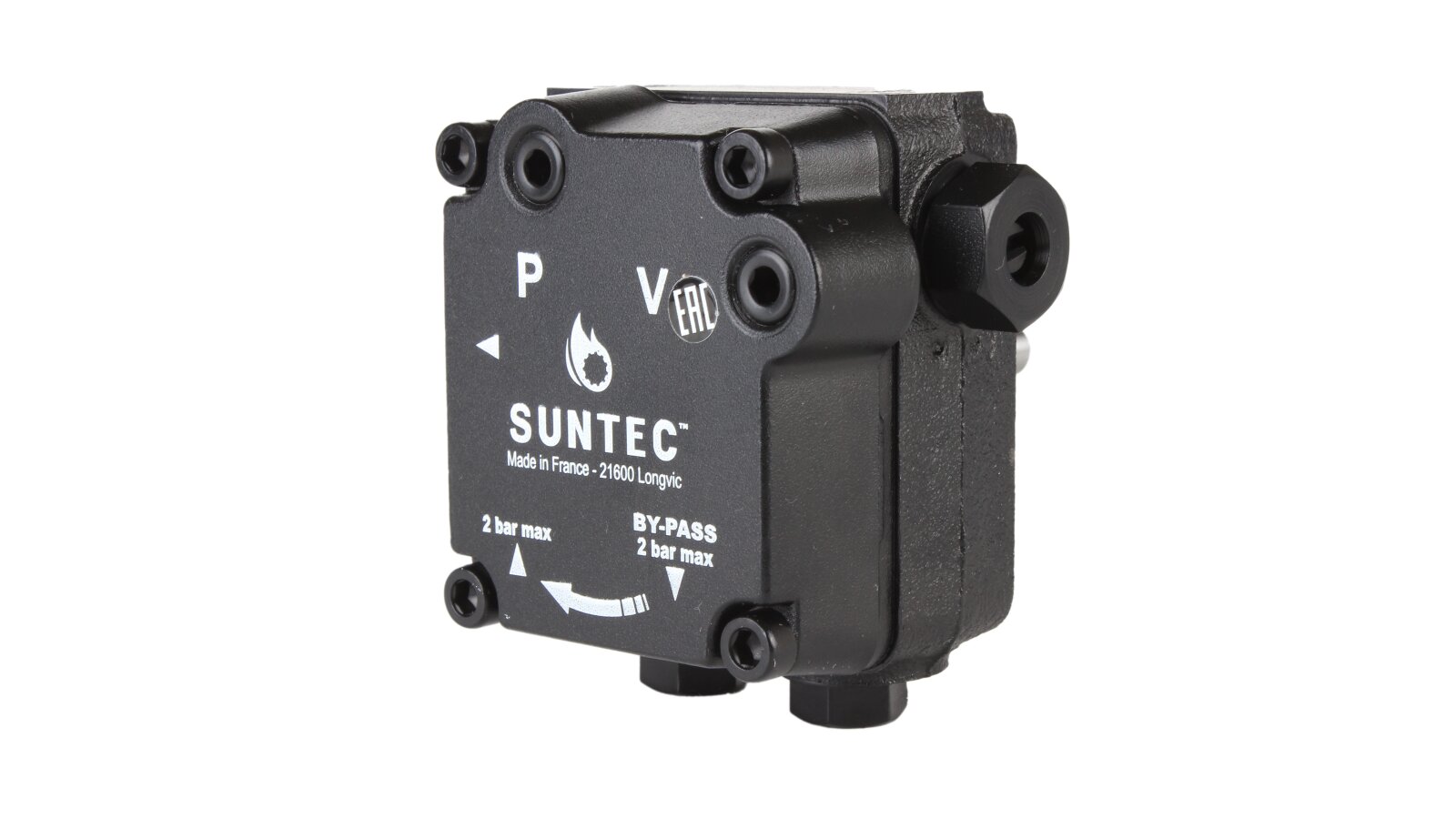

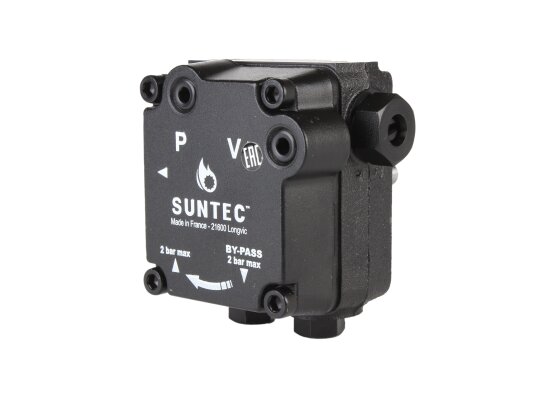

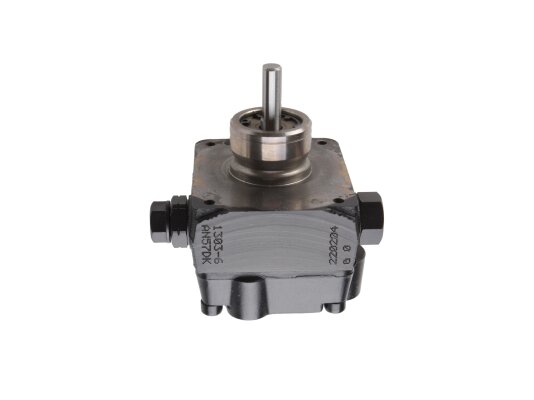

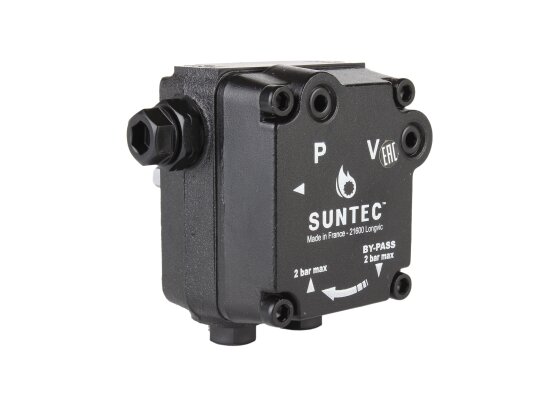

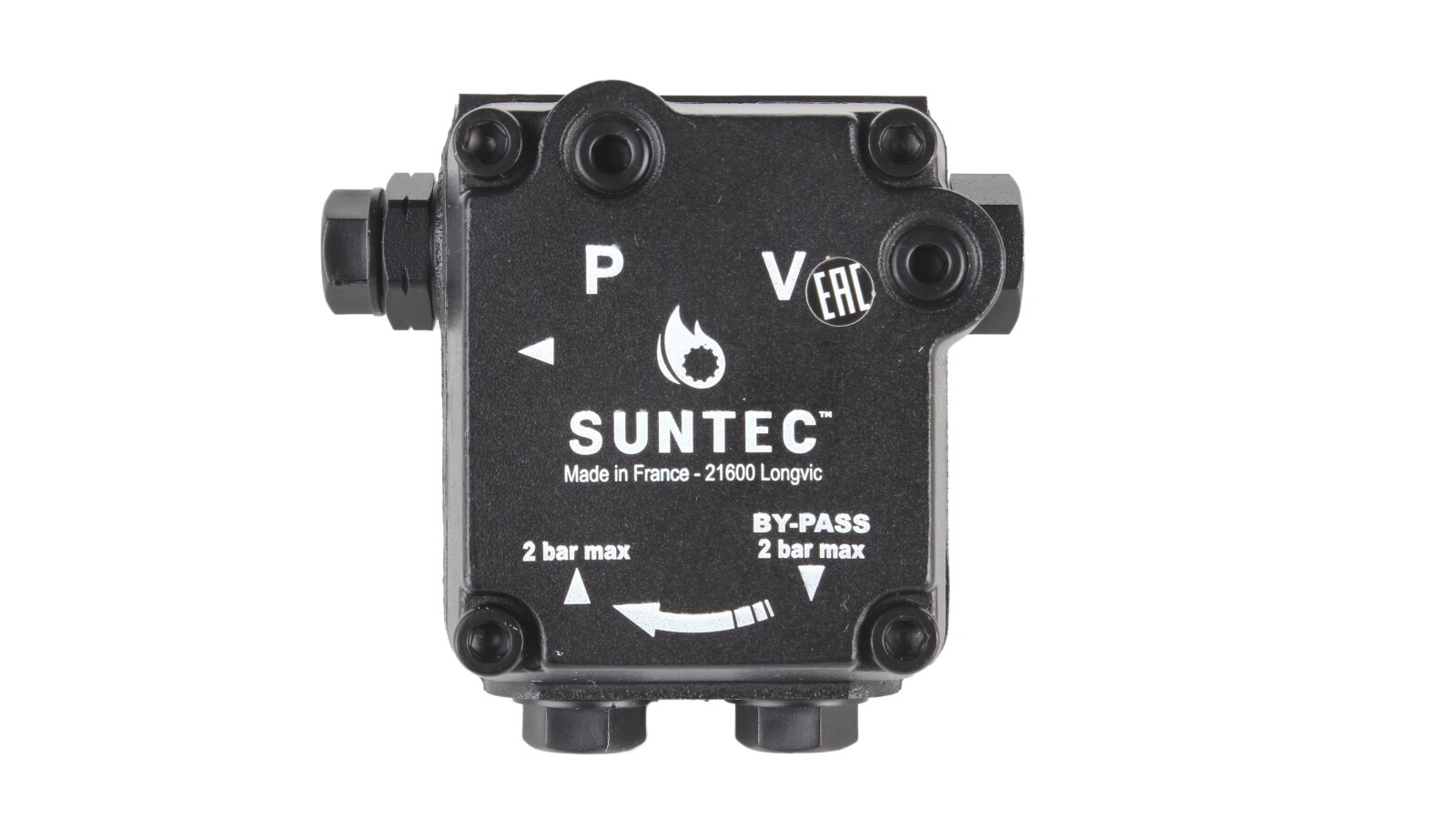

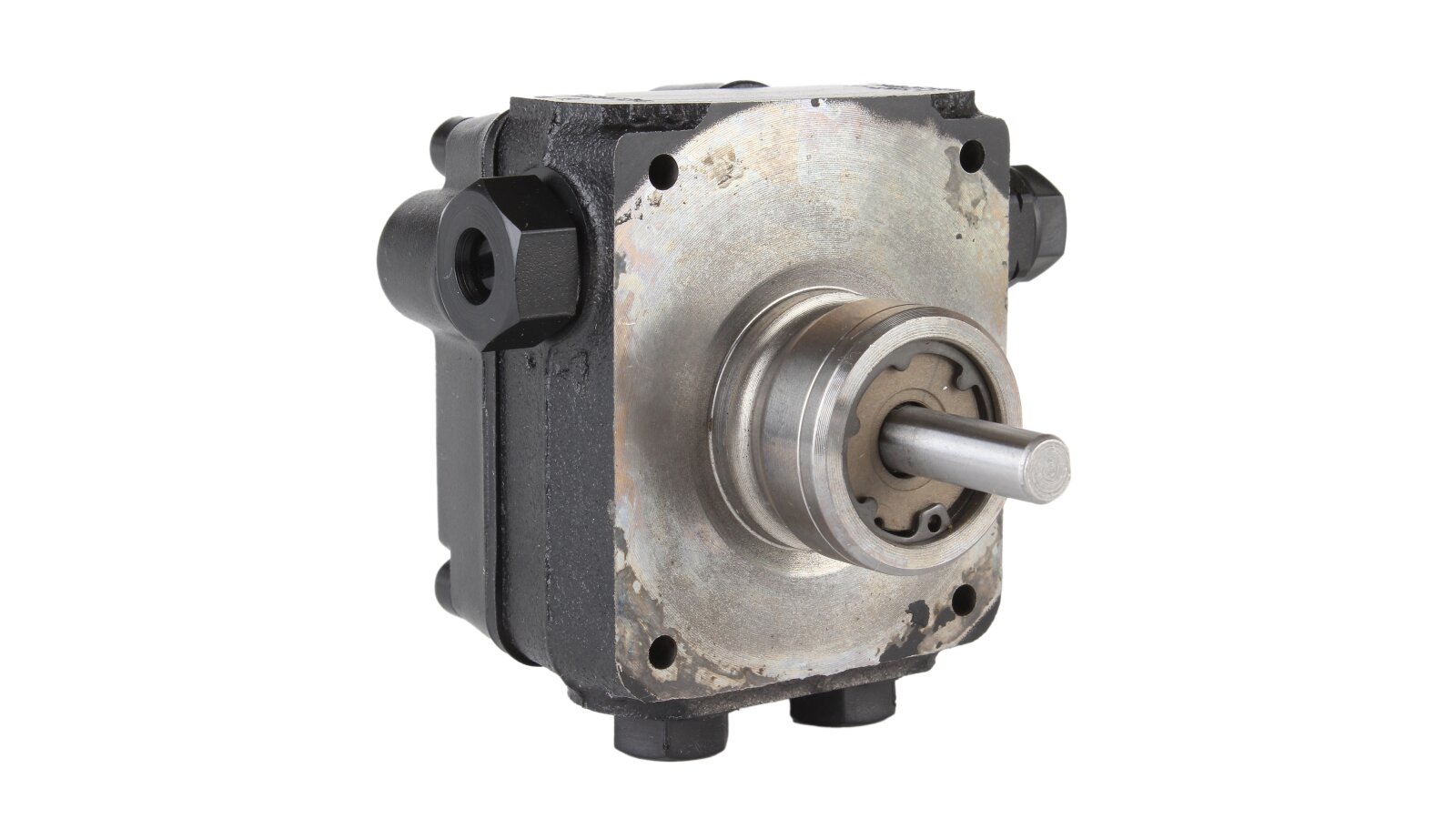

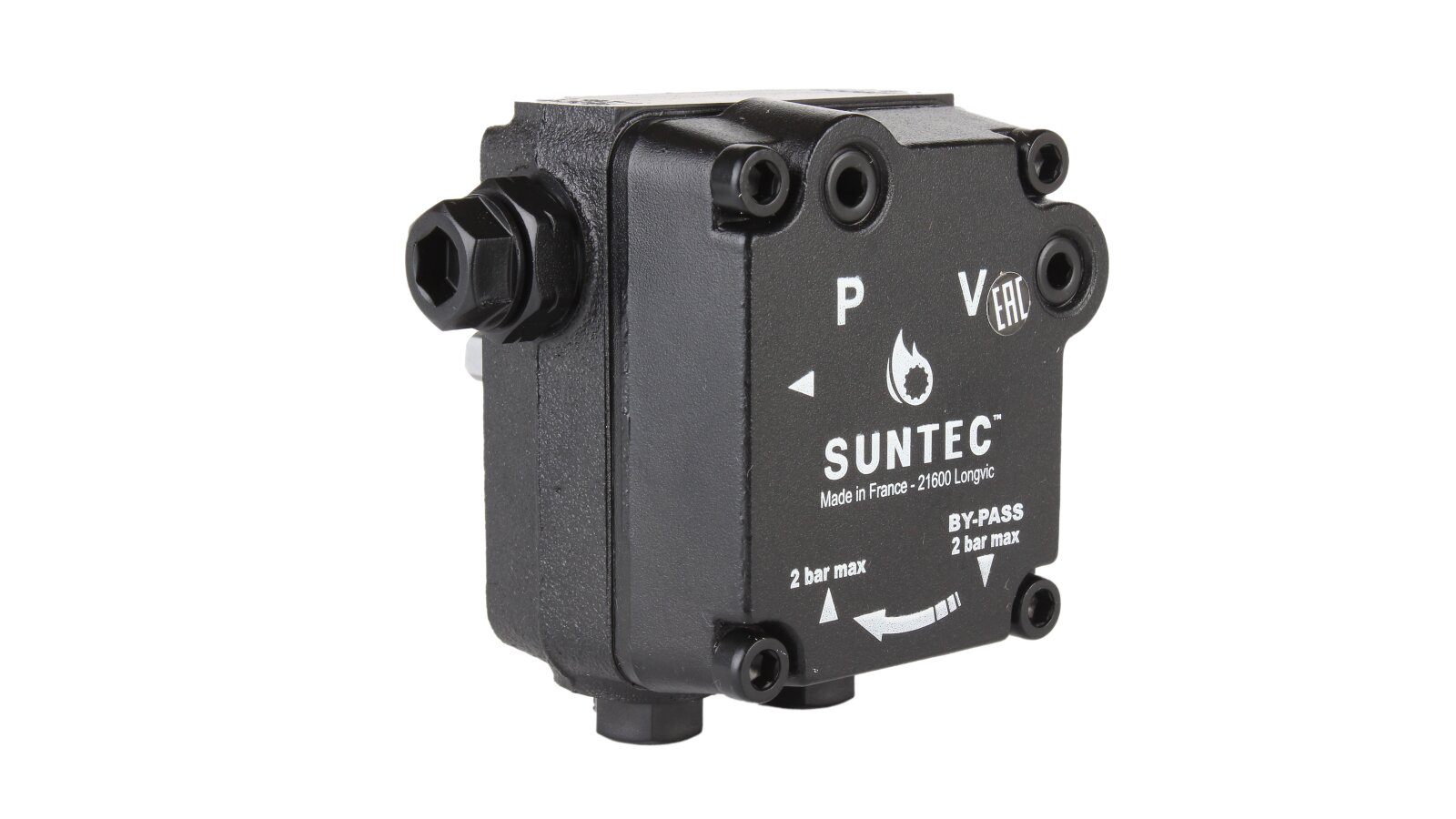

Burner Pump Suntec AN 57 D K 1303 6P

Suntec

AED 550

Oil Burner Pumps
Products code: 55481

Description

The Suntec AN 57 D K 1303 6P burner pump allows pumping diesel fuel and kerosene at a rate of 55 and 44 l/h (at a pressure of 11 bar and a viscosity of 5 cSt / 1.8 cSt). Provides a stable supply of fuel to the burner under a given pressure within 7-15 bar. The pressure in the suction and return line should not exceed 2 bar. A special feature of this series is a built-in pressure regulating valve with a shut-off function. The pump is supplied from the factory for a 2-pipe system and can be upgraded for a single-pipe installation.

Features and main parameters:

  • working environment: diesel fuel and kerosene;

  • gear mechanism moving fuel to the nozzle;

  • high reliability of components and assembly;

  • with a valve regulating pressure and blocking the flow;

  • available pressure adjustment range of 7-15 bar;

  • "default" pressure setting - 9 bar;

  • filtration of fuel entering the pump cavity, purification degree 150 μm;

  • sleeve mounting method, ∅ 32 mm;

  • connection to the pipeline on the G¼" thread (suction and return drain line);

  • ⅛ inch holes for control devices: pressure gauge and vacuum gauge;

  • limitation on the temperature of the pumped fuel: 0...+60°C;

  • installation in any position, except with the axis up;

  • for two- or single-pipe fuel pumping systems (for a single-pipe system, it is necessary to replace the bypass plug with a blind one);

automatic air bleeding in systems with a return line.

Application

The Suntec AN 57 D K 1303 6P burner pump is used in domestic and commercial heating boilers. The design is compatible with burners of most manufacturers.

Characteristics

Nominal rotation speed: 2850 rpmPerformance at 11 bar and 1.8 cSt viscosity for Kerosene: 41 l/hPerformance at 11 bar pressure and 5 cSt viscosity: 55 l/hOperating viscosity: from 1 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AN: base valve with locking function2nd stage performance at 11 bar and 1.8 cSt viscosity for Kerosene: 41 l/hPerformance for stage 2 at 11 bar and 5 cSt viscosity: 55 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchDirection of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightShaft diameter: 8 mmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barNozzle pressure range: from 7 to 15 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: sleeve ∅ 32 mmType of pumped liquid: kerosene, diesel
