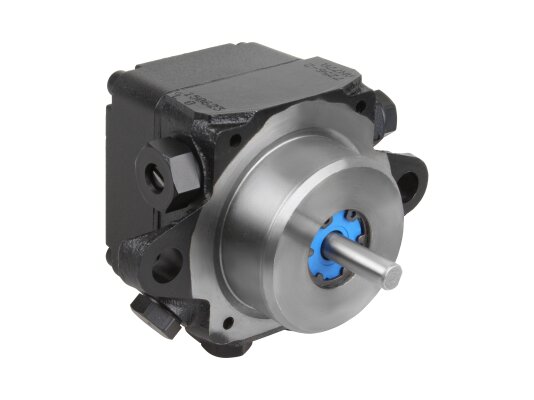

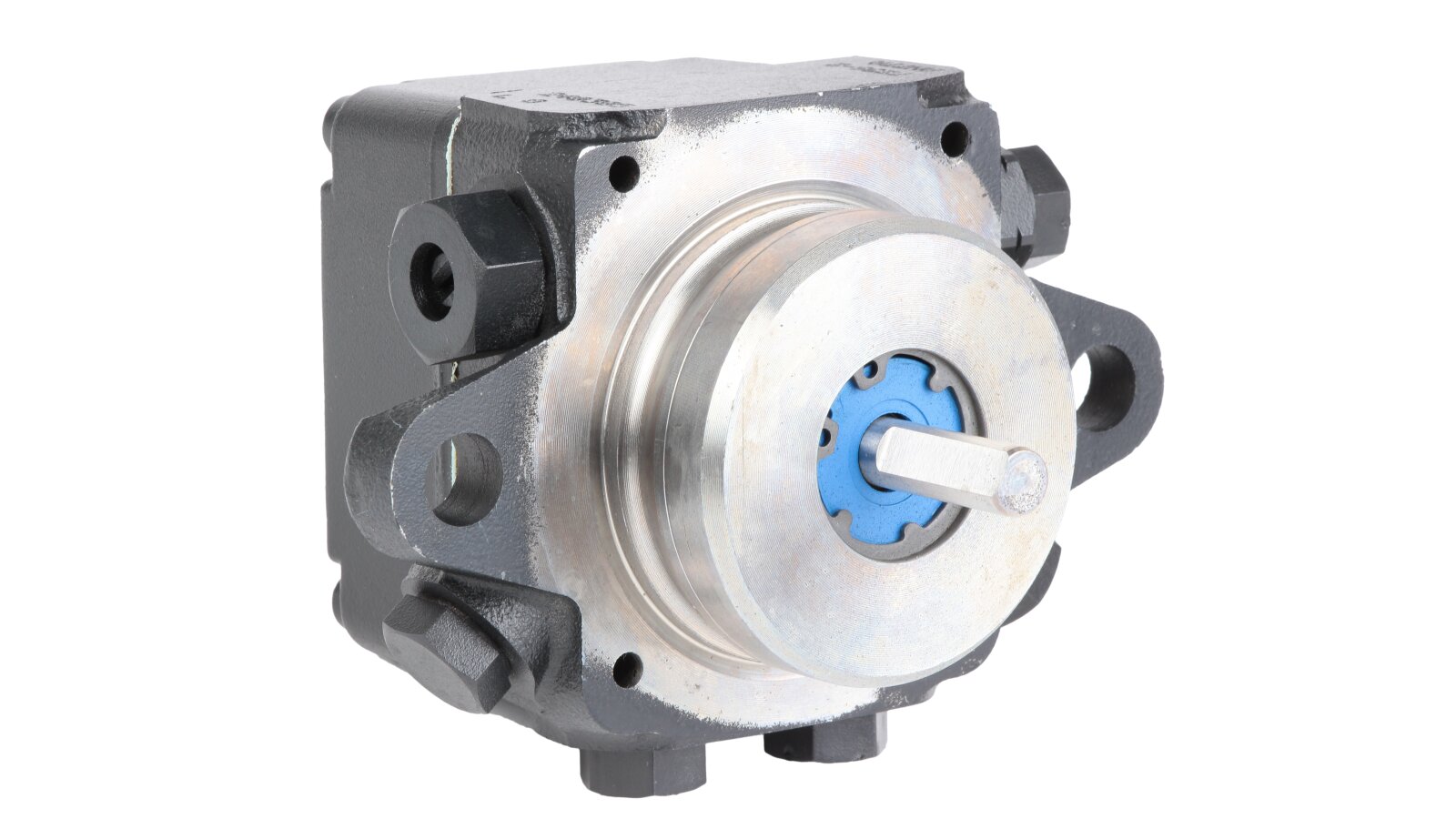

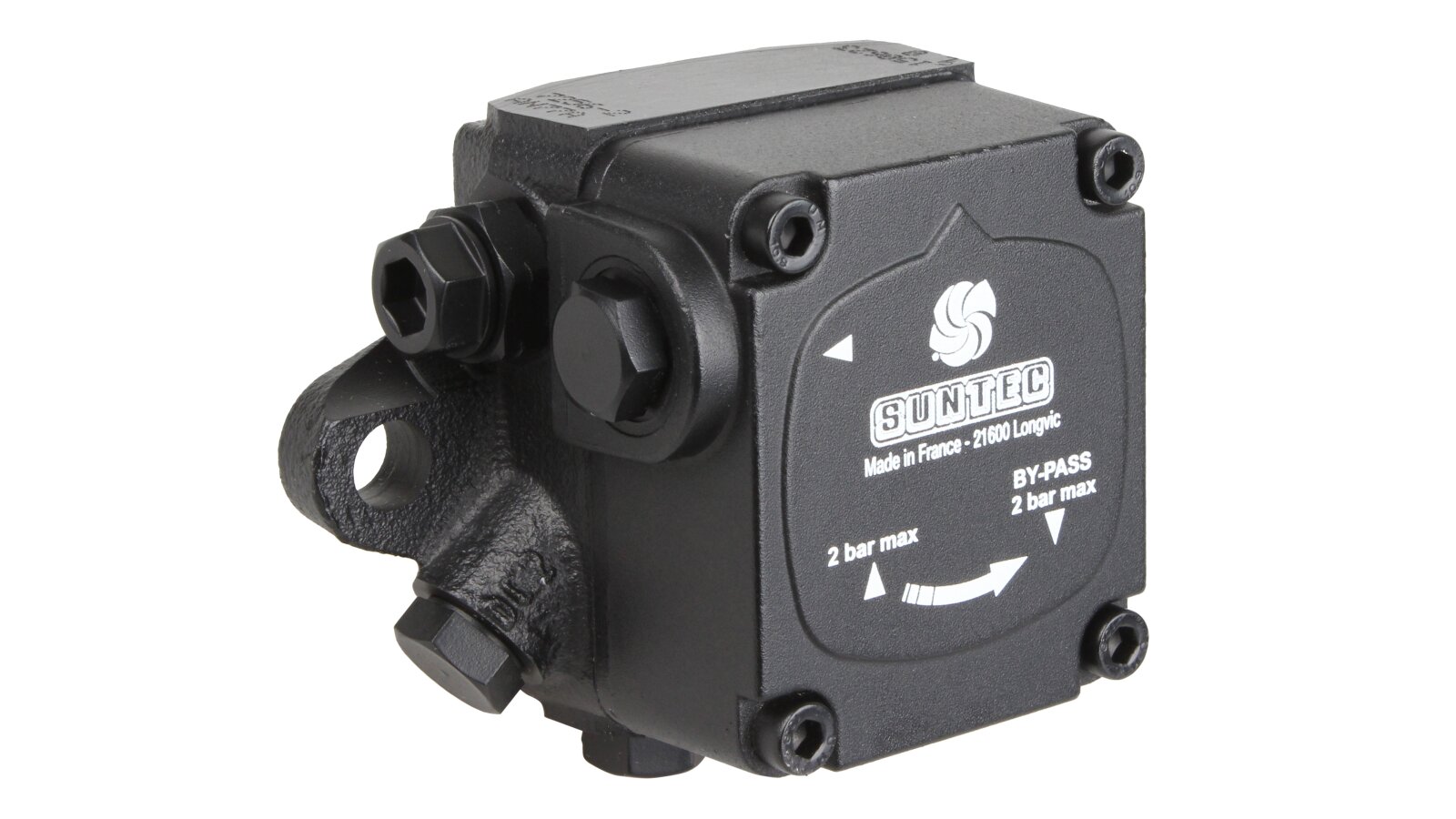

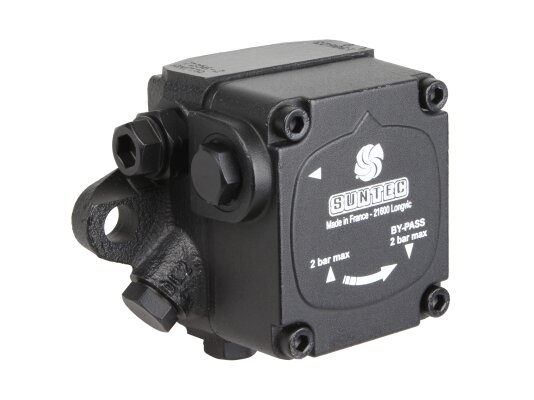

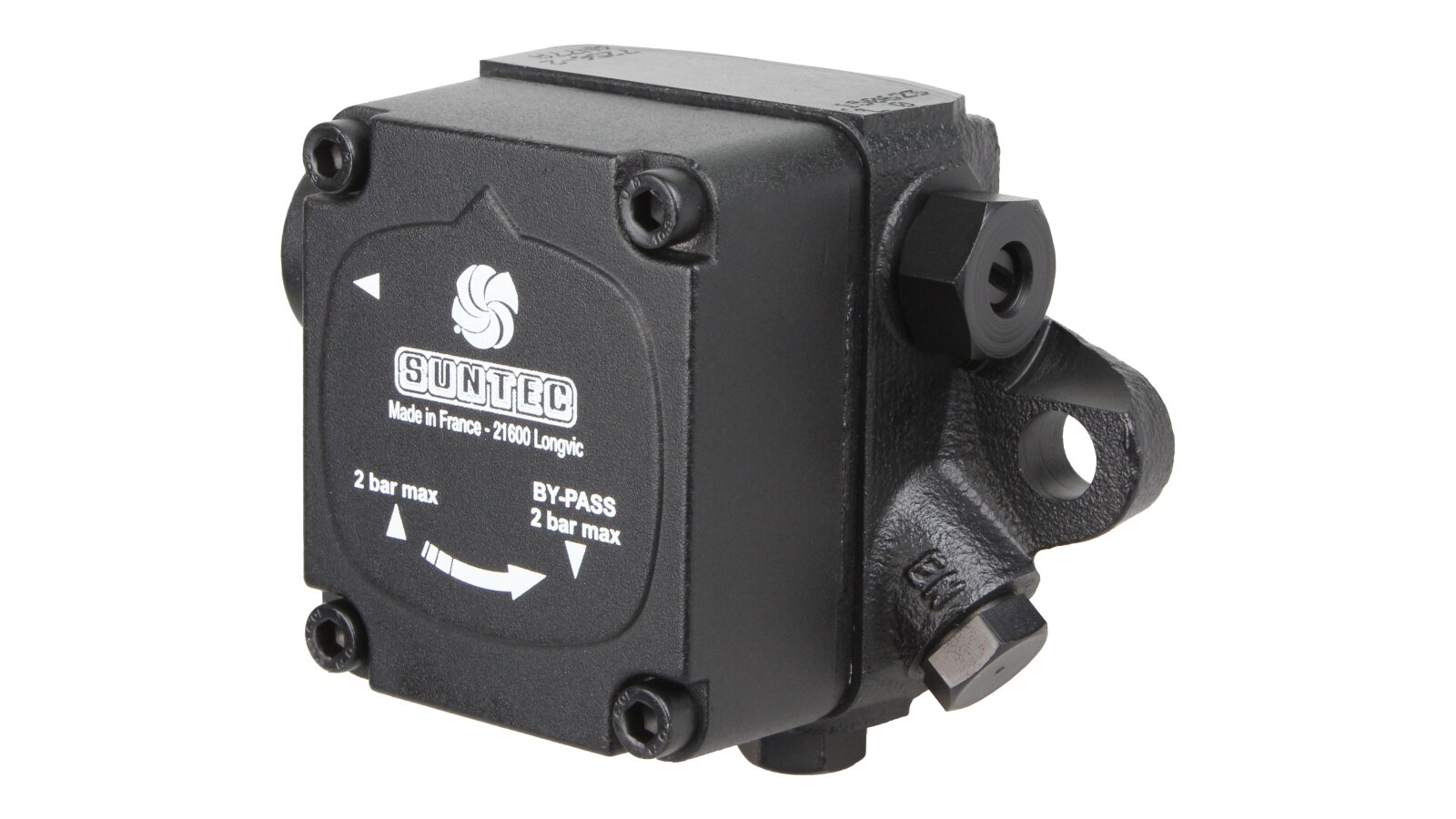

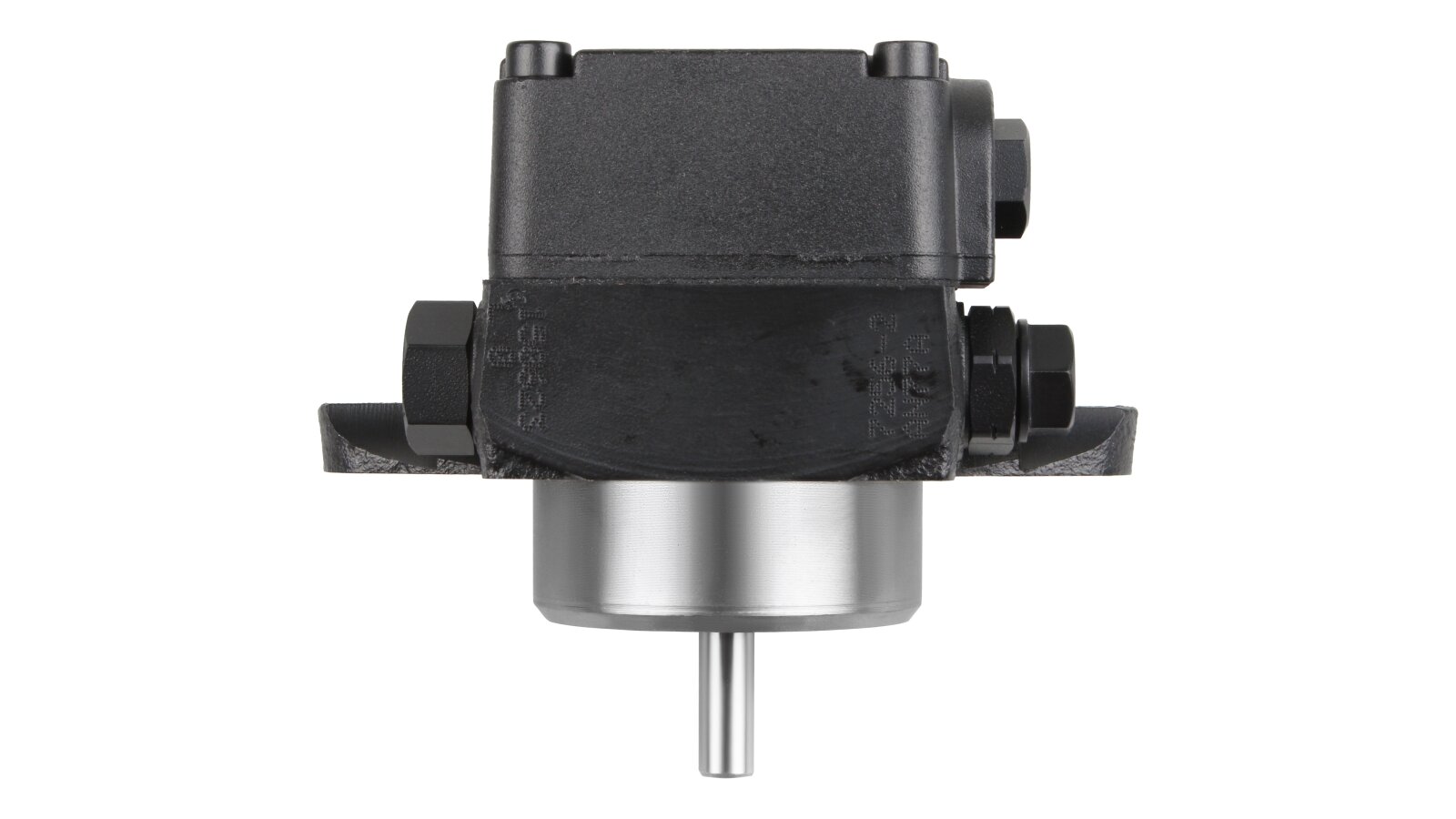

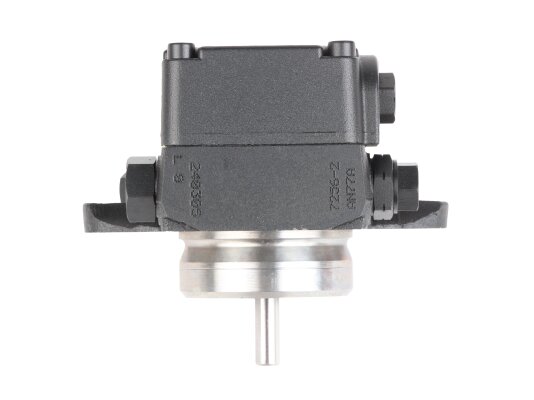

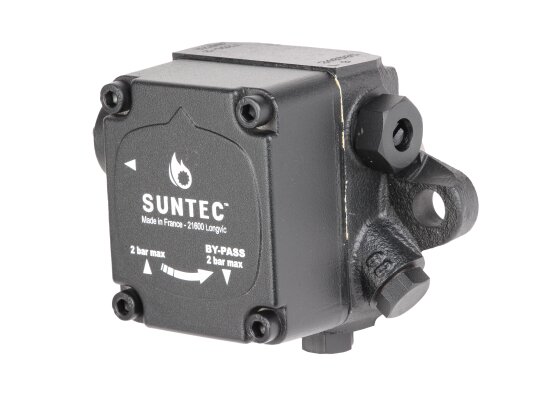

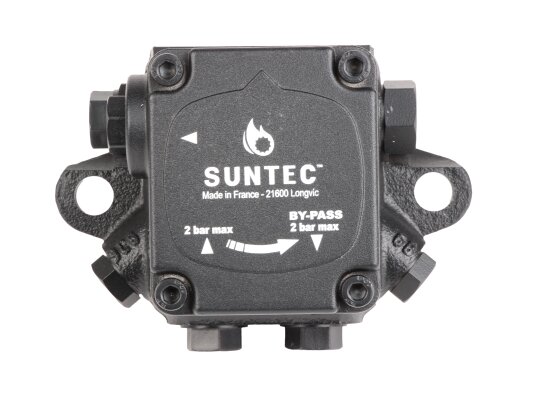

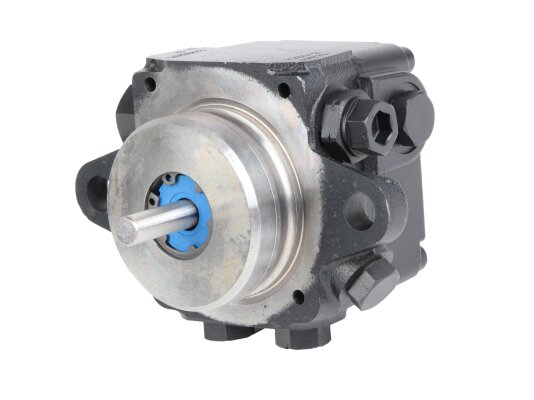

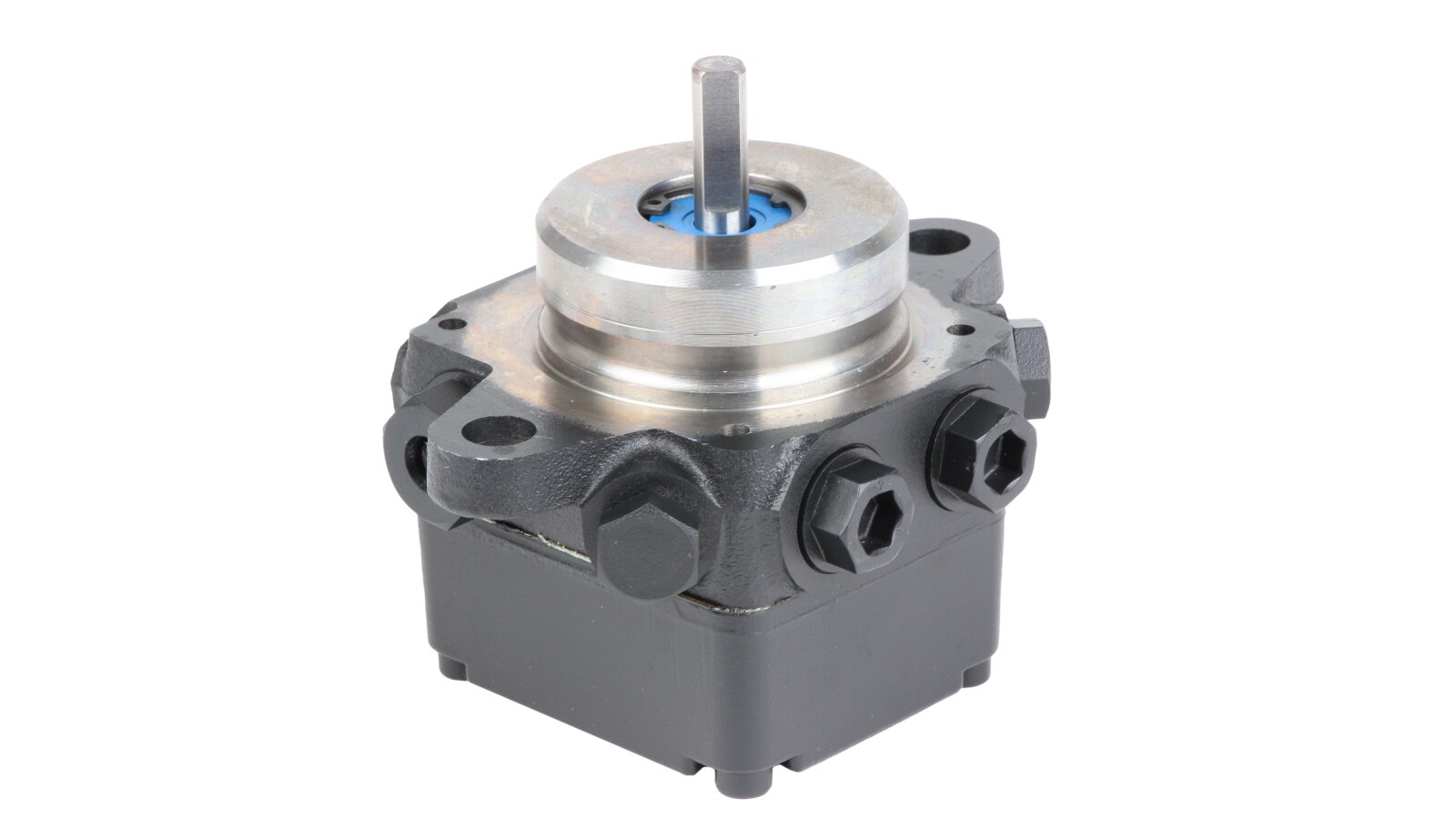

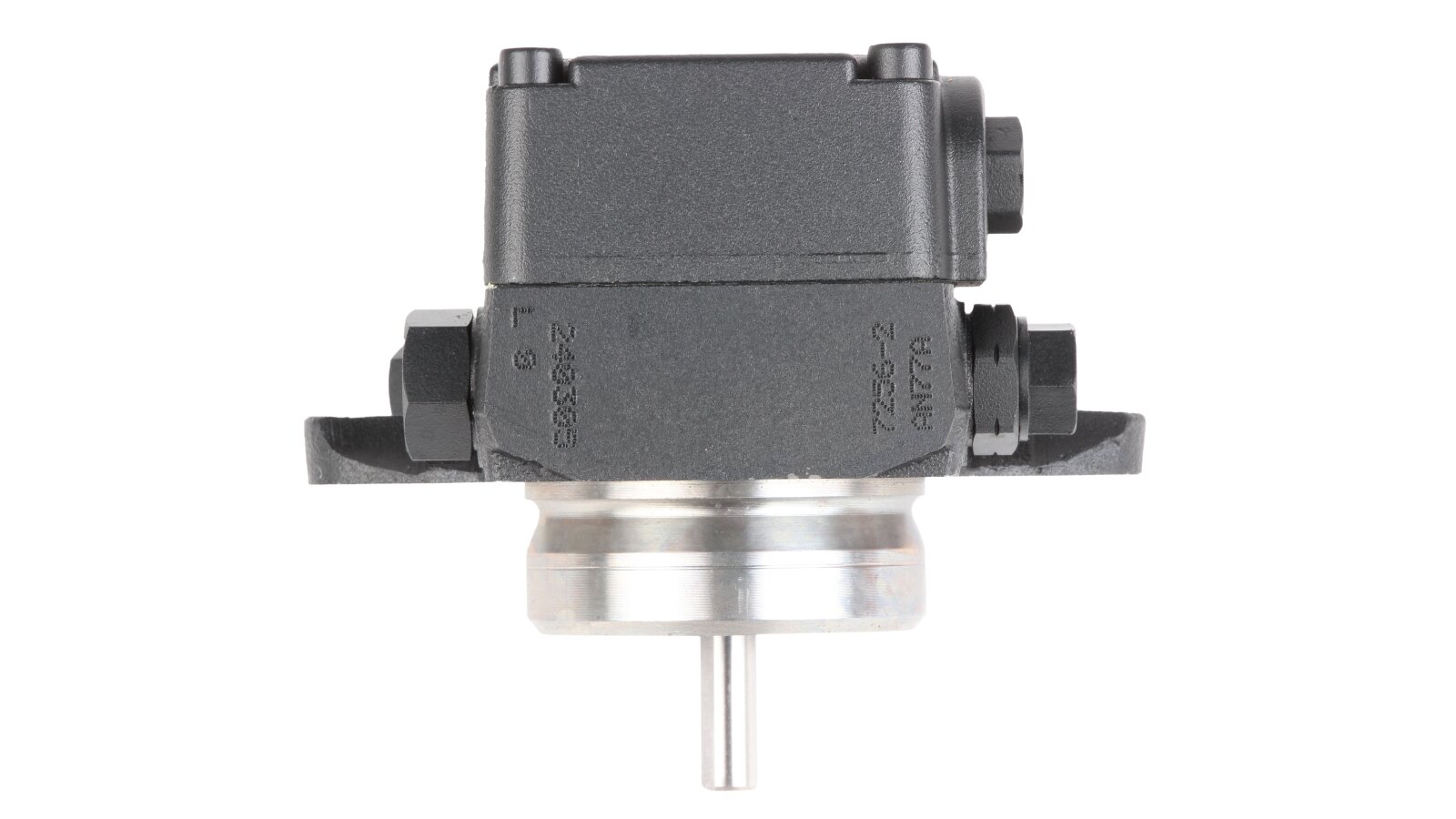

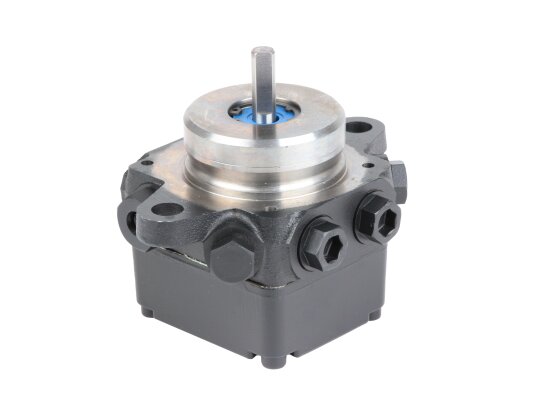

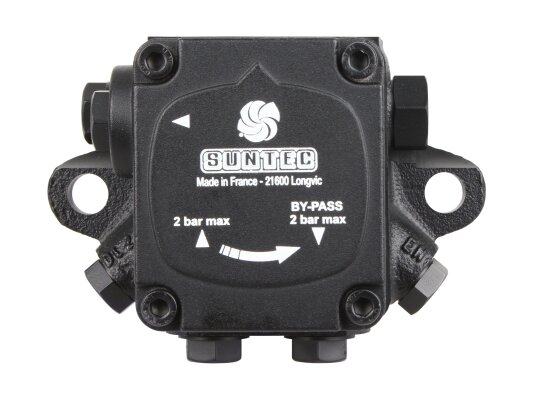

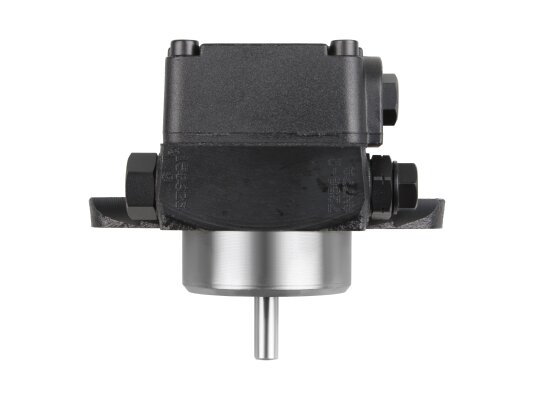

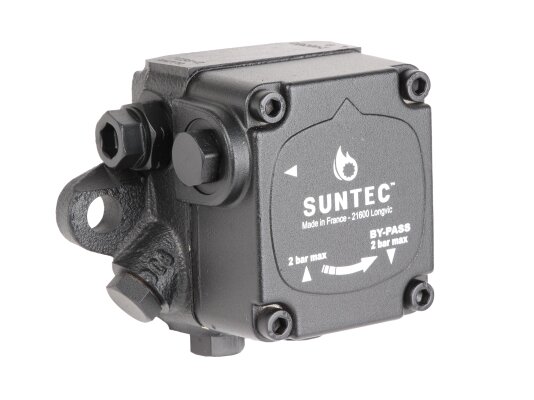

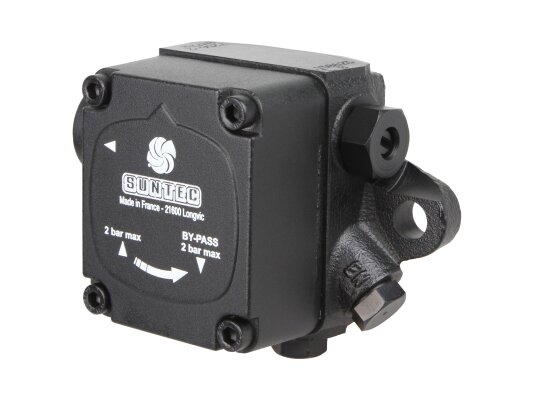

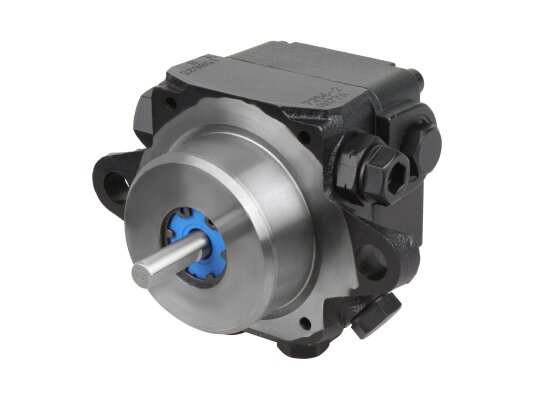

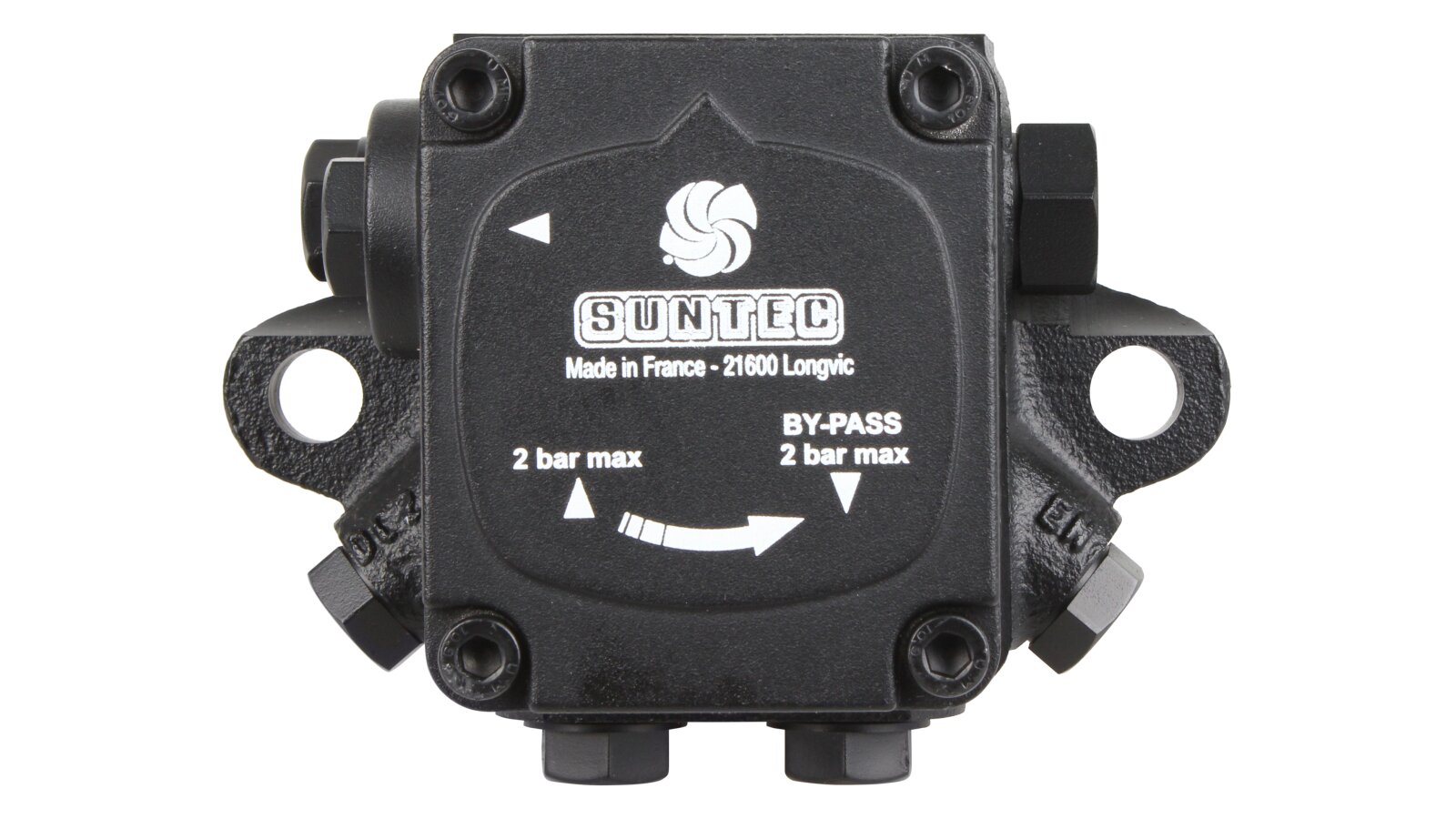

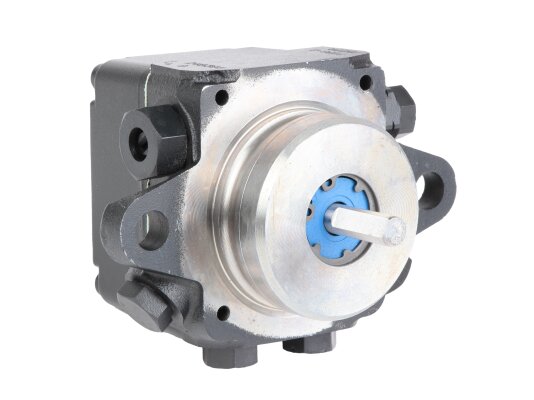

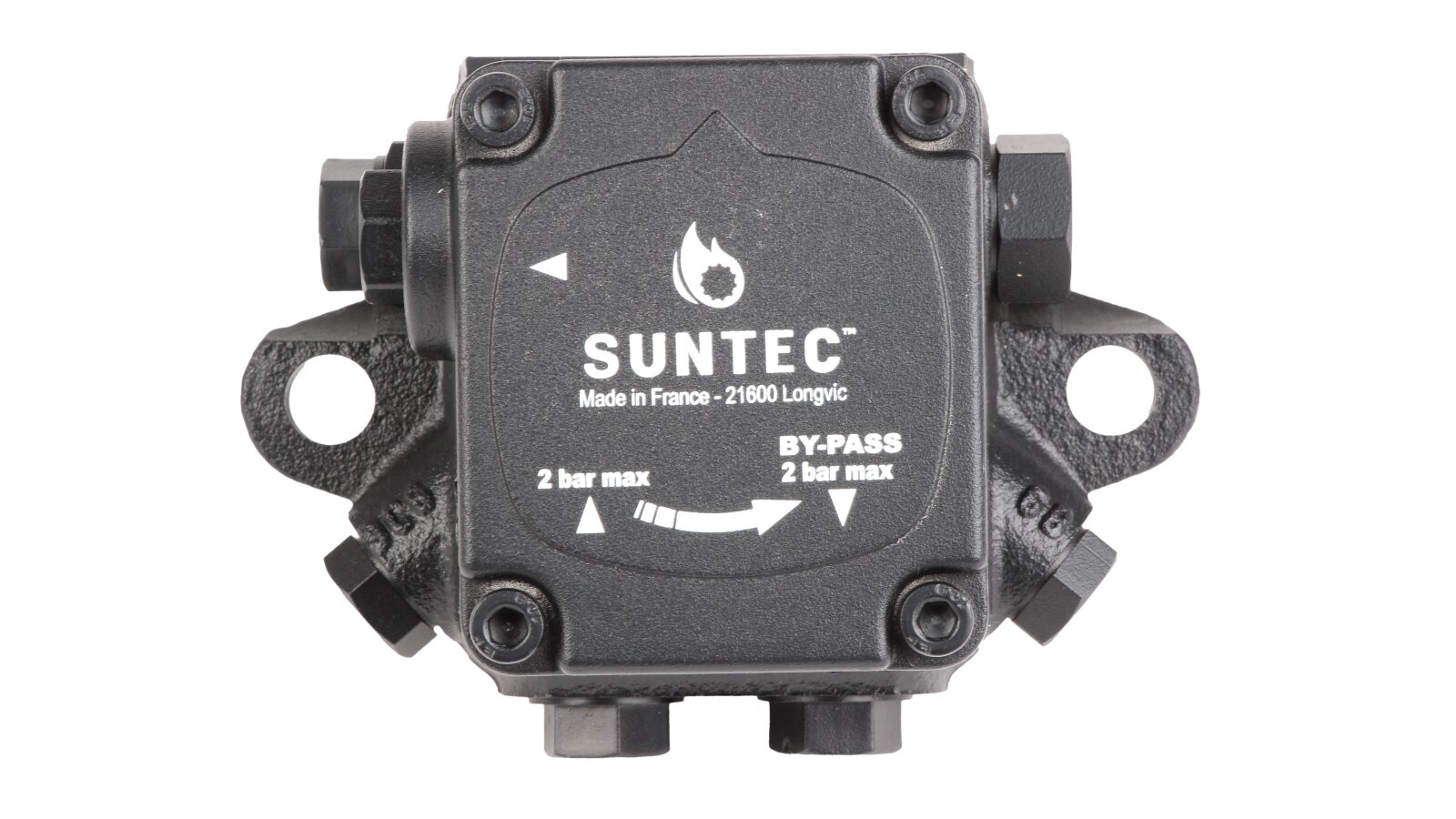

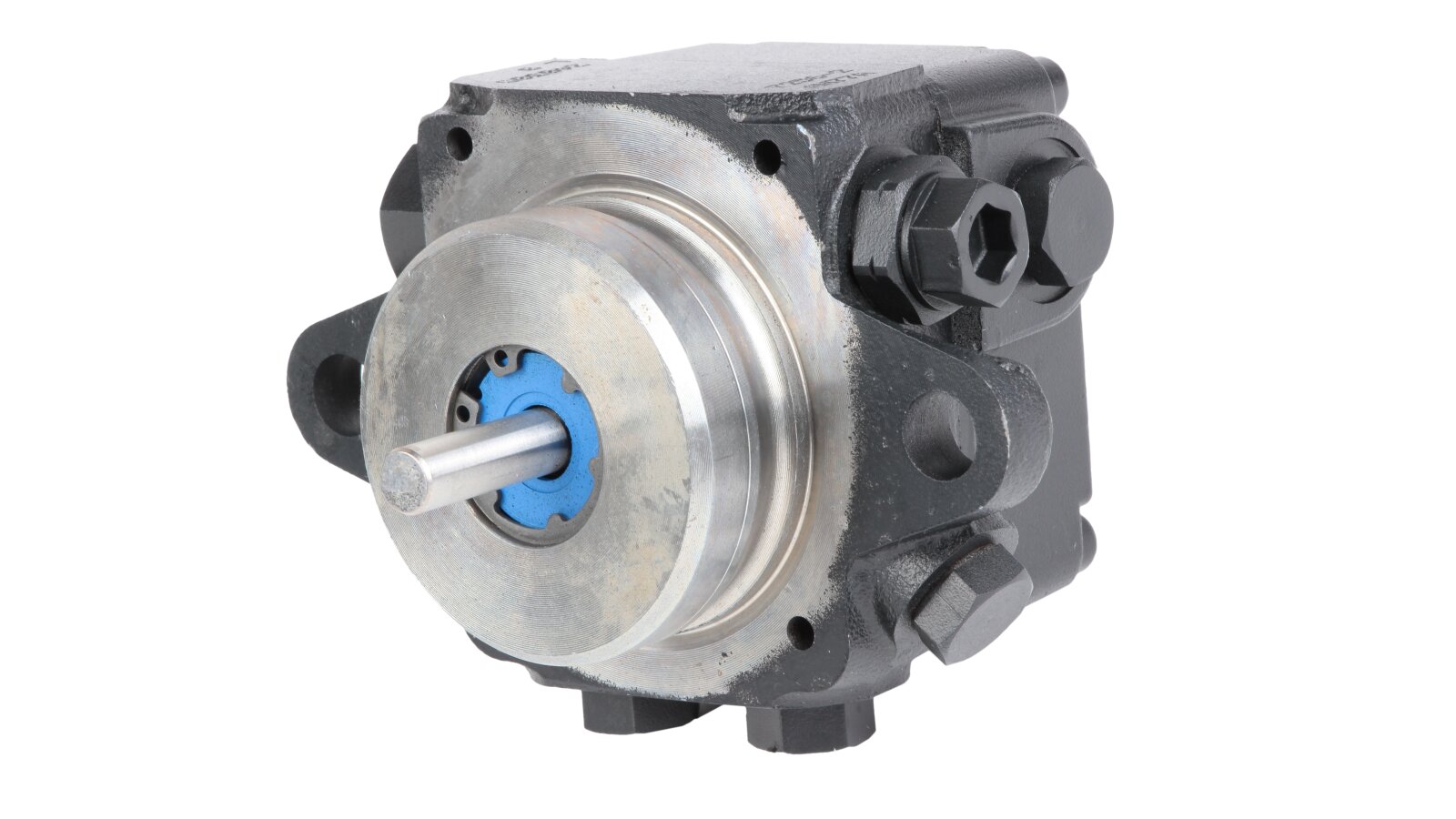

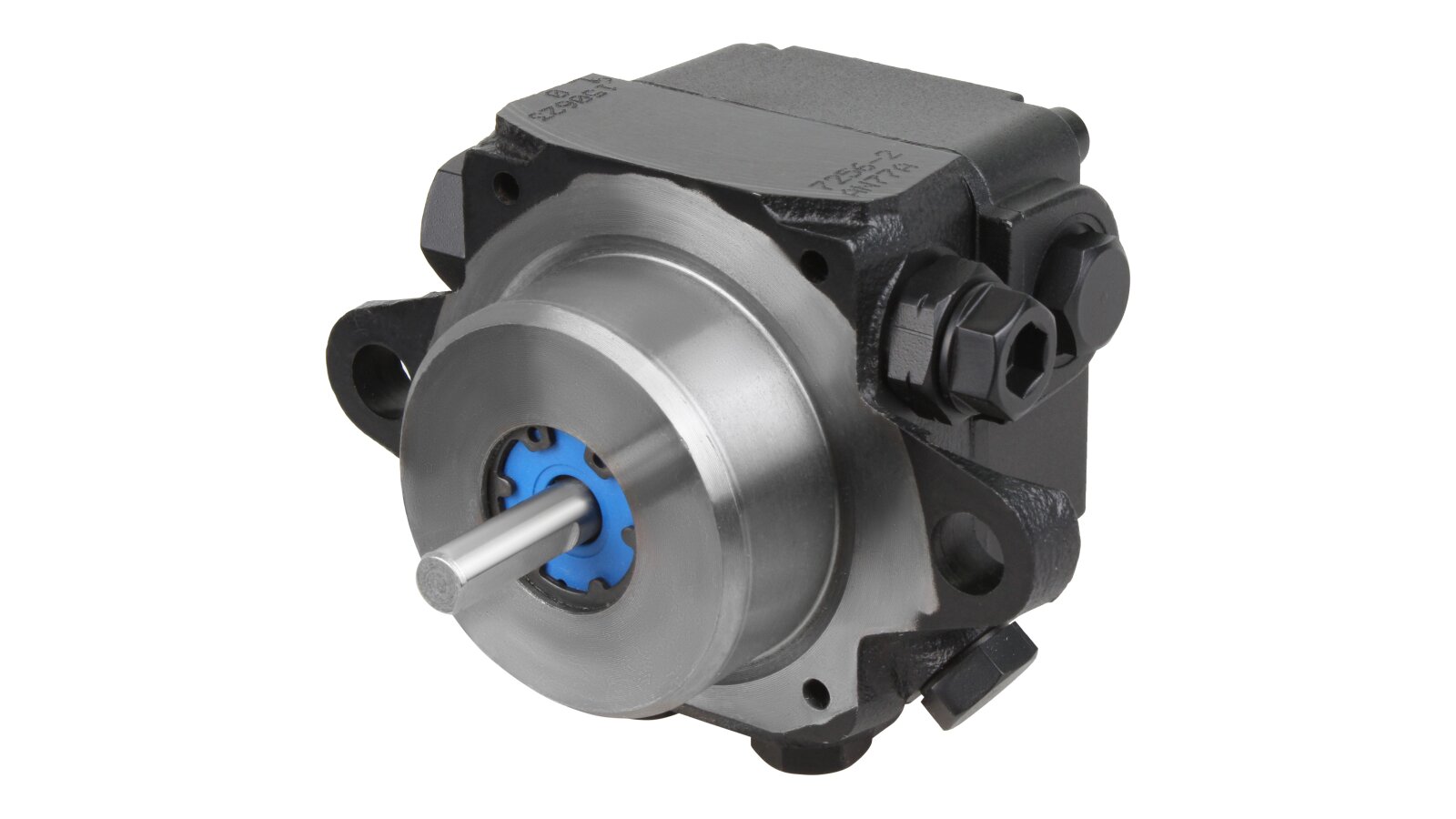

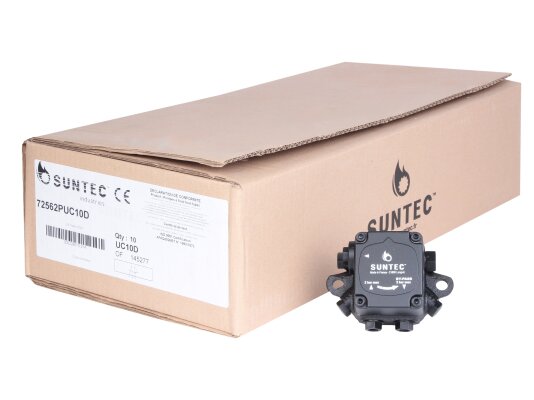

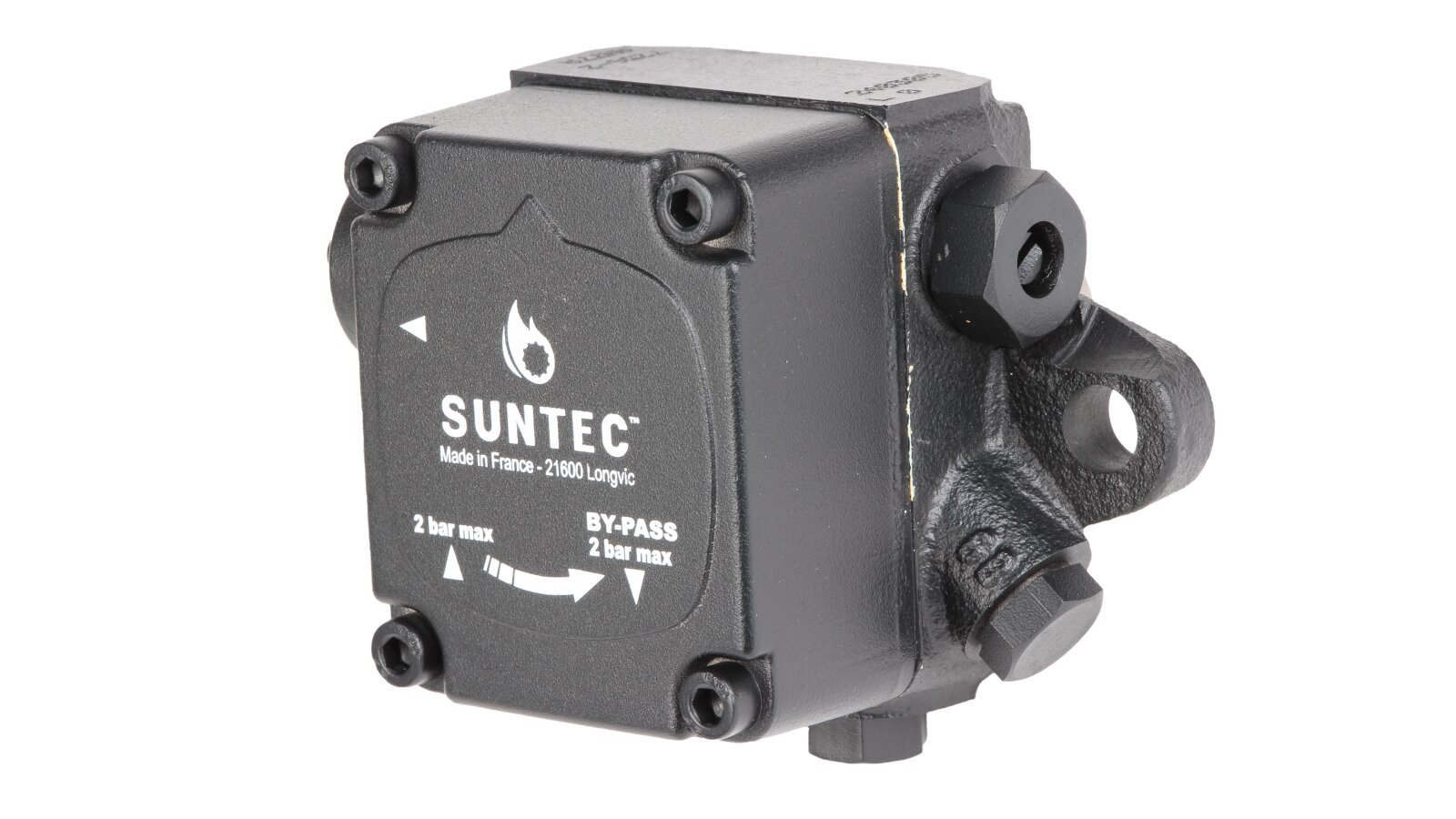

Burner Pump Suntec AN 77 A 7256 2P

Suntec

Alternative Part Number

FBR 258514Lamborghini 04031250
AED 850
  1. Oil Burner Pumps

Description

Single-stage liquid fuel pump AN 77 A 7256 2P is reliable equipment from the European company Suntec, designed for installation in diesel heating burners of the brands Weishaupt, Elco, Lamborghini, Baltur and others. The device with a clockwise rotation of the drive axis has a fairly high productivity in its line - 108 l / h. To maintain the pressure of the working fluid on the nozzle line within 1-2 MPa, the unit has a built-in regulating valve with a locking function.

Design Features

  • The working mechanism of the gear pump is represented by a toothed pair, with the help of which the fuel is drawn from the tank. Before it is fed to the nozzle line of the heating burner, the fuel is cleaned by a mesh filter with a cell size of 150 microns.

  • Important! For more thorough cleaning and trapping of the smallest particles, use an additional filter upstream of the pump.

  • The model has a sleeve mount with a seat diameter of 54 mm and can be mounted in any position except with the axis up. The effect of radial or axial force on the unit shaft is not allowed.

  • The device in factory assembly is ready for connection to a two-pipe circuit. Before installation in a single-pipe fuel line system, it is necessary to close the return line with a steel plug with a washer and remove the bypass plug.

Main advantages:

  • The device is equipped with a regulating valve with a locking function;

  • Automatic release of accumulated air with a two-pipe fuel line system;

  • Cylindrical thread of the ports for connecting a pressure gauge and vacuum gauge complies with the international standard ISO 228/1;

The device is suitable for pumping fuel with an operational viscosity from 2 to 75 mm²/s.

On the website of the company "ANKAS", which is the official representative of the French company Suntec, you can buy a fuel pump for a diesel burner model AN 77 A 7256 2P at a bargain price. The products presented in our online store are of high quality and reliable when working in industrial conditions. All pump units have undergone pre-sale testing and are accompanied by quality certificates.

Characteristics

Direction of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightPerformance at 11 bar pressure and 5 cSt viscosity: 108 l/hOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: AN: base valve with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 108 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmShaft diameter: 8 mmTorque: 0.14 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barInstallation method: flange ∅ 54 mmNozzle pressure range: from 10 to 20 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmType of pumped liquid: diesel
