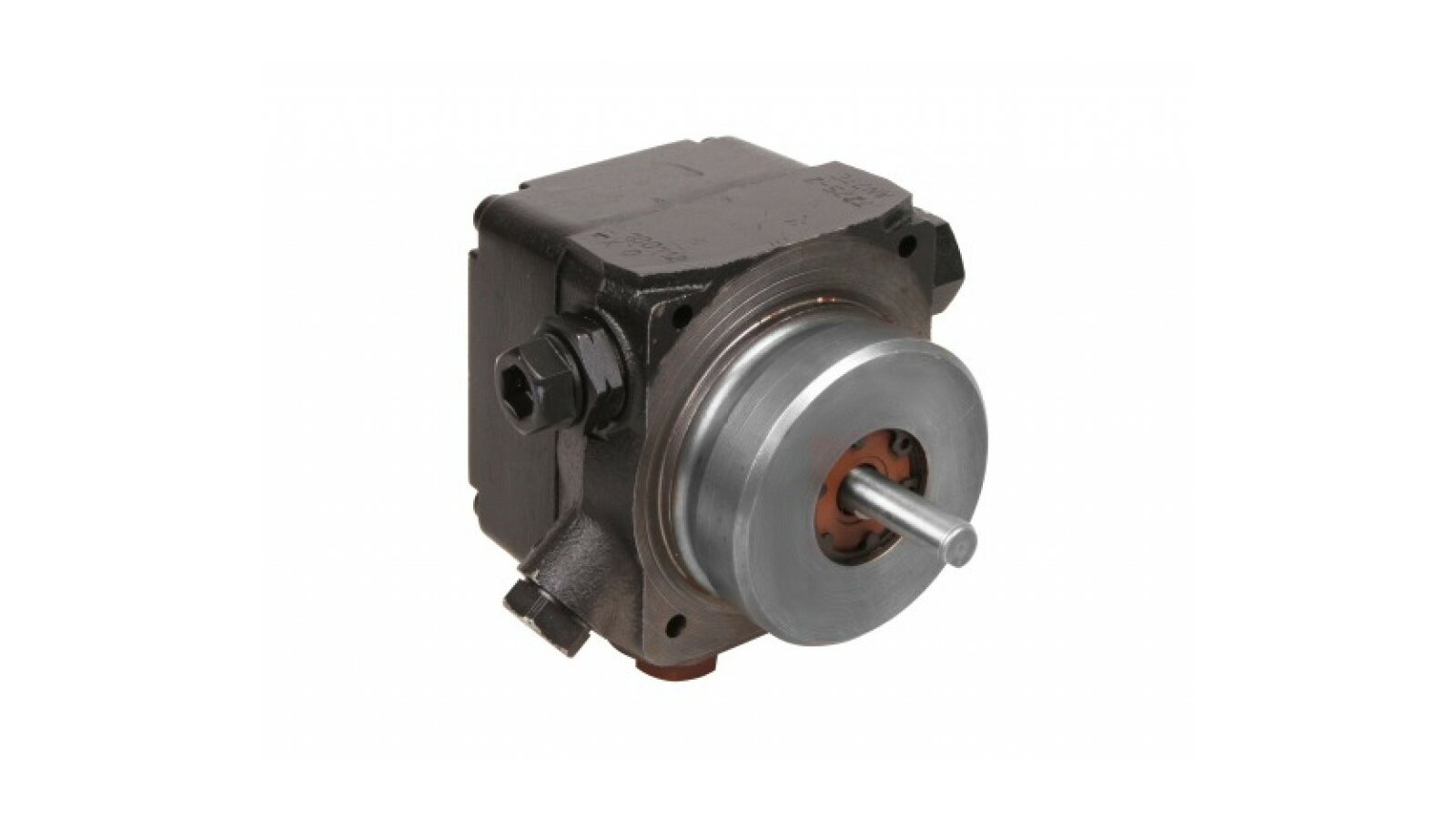

Burner Pump Suntec AN 77 A K 7266 2P

The Suntec AN 77 A K 7266 2P burner pump pumps diesel fuel and kerosene when operating low-power heating systems. The main advantages are optimal performance with compact dimensions, compatibility with burners of most brands, an increased area of ​​the built-in filter, the ability to install in systems with one and two pipes, standard outputs for measuring devices.

Features:

• The main working element is a gear mechanism designed for intensive loads;

• Setting the pressure parameters within 10-20 bar using an adjusting screw, the default setting is 14 bar,

• Removal of rust, impurities and other abrasive particles with a built-in 150 µm mesh filter with an increased working area of ​​20 cm²;

• Viton shaft seal for safe pumping of kerosene;

• Operating temperature and pumped fuel: 0…+60 °C;

• sleeve seat, connection size ∅ 54 mm, European standard EN 225;

• external solenoid valve;

• factory assembly for a two-pipe system, for a one-pipe system it is necessary to replace the bypass plug by installing a blind one;

• installation in any position, except for the position with the axis up (do not allow axial or radial load on the shaft);

• connection to the inlet and return line on a tapered thread ¼ inch NPTF;

• standard connection of measuring equipment;

• for burners Baltur, Lamborghini, Ecoflam, Weishaupt, Oilon and other manufacturers.

Upstream from the Suntec AN 77 A K 7266 2P pump, the manufacturer recommends installing an additional filter to reliably protect the nozzles from damage.
