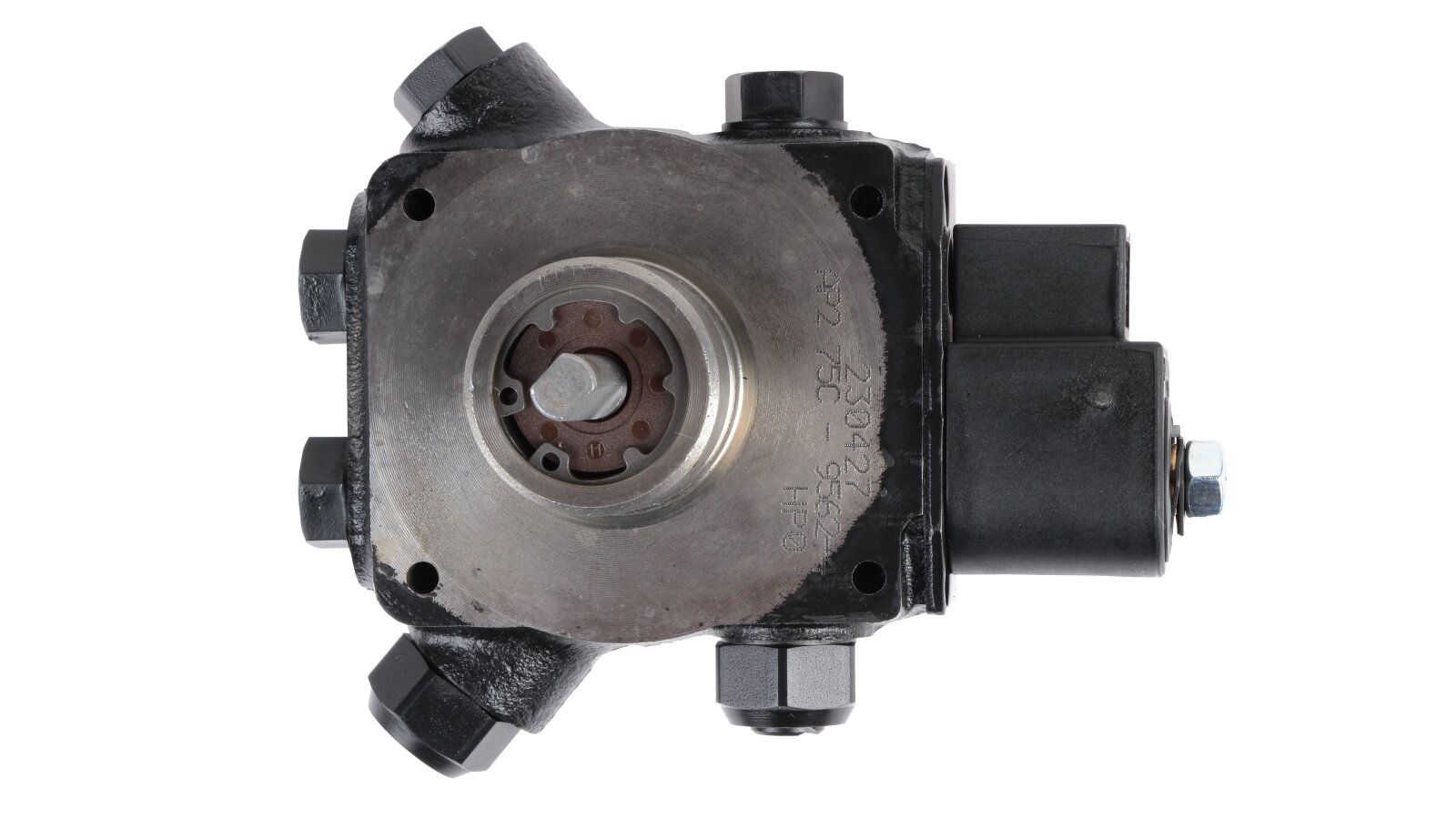

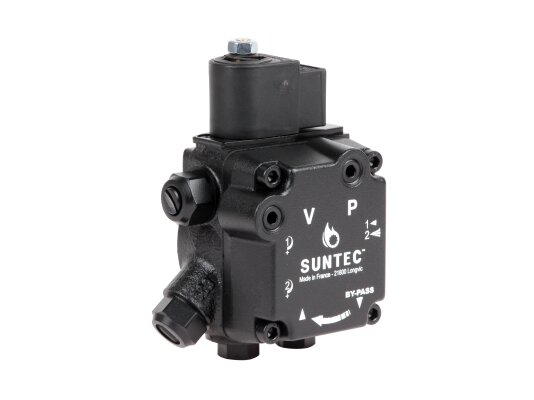

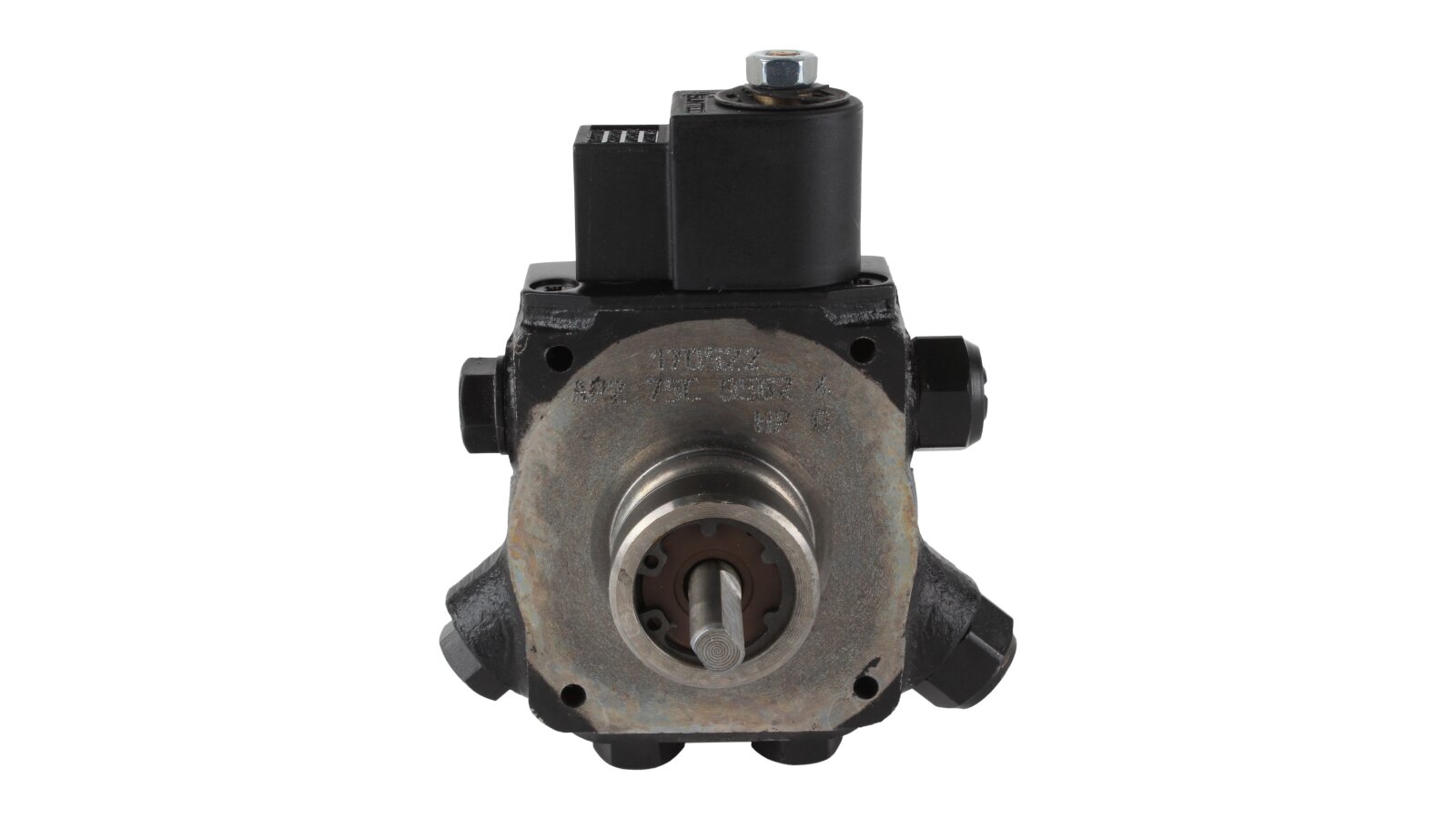

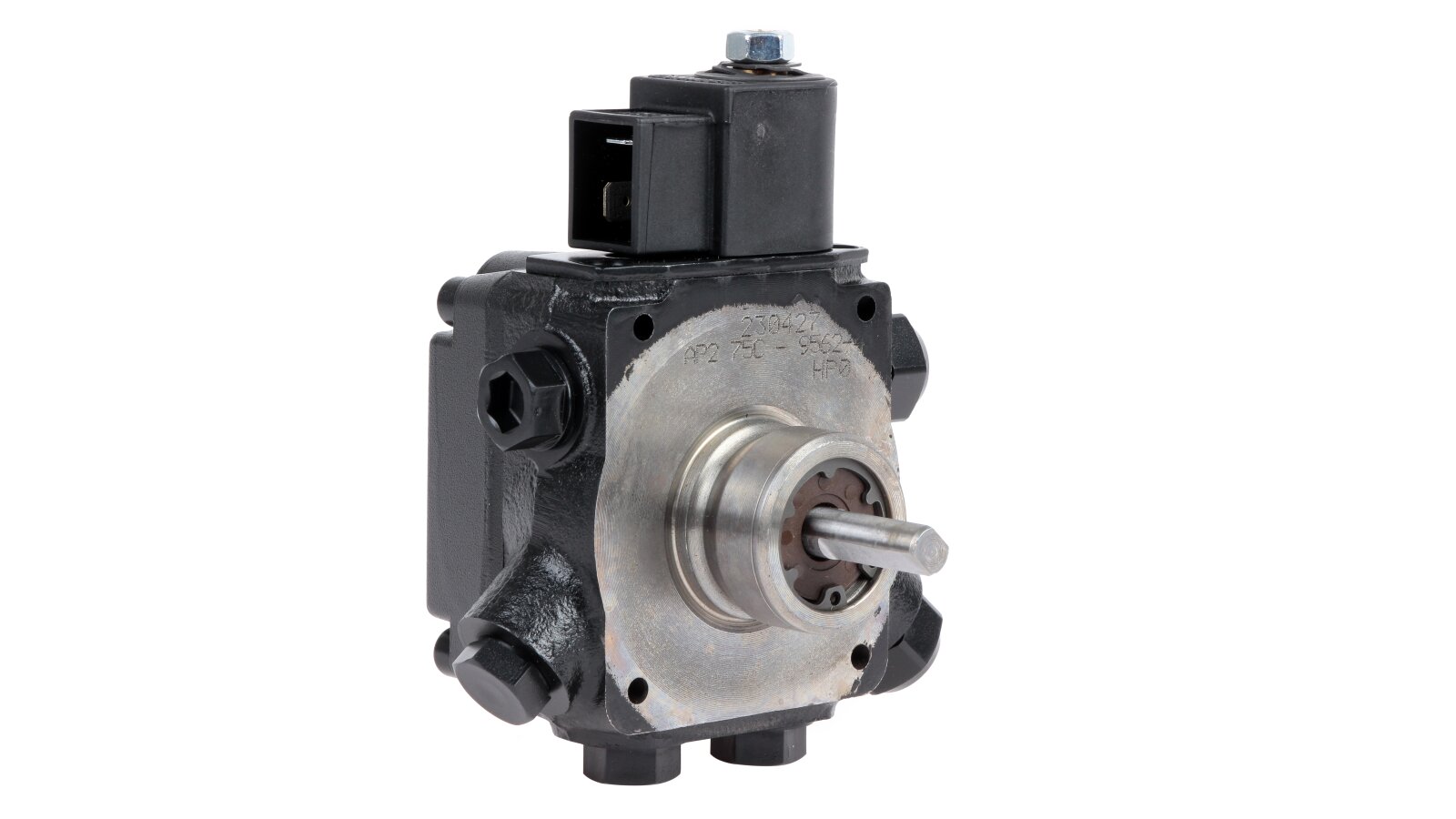

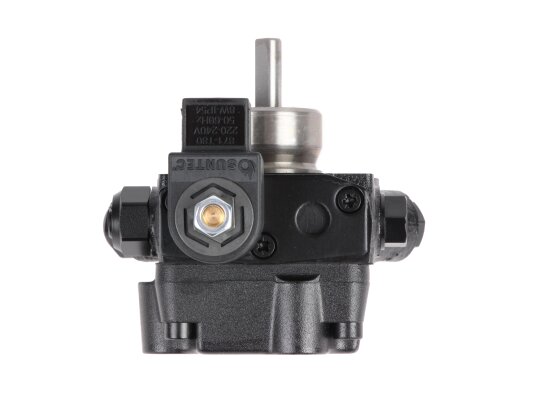

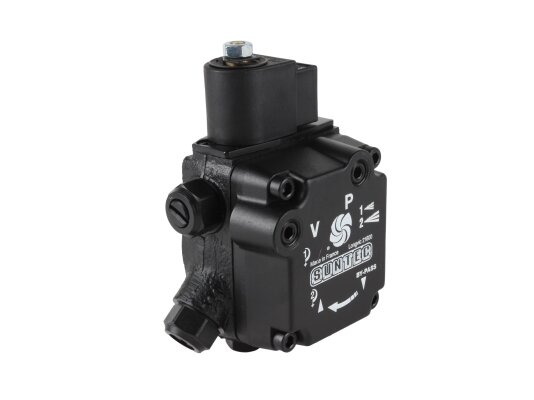

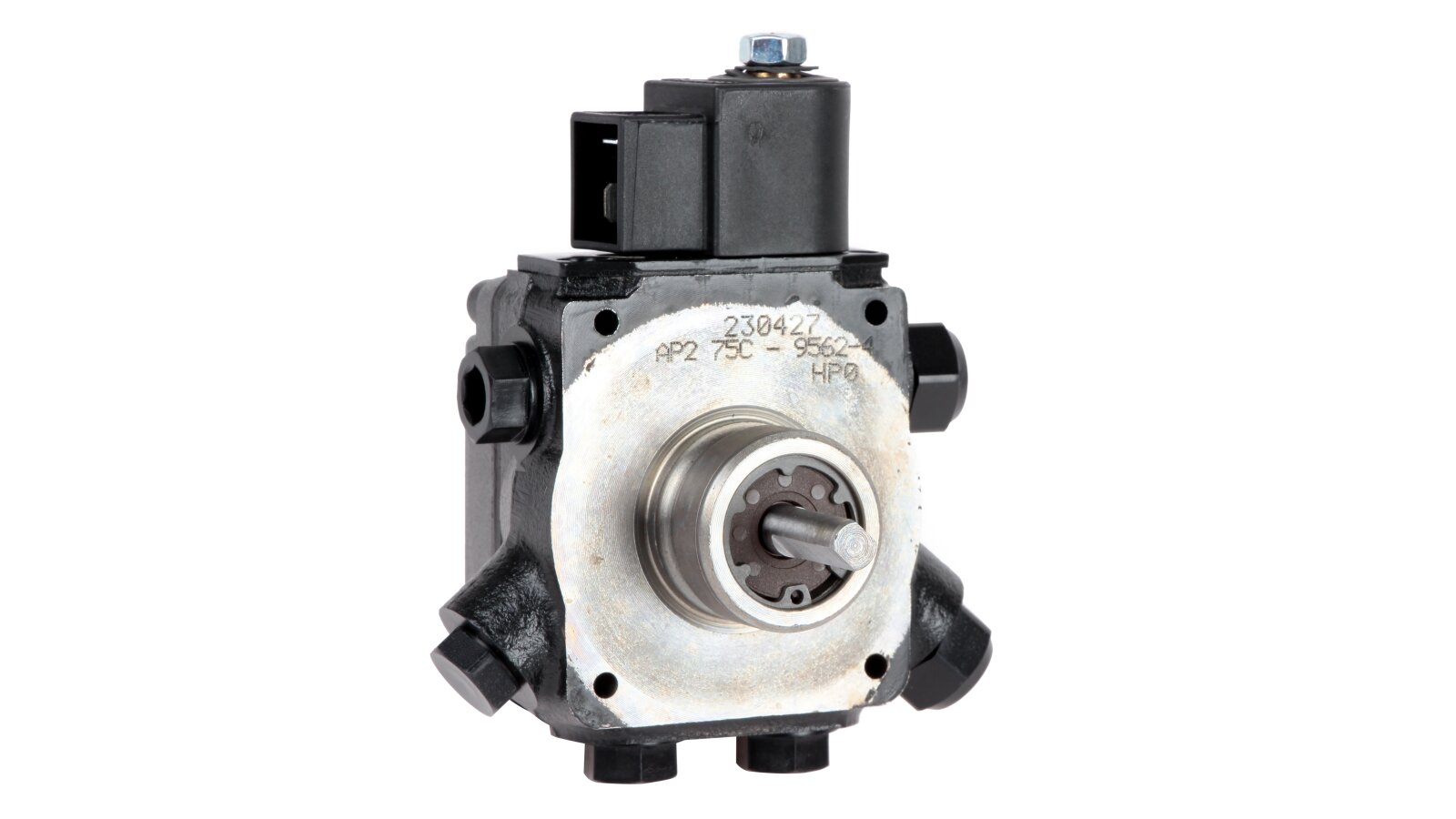

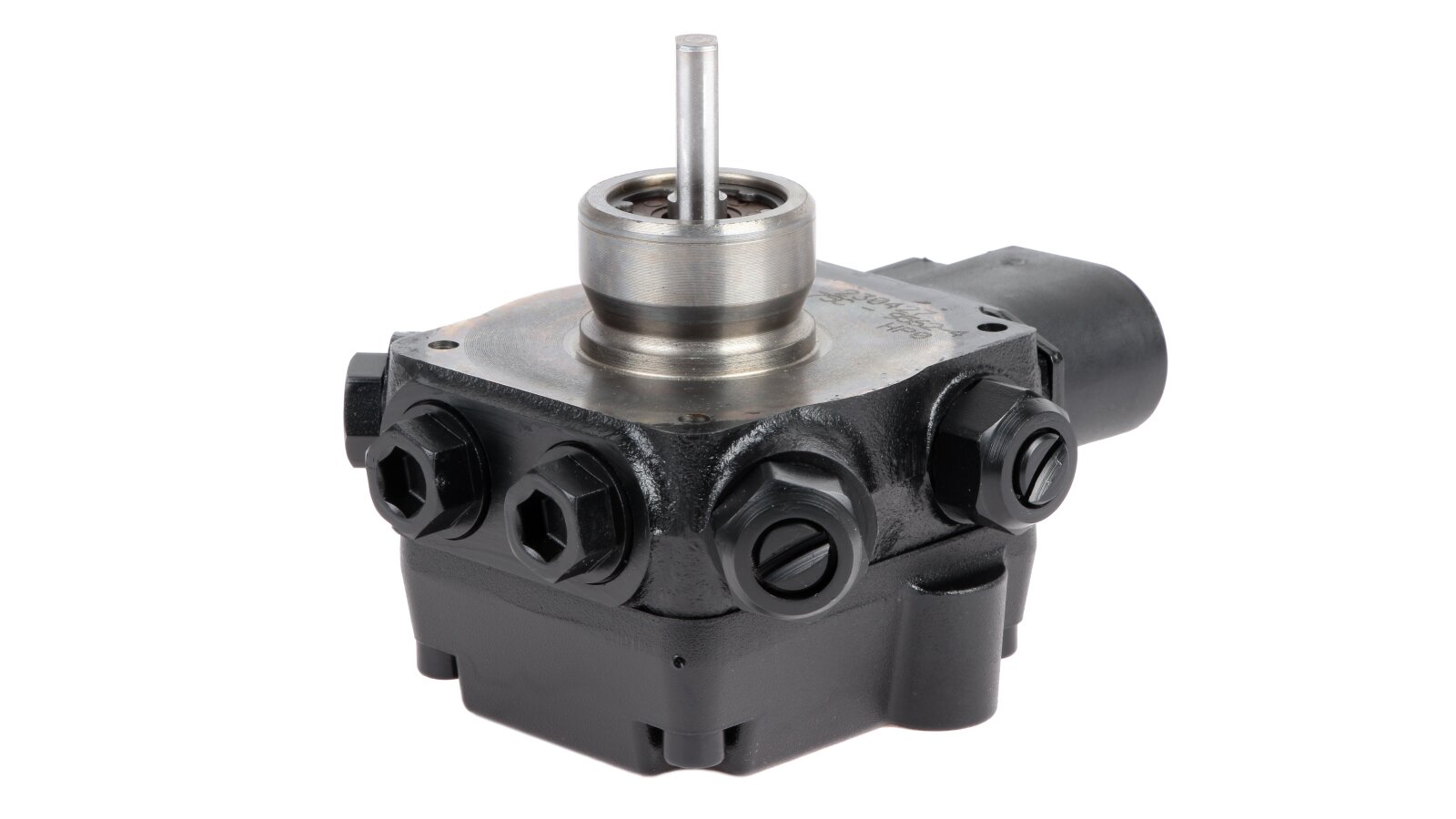

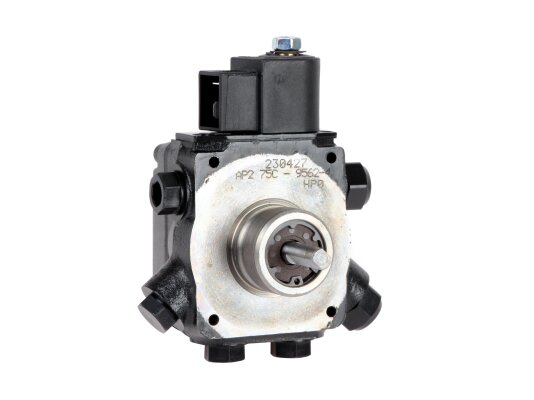

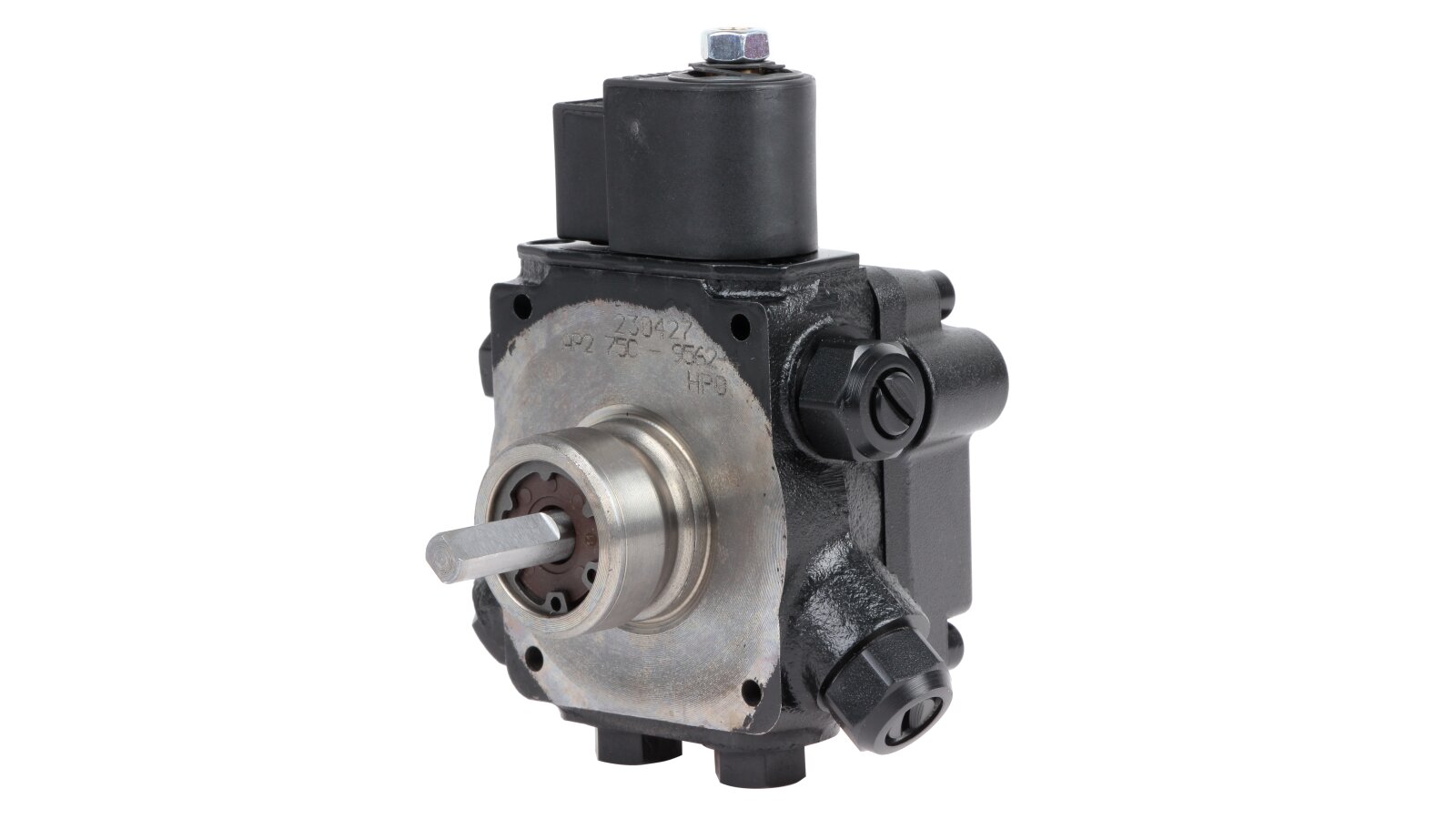

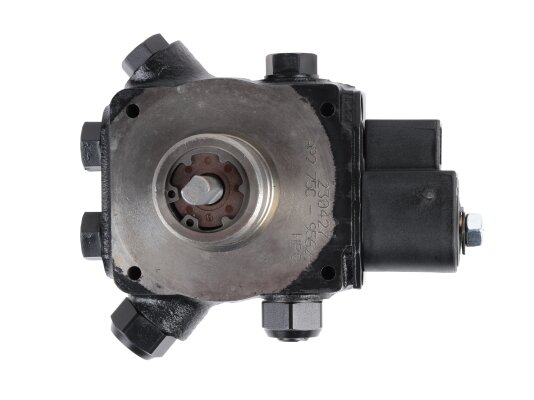

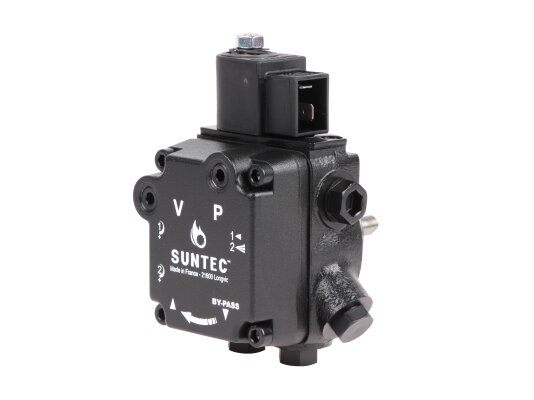

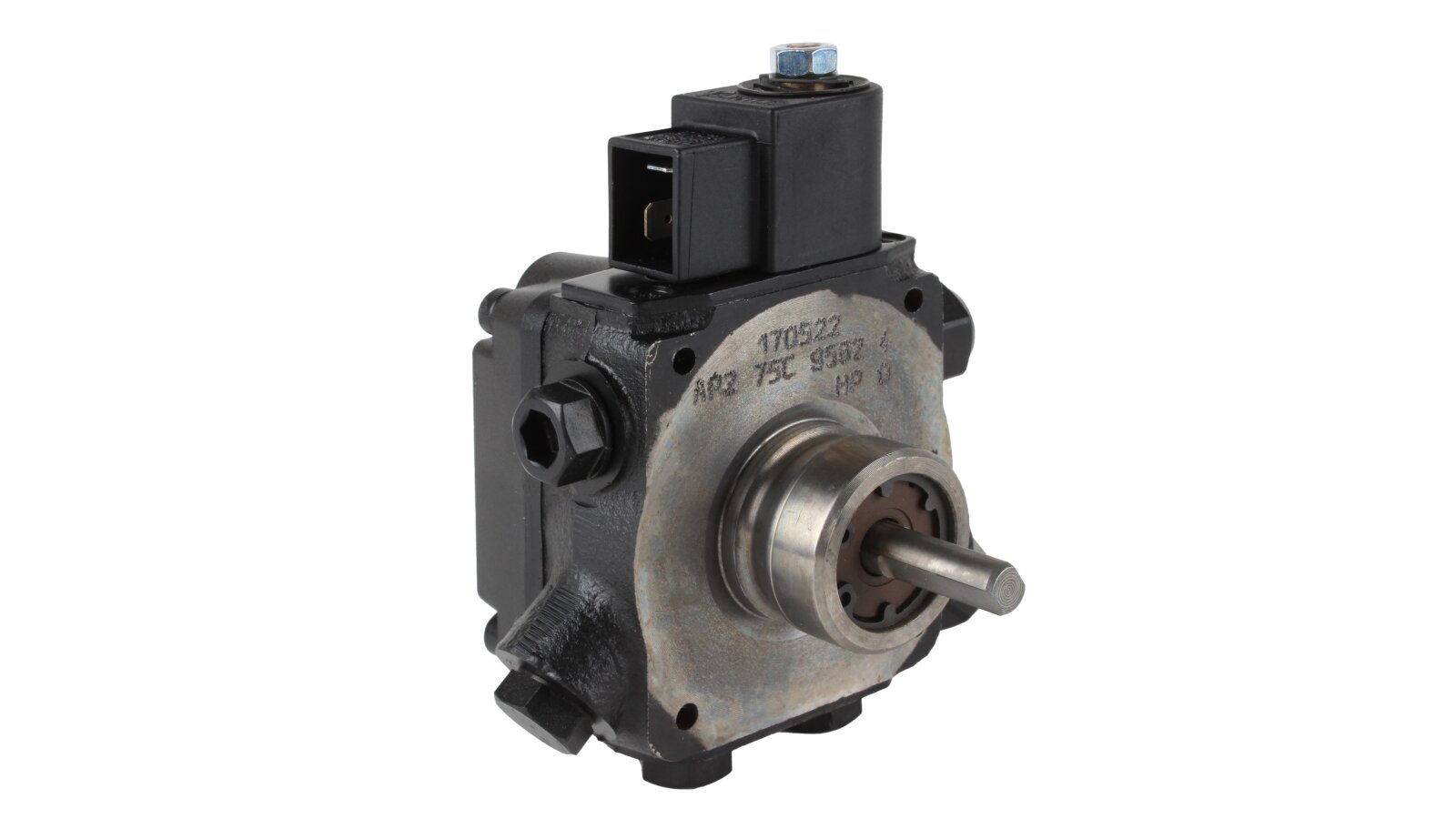

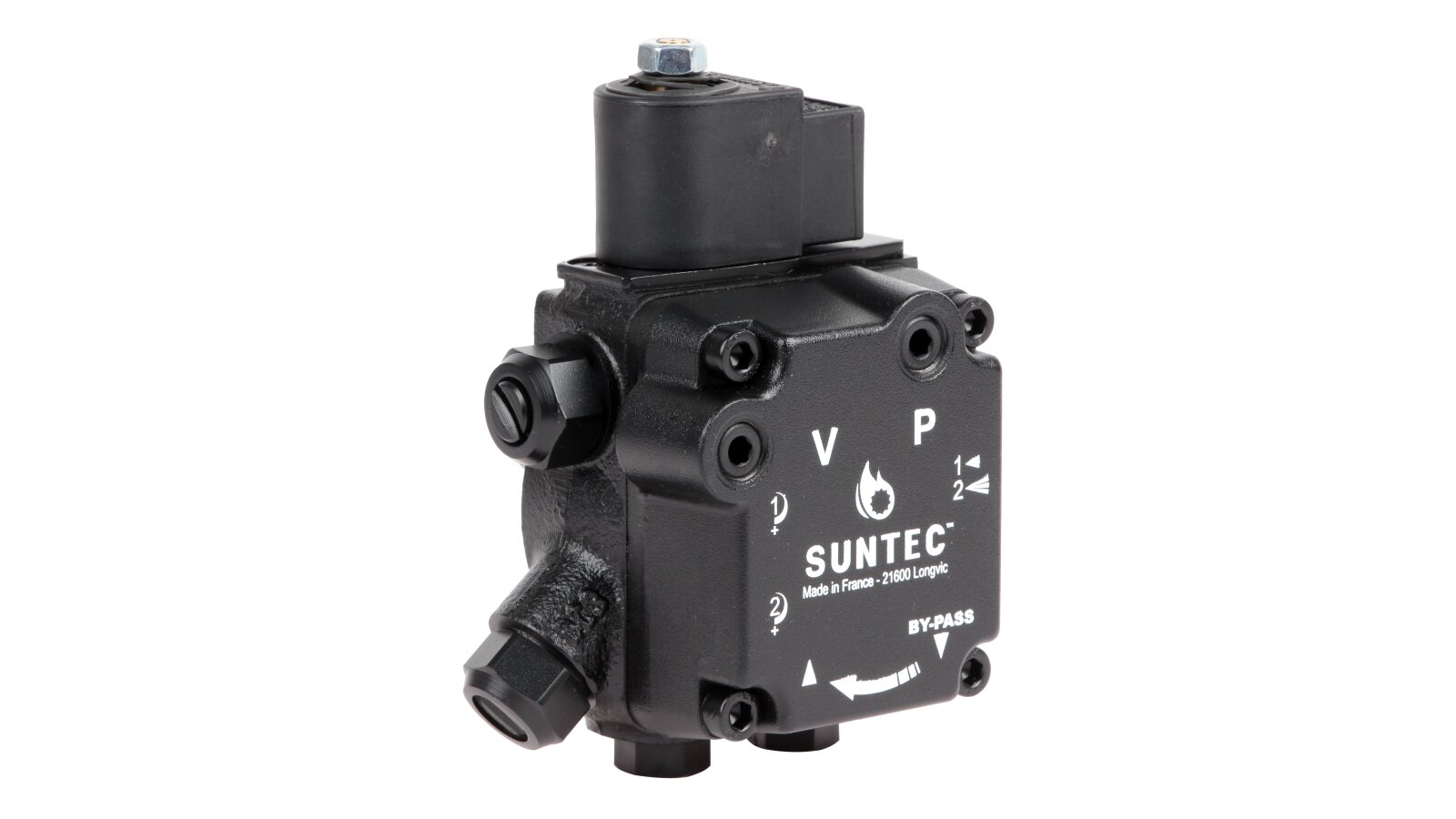

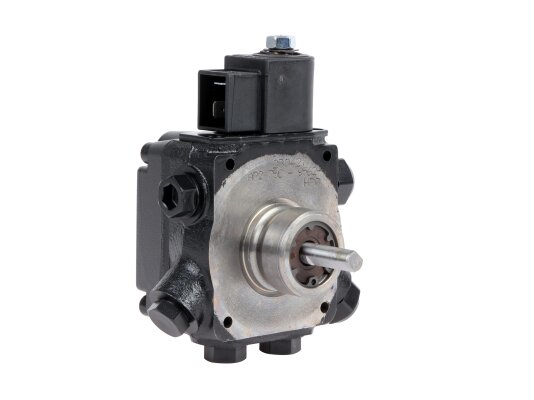

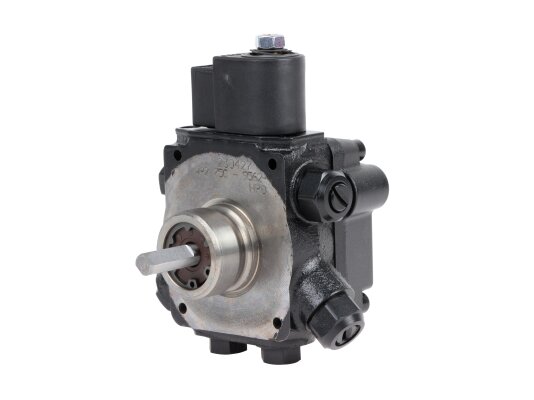

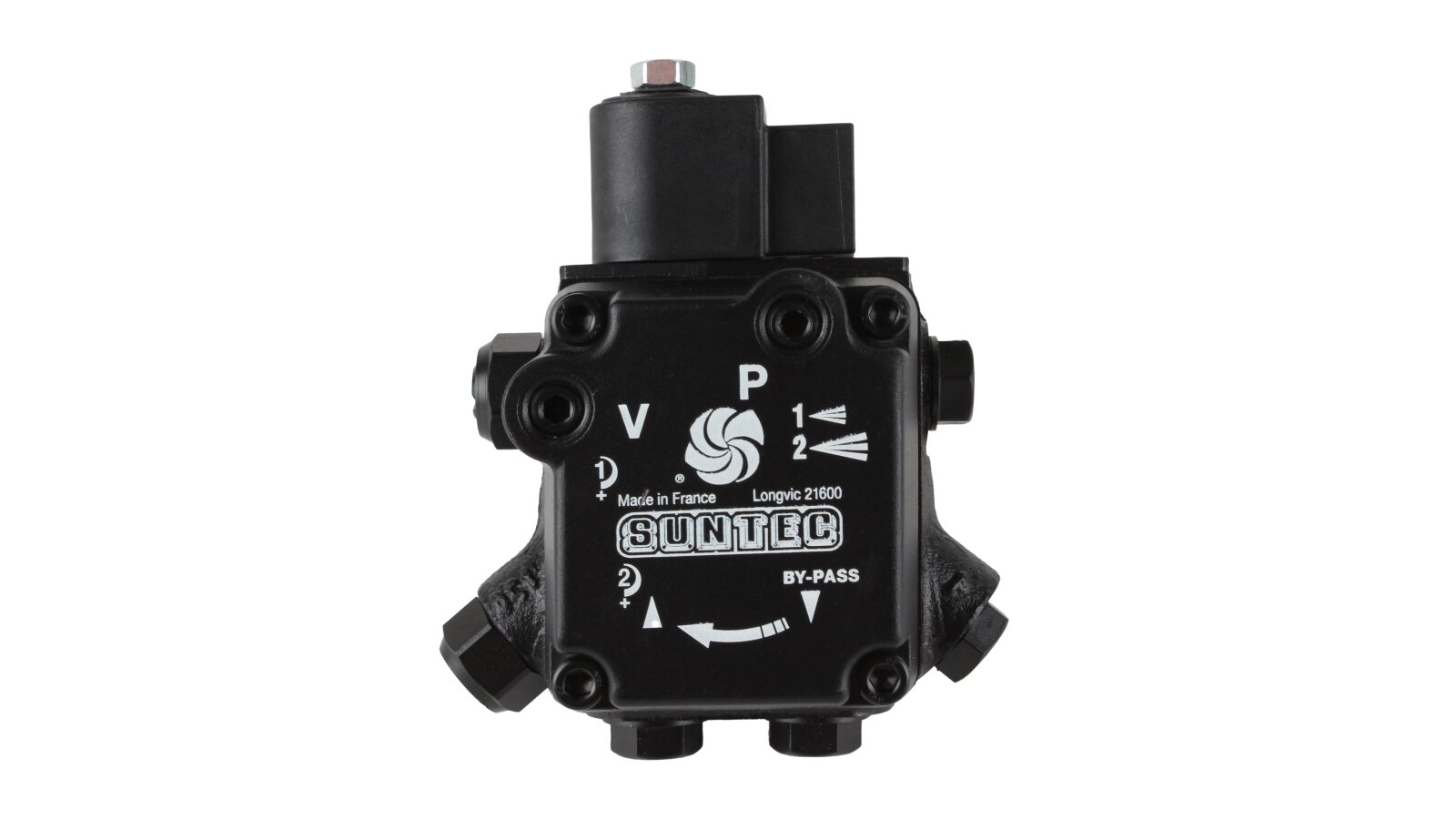

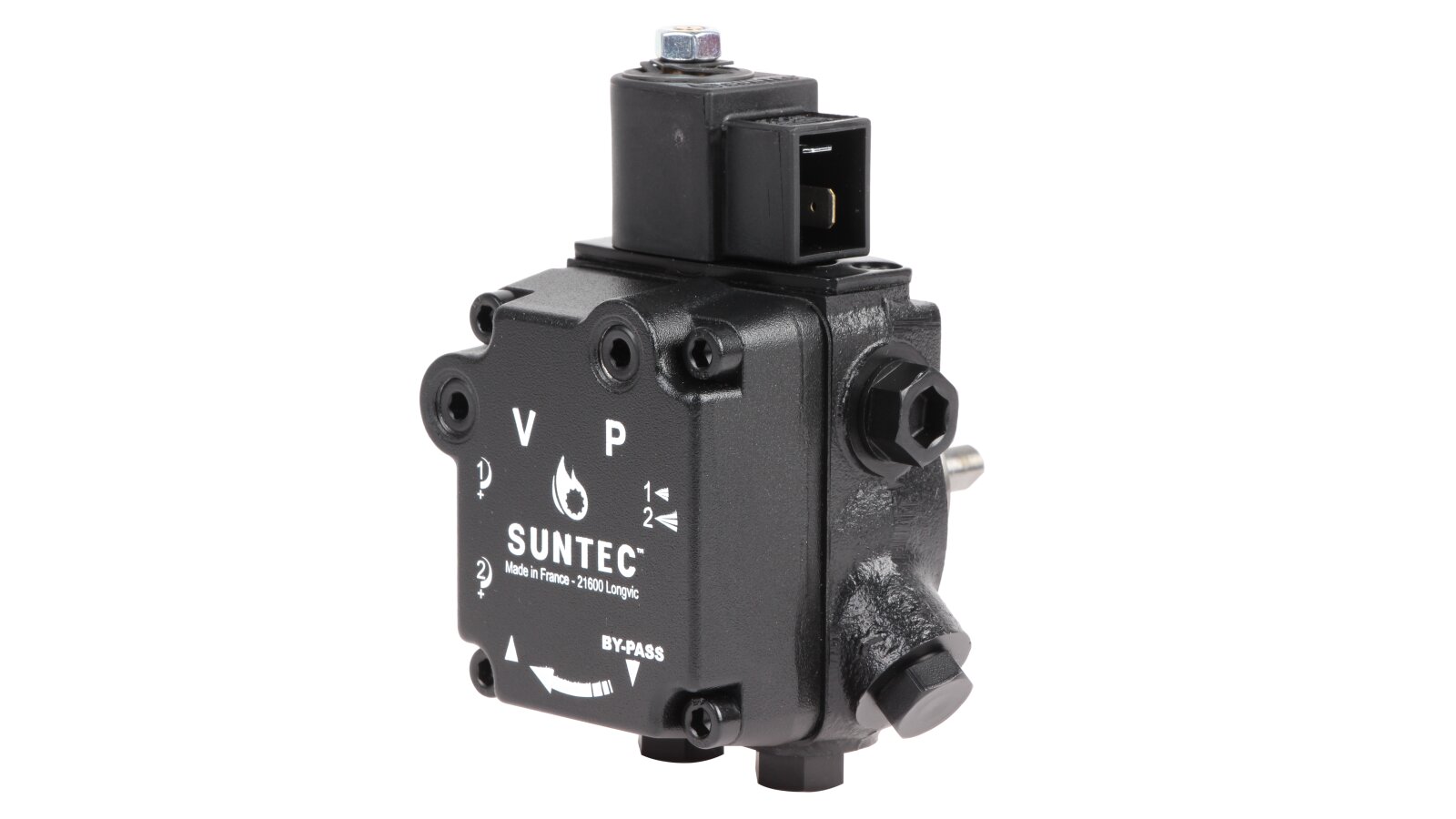

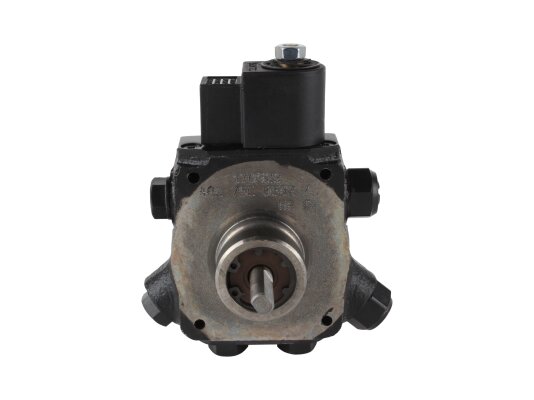

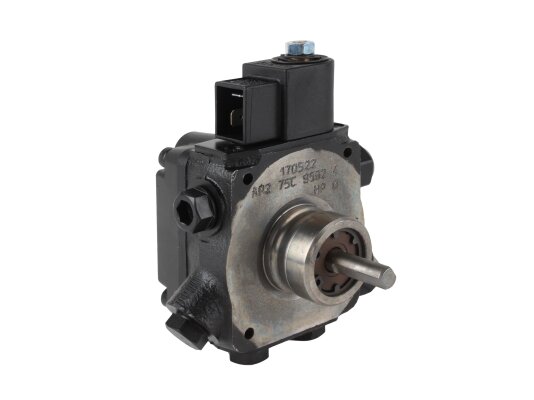

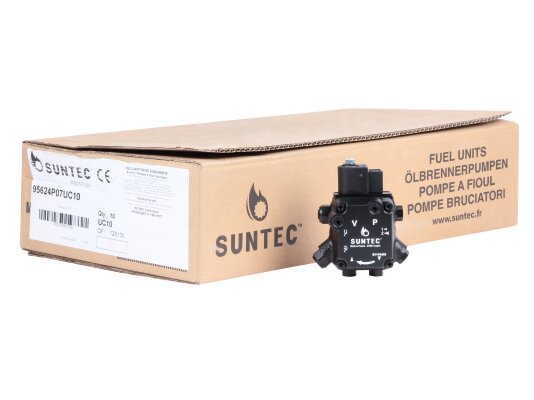

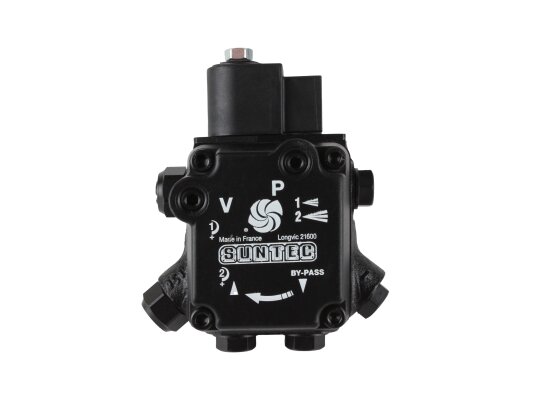

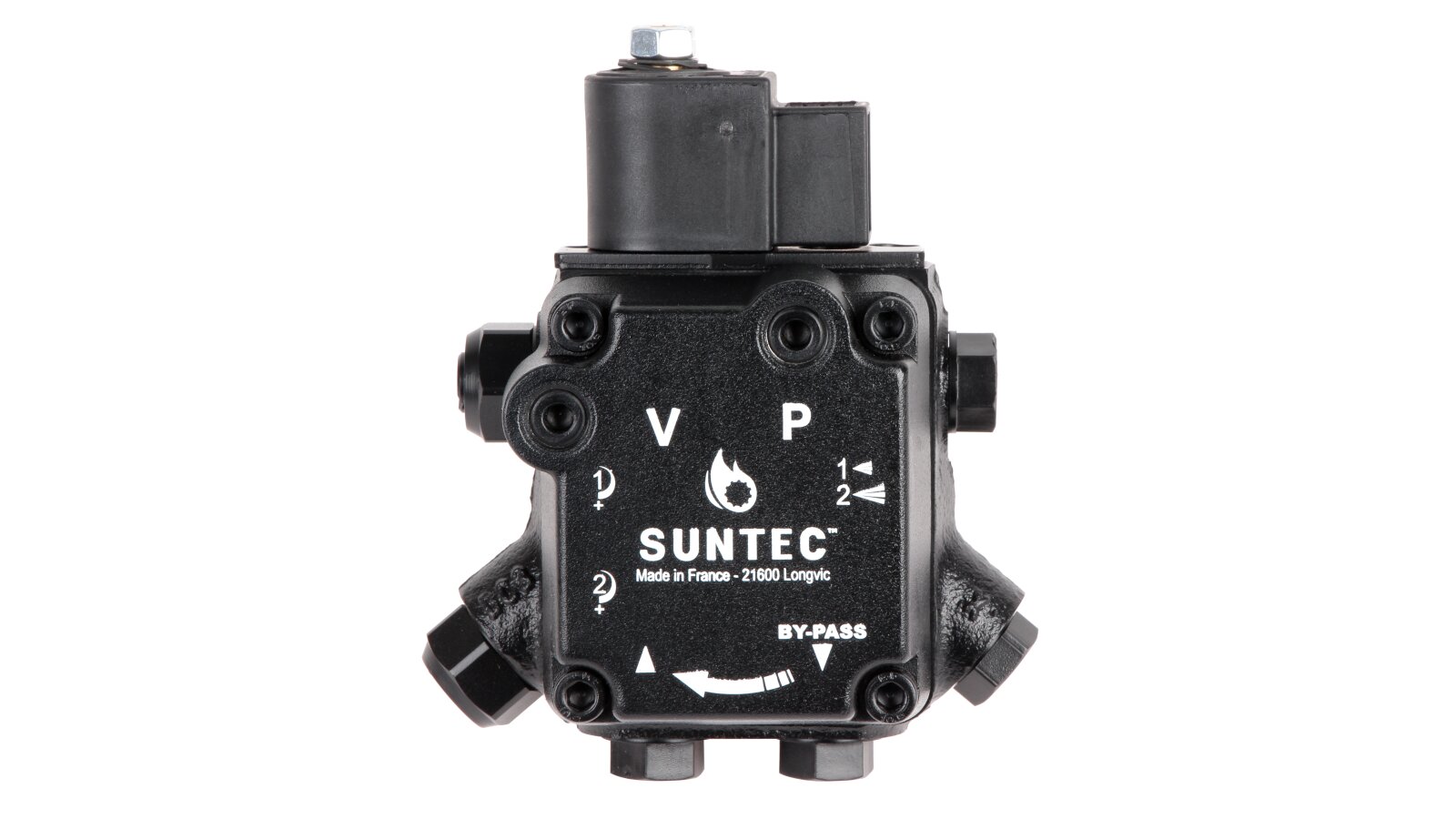

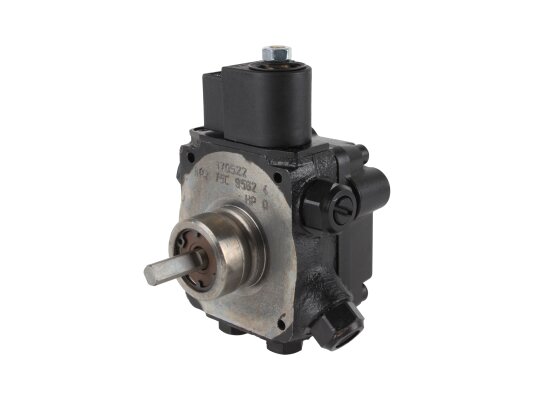

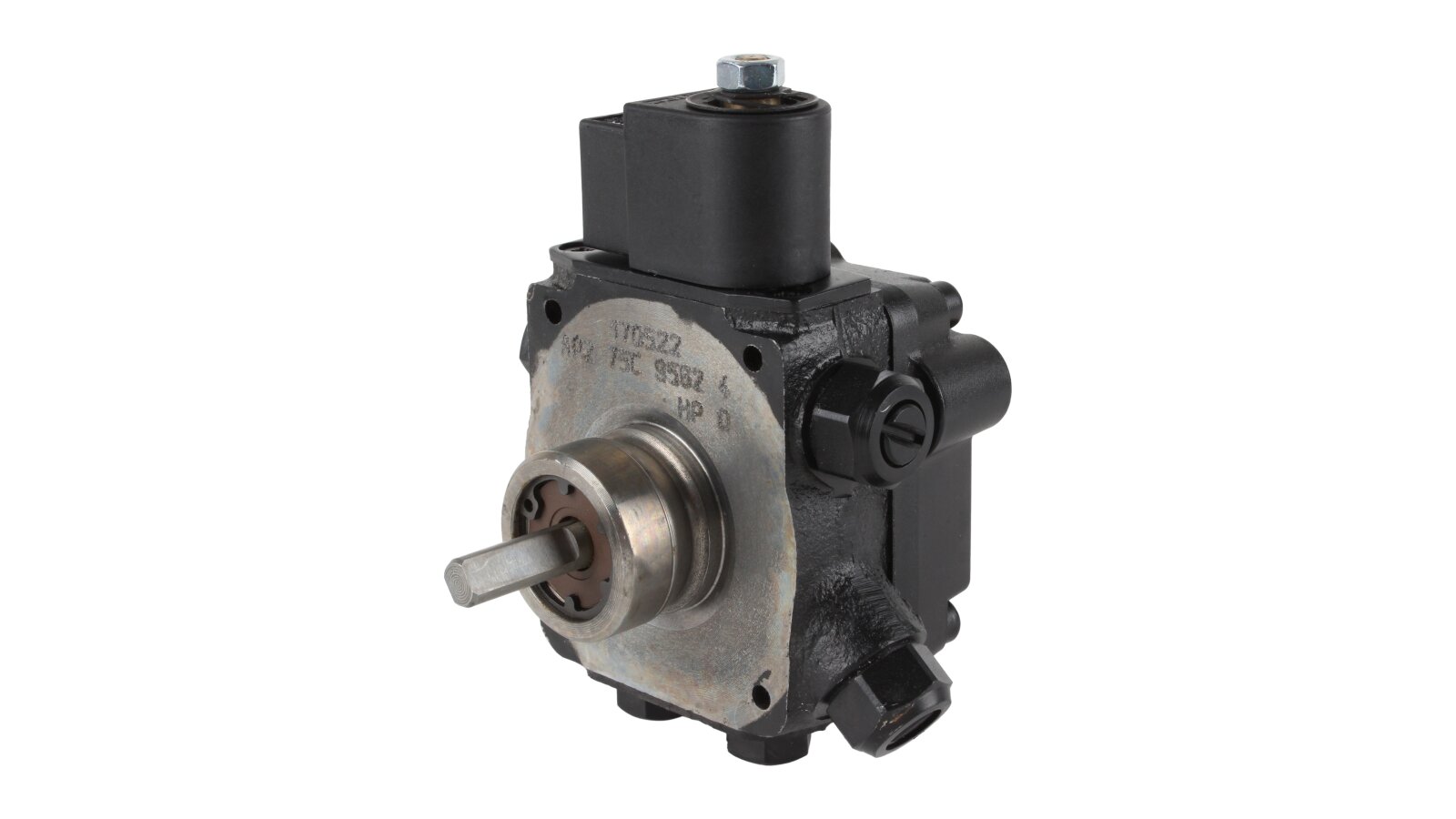

Burner Pump Suntec AP2 75 C 9562 4P 0700

Suntec

AED 2,825

Oil Burner Pumps
Products code: 36867

Description

The diesel pump for the Suntec AP2 75 C 9562 4P 0700 burner has two pressure modes. There is no locking function. The flow is cut off by a separate electromagnetic valve. The built-in electromagnetic valve is used to switch between pressure modes. The advantages are optimal performance with small dimensions, reliable electrical protection, a preliminary filter for cleaning the flow, a standard fit, and a durable design.

Features:

  • wear-resistant gear mechanism;

  • discharge pressure from 8 to 25 bar, "default" - 9 and 22 bar,

  • two slide valves for pressure regulation;

  • "normally open" electromagnetic bypass valve that switches pressure stages;

  • dismountable filter for preliminary fuel cleaning from debris, sand, rust and impurities with a working area of ​​6 cm² and 150 µm cells;

  • permissible operating temperature and pumped fuel temperature: 0…+60 °C;

  • sleeve fit according to European standard EN 225, ∅ 32 mm;

  • basic version for two-pipe systems (bypass plug in the drain hole);

  • possibility of installation in units without a return line by replacing the bypass plug with a blind one;

  • automatic air bleed in 2-pipe units;

  • arbitrary installation, but not with the axis upwards, eliminate axial or radial load on the shaft;

  • protection against dust and moisture penetration class IP 54 according to EN 60529 subject to the use of a SUNTEC connecting cable;

  • connection to the inlet and return lines on a ¼ inch thread;

  • complete set without a connecting cable;

  • ports for pressure gauge and vacuum gauge G⅛".

Installation of a separate fuel filter after the Suntec AP2 75 C 9562 4P 0700 pump will increase the protection of injectors from damage.

Characteristics

Maximum rotation speed: 3600 rpmModel type: 2-stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: AP: 2-stage model (one nozzle line and two pressure modes), no shut-off functionSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barShaft design: two cavitiesBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory settings for low pressure: 9 barFactory installations for high pressure: 22 barOperating viscosity: from 2 to 12 mm²/sNozzle pressure range: from 8 to 25 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.14 N·mType of pumped liquid: dieselDegree of protection: IP54
