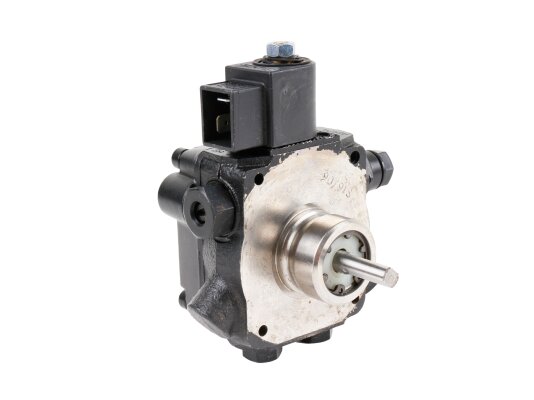

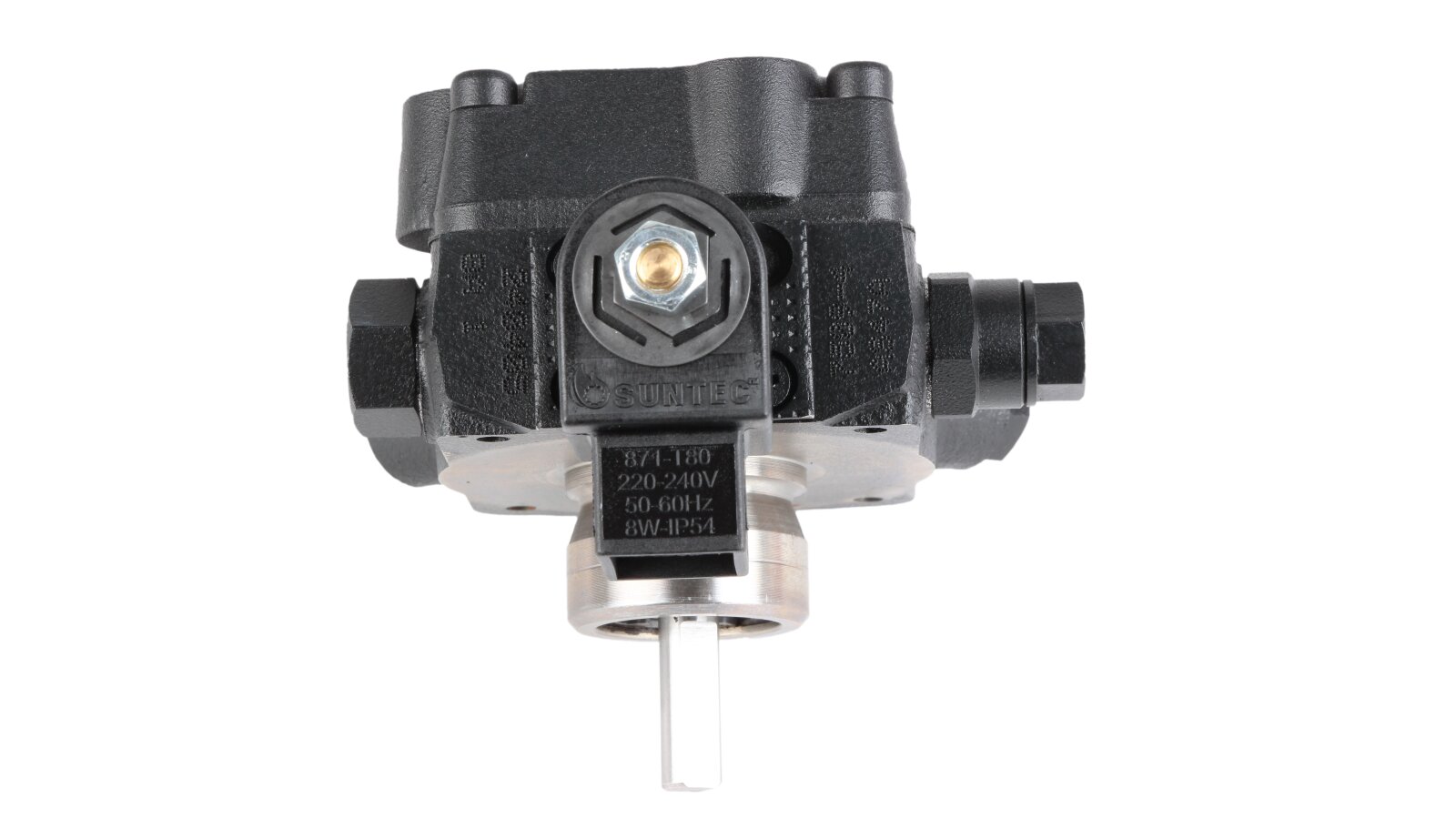

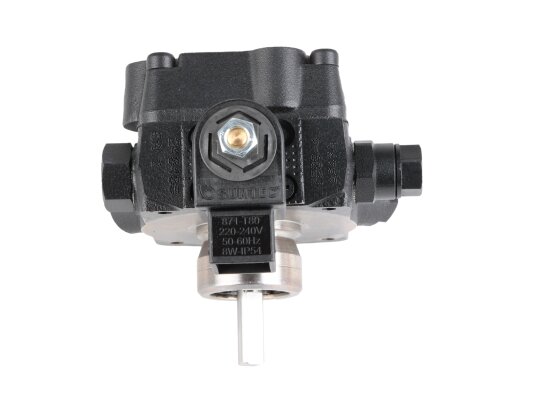

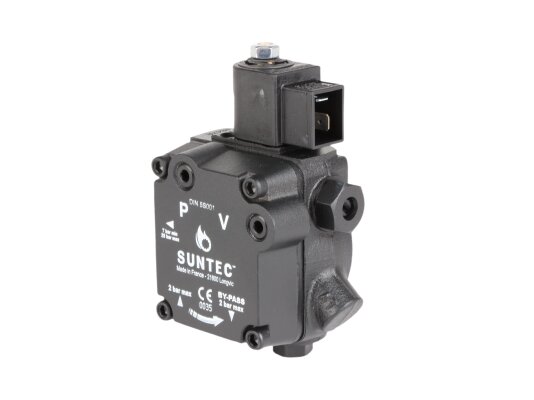

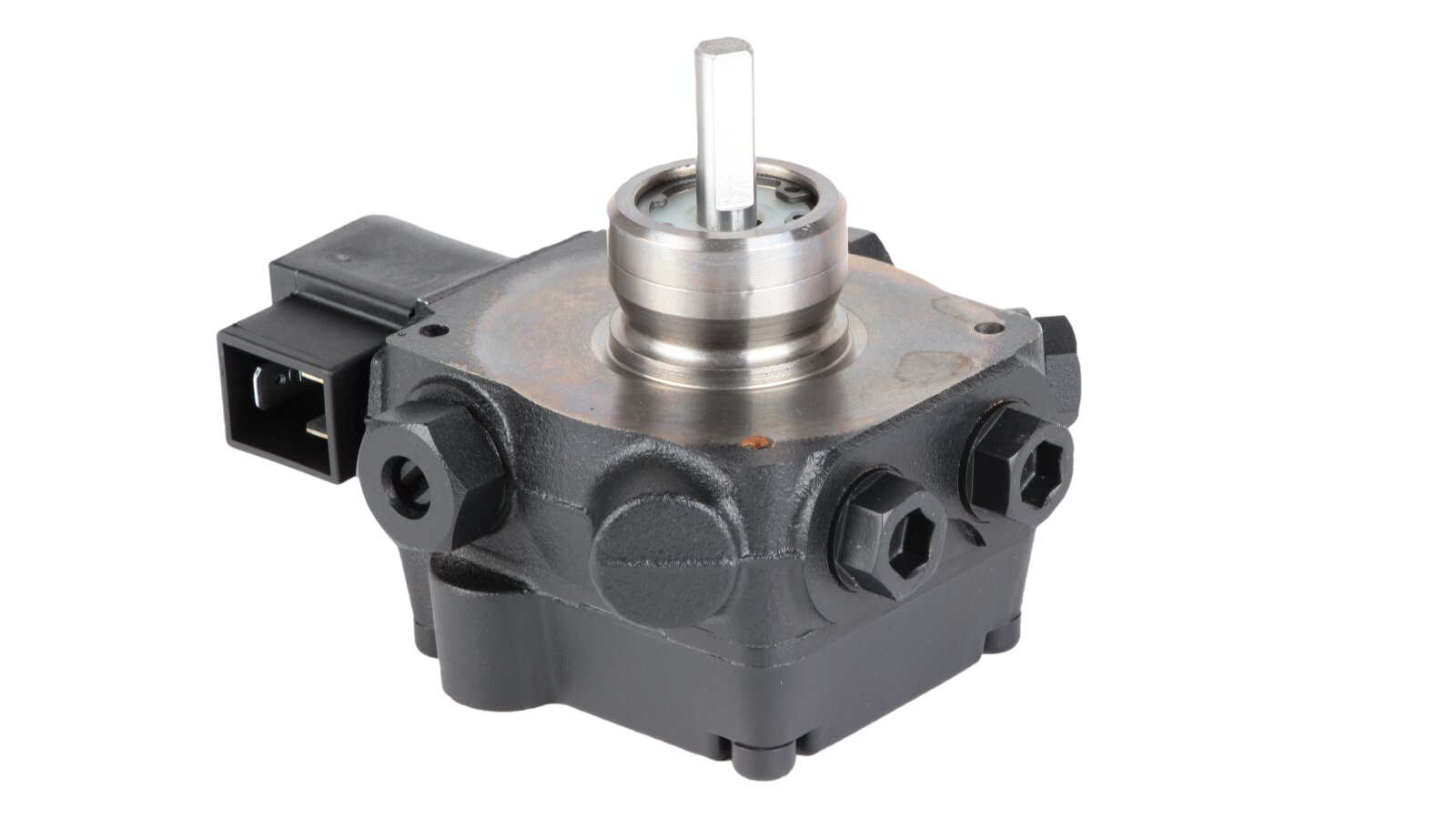

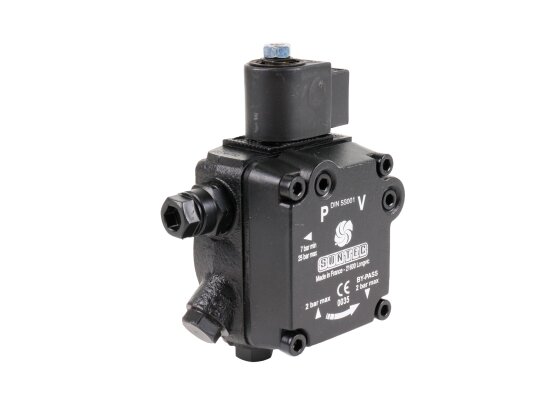

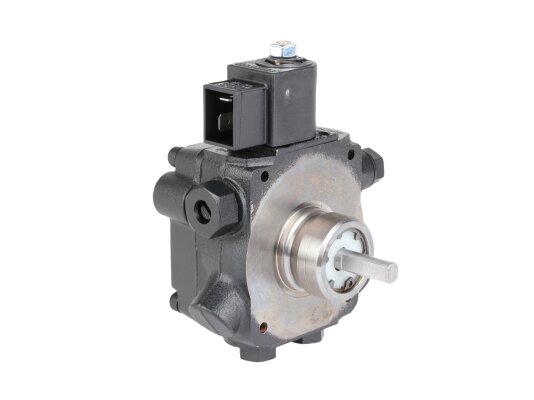

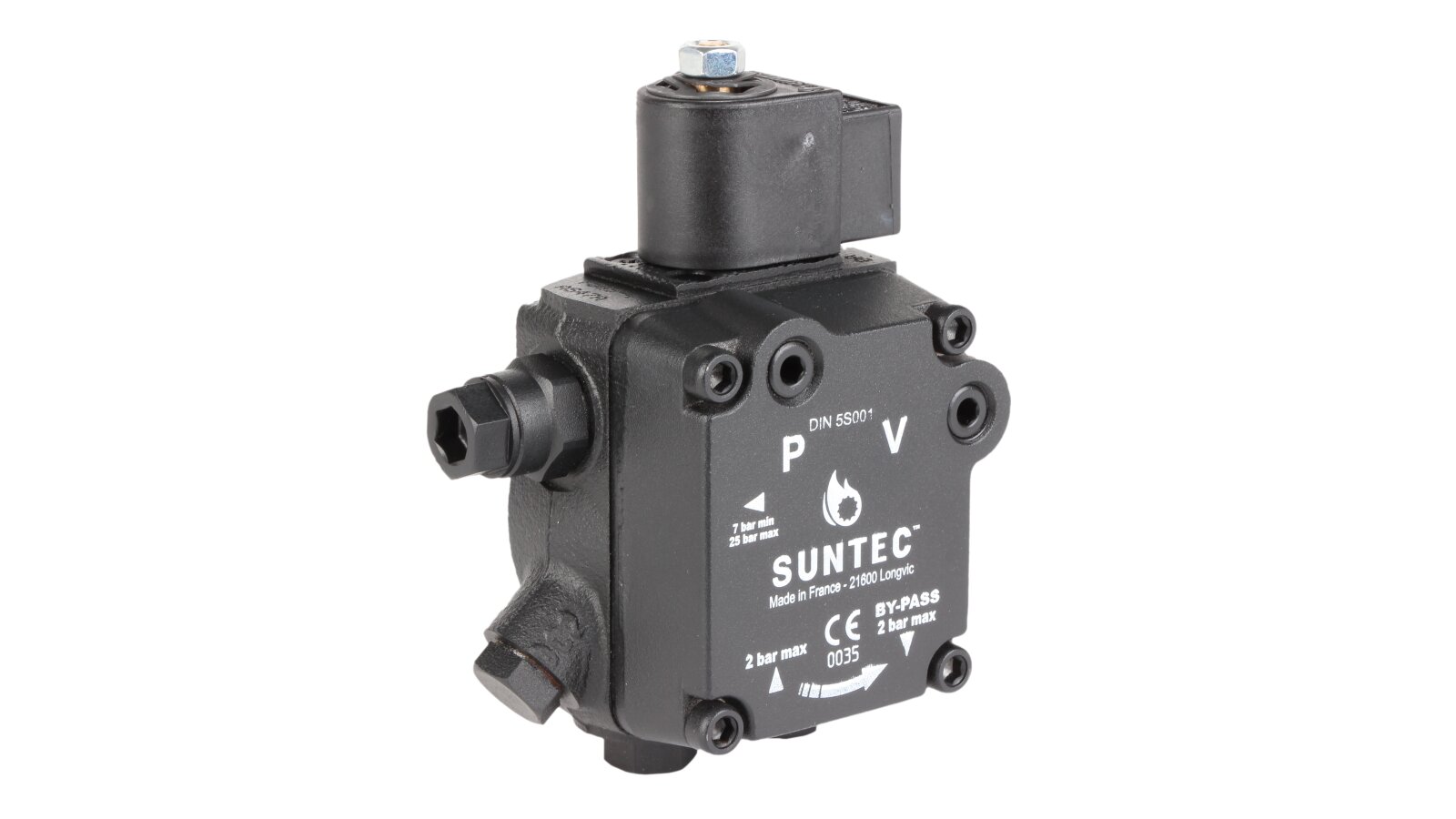

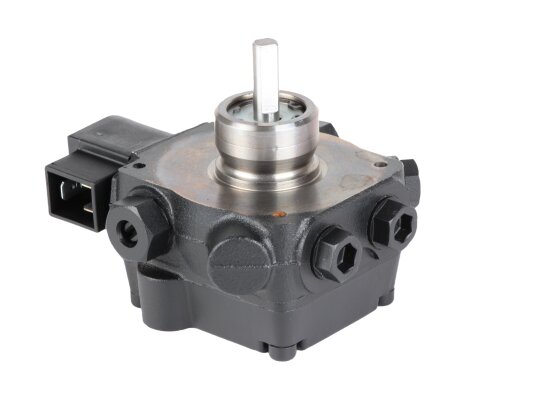

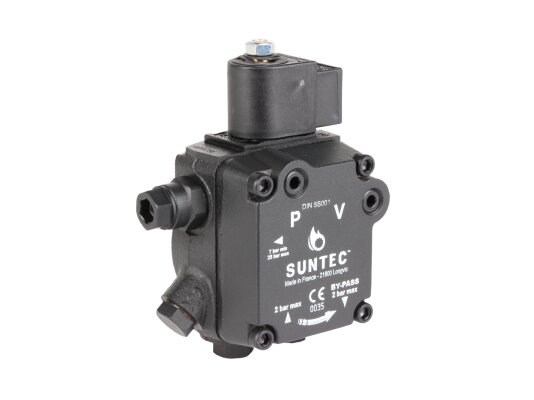

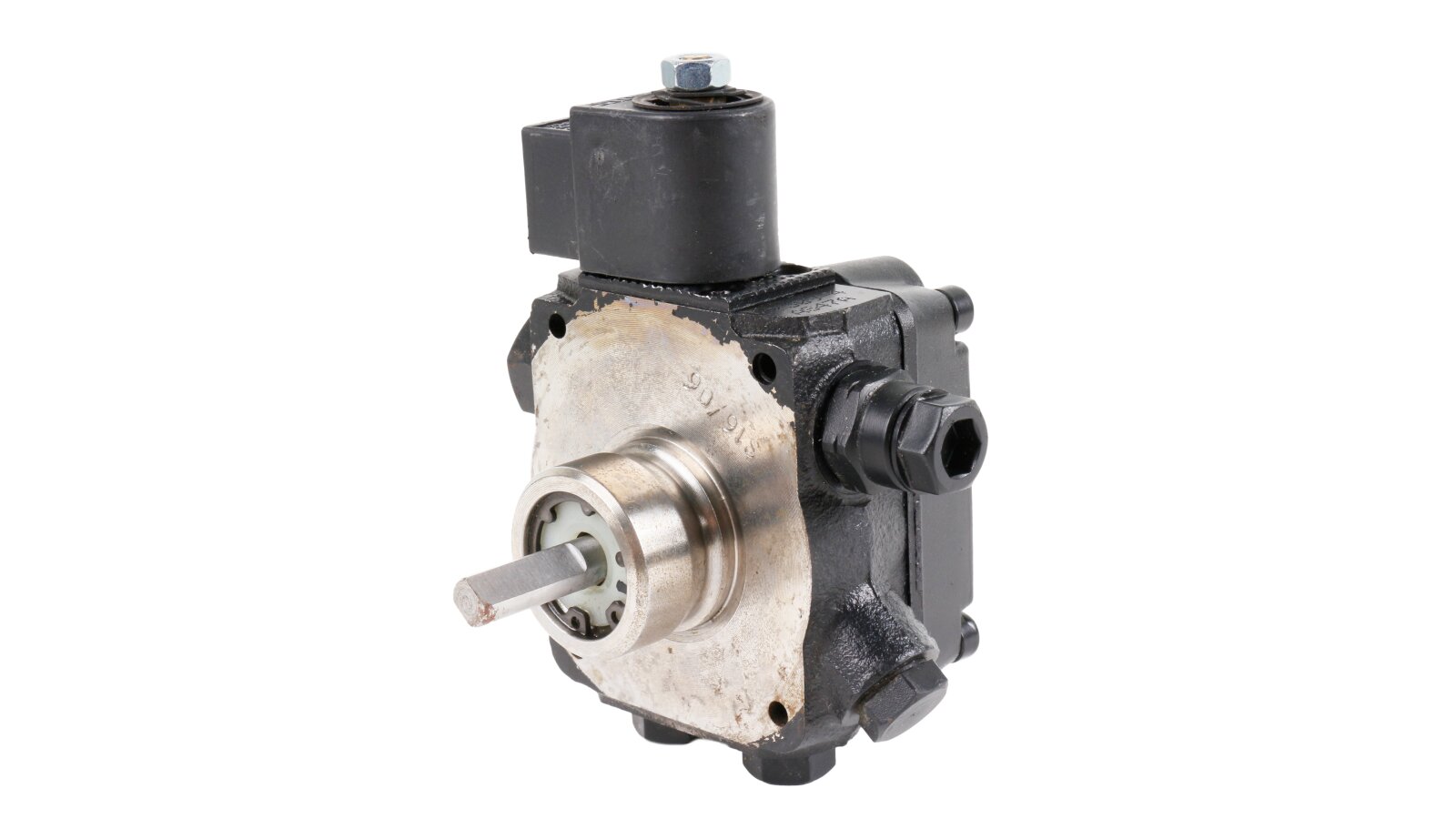

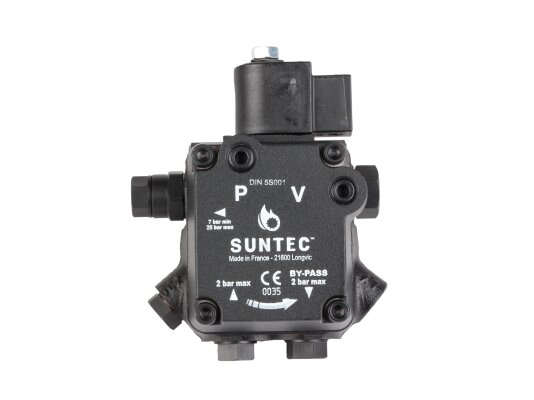

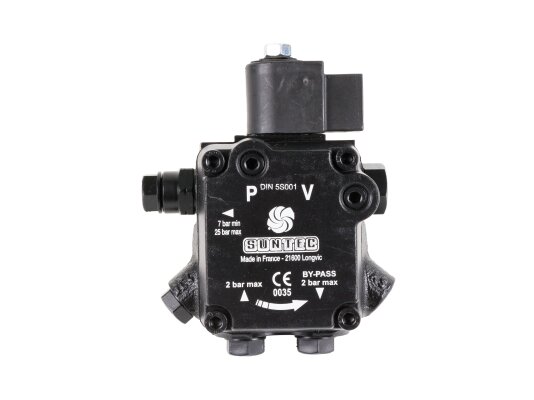

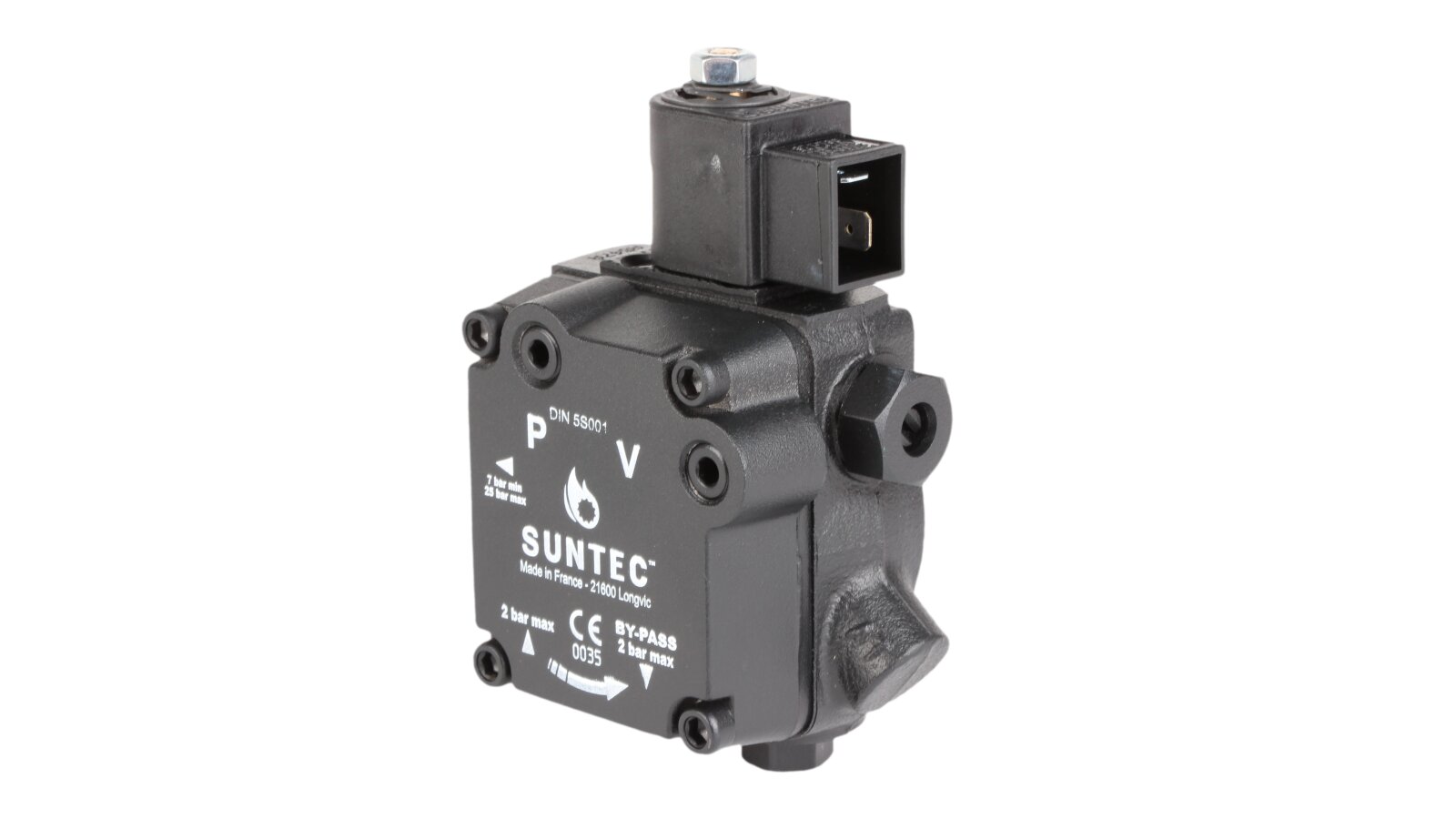

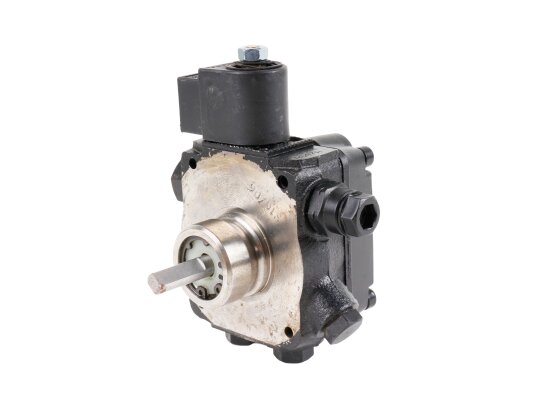

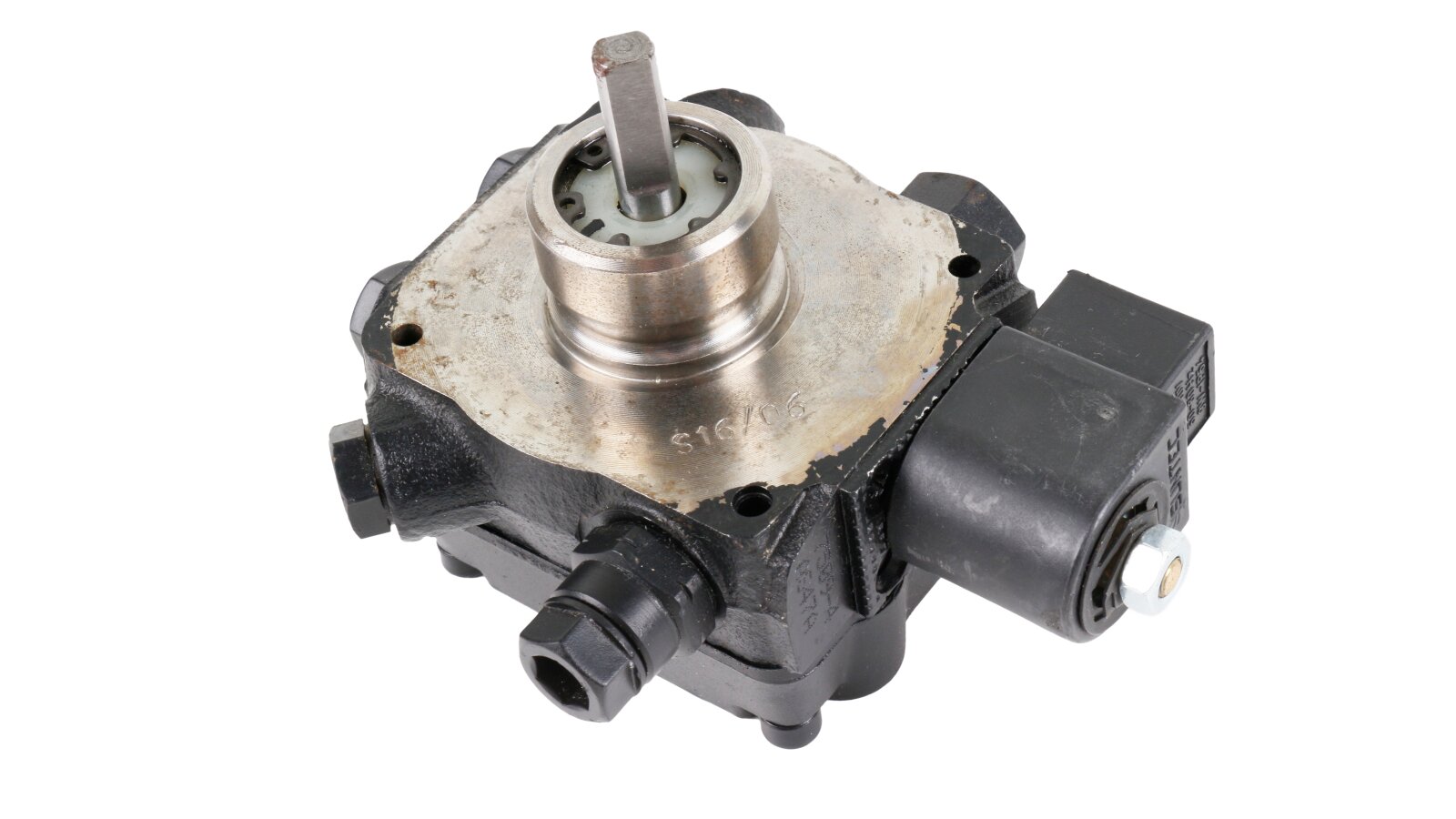

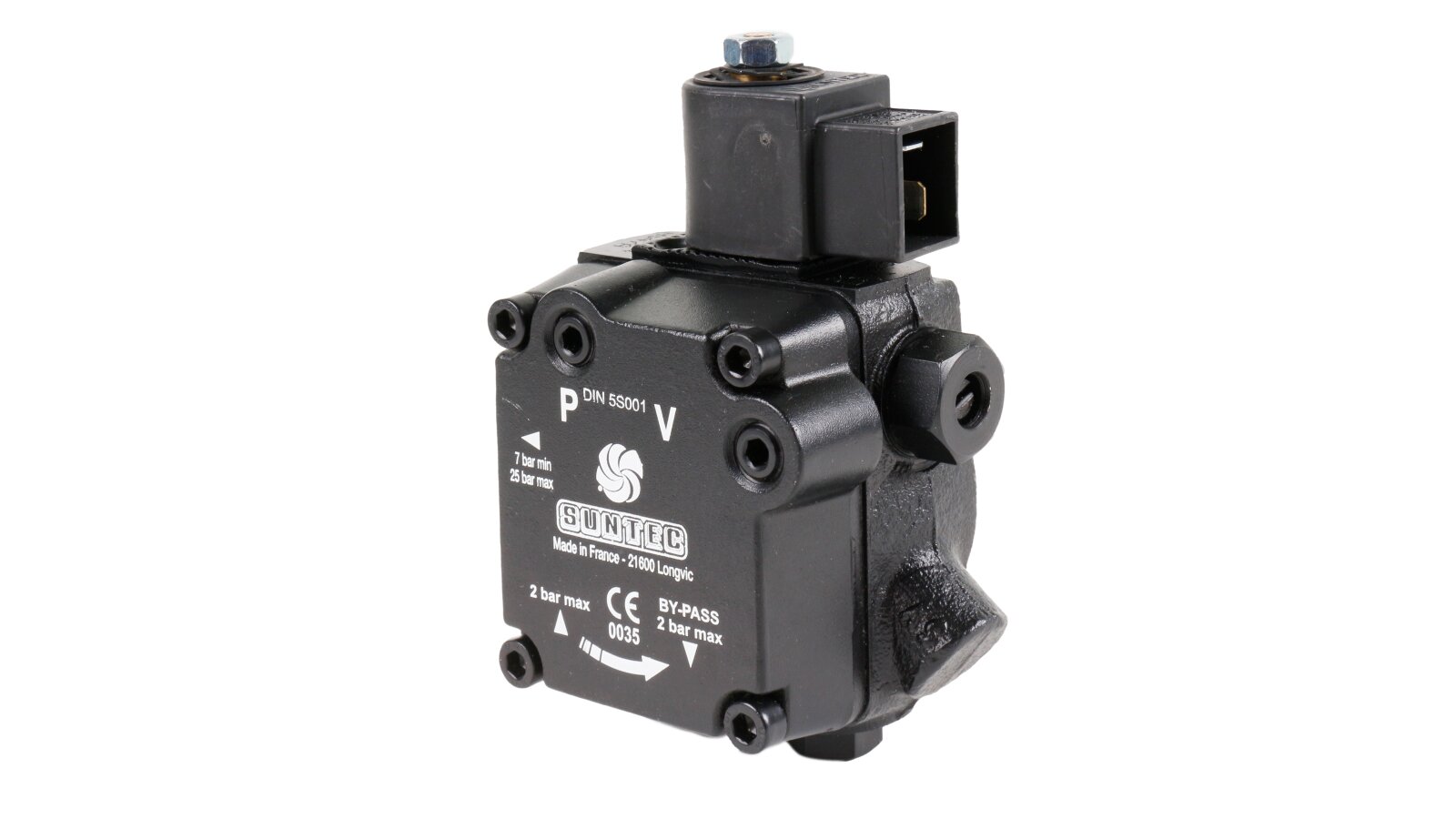

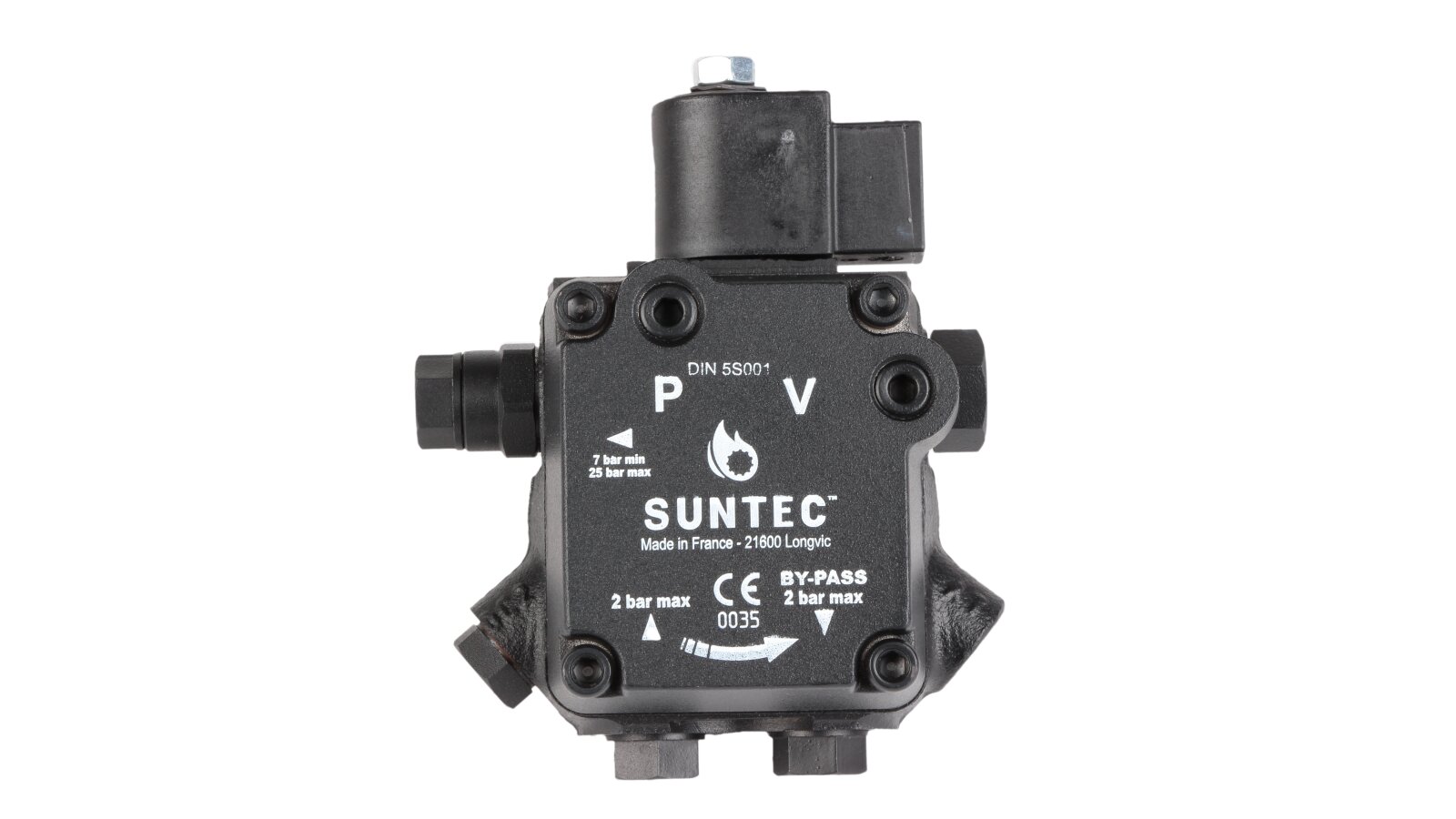

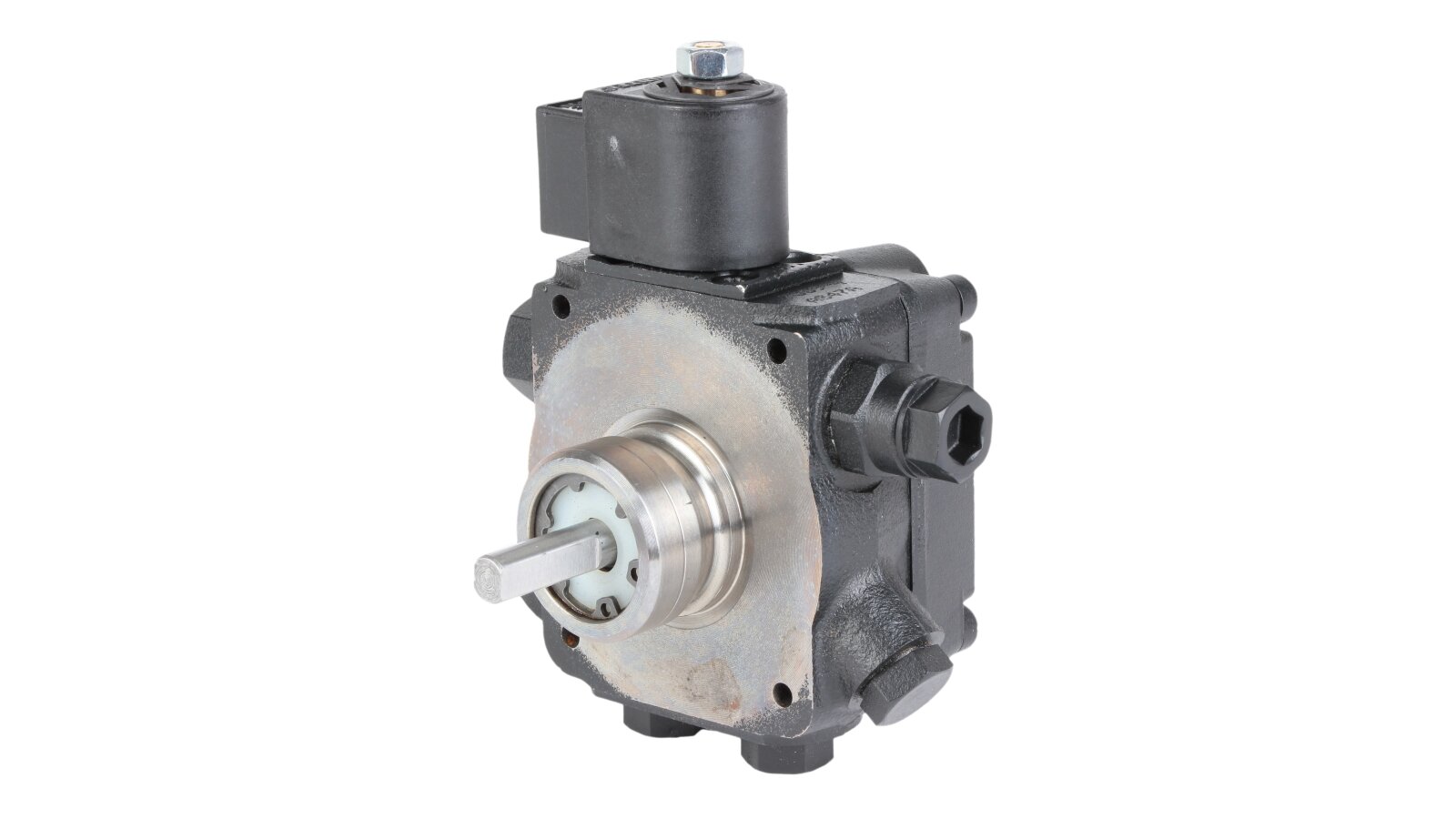

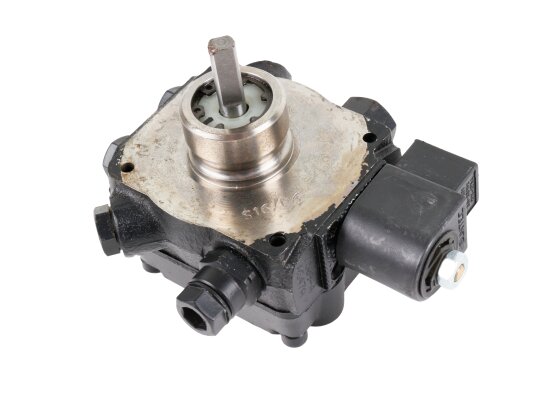

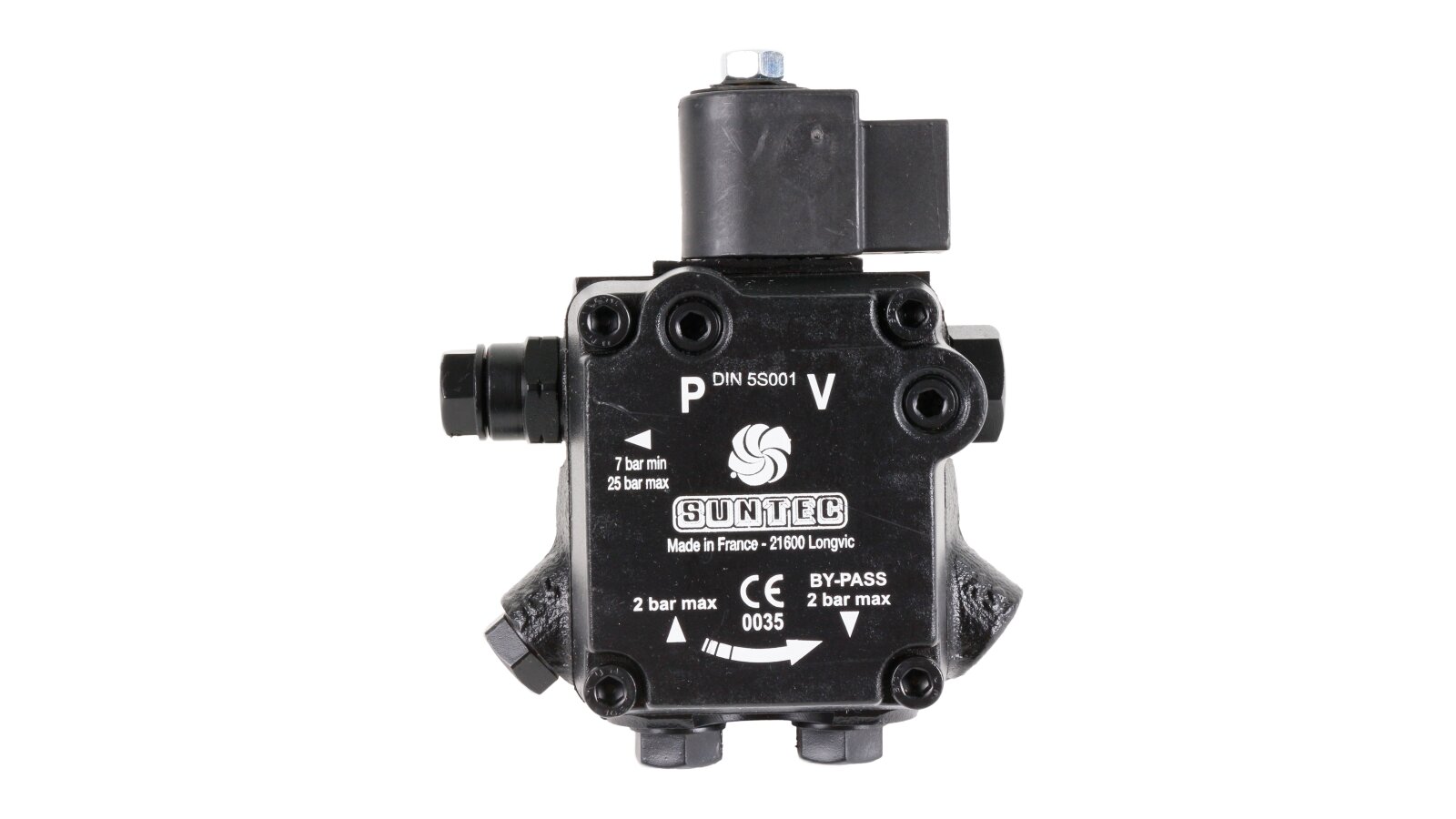

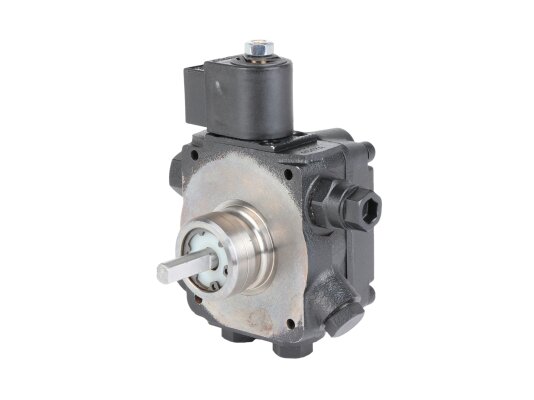

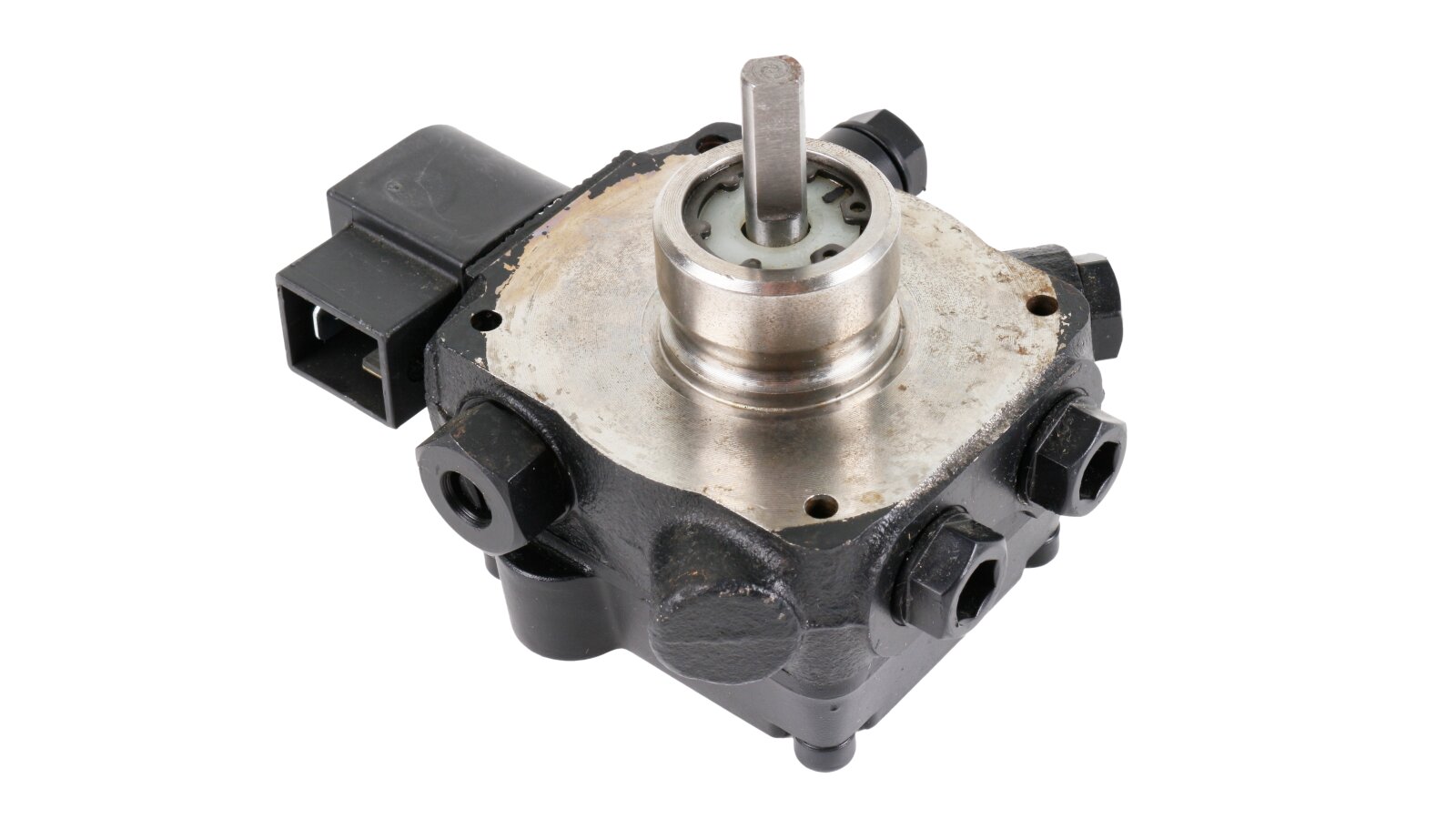

Burner Pump Suntec AS 47 A 7509 4P 0700

Suntec
AED 1,000
  1. Oil Burner Pumps

Description

The Suntec AS 47 A 7509 4P 0700 pump is used to equip low-power burners that consume diesel fuel. This equipment is in demand when assembling heating systems in small domestic and commercial premises. The built-in electromagnetic valve automates the supply of diesel fuel to the nozzle. The capacity is 39 l/hour at a pressure of 11 atmospheres.

Device and features

  • The key element of the pump is a gear mechanism that moves fuel to the nozzle. Before entering the gear pair, diesel fuel passes through a mesh filter with a hole size of 150 µm, being cleaned of coarse mechanical particles, which helps protect the working unit from breakage and jamming.

  • Recommendation! It is recommended to periodically wash the mesh insert and replace the cover gasket for stable operation of the pump and to avoid loss of productivity.

  • The slide valve regulates the fuel supply pressure. Adjustment actions are carried out using a screw on the body. The pressure range on the nozzle: 7-14 atmospheres.

  • The electromagnetic valve closes the diesel fuel drain line. The Suntec pump is installed in one-pipe or two-pipe systems. When using a single-pipe system, remove the bypass plug and close the drain hole.

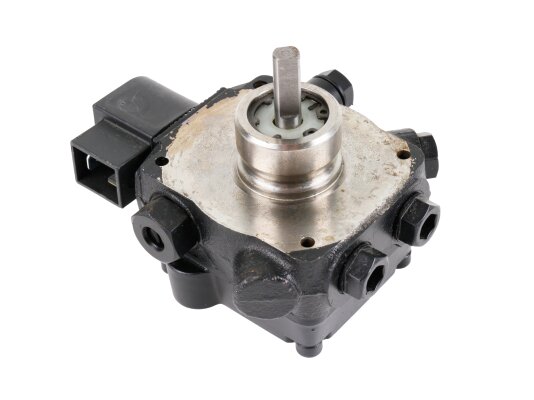

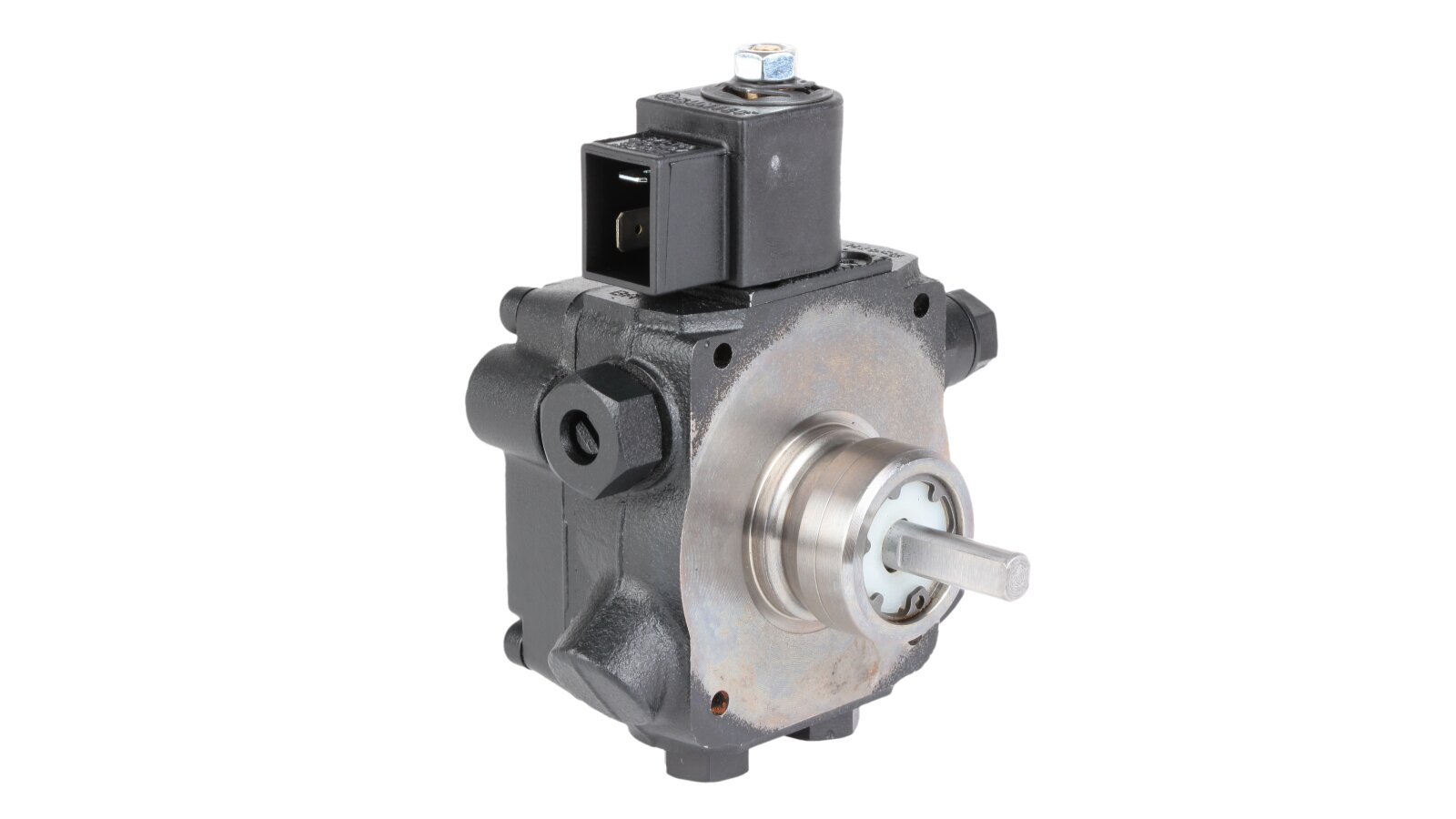

  • The pump body has reliable protection against dust and splashes of water inside the device (class IP 54). A flange connection of Ø54 mm is used for installation. It is possible to connect measuring instruments to a standard thread.

Advantages:

  • electromagnetic valve for automatic feed control;

  • high performance;

  • filter for removing large impurities and long service life of gears;

  • durable housing with protection from external influences IP 54;

  • easy adjustment of feed pressure;

  • the ability to select an assembly scheme (one-pipe or two-pipe system).

The Suntec AS 47 A 7509 4P 0700 pump is used for burners of many companies. A fine filter can be ordered separately, which will extend the useful service life of the nozzles.

Characteristics

Maximum pressure of the solenoid valve: 25 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AS: pressure regulation and bypass solenoid valvePerformance for stage 2 at 11 bar and 5 cSt viscosity: 39 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barOperating viscosity: from 2 to 12 mm²/sNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.1 N·mType of pumped liquid: dieselDegree of protection: IP54
